basic gates

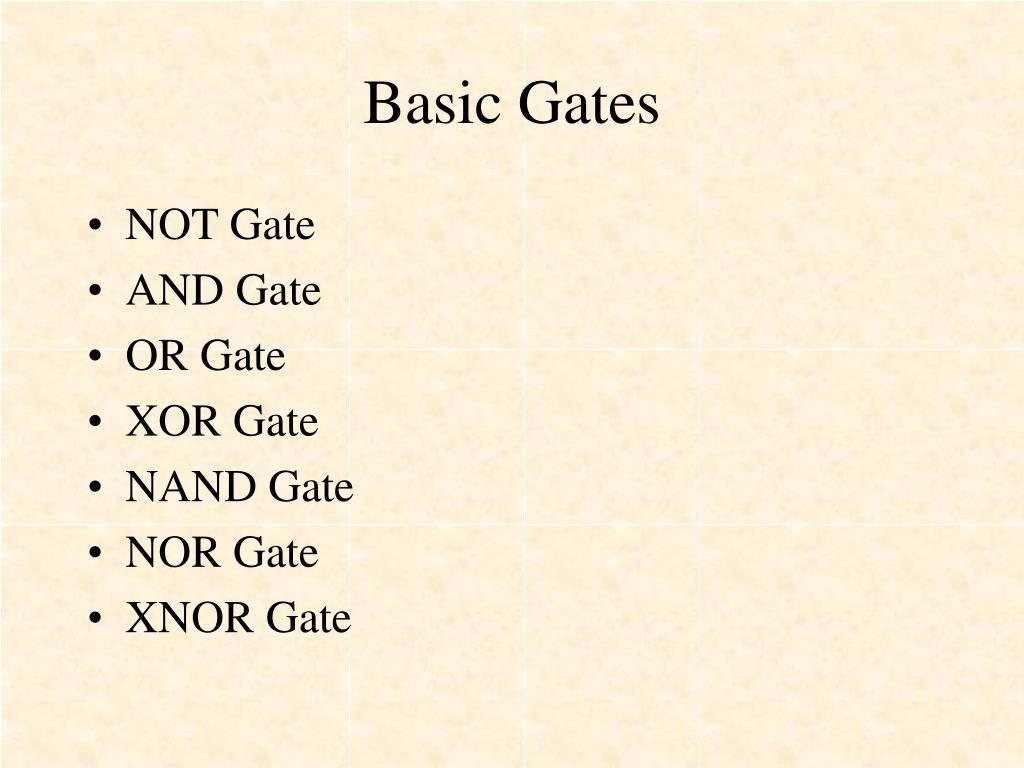

Basic Gates
  • NOT Gate
  • AND Gate
  • OR Gate
  • XOR Gate
  • NAND Gate
  • NOR Gate
  • XNOR Gate
slide3
Y

X

0

1

1

0

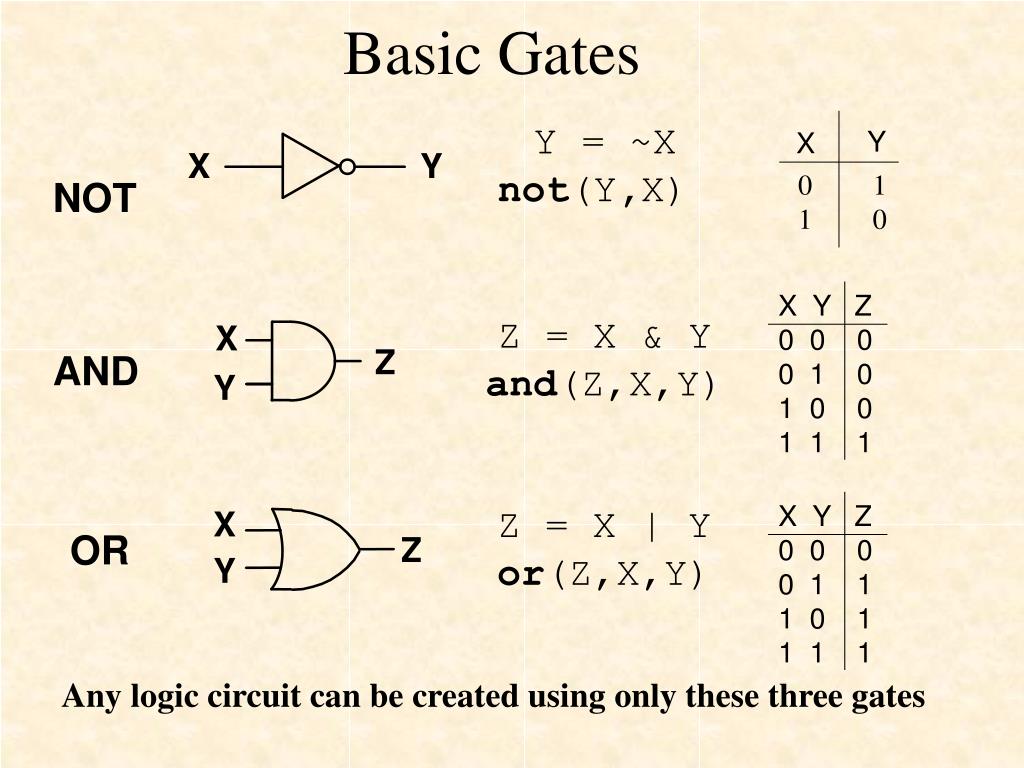

Basic Gates

Y = ~X

not(Y,X)

X

Y

NOT

X Y Z

0 0 0

0 1 0

1 0 0

1 1 1

Z = X & Y

and(Z,X,Y)

X

AND

Z

Y

X Y Z

0 0 0

0 1 1

1 0 1

1 1 1

Z = X | Y

or(Z,X,Y)

X

OR

Z

Y

Any logic circuit can be created using only these three gates

not gate

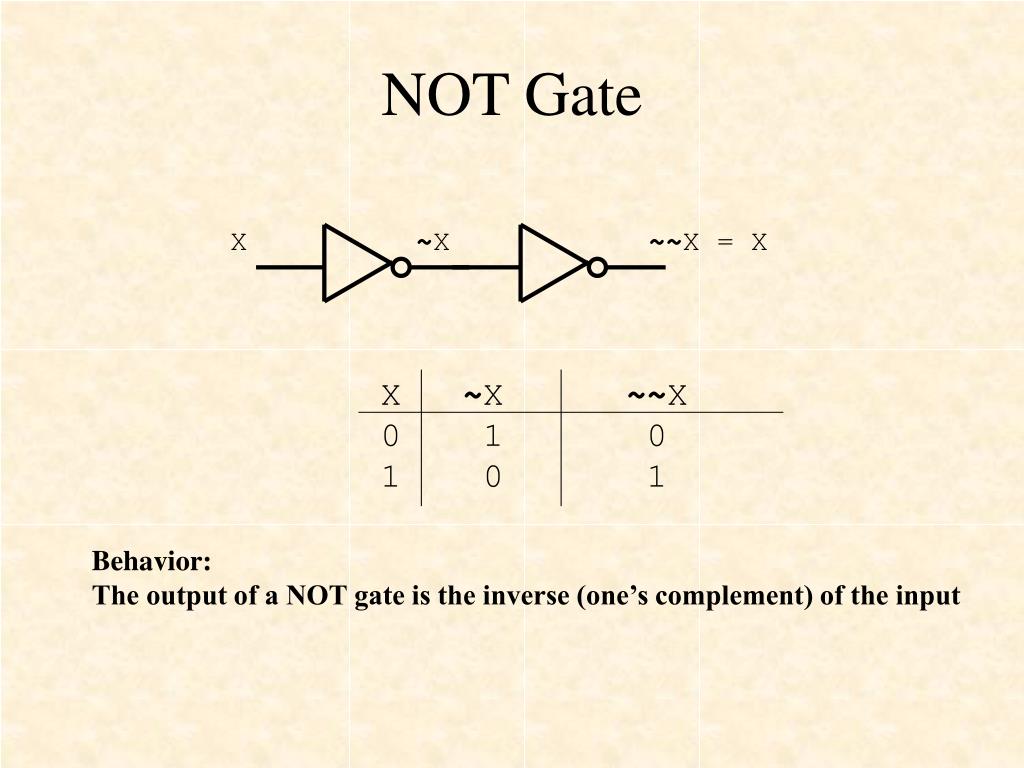

NOT Gate

X

~X

~~X = X

X ~X ~~X

0 1 0

1 0 1

Behavior:

The output of a NOT gate is the inverse (one’s complement) of the input

and gate

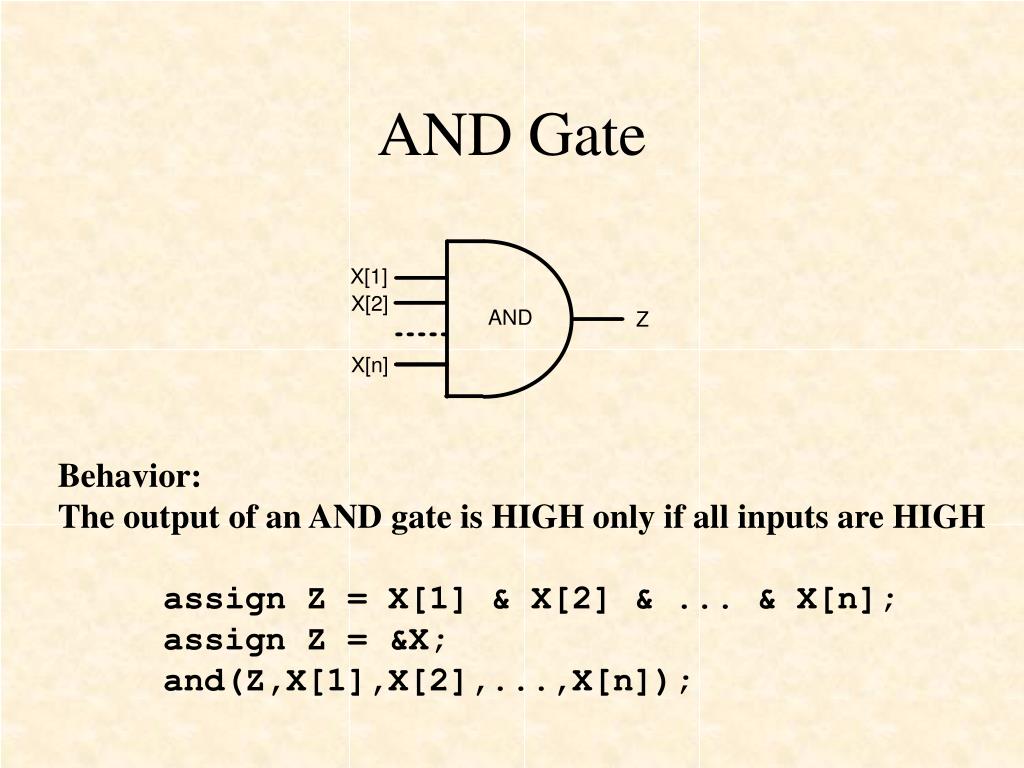

AND Gate

Behavior:

The output of an AND gate is HIGH only if all inputs are HIGH

assign Z = X[1] & X[2] & ... & X[n];

assign Z = &X;

and(Z,X[1],X[2],...,X[n]);

4 input and gate

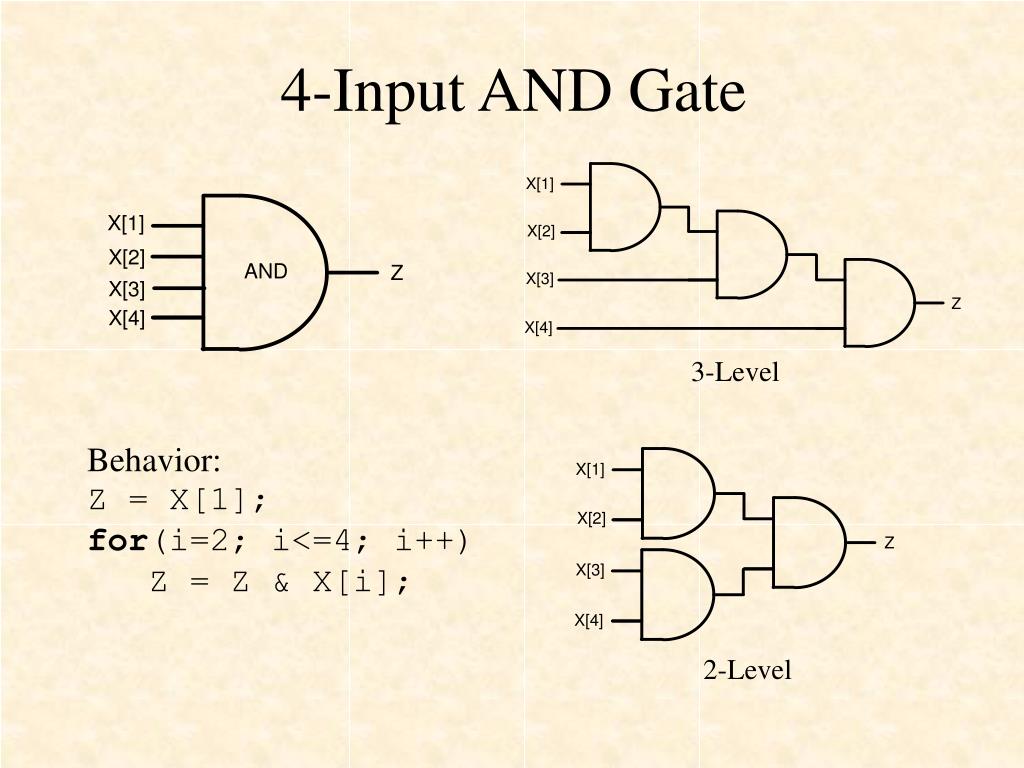

4-Input AND Gate

3-Level

Behavior:

Z = X[1];

for(i=2; i<=4; i++)

Z = Z & X[i];

2-Level

or gate
OR Gate

Behavior:

The output of an OR gate is LOW only if all inputs are LOW

assign Z = X[1] | X[2] | ... | X[n];

assign Z = |X;

or(Z,X[1],X[2],...,X[n]);

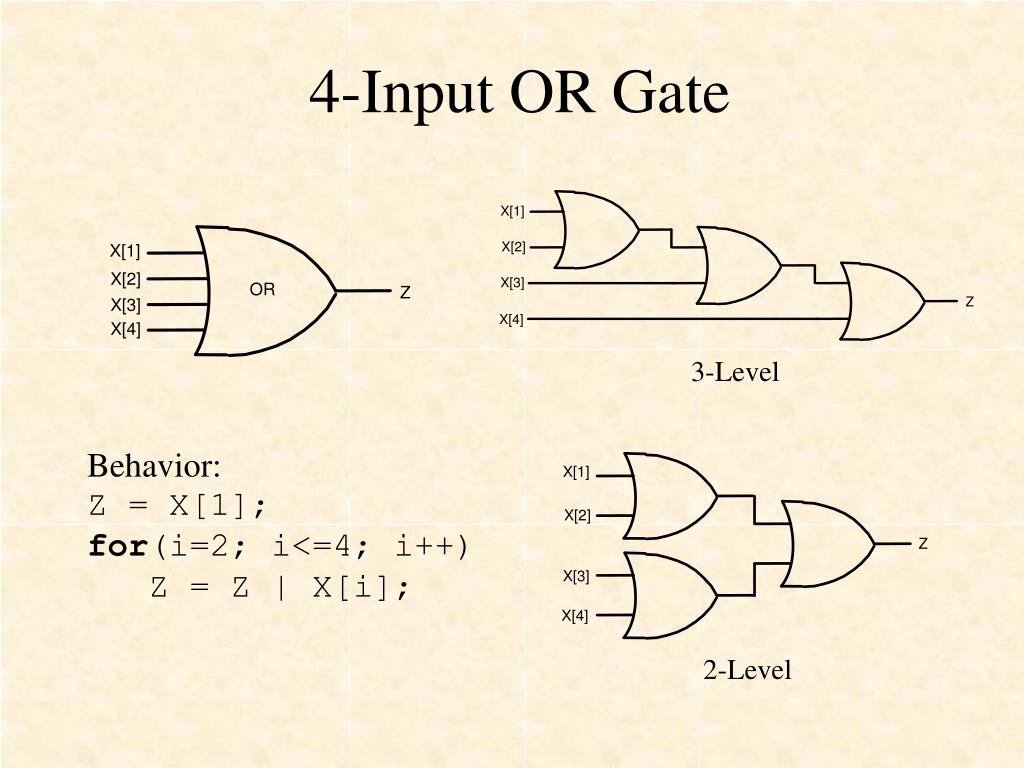

4 input or gate
4-Input OR Gate

3-Level

Behavior:

Z = X[1];

for(i=2; i<=4; i++)

Z = Z | X[i];

2-Level

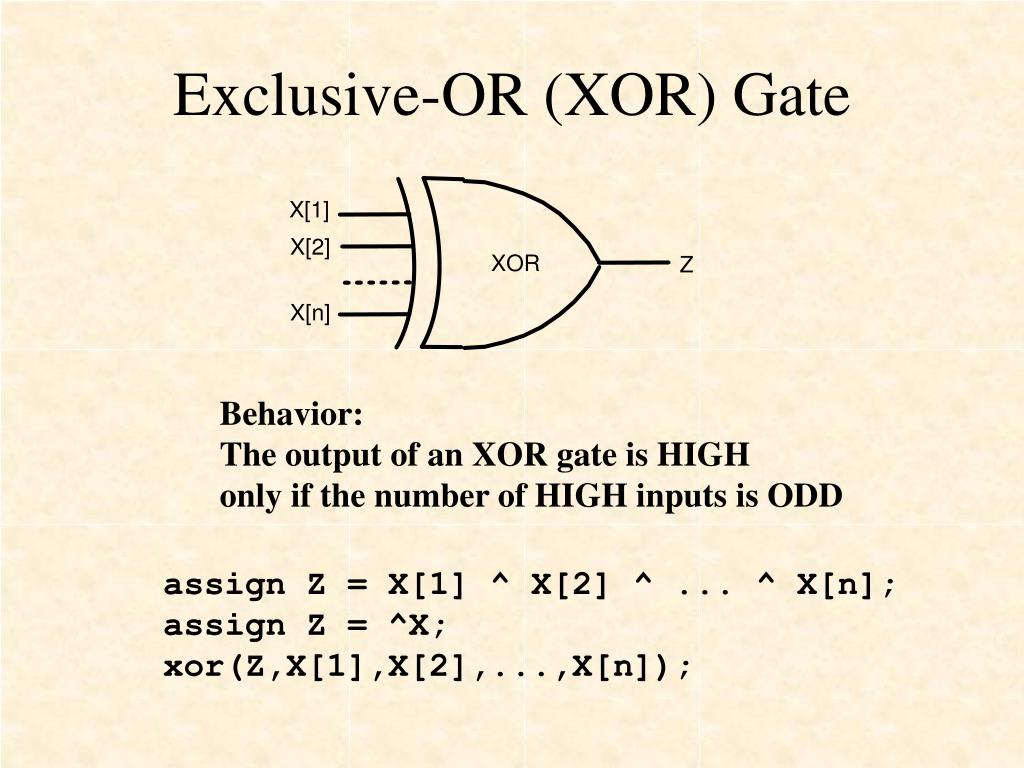

exclusive or xor gate
Exclusive-OR (XOR) Gate

Behavior:

The output of an XOR gate is HIGH

only if the number of HIGH inputs is ODD

assign Z = X[1] ^ X[2] ^ ... ^ X[n];

assign Z = ^X;

xor(Z,X[1],X[2],...,X[n]);

2 input xor gate
X

Z

Y

2-Input XOR Gate

XOR

X Y Z

0 0 0

0 1 1

1 0 1

1 1 0

Z = X ^ Y

xor(Z,X,Y)

Note:

if Y = 0, Z = X

if Y = 1, Z = ~X

Therefore, an XOR gate can be used

as a controlled inverter

4 input xor gate
4-Input XOR Gate

3-Level

Behavior:

Z = X[1];

for(i=2; i<=4; i++)

Z = Z ^ X[i];

2-Level

Note: Z = 1 if the number of 1 inputs in ODD

exclusive nor gate xnor not xor
Exclusive-NOR Gate XNOR (NOT – XOR)

Behavior:

The output of an XNOR gate is HIGH

only if the number of HIGH inputs is EVEN

assign Z = ~(X[1] ^ X[2] ^ ... ^ X[n]);

assign Z = ~^X;

xnor(Z,X[1],X[2],...,X[n]);

2 input xnor gate
2-Input XNOR Gate

XNOR

X Y Z

0 0 1

0 1 0

1 0 0

1 1 1

X

Z

Y

Z = ~(X ^ Y)

Z = X ~^ Y

xnor(Z,X,Y)

Note: Z = 1 if X = Y

Therefore, an XNOR gate can be used

as an equality detector

nand gate not and

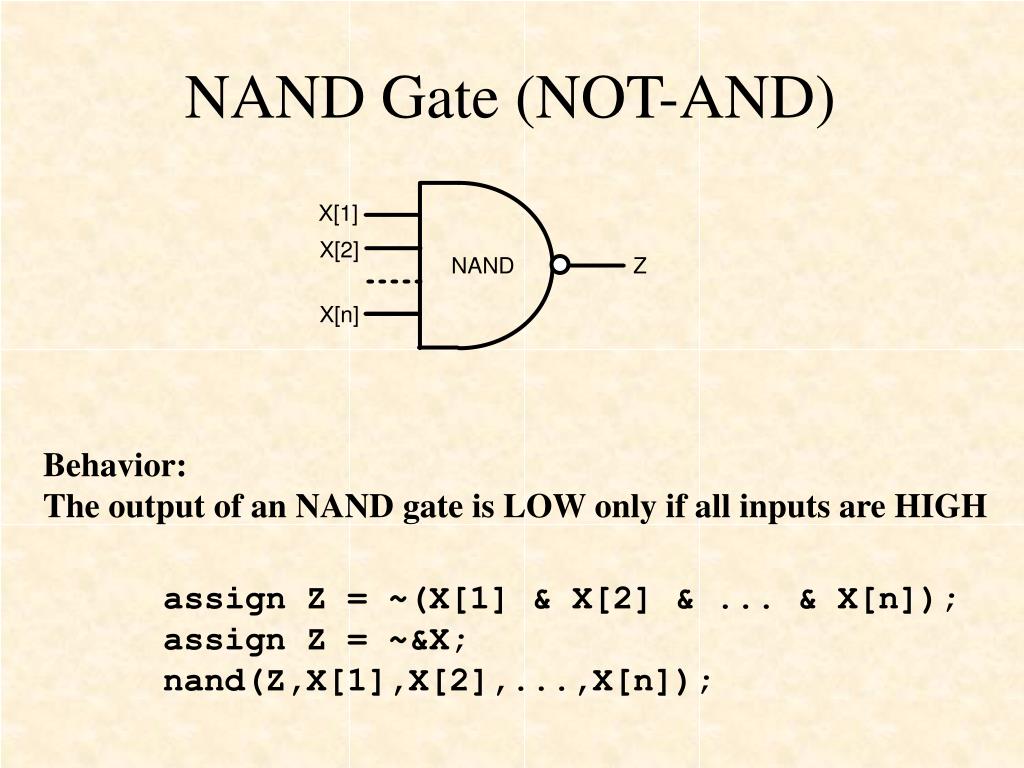

NAND Gate (NOT-AND)

Behavior:

The output of an NAND gate is LOW only if all inputs are HIGH

assign Z = ~(X[1] & X[2] & ... & X[n]);

assign Z = ~&X;

nand(Z,X[1],X[2],...,X[n]);

2 input nand gate

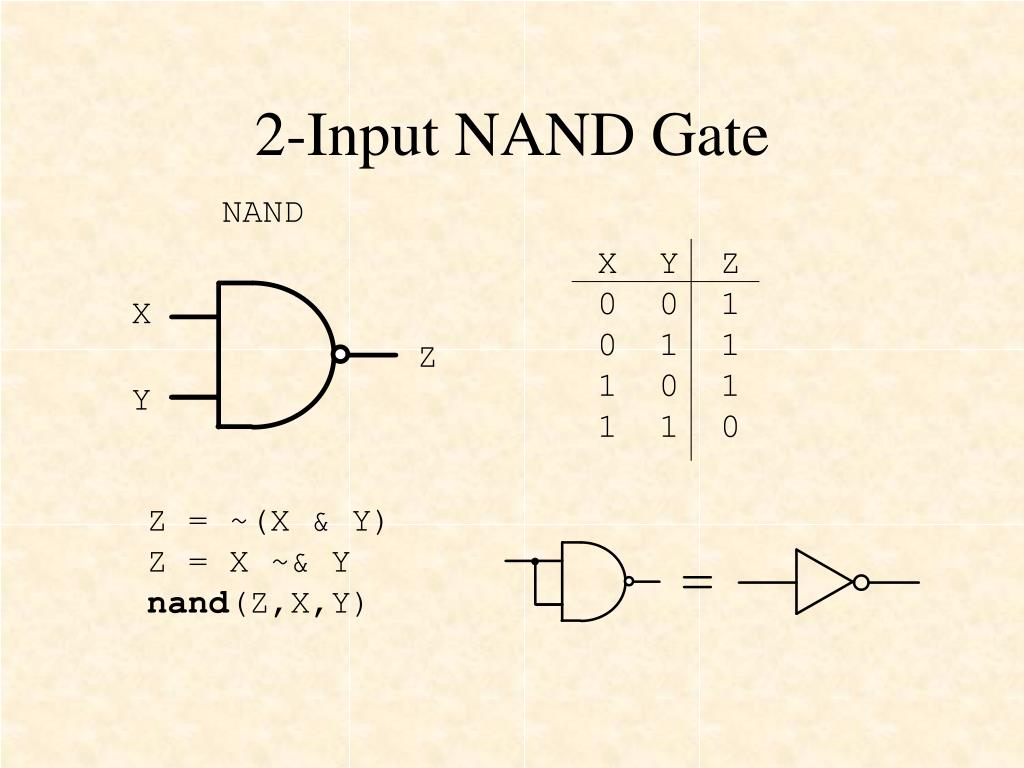

2-Input NAND Gate

NAND

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

X

Z

Y

Z = ~(X & Y)

Z = X ~& Y

nand(Z,X,Y)

nor gate not or

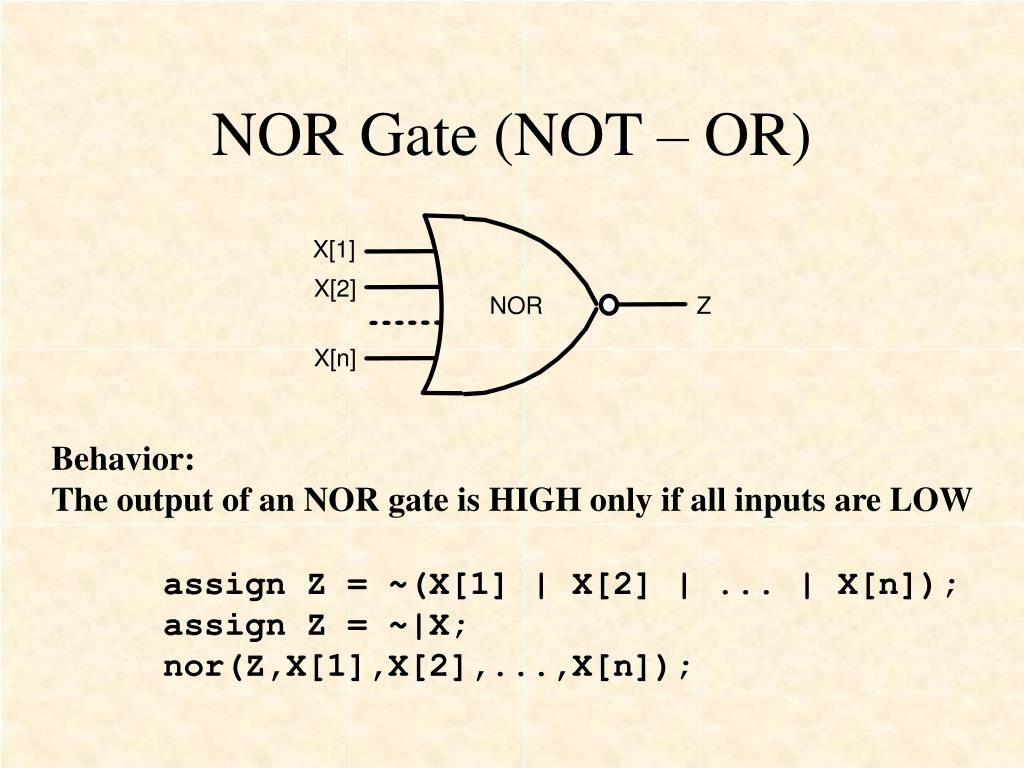

NOR Gate (NOT – OR)

Behavior:

The output of an NOR gate is HIGH only if all inputs are LOW

assign Z = ~(X[1] | X[2] | ... | X[n]);

assign Z = ~|X;

nor(Z,X[1],X[2],...,X[n]);

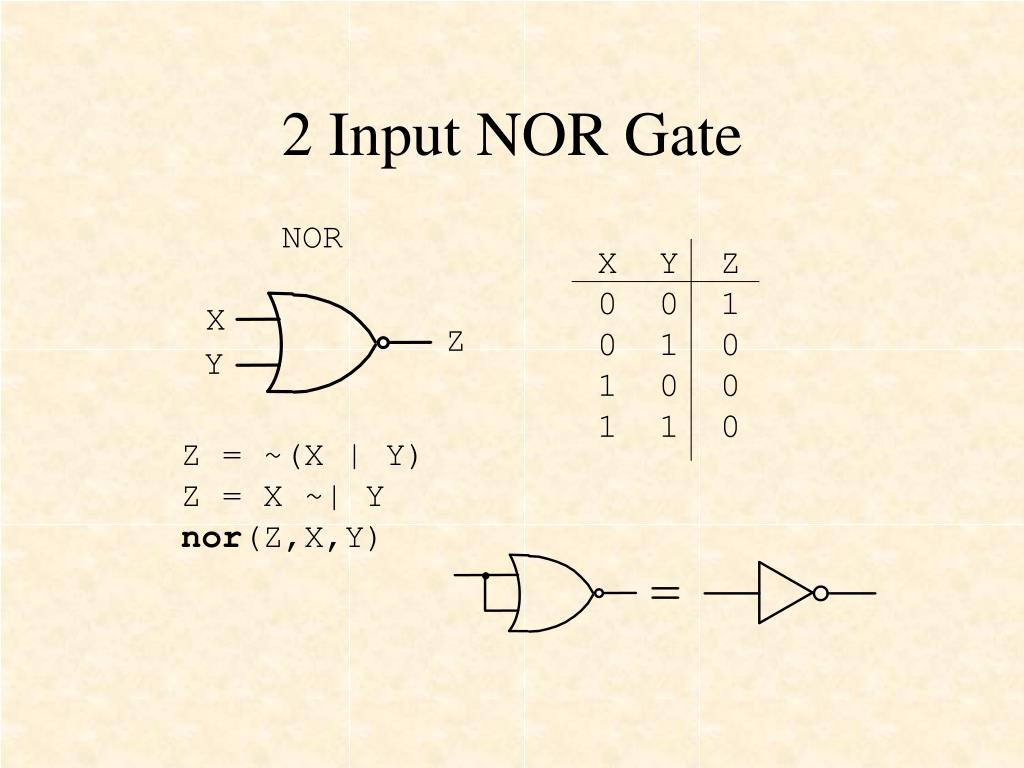

2 input nor gate
2 Input NOR Gate

NOR

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

X

Z

Y

Z = ~(X | Y)

Z = X ~| Y

nor(Z,X,Y)

slide18

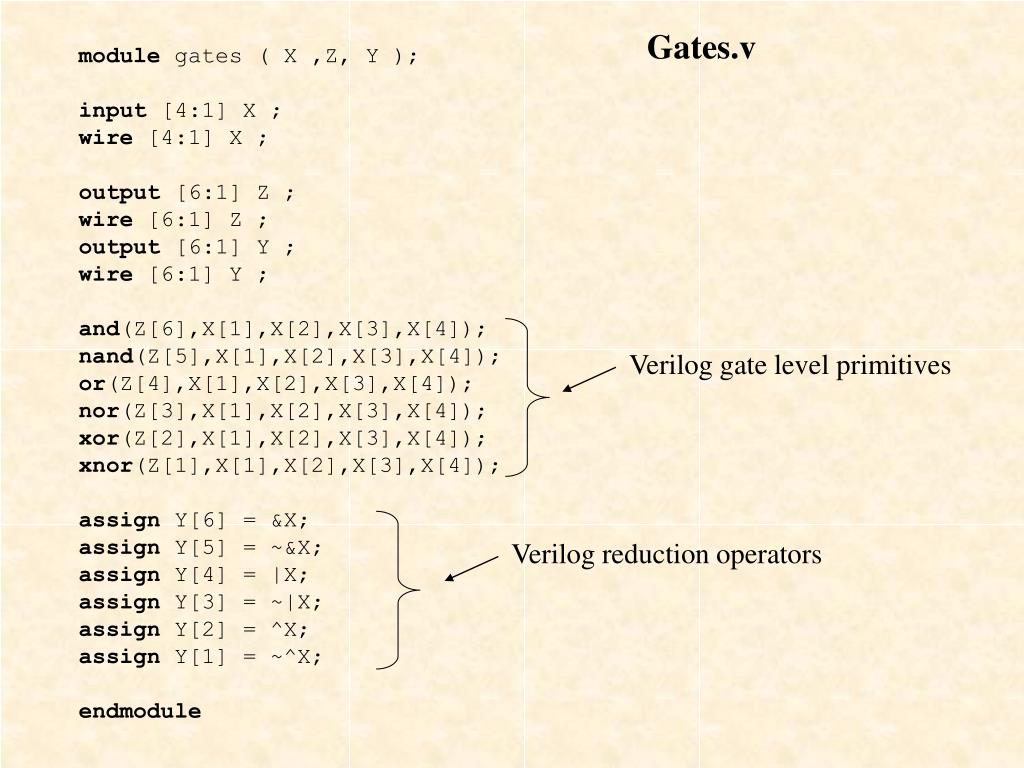

Gates.v

module gates ( X ,Z, Y );

input [4:1] X ;

wire [4:1] X ;

output [6:1] Z ;

wire [6:1] Z ;

output [6:1] Y ;

wire [6:1] Y ;

and(Z[6],X[1],X[2],X[3],X[4]);

nand(Z[5],X[1],X[2],X[3],X[4]);

or(Z[4],X[1],X[2],X[3],X[4]);

nor(Z[3],X[1],X[2],X[3],X[4]);

xor(Z[2],X[1],X[2],X[3],X[4]);

xnor(Z[1],X[1],X[2],X[3],X[4]);

assign Y[6] = &X;

assign Y[5] = ~&X;

assign Y[4] = |X;

assign Y[3] = ~|X;

assign Y[2] = ^X;

assign Y[1] = ~^X;

endmodule

Verilog gate level primitives

Verilog reduction operators

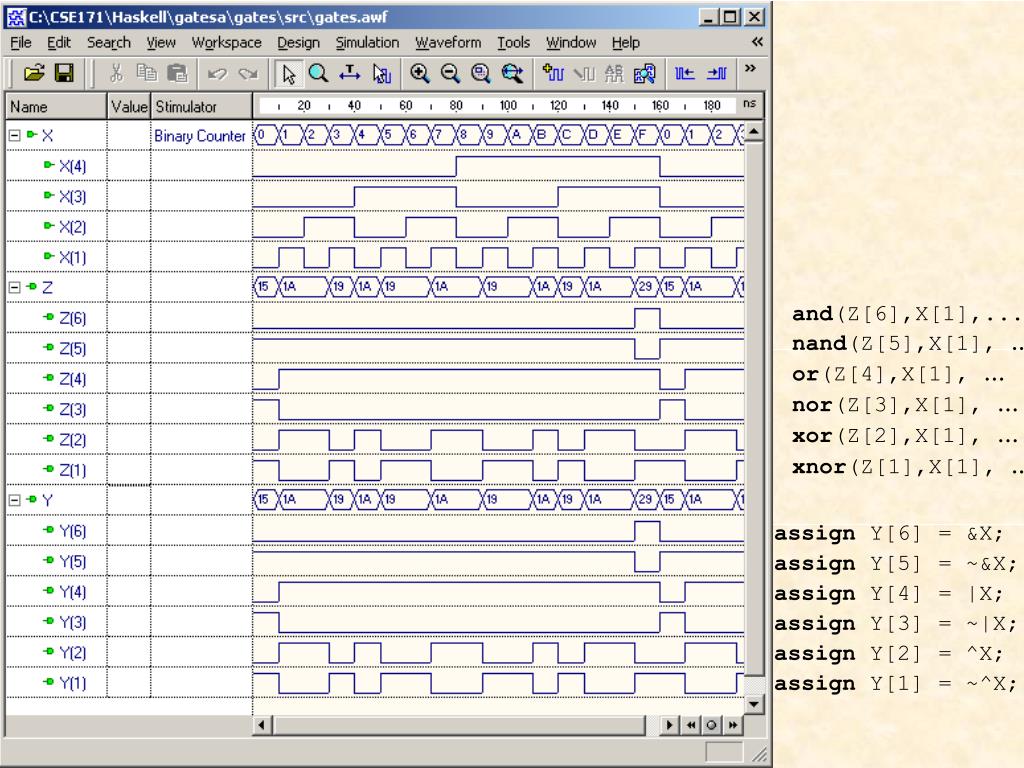

slide19
and(Z[6],X[1],...

nand(Z[5],X[1], ...

or(Z[4],X[1], ...

nor(Z[3],X[1], ...

xor(Z[2],X[1], ...

xnor(Z[1],X[1], ...

assign Y[6] = &X;

assign Y[5] = ~&X;

assign Y[4] = |X;

assign Y[3] = ~|X;

assign Y[2] = ^X;

assign Y[1] = ~^X;

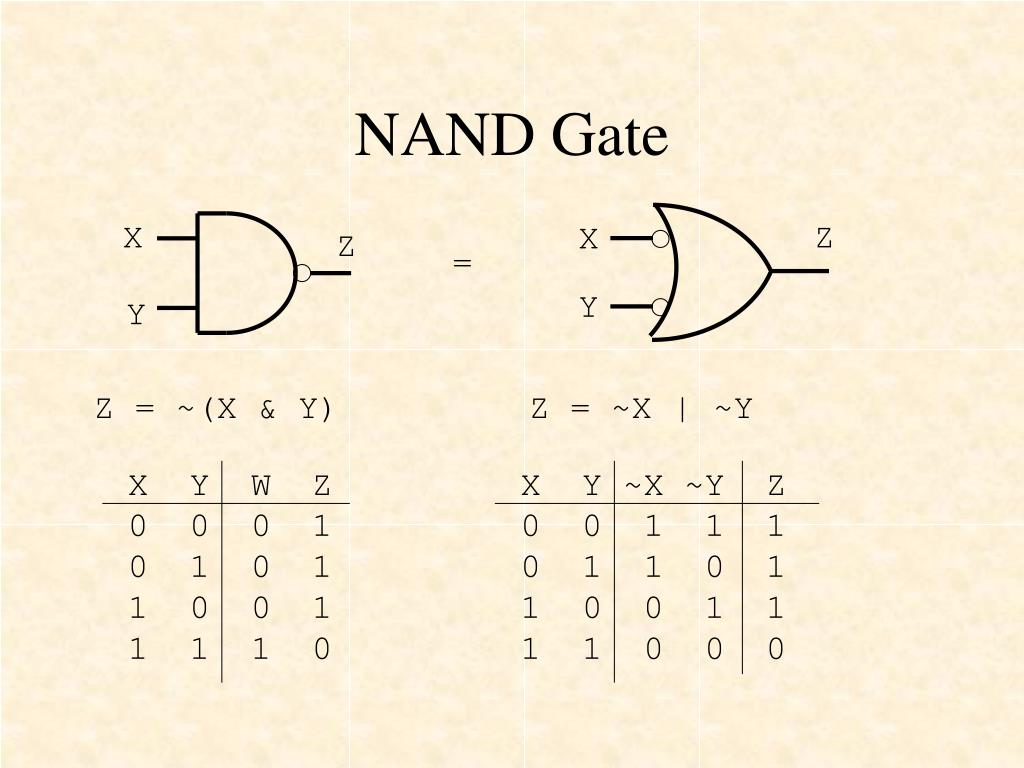

nand gate
NAND Gate

X

Z

X

Z

=

Y

Y

Z = ~(X & Y)

Z = ~X | ~Y

X Y W Z

0 0 0 1

0 1 0 1

1 0 0 1

1 1 1 0

X Y ~X ~Y Z

0 0 1 1 1

0 1 1 0 1

1 0 0 1 1

1 1 0 0 0

de morgan s theorem 1

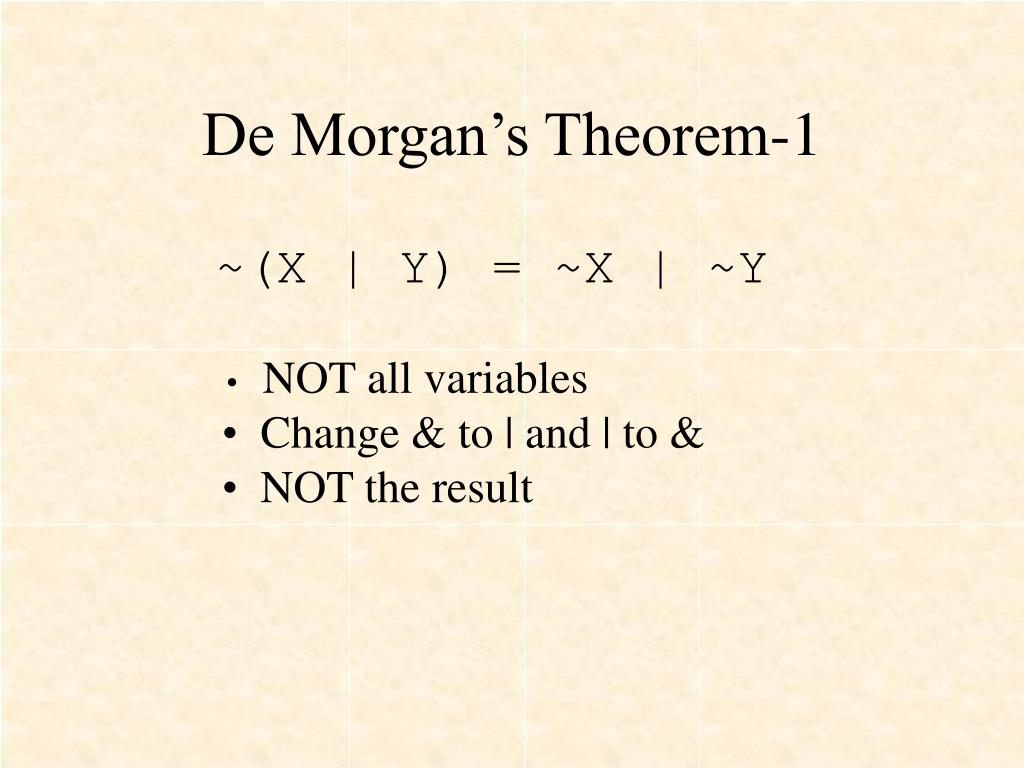

De Morgan’s Theorem-1

~(X | Y) = ~X | ~Y

  • NOT all variables
  • Change & to | and | to &
  • NOT the result
nor gate
NOR Gate

X

X

Z

Z

Y

Y

Z = ~(X | Y)

Z = ~X & ~Y

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

X Y ~X ~Y Z

0 0 1 1 1

0 1 1 0 0

1 0 0 1 0

1 1 0 0 0

de morgan s theorem 2
De Morgan’s Theorem-2

~(X | Y) = ~X & ~Y

  • NOT all variables
  • Change & to | and | to &
  • NOT the result
de morgan s theorem
De Morgan’s Theorem
  • NOT all variables
  • Change & to | and | to &
  • NOT the result
  • --------------------------------------------
  • ~X | ~Y = ~(~~X & ~~Y) = ~(X & Y)
  • ~(X & Y) = ~~(~X | ~Y) = ~X | ~Y
  • ~X & ~Y = ~(~~X | ~~Y) = ~(X | Y)
  • ~(X | Y) = ~~(~X & ~Y) = ~X & ~Y
slide25
Behavior of multiple input gates

module gates ( X ,Z);

input [4:1] X ;

wire [4:1] X ;

output [1:6] Z ;

reg [1:6] Z ;

integer i;

// 4-input and gate

always @(X)

begin

Z[1] = X[1];

for(i=2; i<=4; i=i+1)

Z[1] = Z[1] & X[i];

end

slide26
Behavior of multiple input gates

// 4-input nand gate -- DeMorgan's Theorem

always @(X)

begin

Z[2] = ~X[1];

for(i=2; i<=4; i=i+1)

Z[2] = Z[2] | ~X[i];

end

=

slide27
Behavior of multiple input gates

// 4-input or gate

always @(X)

begin

Z[3] = X[1];

for(i=2; i<=4; i=i+1)

Z[3] = Z[3] | X[i];

end

// 4-input nor gate

// DeMorgan's theorem

always @(X)

begin

Z[4] = ~X[1];

for(i=2; i<=4; i=i+1)

Z[4] = Z[4] & ~X[i];

end

slide28
Behavior of multiple input gates

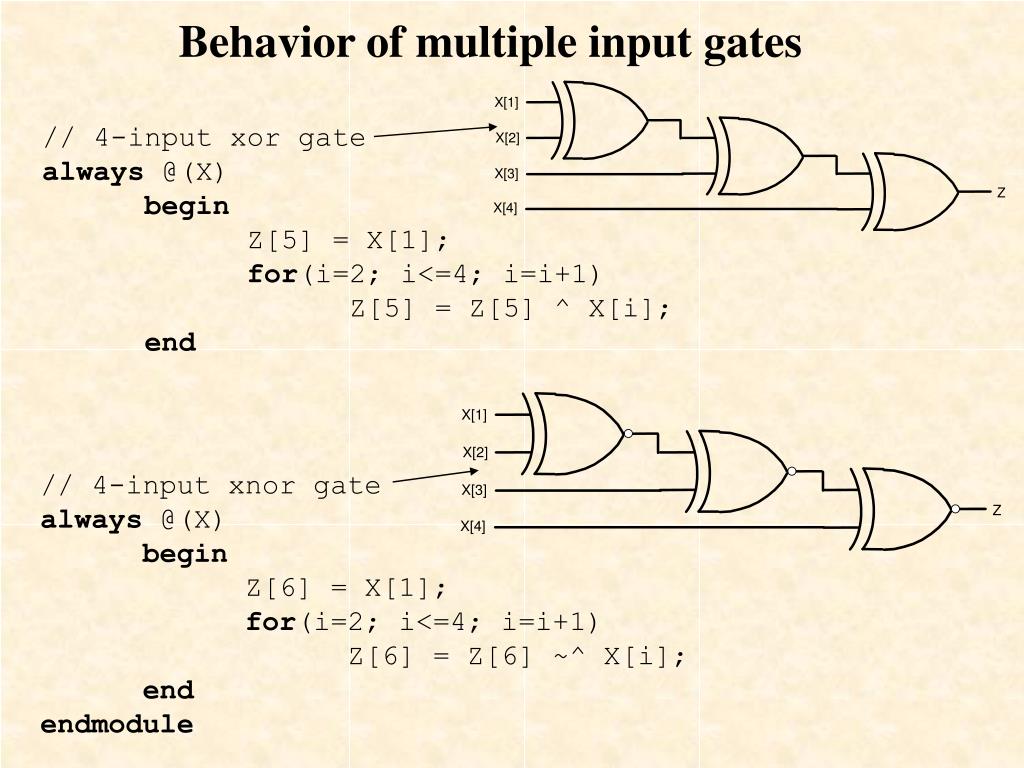

// 4-input xor gate

always @(X)

begin

Z[5] = X[1];

for(i=2; i<=4; i=i+1)

Z[5] = Z[5] ^ X[i];

end

// 4-input xnor gate

always @(X)

begin

Z[6] = X[1];

for(i=2; i<=4; i=i+1)

Z[6] = Z[6] ~^ X[i];

end

endmodule

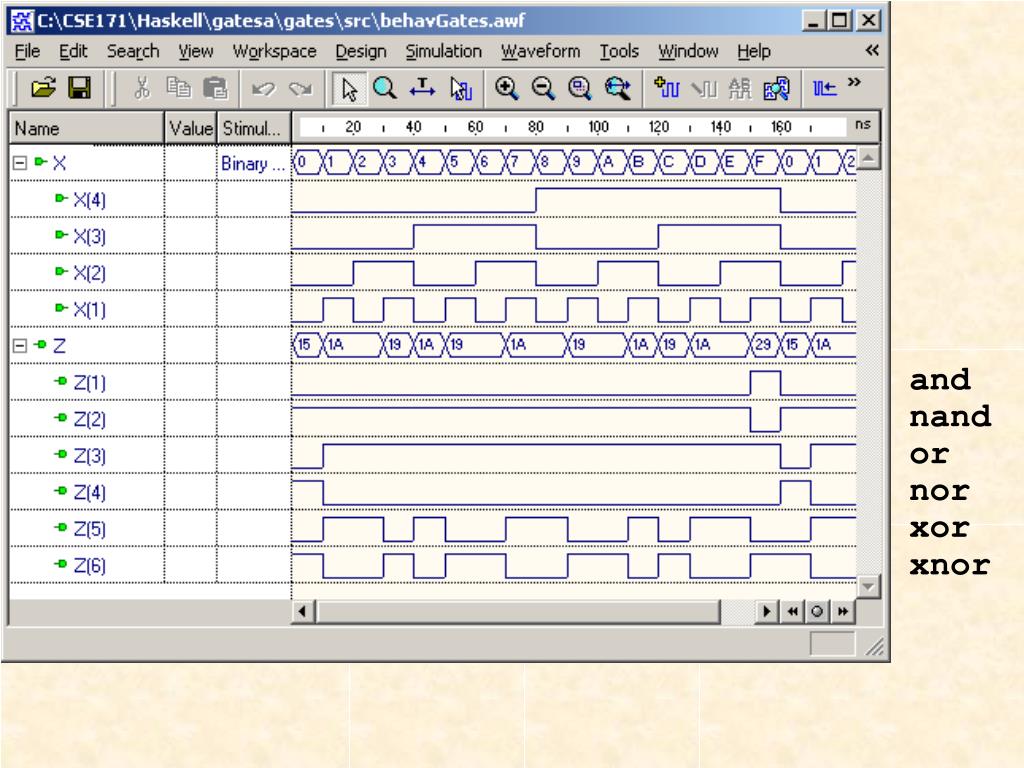

slide29
and

nand

or

nor

xor

xnor

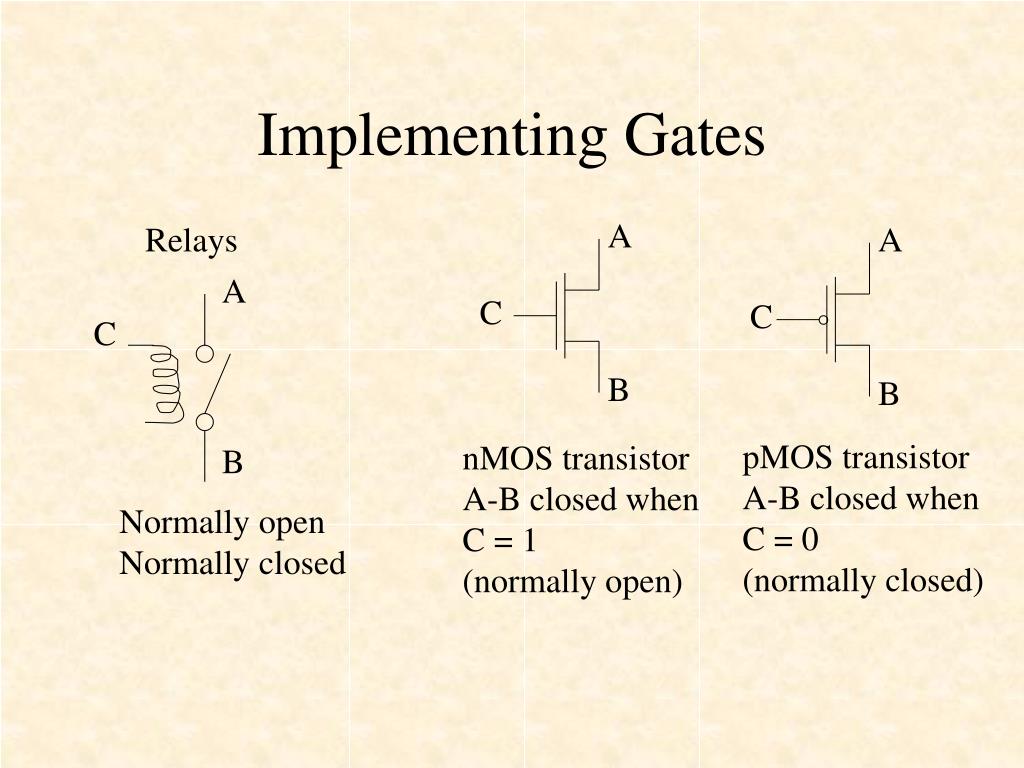

implementing gates
Implementing Gates

A

Relays

A

A

C

C

C

B

B

pMOS transistor

A-B closed when

C = 0

(normally closed)

nMOS transistor

A-B closed when

C = 1

(normally open)

B

Normally open

Normally closed

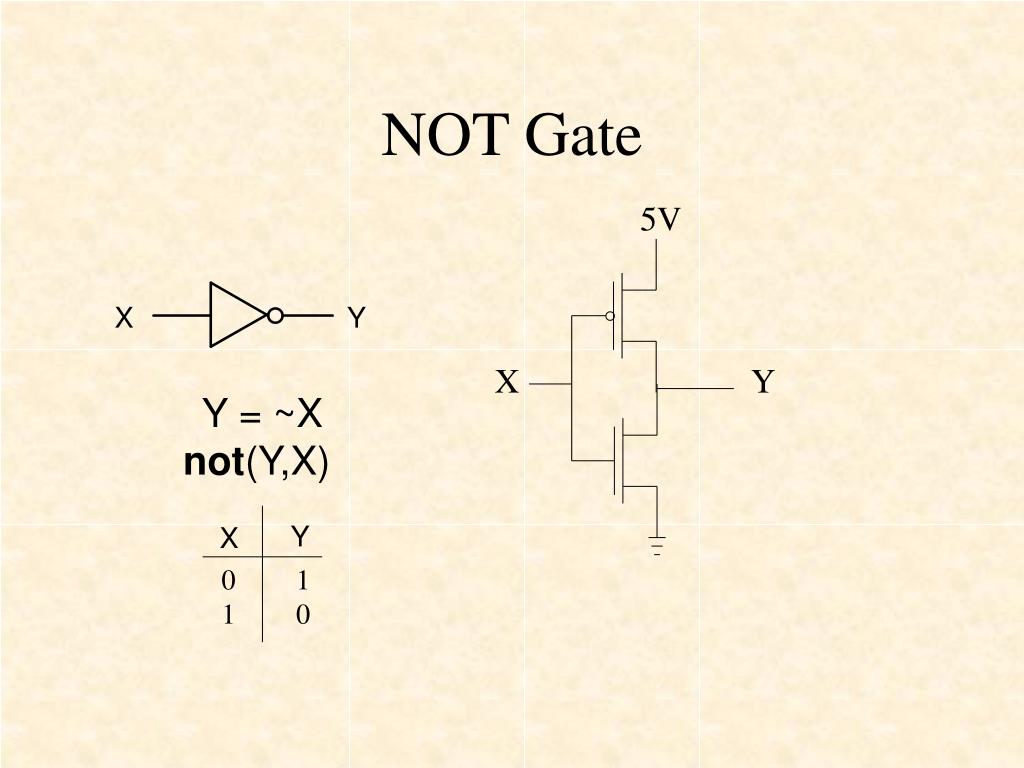

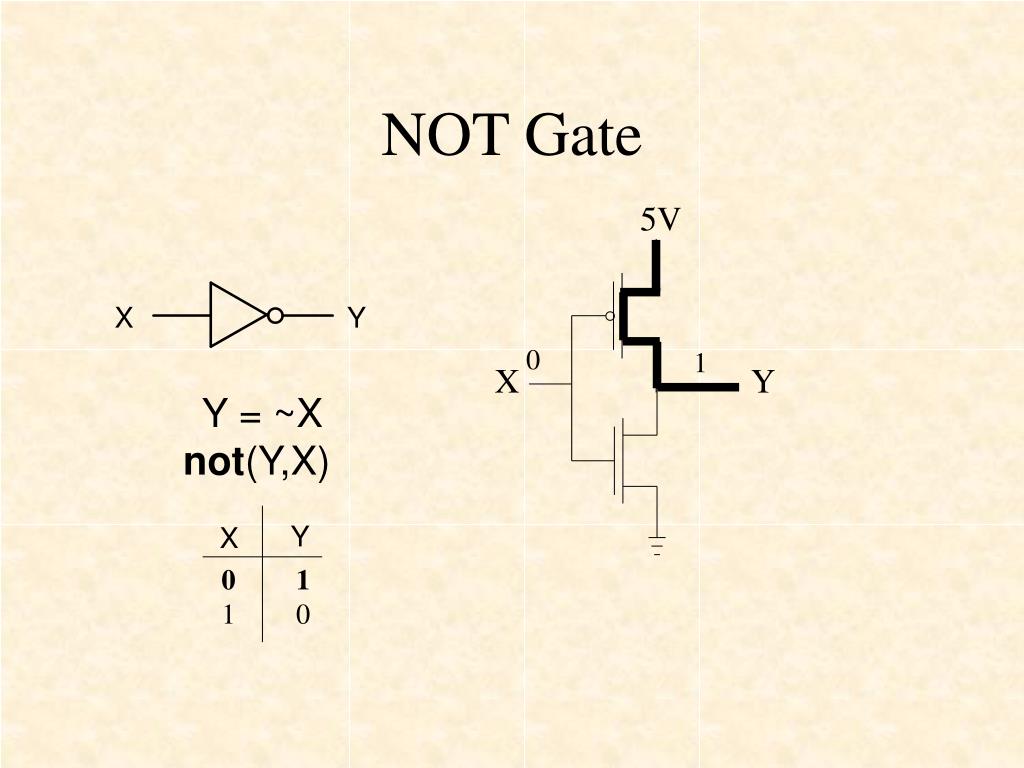

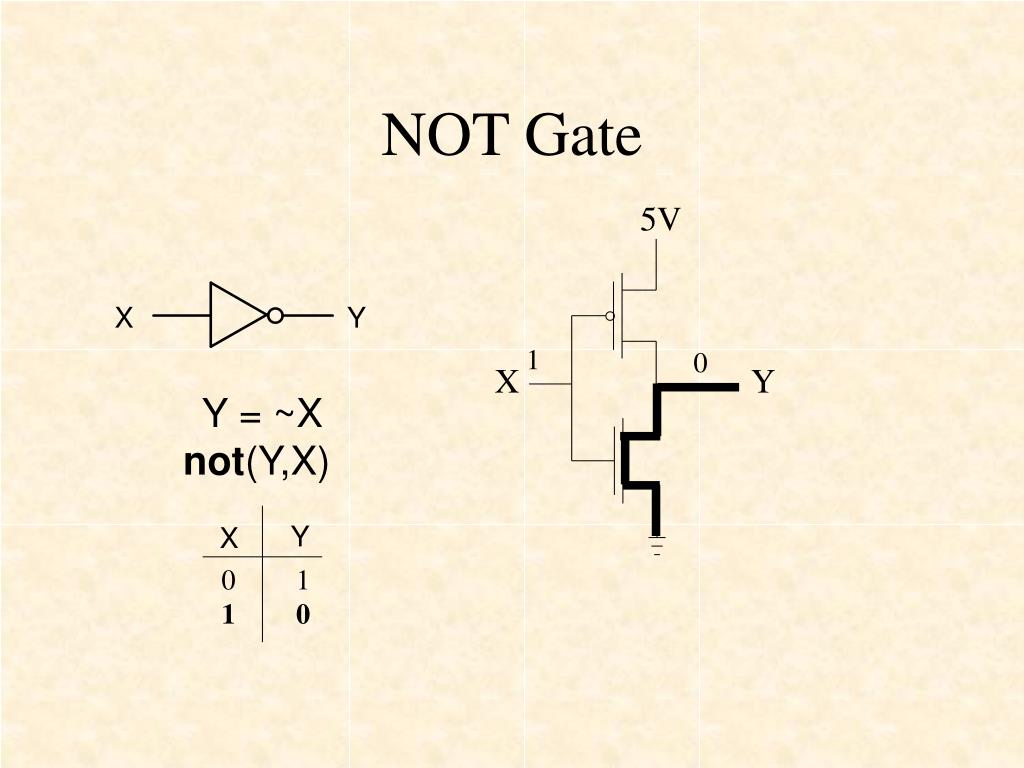

not gate1
5V

Y

X

0

1

1

0

X

Y

NOT Gate

Y

X

Y = ~X

not(Y,X)

not gate2
5V

Y

X

0

1

1

0

X

Y

NOT Gate

Y

X

0

1

Y = ~X

not(Y,X)

not gate3
5V

Y

X

0

1

1

0

X

Y

NOT Gate

Y

X

1

0

Y = ~X

not(Y,X)

nand gate1

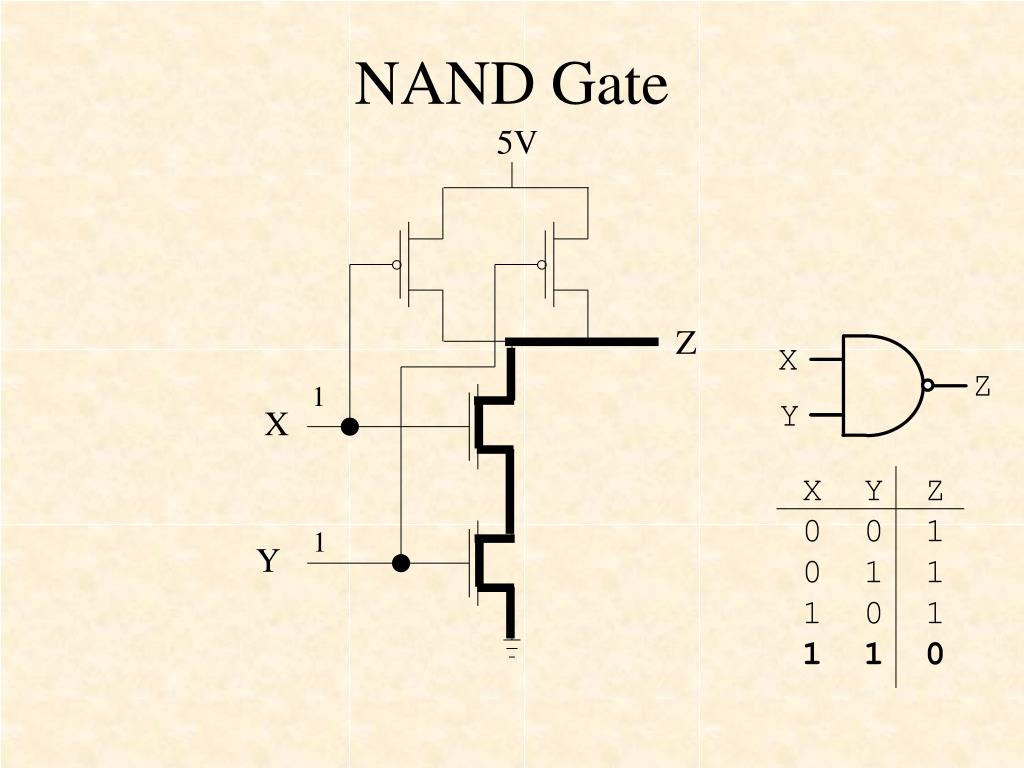

NAND Gate

5V

Z

X

Z

Y

X

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

Y

nand gate2
NAND Gate

5V

Z

X

Z

0

Y

X

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

0

Y

nand gate3
NAND Gate

5V

Z

X

Z

0

Y

X

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

1

Y

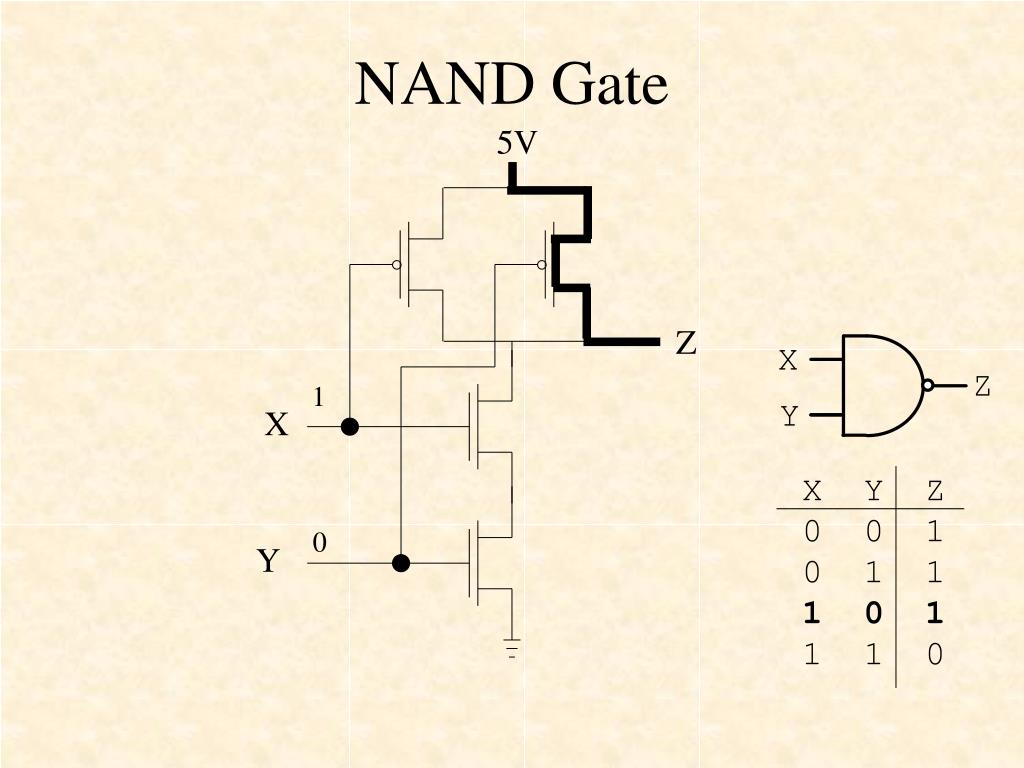

nand gate4
NAND Gate

5V

Z

X

Z

1

Y

X

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

0

Y

nand gate5
NAND Gate

5V

Z

X

Z

1

Y

X

X Y Z

0 0 1

0 1 1

1 0 1

1 1 0

1

Y

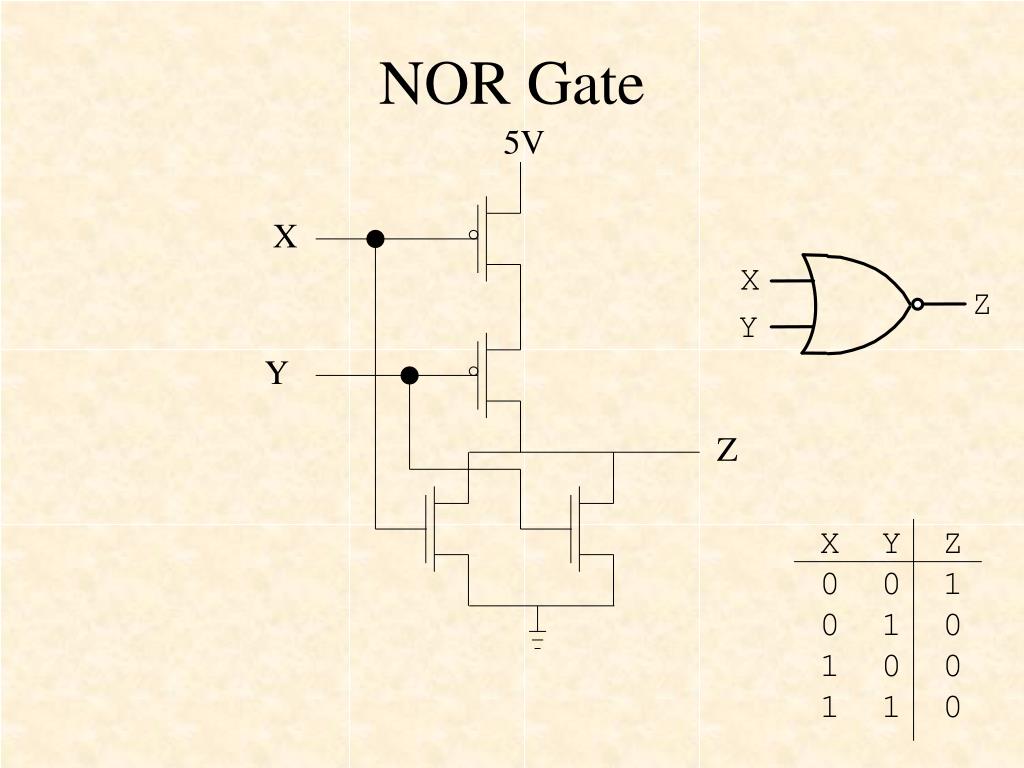

nor gate1
NOR Gate

5V

X

X

Z

Y

Y

Z

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

nor gate2
NOR Gate

5V

0

X

X

Z

Y

0

Y

Z

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

nor gate3
NOR Gate

5V

0

X

X

Z

Y

1

Y

Z

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

nor gate4

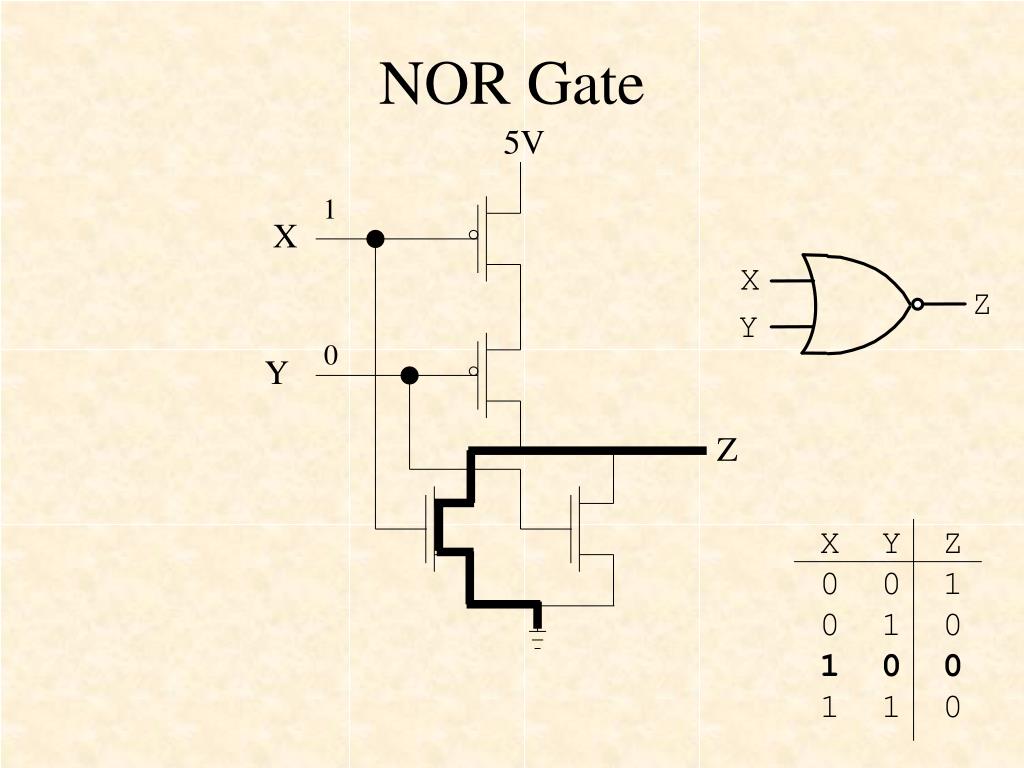

NOR Gate

5V

1

X

X

Z

Y

0

Y

Z

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

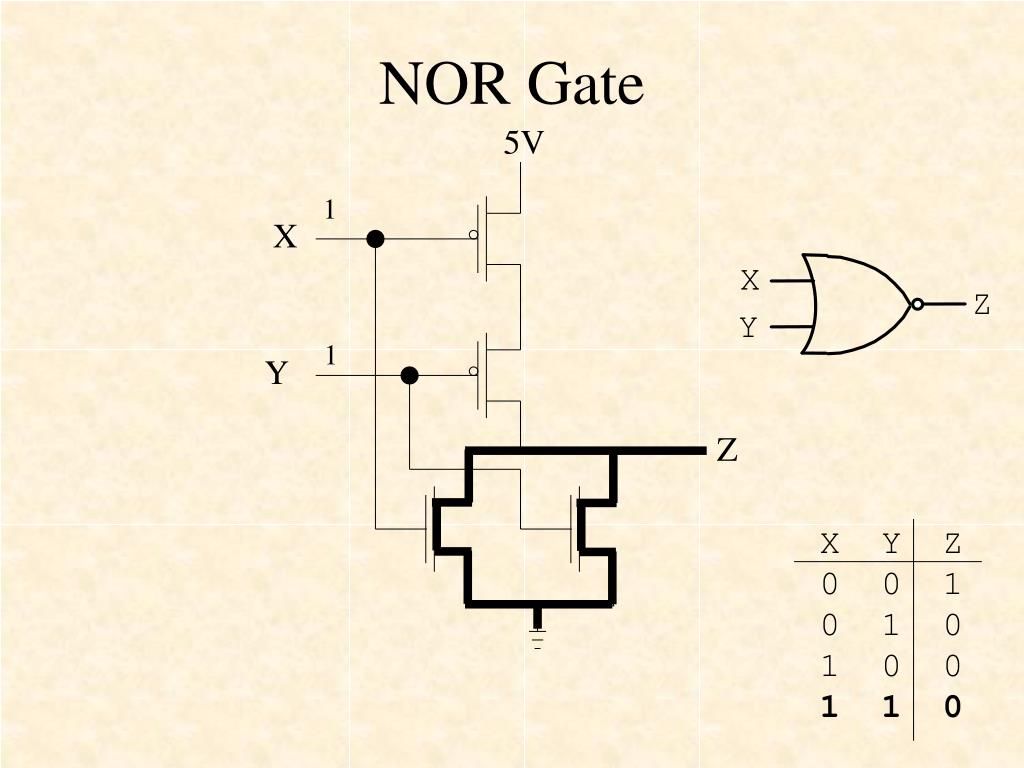

nor gate5
NOR Gate

5V

1

X

X

Z

Y

1

Y

Z

X Y Z

0 0 1

0 1 0

1 0 0

1 1 0

and gate1
5V

Z

AND Gate

5V

X

NAND-NOT

Y

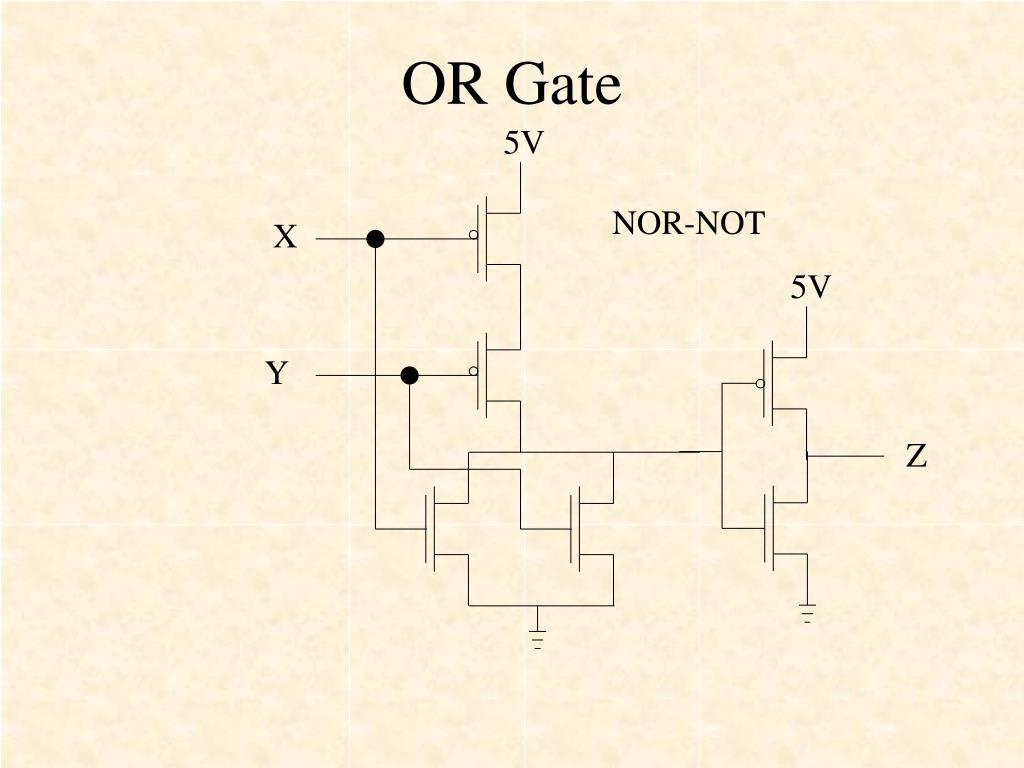

or gate1
5V

Z

OR Gate

5V

NOR-NOT

X

Y
