  1. 3D IC’s for Mobile Computing GSA/ITAC April 2011 Paul Kempf

  2. 3D IC’s for Mobile Computing(or Mobile Computing = Smartphone evolution) • Smartphone trends driving 3D IC’s • Technology for 2.5D & 3D • Through Silicon Via (TSV) for Memory • Interposers & Wafer Level Packages • Heterogeneous Integration • Embedded silicon • 10 years in 2

  3. Smartphone Component Footprint • Mainstream Smartphone • fewer IC’s each year • integration into a few subsystems • High-End Smartphone • die size limited SoC’s • integration has not kept pace with feature race • handhold size contraint PCB Area (mm2) Year

  4. Torch 9800 uUSB connector Audio Codec SIM Card Holder WiFi/BT uSD Card Holder UMTS PA EDGE Transceiver RF Switch SAW Filters EDGE PA Side 2 eMMC GPS PMIC Analog BaseBand ISP RF PMIC UMTS Transceiver uP and Memory EDGE Filters

  5. Smartphone Part Count • Mainstream Smartphone • high level integration • lower cost • increasing performance • High-End Smartphone • mobile computing platform • packed with features • embedded memory • many radio connectivity • sensors • cameras • time-to-market is key Component Count (#) Year

  6. High-End Memory Performance Wide IO DDR LPDDR3 2ch Wide IO SDR 2X LPDDR2 2ch LPDDR2 LPDDR1 2X

  7. Lesson from Compute Servers Power density driving 3D integration for servers Mobile devices have extreme thermal constraints - How long until mobile follows servers? BiCMOS to CMOS analogy

  8. Integration is deadLong live (3D) integration Hybrid/Ceramic/Glass Mixed Semiconductor Technology 3DIC Number of die in package RF CMOS 2.5D Mixed Signal PoP SiP SoC NOW Year (courtesy Yuan Xie, PENNSTATE)

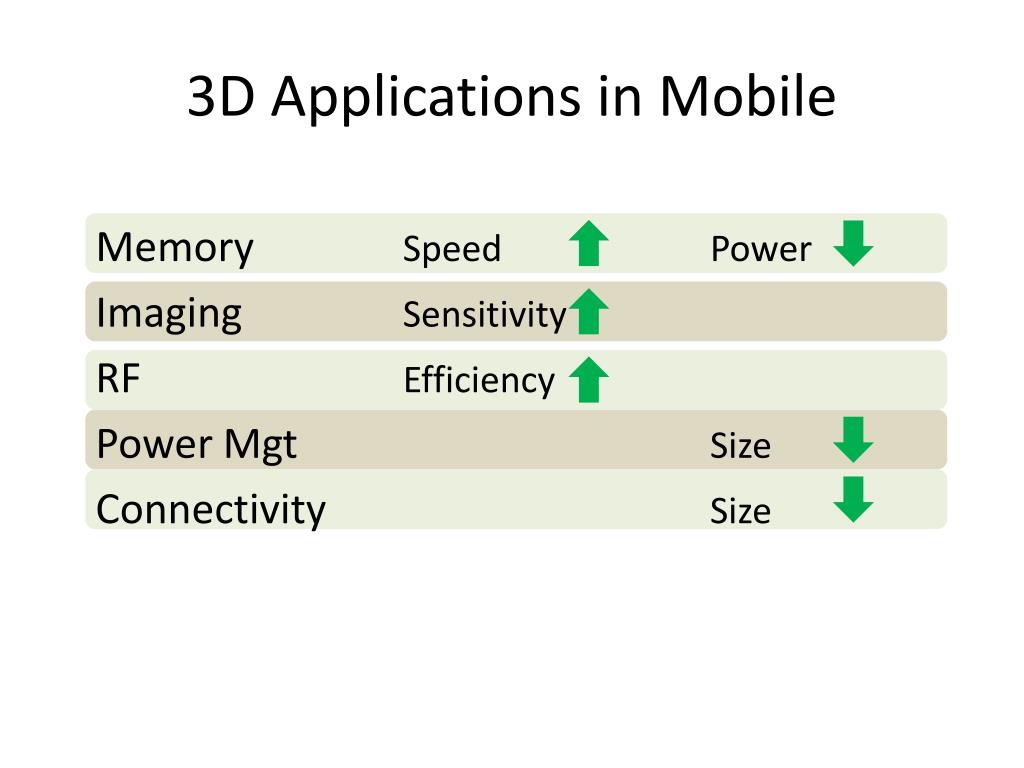

  9. 3D Applications in Mobile Memory SpeedPower Imaging Sensitivity RF Efficiency Power Mgt Size Connectivity Size

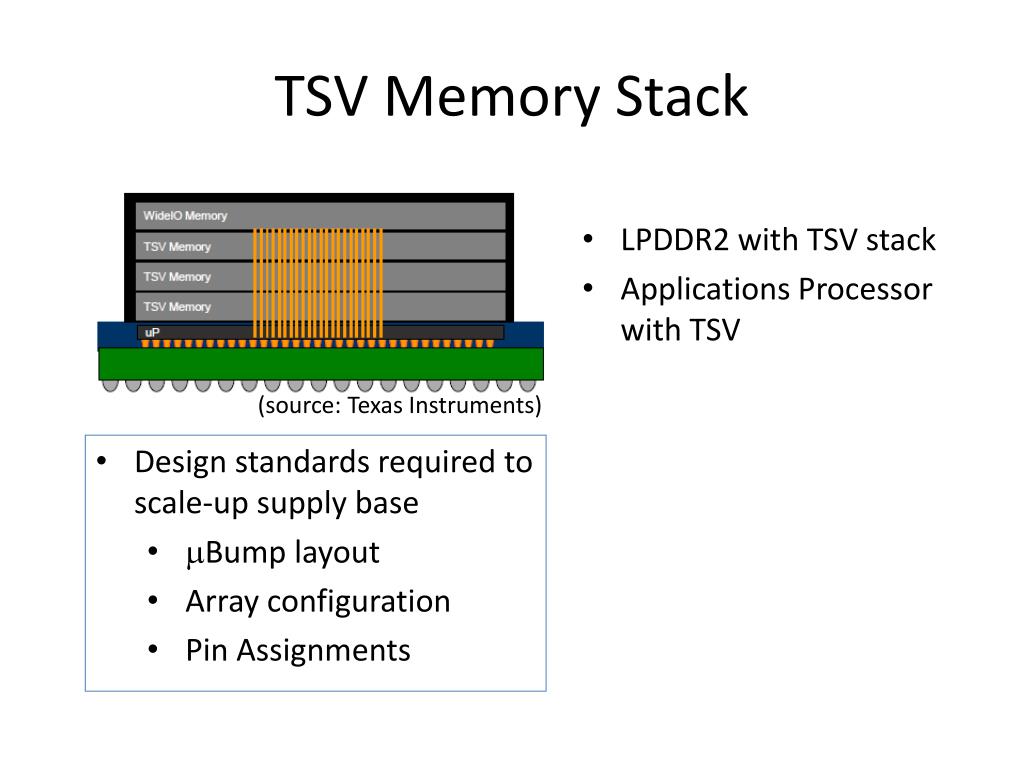

  10. TSV Memory Stack • LPDDR2 with TSV stack • Applications Processor with TSV (source: Texas Instruments) • Design standards required to scale-up supply base • mBump layout • Array configuration • Pin Assignments

  11. Heterogeneous Integration • Silicon interposer advantages • Reduced die complexity • Mixed technologies Fewer IO Lower power Wide interfaces MechanicalStrength (source: Amkor Technology, Inc.)

  12. Cost-Efficient Heterogeneous Stacking Heterogeneous integration is usually expensive 3D stacking: cost-efficient for heterogeneous integration (Courtesy: Borkar, Intel) (Courtesy: Yuan Xie, PENNSTATE)

  13. Silicon Embeded Substrate • Space saving / Miniaturization • Reduction of IC bump pitches potentially leads to size reduction of the IC • SESUB can take over redistribution • Low height substrate of max. 300µm incl. the embedded ICs • Excellent EMI performance, good heat dissipation, high reliability • Roadmap to embed Thin-Film inductors, Thin-Film capacitors and other passive components • Integrated Shielding (source: TDK-EPC Corporation)

  14. SESUB Process Flow Half Dicing Back Grinding Bumping (source: TDK-EPC Corporation)

  15. SESUB Process Flow Preparing L1-L2 Chip Mounting Lamination Via Hole Plating (source: TDK-EPC Corporation)

  16. SESUB Process Flow Lamination Via Hole L1&L4 Plating & Etching SR Laminating Solder Ball Attach SMT & CSP Mount Under Fill (source: TDK-EPC Corporation)

  17. Cross-section of highly integrated SESUB module SMD parts Fine pitch connection 50-80 µm (min.) Layer 1 Bump Layer 2 IC ( Si thickness: 50 µm ) Layer 3 Layer 4 BGA Substrate thickness 300 μm Line/space 40/40 µm (min) Layer 1-2 via Layer 2-3 via Layer 3-4 via (source: TDK-EPC Corporation)

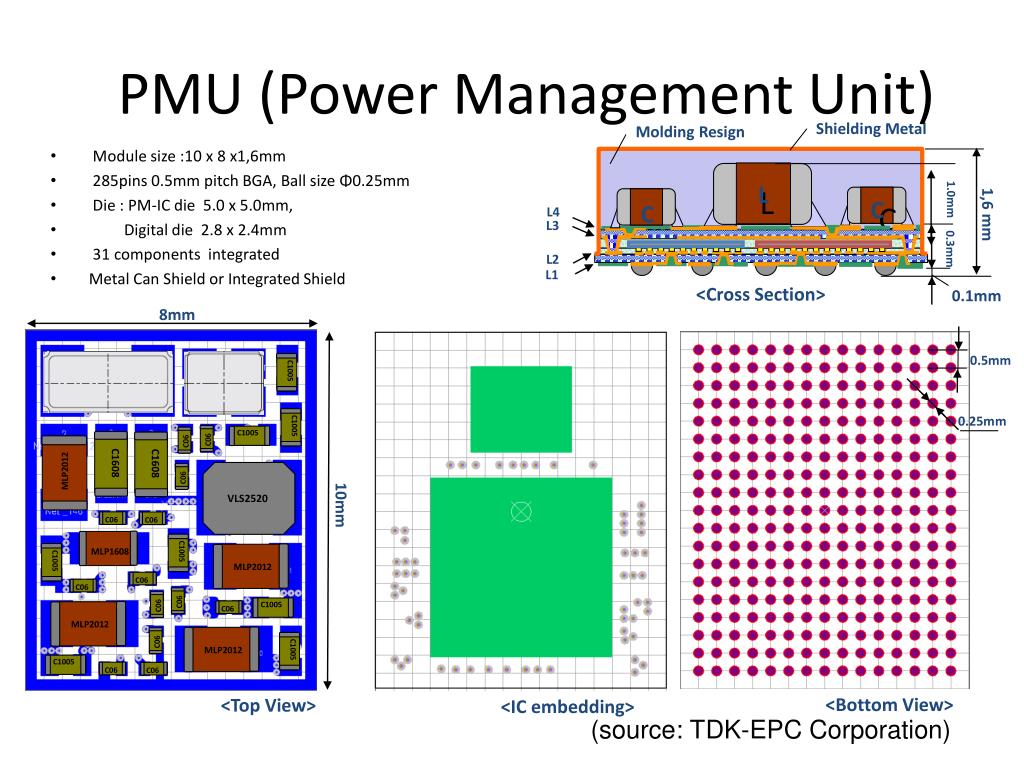

  18. 8mm VLS2520 0.5mm MLP2012 MLP2012 MLP2012 MLP2012 0.25mm C06 C06 C06 C1005 C06 C06 C06 C1005 C06 C06 C06 C06 C1005 C1005 C1005 C1005 C1005 C06 C06 C06 C1005 C1608 C1608 10mm MLP1608 <Bottom View> <Top View> <IC embedding> PMU (Power Management Unit) Shielding Metal Molding Resign • Module size :10 x 8 x1,6mm • 285pins 0.5mm pitch BGA, Ball size Φ0.25mm • Die : PM-IC die 5.0 x 5.0mm, • Digital die 2.8 x 2.4mm • 31 components integrated • Metal Can Shield or Integrated Shield L L 1.0mm C C C L4 1,6 mm L3 0.3mm L2 L1 <Cross Section> 0.1mm (source: TDK-EPC Corporation)

  19. Connectivity Combo Module - R074 R054D = 113sq.mm (9.5 x 11.9 mm) R074 = 60sq.mm (7.5 x 8 mm) SESUB size reduction of 45% Buried Quad-Combo IC (GPS-WLAN-BT-FM) ~31sq.mm (source: TDK-EPC Corporation)

  20. Mixed TSV and SESUB (source: Yole Developpment)

  21. 10 Years in 2 A Mobile Computing Revolution

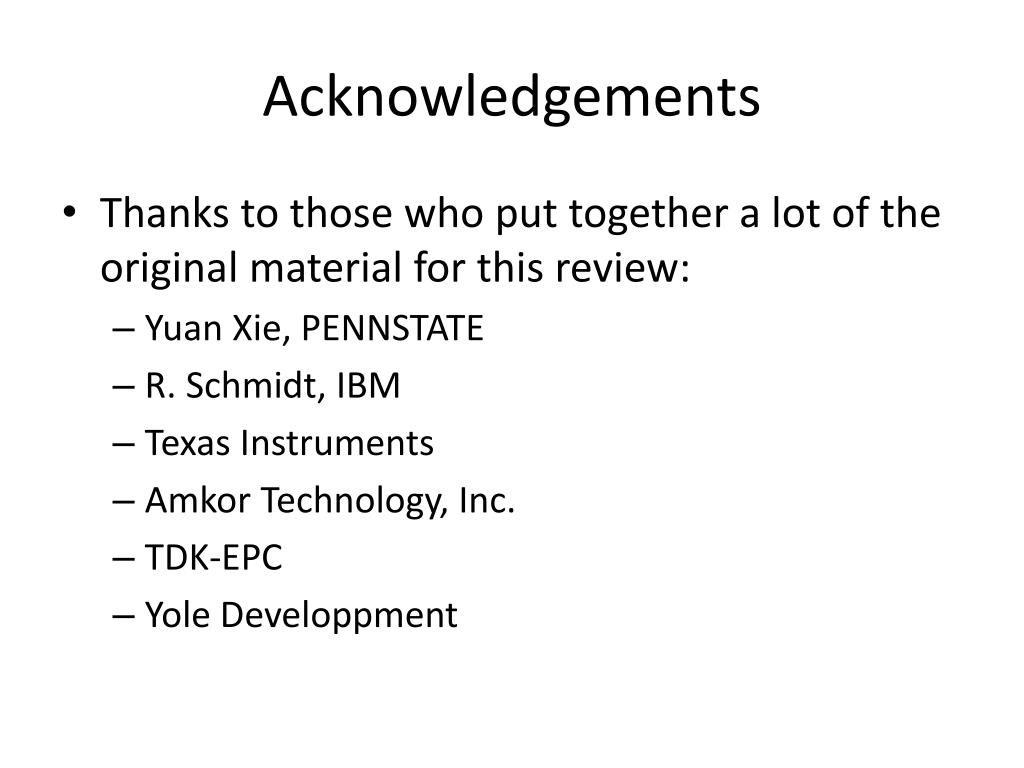

  22. Acknowledgements • Thanks to those who put together a lot of the original material for this review: • Yuan Xie, PENNSTATE • R. Schmidt, IBM • Texas Instruments • Amkor Technology, Inc. • TDK-EPC • Yole Developpment
