  1. How We Load Power Supplies EMF and Internal Resistance

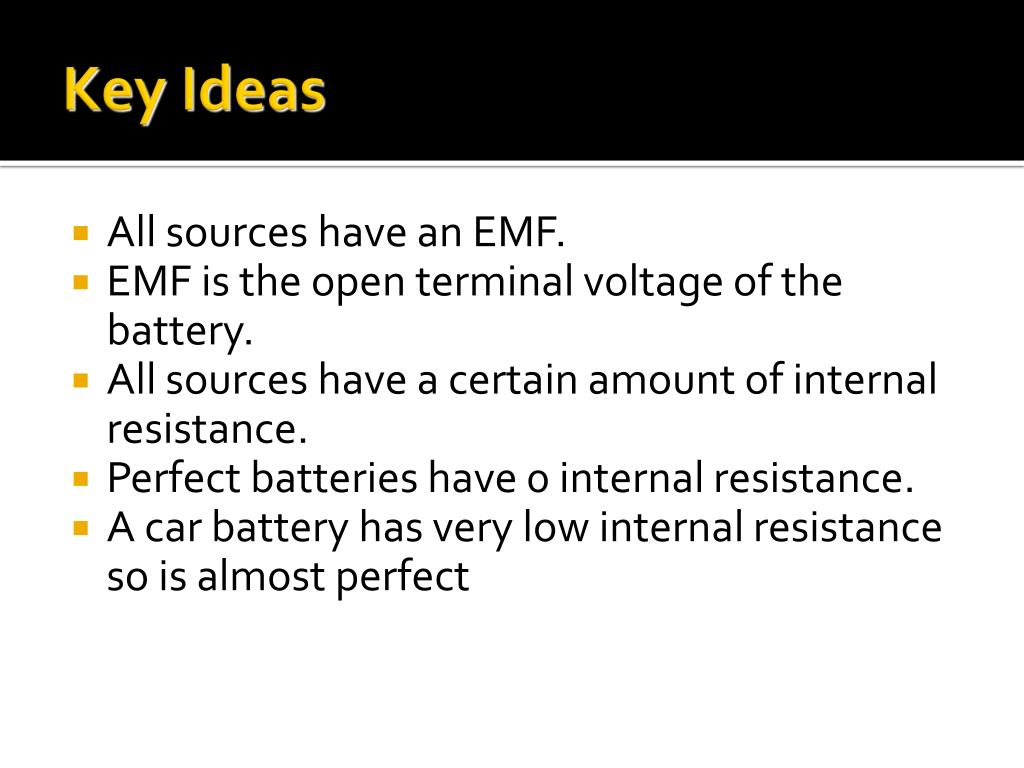

  2. Key Ideas • All sources have an EMF. • EMF is the open terminal voltage of the battery. • All sources have a certain amount of internal resistance. • Perfect batteries have 0 internal resistance. • A car battery has very low internal resistance so is almost perfect

  3. Sources of Low Internal Resistance The car battery has a very low internal resistance. This means that it can give out the heavy current needed by a starter motor. You can see the heavy wires leading to the starter motor

  4. E V V I V R Internal Resistance This time we find that the terminal voltage goes down to V. It has been lost due to the internal resistance which heats the battery up. Emf = Useful volts + Lost volts  In code: E= V + v

  5. E r I V R Internal resistance The cell is now a perfect battery in series with an internal resistor, r.

  6. Emf = voltage across R + voltage across the internal resistance • E= V + v • We also know from Ohm’s Law that V = IR and v = Ir, so we can write: • E = IR + Ir • E = I(R + r) or E = V + Ir

  7. E r I V R Determining Internal Resistance • We adjust the variable resistor so we can record a range of voltages and currents. • We use the switch to avoid flattening the battery, and preventing the variable resistor from getting too hot. • We plot the results on a graph.

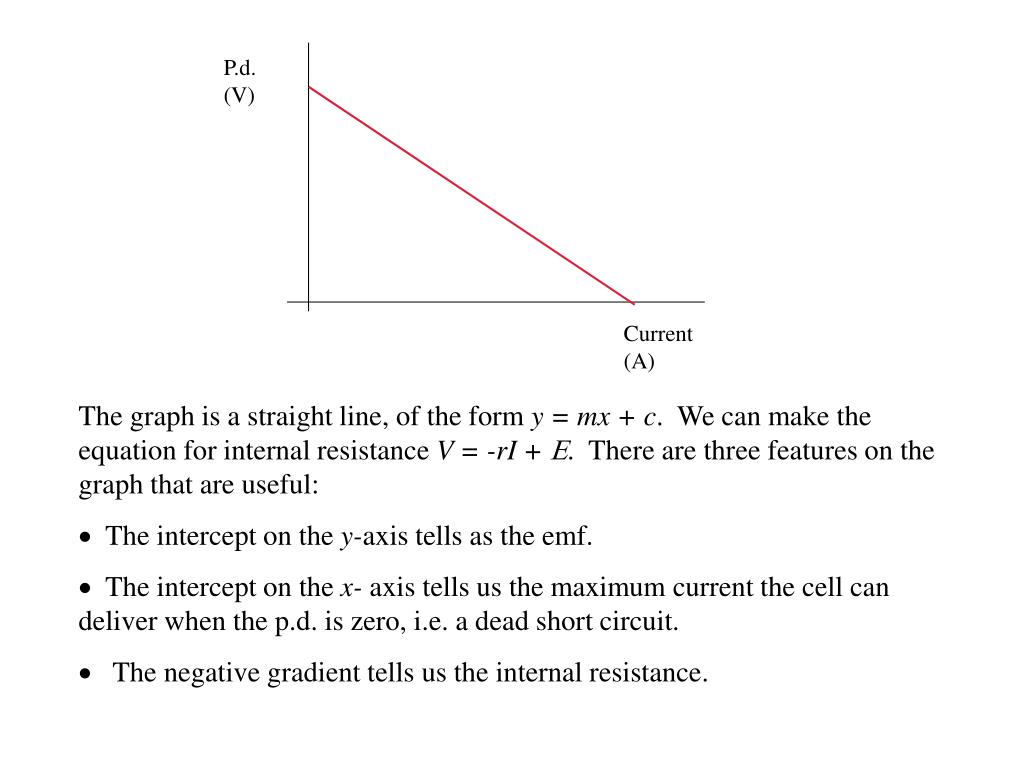

  8. P.d. (V) Current (A) The graph is a straight line, of the form y = mx + c. We can make the equation for internal resistance V = -rI + E. There are three features on the graph that are useful: ·  The intercept on the y-axis tells as the emf. ·  The intercept on the x- axis tells us the maximum current the cell can deliver when the p.d. is zero, i.e. a dead short circuit. ·   The negative gradient tells us the internal resistance.
