middle ware technologies

TEXT BOOKS:

MIDDLE WARE TECHNOLOGIES

1.Client/Server programming with Java and CORBA Robert Orfali and Dan Harkey, John Wiley & Sons,SPD 2nd Edition

2. Java programming with CORBA 3rd Edition, G.Brose, A Vogel and K.Duddy, Wiley-dreamtech, India John wiley and sons

B.TECH III YR II SEMESTER

UNIT 8 PPT SLIDES

index unit 1 ppt slides

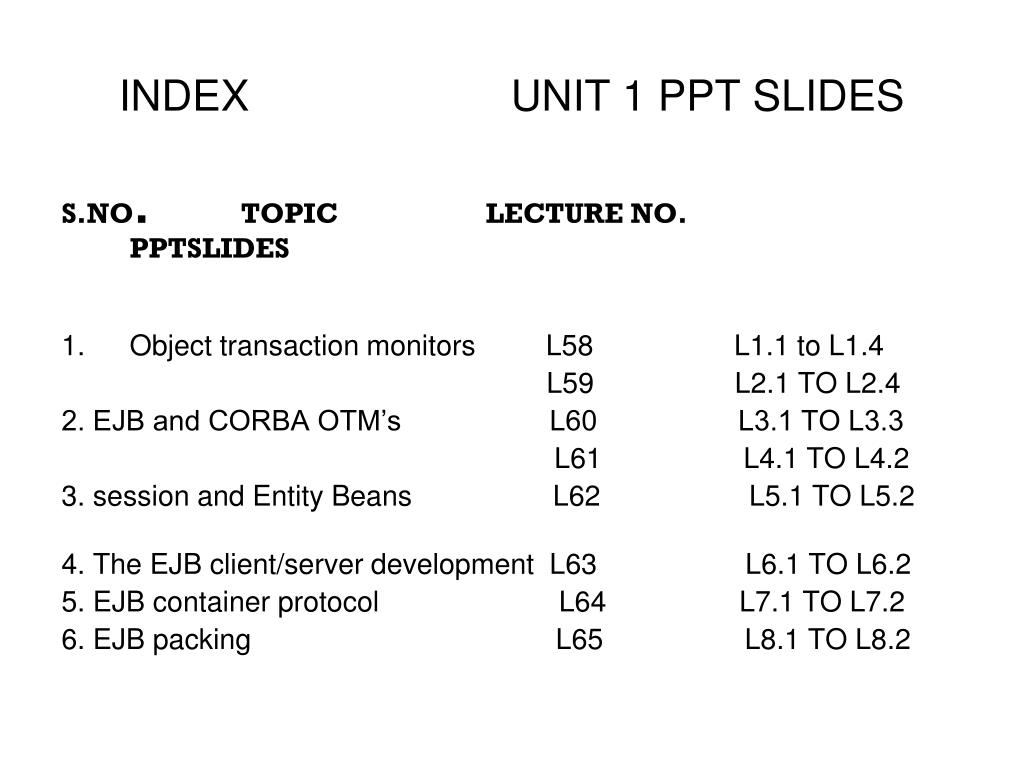

INDEX UNIT 1 PPT SLIDES

S.NO. TOPICLECTURE NO.PPTSLIDES

  • Object transaction monitors L58 L1.1 to L1.4

L59 L2.1 TO L2.4

2. EJB and CORBA OTM’s L60 L3.1 TO L3.3

L61 L4.1 TO L4.2

3. session and Entity Beans L62 L5.1 TO L5.2

4. The EJB client/server development L63 L6.1 TO L6.2

5. EJB container protocol L64 L7.1 TO L7.2

6. EJB packing L65 L8.1 TO L8.2

unit8 syllabus
UNIT8 SYLLABUS
  • EJBS and COBRA:
  • Object transaction monitors CORBA OTM’s EJB and CORBA OTM’s EJB container frame work, session and Entity Beans, The EJB client/server development processes the EJB container protocol, support for transaction EJB packing EJB design Guidelines.
ejb definition
EJB DEFINITION
  • EJB

IS A STNDARD SPECIFICATION WHICH

ALLOWS US TO DEVELOP A DISTRIBUTED TRANSACTIONAL SECURE COMPONENTS IN JAVA

Lecture 1 slide 1

ejb component
EJB COMPONENT

IS A COMBINATION OF SOMECLASSES AND INTERFACES DESIGNED FOLLOWING THE EJB SPECIFICATION STANDARDS.

Lecture 1 slide 2

ejb container
EJB CONTAINER

is a readymade platform which is a rich of all the low-level services which can provide runtime environment for ejb components.

Lecture 1 slide 3

ejbs and corba
EJBS AND CORBA
  • Enterprise JavaBeans and CORBA
  • Object transaction monitors, CORBA OTM’s, EJB and CORBA OTM’s, EJB container F/W, session and Entity beans, The EJB C/S development process, The EJB container protocol, support for transaction, EJB packaging, EJB design guidelines.
  • OTMs
  • An OTM is a morph of TP monitor with an ORB.
  • Or, in other words, it is a TP monitor built on top of an ORB.
  • An ORB is simply an object bus, with an object bus, anytime goes, in contrast, an OTM provides a framework, for running server-side components.

Lecture 1 slide 4

ejbs and corba1
EJBS AND CORBA
  • Procedural Vs F/W Appraches to Developingcode
  • Advantages of OTM’s approach: Yours objects become managed transactional, robust , persistent and high-performing.
  • Functions of OTM:
  • Activates and deactivates your components
  • Coordinates distributed transactions.
  • Notifies your component of key events during its life style.

Lecture 2 slide 1

ejbs and corba2
EJBS AND CORBA
  • Automatically manages the state of your persistent component.
  • CORBA OTM’s : from four groups
  • TP Monitor vendors moving to ORB-based middleware.
  • ex: BEA Iceberg, IBM component broker.
  • DBMS Vendors moving from 2-tier to 3-tier.
  • ex: oracle app. Server 4.0, Gene stone/J, Sybase/jaguar.
  • ORB vendors moving from pipes to TP – based app. servers.
  • ex: Iona orbix OTM, Visigenic/Borland ITS
  • Web server vendors moving to TP-based app. servers
  • ex: Net Dynamics App. server 4.0, Netscape Enterprise server 4.0/kiva, sapphire/web 4.0

Lecture 2 slide 2

ejbs and corba3
EJBS AND CORBA
  • EJBs and CORBA OTMs:
  • EJB defines a server side component model and a comp. coordinator f/w that is totally compatible with CORBA.
  • The EJB Container F/W
  • The major functions a server-side container (or OTM) provides to the EJBs that run within it.
  • Packaging
  • Dist.obj.infrastructure
  • Comp.packaging and deployment
  • Declarative trans. Mgnt.

Lecture 2 slide 3

ejbs and corba4
EJBS AND CORBA
  • Factory support
  • Bean activation and persivation
  • Bean state mgnt.
  • Container metadata
  • Security
  • Session and Entity Beans:
  • Characteristics of a session bean

Lecture 2 slide 4

ejbs and corba5
EJBS AND CORBA
  • Executes on behalf of a single client
  • Can be transaction – aware
  • Updates data in an underlying data base.
  • Relatively short-lived, life time is that of its client.
  • Destroyed when the EJB server crashes; client has to a new session
  • Does not represent data that should be stored in a data base.

Lecture 3 slide 1

ejbs and corba6
EJBS AND CORBA
  • Characteristics of an Entity bean
  • Supports shared access from multiple users.
  • Participates in transactions
  • Represents data in the data base.
  • Can be ling-lived (as long as the data base).
  • Survives crashes of the EJB server; crash transparent to the client
  • Has a persistent obj.ref.

Lecture 3 slide 2

ejbs and corba7
EJBS AND CORBA
  • EJB Packaging
    • Extends the existing javabeans packaging technology to take car of the needs of server side beans.
    • EJB packaging can be used to distribute a single enterprise bean or to distribute an entire server-side application built of multiple enterprise beans.
    • EJB-JAR and manifest – list-java file contains
      • EJB’s class files
      • Deploy base
      • Manifest that identifier the enterprise bean included in the JAR.

Lecture 3 slide 3

ejbs and corba8
EJBS AND CORBA
  • The manifest is named META-INF/MANIFEST.MF.
  • EJB Design Conditions:
  • Your remote interface must follow the CoRBA/MI/IDL subset.
  • Define a remote interface.
  • Dont mess around threads
  • Don’t issue commits or roll backs.
  • Give your containers a full EJB-jar package.

Lecture 4 slide 1

ejb architecture
EJB ARCHITECTURE

Lecture 4 slide 2

framework
FRAMEWORK

Lecture 5 slide 1

slide18
OTM

Lecture 5 slide 2

ejb container class
EJB container class

Lecture 6 slide 1

ejb client server process
EJB client/server process

Lecture 6 slide 2

the remote ejb interface
The remote EJB interface

Lecture 7 slide 1

ejb deployment classe
EJB deployment classe

Lecture 7 slide 2

idl interface and stubs
IDL interface and stubs

Lecture 8 slide 1
