Presentation Transcript
prototype whine test results

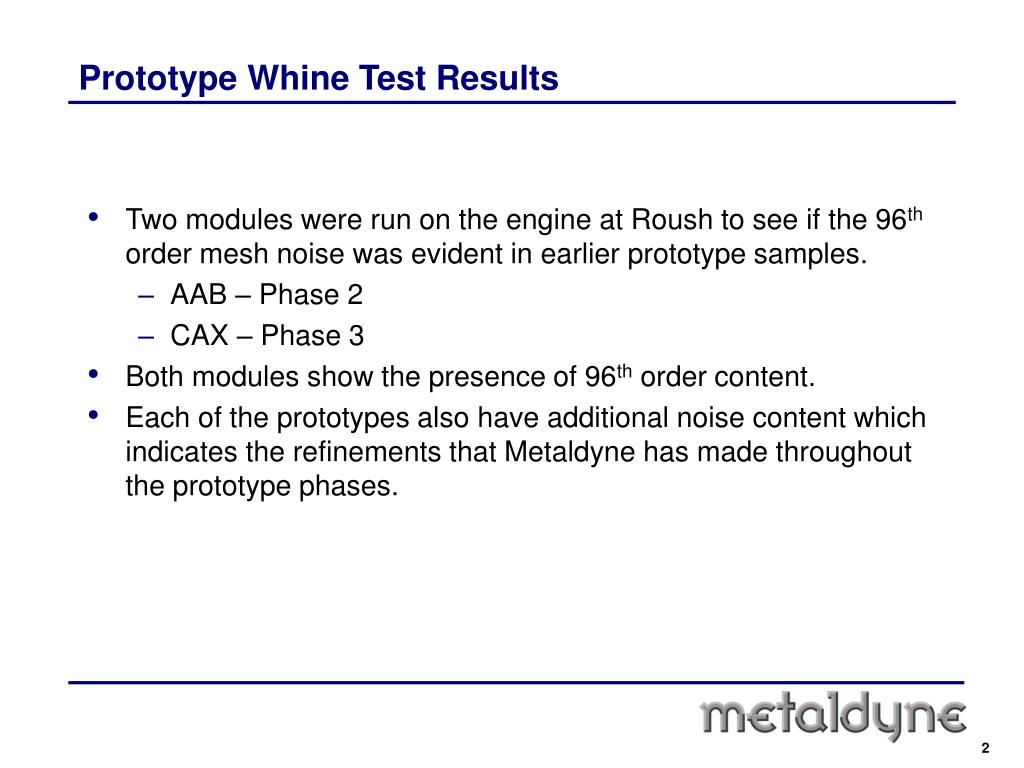

Prototype Whine Test Results
  • Two modules were run on the engine at Roush to see if the 96th order mesh noise was evident in earlier prototype samples.
    • AAB – Phase 2
    • CAX – Phase 3
  • Both modules show the presence of 96th order content.
  • Each of the prototypes also have additional noise content which indicates the refinements that Metaldyne has made throughout the prototype phases.
aab phase 2 prototype

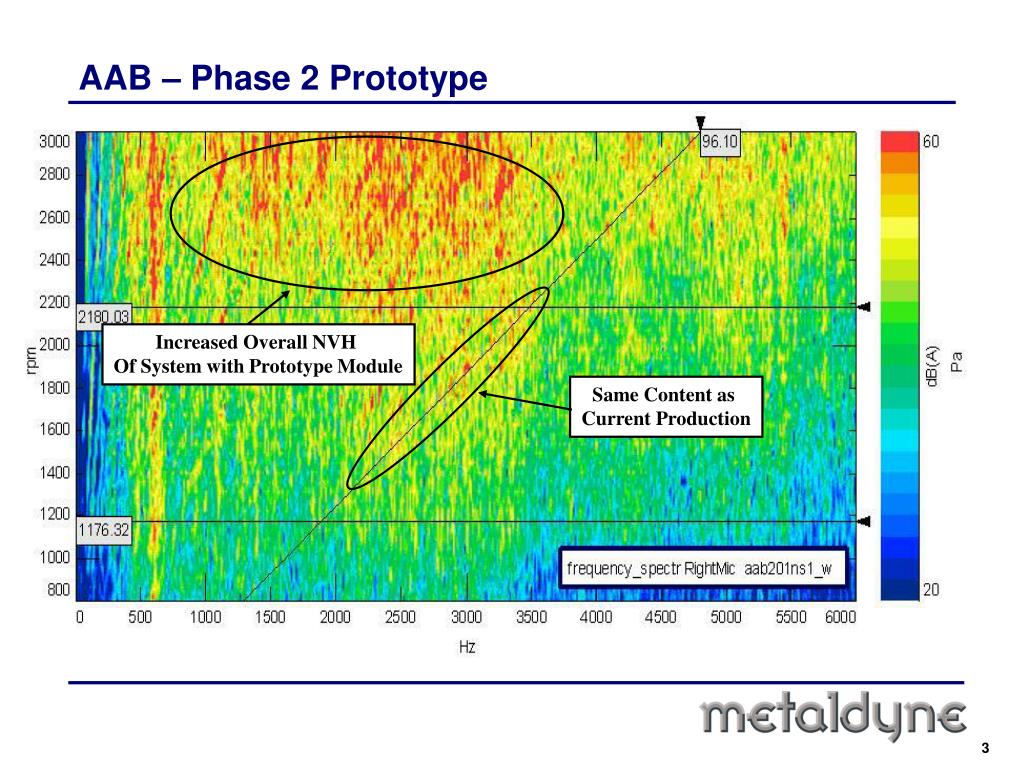

AAB – Phase 2 Prototype

Increased Overall NVH

Of System with Prototype Module

Same Content as

Current Production

cax phase 3 prototype

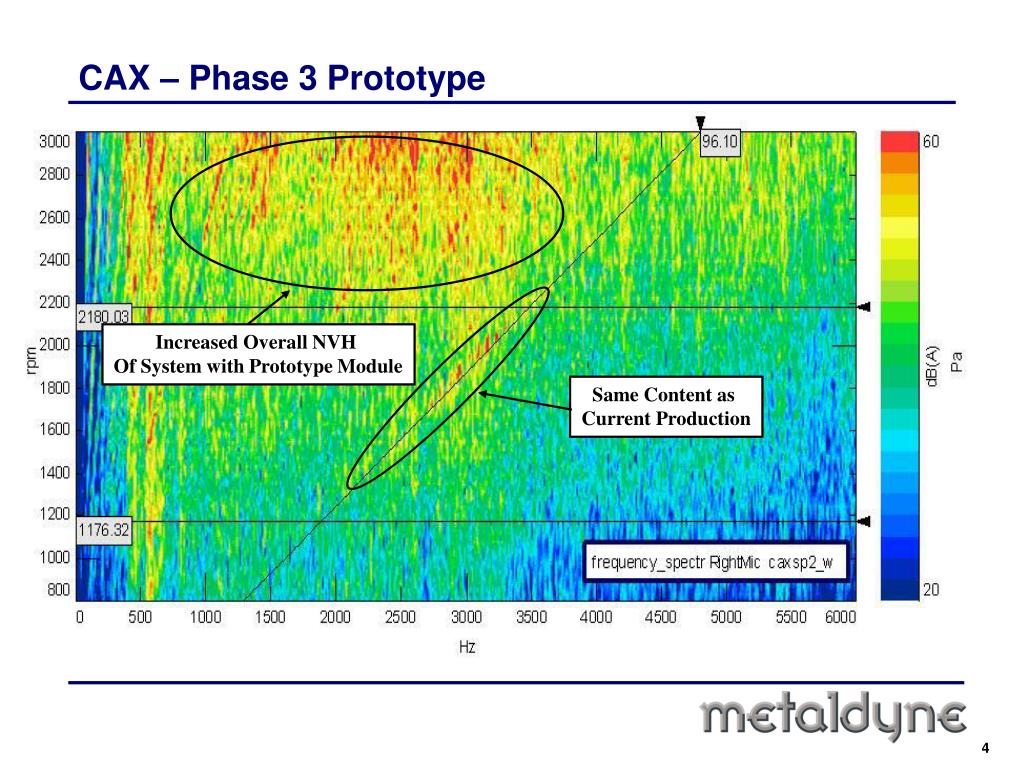

CAX – Phase 3 Prototype

Increased Overall NVH

Of System with Prototype Module

Same Content as

Current Production

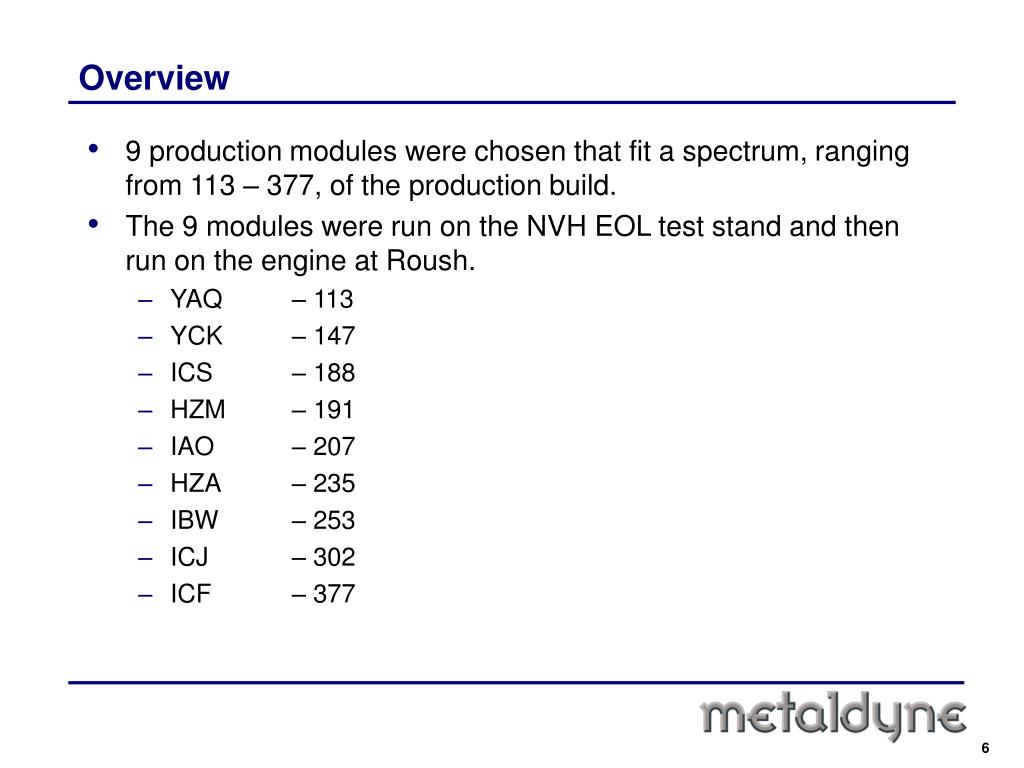

overview
Overview
  • 9 production modules were chosen that fit a spectrum, ranging from 113 – 377, of the production build.
  • The 9 modules were run on the NVH EOL test stand and then run on the engine at Roush.

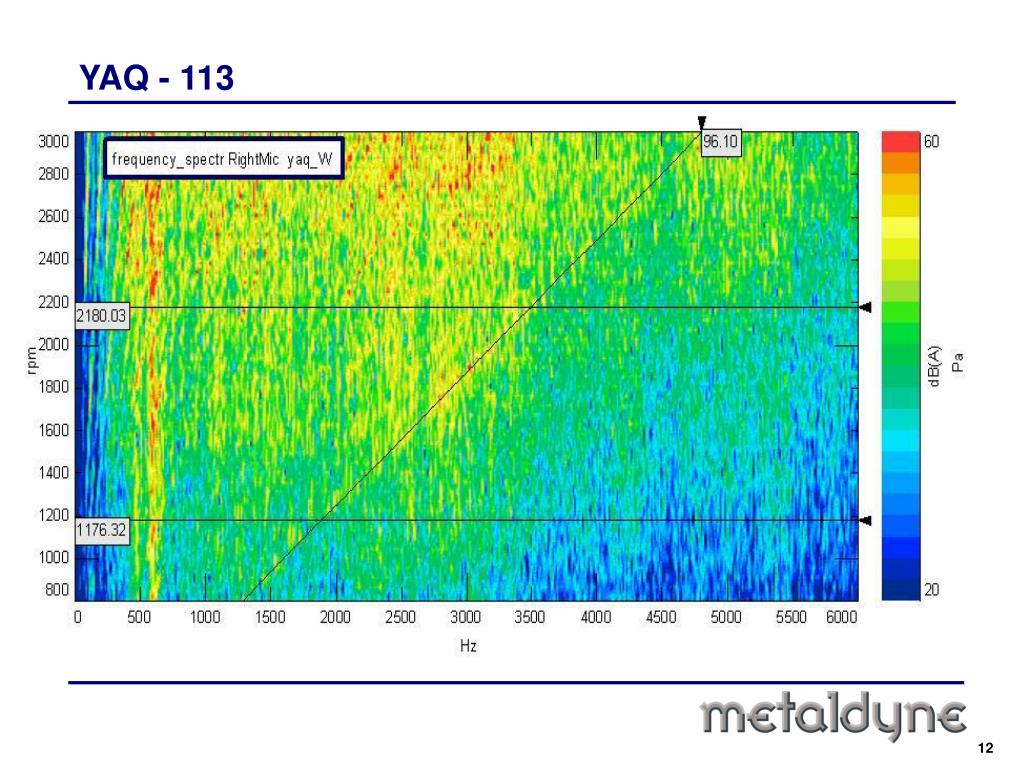

    • YAQ – 113
    • YCK – 147

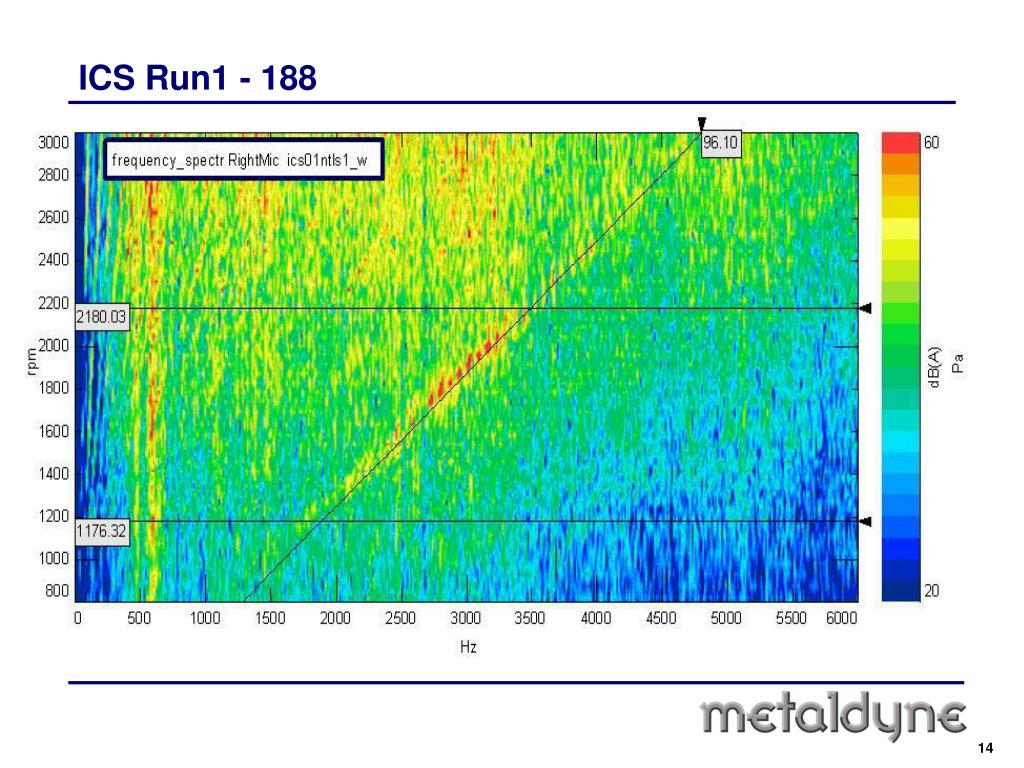

    • ICS – 188
    • HZM – 191

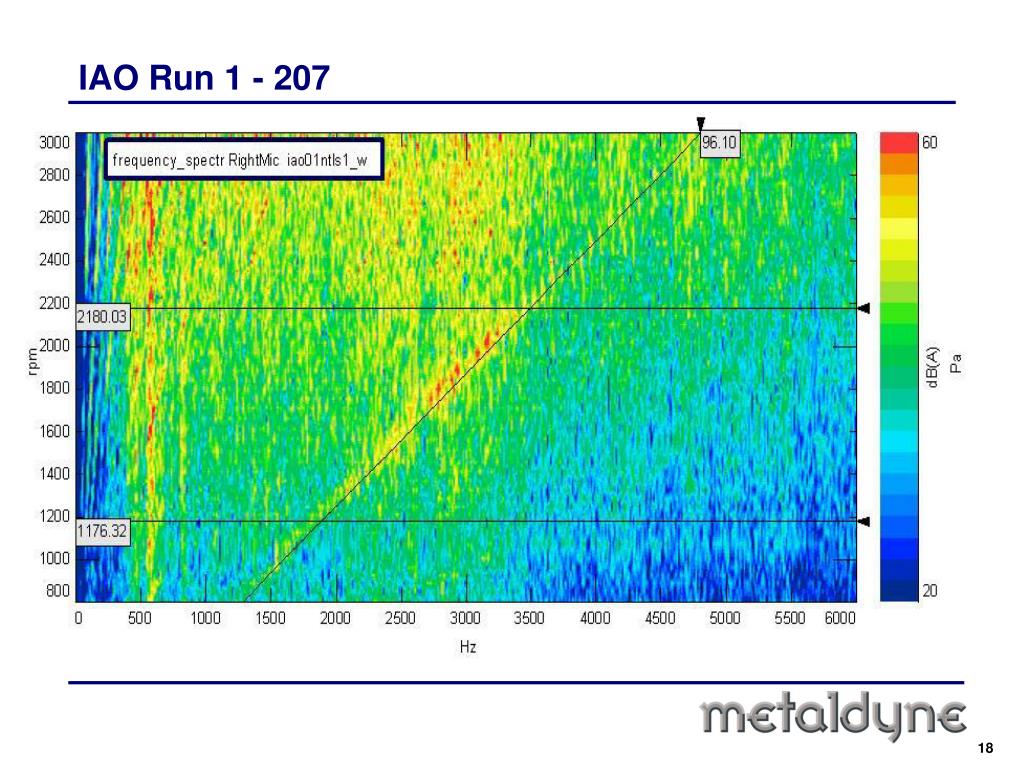

    • IAO – 207
    • HZA – 235
    • IBW – 253

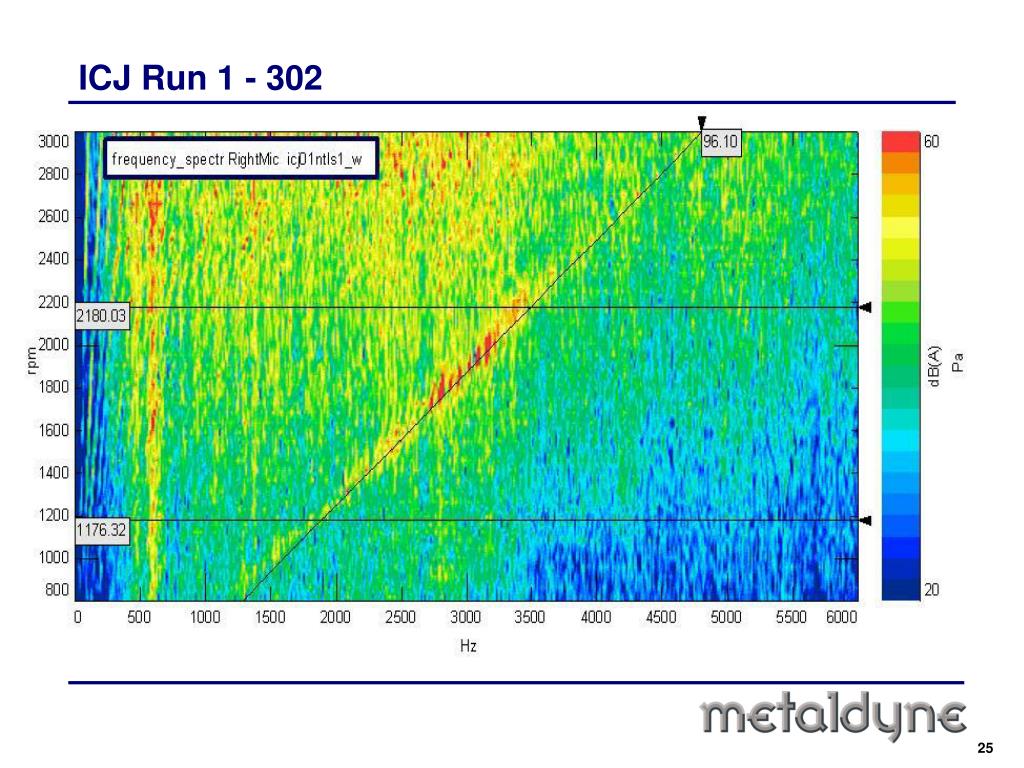

    • ICJ – 302

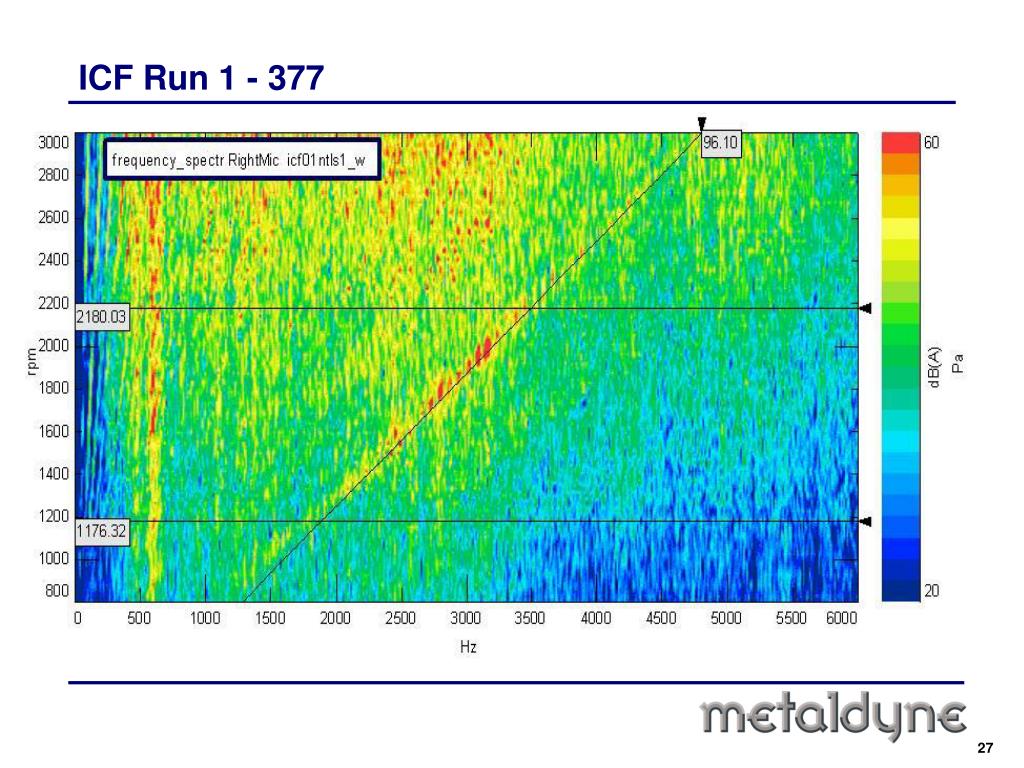

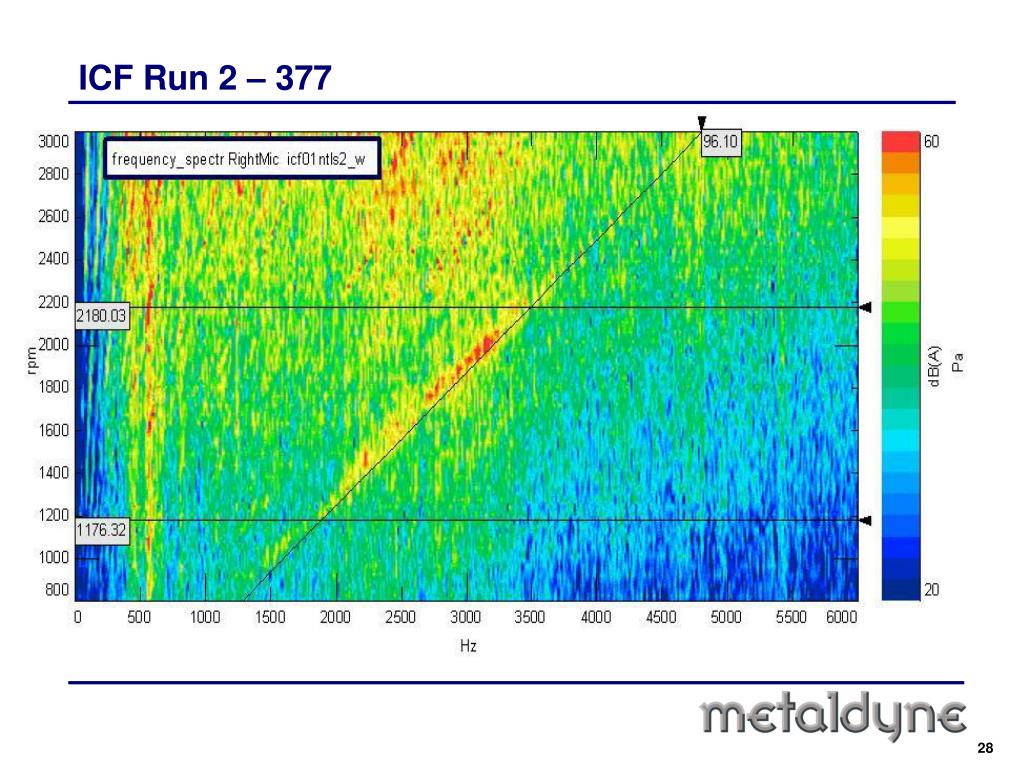

    • ICF – 377
conclusions

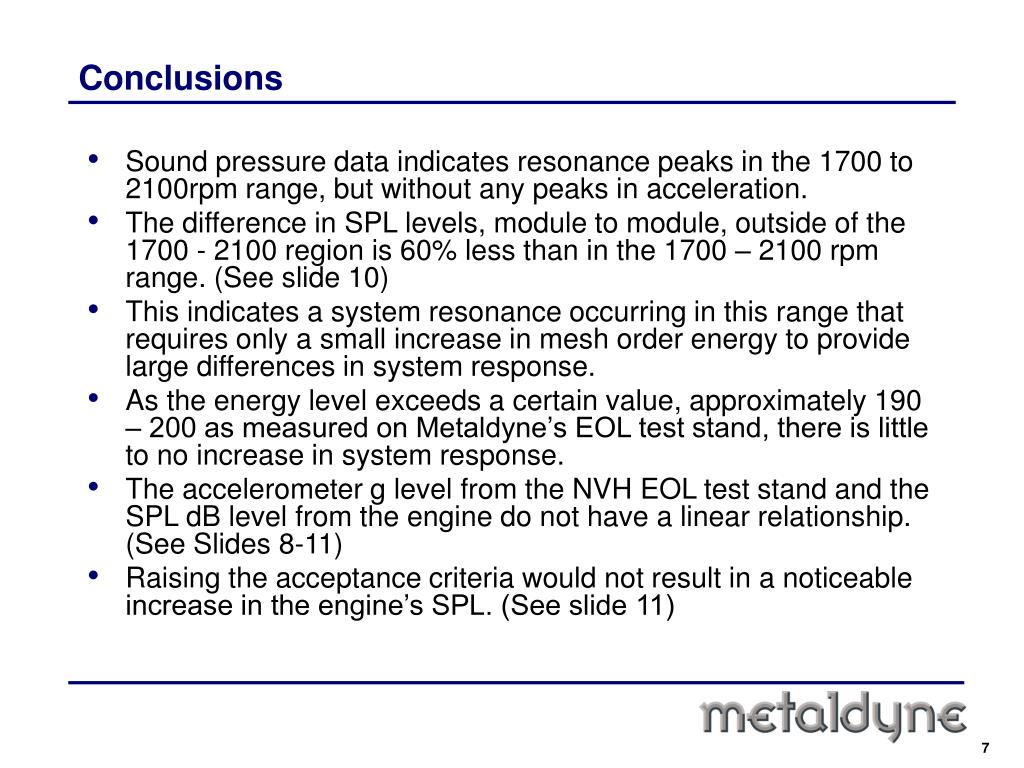

Conclusions
  • Sound pressure data indicates resonance peaks in the 1700 to 2100rpm range, but without any peaks in acceleration.
  • The difference in SPL levels, module to module, outside of the 1700 - 2100 region is 60% less than in the 1700 – 2100 rpm range. (See slide 10)
  • This indicates a system resonance occurring in this range that requires only a small increase in mesh order energy to provide large differences in system response.
  • As the energy level exceeds a certain value, approximately 190 – 200 as measured on Metaldyne’s EOL test stand, there is little to no increase in system response.

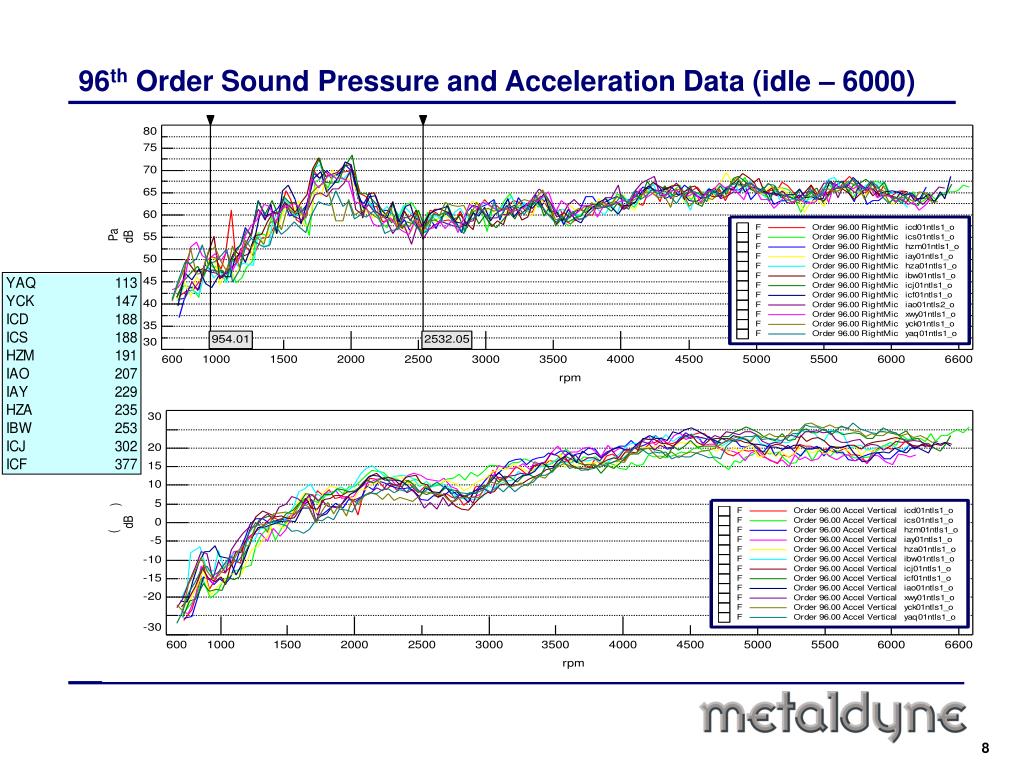

  • The accelerometer g level from the NVH EOL test stand and the SPL dB level from the engine do not have a linear relationship. (See Slides 8-11)
  • Raising the acceptance criteria would not result in a noticeable increase in the engine’s SPL. (See slide 11)
96 th order sound pressure amplitude and acceleration data 1500 2500rpm

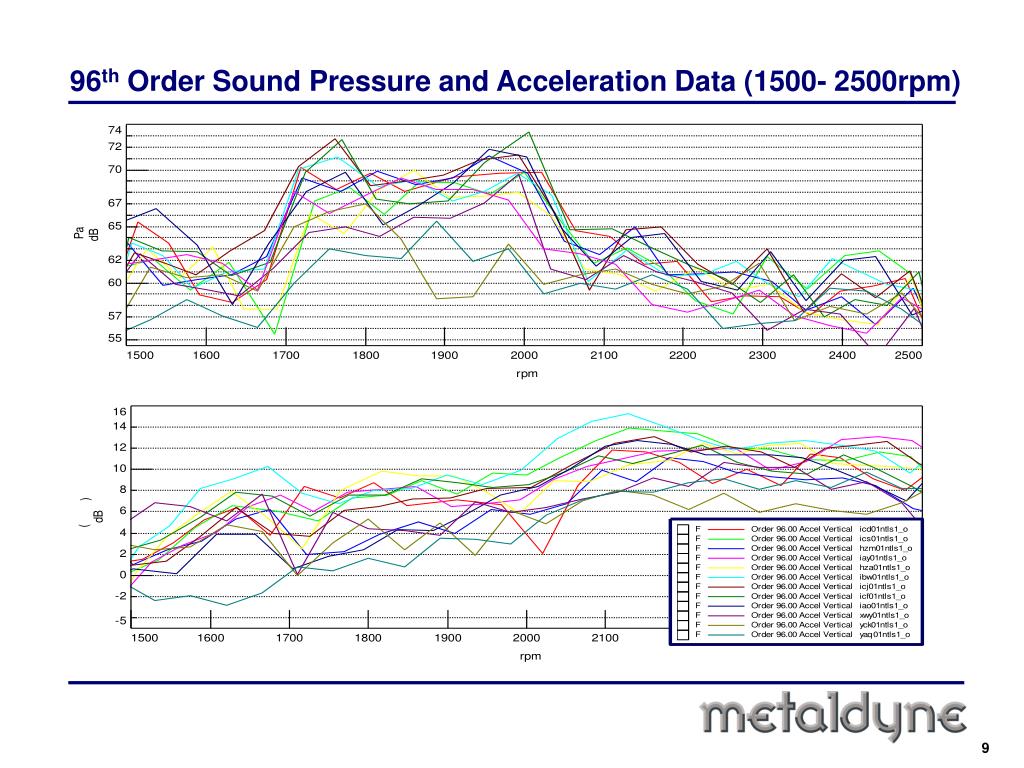

96th Order Sound Pressure Amplitude and Acceleration Data (1500- 2500rpm)

System Resonance Range

of 96th order in engine

60% higher

Sound

Pressure

Amplitude

used because

of

linear scale

No significant changes

in acceleration in this range

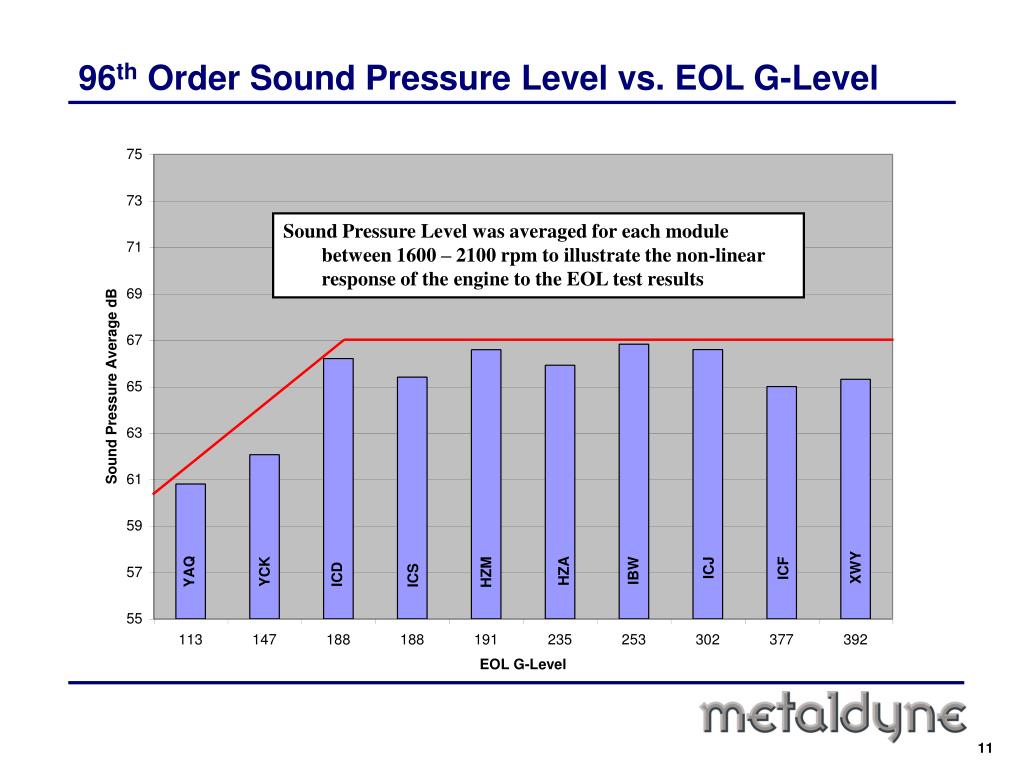

96 th order sound pressure level vs eol g level
96th Order Sound Pressure Level vs. EOL G-Level

Sound Pressure Level was averaged for each module between 1600 – 2100 rpm to illustrate the non-linear response of the engine to the EOL test results

yck 147

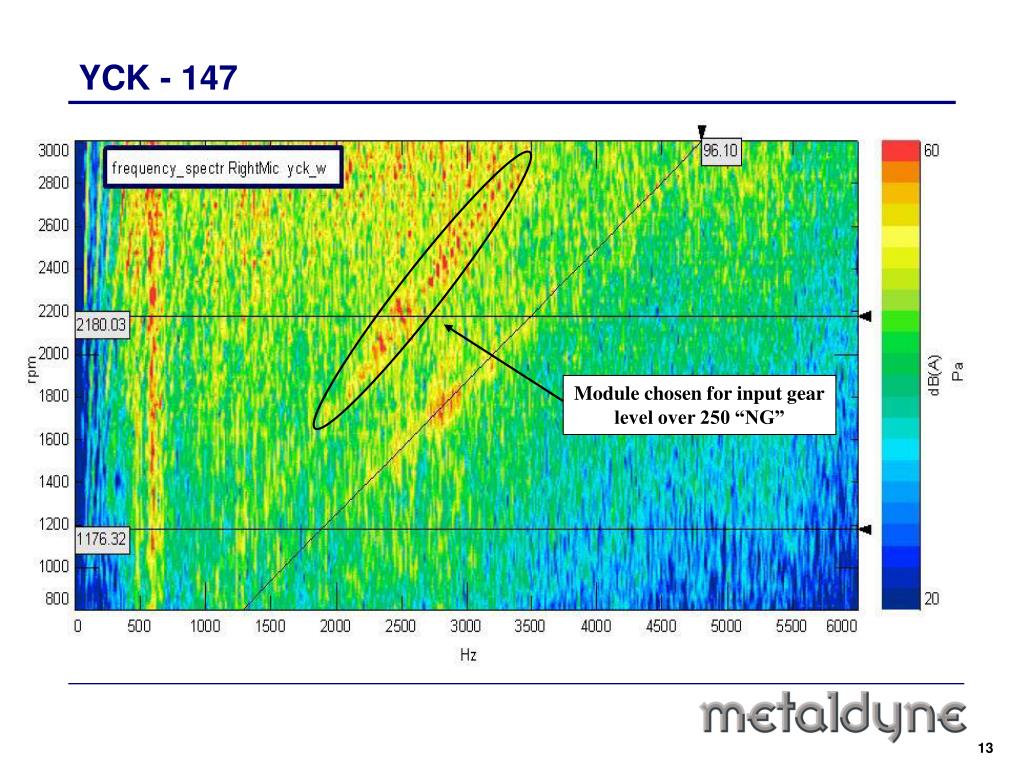

YCK - 147

Module chosen for input gear

level over 250 “NG”

engine testing observations
Engine Testing Observations
  • Modules having lower values from the NVH EOL test stand have less energy as observed in the engine results.
  • Test stand results from 200 – 300+ look very similar to each other when reviewing the waterfall plots from the engine tests.
  • Engine testing also revealed that the engine also has a tendency to not repeat exactly on a run to run basis.
production yield vs g level
Production Yield vs. G-Level
  • Per Metaldyne’s proposal, a G-level of 290 or below would yield approximately 95% acceptance criteria until the implementation of the ground transfer gears.
break in test results

Break-in Test Results

Date: 09 August 04

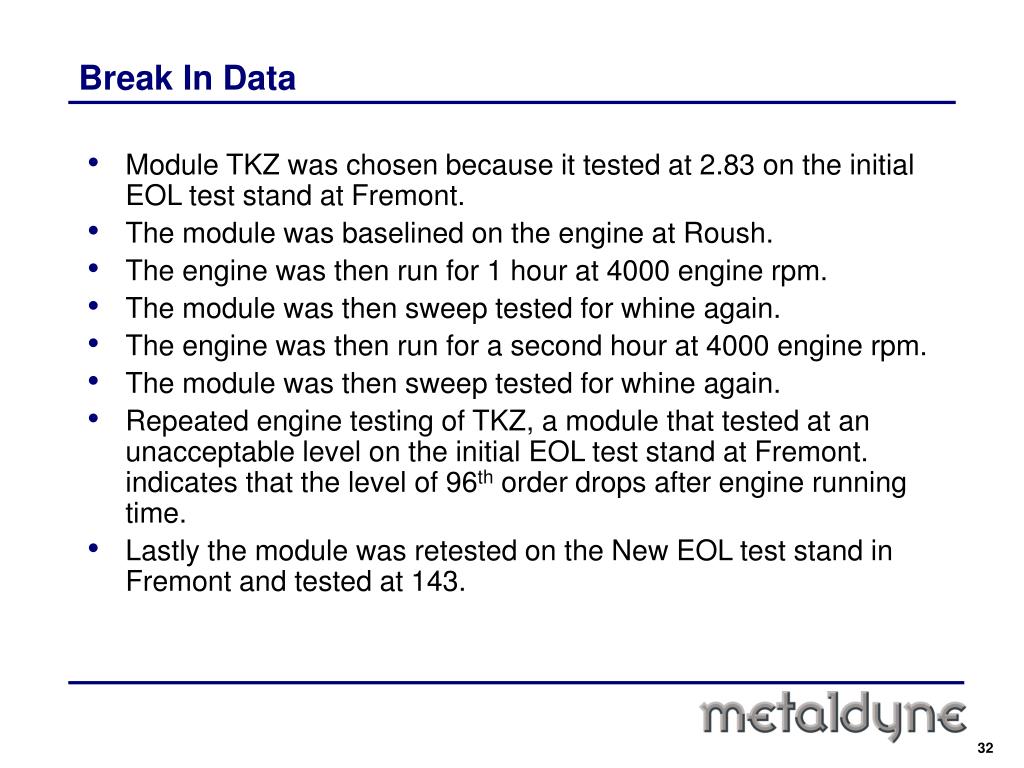

break in data
Break In Data
  • Module TKZ was chosen because it tested at 2.83 on the initial EOL test stand at Fremont.

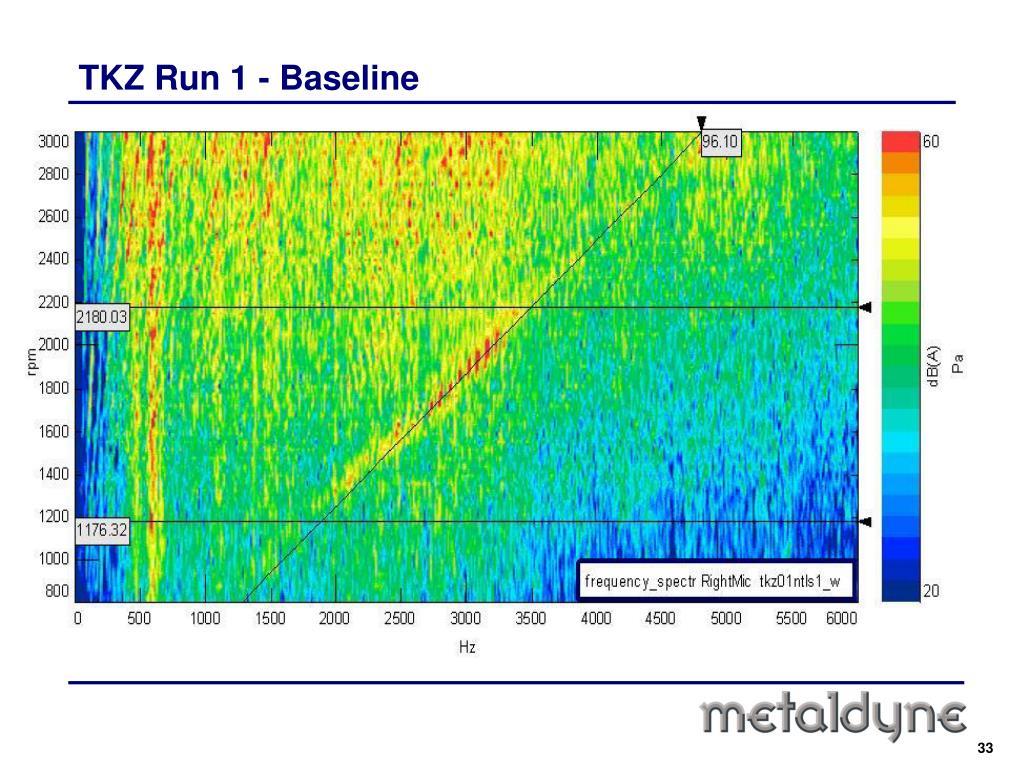

  • The module was baselined on the engine at Roush.
  • The engine was then run for 1 hour at 4000 engine rpm.
  • The module was then sweep tested for whine again.

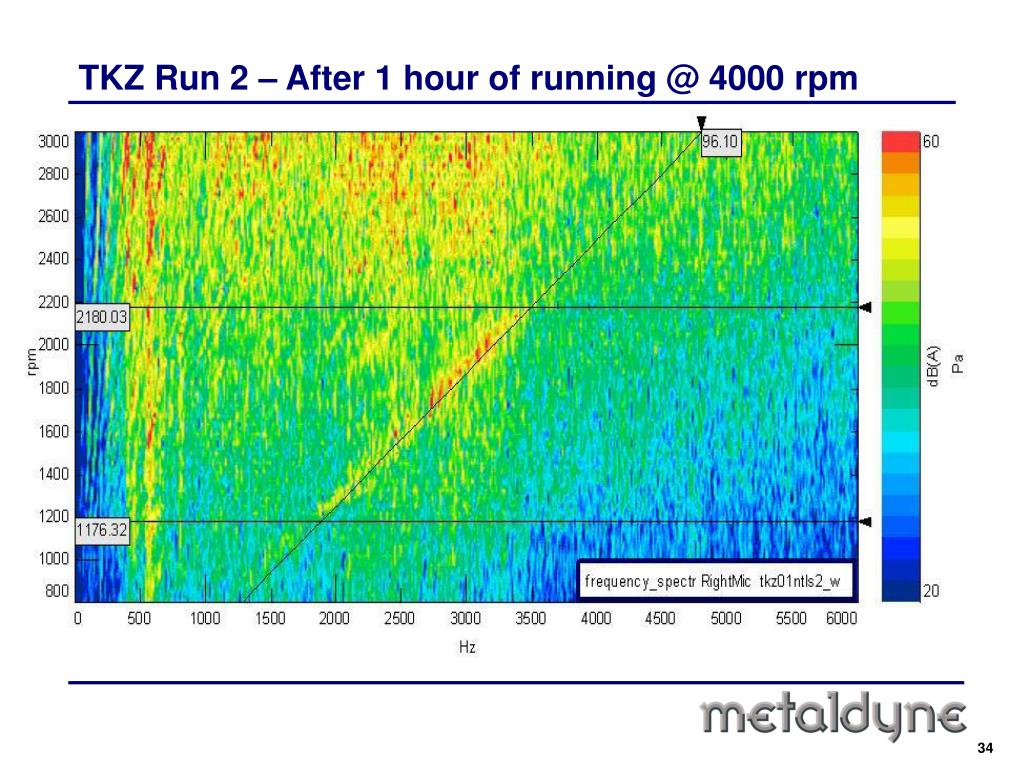

  • The engine was then run for a second hour at 4000 engine rpm.
  • The module was then sweep tested for whine again.
  • Repeated engine testing of TKZ, a module that tested at an unacceptable level on the initial EOL test stand at Fremont. indicates that the level of 96th order drops after engine running time.
  • Lastly the module was retested on the New EOL test stand in Fremont and tested at 143.
ground gear testing
Ground Gear Testing
  • 4 “ground” transfer gear sets assembled into HMC BSM at Fremont.
    • PCW, PDG, PDL, PDJ
  • Modules tested on EOL test stand.
  • Modules tested on Roush engine for whine.
  • Modules PCW & PDG have been sent to Metaldyne (Korea) for evaluation at HMC.
engine nvh testing ground vs hobbed and shaved

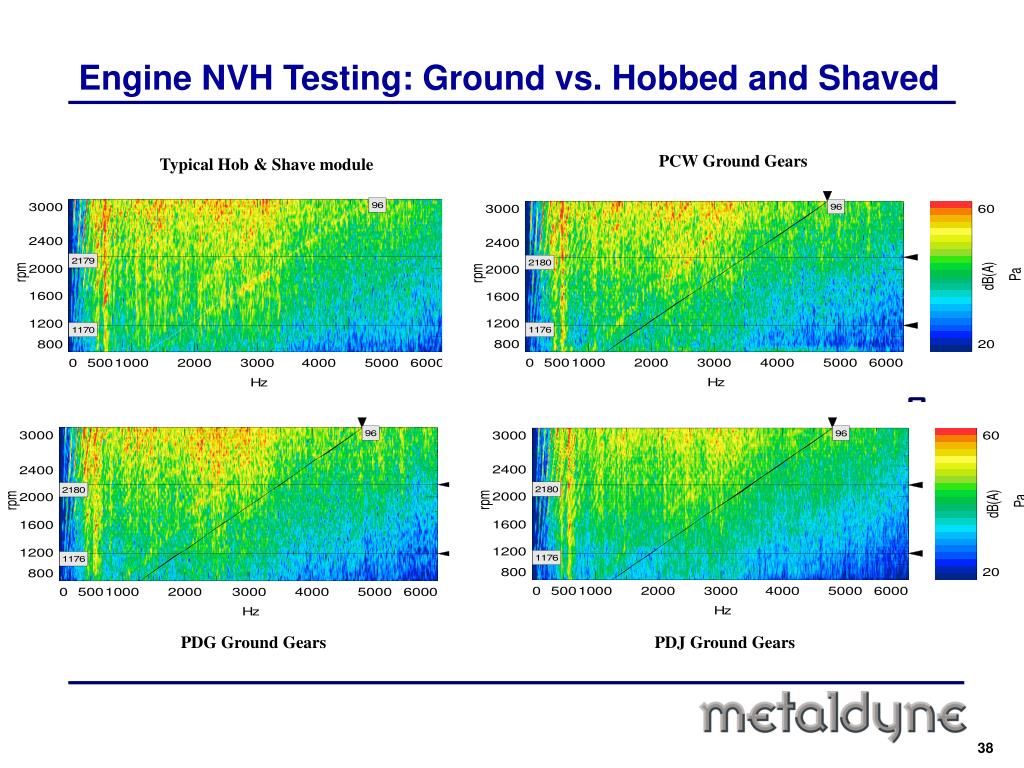

Engine NVH Testing: Ground vs. Hobbed and Shaved

PCW Ground Gears

Typical Hob & Shave module

PDG Ground Gears

PDJ Ground Gears

hyundai theta bsm production in korea

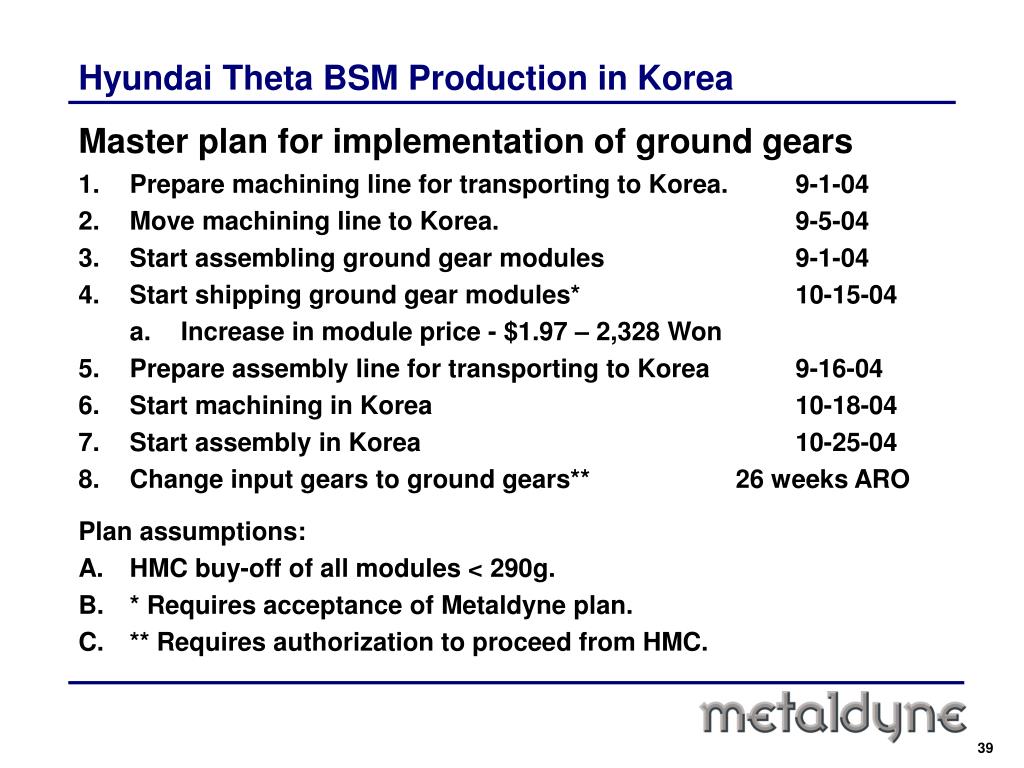

Hyundai Theta BSM Production in Korea
  • Master plan for implementation of ground gears
  • Prepare machining line for transporting to Korea. 9-1-04
  • Move machining line to Korea. 9-5-04
  • Start assembling ground gear modules 9-1-04
  • Start shipping ground gear modules* 10-15-04
    • Increase in module price - $1.97 – 2,328 Won
  • Prepare assembly line for transporting to Korea 9-16-04
  • Start machining in Korea 10-18-04
  • Start assembly in Korea 10-25-04
  • Change input gears to ground gears** 26 weeks ARO
  • Plan assumptions:
  • HMC buy-off of all modules < 290g.
  • * Requires acceptance of Metaldyne plan.
  • ** Requires authorization to proceed from HMC.
appendix a

Appendix A

Date: 09 August 04

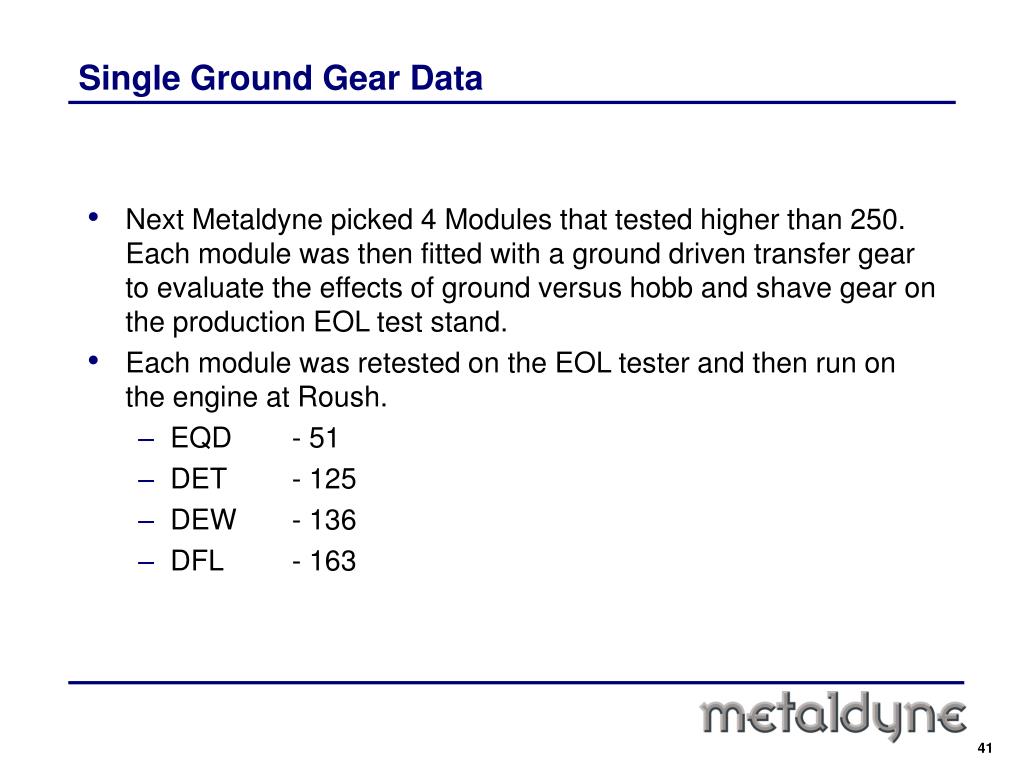

single ground gear data
Single Ground Gear Data
  • Next Metaldyne picked 4 Modules that tested higher than 250. Each module was then fitted with a ground driven transfer gear to evaluate the effects of ground versus hobb and shave gear on the production EOL test stand.
  • Each module was retested on the EOL tester and then run on the engine at Roush.

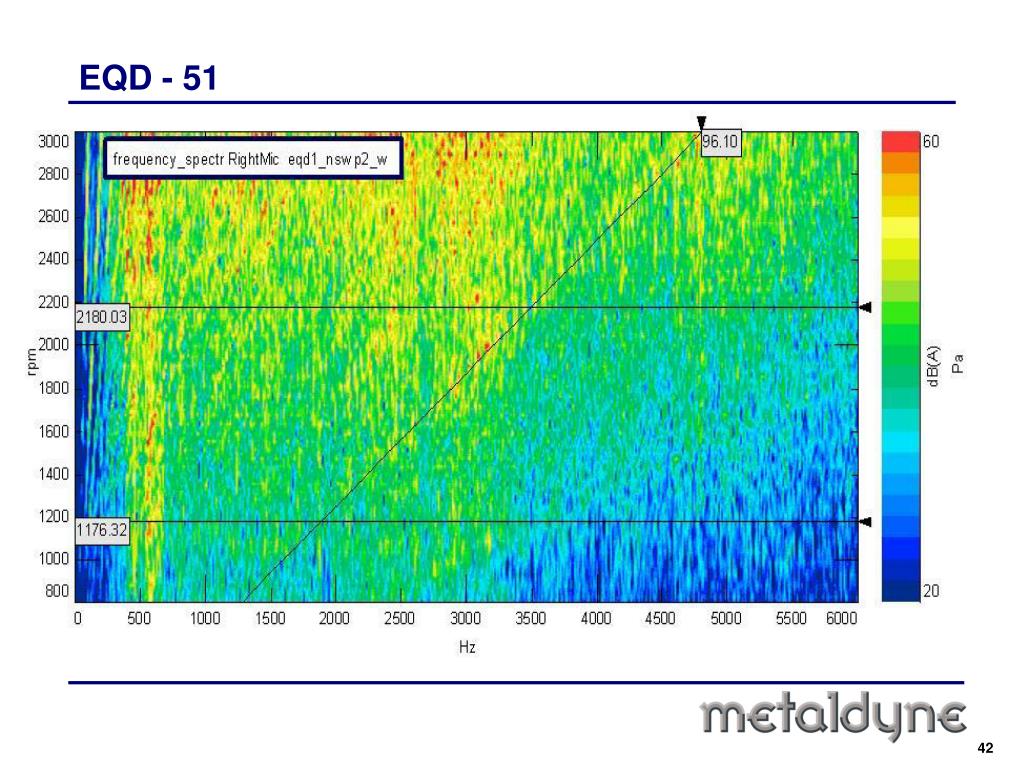

    • EQD - 51
    • DET - 125

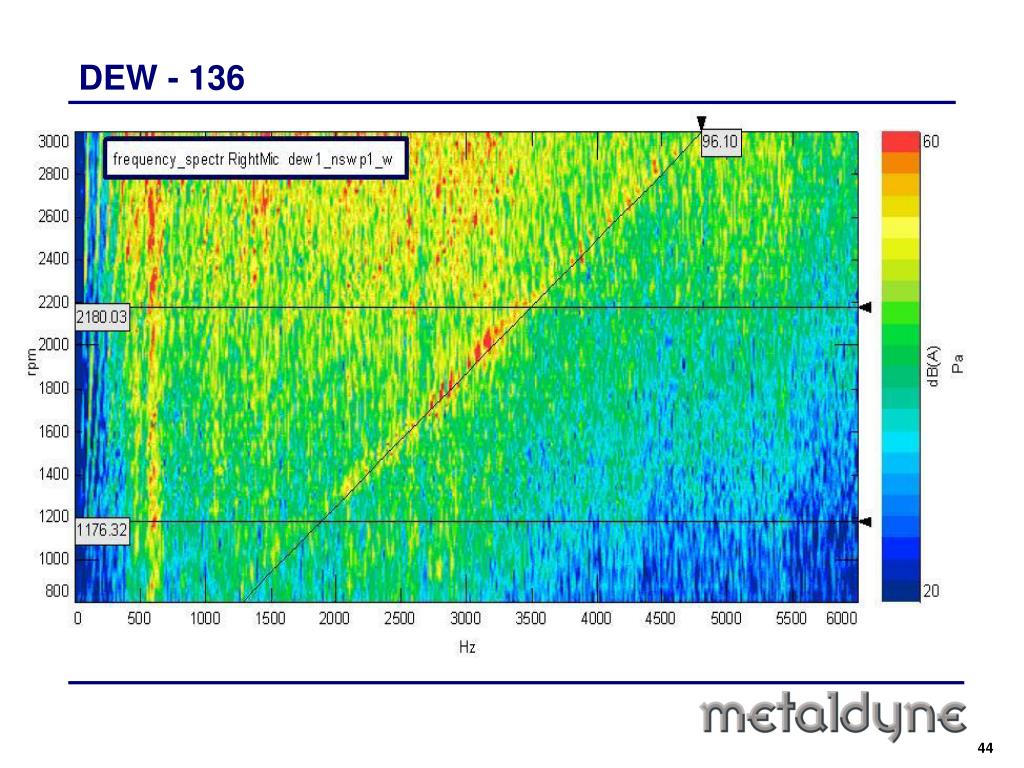

    • DEW - 136
    • DFL - 163
