Chapter 12: History of Mars

Chapter 12: History of Mars. Rover’s view of Mars. Why Mars is prime target for search for life:. 1. Direct evidence that Mars had liquid water in past – and possibility of subsurface water now. 2. Has an atmosphere of CO 2 and N 2

byron
Download Presentation

Chapter 12: History of Mars

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

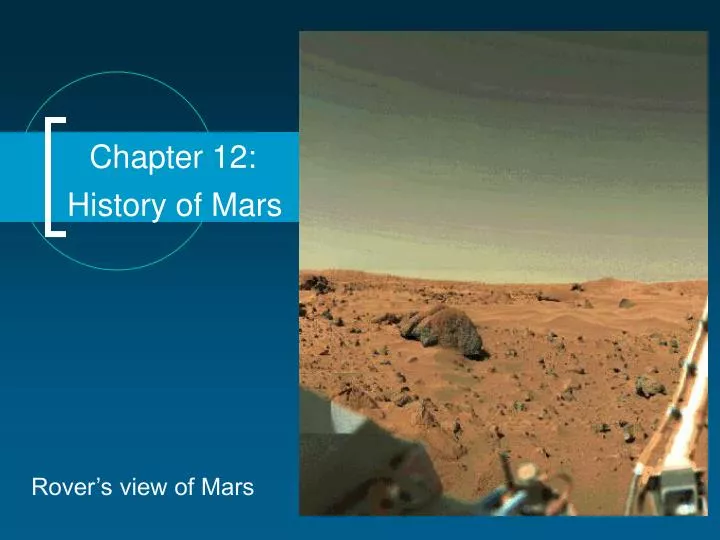

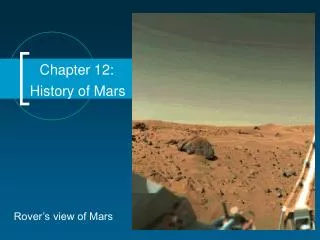

  1. Chapter 12: History of Mars Rover’s view of Mars

  2. Why Mars is prime target for search for life: 1. Direct evidence that Mars had liquid water in past – and possibility of subsurface water now. 2. Has an atmosphere of CO2 and N2 3. Planet is cold and dry – good for preserving organic remains of life. (see C. Mckay’s article in our book)

  3. Mars Rover: Mission Objectives • Search for and characterize a variety of rocks and soils that hold clues to past water activity. Samples will include: those that have minerals deposited by water-related processes such as precipitation, evaporation, sedimentary cementation, or hydrothermal activity. • Determine the distribution and composition of minerals, rocks, and soils surrounding the landing sites. • Determine what geologic processes have shaped the local terrain and influenced the chemistry. Such processes could include water or wind erosion, sedimentation, hydrothermal mechanisms, volcanism, and cratering. • Perform "ground truth" -- calibration and validation -- of surface observations made by Mars orbiter instruments. This will help determine the accuracy and effectiveness of various instruments that survey Martian geology from orbit.

  4. Search for iron-containing minerals, identify and quantify relative amounts of specific mineral types that contain water or were formed in water, such as iron-bearing carbonates. • Characterize the mineralogy and textures of rocks and soils and determine the processes that created them. • Search for geological clues to the environmental conditions that existed when liquid water was present. Assess whether those environments were conducive to life.

  5. Orbit of Mars – and several recent oppositions (25” angular size at best e= 0.093, a=1.52 AU, aphelion = 1.67 AU, perihelion = 1.38 AU, -> variation in light during Martian year of 45%

  6. Mars/Earth Comparison: • Mean Distance from Sun: 1.52 AU 1 AU • Average Surface Pressure: 0.5 – 1kPa 101.3 kPa • Diameter: 4,220 miles 7,926 miles • Tilt of Axis: 25 degrees 23.5 degrees • Length of Year: 687 Earth Days 365.25 Days • Length of Day: 24 hours 37 minutes 23 hours 56 minutes • Temperature Average -60 degrees C Average +15 degrees C • Incident solar radiation: 149 W/sq m. 344 W/sq m.

  7. Space craft images of Mars Polar cap Hubble Space Telescope Image Viking (1976)

  8. Mars – in true colour (Viking mission image) Northern hemisphere – rolling volcanic (lunar-like) plains. Southern hemisphere – heavily cratered highlands 5 km above lowlands in north. Major feature: Tharsis bulge, which is 10 km higher than rest of surface

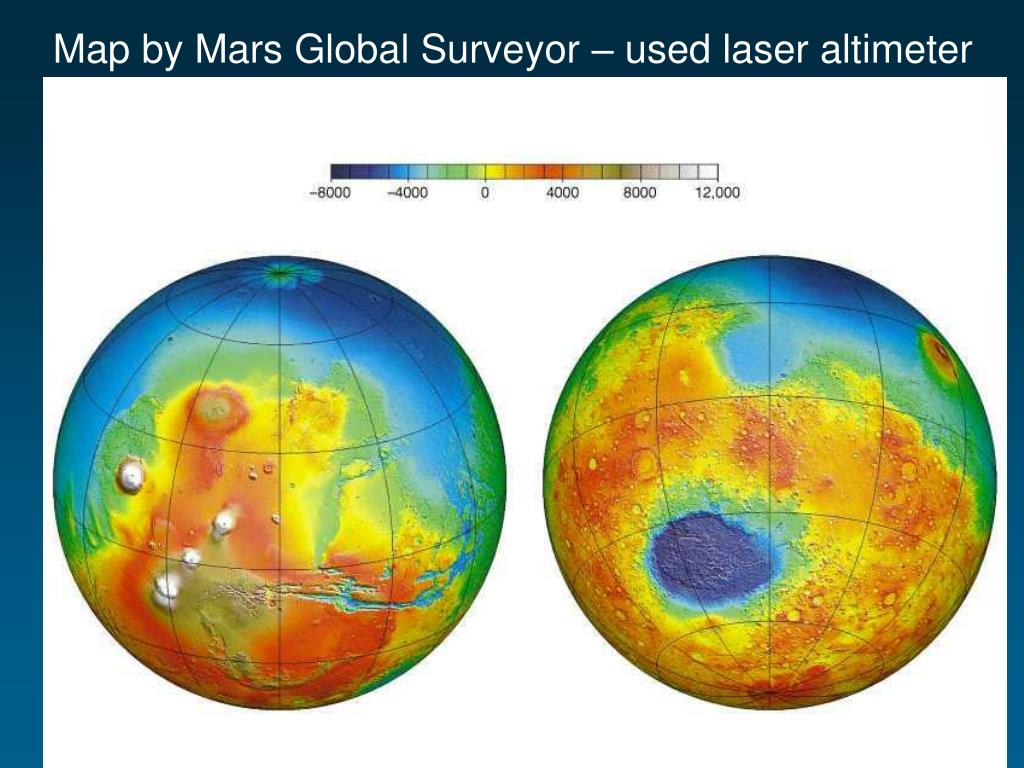

  9. Map by Mars Global Surveyor – used laser altimeter

  10. Hellas Basin – lowest region on Mars, 3000 km across and 6km below average level of Martian surface; impact crater?

  11. Surface of Mars – Northern hemisphere & sourthern highlands • Northern hemisphere: rolling volcanic plains (like lunar maria); much larger lava plains than on Earth or Moon; less cratered than southern highlands – therefore younger • b) Southern highlands: cratered and 5 km above northern hemisphere; original Martian crust

  12. Tharsis - the only continent on surface of Mars… Tharsis bulge – major geological feature of Mars - less cratered than northern plains so is relatively young: 2-3 billion years old - depressions hundreds of km wide, up to 7 km deep - Vallis Marineris; crustal forces push out Tharsis region, and this valley is where crust cracked; feature is 4000km long (Grand Canyon fits into small crack in this structure)

  13. Comparison, to scale, with the Grand Canyon which is 20km wide and 2 km deep. Cracks in Valles Marineris at least 2 billion yrs old.

  14. Olympus Mons –largest volcano known in the solar system: 700 km base and 25 km in height…! Compare Mauna Kea: base 120 km, height 9 km from ocean bottom

  15. Volcanism on Mars • Volcanoes on Mars sit on top of hot spots in the underlying Martian mantle (like “shield” volcanoes – Hawaiin islands) • No indication of “continental drift” on Mars – no volcanic activity of this kind • Height of volcano – lower surface gravity of planet (40% of Earth) -> volcano can be built up 2.5 times higher than on Earth (assuming similar strength of crusts) • Tharsis active 100 million yrs ago (based on cratering record)

  16. Martian Atmosphere Pressure is 1/150th of Earth’s atmosphere Composition (by volume) 95.3% CO2 2.7% N 1.6% Argon 0.13% Oxygen 0.03% water vapor (Earth: 21% O; 78% N) Noon; summertime T=300K Night; little heat retention T drops by 100 K Storms; begin in southern hemisphere, carrying dust into stratosphere; covering the planet On average, temperatures on Mars are 50 K cooler than Earth

  17. Polar caps – frozen Carbon Monoxide and Water Ice Freezing point of CO2: 150 K; CO evaporates during Martian summer leaving small cap of water ice; CO2 refreezes during Martian winter producing a larger cap. Addition and subtraction of CO2 from atmosphere mcauses large pressure fluctuations over a season (30%). Southern (left,) and northern caps (right – mostly water) in summer; 350 and 1000 km diam.

  18. Water on Mars: Impact cratering, and runoff channels a) Large lunar crater (Copernicus) - powdery ejecta b) Mars’ crater Yuty (18 km diam) – fluid-like ejecta; permafrost melted during the impact

  19. Runoff channel on Mars – 400 km long, 5 km wide Compare Mars channel, with Red River running to Mississippi

  20. Flow around obstacles (craters) • The flow rates around these obstacles were about 100 times larger than the flow rate of water through the Amazon river. “Islands” in this image are 40 km long. • (Flow through Amazon is 100,000 tons per second – largest river system on Earth). • Flooding shaped these channels 3 billion yrs ago.

  21. Where did all the water go? • Mars had rivers, lakes, and possibly oceans . • 4 billion years ago, climatic change leads to freezing of rivers, water forming permafrost (like Canadian tundra) • Giant flash floods occur 3 billion years ago in wake of volcanic activity that melts the permafrost. • Once volcanic activity ceased, water froze into permafrost. Site of ancient ocean on Mars?

  22. How much water was/is there? • To explain existing erosional features; need 0.001 – 0.01 Earth oceans worth • Evidence for more water earlier; high levels of deuterium in Mars atmosphere -> most of hydrosphere lost to space -> more than 0.1 Earth oceans • Shorelines of northern basin: measured by Mars Global Surveyor’s (MGS) laser altimeter: -> could hold .01 Earth oceans within basin. • Minerals: From MGS infrared spectrometer – measure infrared spectra to find an iron oxide (“grey hematite”), which *may* be related to formation in presence of water. -> strategy for surface rovers….

  23. Properties of water on Mars; - Triple point of water is 0.61 kPa; water does not exist at liquid at lower pressures -> low present pressure on Mars means water is absent in liquid form. - at surface pressure of 1kPa, water boils at 7C. Even at 0C, water close to boiling and this carries away a lot of heat. • Relevance to Mars: - low elevation of northern plains -> pressure is higher and above the triple point of water (0.7 kPa) … so liquid water could be present - high elevation of southern polar regions has too low a pressure -> liquid water unstable

  24. Roving Mars for water, and life ….

  25. Opportunity at Victoria crater

  26. Design of Viking experiments: • Prolytic release exp (PR): - detect microbes in soil, consuming CO2 and using light • Gas exchange exp (GEx): - detect gas release by microbes when organics added to soil Result: rapid O2 release when soil exposed to just water vapour; response persists even after soil sterilization. ( not biological) • Labelled release exp (LR): - detect release of CO2 from microbes when radioactively tagged organic nutrients added Result: release of CO2 eliminated on sterlization (biological?)

  27. Gas Chromatograph Mass Spectrometer (GCMS): - no detection of organics in soil to one part per billion. - major reason why results of exps interpreted as due to reactivity of martion soil. Why? In Atacama desert (driest place on Earth), even soil without detectable microbes have detectable organics • Caveats: Exps based on trying to culture microbes – this is now kown that culture exps on Earth fail 90% of the time. - develop culture free methods for future exps.

  28. Is there life on Mars? Viking lander results Soil samples taken by Viking lander looked for gas release due to metabolic activity – no evidence for metabolism “Martian meteorite” contains PAHs and perhaps long, rod-like bacteria (0.5 microns long)? No concrete evidence yet for life – however presence of water beneath surface very important. ALH84001

  29. Rovers:Physical evidence for water; spherules seen in Eagle Crater rock outcrop site. Not volcanic… but gypsum (most common sulfate mineral) crystals. Fell out of sedimentary rock perhaps due to wind erosion.

  30. Rover results: Opportunity in Eagle crater Rock outcrops in crater hold evidence that liquid water was stable and present on Mars: • Mossbauer spectrometer results (gamma ray spectroscopy): iron-rich sulfate (hydrated minerals) called “jarosite”, requiring presence of water to form. • Evaporation sequence of minerals: variation in concentrations of elements going down through rock, progressively deposited as water evaporated • Spherules…eroded out of rock • Layering of rock, angled, “cross bedded” sedimentary rock laid down in flowing water.

  31. History of water on Mars: • Origin of water: Earth water acquired from late impacts of large Mars sized planetesimals? - for Mars, such collisions would be destructive – must have accreted from many smaller impacts - implies Mars gets water from asteroids and comets, delivering total of 1/20 – ¼ Earth ocean’s worth – with D/H = 2 times Earth ocean. - 2nd possibility; local origin, Mars formed in a cooler, wetter part of nebula: water ice added directly during its formation locally?

  32. Warm climate on early Mars? - Heating by green house requires much more CO2 than on Earth because i) solar luminosity lower at earlier times by 70% ii) Mars is more distant than Earth, so black body T is lower to begin with, -> needed atmosphere with several times pressure of Earth’s and 10,000 times pressure of CO2 than Earth! - greenhouse gas eventually lost to space - test idea using N(15)/N(14) isotopic ratios…

  33. Drying and freezing of Mars: - High erosion rates on early Mars due to warm and wet surface conditions - eg. heavy erosion of large impact craters in older southern hemisphere material - on younger terrains, much less erosion (possibly by several thousand times) -> early and quick end to wet era. - water loss tested by D/H measurements: i) 5 times Earth ocean ii) 3 times ancient Mars meteorites iii) much less than loss on Venus -> water stored by trapping in crust?
