ecse 6290 semiconductor devices and models ii lecture 20 laser diodes

ECSE-6290Semiconductor Devices and Models IILecture 20: Laser Diodes

Shayla M. Sawyer

Bldg. CII, Room 8225

Rensselaer Polytechnic Institute

Troy, NY 12180-3590

Tel. (518)276-2164

FAX (518)276-2990

e-mail: ssawyer@ecse.rpi.edu

lecture outline
Lecture Outline
  • Introduction
  • Main Concepts
    • Stimulated Emission
    • Population Inversion
    • Optical Gain
    • Optical Resonator
    • Threshold Current
  • Laser Diode Types

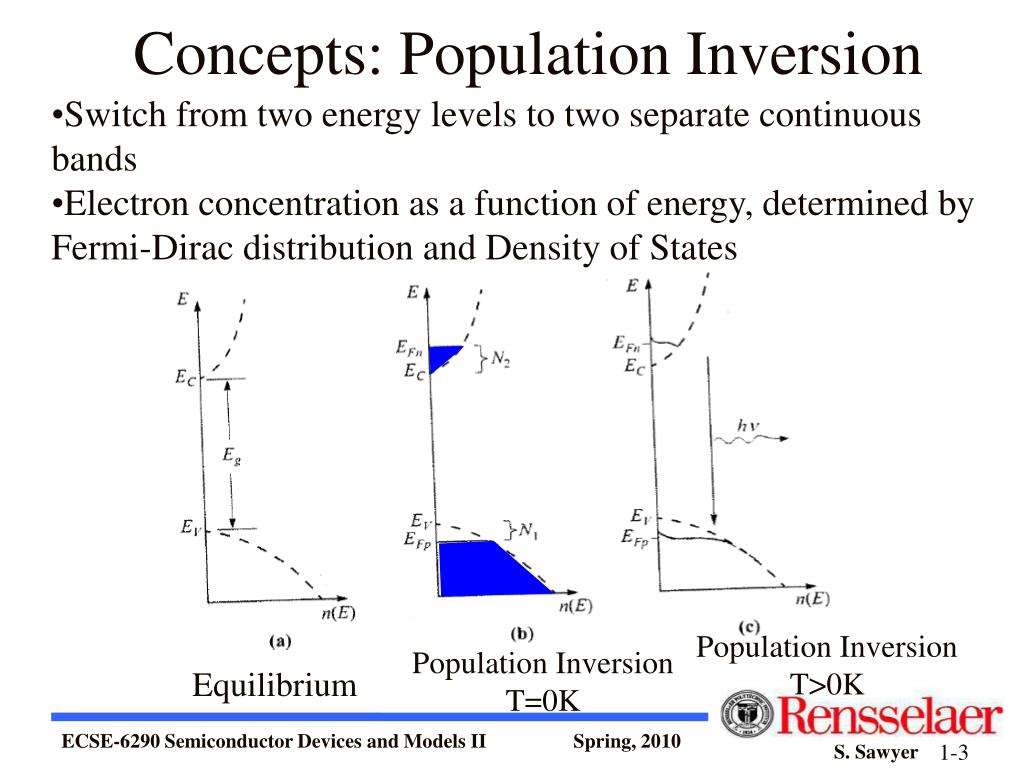

concepts population inversion
Concepts: Population Inversion
  • Switch from two energy levels to two separate continuous bands
  • Electron concentration as a function of energy, determined by Fermi-Dirac distribution and Density of States

Population Inversion T>0K

Population Inversion T=0K

Equilibrium

slide4

Concepts: Population Inversion and Optical Gain

Photons above EFn-EFp are absorbed

laser physics population inversion

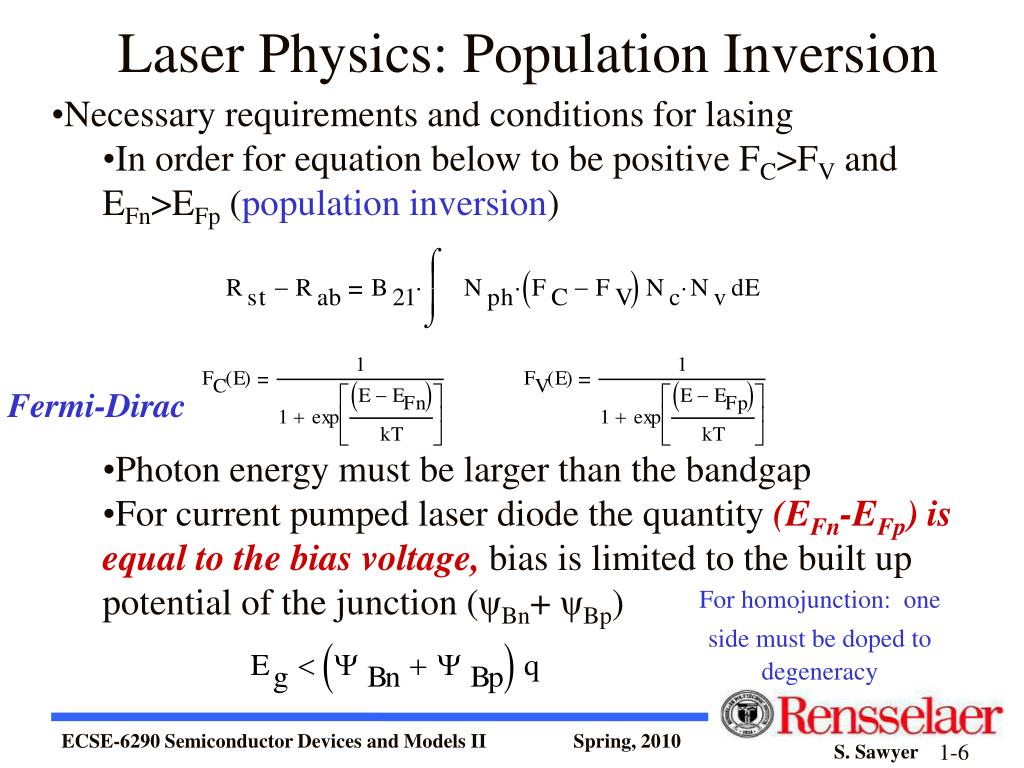

Laser Physics: Population Inversion
  • Necessary requirements and conditions for lasing
    • In order for equation below to be positive FC>FV and EFn>EFp (population inversion)
    • Photon energy must be larger than the bandgap
    • For current pumped laser diode the quantity (EFn-EFp) is equal to the bias voltage, bias is limited to the built up potential of the junction (ψBn+ ψBp)

Fermi-Dirac

For homojunction: one side must be doped todegeneracy

slide7

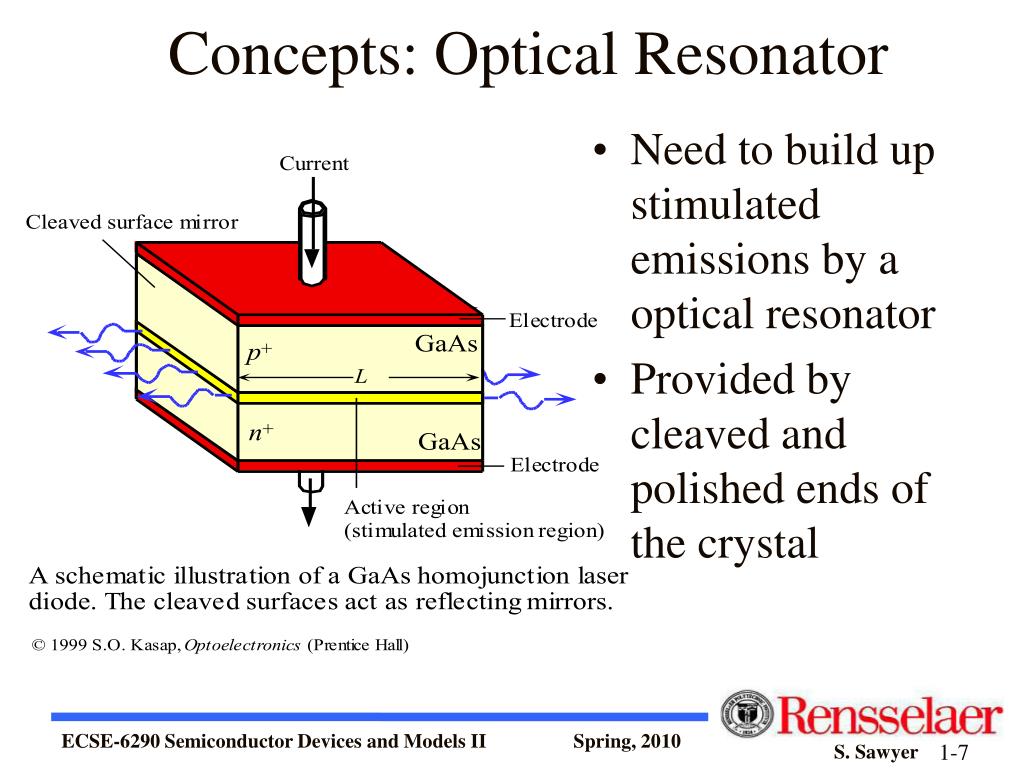

Concepts: Optical Resonator

  • Need to build up stimulated emissions by a optical resonator
  • Provided by cleaved and polished ends of the crystal
concepts optical resonator
Concepts: Optical Resonator
  • Requirement is a structure to trap the light and build up intensity inside
    • Like a Fabry-Perot etalon, two parallel walls perpendicular to the junction
    • Longitudinal modes: multiple resonant frequencies
    • Separation of modes in wavelength and frequency

Only multiples of the half wavelength can exist in the cavity

Output spectrum is determined by the optical cavity, and optical gain vs. wavelength characteristics

concepts optical gain
Concepts: Optical Gain
  • Optical gain (g) due to stimulated emission is compensated by optical loss due to absorption (α)
    • Net gain/loss as a function of distance
    • For a given system R1, R2, and α are fixed, the only parameter to vary is overall gain
    • To keep gain positive

Threshold gain

concepts threshold current
Concepts: Threshold Current
  • The relationship between optical gain and bias current can be described by the equation
  • Linear increase of optical gain with bias current

Nominal current density

Threshold value

slide11

Concepts: Threshold Current

  • Lasing oscillations occur only when the optical gain in the medium can overcome the photon losses from the cavity
  • Cavity modes vary with increasing current
laser types
Laser Types
  • single
  • heterostructure

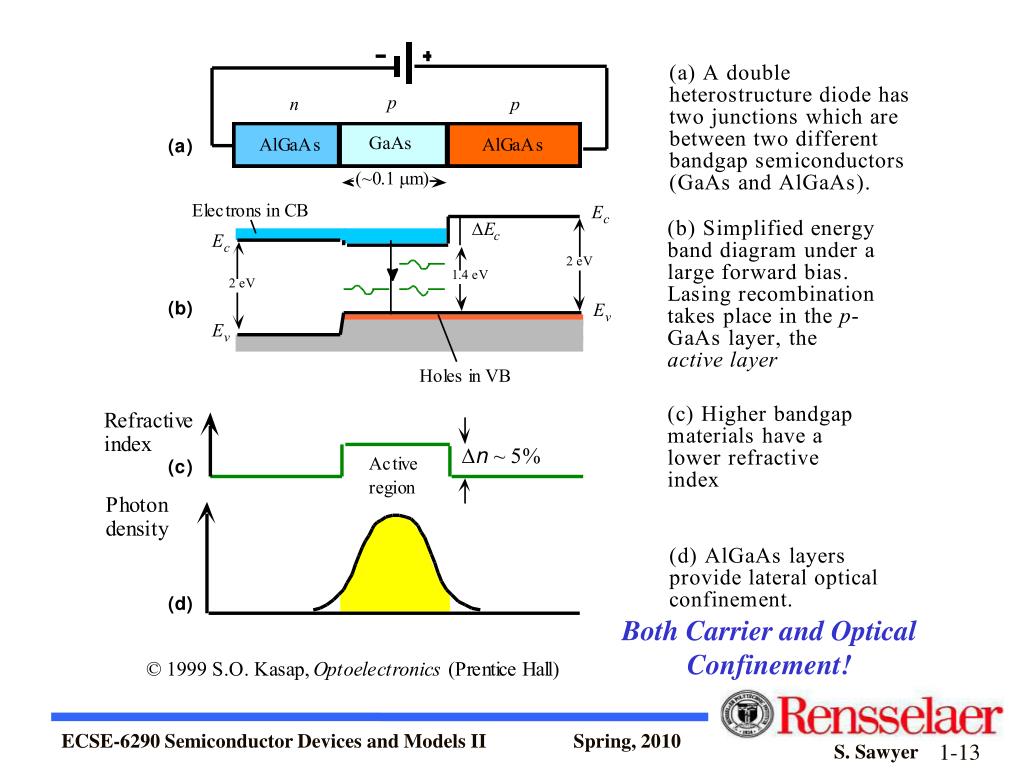

double heterostructure

homostructure

example modes in an optical cavity length
Example: Modes in an optical cavity length

Consider an AlGaAs based heterostructure laser diode which has an optical cavity of length 200 microns. The peak radiation is at 870 nm and the refractive index of GaAs is about 3.7.

a) What is the mode integer m of the peak radiation and the separation between modes of the cavity?

b) If the optical gain vs. wavelength characteristics has a FWHM wavelength width of about 6 nm, how many modes are there within this bandwidth?

c) How many modes are there if the cavity length is 20 μm?

slide15

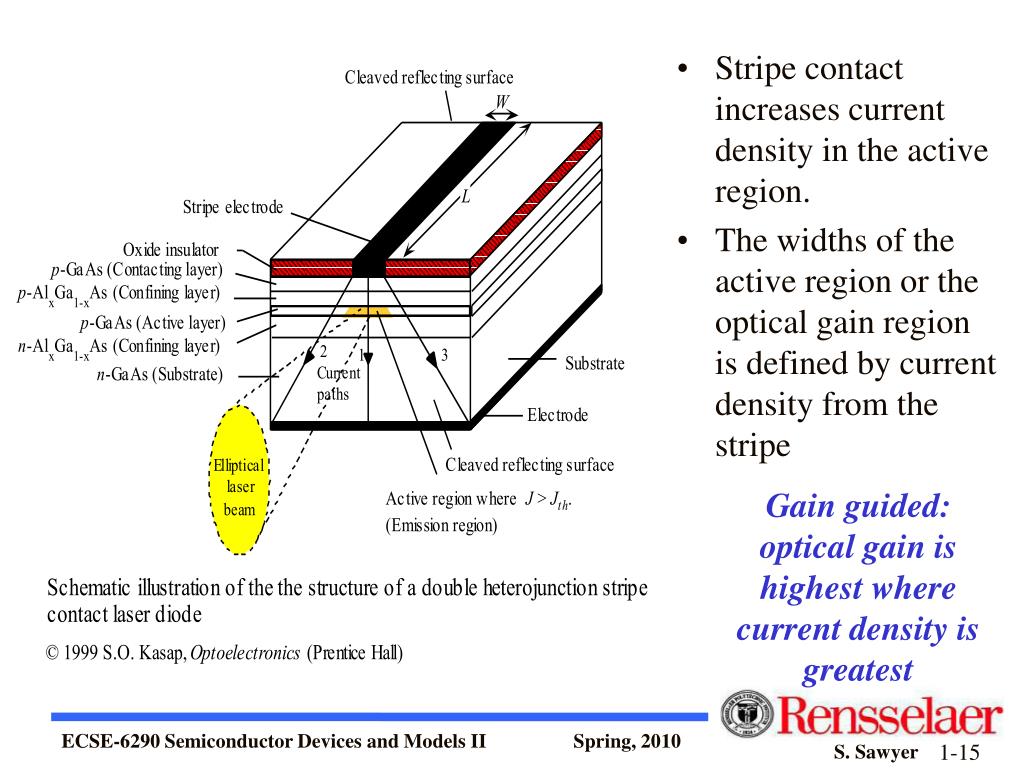

Stripe contact increases current density in the active region.

  • The widths of the active region or the optical gain region is defined by current density from the stripe

Gain guided: optical gain is highest where current density is greatest

slide16

Active layer is surrounded by lower index AlGaAs and behaves like a dielectric waveguide

  • Ensures that photons are confined to the active or optical gain region
  • Increases rate of stimulated emission

Index guided: optical power confined to waveguide

slide17

Index guided LD: changes from multiple mode to single mode with increasing optical power

  • Gain guided: remain multimode even at high diode currents
slide18

Single Frequency Solid State Lasers: DBR laser

  • Frequency selective dielectric mirrors a cleaved surfaces.
  • Only allow a single mode to exist
  • Periodic corrugated structure that interfere constructively when the wavelength corresponds to twice the corrugation periodicity (Bragg wavelengths)
slide19

Single Frequency Solid State Lasers: DFB laser

  • The corrugated layer, called the guiding layer, is now next to the active layer
  • In the DFB structure traveling wave are reflected partially and periodically as they propogate.
slide20

Constant 2D density of states means a large concentration of electron can easily occur at E1 (and holes at the minimum valence band energy)

  • Population inversion occurs quickly without the need for a large current to bring a large number of electrons
  • Benefits: Threshold current reduced, linewidth is narrower
slide22

Optical cavity axis along the direction of current flow rather than perpendicular to current flow

  • Radiation emerges from the surface of the cavity rather than from its edge
  • Reflectors at the edges of the cavity are dielectric mirrors
  • 20-30 layers for mirror, MQW active region
summary

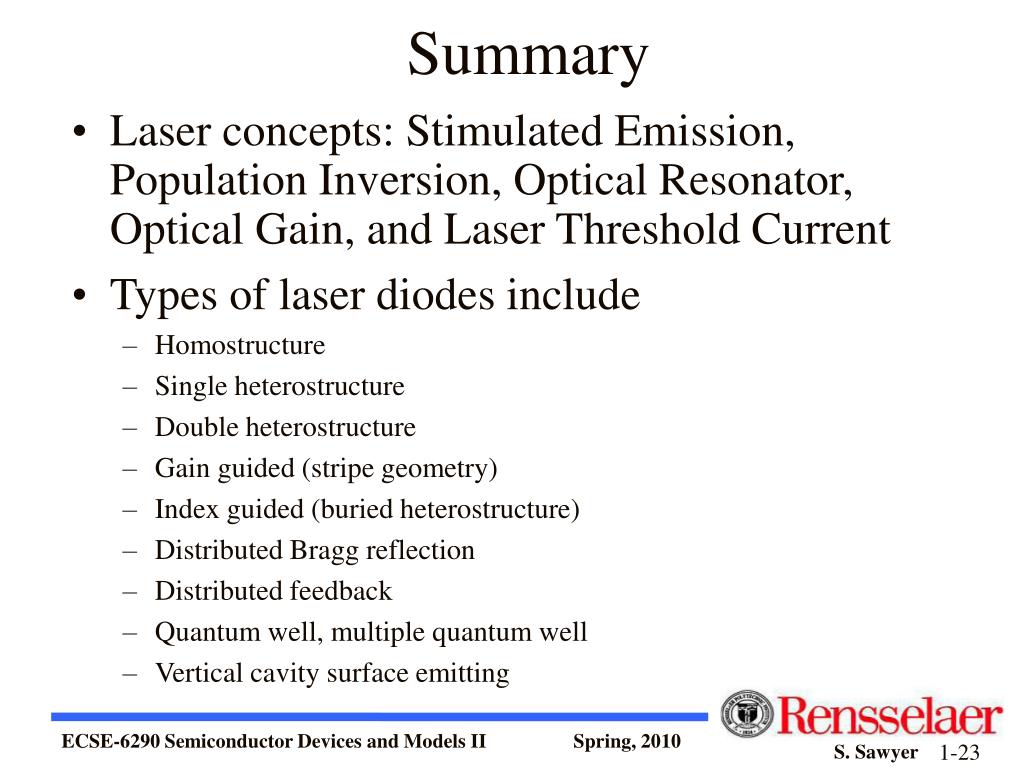

Summary
  • Laser concepts: Stimulated Emission, Population Inversion, Optical Resonator, Optical Gain, and Laser Threshold Current
  • Types of laser diodes include
    • Homostructure
    • Single heterostructure
    • Double heterostructure
    • Gain guided (stripe geometry)
    • Index guided (buried heterostructure)
    • Distributed Bragg reflection
    • Distributed feedback
    • Quantum well, multiple quantum well
    • Vertical cavity surface emitting
ecse 6290 semiconductor devices and models ii lecture 21 photodetectors

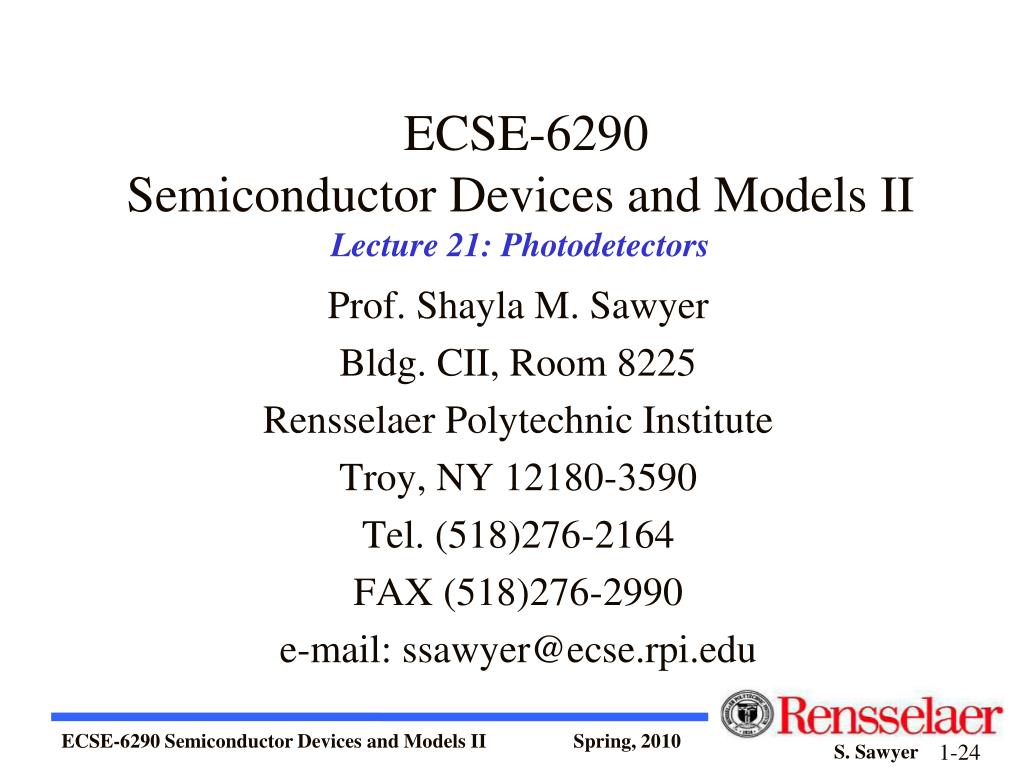

ECSE-6290Semiconductor Devices and Models IILecture 21: Photodetectors

Prof. Shayla M. Sawyer

Bldg. CII, Room 8225

Rensselaer Polytechnic Institute

Troy, NY 12180-3590

Tel. (518)276-2164

FAX (518)276-2990

e-mail: ssawyer@ecse.rpi.edu

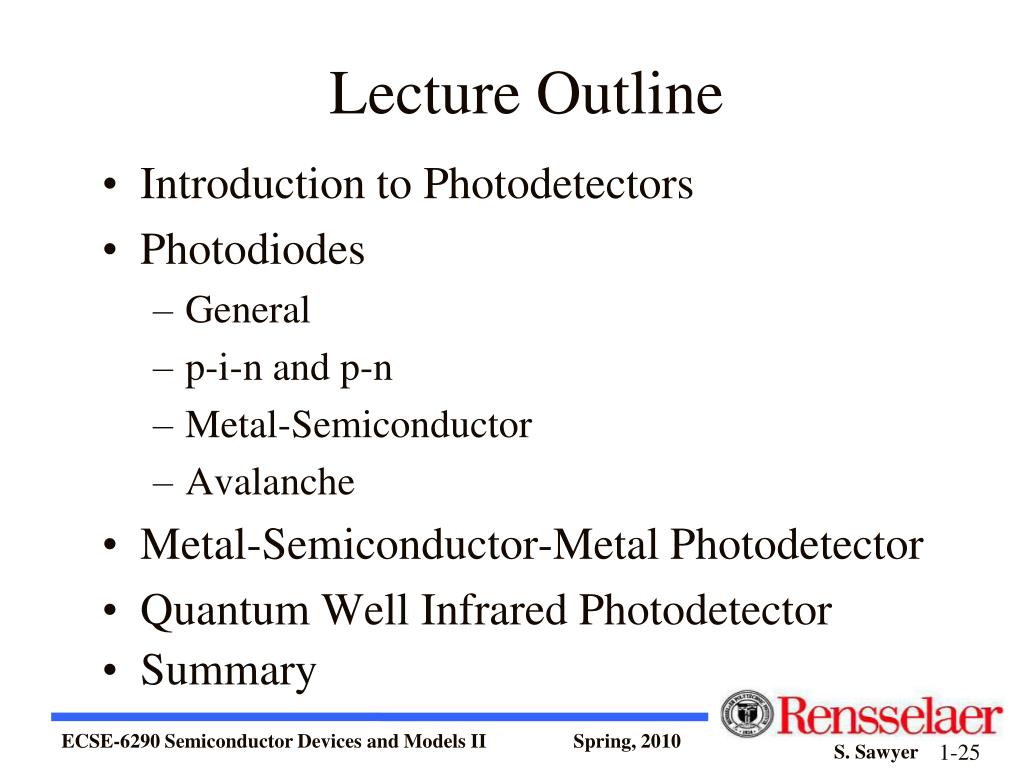

lecture outline25
Lecture Outline
  • Introduction to Photodetectors
  • Photodiodes
    • General
    • p-i-n and p-n
    • Metal-Semiconductor

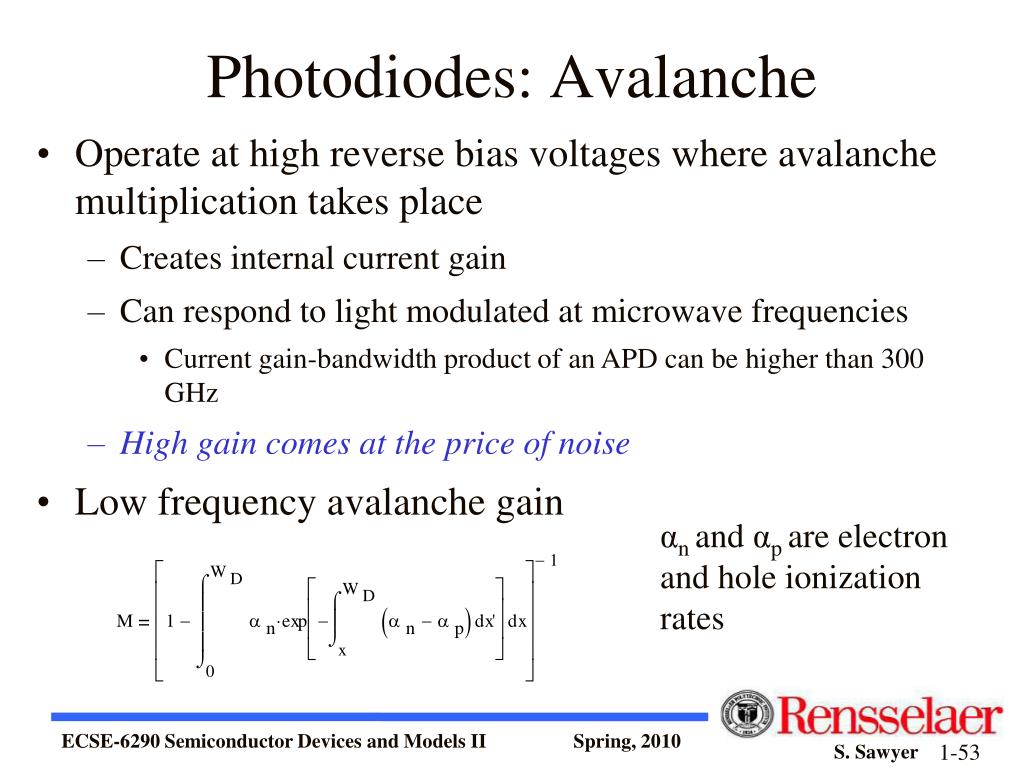

    • Avalanche
  • Metal-Semiconductor-Metal Photodetector
  • Quantum Well Infrared Photodetector
  • Summary
introduction
Introduction
  • Photodetectors are semiconductor devices that can detect optical signals through electronic processes
    • Three main processes:
      • Carrier generation by incident light
      • Carrier transport and/or multiplication by current-gain mechanism
      • Extraction of carriers as terminal current to provide the output signal
    • Desired: High sensitivity, high response speed, minimum noise, compact size, low biasing voltage and current
introduction27
Introduction
  • Wavelength relation to transition energy
  • ΔE is the transition of energy levels
    • Depending on photodetector type can be:
      • Energy gap of the semiconductor
      • Barrier height as in a metal semiconductor photodiode
      • Transition energy between impurity level and band edge as an extrinsic photoconductor

Often minimum wavelength for detection

introduction28
Introduction
  • Important Factors/Parameters
    • Absorption Coefficient
    • Response Speed
    • Quantum Efficiency
    • Responsivity
    • Gain
    • Noise
    • Detectivity

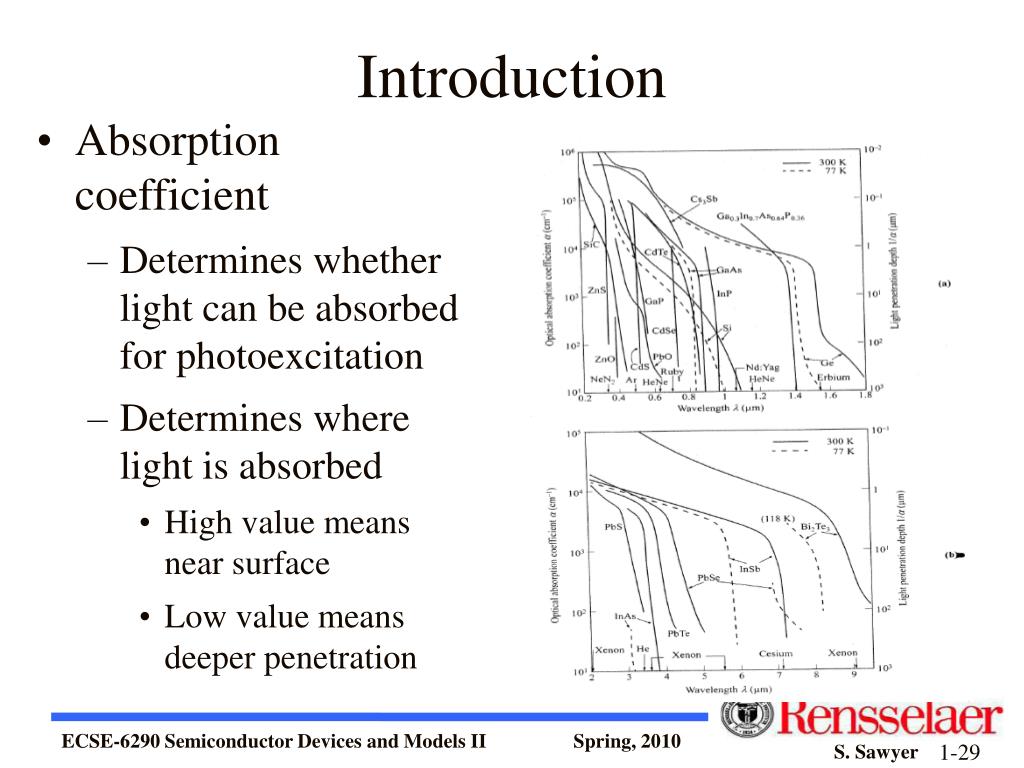

introduction29
Introduction
  • Absorption coefficient
    • Determines whether light can be absorbed for photoexcitation
    • Determines where light is absorbed
      • High value means near surface
      • Low value means deeper penetration
introduction30

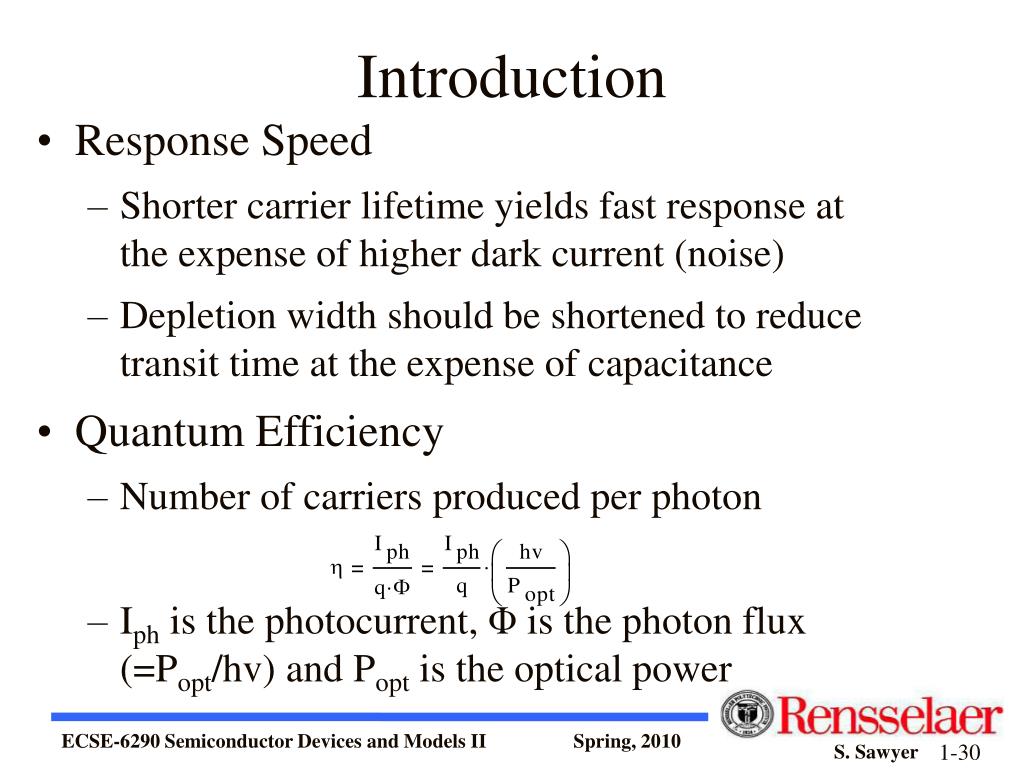

Introduction
  • Response Speed
    • Shorter carrier lifetime yields fast response at the expense of higher dark current (noise)
    • Depletion width should be shortened to reduce transit time at the expense of capacitance
  • Quantum Efficiency
    • Number of carriers produced per photon
    • Iph is the photocurrent, Φ is the photon flux (=Popt/hv) and Popt is the optical power
introduction31
Introduction
  • Responsivity: Photocurrent generated per incident optical power
  • Gain and response time for common photodetectors
introduction32
Introduction
  • Noise ultimately determines minimum detectable signal strength
    • Sources of noise
      • Dark current
      • Thermal noise
      • Shot noise
      • Flicker noise
      • Generation recombination noise
    • Figure of Merit Noise Equivalent Power
    • Detectivity A is the Area
          • B is the Bandwidth

NEP-incident rms optical power required to produce a signal-to-noise ratio of one in a 1 Hz bandwidth (minimum detectable light power)

introduction33
Introduction
  • Detectivity
    • The signal-to-noise ratio when one watt of light power is incident on a detector of area 1 cm2 measured over 1 Hz bandwidth
    • Normalized to area, noise is generally proportional to the square root of area
    • Detectivity depends on
      • Detector sensitivity
      • Spectral Response
      • Noise
    • Is a function of wavelength, modulation frequency and bandwidth
photodiodes general
Photodiodes: General
  • Photodiodes have depleted region with a high electric field that separates photogenerated electron-hole pairs
    • Tradeoff between speed of response and quantum efficiency (depletion layer: transit time, absorbance area)
    • Reverse biasing often employed to reduce carrier transit time and lower diode capacitance
    • All photodiodes except Avalanche has a maximum gain of one

a) p-i-n photodiodes b) pn photodiode c) Metal-i-n photodiode d) Metal-semiconductor photodiode e) Point contact photodiode

photodiodes general35
Photodiodes: General
  • Important characteristics
    • Quantum efficiency
      • Absorption coefficient strong dependence on wavelength
      • Long wavelength cutoff given by energy gap of semiconductor
      • Short wavelength cutoff given by large value of α (surface where recombination is likely)
    • Response Speed
      • Limited by
        • Drift time in the depletion region
        • Diffusion of carriers
        • Capacitance of detection region
      • Optimized when the depletion layer is chosen so the transit time is on the order of one half the modulation period

WD ~ 1/α

photodiodes general36
Photodiodes: General
  • Device Noise
    • Shot noise
      • IP average photocurrent, IB background radiation, ID dark current due to thermal generation of electron hole pairs in the depletion region
    • Thermal noise where
      • Rj Junction resistance
      • Ri Input resistance of amplifier
      • RL External load resistor
photodiodes general37
Photodiodes: General
  • Signal to Noise for 100% modulated signal with average power Popt
  • Minimum optical power required to obtain a given signal-to-noise ratio is (setting Ip=0)
      • Noise equivalent power (S/N=1; B=1 Hz)
photodiodes p i n and p n

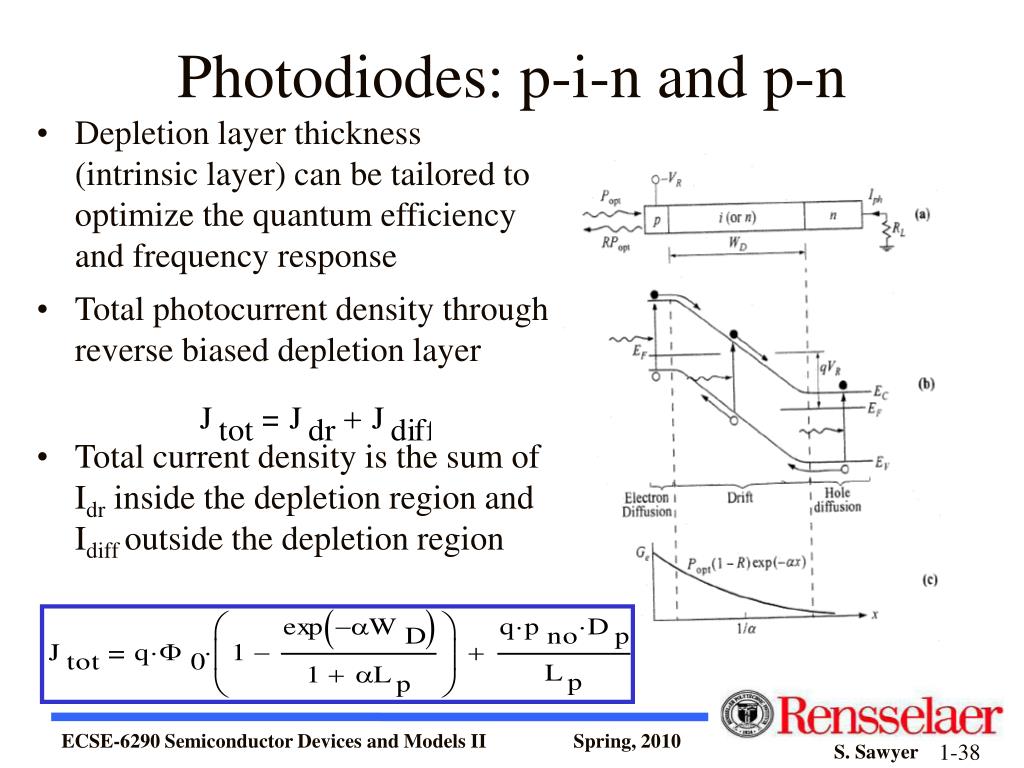

Photodiodes: p-i-n and p-n
  • Depletion layer thickness (intrinsic layer) can be tailored to optimize the quantum efficiency and frequency response
  • Total photocurrent density through reverse biased depletion layer
  • Total current density is the sum of Idr inside the depletion region and Idiff outside the depletion region
photodiodes p i n and p n39
Photodiodes: p-i-n and p-n
  • Quantum efficiency
    • Reduced from unity from
      • Reflection R
      • Light absorbed outside the depletion region
    • High quantum efficiency, low R and αWD>>1 is desirable
      • For WD>>1/ α transit time delay may be considerable
photodiodes p i n and p n40

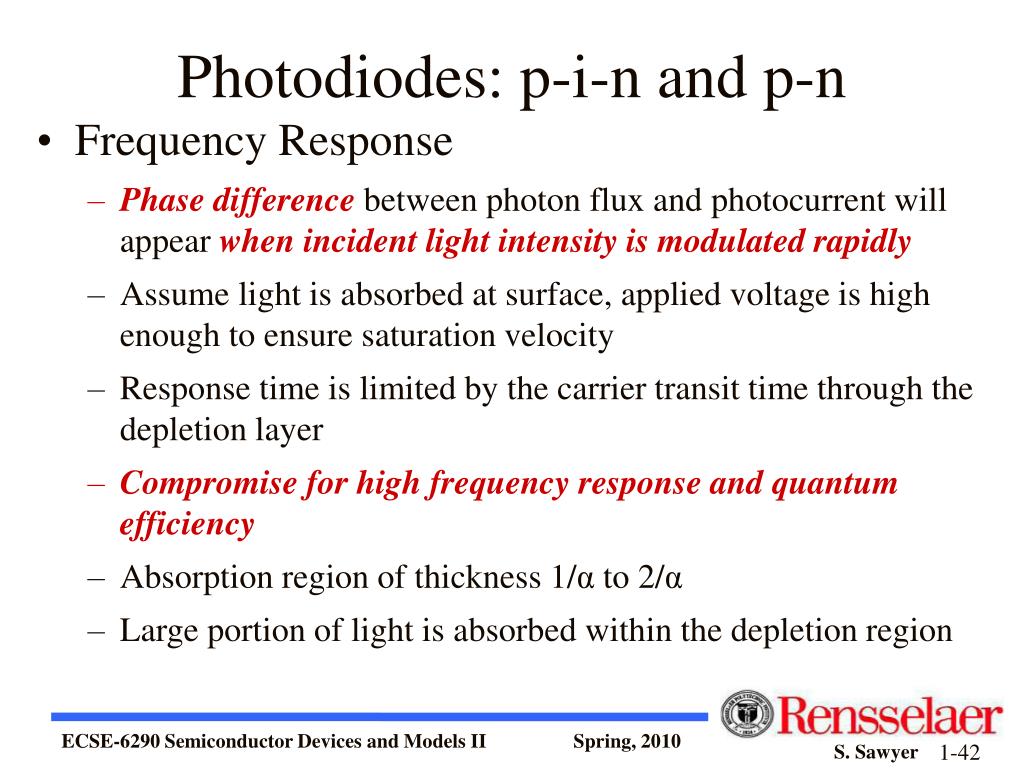

Photodiodes: p-i-n and p-n
  • Frequency Response
    • Phase difference between photon flux and photocurrent will appear when incident light intensity is modulated rapidly
    • Assume light is absorbed at surface, applied voltage is high enough to ensure saturation velocity
    • Response time is limited by the carrier transit time through the depletion layer
    • Compromise for high frequency response and quantum efficiency
    • Absorption region of thickness 1/α to 2/α
    • Large portion of light is absorbed within the depletion region
photodiodes p i n and p n41

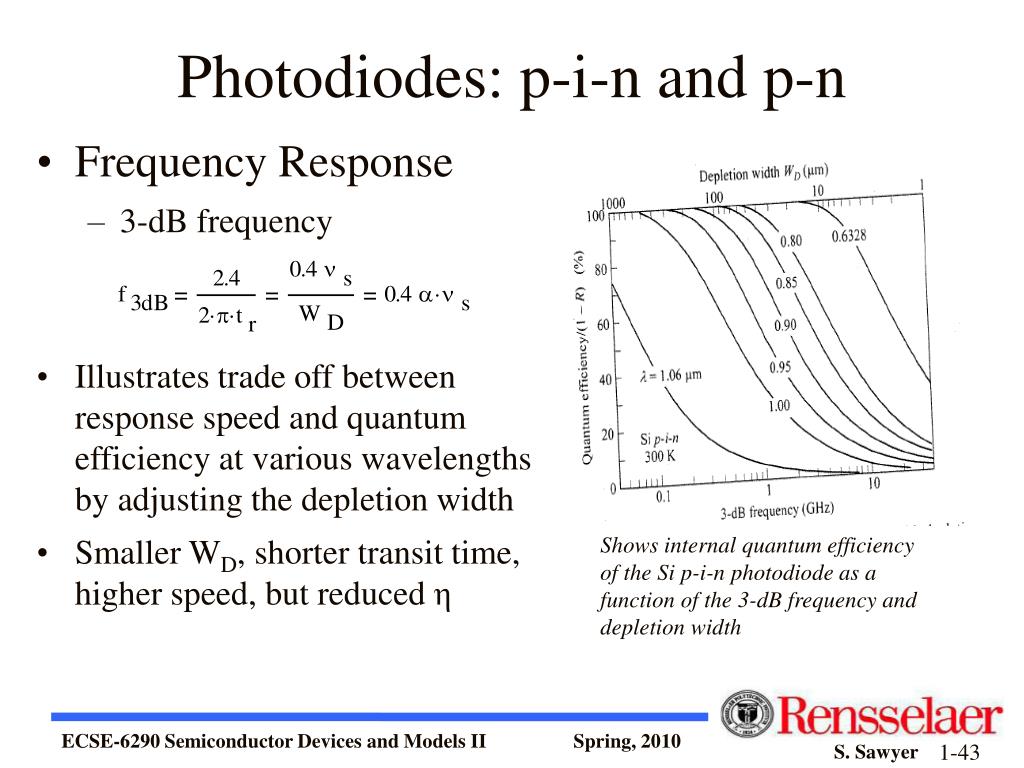

Photodiodes: p-i-n and p-n
  • Frequency Response
    • 3-dB frequency
  • Illustrates trade off between response speed and quantum efficiency at various wavelengths by adjusting the depletion width
  • Smaller WD, shorter transit time, higher speed, but reduced η

Shows internal quantum efficiency of the Si p-i-n photodiode as a function of the 3-dB frequency and depletion width

photodiodes p i n and p n42
Photodiodes: p-i-n and p-n
  • p-n photodiode
    • Thin depletion layer means some light can be absorbed outside
    • Light more than a diffusion length outside do not contribute at all to photocurrent
      • Reduces quantum efficiency
      • Diffusion process is slow
        • Time require to diffuse a distance x
      • Lower response speed than p-i-n
      • Neutral region contributes to noise
photodiodes heterojunction
Photodiodes: Heterojunction
  • Advantages
    • Large bandgap material can be transparent and used as a window for transmission of incoming optical power
      • Quantum efficiency is not dependent on distance of junction from surface
    • Unique material combinations so quantum efficiency and response speed can be optimized for a given optical wavelength
    • Reduced dark current

J.H. Jang et al., Journal of Lightwave Technology, Vol. 20, No. 3, March 2002.

photodiodes metal semiconductor
Photodiodes: Metal-Semiconductor
  • Has a threshold of qΦB,
  • when it gets to the energy gap value the quantum efficiency jumps to a much high value
  • Operates in two modes
    • hυ>Eg : radiation produces electron hole pairs (similar to pin photodiode)
    • hυ<Eg : photoexcited electrons surmount barrier
photodiodes metal semiconductor45
Photodiodes: Metal-Semiconductor
  • Quantum Efficiency in two modes
    • hυ>Eg : radiation produces electron hole pairs (similar to p-i-n)
    • hυ<Eg : photoexcited electrons surmount barrier, internal photoemission
      • Internal photoemission has typical quantum efficiencies of less than 1%

CF is the Fowler emission coefficient

photodiodes metal semiconductor46
Photodiodes: Metal-Semiconductor
  • Configurations
    • Advantageous for band-to-band
      • Diode illuminated through thin metal contact with antireflection coating
      • Use low doping i layer similar to p-i-n
      • Point contact diode reduces active volume, drift time and capacitance are small
        • Very high modulation frequencies
photodiodes metal semiconductor47
Photodiodes: Metal-Semiconductor
  • Main advantages
    • High speed and long wavelength detection capability without having to use a semiconductor with a small energy gap
    • Not limited by charge storage of minority diffusion current
    • Ultrafast Schottky barrier photodiodes beyond 100 GHz have been reported
    • Useful in the visible and UV
photodiodes avalanche
Photodiodes: Avalanche
  • Operate at high reverse bias voltages where avalanche multiplication takes place
    • Creates internal current gain
    • Can respond to light modulated at microwave frequencies
      • Current gain-bandwidth product of an APD can be higher than 300 GHz
    • High gain comes at the price of noise
  • Low frequency avalanche gain

αn and αp are electron and hole ionization rates

photodiodes avalanche49
Photodiodes: Avalanche
  • For equal ionization coefficients (α =αn=αp) multiplication takes the simple form
  • In a practical device, the dc multiplication at high light intensities is limited by series resistance and space-charge effect

Breakdown when αWD=1

I total multiplied current

IP unmultiplied current

ID unmultiplied dark current

IMD multiplied dark current

VR Reverse bias voltage

VB Breakdown voltage

photodiodes avalanche50
Photodiodes: Avalanche
  • Current gain mechanism multiples the signal current, background current and dark current indiscriminately
  • Signal to noise power ratio
photodiodes avalanche51
Photodiodes: Avalanche
  • The previous equation can be solved for the minimum optical power Popt required to produce a given S/N with avalanche gain
  • NEP can be improved by the reduction of Ieq by the gain M
photodiodes avalanche52
Photodiodes: Avalanche
  • At high light power p-i-n detectors have larger SNR than APD
  • There is a significant advantage of APDs for low light signals due to multiplication factor
  • Optimization required for any system depending on optical flux

SNR comparison between 1 mm2 diode detectors with a bandwidth 50Hz

photodiodes avalanche53
Photodiodes: Avalanche
  • Material comparison
    • Heterojunction avalanche photodiodes of III-V alloys advantages
      • Wavelength response can be tuned
      • High absorption coefficients of direct bandgap III-V alloys makes quantum efficiency high even if a narrow depletion width is used to provide a high speed response
      • Heterostructure window layer can be grown
        • Surface recombination loss minimized
        • High speed performance
photodiodes avalanche54
Photodiodes: Avalanche
  • Material comparison
    • AlGaAs/GaAs, AlGaSb/GaSb, InGaAs/InP, and InGaAsP/InP
      • Shown improvements in speed and quantum efficiency over Si and Ge
    • Separation absorption and multiplication
      • Higher bandgap material in the multiplication region
      • Low bandgap material for light absorption
      • Breakdown voltage is expected to vary as Eg2/3 so dark current due to tunneling is suppressed
metal semiconductor metal photodetectors
Metal-Semiconductor-Metal Photodetectors
  • Basically two Schottky barriers connected back-to-back on a coplanar surface
  • Added a thin barrier enhancement layer to reduce dark current
  • Metal contacts have shape of interdigitated stripes
    • Light is received at the gap between metal contacts
    • For more complete light absorption, active layer has a thickness slightly larger than absorption length
metal semiconductor metal photodetectors56
Metal-Semiconductor-Metal Photodetectors
  • Typical operation
    • Photocurrent first rises with voltage then becomes saturated
    • Increase of photocurrent at low bias is due to expansion of the depletion region in the reverse biased Schottky junction and internal quantum efficiency improves
    • Voltage at which photocurrent saturates corresponds to flat band condition
      • Electric field at anode becomes zero
      • Estimated by 1D depletion equation
metal semiconductor metal photodetectors57
Metal-Semiconductor-Metal Photodetectors
  • Main Drawback
    • High dark current due to Schottky barrier junction
    • Barrier enhancement layer can be added to reduce dark current of narrow energy gap semiconductor such as InGaAs
      • Layer thickness ranges from 30 to 100nm
      • Can be graded in composition to avoid carrier trapping
metal semiconductor metal photodetectors58
Metal-Semiconductor-Metal Photodetectors
  • Primary advantages
    • High speed and compatibility with FET technology
    • Planar structure easy to integrate on single chip
    • Very low capacitance per area
      • Advantageous for detectors requiring large light sensitive areas
      • Compared to p-i-n capacitance is about half
quantum well infrared photodetectors
Quantum Well Infrared Photodetectors
  • Structure of QWIP using GaAs/AlGaAs heterostructure
    • QW layers 5nm doped to n-type in 1017 range
    • Barrier layers are undoped and have a thickness 30-50nm
    • Periods 20 to 50
quantum well infrared photodetectors60
Quantum Well Infrared Photodetectors
  • Incident light normal to surface has zero absorption
    • Intersubband transition require electric field have components normal to QW plane
    • Two methods
      • Polished facet
      • Grating to refract light

Figure 716

quantum well infrared photodetectors61
Quantum Well Infrared Photodetectors
  • Intersubband excitation
    • Three types of transitions
      • Bound to bound (escape well by tunneling)
      • Bound to continuum (escape well because first state is above barrier: easier)
      • Bound to miniband in superlattice
quantum well infrared photodetectors62
Quantum Well Infrared Photodetectors
  • I-V of QWIP is similar to photodetectors
  • Quantum efficiency is different since light absorption and carrier generation occur only in quantum wells
    • Nop number of optical passes, Nw number of quantum wells, Lw is the length, P is the polarization correction factor
    • Ep is the escape probability and is a function of bias

Ga is optical gain

Cp is the capture probability

of electron traversing quantum well

tp transit time across single period of structure

tt transit time across entire QWIP active length L

quantum well infrared photodetectors63
Quantum Well Infrared Photodetectors
  • Dark current is due to thermionic emission over the quantum well barriers and thermionic field emission (thermally assisted tunneling) near the barrier peaks
    • To limit dark current, the QWIP has to be operated at low temperatures in the range of 4-77 K
  • Can be applied in focal plane arrays for 2D imaging
    • High speed capability and fast response
    • Coupling of light to the photodetector is difficult
summary64
Summary
  • Photodiodes have depleted region with a high electric field that separates photogenerated electron-hole pairs
  • Width of depletion layer determines tradeoff between speed and quantum efficiency
  • P-n photodiodes have lower response speed and higher noise than a p-i-n photodiode
  • Heterojunction photodiodes can move light absorption region away from the surface due to transparence of larger bandgap materials
  • MS photodiodes operate in two modes, used because no minority carriers that increases speed
  • Avalanche photodiodes have high gain but at the cost of noise, better for signals of low light intensity
  • MSM photodectors have high speed and large area but have high dark noise
  • QWIP uses quantum wells and various intersubband transitions for electrons, and are often operated at low temperatures
