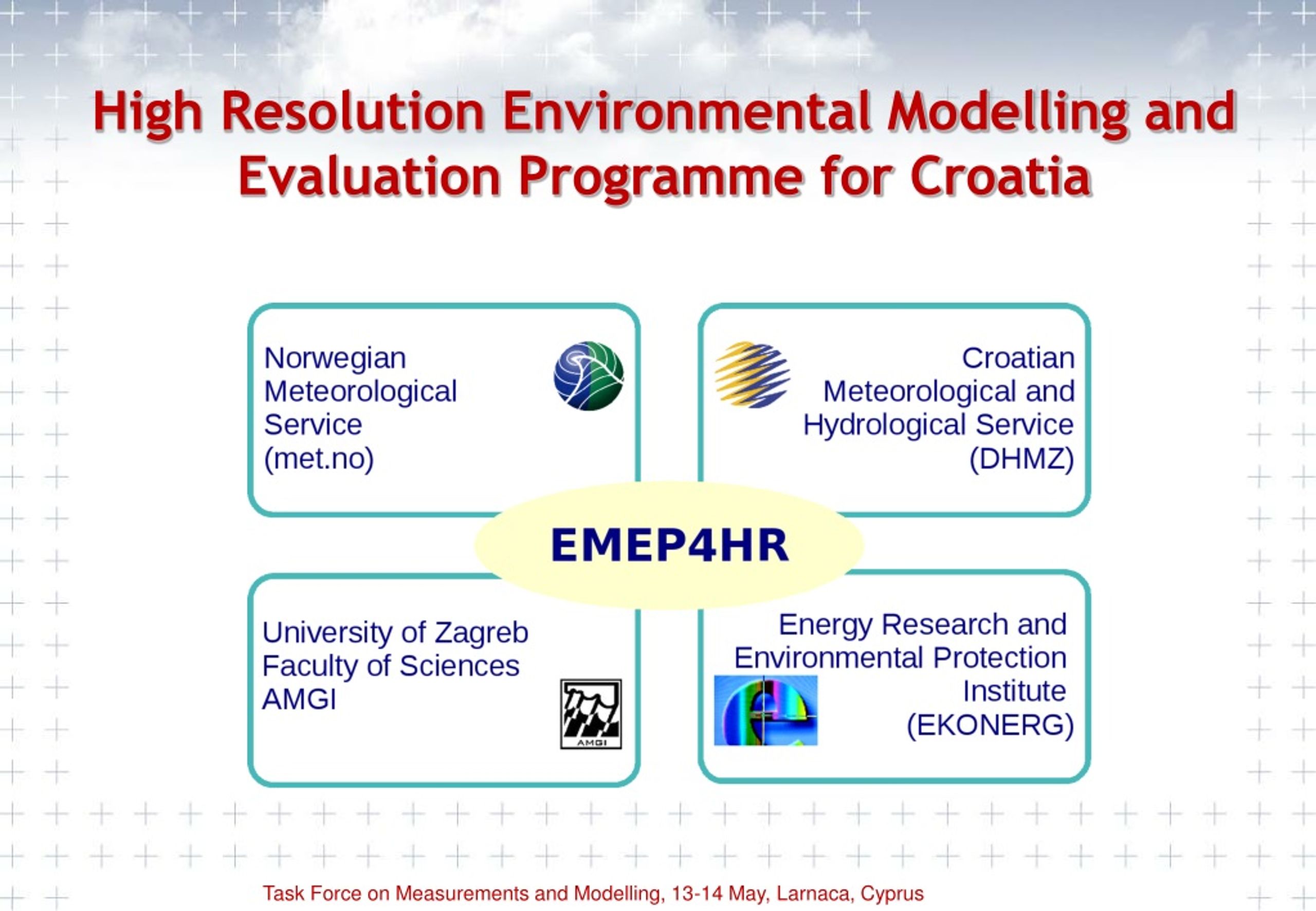

  1. High Resolution Environmental Modelling and Evaluation Programme for Croatia

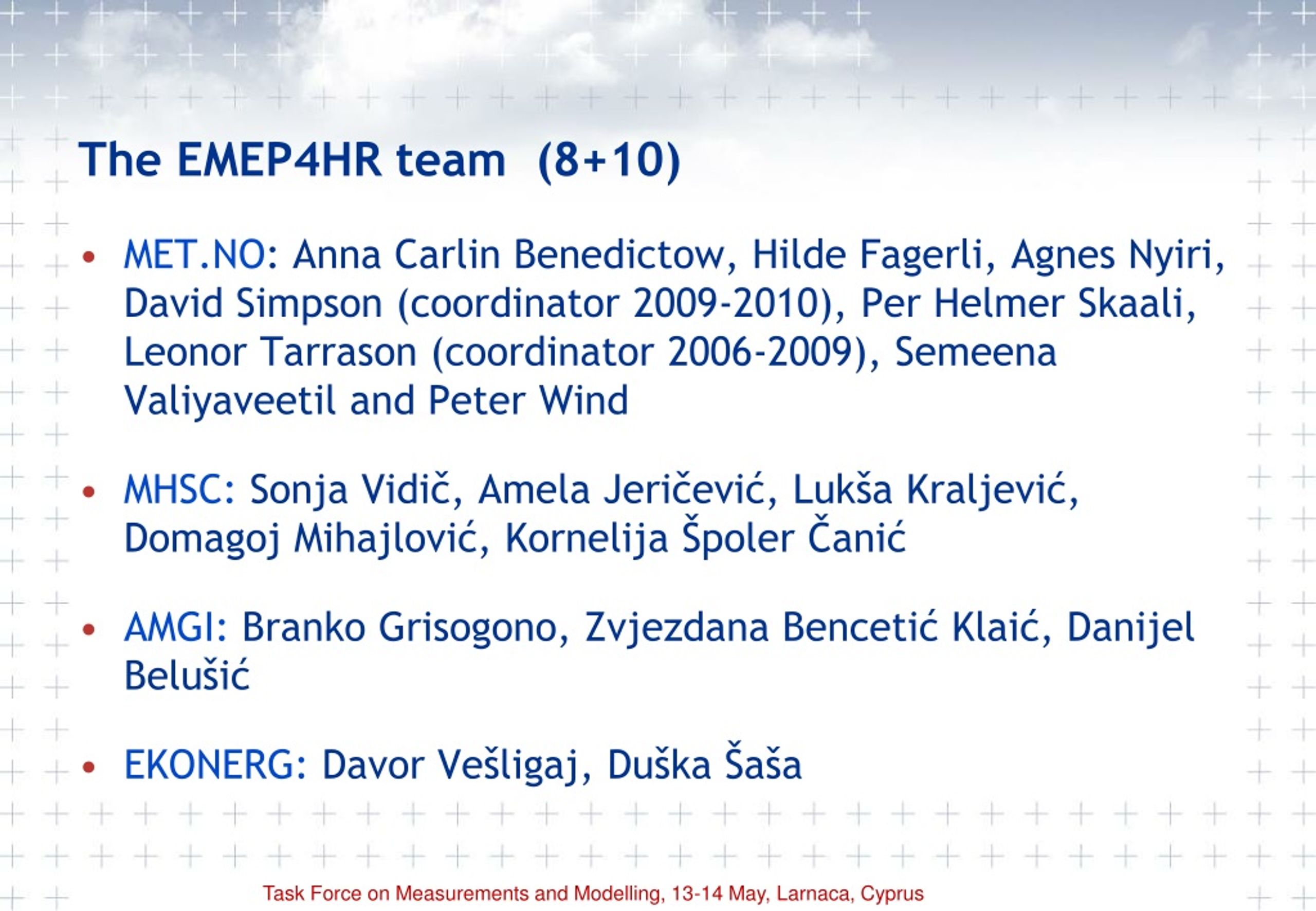

  2. The EMEP4HR team (8+10) • MET.NO: Anna Carlin Benedictow, Hilde Fagerli, Agnes Nyiri, David Simpson (coordinator 2009-2010), Per Helmer Skaali, Leonor Tarrason (coordinator 2006-2009), Semeena Valiyaveetil and Peter Wind • MHSC: Sonja Vidič, Amela Jeričević, Lukša Kraljević, Domagoj Mihajlović, Kornelija Špoler Čanić • AMGI: Branko Grisogono, Zvjezdana Bencetić Klaić, Danijel Belušić • EKONERG: Davor Vešligaj, Duška Šaša

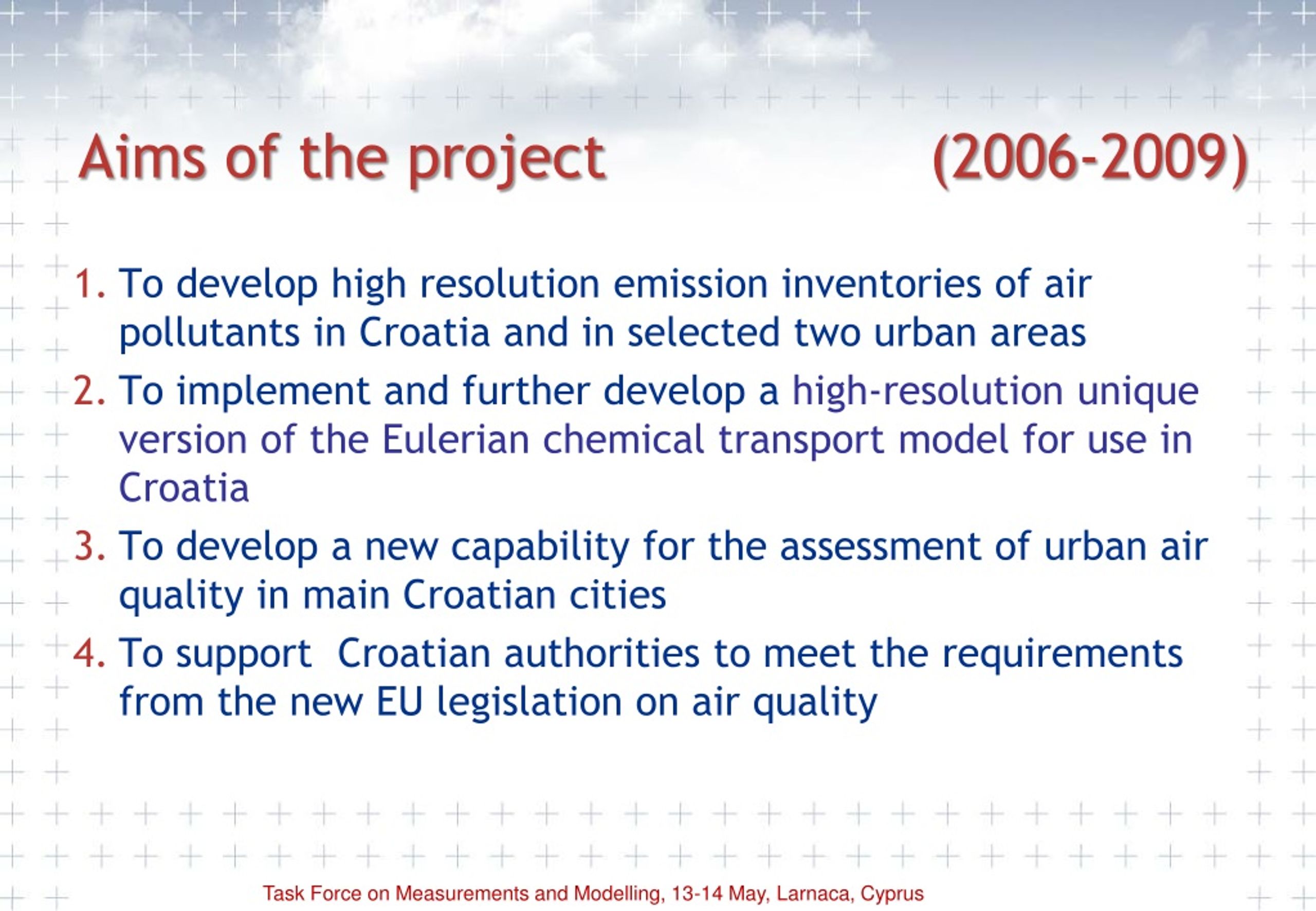

  3. Aims of the project (2006-2009) To develop high resolution emission inventories of air pollutants in Croatia and in selected two urban areas To implement and further develop a high-resolution unique version of the Eulerian chemical transport model for use in Croatia To develop a new capability for the assessment of urban air quality in main Croatian cities To support Croatian authorities to meet the requirements from the new EU legislation on air quality

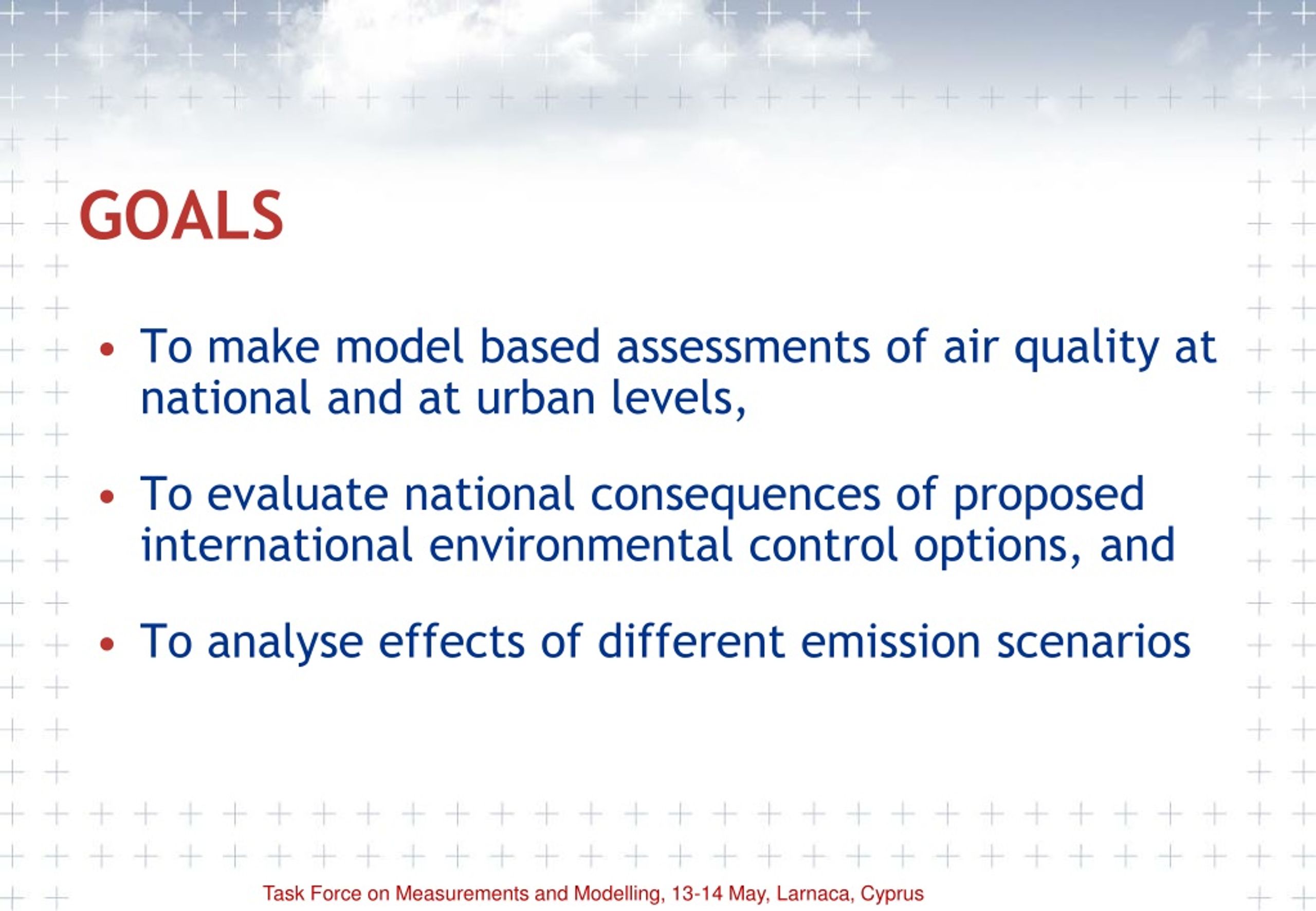

  4. GOALS • To make model based assessments of air quality at national and at urban levels, • To evaluate national consequences of proposed international environmental control options, and • To analyse effects of different emission scenarios

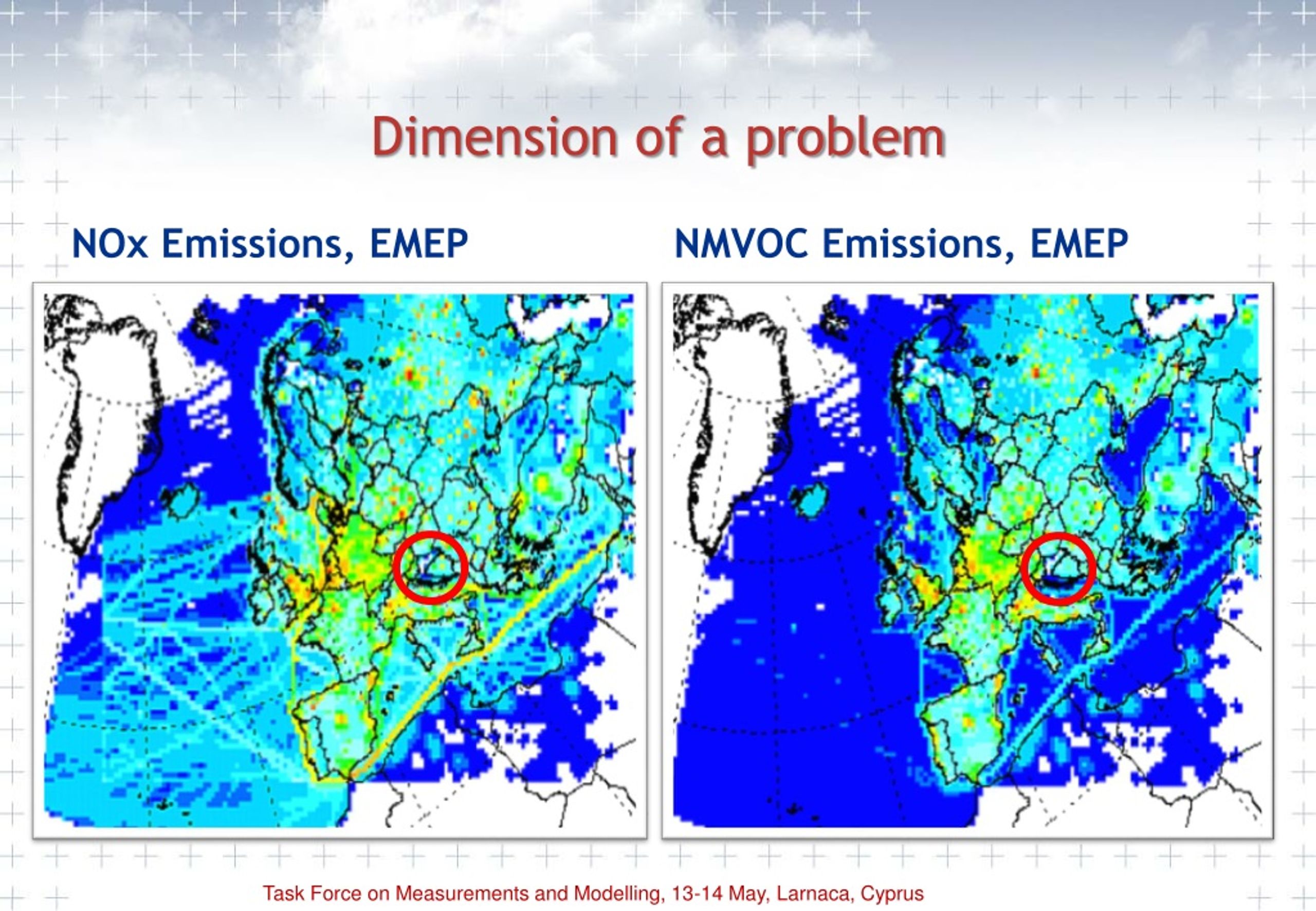

  5. Dimension of a problem NOx Emissions, EMEP NMVOC Emissions, EMEP

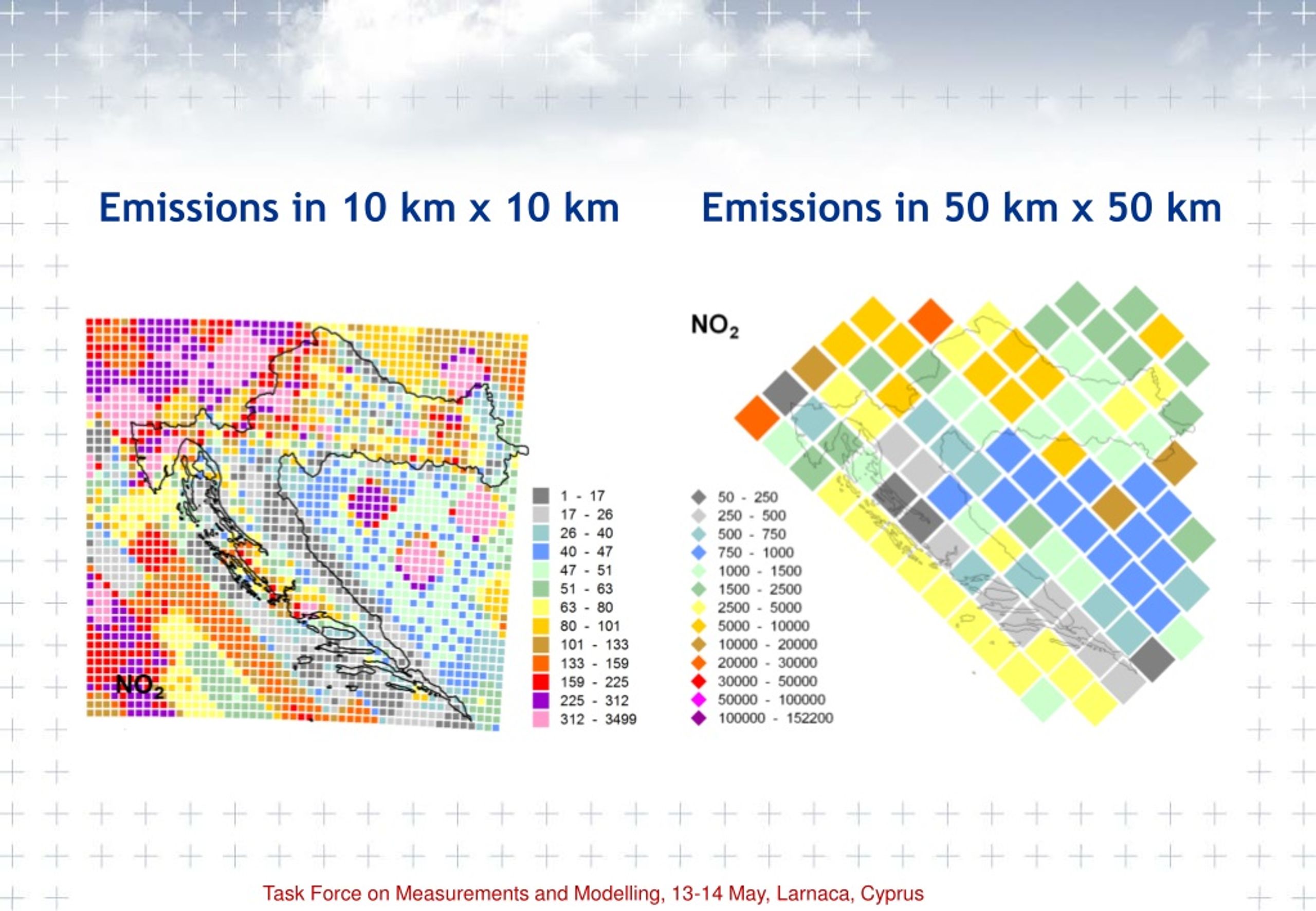

  6. Emissions in 10 km x 10 km Emissions in 50 km x 50 km

  7. Emissions in 10 km x 10 km Emissions in 50 km x 50 km

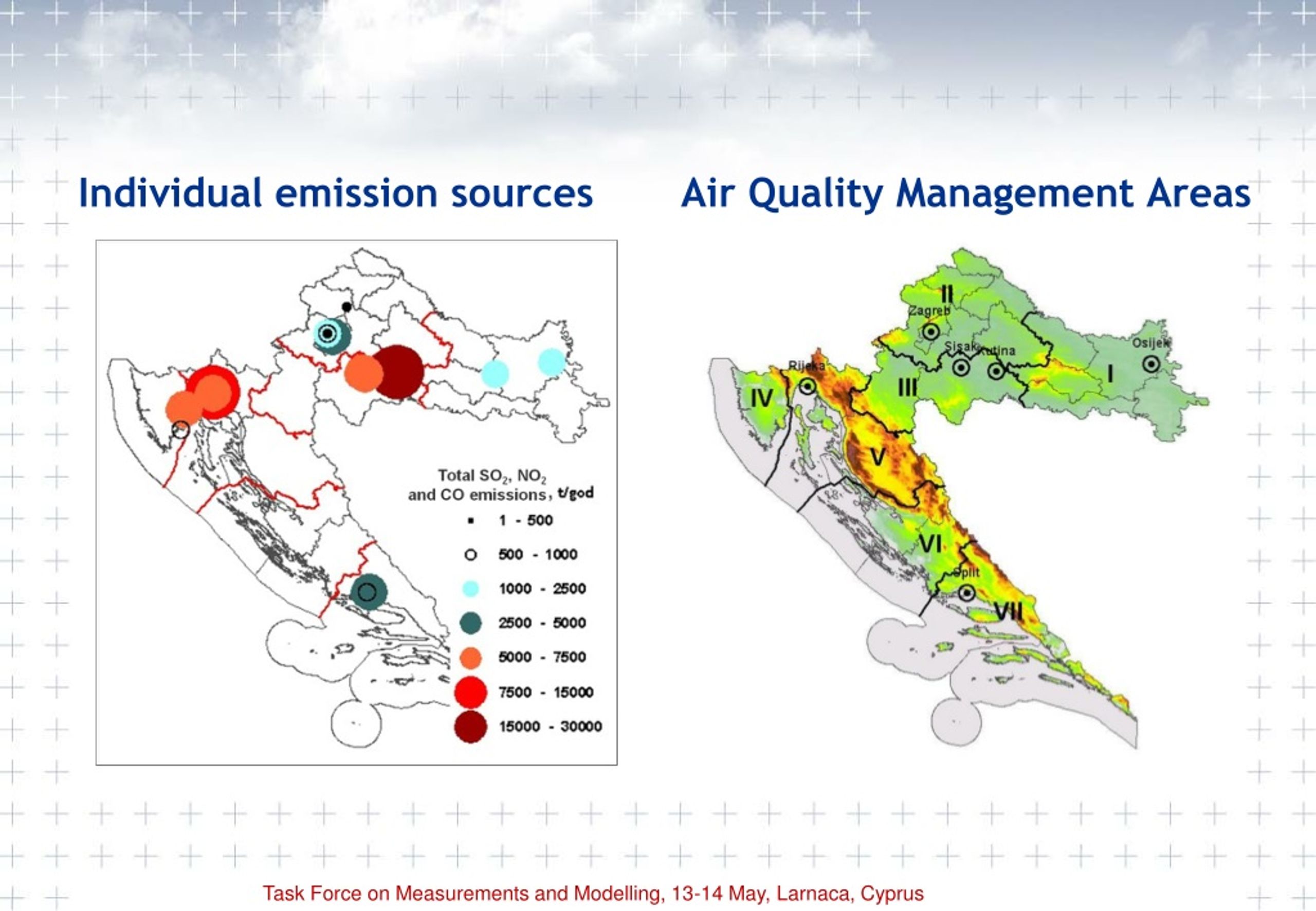

  8. Individual emission sources Air Quality Management Areas

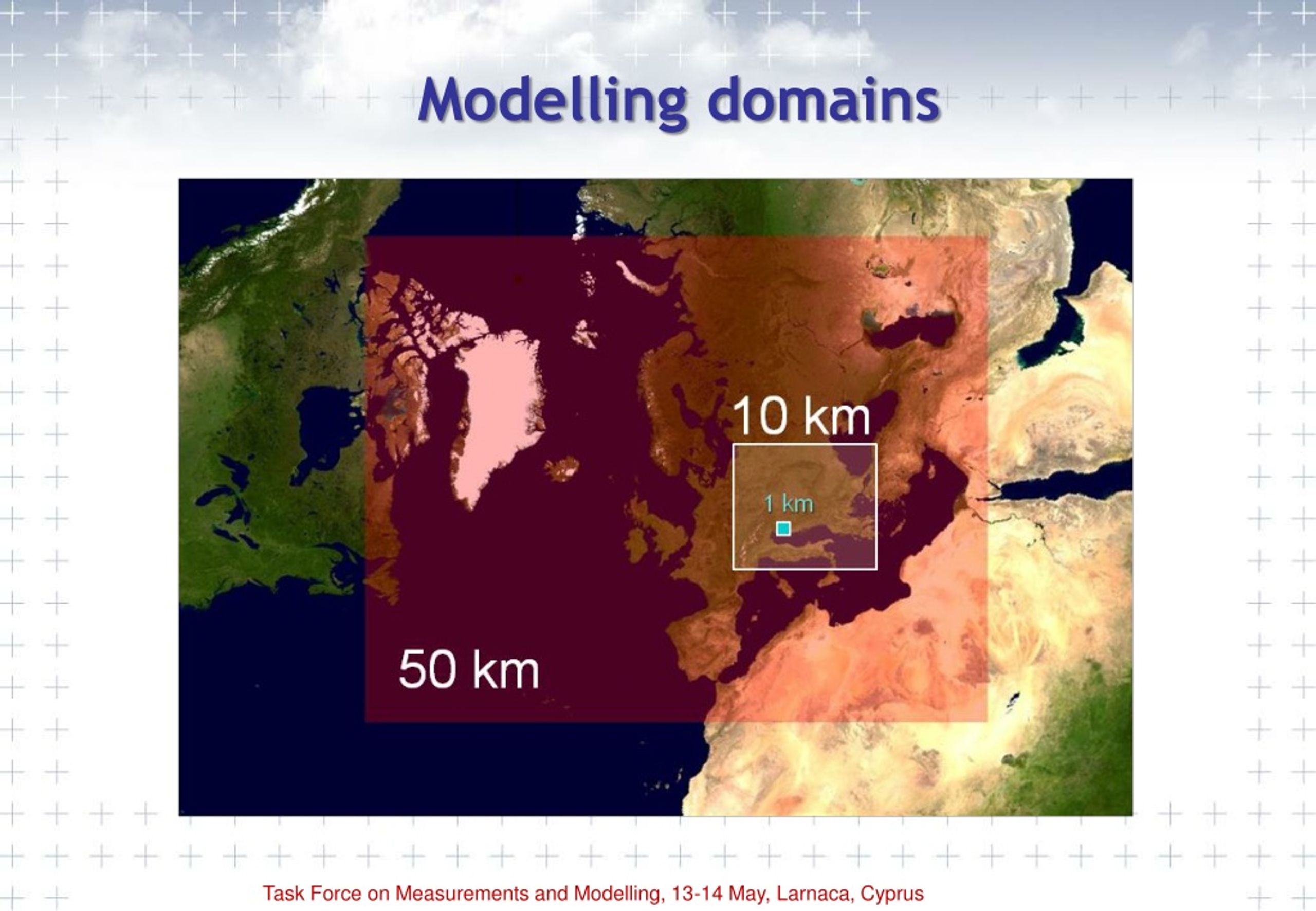

  9. Modelling domains

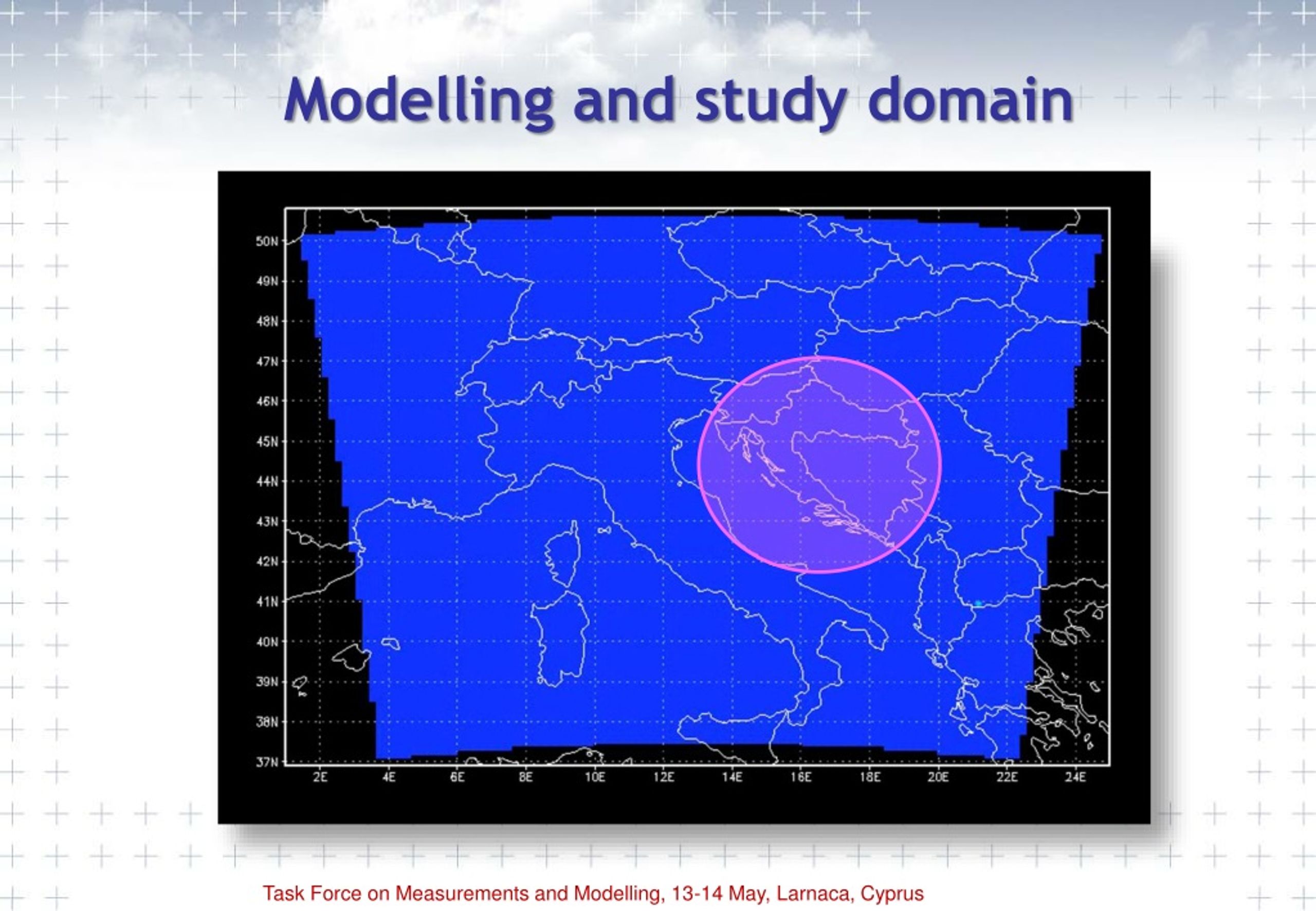

  10. Modelling and study domain

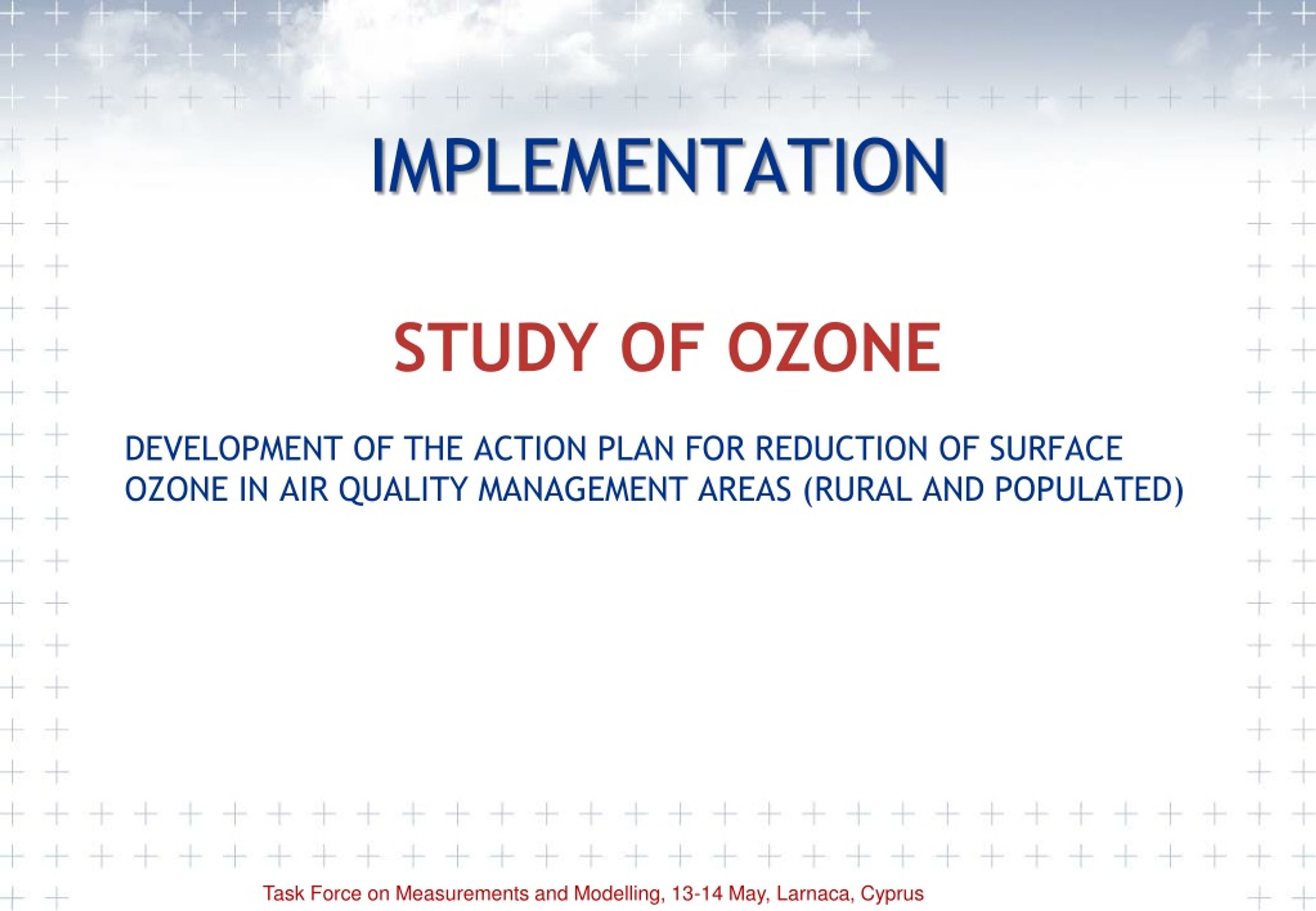

  11. IMPLEMENTATION DEVELOPMENT OF THE ACTION PLAN FOR REDUCTION OF SURFACE OZONE IN AIR QUALITY MANAGEMENT AREAS (RURAL AND POPULATED) STUDY OF OZONE

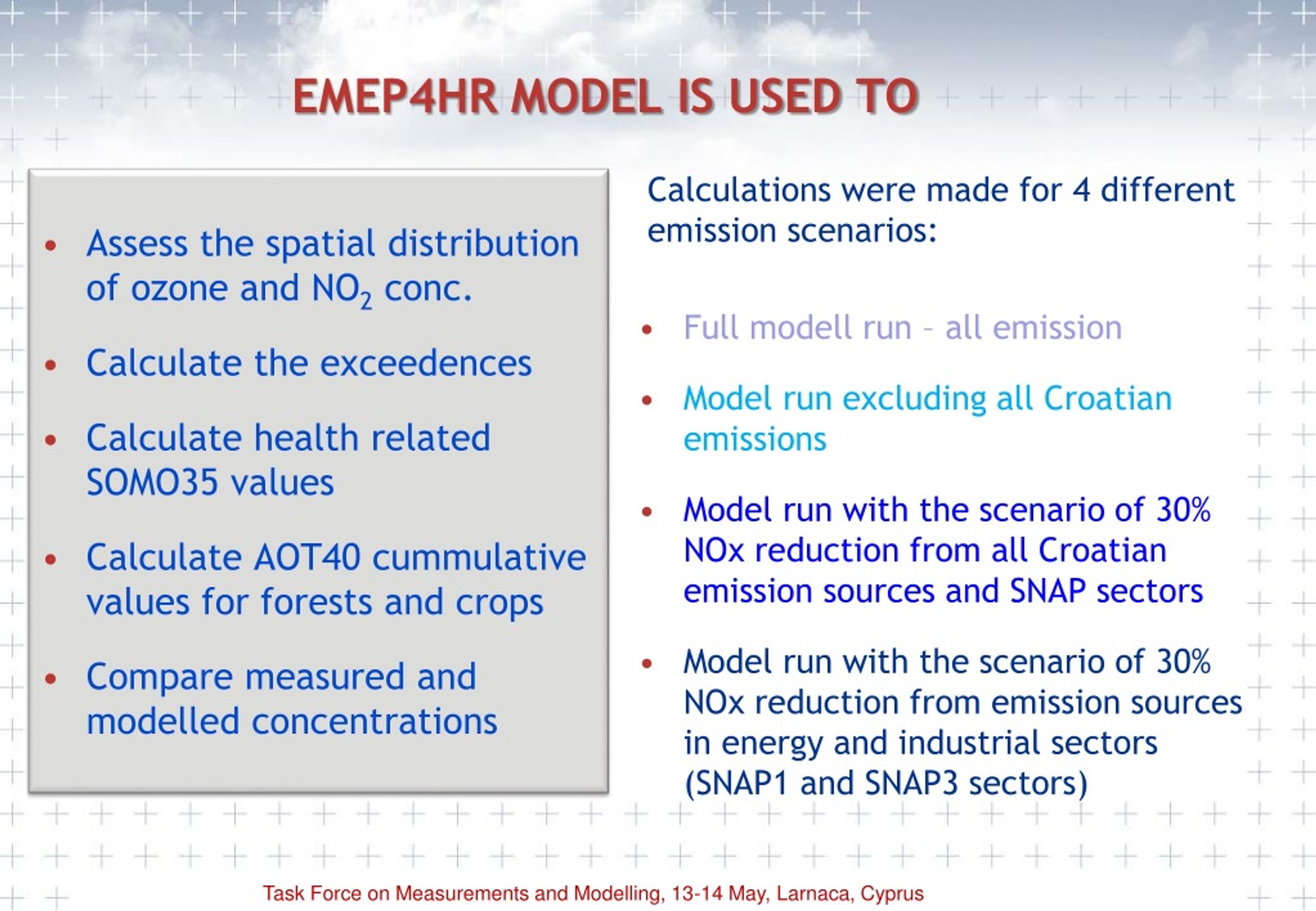

  12. EMEP4HR MODEL IS USED TO • Assess the spatial distribution of ozone and NO2 conc. • Calculate the exceedences • Calculate health related SOMO35 values • Calculate AOT40 cummulative values for forests and crops • Compare measured and modelled concentrations Calculations were made for 4 different emission scenarios: • Full modell run – all emission • Model run excluding all Croatian emissions • Model run with the scenario of 30% NOx reduction from all Croatian emission sources and SNAP sectors • Model run with the scenario of 30% NOx reduction from emission sources in energy and industrial sectors (SNAP1 and SNAP3 sectors)

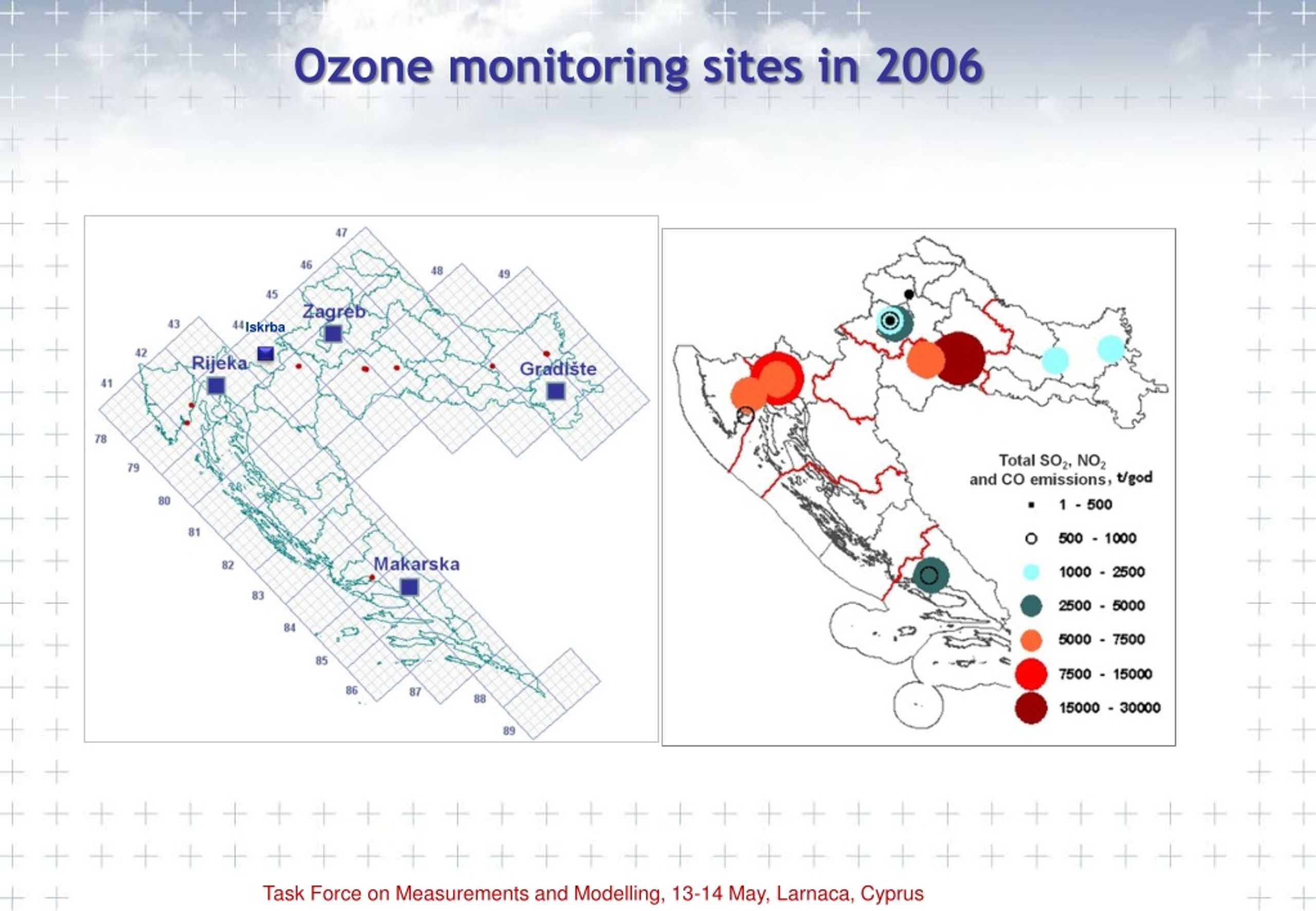

  13. Ozone monitoring sites in 2006 Iskrba

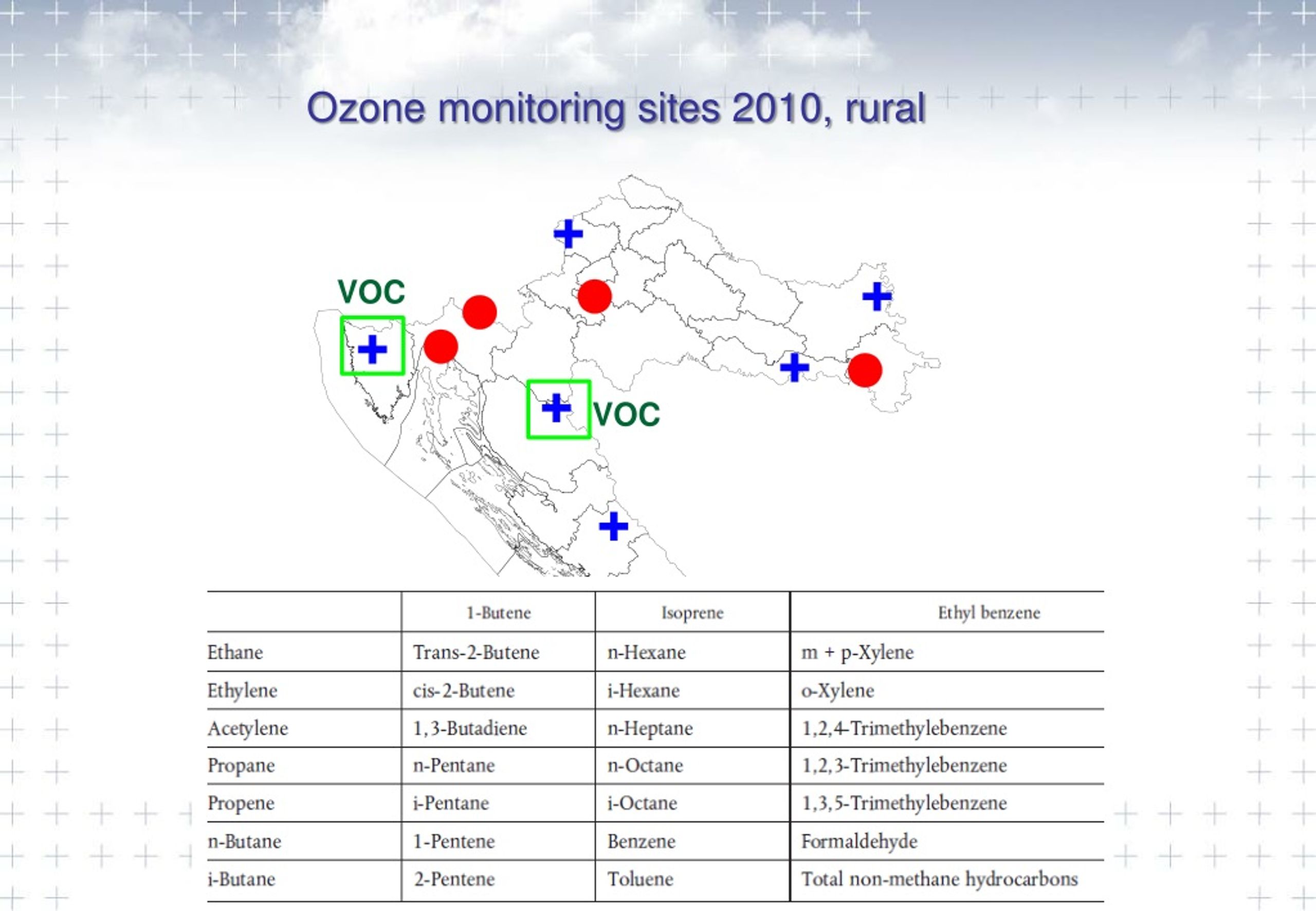

  14. Ozone monitoring sites 2010, rural

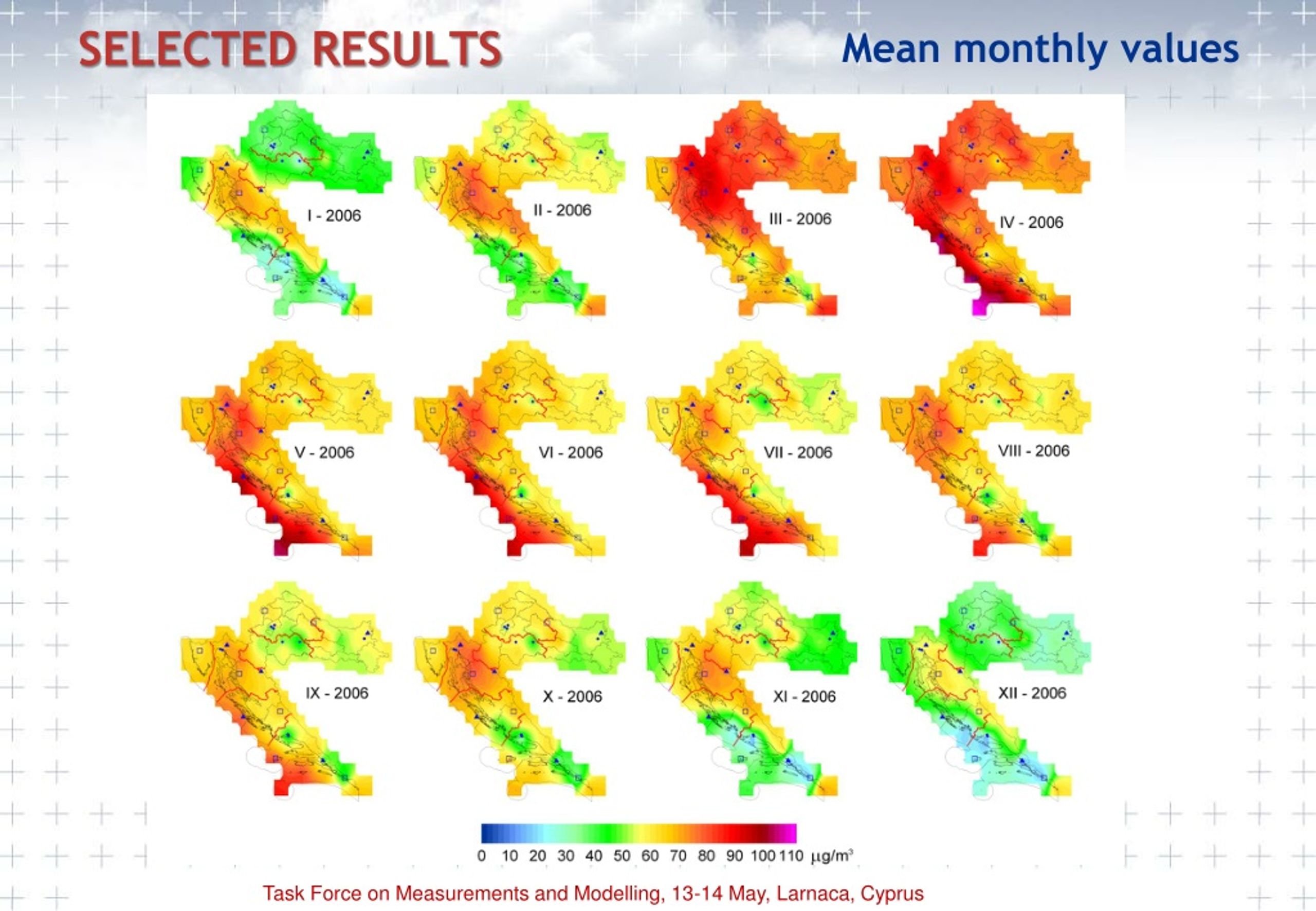

  15. SELECTED RESULTS Mean monthly values

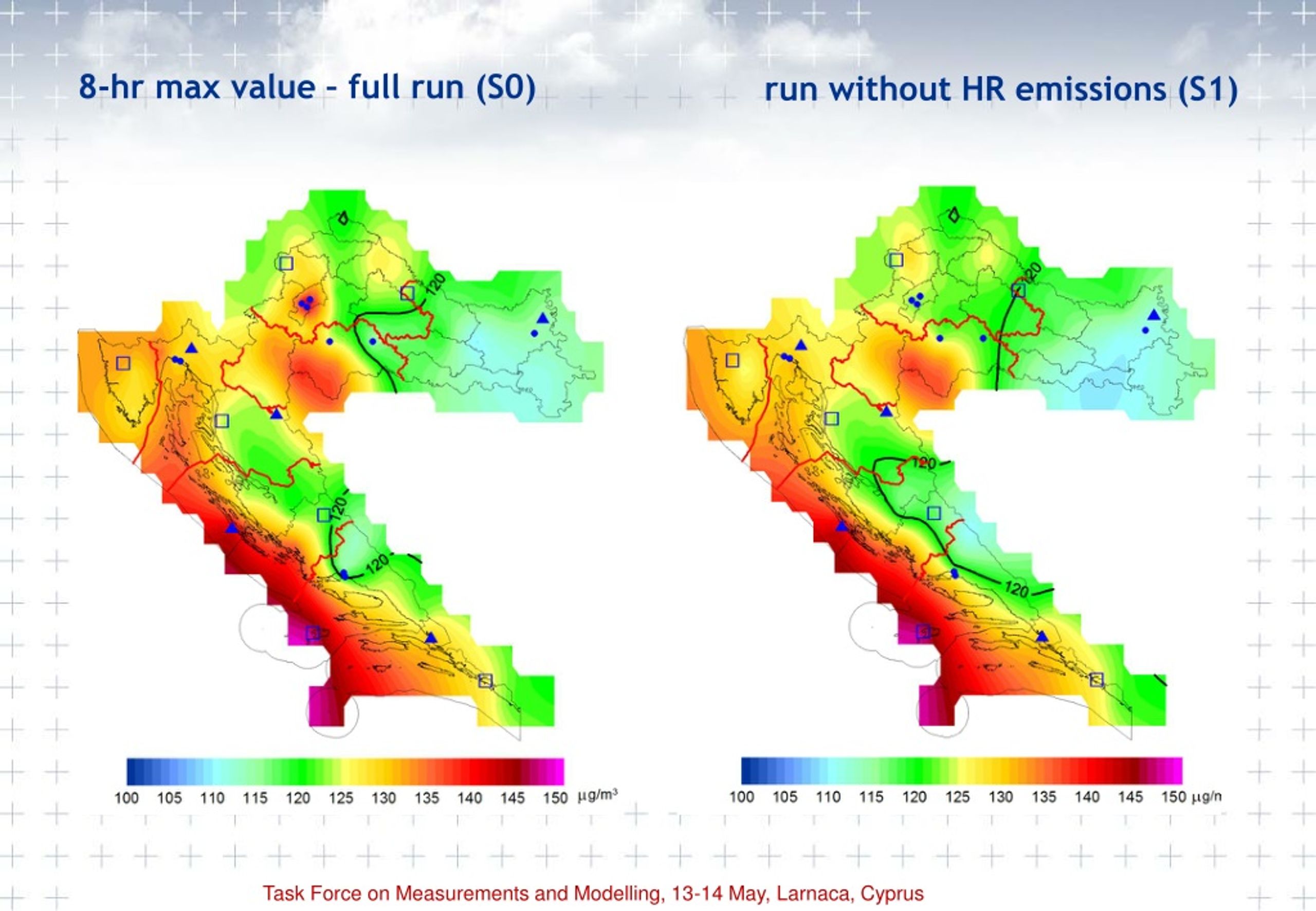

  16. 8-hr max value – full run (S0) run without HR emissions (S1)

  17. Ozone daily mean value, full run S1 run, % difference

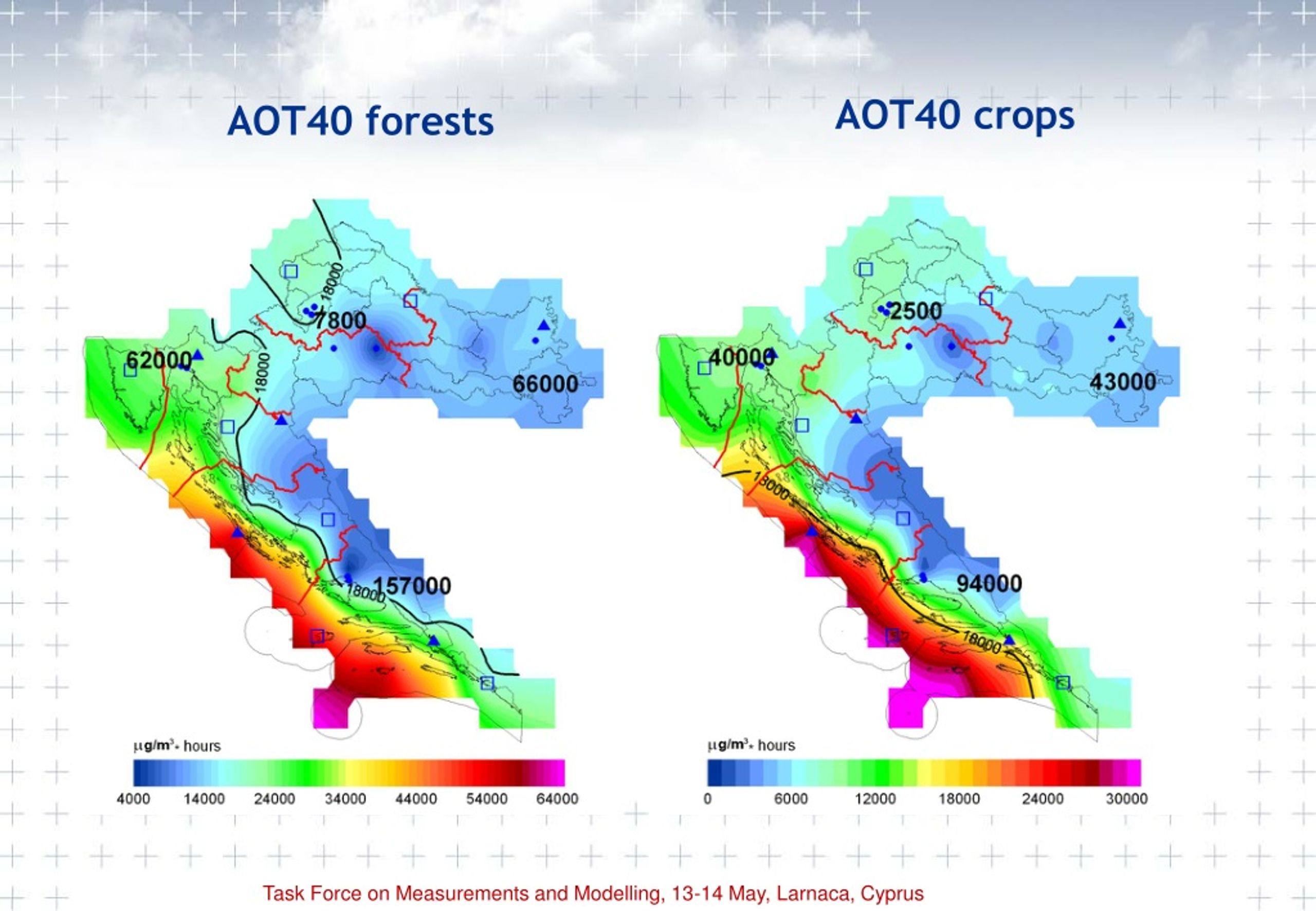

  18. AOT40 forests AOT40 crops

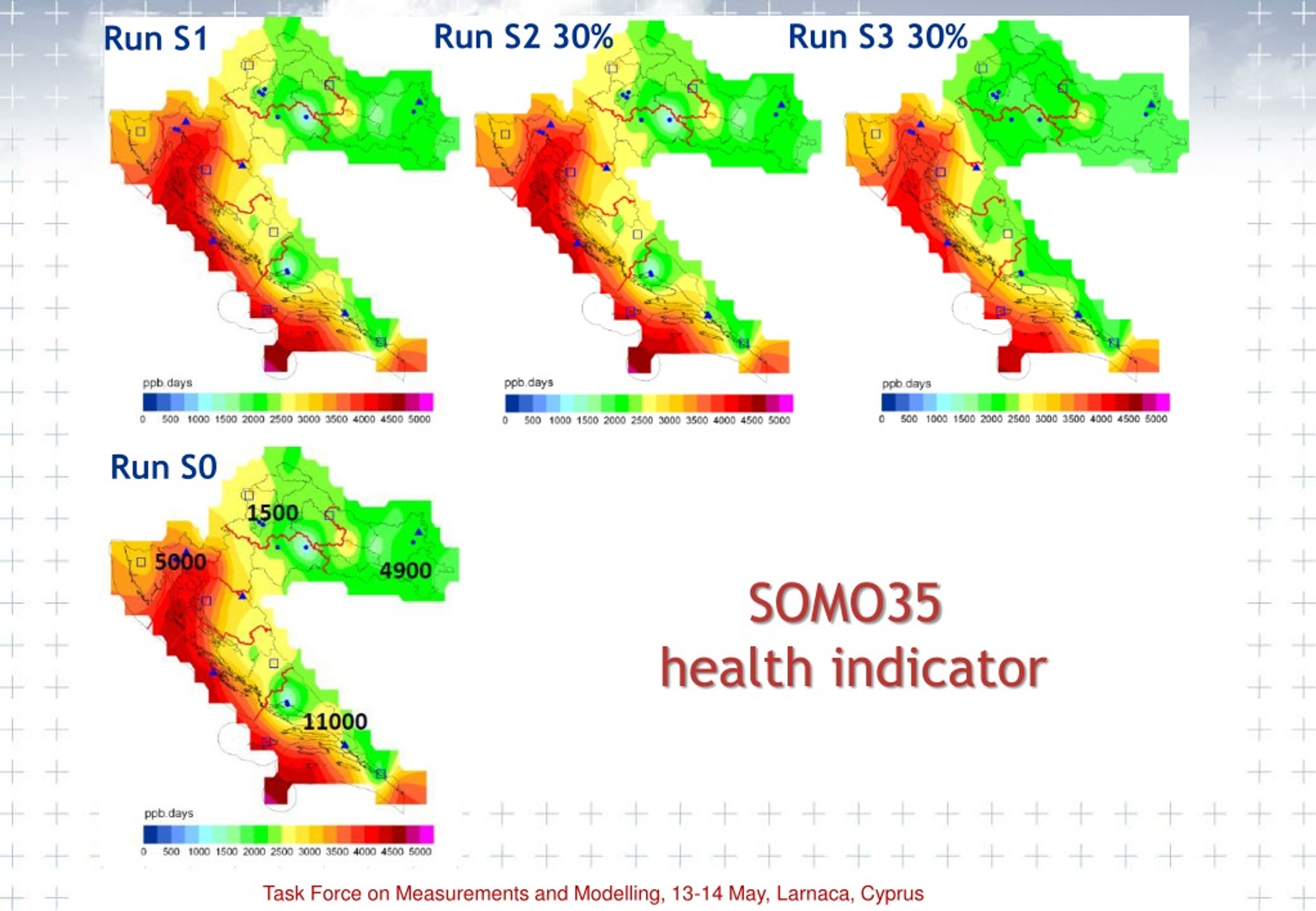

  19. SOMO35 health indicator Run S1 Run S2 30% Run S3 30% Run S0

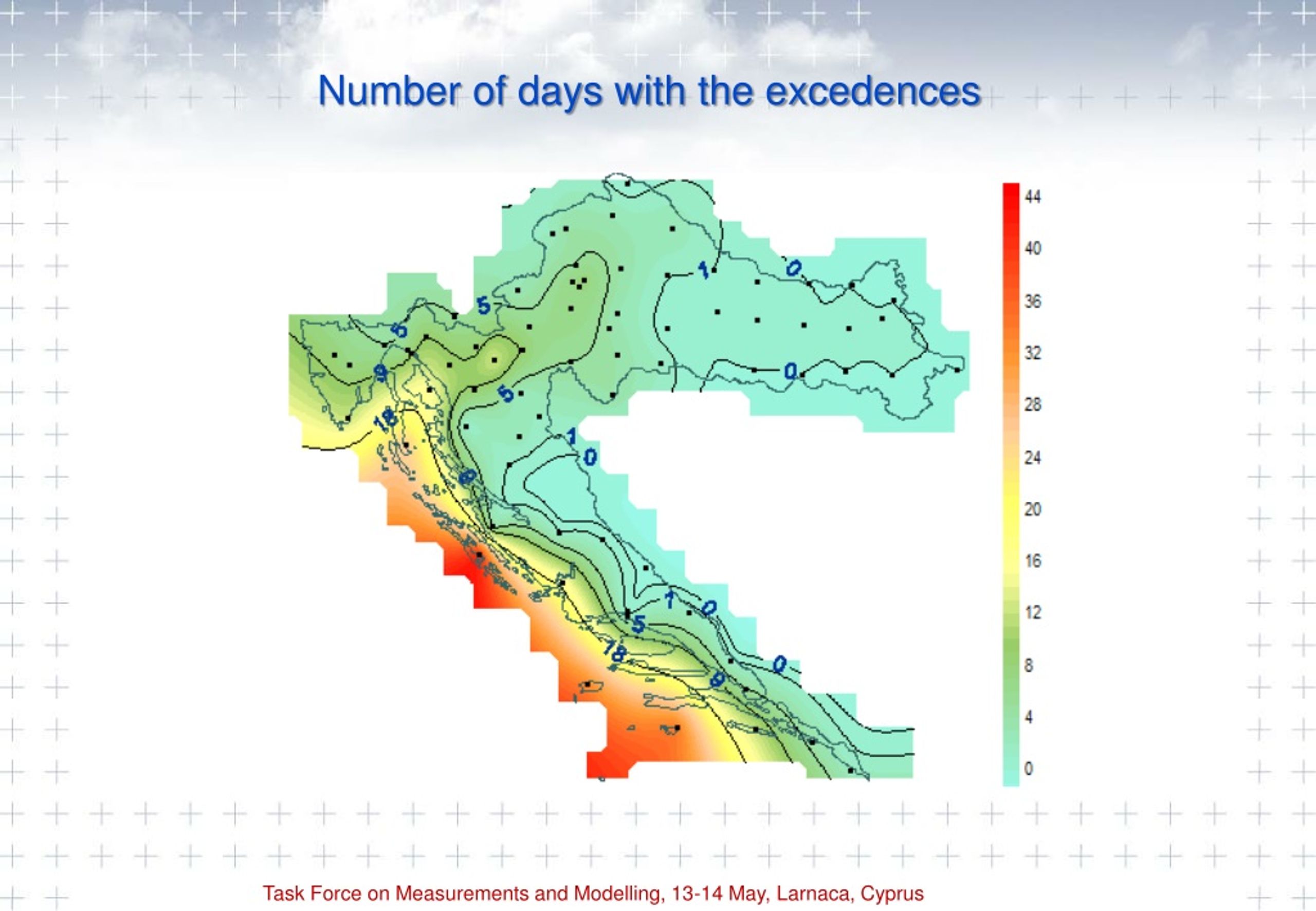

  20. Number of days with the excedences

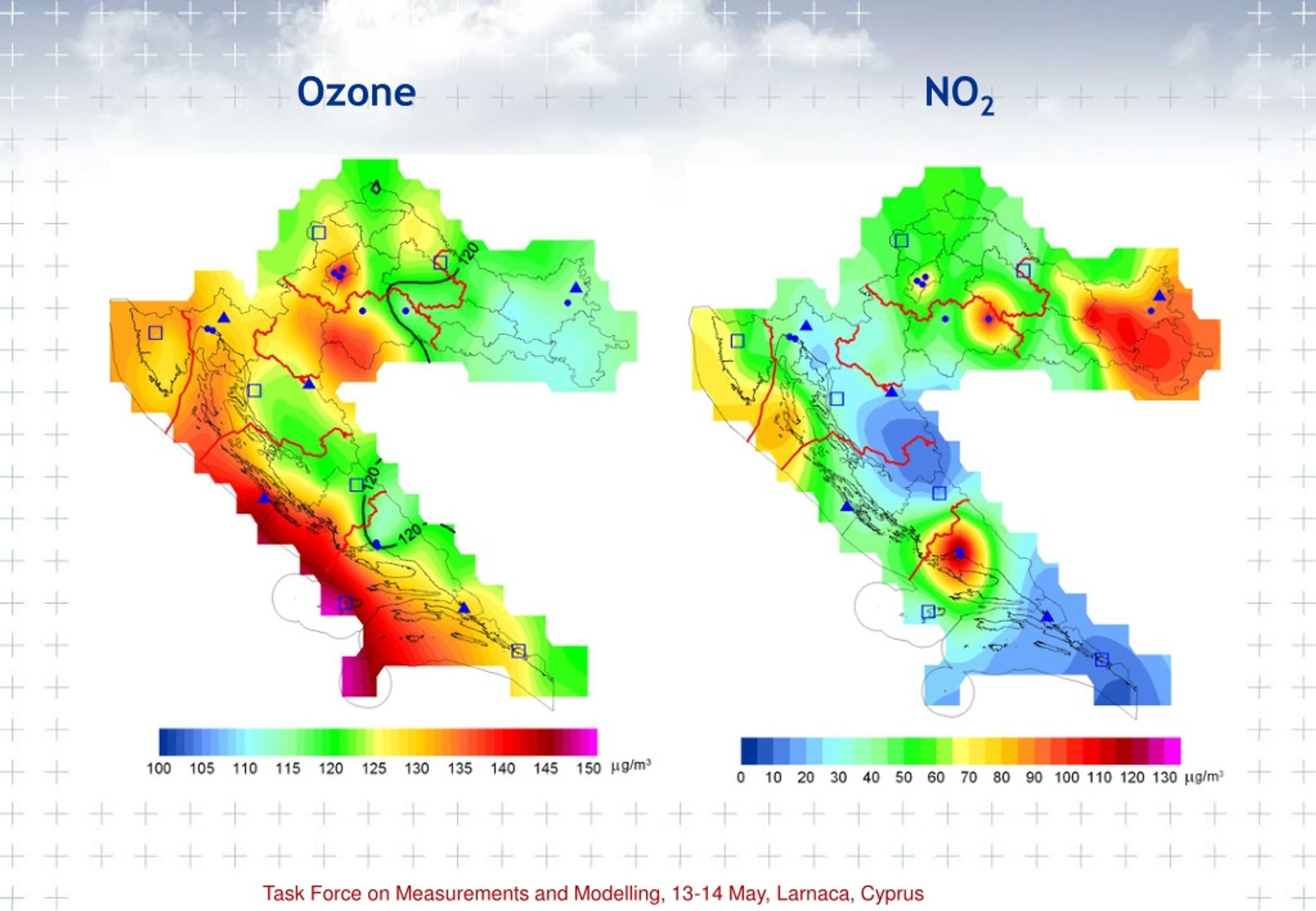

  21. Ozone NO2

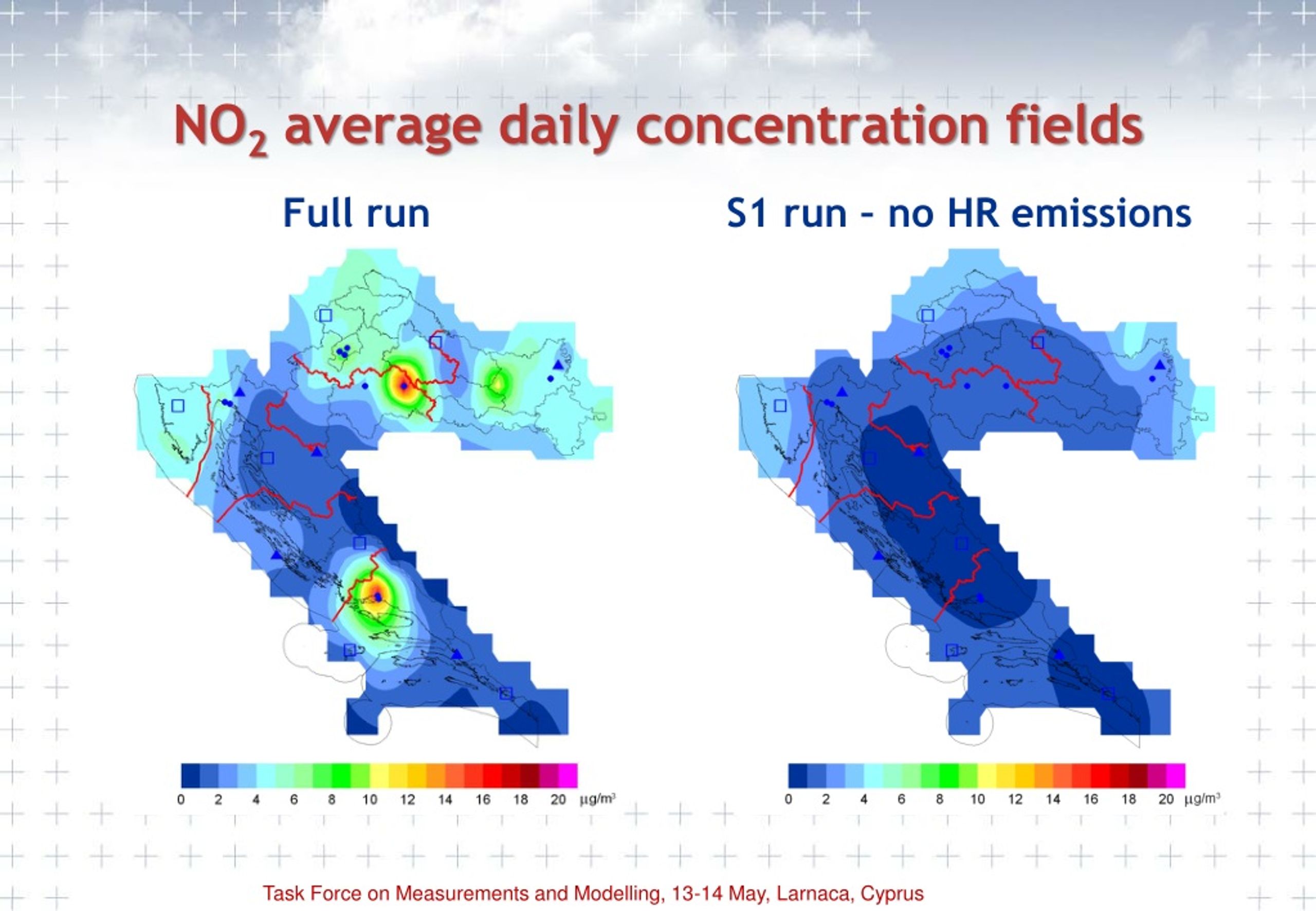

  22. NO2 average daily concentration fields Full run S1 run – no HR emissions

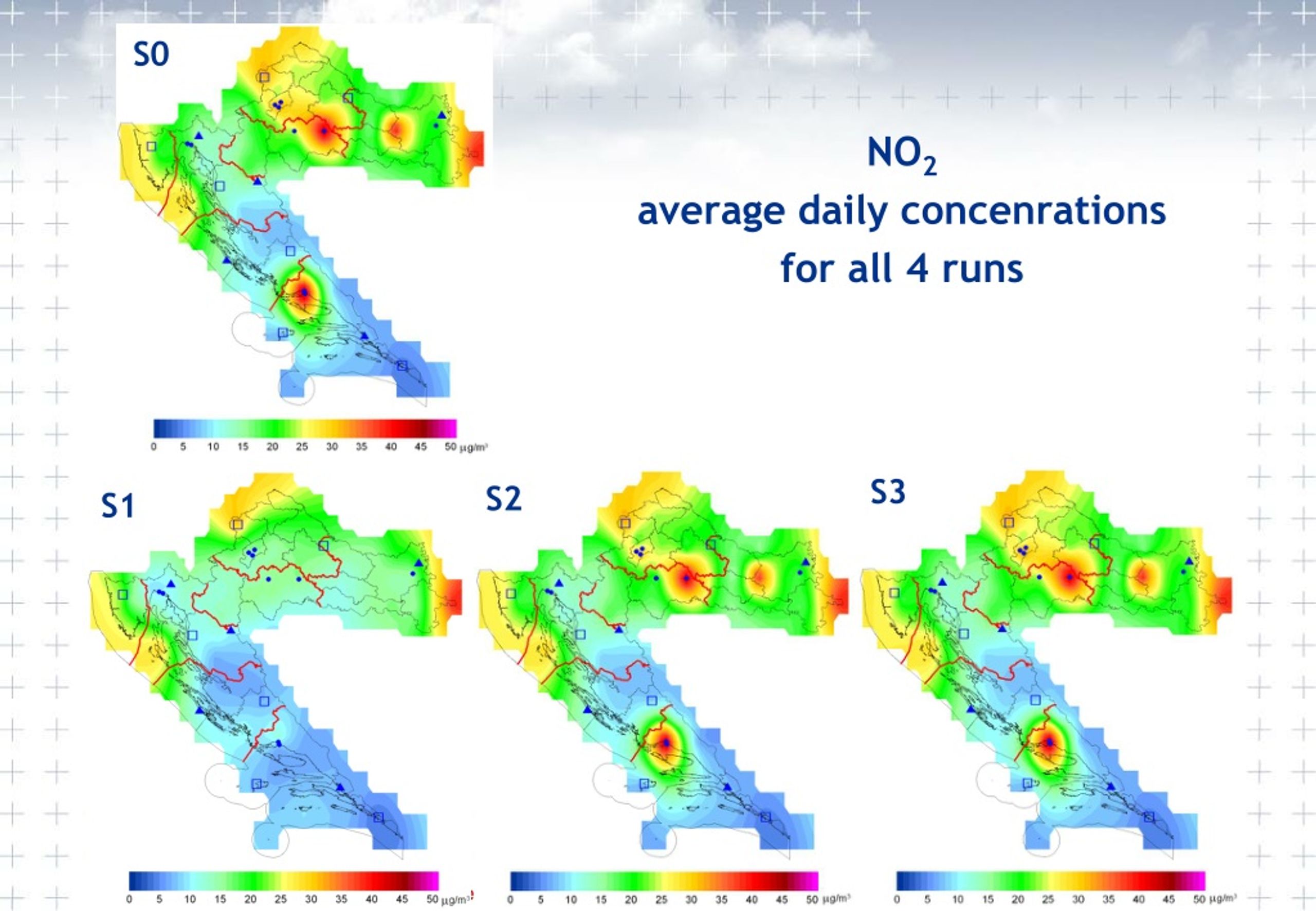

  23. S0 NO2 average daily concenrations for all 4 runs S3 S2 S1

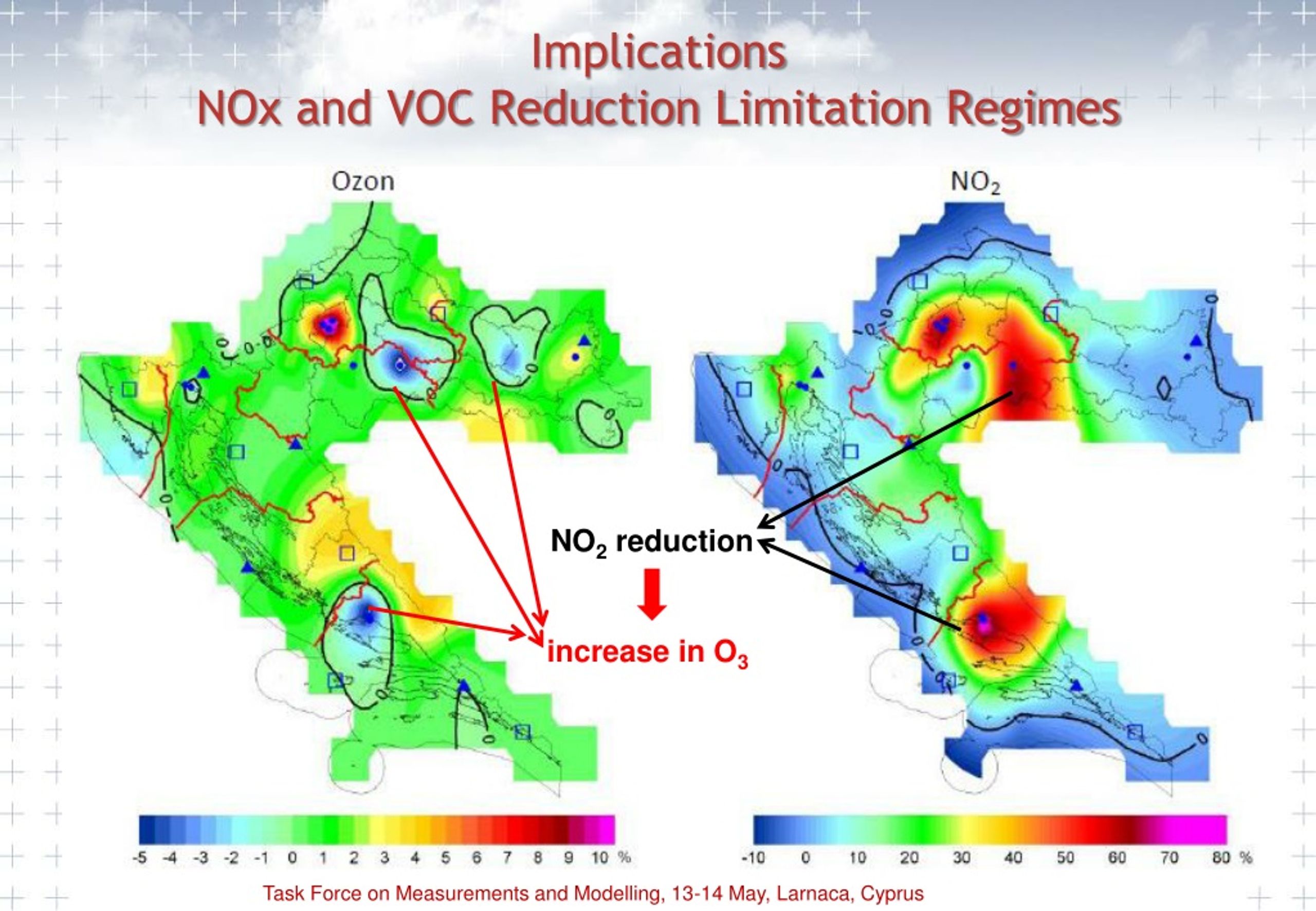

  24. Implications NOx and VOC Reduction Limitation Regimes NO2 reduction increase in O3

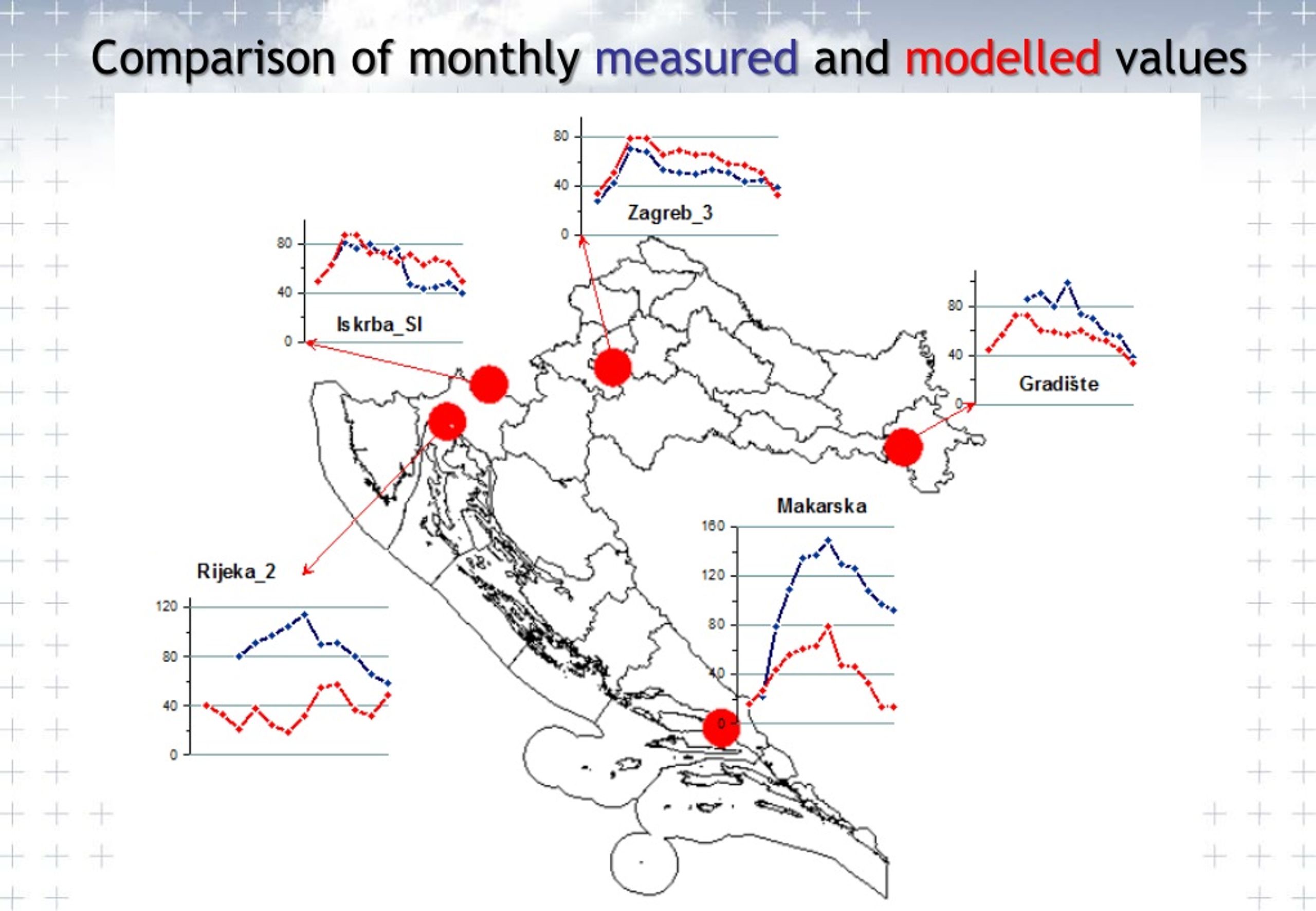

  25. Comparison of monthly measuredand modelled values

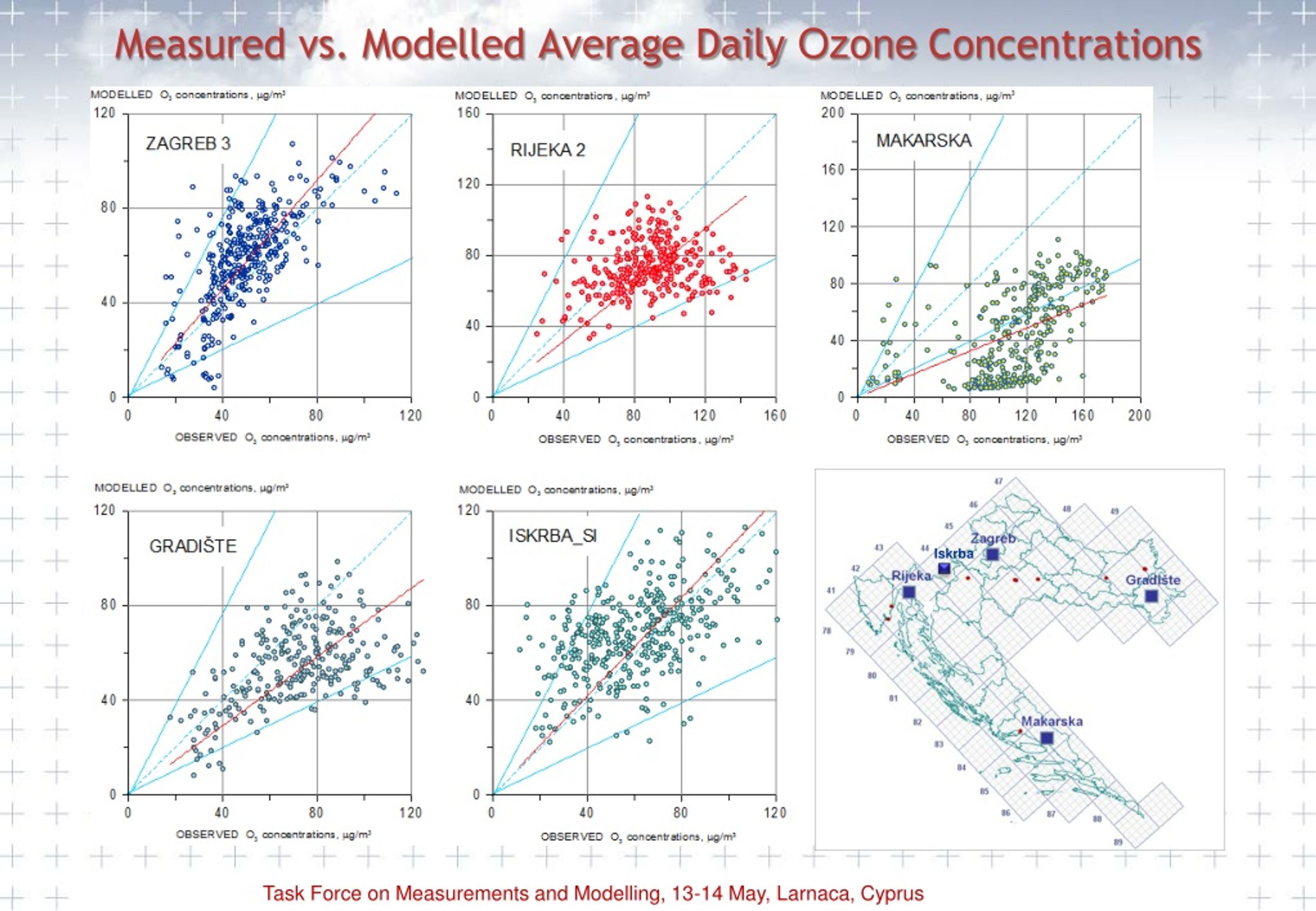

  26. Measured vs. Modelled Average Daily Ozone Concentrations Iskrba

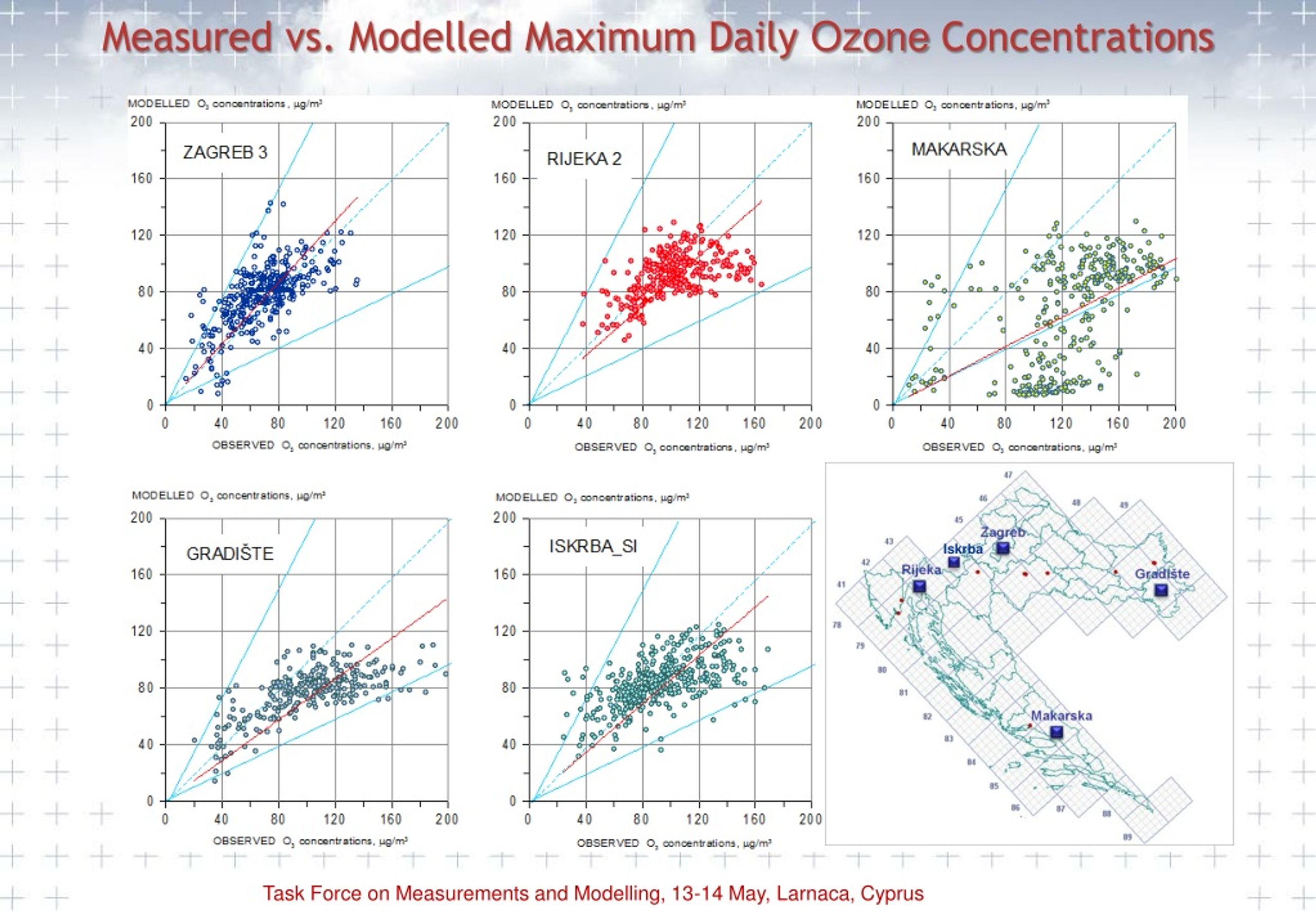

  27. Measured vs. Modelled Maximum Daily Ozone Concentrations Iskrba

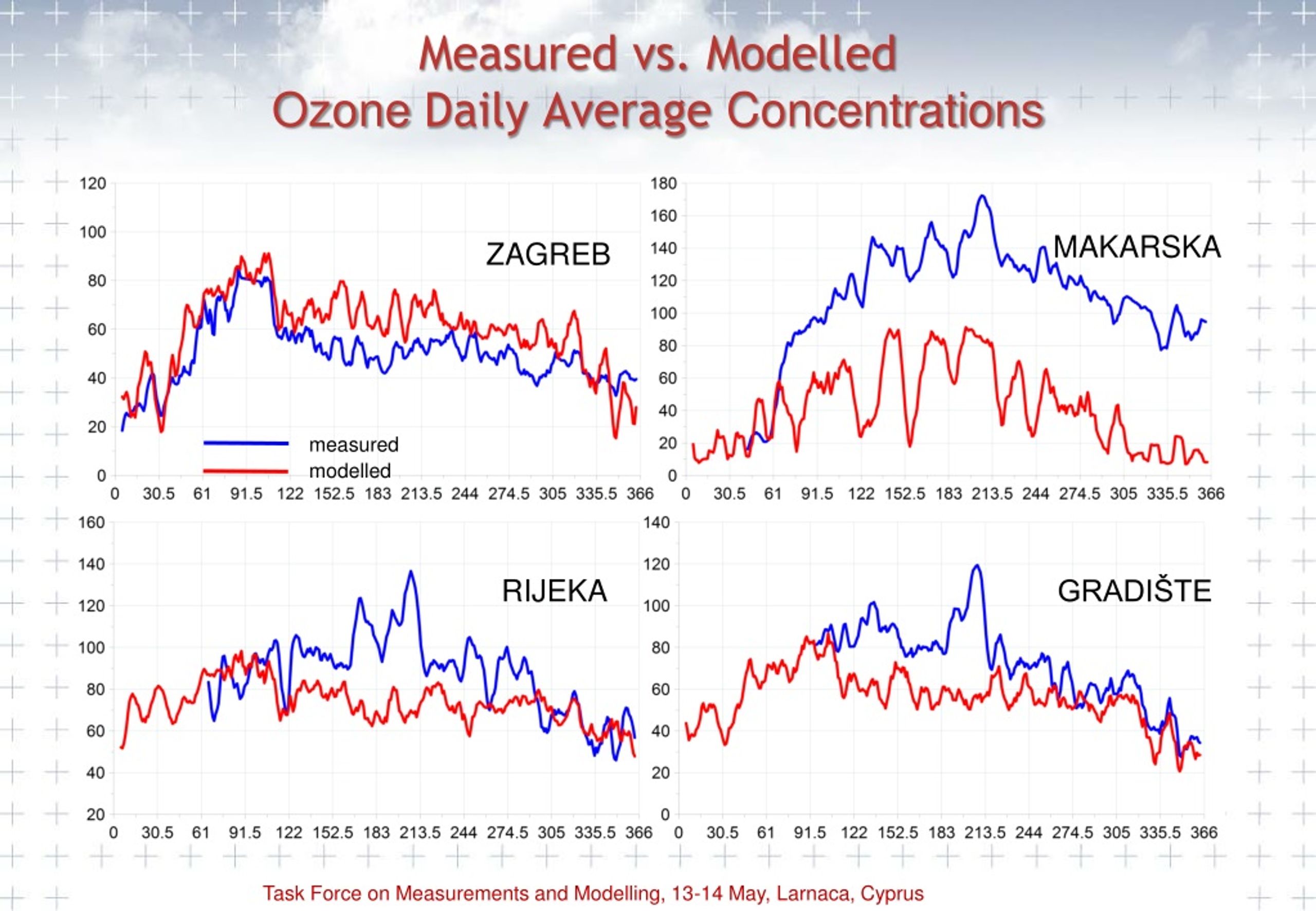

  28. Measured vs. Modelled Ozone Daily Average Concentrations MAKARSKA ZAGREB measured modelled RIJEKA GRADIŠTE
