Presentation Transcript
Organic molecules the building blocks of life l.jpg

Chapter 3 Biochemistry

Organic Molecules- The Building Blocks of Life

I what is an organic compound l.jpg
I.Whatis anOrganic Compound?

  • Contains carbon atoms

  • Built from carbon (C), hydrogen (H) and nitrogen (N)- Covalently Bonded

Where is carbon on the periodic table l.jpg
Where is Carbon on the Periodic Table?

It forms4 covalent bonds

Carbon has 4 electrons in its outmost electron shell l.jpg
Carbon has 4 electrons in its outmost electron shell.

  • it forms4 covalent bonds

Carbon bonds chains branched rings each line represents a single covalent bond l.jpg
Carbon bonds: Chains, Branched, RingsEach line represents a single covalent bond

Carbon also forms double triple bonds l.jpg
Carbon also forms double & triple bonds

A good site for more explanation:

Methane the simplest carbon compound 1 carbon 4 hydrogen atoms l.jpg
Methane- the simplest carbon compound- 1 Carbon & 4 hydrogen atoms

Other simple organic molecules l.jpg
Other simple organic molecules

  • Butane cyclohexane

Slide10 l.jpg

Functional Groups

- A specific group of atoms that gives a known type of behavior to molecules

– changes the characteristics of the compound-

(See page 52 in your textbook for more on functional groups)

Hydrocarbons - C and H only

Alcohols - OH

Acids - COOH

Amines - NH2

Example adding a hydroxyl group makes ethane into an alcohol l.jpg
Example -adding a hydroxyl group – makes ethane into an alcohol-

Example - adding an amino group

- makes methane or ethane into- an amine

C sizes of molecules l.jpg
C. Sizes of Molecules

1. Monomers-small simple molecules

2. Polymers-big molecules formed when monomers bonded to each other

3 reactions to build or break down molecules l.jpg
3. Reactions to build or break down molecules

  • Condensation Reaction

    • 2 monomers join together- a water is released

      (an H from 1 end and an OH from the other

      end are cut loose when the monomers join.)

  • Hydrolysis Reaction

    • polymers are broken back down- they need a wateradded.

D energy from atp l.jpg
D. Energy from ATP

  • Life needs a constant supply of energy

  • Chemical bonds store energy.

  • One molecule that living things use to store energy is in the bonds of the ATP molecule

  • Adenosine Triphosphate

Adenosine triphosphate l.jpg
Adenosine Triphosphate

Blue = ribose (a 5-carbon sugar)Green = adenine (a nitrogenous base)

Yellow = phosphate groups

Energy is stored in bonds joining thephosphate groups

Atp adp cycle l.jpg
ATP-ADP Cycle.

Energy is stored in ATP (ADP + P)

Energy is used as needed & ATP is

converted back to ADP + phosphate.

4 classes of organic molecules l.jpg
4 Classes of Organic Molecules

  • Carbohydrates

  • Proteins

  • Lipids

  • Nucleic Acids

Monomers polymers l.jpg
Monomers & Polymers

  • Each group has small molecules(monomers)

  • linked to form larger macromolecules

    (polymers) three to millions of subunits.

Slide20 l.jpg

  • Carbohydrates

    the most important energy source for cells

    • short-term energy storage (sugar)

    • intermediate-term energy storage

      • starchfor plants

      • glycogenfor animals

    • as structural components in cells

      • cellulosecell walls of plants

      • chitin-exoskeleton of insects

Slide21 l.jpg

Monomers & Polymers

1.   Monosaccharides

- single sugar unitsglucose

2.   Disaccharides

- twomonosaccharides. Lactose, maltose

3.   Polysaccharides

- linking many sugar units together

Examples: starch, glycogen, cellulose

Carbohydrates l.jpg

  • General formula [CH2O]n

  • where n is a number between 3 and 6.

  • Ex- glucose= C6H12O6

Slide23 l.jpg

What does it mean to be

“lactose intolerant”?

Got milk milk s sugar is lactose l.jpg
Got Milk?- milk’ssugar is lactose

  • Infant mammals are fed on milk from mom

  • Enzyme lactase digests

    the molecule into its two

    subunits for absorption.

  • in most species, including humans,

    the production of lactase gradually

    ceases with maturity, & they are

    then unable to metabolize lactose…

    becoming “Lactose intolerant”

A polysaccharide l.jpg
A Polysaccharide

Lots of monomers linked together

B proteins l.jpg
B. Proteins

  • Important as control and structural elements.

    • Control –enzymes, hormones.

    • Structural -cell membrane, muscle tissue, etc.

  • Amino acids are the

    building block of proteins

  • All living things (and even viruses) use various combinations of the same 20 amino acids.

An amino acid l.jpg
An Amino Acid

  • an amino end(NH2)

  • a carboxyl end (COOH).

  • R is the variable (R-group) of each amino acid.

Slide29 l.jpg

*Amino acids are linked together by joining the amino end of one molecule to the carboxyl end of another. *Removal of water (condensation reaction) links amino acids with a peptide bond.

Some examples of proteins l.jpg
Some examples of proteins

  • Antibodies: they recognize molecules of invading organisms.

  • Receptors: part of the cell membrane, they recognize other proteins, or chemicals, and inform the cell... 'The Door Bell'.

  • Enzymes: assemble or digest.

  • Neurotransmitters and some hormones: Trigger the receptors... (the finger on the door bell...)

  • Channels, and pores:holes in the cell membrane (with or without a gate). Usually, filter the flow...

3 enzymes l.jpg
3. Enzymes

  • Organic molecules that act as catalysts

  • Enzymes & substrates (the reactants) fit together like a “lock & key”

  • This fit weaken bonds so thatless energy is needed for reaction.

C lipids l.jpg
C. Lipids

  • Functions:

  • Long-term energy storage.

    -Generally insoluble in polar substances (water)

  • phospholipids are the major building block in cell membranes

  • hormones("messengers") play roles in communicationswithin and between cells.

Structure of fatty acids l.jpg
Structure of Fatty Acids

  • The carboxyl head is polar- therefore it is HYDROPHILIC – water loving

  • The hydrocarbon CH2 units are HYDROPHOBIC- water fearing

    (not water soluble).

Fatty acids l.jpg
Fatty acids

  • Can be saturated (meaning they have as many hydrogens bonded to their carbons as possible)

  • Unsaturated (with one or more double bonds connecting their carbons, hence fewer hydrogens).

  • A fat is solid at room temperature, while an oil is a liquid under the same conditions. The fatty acids in oils are mostly unsaturated, while those in fats are mostly saturated.

2 triglycerides l.jpg
2. Triglycerides

  • Triglycerides are composed of three fatty acids (usually) covalently bonded to a 3-carbon glycerol.

Fats and oils function in energy storage l.jpg
Fats and oils function in energy storage.

  • Animals convert excess sugars into fats.

  • Most plants store excess sugars as starch, although some seeds and fruits have energy stored as oils (e.g. corn oil, peanut oil, palm oil, canola oil, and sunflower oil).

    • Fats yield 9.3 Kcal/gm, while carbohydrates yield 3.79 Kcal/gm. Fats store six times as much energy as glycogen.

Diets fat intake l.jpg
Diets & Fat Intake

  • Attempts to reduce the amount of fats present in specialized cells known as adipose cells that accumulate in certain areas of the human body.

  • By restricting the intakes of carbohydrates and fats, the body is forced to draw on its own stores to makeup the energy debt.

  • The body responds to this by lowering its metabolic rate, often resulting in a drop of "energy level."

  • Successful diets usually involve three things: decreasing the amounts of carbohydrates and fats; exercise; and behavior modification

3 phospholipids l.jpg
3.  Phospholipids

  • One fatty acid is

    replaced with a


  • The negative charge(s) of the phosphate makes the “head” of the phospholipid hydrophilic. The long, hydrocarbon tail is non-polar and, therefore, hydrophobic.

Slide43 l.jpg

*The water loving edge of the molecule orients toward water- the inside and outside of the cell.

*The water fearing edges of the molecule orient toward each other to make a lipid “bilayer”

- the construction of the cell membrane.

4 cholesterol and steroids l.jpg
4. Cholesterol and steroids the inside and outside of the cell.:

  • Structure is a lipid with 4 carbon rings with various functional groups attached

  • Cholesterol has many biological uses, such as its occurrence in the cell membranes, and its role in forming the sheath of some neurons. Excess cholesterol in the blood has been linked to atherosclerosis, hardening of the arteries.

  • Steroids are mainly used as hormones in living things

  • Structure of four steroids. Image from Purves et al., Life: The Science of Biology, 4th Edition, by Sinauer Associates ( and WH Freeman (, used with permission.

D nucleic acids l.jpg
D. Nucleic Acids the inside and outside of the cell.

  • Function - informational molecules – heredity/genetic, protein synthesis, and energy

  • A nucleotide is formed from a 5 carbon sugar, a phosphate and a nitrogen base.

  • Polymers formed by linking together long chains of nucleotide monomers.

Slide46 l.jpg

  • 3 Nucleic Acids the inside and outside of the cell.

  • DNA-deoxyribonucleic acid

    • Double strand of nucleotides

    • Double Helix shape

  • RNA-ribonucleic acid

    • Single strand nucleotides

  • ATP -Adenosine Triphosphate

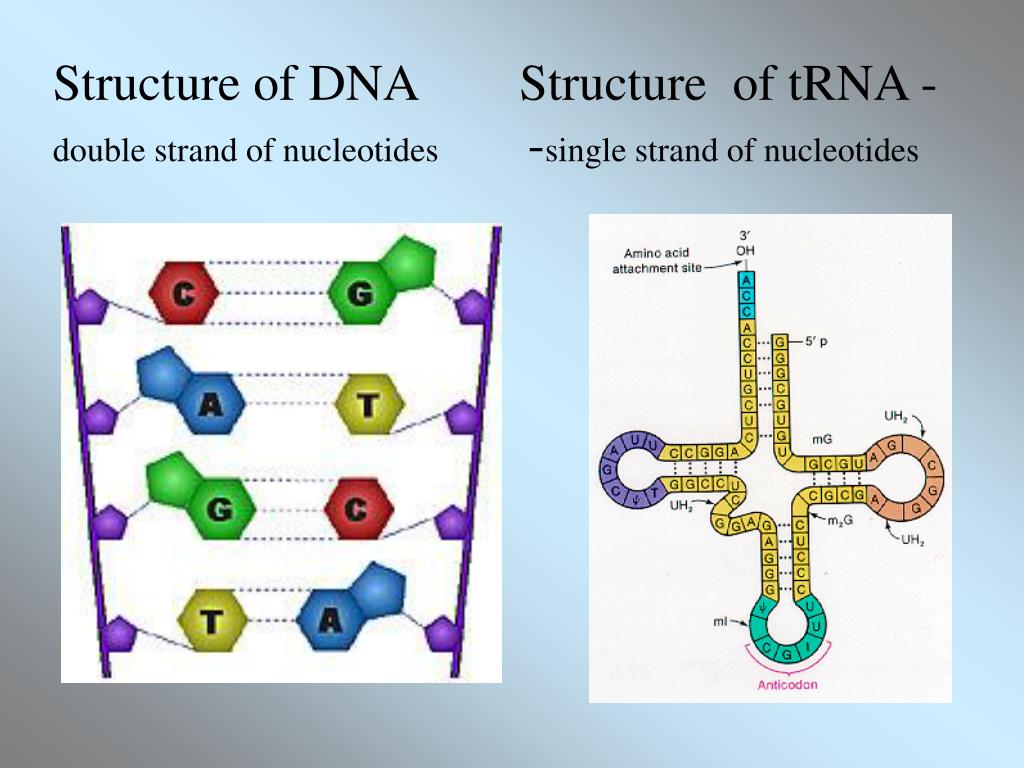

Structure of dna structure of trna double strand of nucleotides single strand of nucleotides l.jpg
Structure of DNA Structure of tRNA - the inside and outside of the cell.double strand of nucleotides -single strand of nucleotides

Rna differs from dna in the following ways l.jpg
RNA differs from DNA in the following ways: the inside and outside of the cell.

  • RNA is single stranded while DNA is double stranded.

  • RNA has a sugar called ribose while DNA has a sugar called deoxyribose.

  • RNA has the base uracil while DNA has the base thymine.

How dna rna work together l.jpg
How DNA & RNA work together the inside and outside of the cell.

  • DNA(deoxyribonucleic acid) is the genetic material.

  • It functions by storing information regarding the sequence of amino acids in each of the body’s proteins.

  • This "list" of amino acid sequences is needed when proteins are synthesized.

  • Before protein can be synthesized, the instructions in DNA must first be copied to another type of nucleic acid called messenger RNA.

3 types rna l.jpg
3 types RNA the inside and outside of the cell.

  • Messenger RNA, or mRNA.

    • carries the code for building a protein from the nucleus to the ribosomes in the cytoplasm. It acts as a messenger.

  • Transfer RNA or tRNA.

    • picks up specific amino acids in the cytoplasm & brings them into position on ribosome where they are joined together in specific order to make a specific protein.

  • Ribosomal RNA or rRNA –place for protein synthesis

How a protein is built l.jpg
How a protein is built the inside and outside of the cell.
