  1. Overview

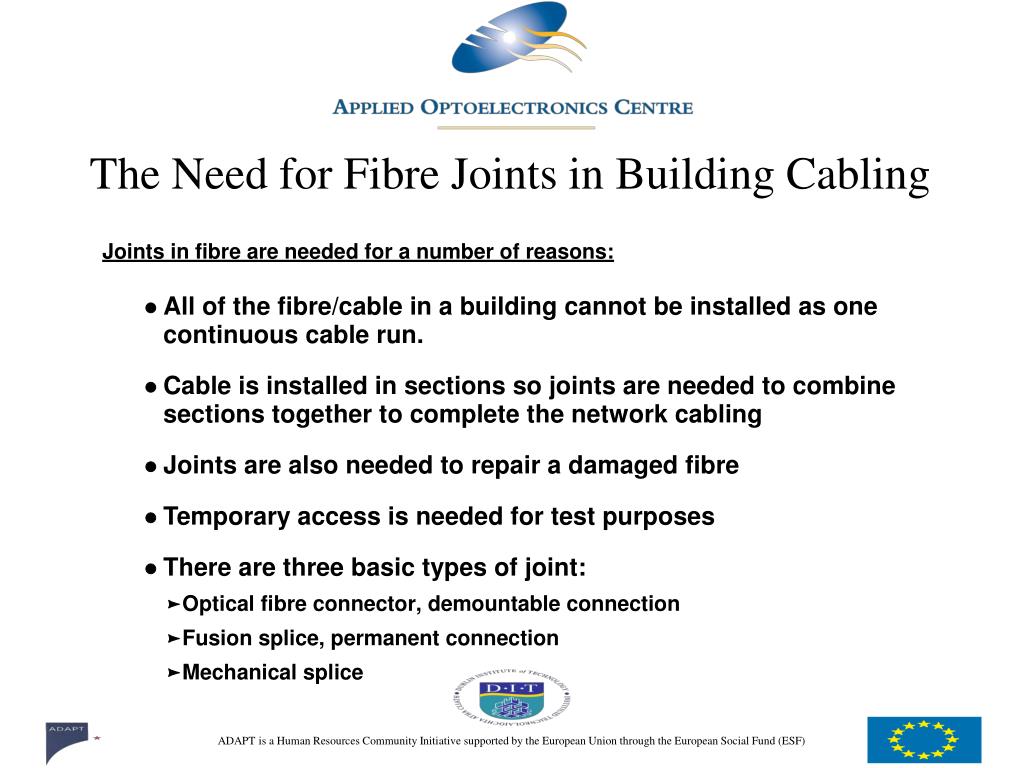

  2. The Need for Fibre Joints in Building Cabling

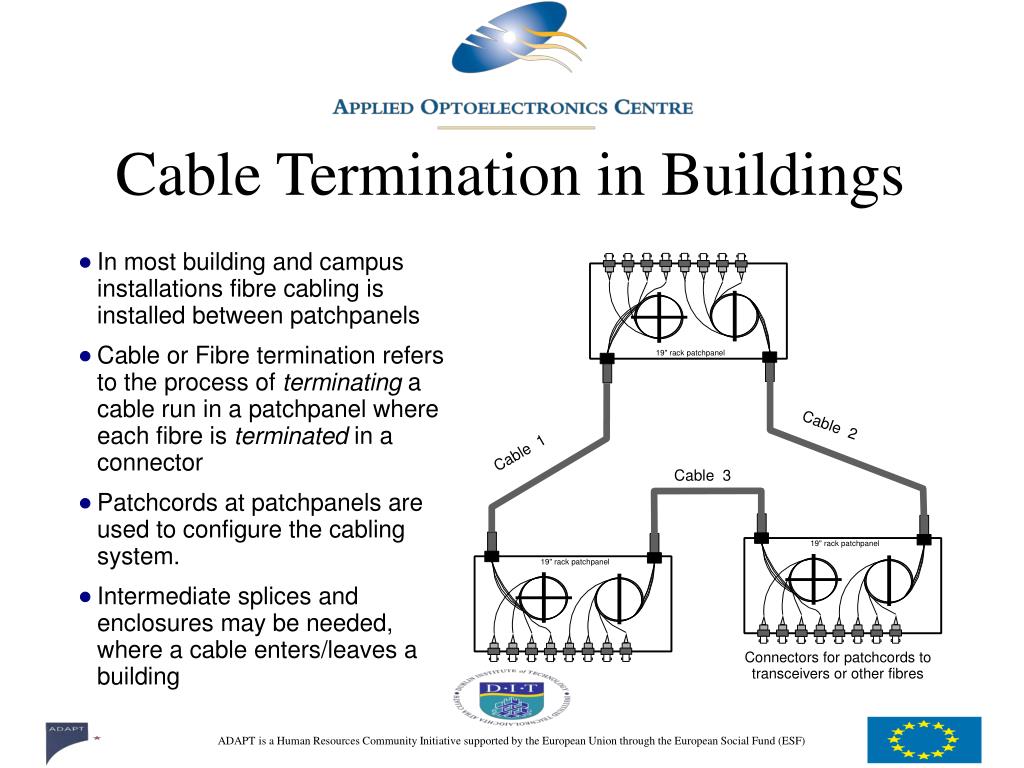

  3. Cable Termination in Buildings

  4. Patchpanel Termination using Connectors

  5. Patchpanel Termination using Splices/Fibre Pigtails

  6. Loss in Fibre Joints

  7. Misalignment Losses

  8. Standards for Fibre Joints in Buildings

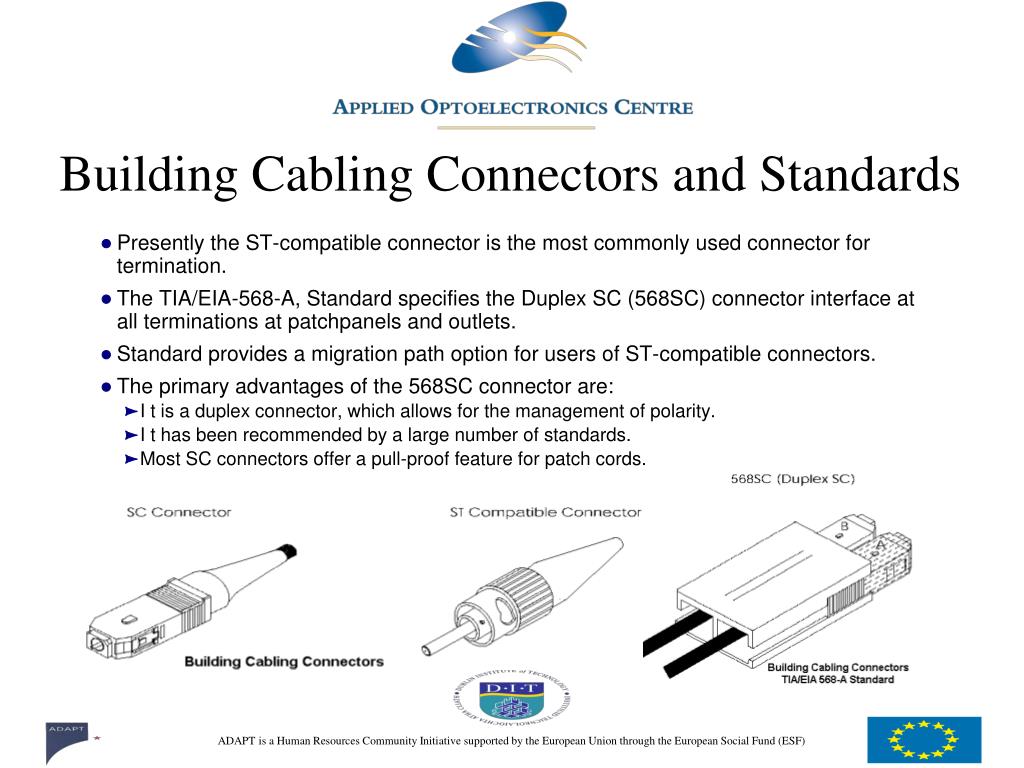

  9. Building Cabling Connectors and Standards

  10. Optical Connector Basics

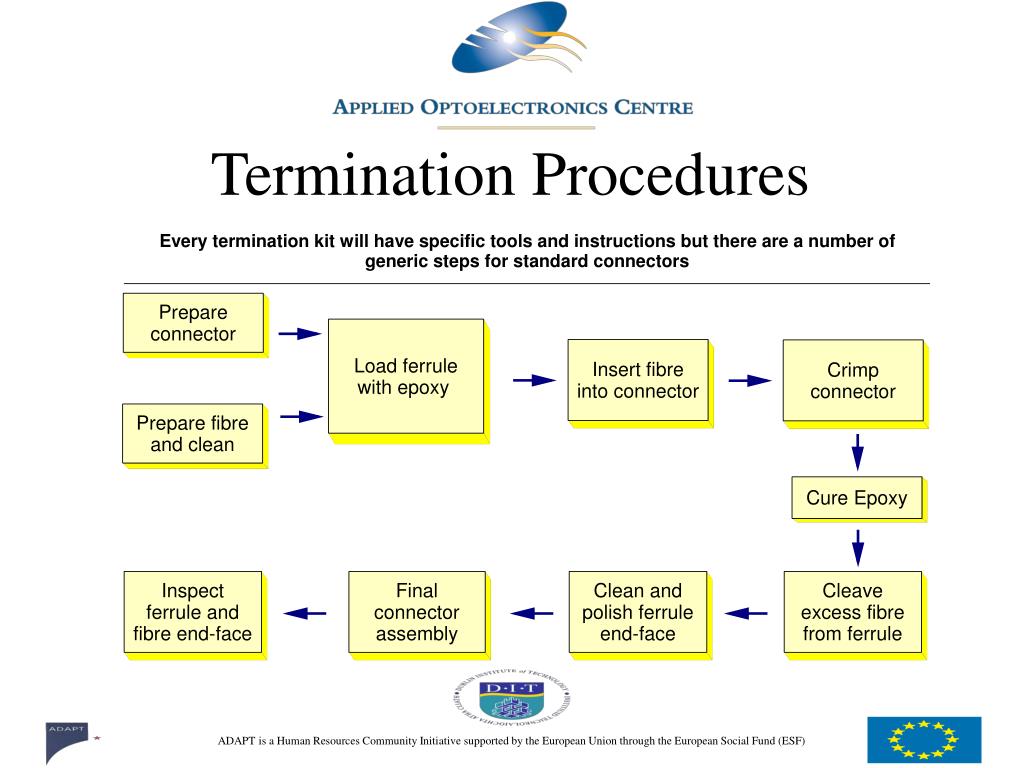

  11. Termination Procedures

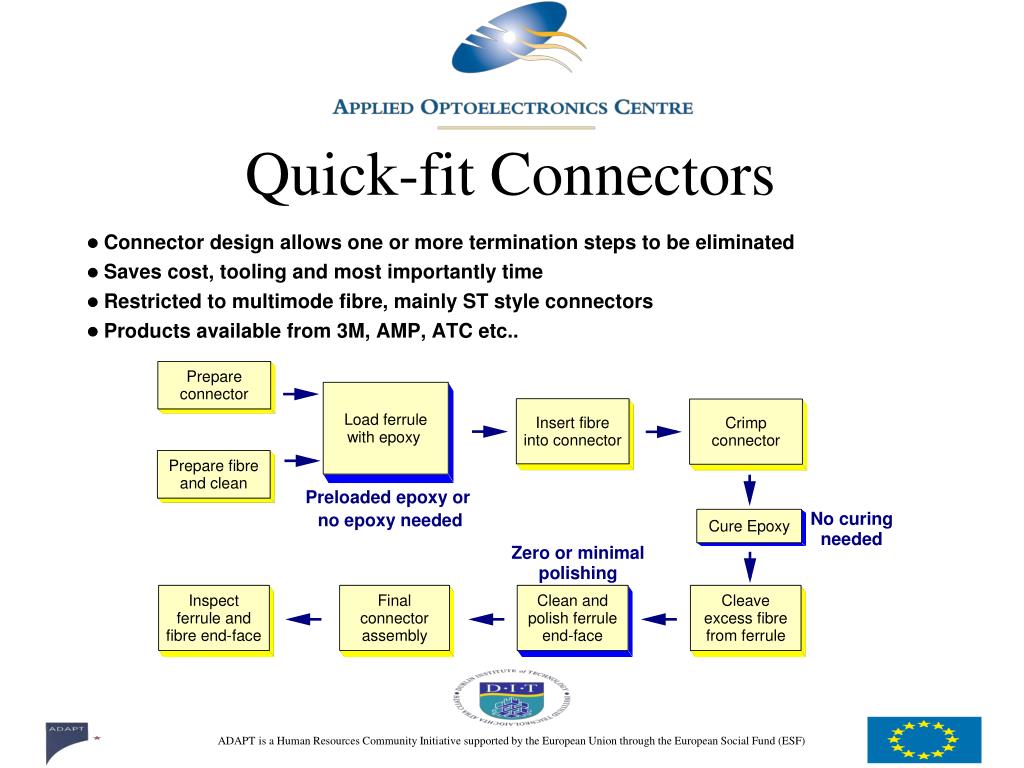

  12. Quick-fit Connectors

  13. AMP XTC LightCrimp

  14. High Density Connectivity

  15. 3M Volition Connector

  16. AMP MT-RJ Fibre Optic System

  17. Types of Fibre Joint

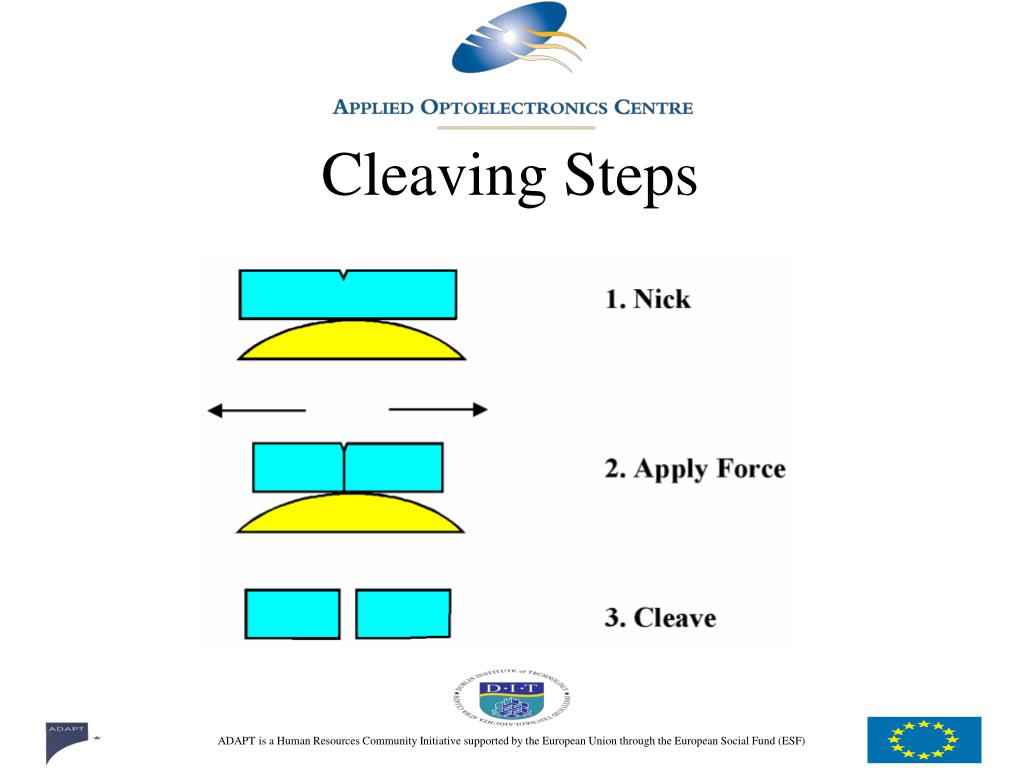

  18. Cleaving Steps

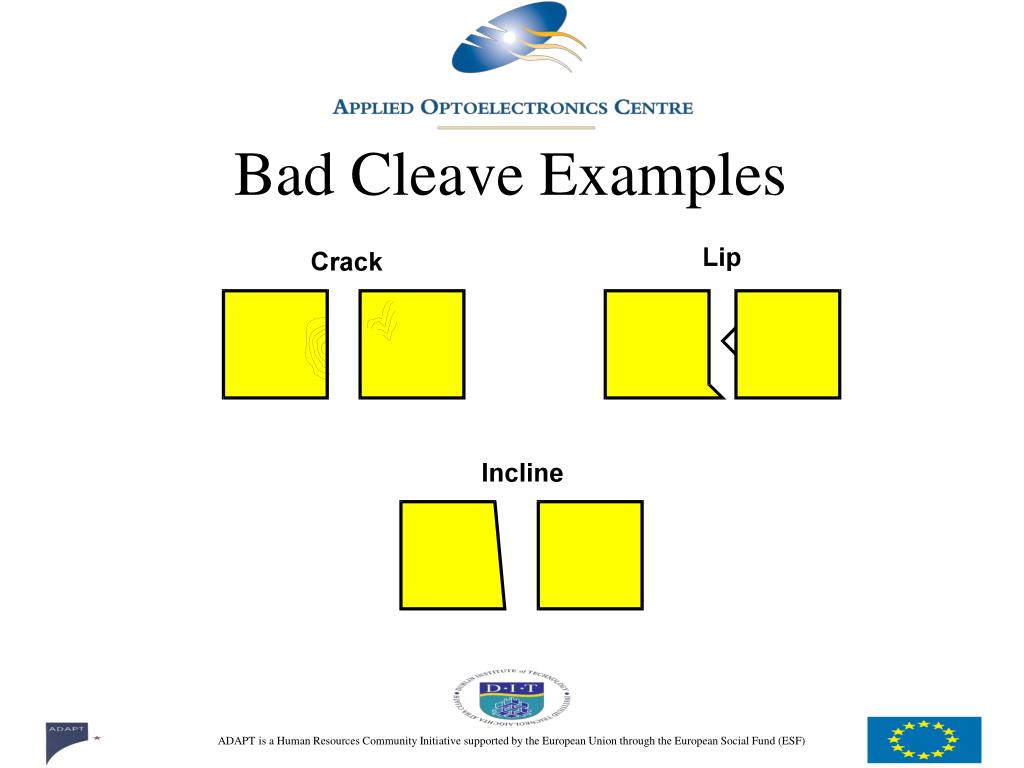

  19. Bad Cleave Examples

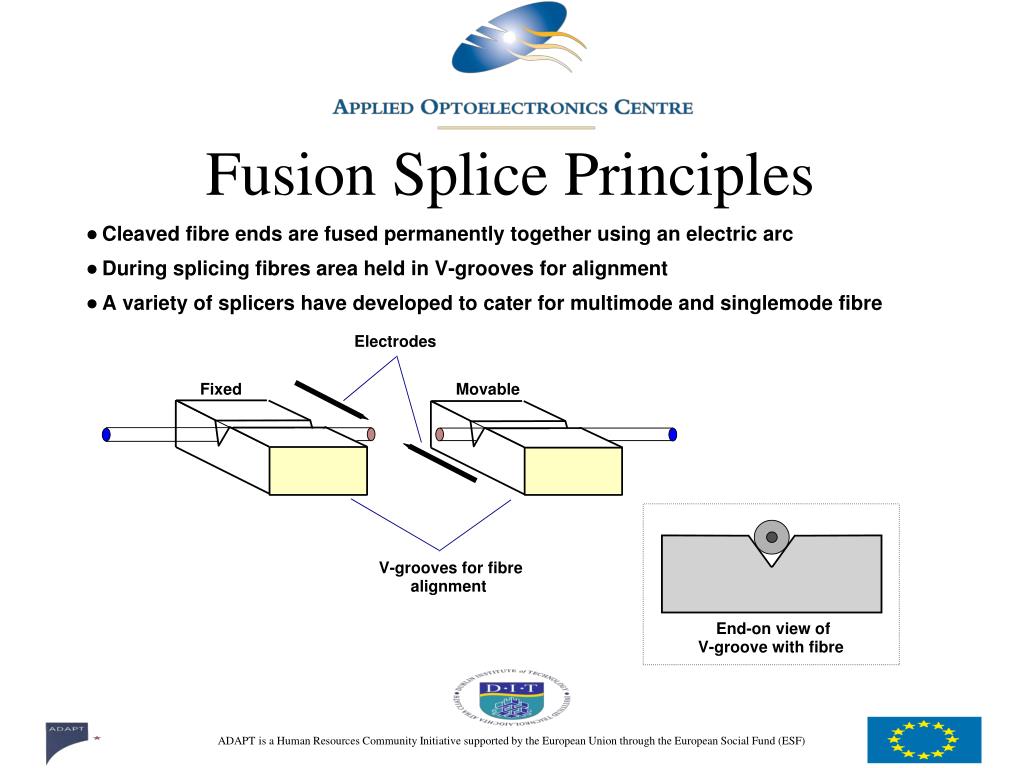

  20. Fusion Splice Principles

  21. Steps in the Splice Process

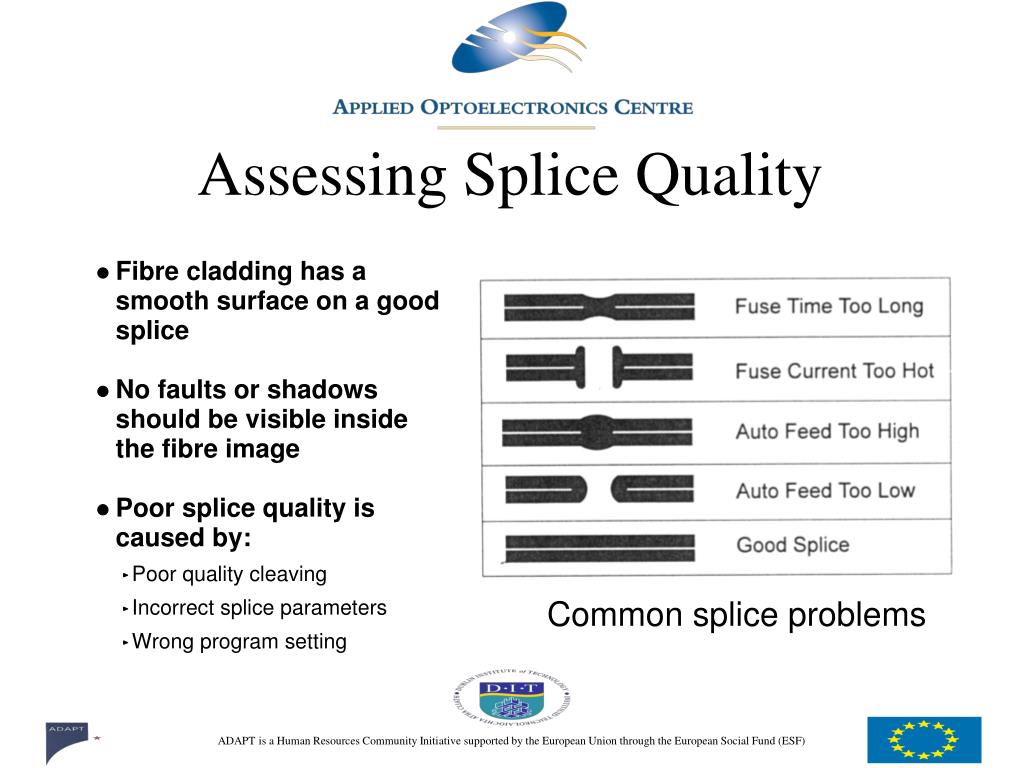

  22. Assessing Splice Quality

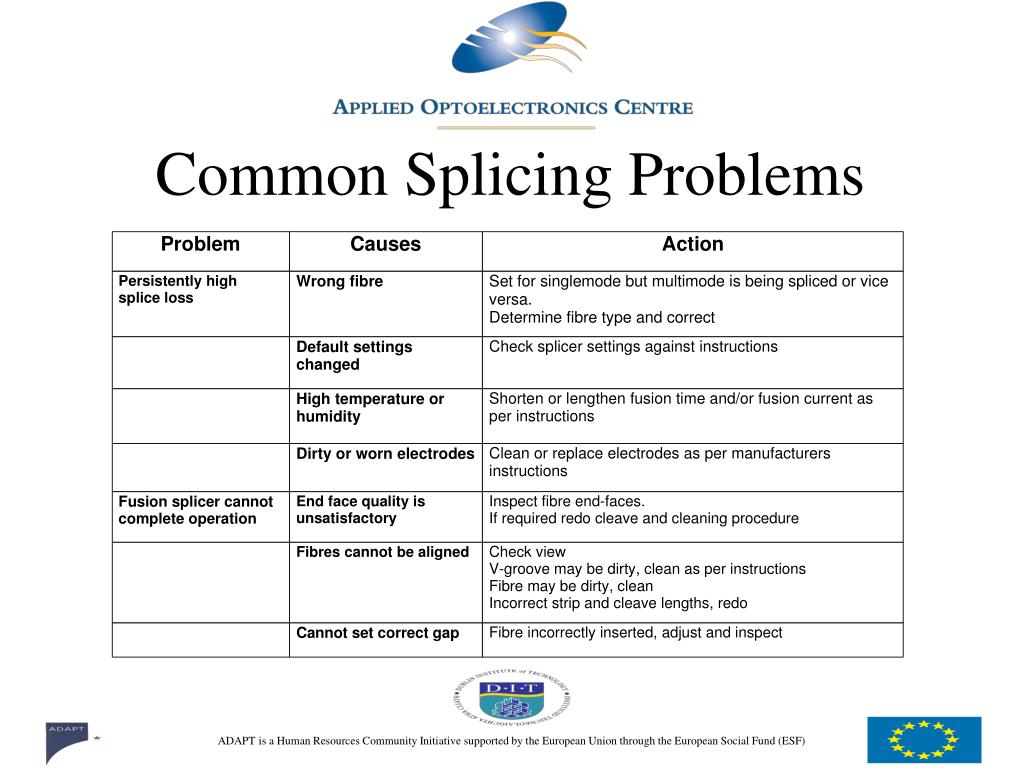

  23. Common Splicing Problems

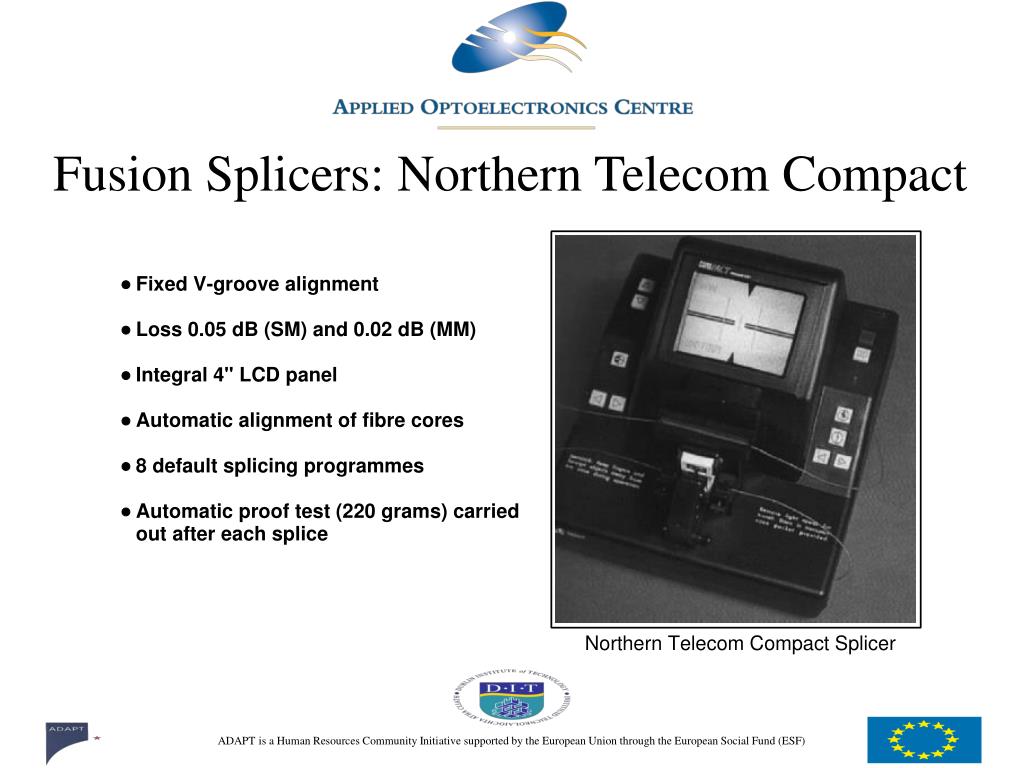

  24. Fusion Splicers: Northern Telecom Compact

  25. Splice Protection

  26. Mechanical Splices

  27. 3M Fibrlok Splices

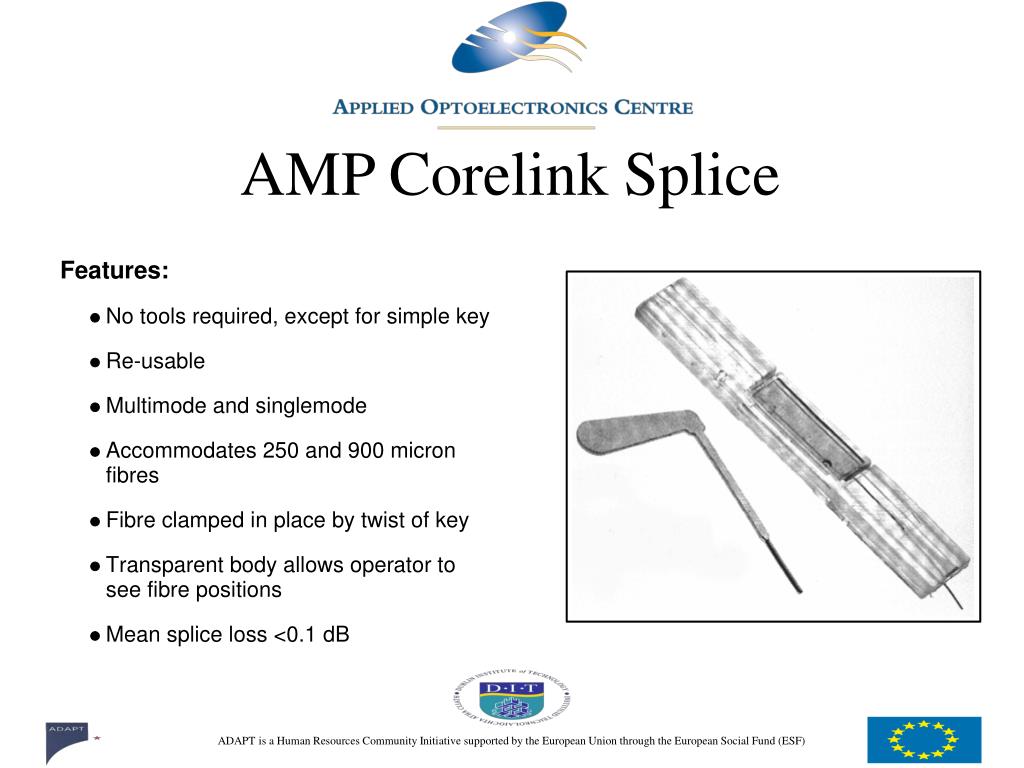

  28. AMP Corelink Splice

  29. Summary
