Presentation Transcript

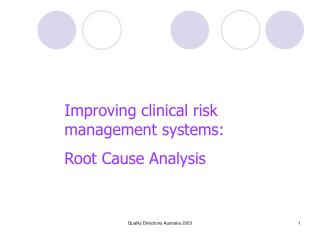

slide1

Improving clinical risk management systems:

Root Cause Analysis

Quality Directions Australia 2003

investigating adverse events
Investigating adverse events
  • What often happens when we carry out these investigations:
    • Inconsistent approaches
    • Done by management
    • All issues not explored
    • Focuses on who did it rather than what went wrong
    • Incomplete solutions
    • No organisational learning

Quality Directions Australia 2003

getting to the root cause
Getting to the root cause
  • Arriving at the right answer is dependent on:
    • Asking the right questions
    • Asking the right people
    • Asking in the right way
    • Using the right time frame

Quality Directions Australia 2003

getting to the root cause1
Getting to the root cause
  • A structured systems approach ensures:
    • You are clear about the problem or event
    • The people involved in the problem/event are part of the process
    • All steps in the process are carried out in the right order
    • Actions are put in place and evaluated

Quality Directions Australia 2003

getting to the root cause2
Getting to the root cause

Root Cause Analysis (RCA) is:

  • A structured approach aimed at getting to the root cause of a sentinel (adverse) event, with the right people, using a specified process and leading to the outcome of an achievable risk reduction plan
  • Used to uncover failures of systems design

Quality Directions Australia 2003

the rca process
The RCA Process
  • Describe the event
  • Organise the RCA team
  • Clarify the process leading to the adverse event
  • Understand the causes of variation
  • Select risk reduction strategies
  • Go through the PDCA cycle (Plan/Do/Check/ Act)

Quality Directions Australia 2003

the rca process1
The RCA Process

Describe the adverse event:

  • The event needs to be very clearly described with no emotive terms- as a statement of the facts
  • Watch for elements of bias or assumption
  • The date/ time and place of the event must be clearly specified

Quality Directions Australia 2003

the rca process2
The RCA Process

Organise the team:

  • RCA must be carried out by an appropriate team
  • Team members should include all of those involved in the event
  • Team members should include people able to authorise change
  • The process must be clarified with the team at the outset and appropriate ground rules set
  • An external person can be useful to challenge assumptions/ biases

Quality Directions Australia 2003

the rca process3
The RCA Process

Clarify understanding of the event:

  • Includes process and causes of variation
  • Tools should be used to assist in clarification
  • Useful tools are:
    • Flowcharting to record the sequence of events
    • Cause and effect diagrams to elucidate all contributory factors
    • Why/why and to dig down to root causes
    • Affinity diagramming to categorise factors

Quality Directions Australia 2003

the rca process4
The RCA Process
  • Understanding causes of variation:
    • Use multiple investigators to minimise bias
    • Examine relevant documents
    • Conduct structured interviews
    • Field observation
  • No solutions!!

Quality Directions Australia 2003

the rca process5
The RCA Process

Select risk reduction strategies

  • Determine which of the risks is most urgent using a risk stratification tool
  • Develop a list of action items in terms of urgency
  • Use a how/ how diagram to develop action steps
  • Develop evaluation measures for each of the items

Quality Directions Australia 2003

the rca process6
The RCA Process

Go through the PDCA cycle

  • Plan the improvement
  • Do the improvement
  • Check the effectiveness of the improvement
  • Act to hold the gain ( policies/ procedures/ education/ongoing evaluation)

Quality Directions Australia 2003

preparation for rca
Preparation for RCA
  • Have a group of staff trained in the process
  • Notify all relevant staff ASAP after a sentinel event has occurred
  • Appoint RCA team members
  • Prepare for first team meeting
  • Go through the process
  • Disseminate the action plan

Quality Directions Australia 2003

using rca for the case study
Using RCA for the case study
  • Describing the event
  • As per case study – Transfer of responsibility

Quality Directions Australia 2003

using rca for the case study1
Using RCA for the case study
  • Organising the team
    • DON or DMS of Hospital a to chair
    • ADON A
    • ADON B
    • Receptionist Manager
    • Clinical Risk Manager A to facilitate
    • (Taxi driver)

Quality Directions Australia 2003

using rca for the case study2
Using RCA for the case study
  • Clarifying the process
    • Flow charting
      • Decision to transfer A to B/ communication with Hospital B/ booking for transfer accepted by ADON B with delivery to ED/ taxi booked by Hospital A/ Verbal instructions for driver/ patient delivered to reception at Hospital B/ receptionist confirms patient expected/ patient directed to ward / patient and taxi driver walk to ward/ patient falls at ward entrance and fractures hip

Quality Directions Australia 2003

flow charting
Decision to transfer

Communication with hospital B

Booking accepted by ADON B

Patient delivery to ED organised

Taxi booked by hospital A

How did communication occur?

Was communication between appropriate people?

How was transfer assessed?

Does a written procedure exist?

What instructions were given?

Why was patient to go to ED?

Is a taxi transfer appropriate?

What information was provided to the driver?

Flow charting

Quality Directions Australia 2003

transfer of responsibility
Transfer of Responsibility

Quality Directions Australia 2003

transfer of responsibility1
Transfer of responsibility

Quality Directions Australia 2003

using rca for the case study3
Using RCA for the case study
  • Understanding the causes of variation
    • Communication between Hospital A and B
    • Communication between Hospital A and taxi service
    • Reception processes at Hospital B
    • Admission policies at Hospital B

Quality Directions Australia 2003

using rca for the case study4
Using RCA for the case study
  • Selecting risk reduction strategies
    • Development of transfer policies between Hospitals A and B ( to include use of taxis)
    • Development of admission policies at Hospital B
    • Education of reception staff at Hospital B

Quality Directions Australia 2003

transfer of responsibility2
Transfer of responsibility

P- Plan the improvement

Quality Directions Australia 2003

using rca for the case study5
Using RCA for the case study
  • D-Institute the changes
    • ensure that staff are educated on the changes
  • C- Check effectiveness of actionsCarry out relevant audits to ensure this is working
    • make further changes if necessary

Quality Directions Australia 2003

using rca for the case study6
Using RCA for the case study
  • A- Act to hold the gain
    • Promulgate the new procedures
    • Continue to educate staff
    • Evaluate at regular intervals
    • Go through the PDCA cycle again if necessary

Quality Directions Australia 2003

limitations of rca
Limitations of RCA
  • Impossible to know if the root cause established by the analysis is the actual cause of the incident
  • May be tainted by hindsight bias
  • May be bias relating to prevailing concerns in the organisation
  • Time consuming and labour intensive
  • Qualitative rather than quantitative

Quality Directions Australia 2003

when to use rca
When to use RCA
  • Needs to be used where there are systems issues and where the establishment of barriers is likely to prevent such errors recurring
  • When assessing the adverse event, need to identify if there are a number of things that went wrong as distinct from the proximal cause
  • Need to determine if prevention of the event occurring could have happened at many stages in the process, not just one poor action
  • Need to be able to distinguish between clinical complexity (difficult to control) and systems complexity (controllable)

Quality Directions Australia 2003

use of rca
Use of RCA
  • In the USA where RCA has been used consistently in the VHA for 10 months:
  • Events reported have increased by 30 times
  • Near misses reported have increased by 900 times
  • Near misses make up over 90% of events reported

Quality Directions Australia 2003

keys to successful rca
Keys to successful RCA
  • Selecting the right team
  • Having a team with some knowledge of the process- why/what/ how
  • Using a facilitator trained in the process, tools and facilitation techniques
  • Practice the technique frequently to maintain skills

Quality Directions Australia 2003
