root cause analysis

BOO ! !

Root Cause Analysis

in the

Environmental Testing Laboratory

May 2009

Marlene Moore

Advanced Systems, Inc.

  • Corrective Action Program
    • What is corrective action
    • Documentation of corrective action
    • Examples of administrative and technical
  • Cause Analysis Principles
    • Definition(s)
    • Procedure
    • Records
    • Follow-up
  • Cause Analysis Examples
    • Administrative Examples
    • Technical Examples
  • Corrective Action
    • Complaints
    • Forms
    • Evaluation
    • Follow-up
  • Principles of Performing Root Cause Analysis
    • Based on ISO/IEC 17025
  • Examples Root Cause Analysis


corrective action
Corrective Action
  • Corrective action is

the action taken to eliminate the causes of an existing nonconformity, defect or other undesirable situation in order to prevent recurrence

(NELAC 2003 Glossary)

correction vs corrective action

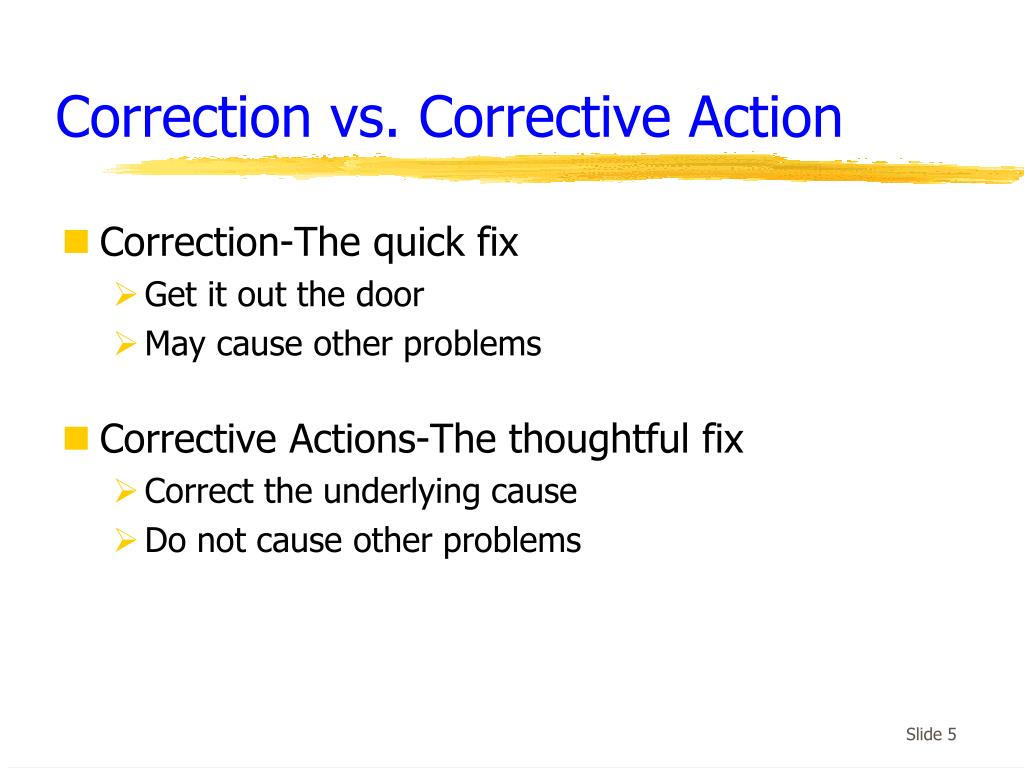

Correction vs. Corrective Action
  • Correction-The quick fix
    • Get it out the door
    • May cause other problems
  • Corrective Actions-The thoughtful fix
    • Correct the underlying cause
    • Do not cause other problems
corrective action6

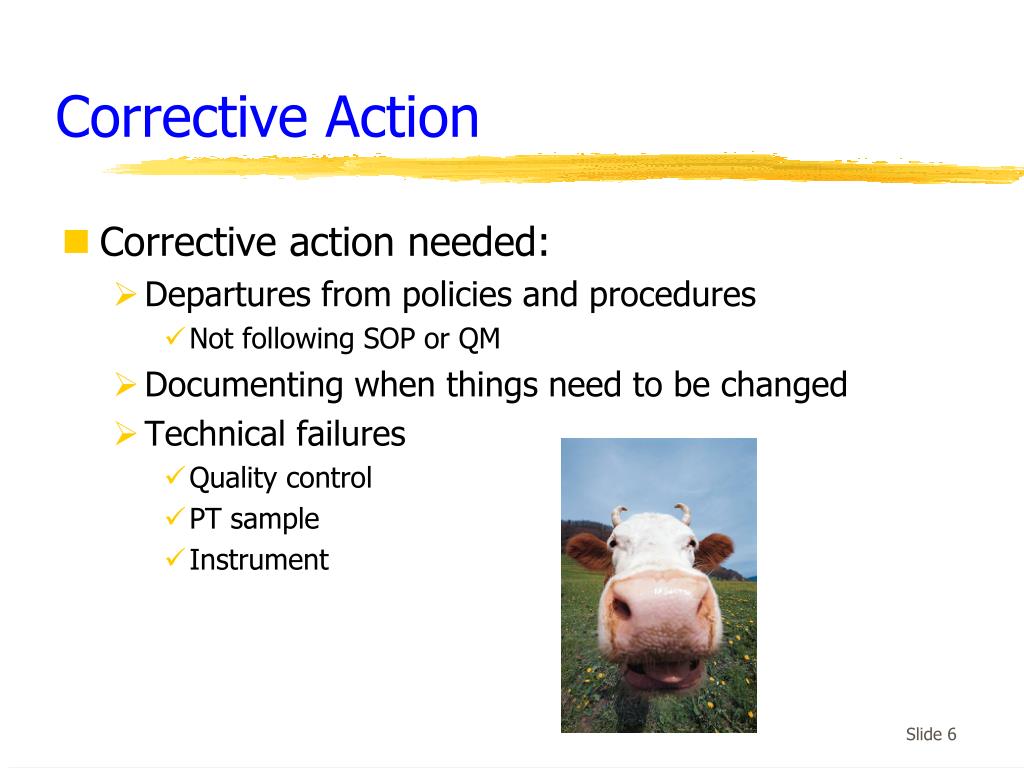

Corrective Action
  • Corrective action needed:
    • Departures from policies and procedures
      • Not following SOP or QM
    • Documenting when things need to be changed
    • Technical failures
      • Quality control
      • PT sample
      • Instrument
corrective action steps

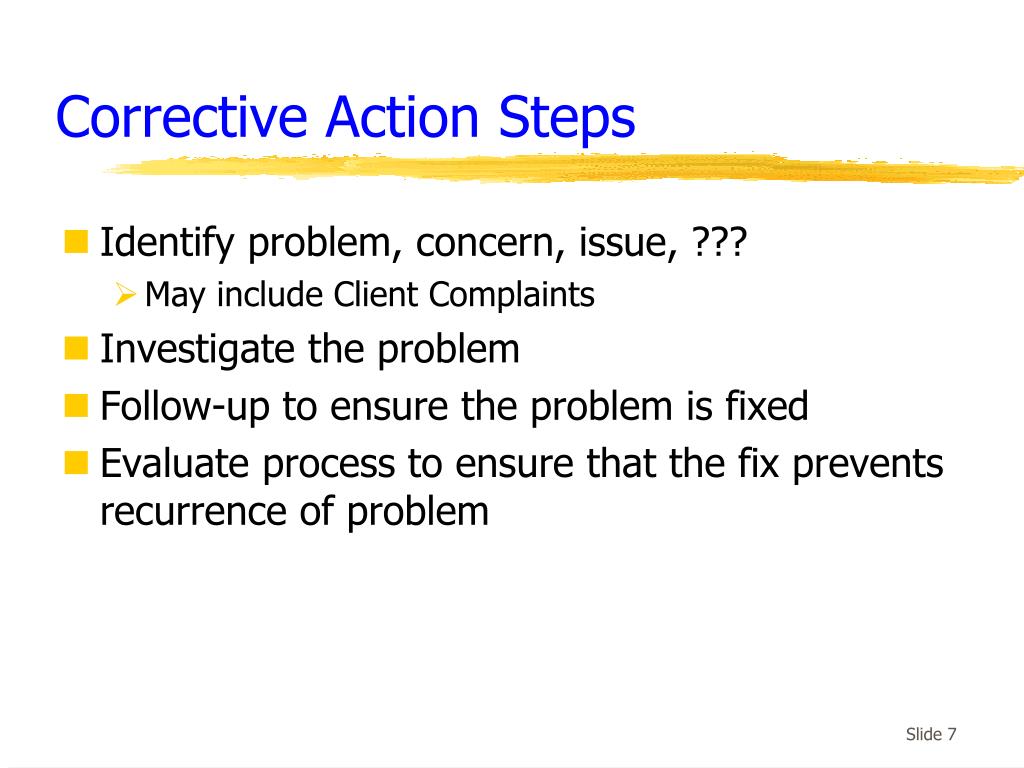

Corrective Action Steps
  • Identify problem, concern, issue, ???
    • May include Client Complaints
  • Investigate the problem
  • Follow-up to ensure the problem is fixed
  • Evaluate process to ensure that the fix prevents recurrence of problem
administrative corrective action
Administrative Corrective Action
  • Identify who assesses the problem
  • Identify who determines effect
  • Identify who is responsible for taking action
  • Define how reported data is treated or client notified, if applicable
  • Specify changes needed to documentation or process
  • Specify how management will review
technical corrective actions

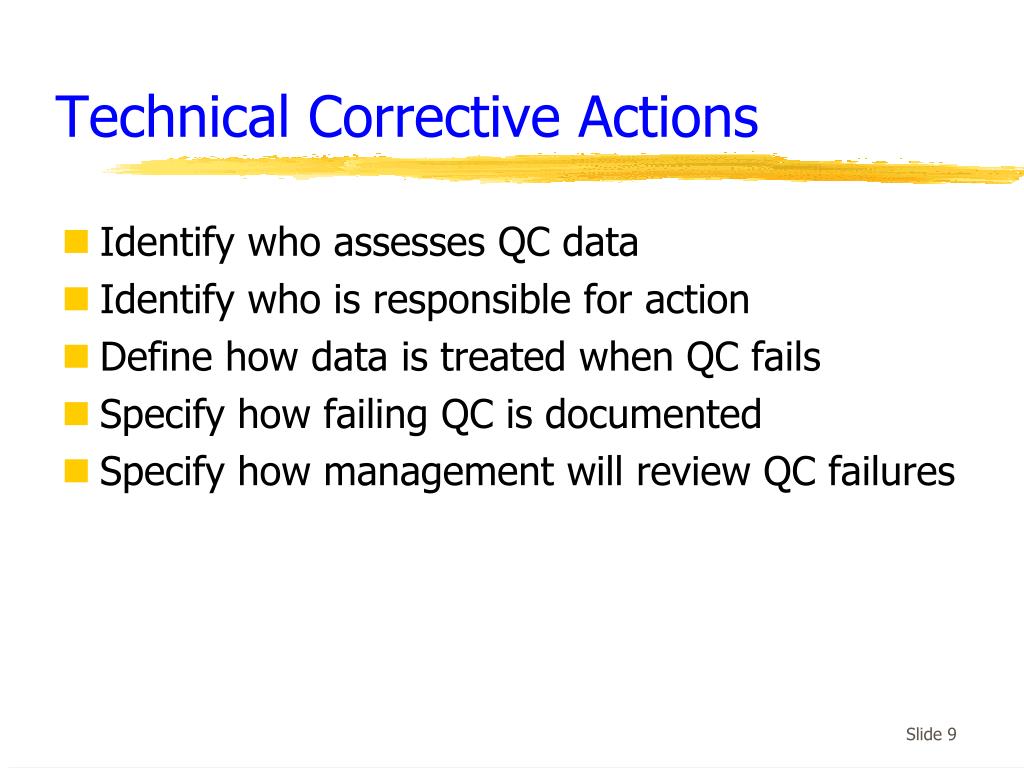

Technical Corrective Actions
  • Identify who assesses QC data
  • Identify who is responsible for action
  • Define how data is treated when QC fails
  • Specify how failing QC is documented
  • Specify how management will review QC failures
follow up
  • Review corrective action implementation
    • Timeframe
      • Short (1 - 3 months)
      • Long (one year)
    • Did if fix the problem?
    • Has it reoccurred?
root cause analysis13
Root Cause Analysis

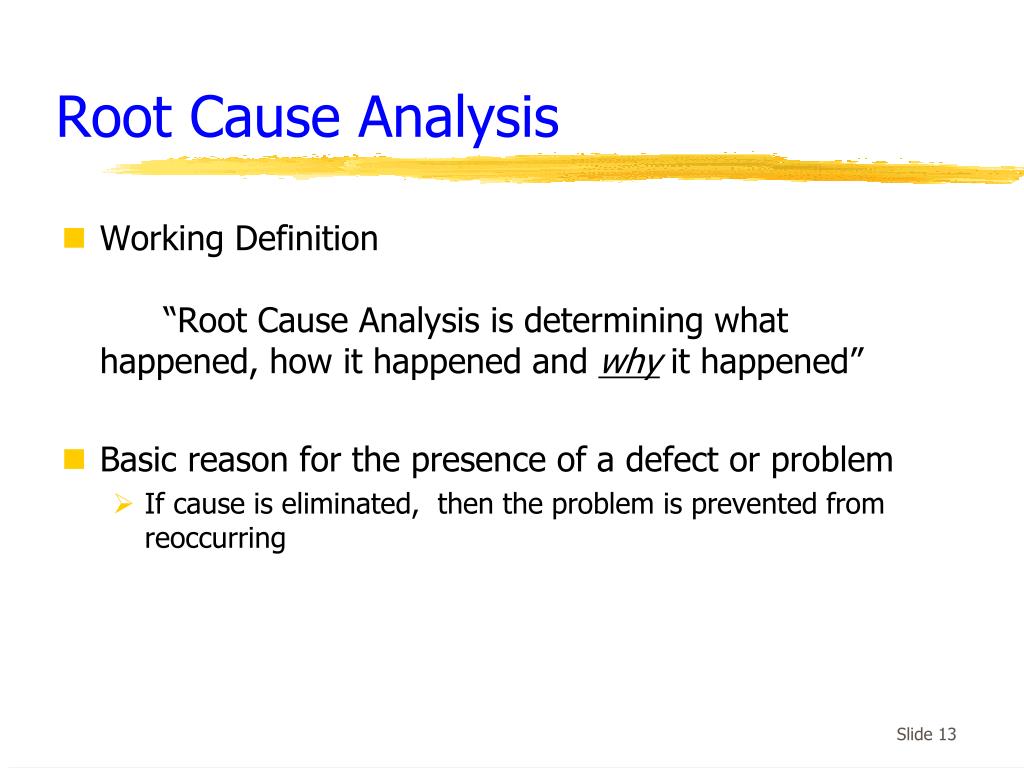

  • Working Definition “Root Cause Analysis is determining what happened, how it happened and why it happened”
  • Basic reason for the presence of a defect or problem
    • If cause is eliminated, then the problem is prevented from reoccurring
root cause analysis14
Root Cause Analysis
  • Goal “The goal of root cause analysis is to determine what can be done to prevent it from happening again”
characteristics of root causes
Characteristics of Root Causes
  • Root causes are specific underlying causes
  • Root causes are those that can reasonably be identified
  • Root causes are those management has control to fix
  • Root causes are those for which effective recommendations for preventing occurrences can be generatedQuoted from “Root Cause Analysis for Beginners”, Rooney and Vanden Heuvel, Quality Progress, July, 2004
  • Different
    • Tools
    • Processes
    • Philosophies
      • Safety based
      • Production based
      • Process based
      • Failure based
      • Systems based - combination of all above
general principles
General Principles
  • Aim corrective measures at cause
    • Not merely treating symptoms
  • Perform systematically
    • Back conclusions by evidence
  • More than one root cause to any problem
  • Define the process to perform RCA
  • Gather data/evidence
  • Identify issues that contributes to the problem
  • Find root causes
  • Develop solution recommendations
  • Implement the recommendations
  • Observe the recommended solutions to ensure effectiveness
basic elements
Basic Elements
  • Materials
    • Defective raw materials
    • Wrong type for job
    • Lack of raw material
  • Machine/Equipment
    • Incorrect instrument selection
    • Poor maintenance or design
    • Poor equipment or instrument placements
    • Defective equipment or instrument
basic elements20

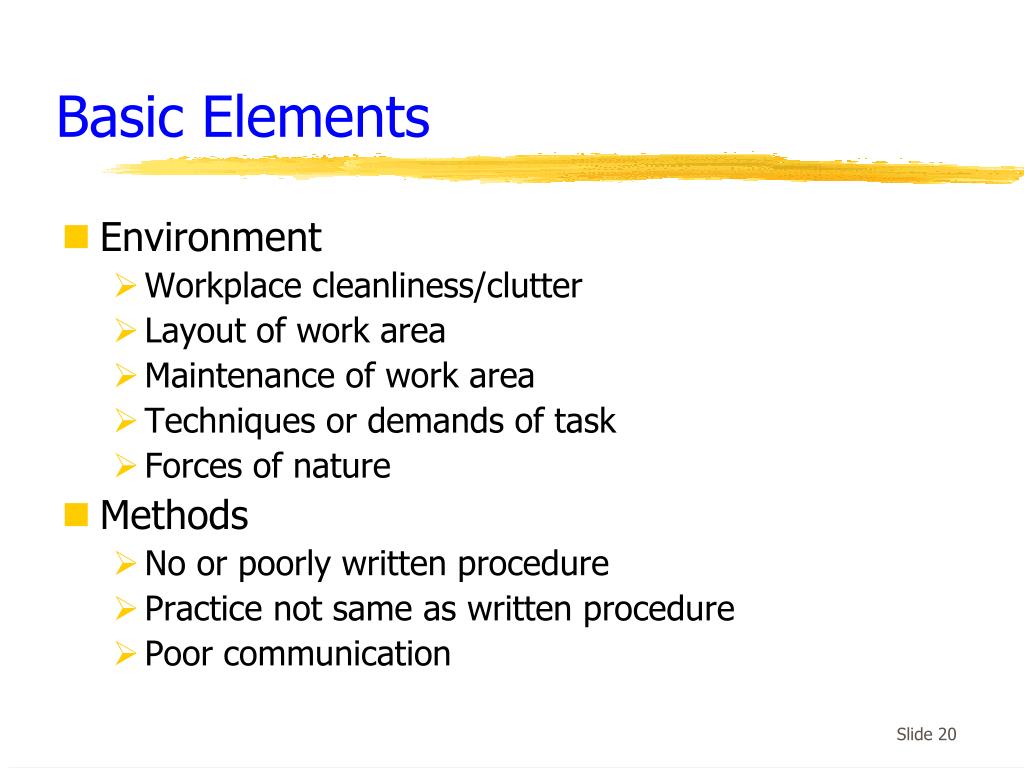

Basic Elements
  • Environment
    • Workplace cleanliness/clutter
    • Layout of work area
    • Maintenance of work area
    • Techniques or demands of task
    • Forces of nature
  • Methods
    • No or poorly written procedure
    • Practice not same as written procedure
    • Poor communication
basic elements21
Basic Elements
  • Person
    • No or poor management activity
    • Inattention to task
    • Task hazards not guarded properly
    • Other - Skill set not defined - Not trained for task
    • Stress demands or undue pressure
      • Results in improper practice
basic elements22
Basic Elements
  • Management System
    • Training or education lacking
    • Poor personnel involvement
    • Poor recognition of hazard
    • Previous unidentified hazard or skill set not handled properly
five whys one technique
Five Whys - One Technique
  • Explore cause/effect relationship
    • Tendency to stop at symptoms rather than going to lower level root causes
    • Lack of support to investigate real problem
    • Lack of training to identify cause/effect relationship
  • Asking Why five times
    • Nature of the problem becomes clear
    • Helps get to true cause of problem
benefit of 5 whys
Benefit of 5 Whys
  • Helps to identify root cause
  • Evaluates relationship between different root causes
  • Simple tool
    • No statistical analysis
specific steps

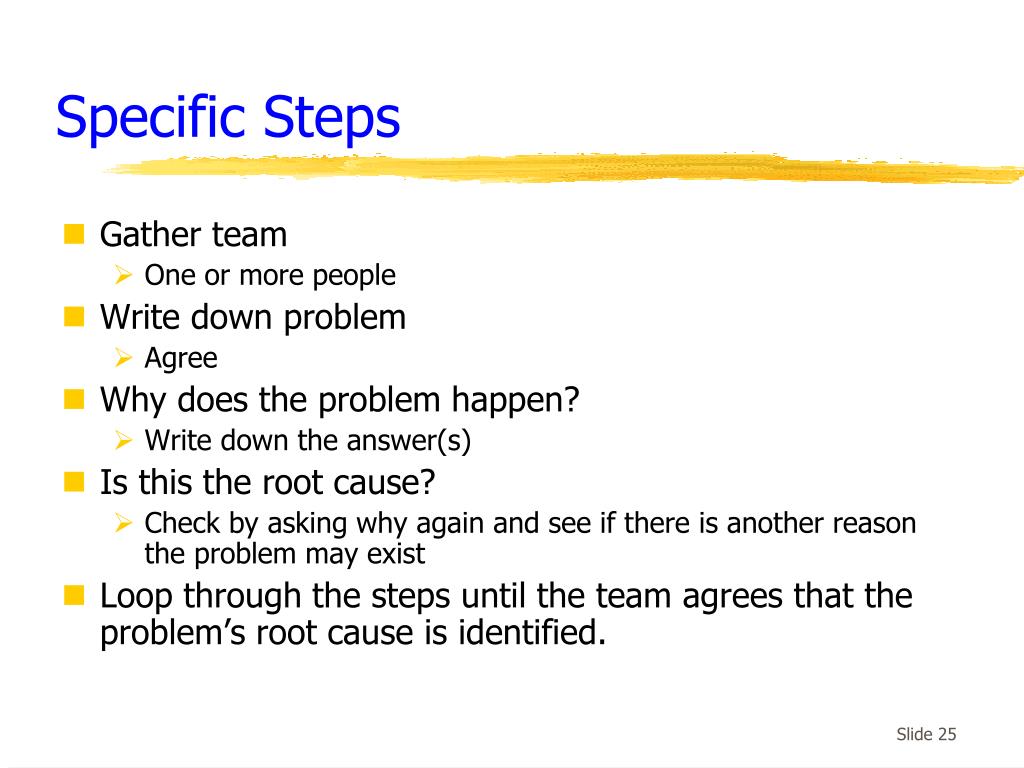

Specific Steps
  • Gather team
    • One or more people
  • Write down problem
    • Agree
  • Why does the problem happen?
    • Write down the answer(s)
  • Is this the root cause?
    • Check by asking why again and see if there is another reason the problem may exist
  • Loop through the steps until the team agrees that the problem’s root cause is identified.
modification of 5 whys
Modification of 5 Whys

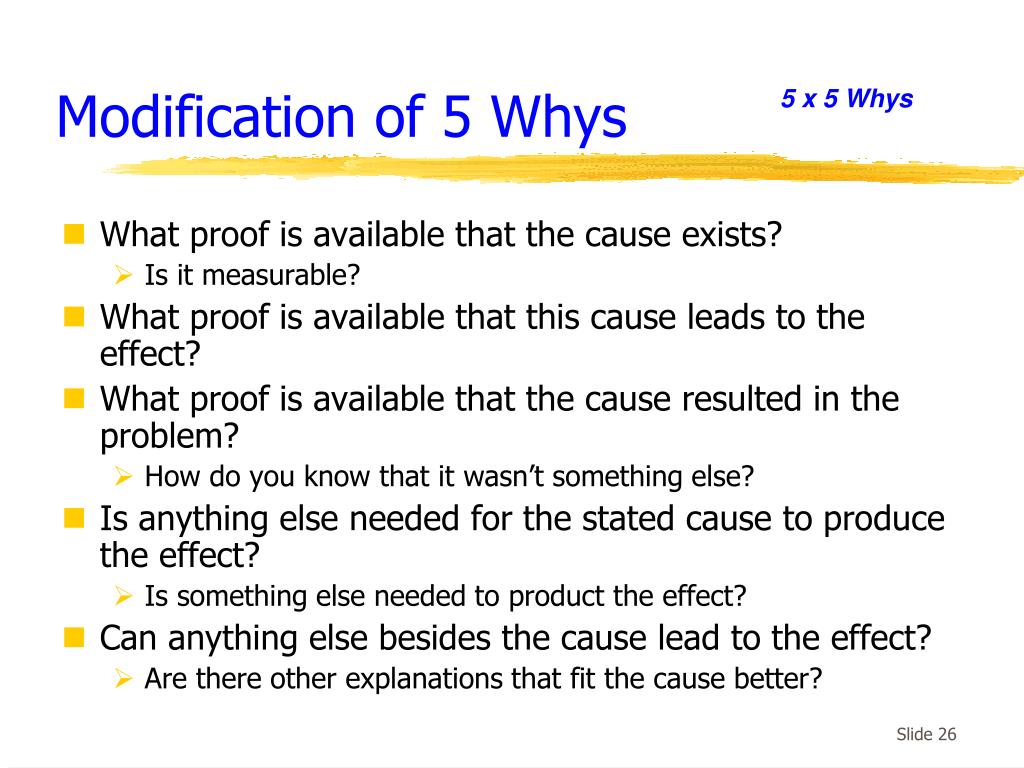

5 x 5 Whys

  • What proof is available that the cause exists?
    • Is it measurable?
  • What proof is available that this cause leads to the effect?
  • What proof is available that the cause resulted in the problem?
    • How do you know that it wasn’t something else?
  • Is anything else needed for the stated cause to produce the effect?
    • Is something else needed to product the effect?
  • Can anything else besides the cause lead to the effect?
    • Are there other explanations that fit the cause better?
  • Car will not start
    • Why? - Battery is dead
    • Why? - Alternator is not functioning
    • Why? - Alternator is broken beyond repair
    • Why? - Alternator is well beyond service life and has never been replaced
    • Why? - Not maintaining the car as recommended by the service schedule
cause effect diagram

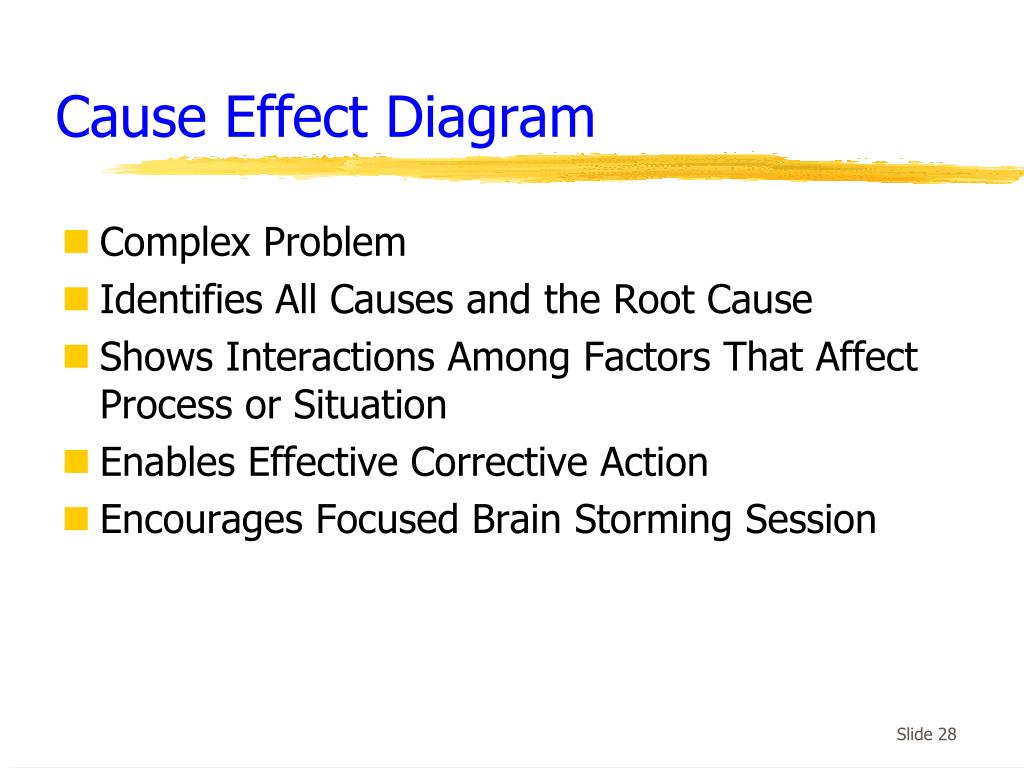

Cause Effect Diagram
  • Complex Problem
  • Identifies All Causes and the Root Cause
  • Shows Interactions Among Factors That Affect Process or Situation
  • Enables Effective Corrective Action
  • Encourages Focused Brain Storming Session
ishikawa diagram
Ishikawa Diagram
  • Graphical Design of Process Influences
    • a.k.a: fishbone diagram
  • Cause
    • 6 M’s
      • Machine, Method, Materials, Measurement, Man, Mother Nature (manufacturing industry)
    • 8 P’s
      • Price, Promotion, People, Processes, Place/Plant/Technology, Policies, Procedures & Product/Service (service industry
    • 4 S’s
      • Surroundings, Suppliers, Systems, Skills (service industry)

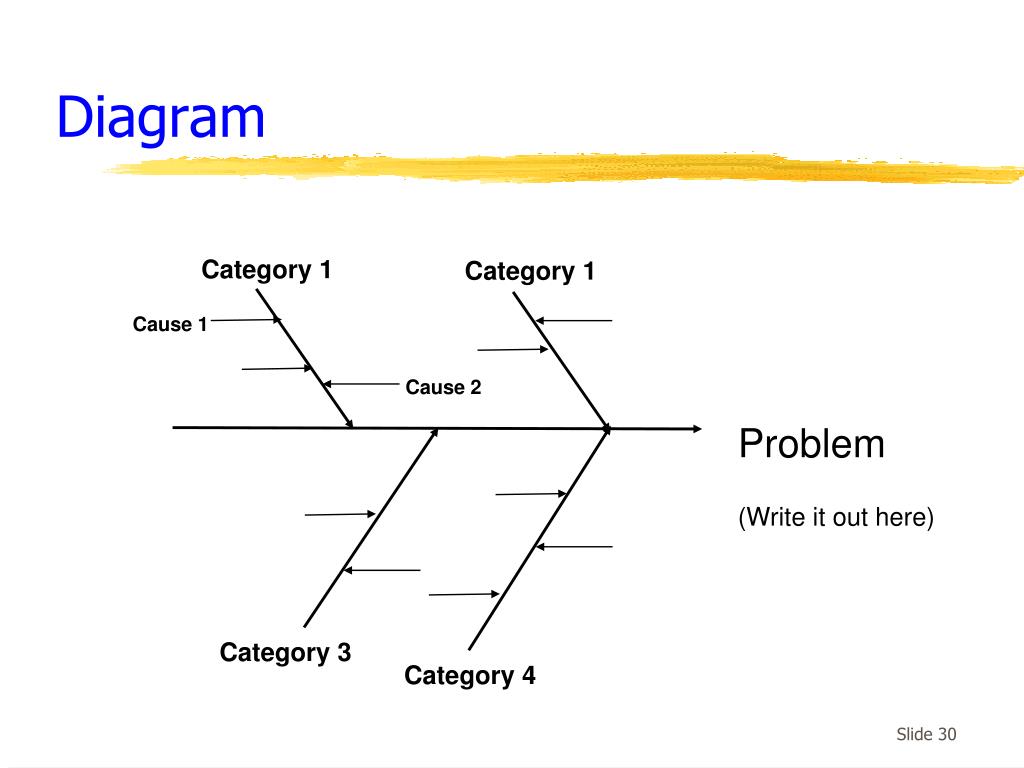

Category 1

Category 1

Cause 1

Cause 2


(Write it out here)

Category 3

Category 4

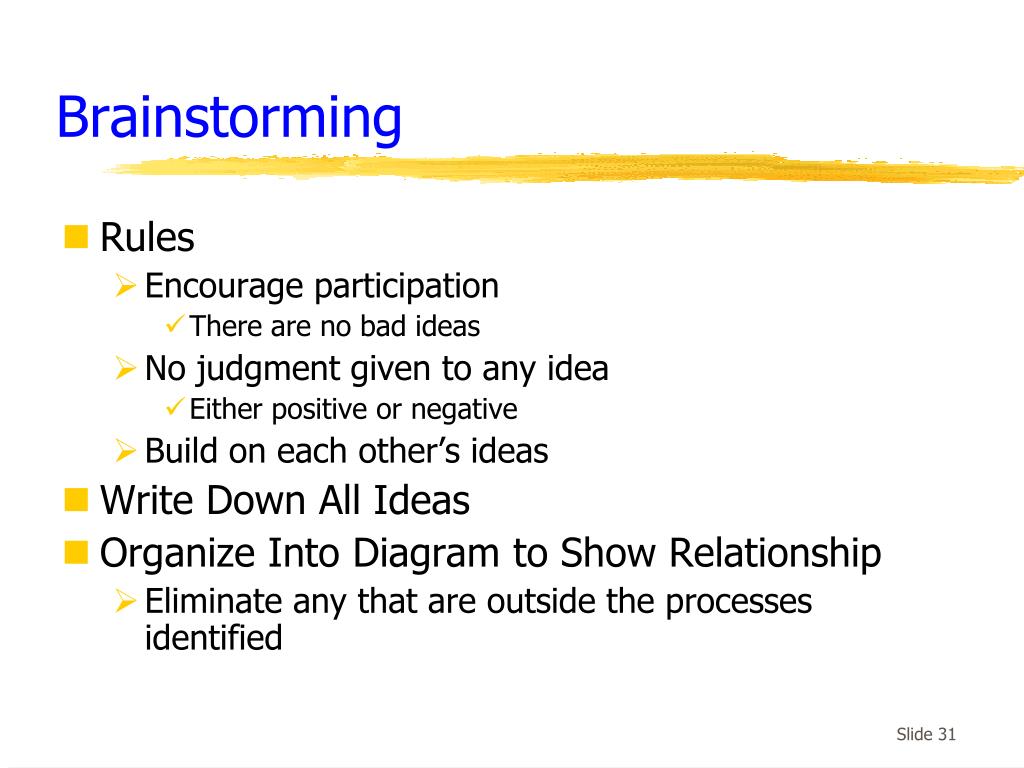

  • Rules
    • Encourage participation
      • There are no bad ideas
    • No judgment given to any idea
      • Either positive or negative
    • Build on each other’s ideas
  • Write Down All Ideas
  • Organize Into Diagram to Show Relationship
    • Eliminate any that are outside the processes identified
  • Experience Facilitator
    • External for more complex problems
  • Appoint a Person to Write Down All Ideas
    • Use paper chart to record all ideas
  • Define Problem
    • Layout any criteria for scoring the causes
  • No More Than 8 - 10 per Group
    • If more then have multiple groups
  • Encourage Creativity and Input
  • Don’t Dwell to Long on One Idea
other techniques rca
Other Techniques RCA
  • Statistical Approaches
    • Failure Mode and Effects Analysis
    • Fault Tree Analysis
  • Not Reviewed During this Class
    • Pareto Analysis and Charts
      • Separates important from trivial causes
      • Statistics 80% of problems produced by key causes (20%)
    • Bayesian Inference
    • Barrier Analysis
    • Change Analysis
    • Causal Factor Tree Analysis
failure mode and effects analysis
Failure Mode and Effects Analysis
  • FMEA - Used in Manufacturing
    • Risk assessment technique
    • Identify system or process failure
  • Failure is any Errors or Defects
    • Affect the client (affect on reported results)
    • Can be potential or actual
  • Failure Mode
    • Ways a product or process can fail
    • Product = data in lab
  • Effects Analysis
    • Studying the consequences of those failures
  • List Parts of the System
  • List Consequences If That Part of the System Fails
    • Evaluate the consequences - 3 criteria
      • Severity (S)
      • Occurrence (O) (May also be referred to as Probability)
        • Likely to occur
      • Detection (D)
        • Ability to control (1= control certain: 10 = no control exists)
    • Ranking of each 1 - lowest to 10 highest
    • Risk Priority Number (RPN) = S x O x D
  • Weakness
    • Top down tool
    • Major failure modes identified only
  • Fault Tree Analysis (FTA) Is Better Suited
  • FMEA Is Useful to Augment or Complement FTA
  • Helps to Identify Failure Modes When Undesired Effects Are Found

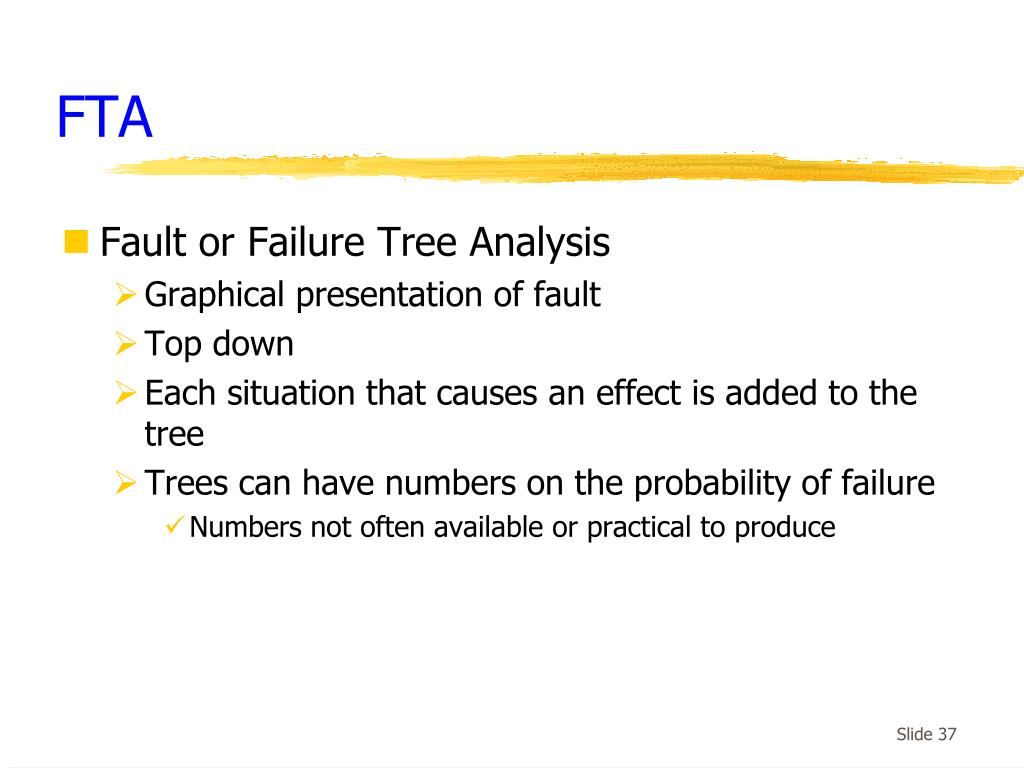

  • Fault or Failure Tree Analysis
    • Graphical presentation of fault
    • Top down
    • Each situation that causes an effect is added to the tree
    • Trees can have numbers on the probability of failure
      • Numbers not often available or practical to produce
  • Root Cause
    • Systematic approach to problem solving
  • Removes the problem
    • If cause is really identified
  • Allows focus of organization on preventive actions
    • Reduces number of corrective actions
end course
End Course

BYE ! !

Any questions?

(before you run out the door)
