  1. Examination of the Thorax and Lungs Janet M.Galiczewski RN,CCRN, MSN, ANP

  2. Thorax and Lungs • Thoracic cage is a bony structure defined by the sternum: 12 pairs of ribs, 12 thoracic vertebrae. • Floor is the diaphragm (musculotendinous septum separates the thoracic cavity from abdomen). • First seven ribs attach directly to the sternum via costal cartilages. Ribs 8, 9, 10 attach to costal cartilage above. Ribs 11 & 12 “floating” with free palpable tips costochondral junctions are points where ribs join their cartilages (not palpable).

  3. Anterior Landmarks • Suprasternal Notch: “U” shaped depression above sternum-between clavicles. • Sternum: “Breastbone” 3 parts: Manubrium, Body, Xiphoid Process • “Angle of Louis” Marks site of tracheal bifurcation into Right and Left main bronchi. Approximately 2.5 cm below sternal notch.

  4. Anterior Landmarks (Cont). • Costal Angle: Right and Left costal margins form an angle where they meet at the Xiphoid Process. Usually 90 degrees or less, greater emphysema.

  5. Posterior Landmarks • Vertebra Prominens: Most bony spur protruding at the base of the neck. This is the spinous process of C7.

  6. Thoracic Cavity • Mediastinum: Middle section of the thoraic cavity-contains esophagus, trachea, heart, great vessels • Pleural cavities: R & L lung • Lung Borders: • Anterior chest: Apex-highest point lung tissue. 2-4 cm above inner third clavicles. Base lower border, rests on diaphragm 6th rib midclavicular. • Laterally lung tissue goes from the apex of the axilla down to the 7th or 8th rib.

  7. Lobes of the Lungs • Right lung shorter than left because of the liver. • Right lung has 3 lobes. • Left lung has 2 lobes. • Lobes are stacked in diagonal sloping segments separated by fissures that run obliquely throughout the chest. • Anterior chest almost all upper and middle lobe with very little lower lobe. • Posterior chest contains almost all lower lobe.

  8. Pleura of The Lungs • Parietal Pleura: The outer lining of eachlung. It is attached to the chest wall. • Viseral Pleura: The inner lining of each lung. It is attached to the lung itself. • Pleural Space: Is the space createdbetween these two linings and it is filled with a small amount of lubricating fluid called Pleural Fluid. • Negative Pressure holds lungs tightly against chest wall and maintains inflation.

  9. Trachea & Bronchial Tree • Trachea is anterior to the esophagus & transports air to the bronchi. • Bronchi are large “air tubes” leading from the trachea that conducts air into lungs. • Trachea & bronchi transport gases between environment and lung parenchyma. • Alveoli are the primary site of gas exchange.

  10. Mechanics of Respiration • The Mechanism of Breathing maintains PH of the blood by supplying oxygen & eliminating excess carbon dioxide. • With Inspiration the size of the thoracic container increases creating a slightly negative pressure in relation to the atmosphere, air rushes in. • Major muscle responsible for this increase is the diaphragm. • Inspiration – contraction of the diaphragm causes it to descend and flatten. • Expiration – passive, relaxation of the diaphragm

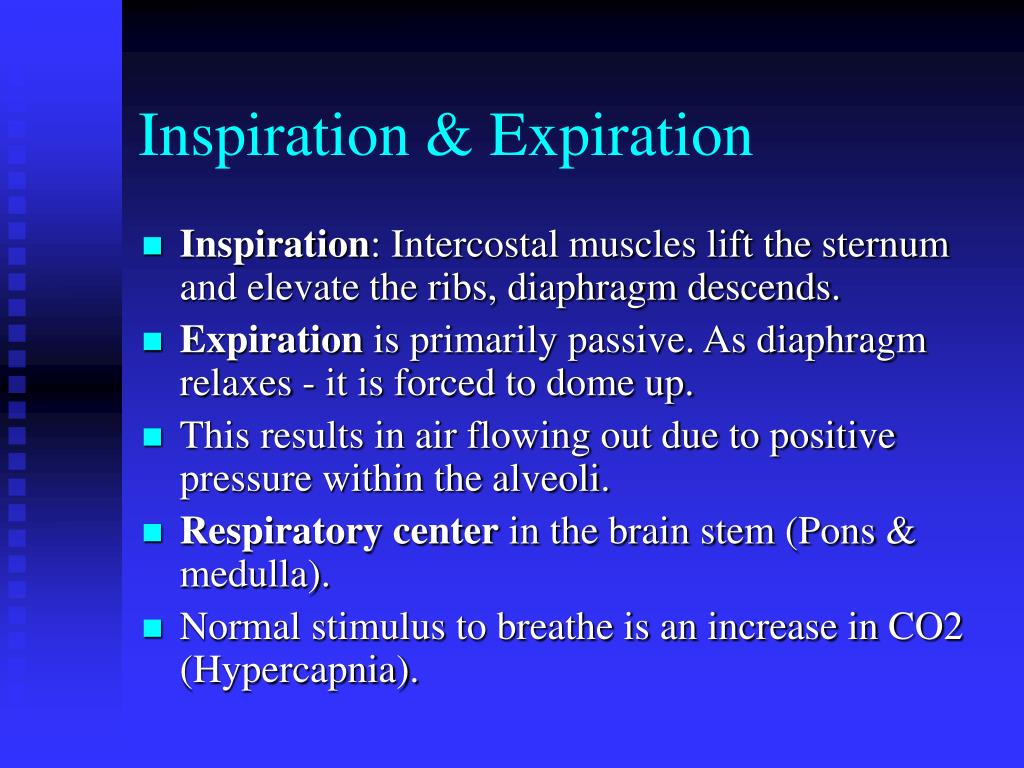

  11. Inspiration & Expiration • Inspiration: Intercostal muscles lift the sternum and elevate the ribs, diaphragm descends. • Expiration is primarily passive. As diaphragm relaxes - it is forced to dome up. • This results in air flowing out due to positive pressure within the alveoli. • Respiratory center in the brain stem (Pons & medulla). • Normal stimulus to breathe is an increase in CO2 (Hypercapnia).

  12. Smoking History Exposure to Smoke Environmental Exposures Occupation Sleeping Pattern Nutritional Status Medical/Surgical History Medications Review Of Systems

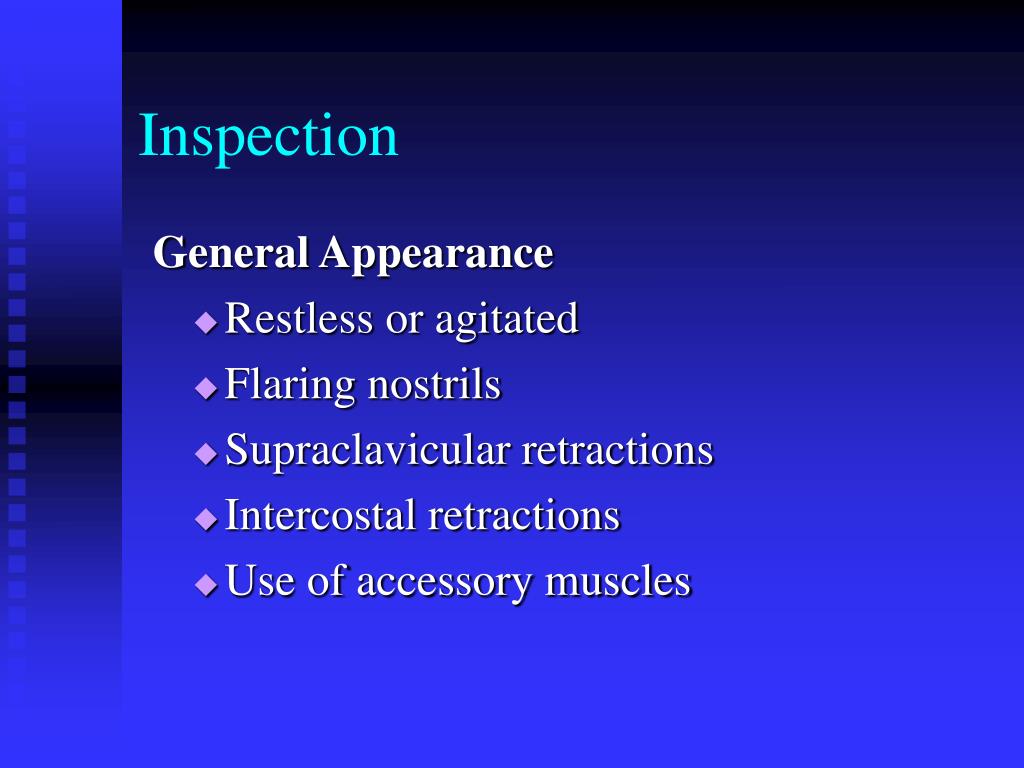

  13. Inspection General Appearance • Restless or agitated • Flaring nostrils • Supraclavicular retractions • Intercostal retractions • Use of accessory muscles

  14. Inspection (cont). • Cyanosis: • Central Cyanosis: Circumoral (around mouth), check lips, tongue, buccal mucosa. • Peripheral Cyanosis: check nail beds and extremities. • Check nails for clubbing. • Cough: productive or non-productive • Inspect appearance of sputum: Mucoid vs Purulent

  15. Inspection (cont). • Musculature: Check accessory muscles: Sternomastoid, Intercostals, Scalene, Ala Nasi • Symmetry: Check symmetrical expansion of chest wall. • Bilateral diminished expansion may be due to acute pleurisy, pleural fibrosis, atelectasis, chest pain (fx. ribs), Costochondritis. • Unilateral diminished expansion may be due to pneumothorax. • Check for asymmmetry of spine:Kyphosis, Lordosis, Scoliosis.

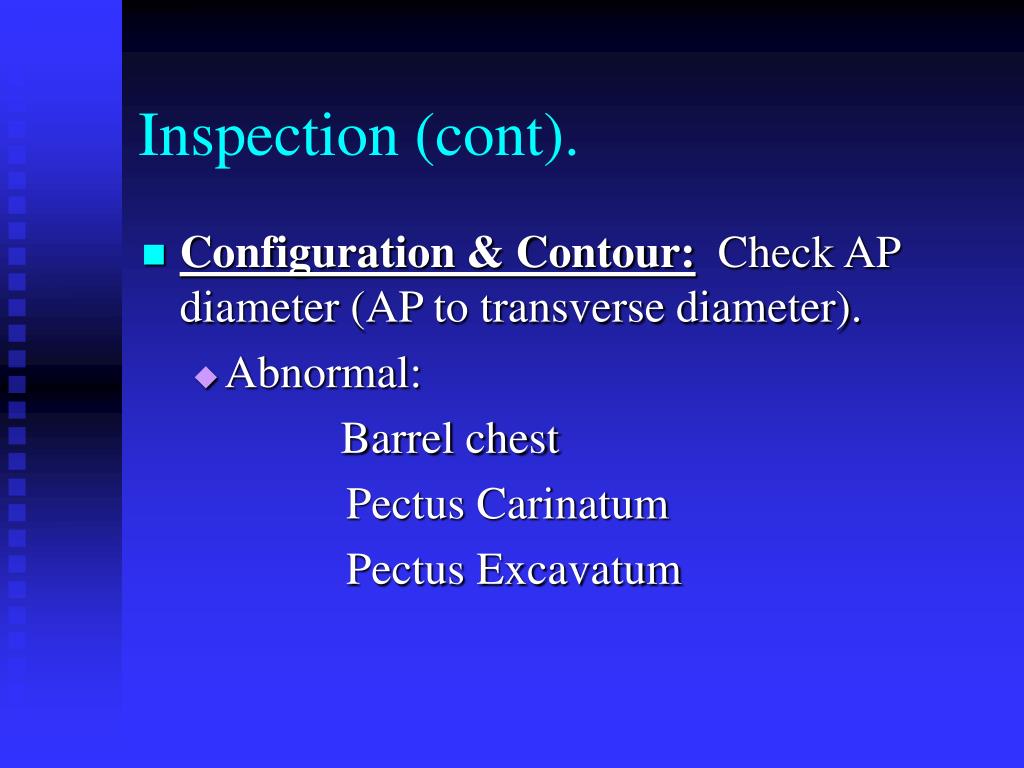

  16. Inspection (cont). • Configuration & Contour: Check AP diameter (AP to transverse diameter). • Abnormal: Barrel chest Pectus Carinatum Pectus Excavatum

  17. Inspection (cont). • Movement: Breathing patterns, smooth & even breathing. Passive breathing: normal rate12-20 Inspiration > Expiration Check Character of Breathing: type, rate, rhythm Apnea Hyperventilation/Tachypnea Kussmaul Hypoventilation/respiratory depression Cheyne Stoking/Dying Sighs

  18. Palpation • Trachea: Check for deviation • Thorax: Check for crepitus, tenderness. • Check for chest wall excursion • Check for tactile or vocal fremitus:Vibrations produced in the larynx that are transmitted to the chest wall. • Technique: palpate with ball of hand • Ask Pt. to say “99”

  19. Tactile fremitus (cont). • Normal finding is a mild purrlike sensation. • Increased tactile fremitius occurs in conditions where solid conducts vibrations better than air. Ex. Pneumonia, tumor, pulmonary fibrosis • Decreased tactile fremitus occurs when there is increased distance that sound has to travel before it reaches chest wall. Ex. Pleural Effusion, pneumothorax, COPD.

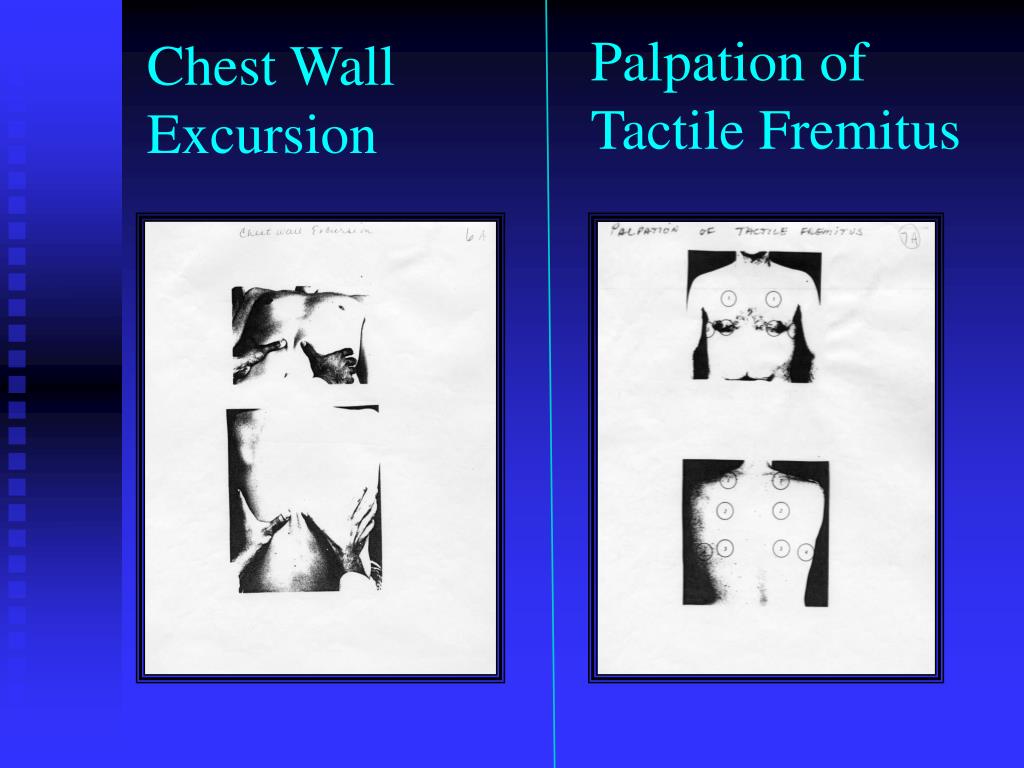

  20. Palpation of Tactile Fremitus Chest Wall Excursion

  21. Palpation (cont). • Check supra & infraclavicular nodes,check axillary nodes.

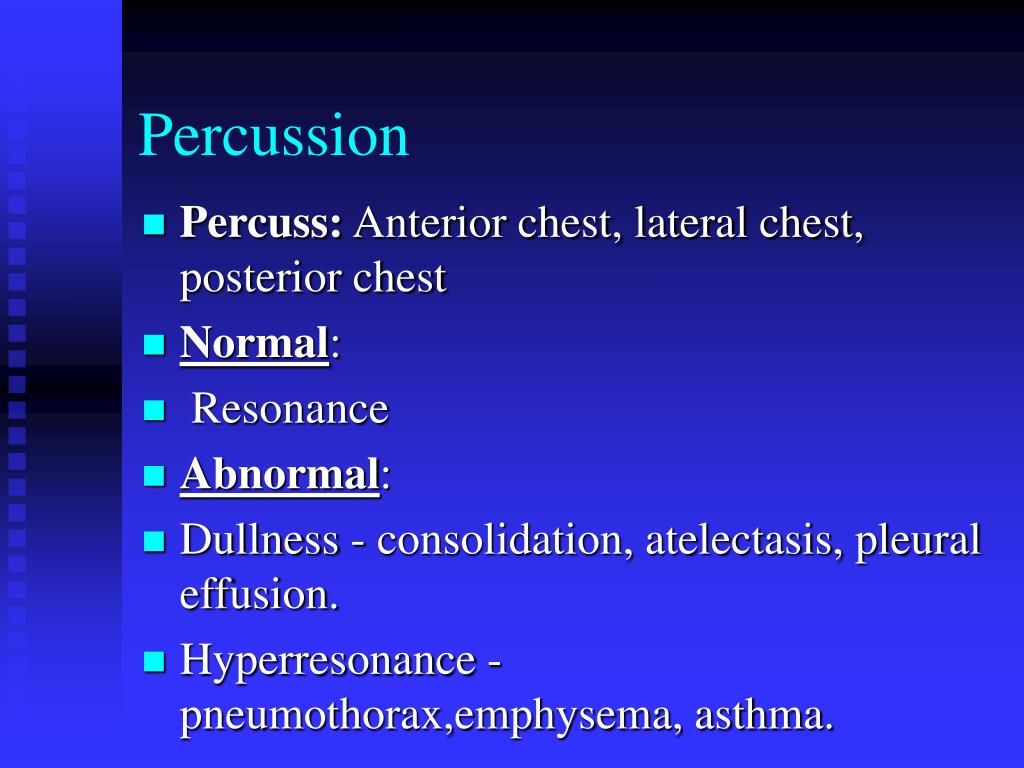

  22. Percussion • Percuss: Anterior chest, lateral chest, posterior chest • Normal: • Resonance • Abnormal: • Dullness - consolidation, atelectasis, pleural effusion. • Hyperresonance -pneumothorax,emphysema, asthma.

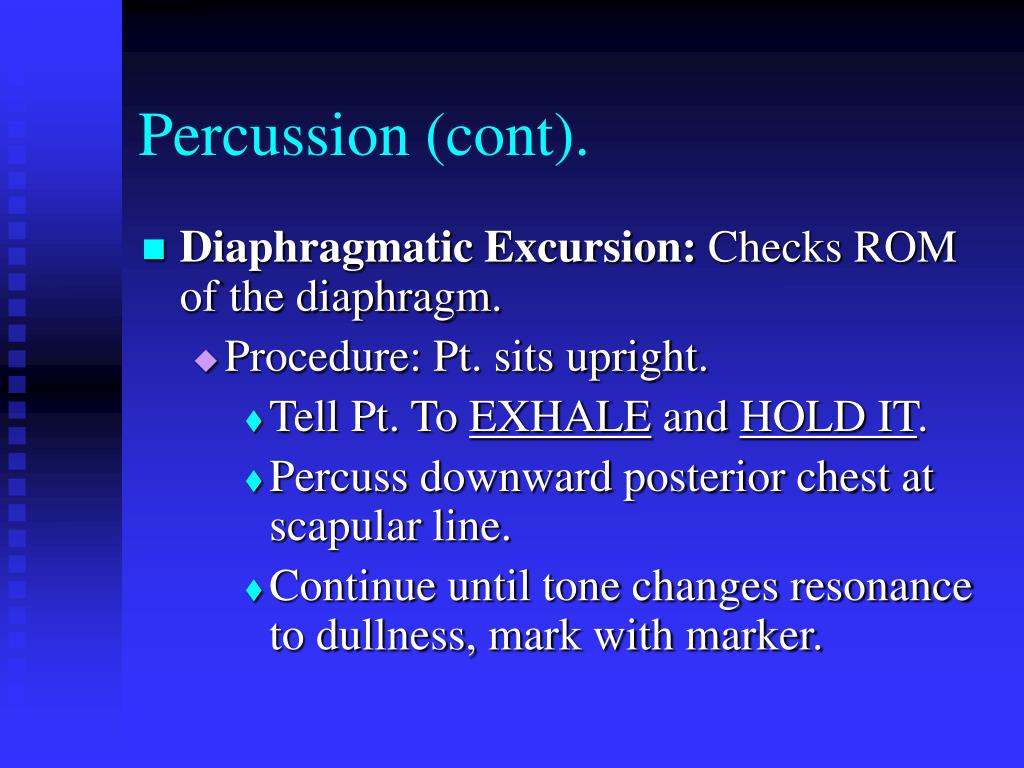

  23. Percussion (cont). • Diaphragmatic Excursion: Checks ROM of the diaphragm. • Procedure: Pt. sits upright. • Tell Pt. To EXHALE and HOLD IT. • Percuss downward posterior chest at scapular line. • Continue until tone changes resonance to dullness, mark with marker.

  24. Diaphragmatic Excursion (cont). • Tell Pt. To take a DEEP INHALATION ANDHOLD IT. • Continue percussing from first mark until changes from resonance to dullness. • Mark with a marker, measure findings. DON’T FORGET TO TELL PT. TO BREATH!!! • Normal finding 4-6 cm. Repeat on other side.

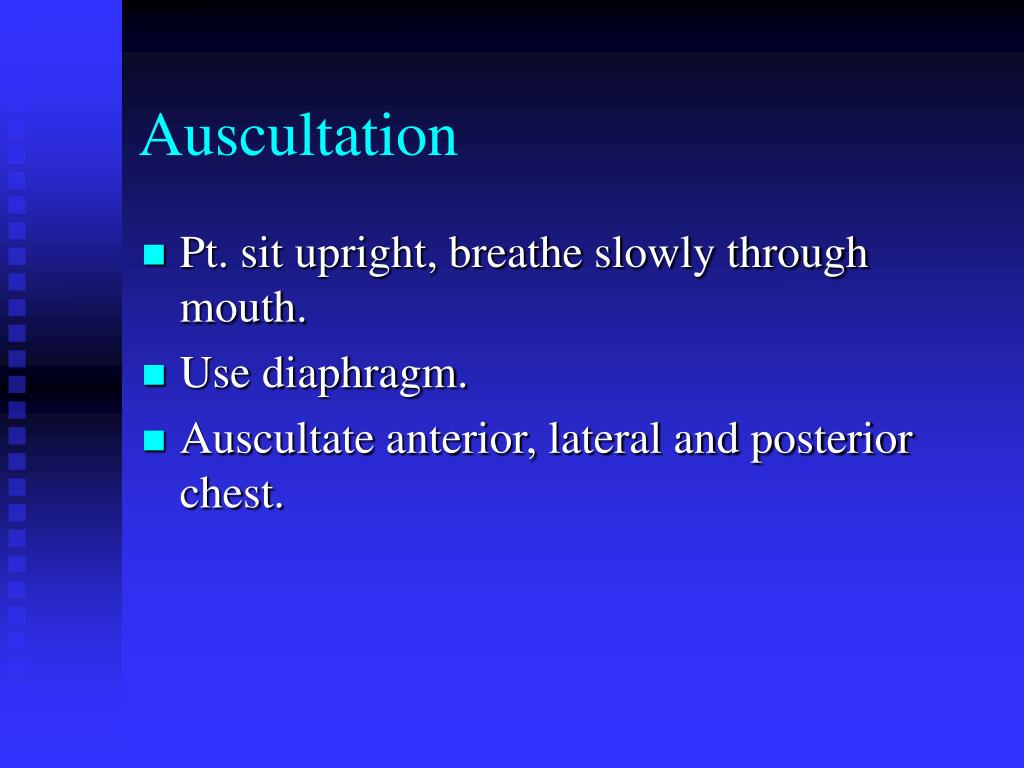

  25. Auscultation • Pt. sit upright, breathe slowly through mouth. • Use diaphragm. • Auscultate anterior, lateral and posterior chest.

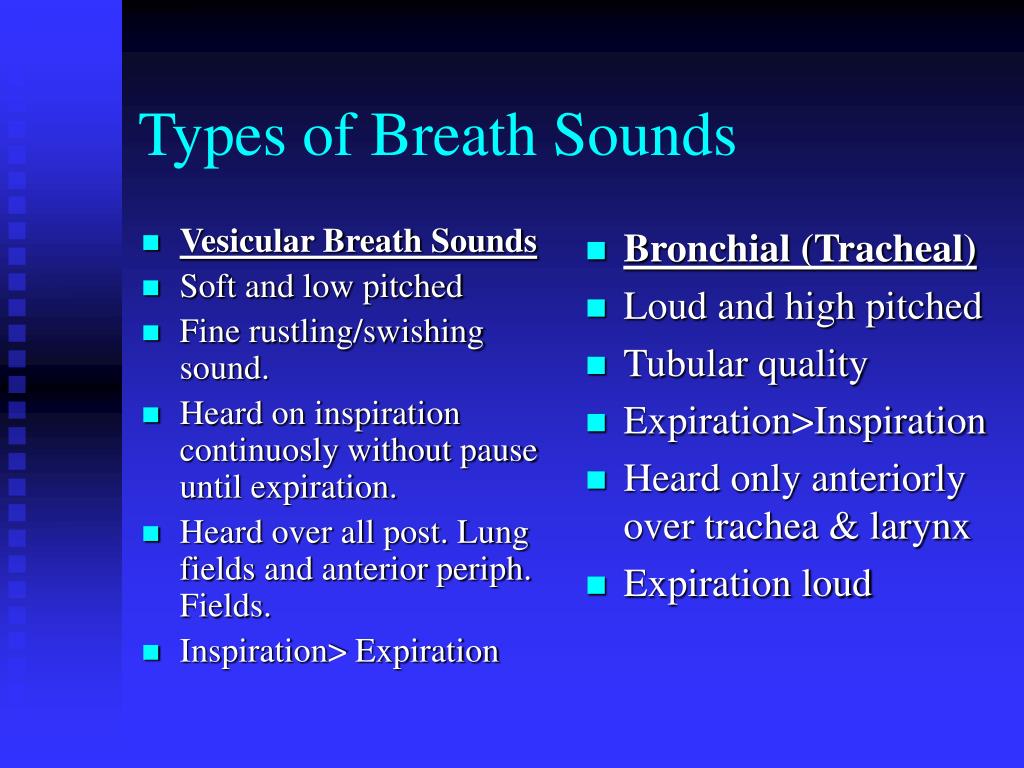

  26. Vesicular Breath Sounds Soft and low pitched Fine rustling/swishing sound. Heard on inspiration continuosly without pause until expiration. Heard over all post. Lung fields and anterior periph. Fields. Inspiration> Expiration Bronchial (Tracheal) Loud and high pitched Tubular quality Expiration>Inspiration Heard only anteriorly over trachea & larynx Expiration loud Types of Breath Sounds

  27. Types of Breath Sounds • Bronchovesicular Breath Sounds • Combination of vesicular and bronchial sounds • Represent a mixture of sounds produced by vibrations of bronchial and alveoli vibrations. • No pause between inspiration and expiration • Inspiration = Expiration • Heard best anteriorly at 1&2 ICS, posteriorly between scapula, anywhere else = consolidation

  28. Auscultation • Decreased Breath Sounds: shallow breathing, pleural effusion, COPD, pneumothorax, asthma, atelectasis. • Increased Breath Sounds:Consolidation-tumor, pneumonia.

  29. Adventitious Sounds • Rales (Crackles): Discontinuous sounds highpitched. • Sounds like hair being rubbed together • Sound produced by air passing through fluid in air spaces (CHF, pneumonia). • Usually on inspiration / not expiration • Cough doesn’t clear.

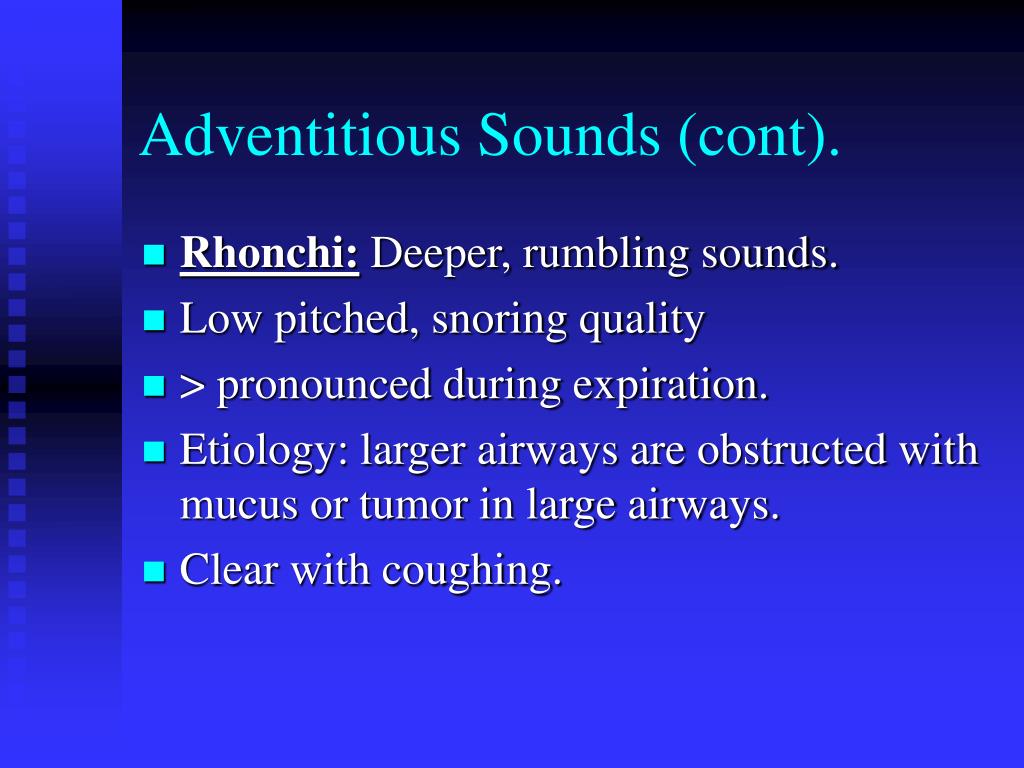

  30. Adventitious Sounds (cont). • Rhonchi: Deeper, rumbling sounds. • Low pitched, snoring quality • > pronounced during expiration. • Etiology: larger airways are obstructed with mucus or tumor in large airways. • Clear with coughing.

  31. Adventitious Sounds (cont). • Wheezing: High pitched, musical, whistling sounds. • Produced by narrowed airway. • R/t bronchospasm, asthma, tumor, foreign body • Can occur during inspiration or expiration. • Stridor: increased musical wheeze heard over trachea on inspiration; cause obstruction = MEDICAL EMERGENCY

  32. Adventitious Sounds (cont). • Friction (Pleural) Rub: Course, dry, grating sound • Etiology: Inflamed pleural surfaces rub. • Sounds similar to cupping hand over ear, scratching back of hand with other hand. • Usually heard anteriolateral chest wall • Continuous during inspiration and expiration. • Differentiate from cardiac origin: have Pt. hold breath-if continues Cardiac origin, if stops-Lung origin.

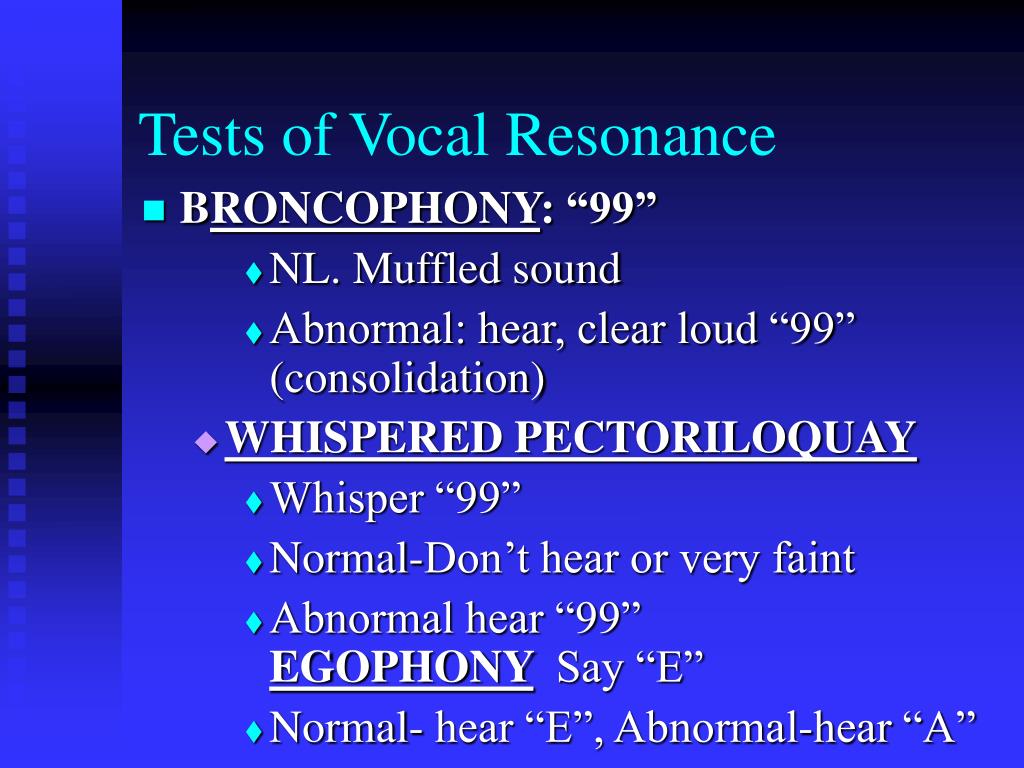

  33. Tests of Vocal Resonance • BRONCOPHONY: “99” • NL. Muffled sound • Abnormal: hear, clear loud “99” (consolidation) • WHISPERED PECTORILOQUAY • Whisper “99” • Normal-Don’t hear or very faint • Abnormal hear “99” EGOPHONY Say “E” • Normal- hear “E”, Abnormal-hear “A”
