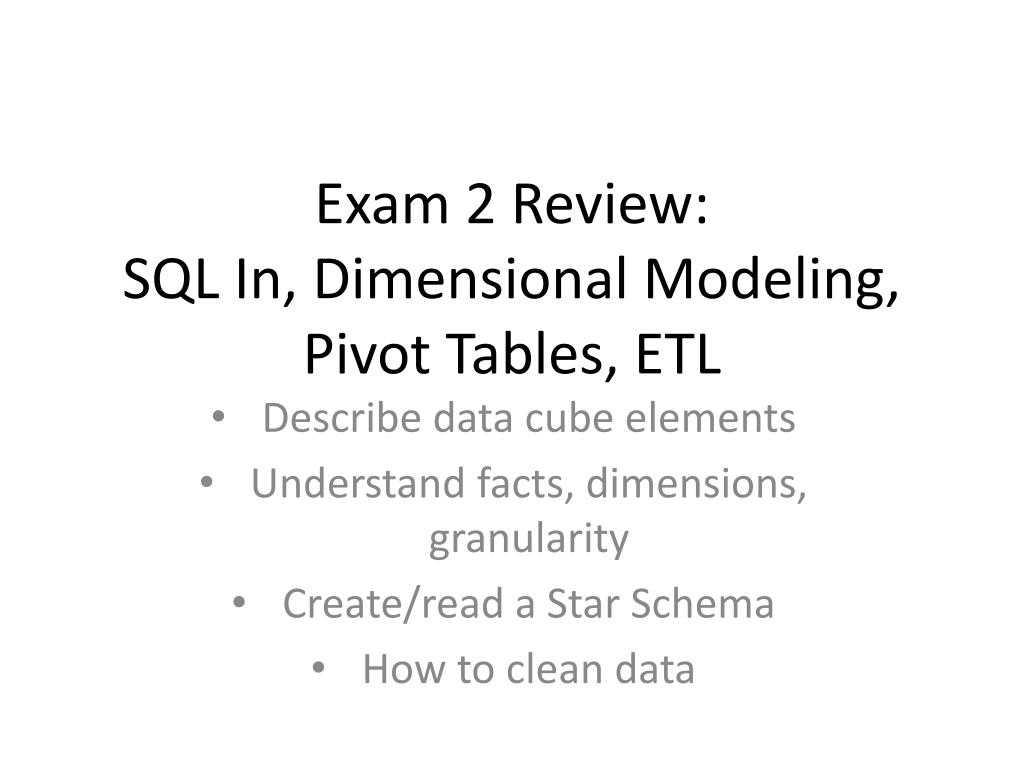

  1. Exam 2 Review:SQL In, Dimensional Modeling, Pivot Tables, ETL Describe data cube elements Understand facts, dimensions, granularity Create/read a Star Schema How to clean data

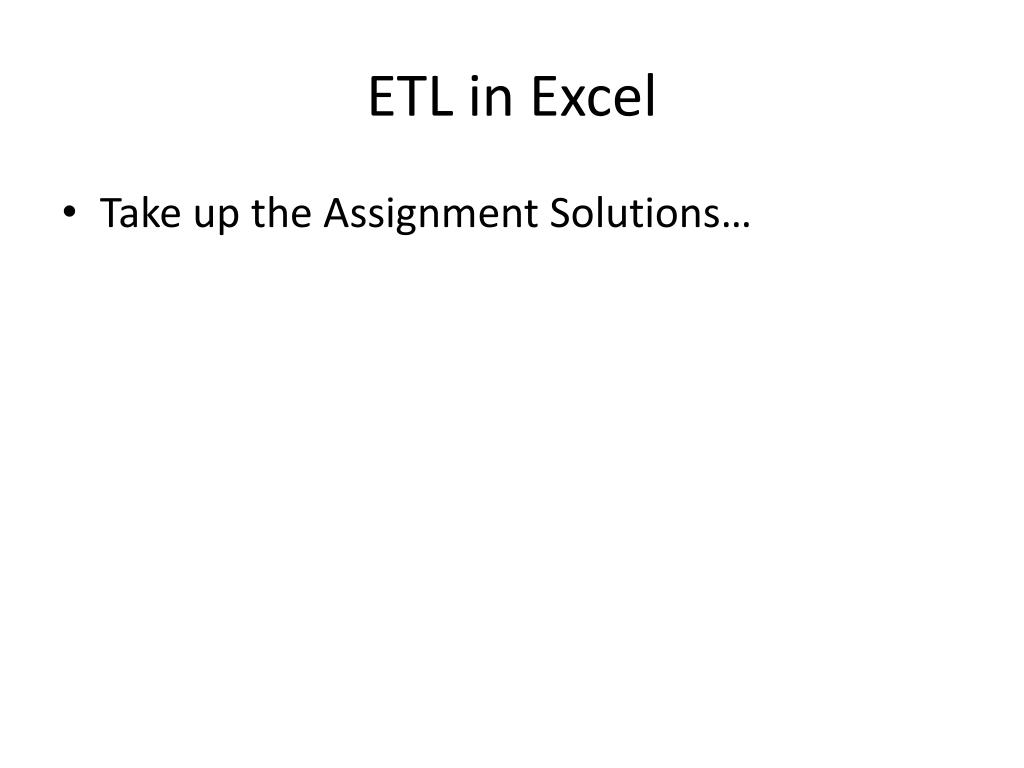

  2. ETL in Excel • Take up the Assignment Solutions…

  3. Create a Table CREATE TABLE `m1orderdb`.`Customer` ( `CustomerID` INT NOT NULL ,`FirstName` VARCHAR(45) NULL , `LastName` VARCHAR(45) NULL , `City` VARCHAR(45) NULL , `State` VARCHAR(2) NULL , `Zip` VARCHAR(10) NULL , PRIMARY KEY (`CustomerID`) );

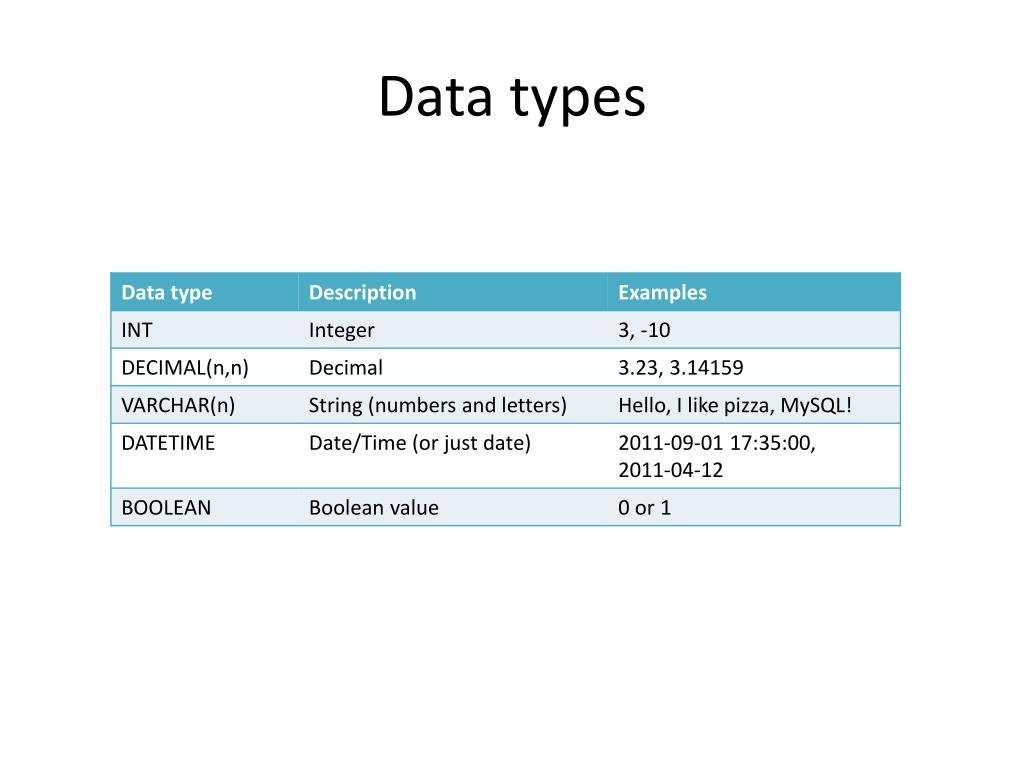

  4. Data types

  5. Changing a Table’s Structure ALTER TABLE customerADDSkypeID VARCHAR(15) ALTER TABLE customer DROP COLUMN SkypeID ALTER TABLE customer CHANGE COLUMN SkypeIDSkypeID_NEW VARCHAR(15)

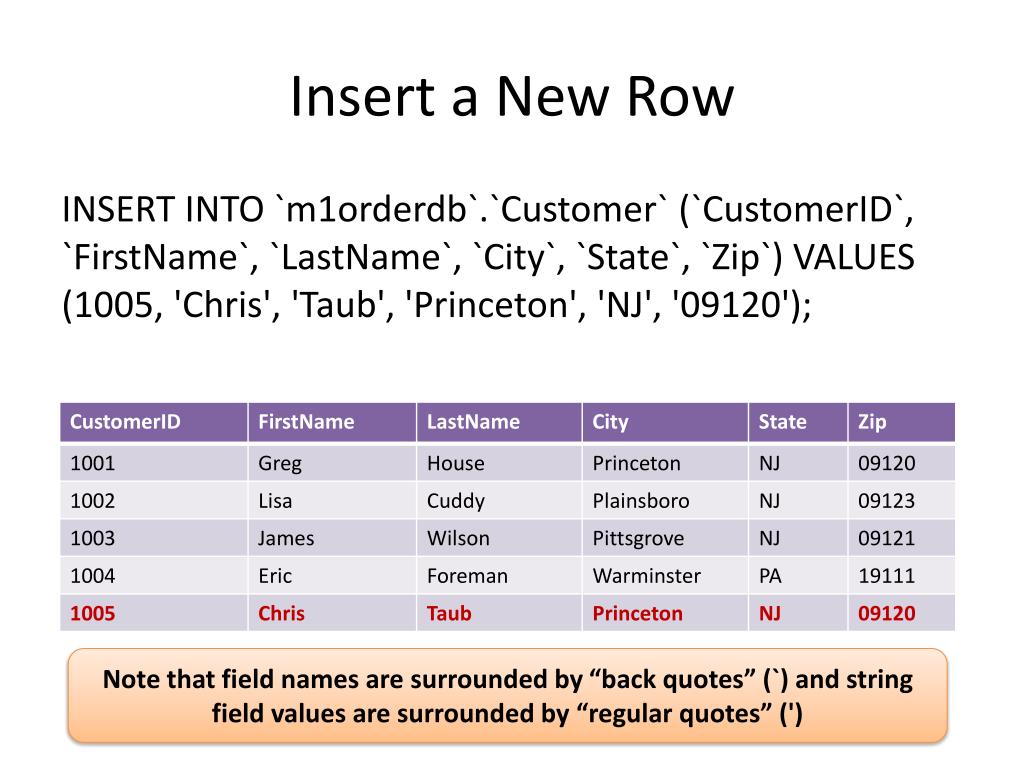

  6. Insert a New Row INSERT INTO `m1orderdb`.`Customer` (`CustomerID`, `FirstName`, `LastName`, `City`, `State`, `Zip`) VALUES (1005, 'Chris', 'Taub', 'Princeton', 'NJ', '09120'); Note that field names are surrounded by “back quotes” (`) and string field values are surrounded by “regular quotes” (')

  7. Change a Row (UPDATE) UPDATE `m1orderdb`.`Product` SET ProductName='Honey Nut Cheerios', Price=4.50 WHERE ProductID=2251 Product

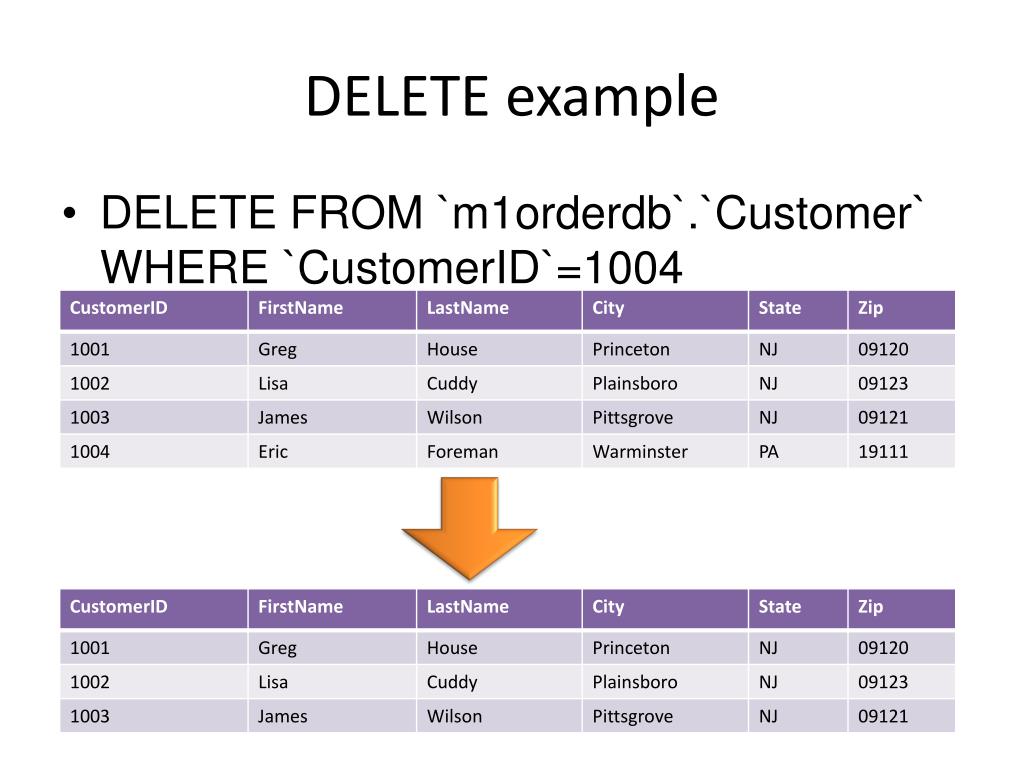

  8. DELETE example • DELETE FROM `m1orderdb`.`Customer` WHERE `CustomerID`=1004

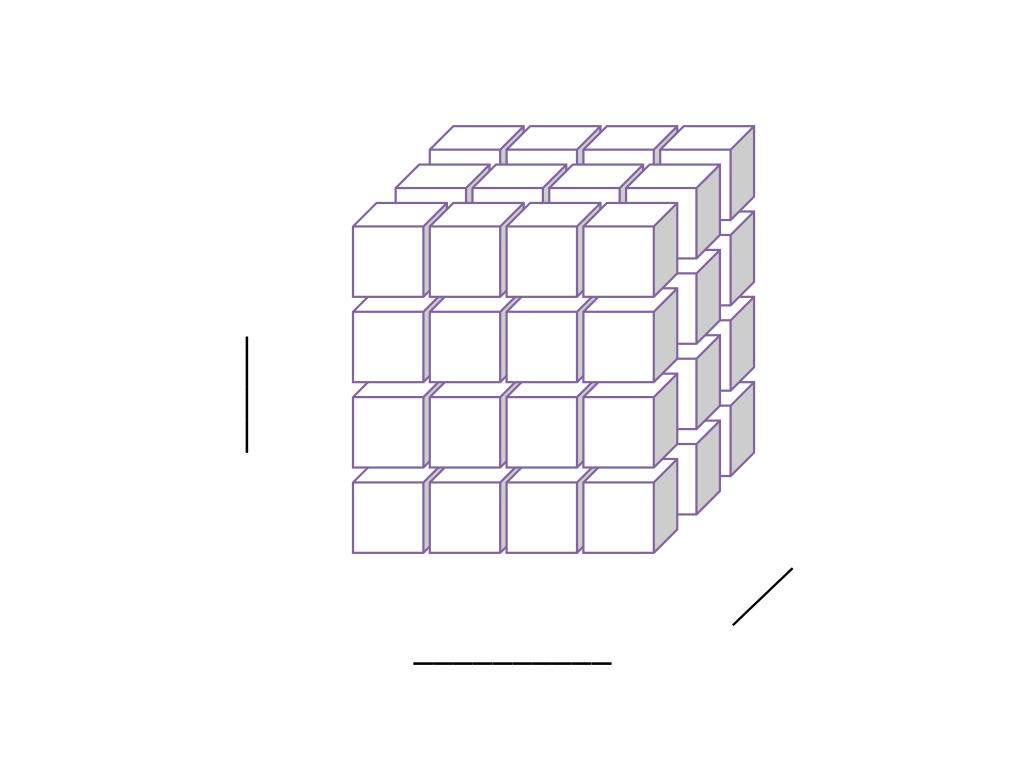

  9. The Data Cube • Dimensions (Top Selling Products) • Fill in 3 reasonable values • What’s the fact? • Slice the Data? • Granularity? _______ _____ __________

  10. _______ _____ __________

  11. The Star Schema • Draw our Star Schema, from the Cube.

  12. Pivot Tables • You need to know these too!
