microsoft deployment using mdt and sccm

Microsoft Deployment Using MDT and SCCM

Chad DeGuira

Oak Ridge National Laboratory

Information Technology Services Division

Systems Management

microsoft deployment using mdt and sccm1
Microsoft Deployment Using MDT and SCCM

Introduction

  • Presentation Focus
    • Something for everyone
    • Extension from last years presentation on MDT
    • Deployment Benefits
    • ORNL History and Environment
    • ORNL Deployment Philosophies
    • Microsoft Desktop Deployment (MDT) and System Center Configuration Manager (SCCM) at ORNL
microsoft deployment using mdt and sccm3
Microsoft Deployment Using MDT and SCCM

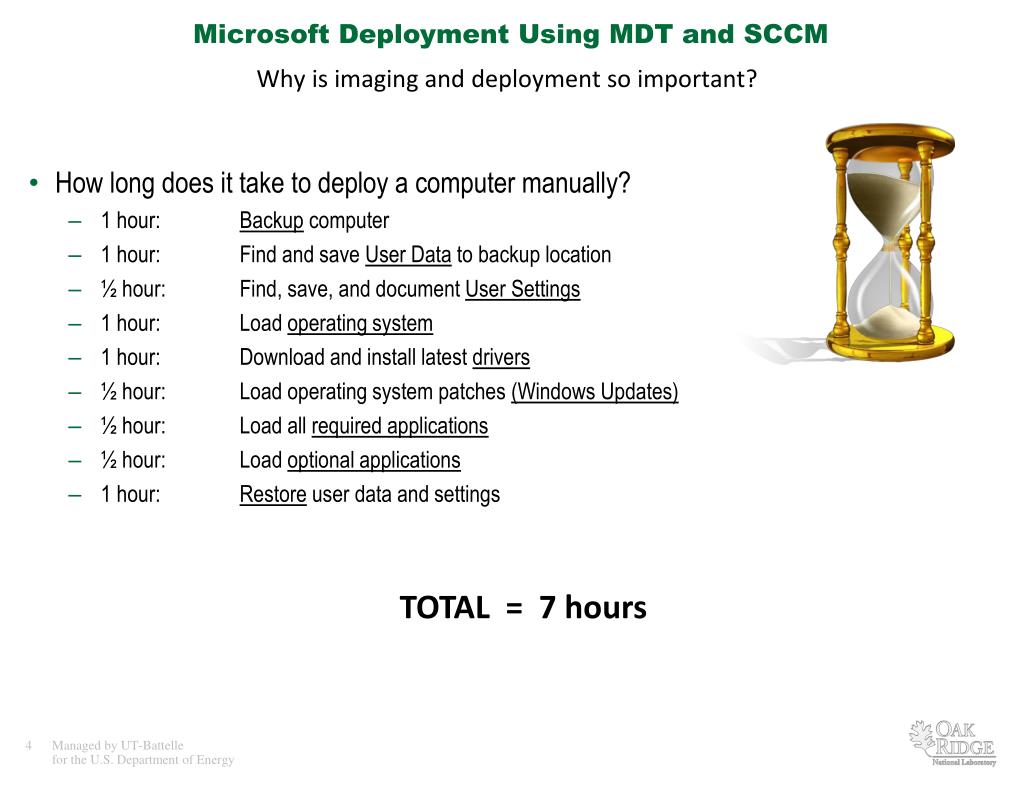

Why is imaging and deployment so important?

  • How long does it take to deploy a computer manually?
    • 1 hour: Backup computer
    • 1 hour: Find and save User Data to backup location
    • ½ hour: Find, save, and document User Settings
    • 1 hour: Load operating system
    • 1 hour: Download and install latest drivers
    • ½ hour: Load operating system patches (Windows Updates)
    • ½ hour: Load all required applications
    • ½ hour: Load optional applications
    • 1 hour: Restore user data and settings

TOTAL = 7 hours

microsoft deployment using mdt and sccm4
Microsoft Deployment Using MDT and SCCM

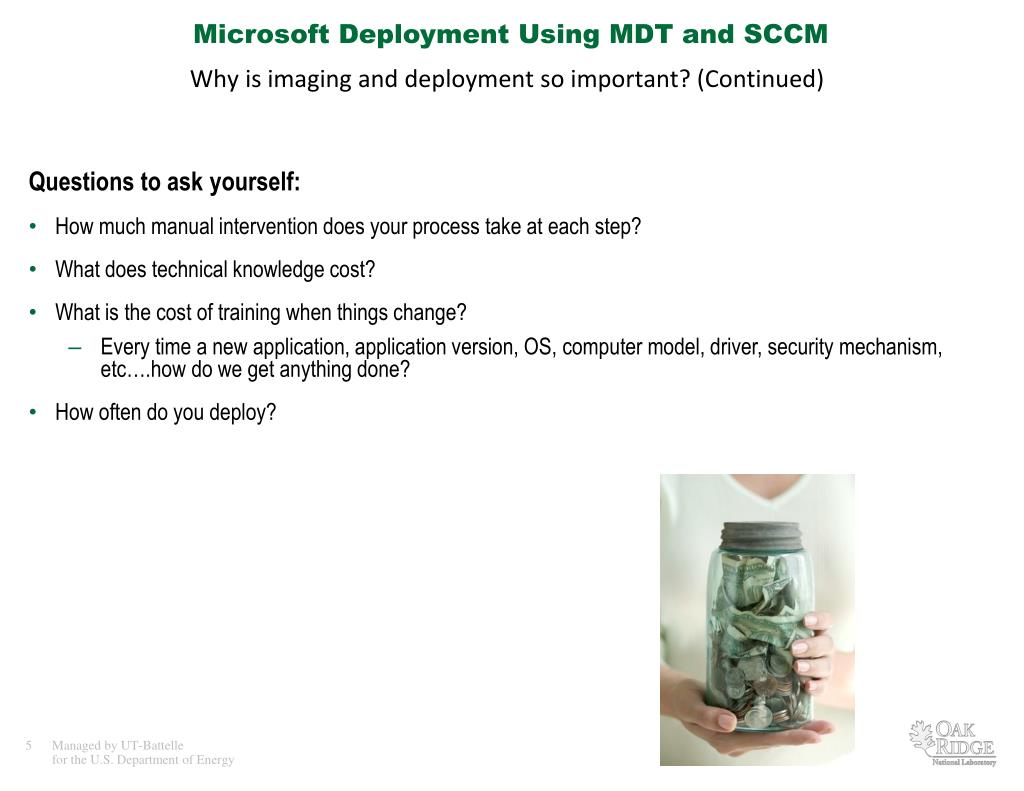

Why is imaging and deployment so important? (Continued)

Questions to ask yourself:

  • How much manual intervention does your process take at each step?
  • What does technical knowledge cost?
  • What is the cost of training when things change?
    • Every time a new application, application version, OS, computer model, driver, security mechanism, etc….how do we get anything done?
  • How often do you deploy?
microsoft deployment using mdt and sccm5
Microsoft Deployment Using MDT and SCCM

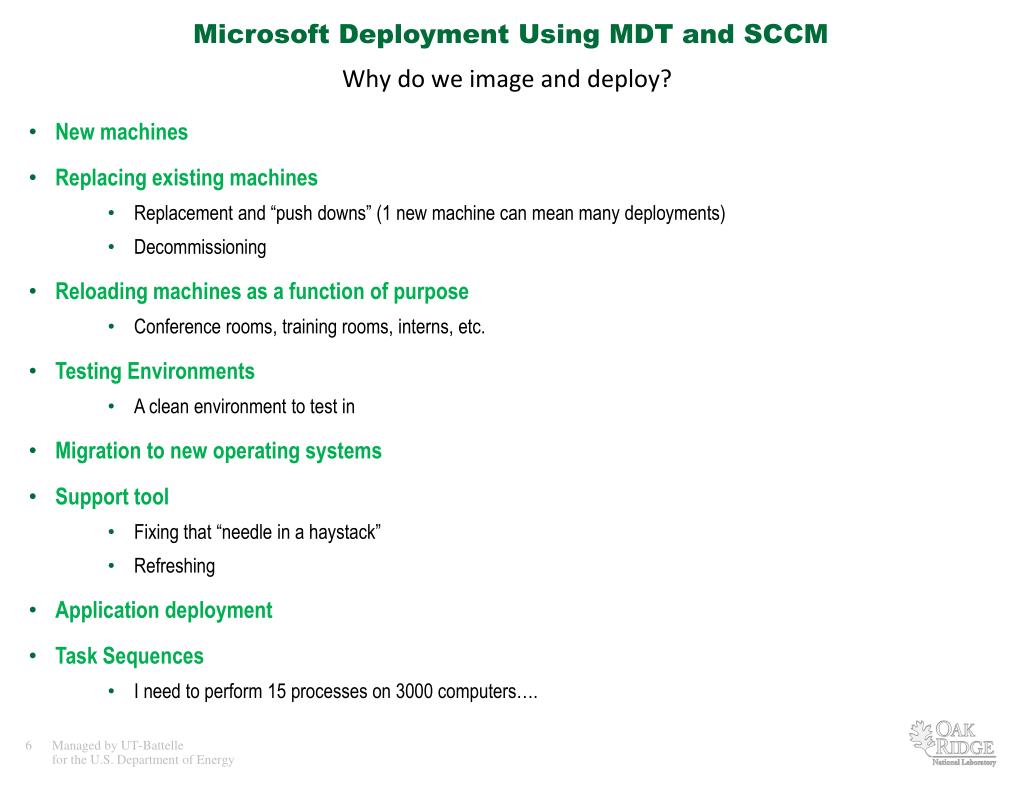

Why do we image and deploy?

  • New machines
  • Replacing existing machines
      • Replacement and “push downs” (1 new machine can mean many deployments)
      • Decommissioning
  • Reloading machines as a function of purpose
      • Conference rooms, training rooms, interns, etc.
  • Testing Environments
      • A clean environment to test in
  • Migration to new operating systems
  • Support tool
      • Fixing that “needle in a haystack”
      • Refreshing
  • Application deployment
  • Task Sequences
      • I need to perform 15 processes on 3000 computers….
microsoft deployment using mdt and sccm6
Microsoft Deployment Using MDT and SCCM

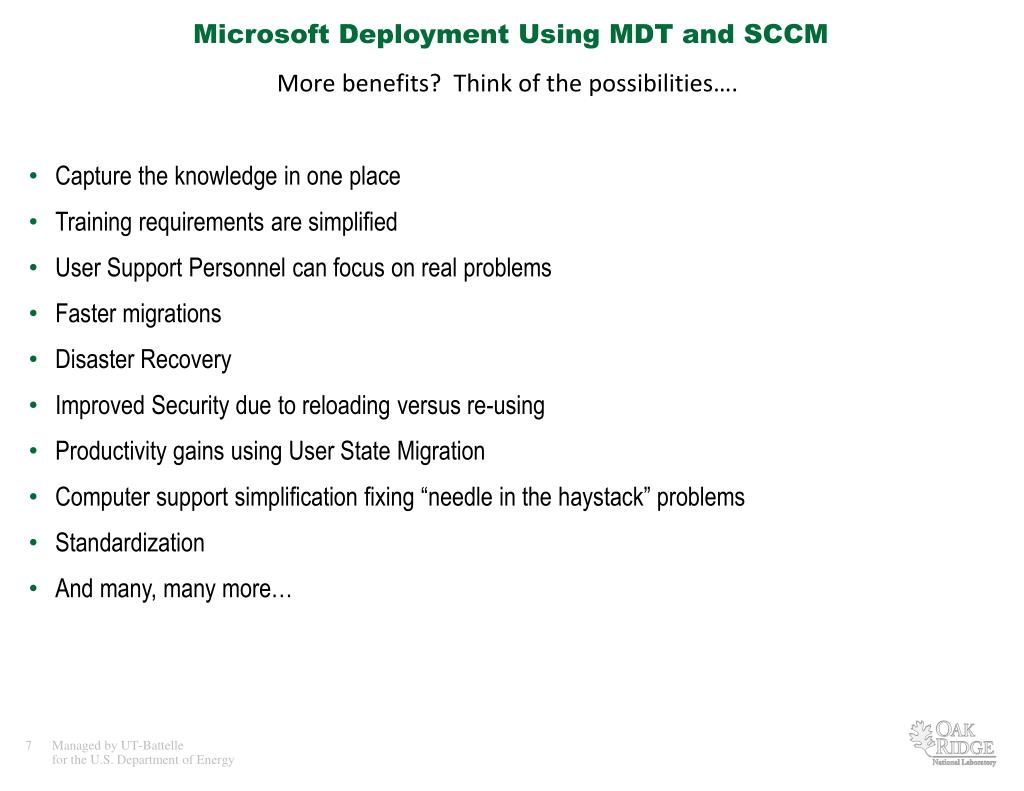

More benefits? Think of the possibilities….

  • Capture the knowledge in one place
  • Training requirements are simplified
  • User Support Personnel can focus on real problems
  • Faster migrations
  • Disaster Recovery
  • Improved Security due to reloading versus re-using
  • Productivity gains using User State Migration
  • Computer support simplification fixing “needle in the haystack” problems
  • Standardization
  • And many, many more…
microsoft deployment using mdt and sccm7
Microsoft Deployment Using MDT and SCCM

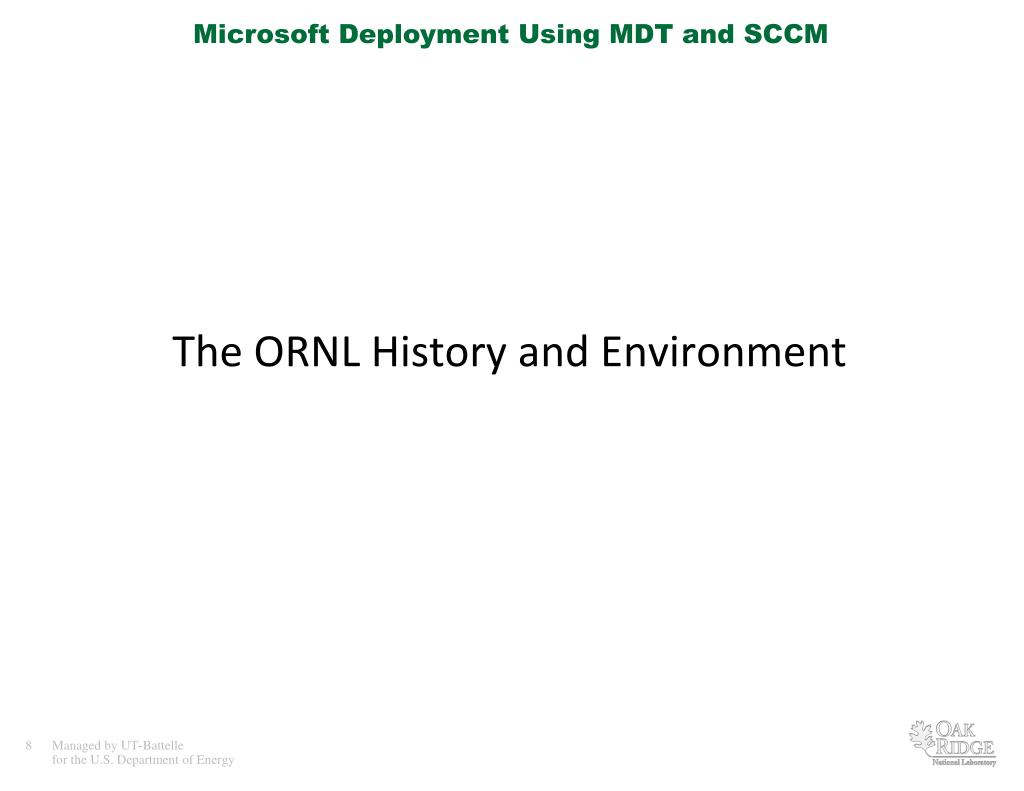

The ORNL History and Environment

microsoft deployment using mdt and sccm8
Microsoft Deployment Using MDT and SCCM

ORNL Computing Environment

  • Approximately 10,000 machines
  • Approximately 8,000 are Windows desktop machines
  • All current Windows Operating Systems are supported
  • 2500 Vista operating systems running today
  • Managed Hardware Program
  • ORNL loads approximately 140 machines per week using Operating System Deployment tools
microsoft deployment using mdt and sccm9
Microsoft Deployment Using MDT and SCCM

Complex Deployment Environment

microsoft deployment using mdt and sccm10
Microsoft Deployment Using MDT and SCCM

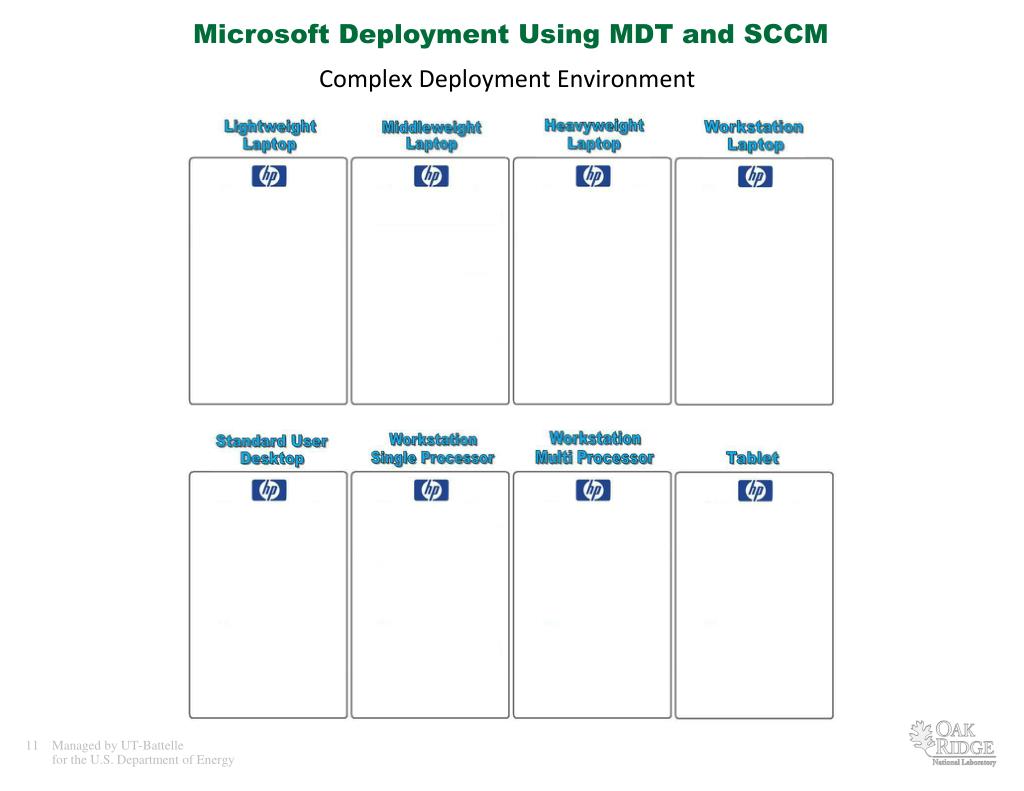

Complex Deployment Environment

microsoft deployment using mdt and sccm11
Microsoft Deployment Using MDT and SCCM

Complex Deployment Environment

microsoft deployment using mdt and sccm12
Microsoft Deployment Using MDT and SCCM

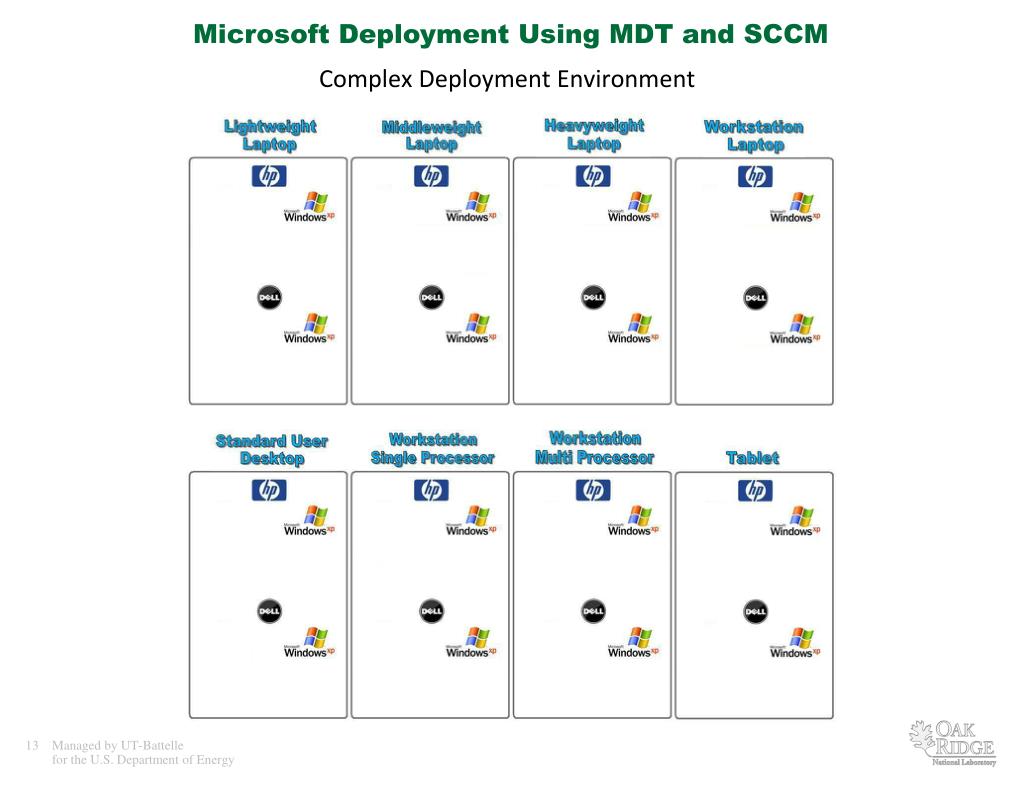

Complex Deployment Environment

microsoft deployment using mdt and sccm13
Microsoft Deployment Using MDT and SCCM

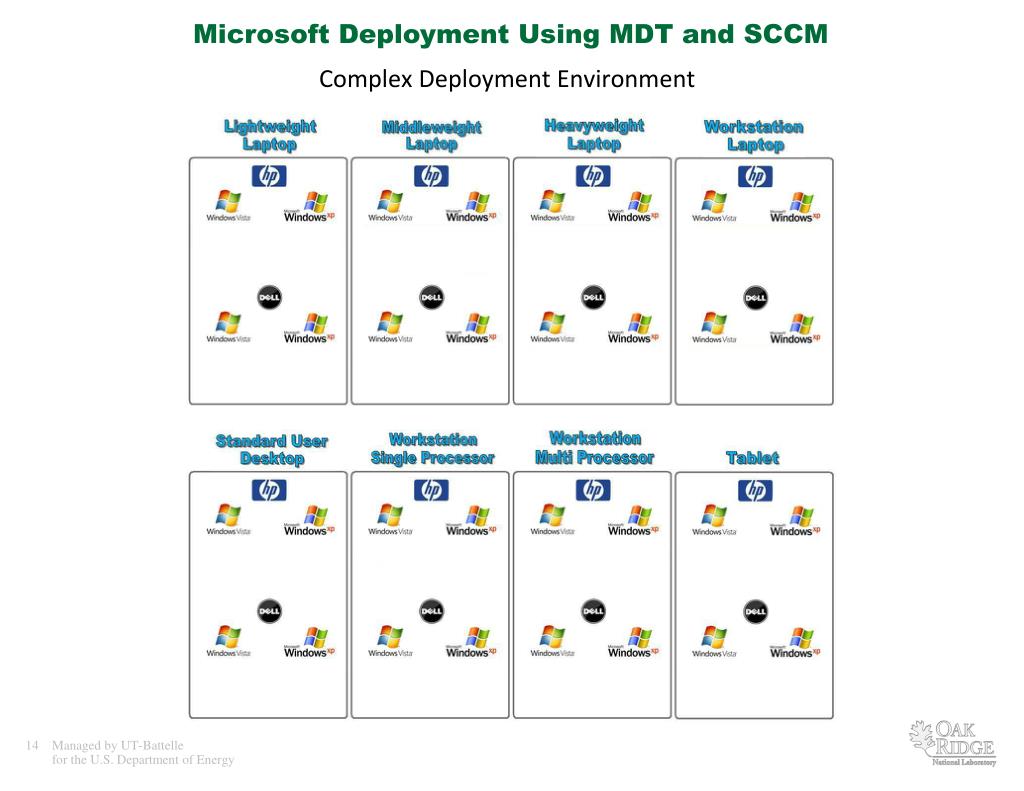

Complex Deployment Environment

microsoft deployment using mdt and sccm14
Microsoft Deployment Using MDT and SCCM

Complex Deployment Environment

microsoft deployment using mdt and sccm15
Microsoft Deployment Using MDT and SCCM

Complex Deployment Environment

microsoft deployment using mdt and sccm16
Microsoft Deployment Using MDT and SCCM

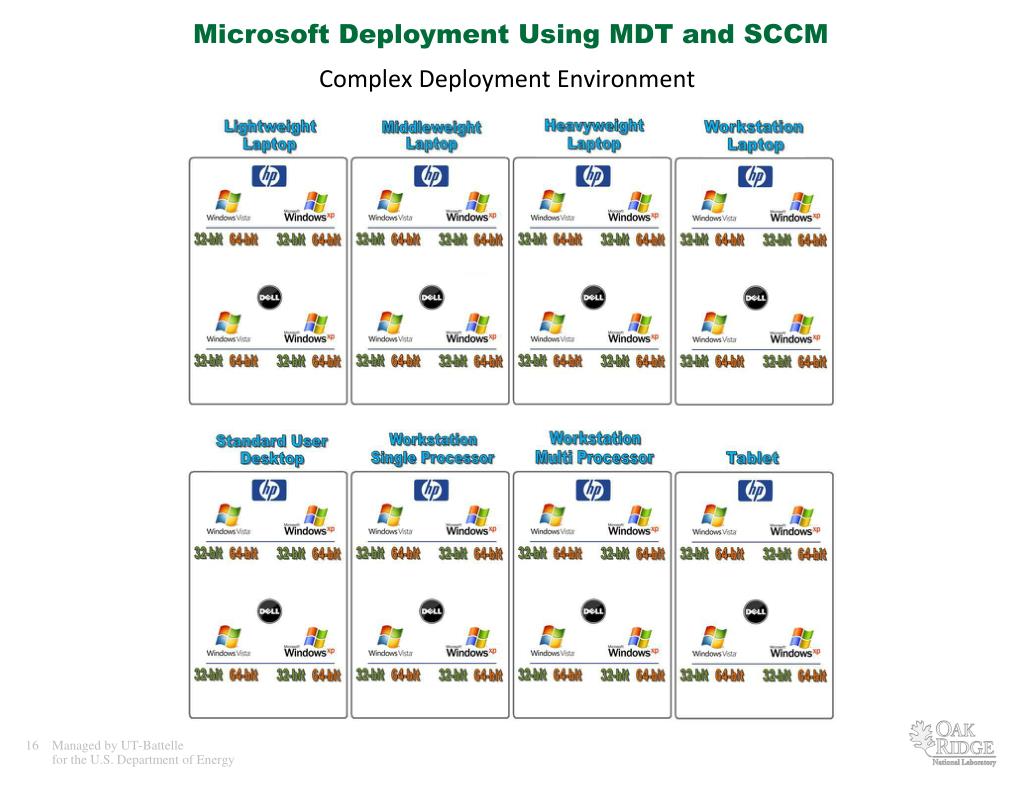

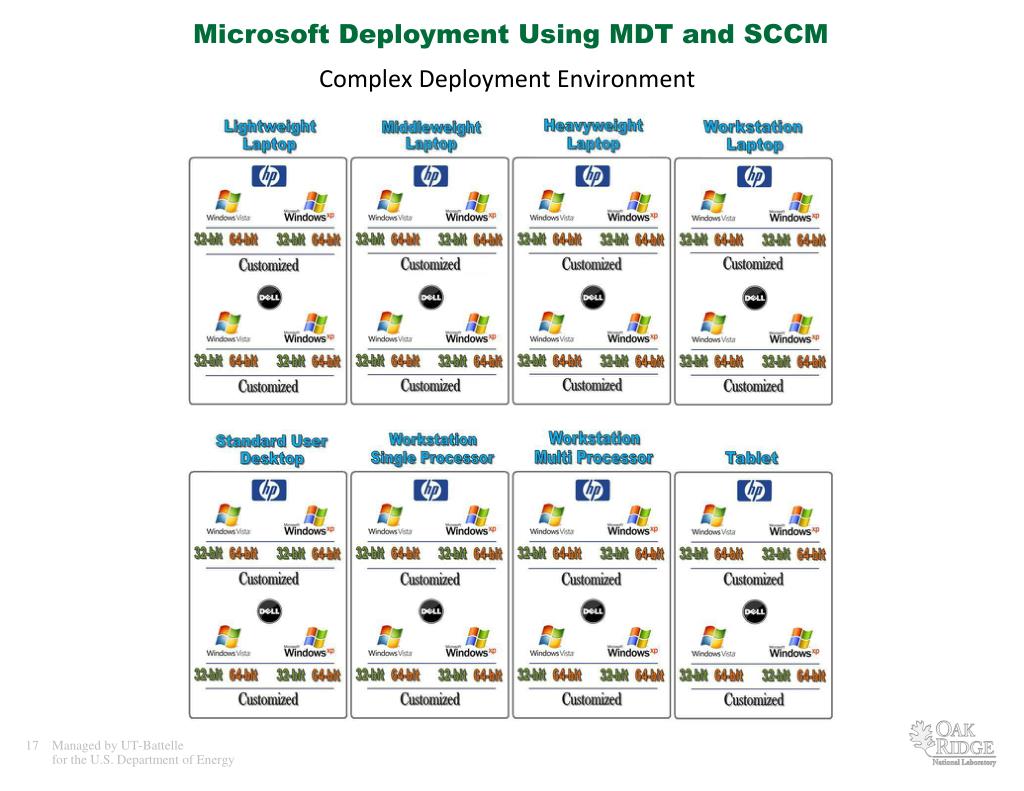

Complex Deployment Environment

microsoft deployment using mdt and sccm17
Microsoft Deployment Using MDT and SCCM

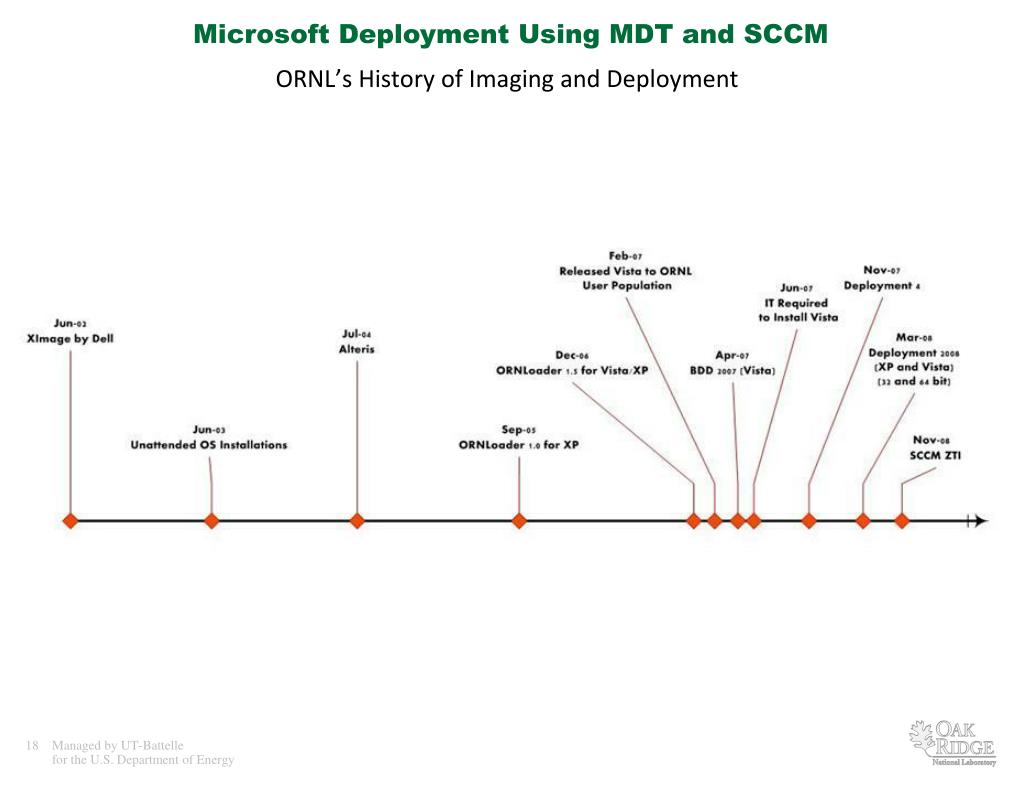

ORNL’s History of Imaging and Deployment

microsoft deployment using mdt and sccm18
Microsoft Deployment Using MDT and SCCM

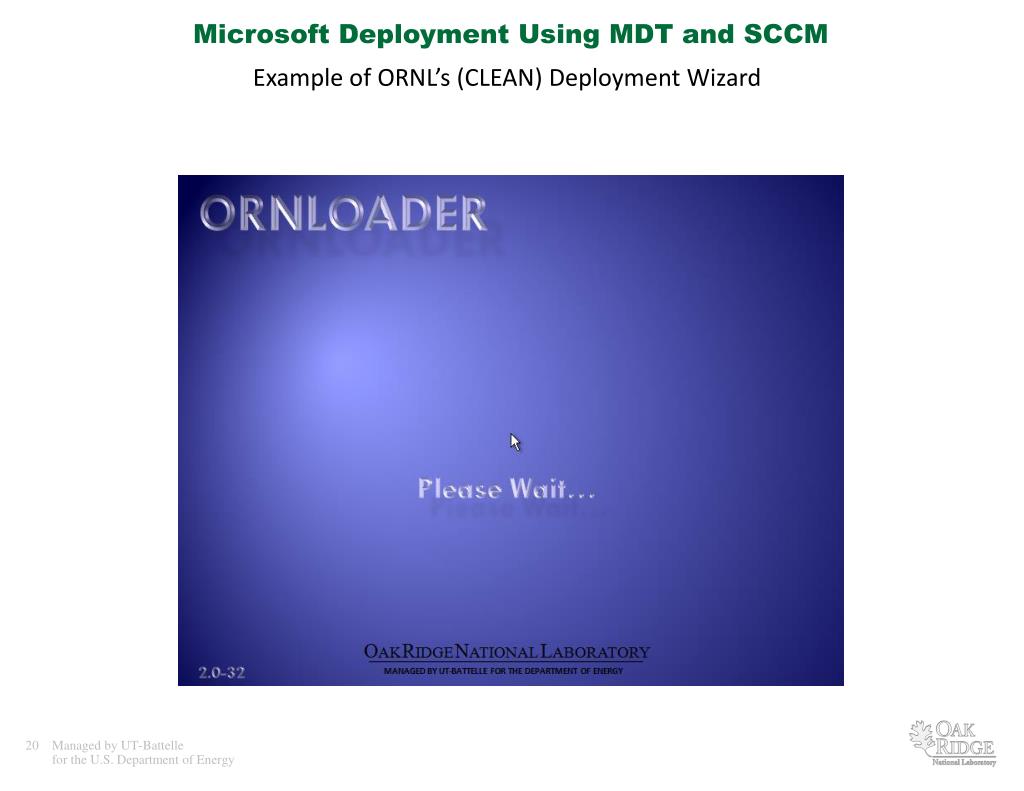

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm19
Microsoft Deployment Using MDT and SCCM

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm20
Microsoft Deployment Using MDT and SCCM

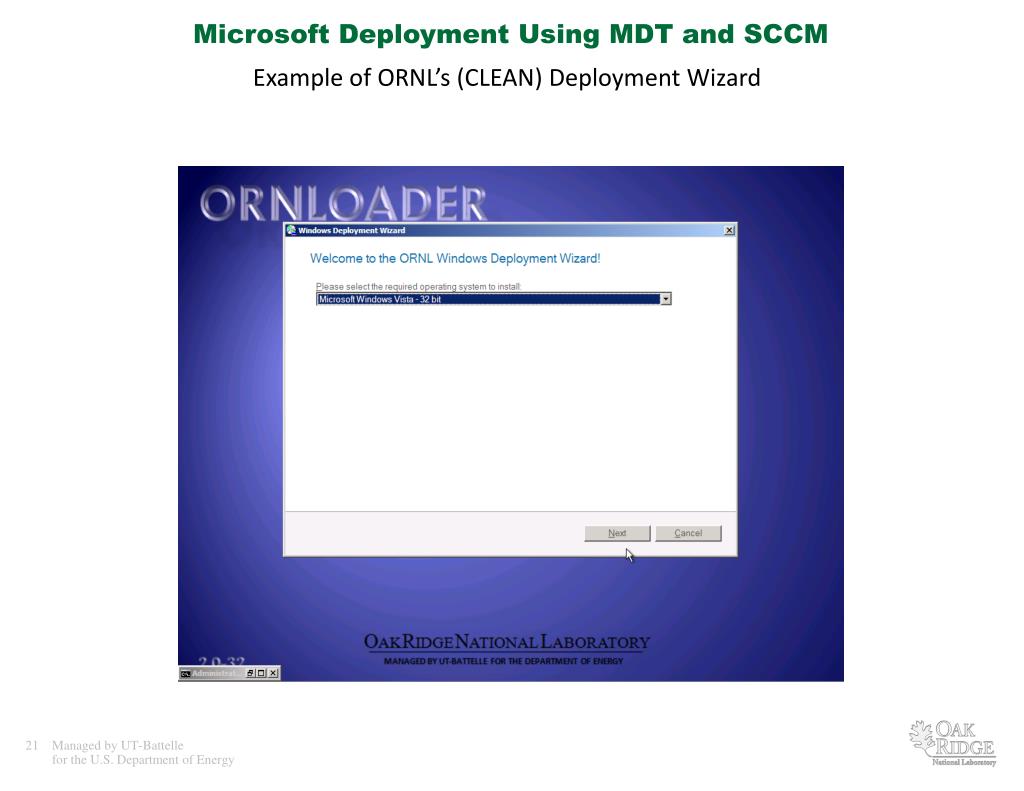

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm21
Microsoft Deployment Using MDT and SCCM

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm22
Microsoft Deployment Using MDT and SCCM

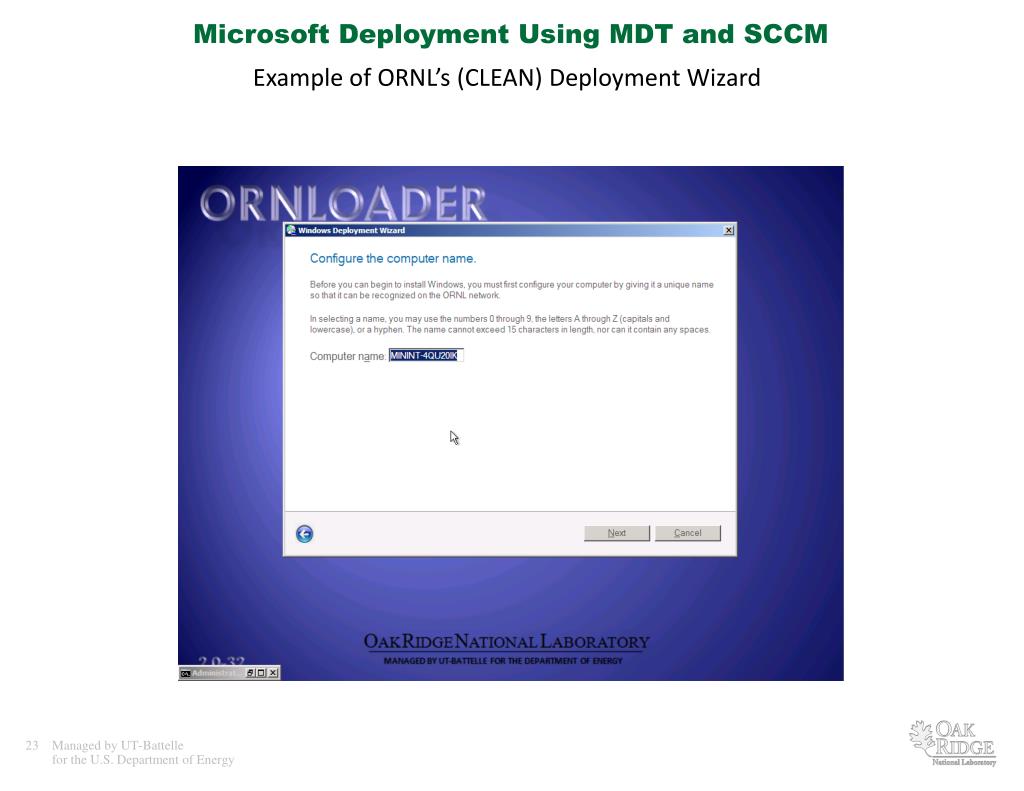

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm23
Microsoft Deployment Using MDT and SCCM

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm24
Microsoft Deployment Using MDT and SCCM

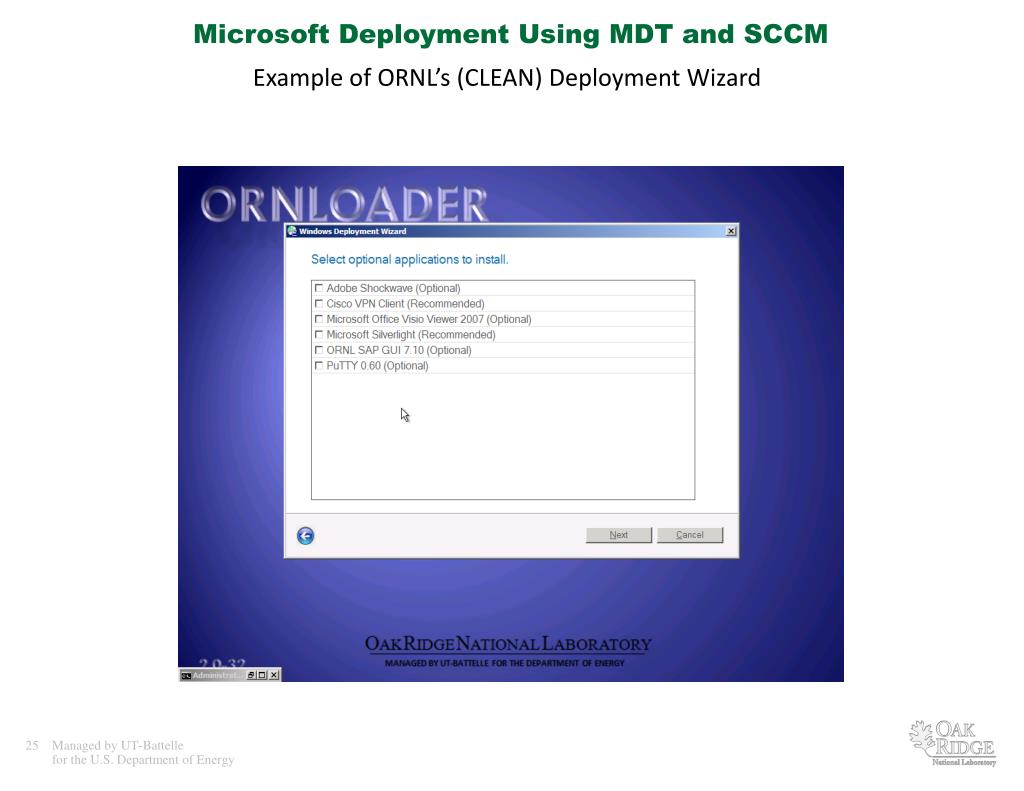

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm25
Microsoft Deployment Using MDT and SCCM

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm26
Microsoft Deployment Using MDT and SCCM

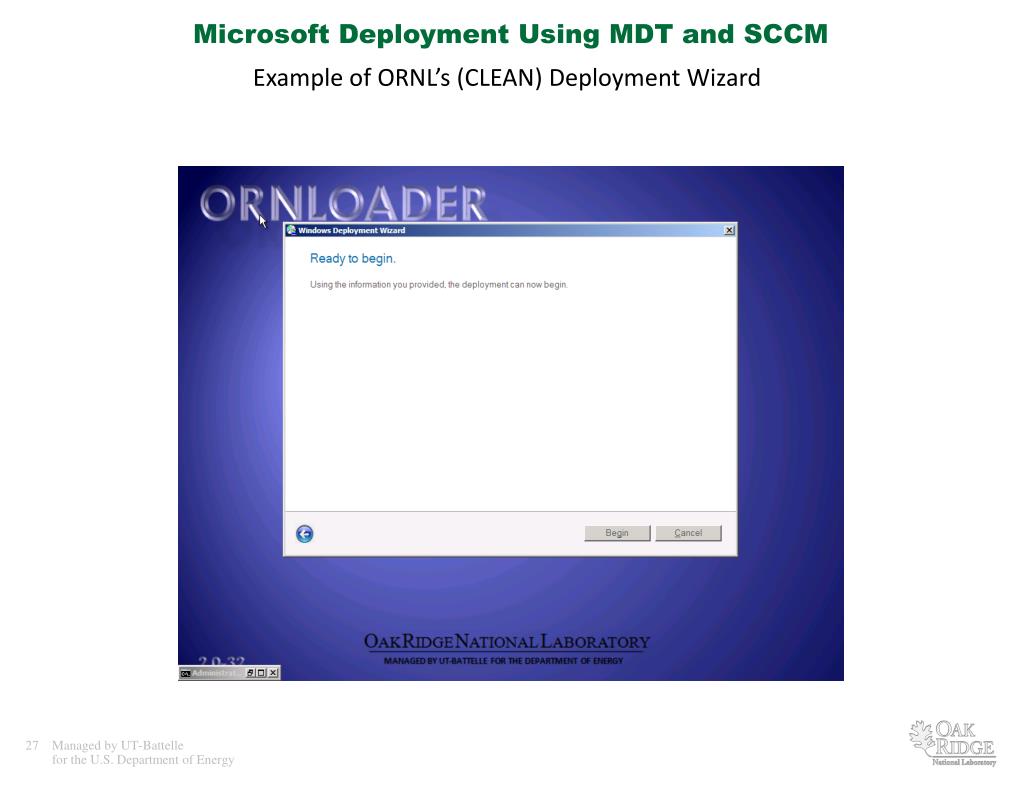

Example of ORNL’s (CLEAN) Deployment Wizard

microsoft deployment using mdt and sccm28
Microsoft Deployment Using MDT and SCCM

The ORNL Philosophy: NO Upgrades

  • We never perform upgrades on computers at ORNL
  • Increases overall support costs rather than reducing migration costs
  • Adequate backups, User State Migration and effective application deployment compensate for not using upgrading mechanisms
microsoft deployment using mdt and sccm29
Microsoft Deployment Using MDT and SCCM
  • The ORNL Philosophy: NO Operating System Tweaks
  • Leave it natural
    • Perception that the image is “hacked” when visibly modified
    • Don’t customize look and feel items
    • Everybody can NEVER be satisfied
    • Standardize on the only “basis” point…NOTHING
  • Simplify or prevent OOBE window popups
  • Group Policy preferred method for modification
    • Per user, group, machine…
  • Only exceptions are security modifications, customizations or requirements
    • Enhancements before domain policy is applied
microsoft deployment using mdt and sccm30
Microsoft Deployment Using MDT and SCCM

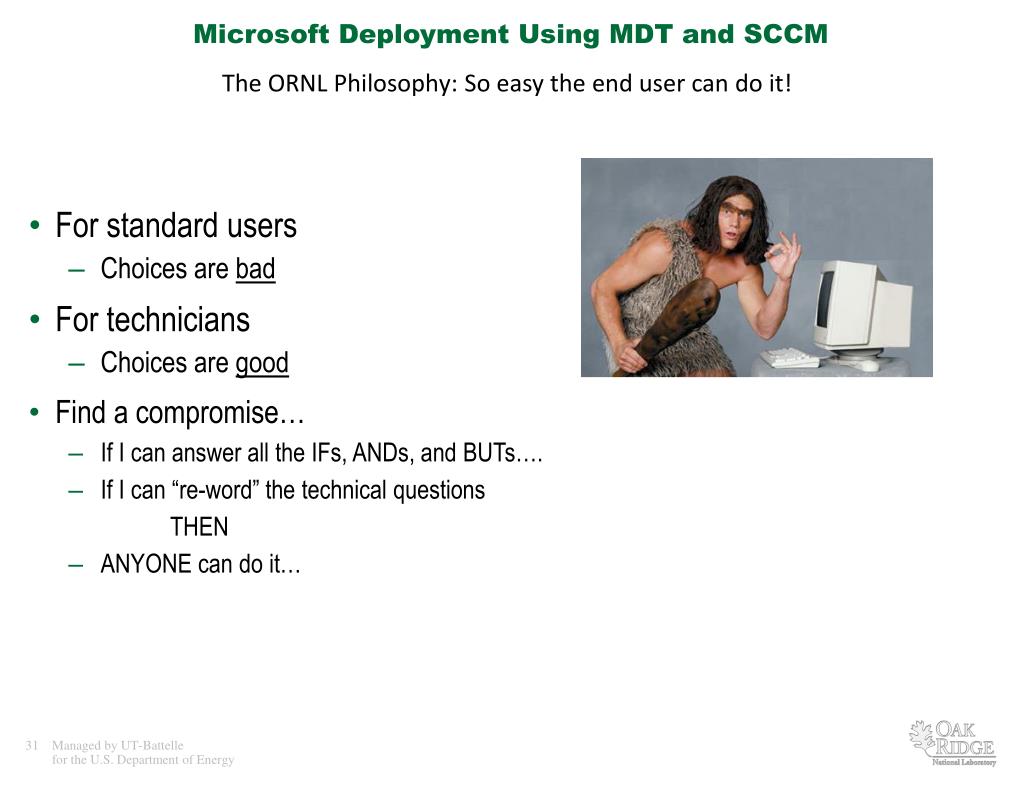

The ORNL Philosophy: So easy the end user can do it!

  • For standard users
    • Choices are bad
  • For technicians
    • Choices are good
  • Find a compromise…
    • If I can answer all the IFs, ANDs, and BUTs….
    • If I can “re-word” the technical questions

THEN

    • ANYONE can do it…
microsoft deployment using mdt and sccm31
Microsoft Deployment Using MDT and SCCM

The ORNL Philosophy: Image Creation Automation

  • How do you reduce management of image creation process?
  • How do you improve security of images being deployed?
    • Always have the latest Windows and application updates applied
    • Always have the latest Virus Definitions applied

Create your image daily through automation!

microsoft deployment using mdt and sccm32
Microsoft Deployment Using MDT and SCCM
  • The ORNL Philosophy: Manufacturer Drivers and Applications
  • Only install drivers provided by the COMPUTER manufacturer except in severe cases
    • Proper support from the COMPUTER manufacturer requires this
    • Drivers are often tweaked by a COMPUTER manufacturer for their computers (although P&P IDs may be the same)
  • SMALL Driver Pools
    • Many SMALL pools rather than one LARGE pool
    • MODEL then OPERATING SYSTEM then BIT (Mixing OS or BIT doesn’t work)
    • Unknown or “OTHER” models should not fish from the large pool either. They should get nothing
    • Exception…Hard disk controller and network drivers
  • OEM Applications But NO “Bell and Whistle” Software
    • May provide advanced functionality for devices but typically not used by end users (Video Control Panels)
    • Training and support (i.e. Wireless Managers)
    • Consumes resources
    • Can conflict with productivity applications
    • Can cause migration issues (such as a move to Vista)
    • Can introduce exploits
microsoft deployment using mdt and sccm33
Microsoft Deployment Using MDT and SCCM

Microsoft OS Deployment Tools:

Microsoft Deployment Toolkit

and

SCCM Operating System Deployment

microsoft deployment using mdt and sccm34
Microsoft Deployment Using MDT and SCCM
  • Zero Touch versus Lite Touch
  • Lite Touch Deployment
    • Human intervention will be required at the computer
    • Associated with Microsoft Deployment Toolkit (MDT)
  • Zero Touch Deployment
    • The process does not require human touch at the computer
    • Associated with SCCM Operating System Deployment
  • These definitions fail to adequately or correctly define either deployment tool
microsoft deployment using mdt and sccm35
Microsoft Deployment Using MDT and SCCM
  • MDT versus SCCM
  • Microsoft Deployment Toolkit (MDT)
    • Excellent GUI interface to ask questions (variables) prior to deployment
    • Alternatively, can be fully automated during deployment if variables predefined
    • No built in mechanism to schedule and initiate itself for deployment
  • System Center Configuration Manager (SCCM) Operating System Deployment (OSD)
    • Non-existent GUI interface
    • All variables configured on SCCM prior to deployment
    • Excellent built in scheduling and initiating of deployments
microsoft deployment using mdt and sccm36
Microsoft Deployment Using MDT and SCCM
  • Deployment Tool Usage
  • Microsoft Deployment Toolkit (MDT)
    • Great for GUI driven installations
      • Out-of-Box
      • Technician installations requiring choices
  • SCCM Operating System Deployment
    • Great for scheduling and initiation
      • Conference Rooms
      • Training Room
      • Large Migrations
microsoft deployment using mdt and sccm37
Microsoft Deployment Using MDT and SCCM
  • SCCM Operating System Deployment at ORNL
  • Migration of daily image creation responsibilities to SCCM
    • More secure
    • Integrated with current patching infrastructure
    • Better integrated with current package infrastructure
  • Looking at ways to create GUI for SCCM for our environment
    • Desire to simplify to one deployment tool
    • GUI front end is the easy part, Collection manipulation more difficult
  • Replacing the MDT “Refresh” scenario with SCCM OSD Advertisements
microsoft deployment using mdt and sccm38
Microsoft Deployment Using MDT and SCCM

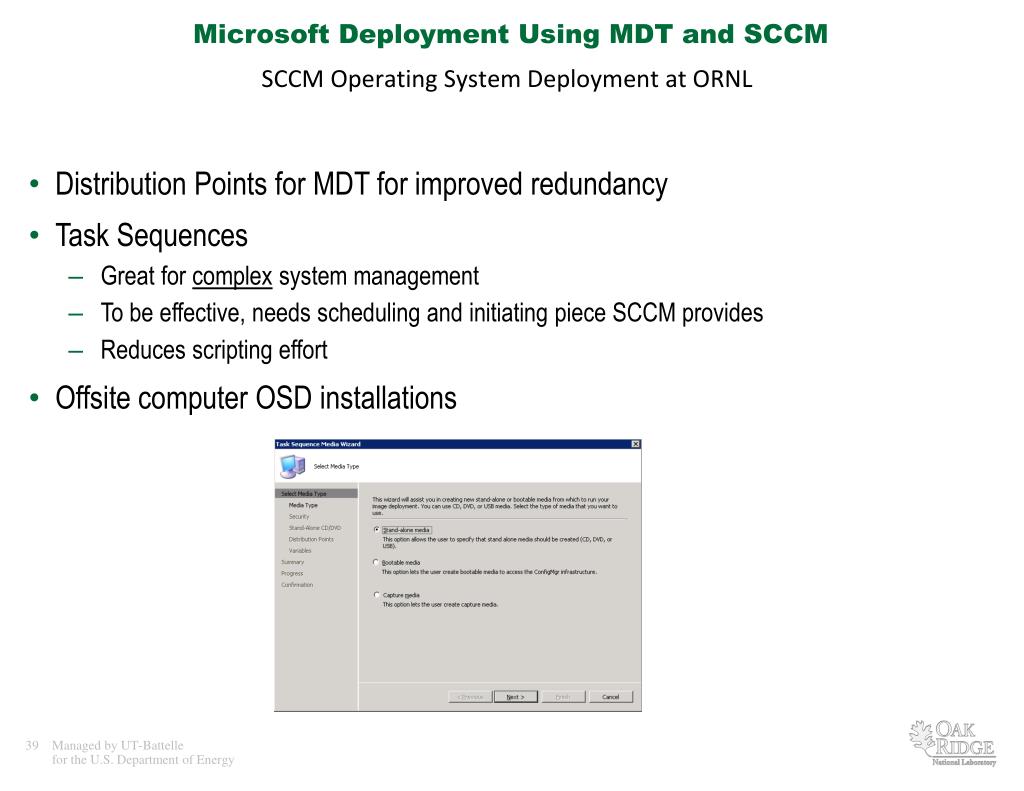

  • SCCM Operating System Deployment at ORNL

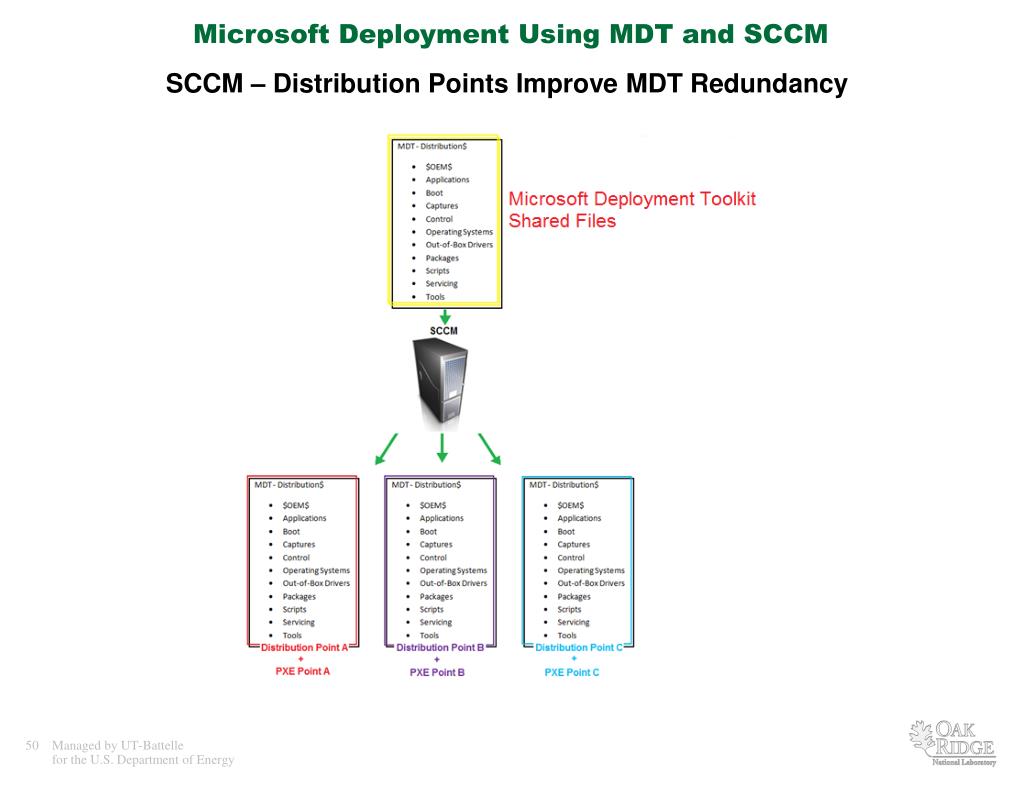

  • Distribution Points for MDT for improved redundancy
  • Task Sequences
    • Great for complex system management
    • To be effective, needs scheduling and initiating piece SCCM provides
    • Reduces scripting effort
  • Offsite computer OSD installations
microsoft deployment using mdt and sccm42
Microsoft Deployment Using MDT and SCCM
  • Working With MDT and SCCM Simultaneously
  • Although MDT integrates into SCCM, it is not a migration, just an extension
  • MDT can be modified to pull same SCCM packages
    • Can be redundant as described previously
  • ORNL’s methods for driver support has been simplified to support both systems
    • ORNL has radically modified the approach to drivers
microsoft deployment using mdt and sccm43
Microsoft Deployment Using MDT and SCCM
  • SCCM Gripes…
  • You will find bugs requiring fixes or workarounds
  • Pre-execution hook versus R2 Unknown Computer Support
    • SCCM typically requires the computer be known before security will allow OSD
  • Task Sequences are not “migratable”
  • Incredibly complex because incredibly powerful
microsoft deployment using mdt and sccm44
Microsoft Deployment Using MDT and SCCM
  • Where are we going now?
  • Windows 7
  • Dell Deployment Pack for Configuration Manager
  • SCCM OSD GUI
  • Microsoft Deployment 2010 Beta 2
    • Windows 7 RC
  • USMT 4
  • SCCM Service Pack 2
microsoft deployment using mdt and sccm45
Microsoft Deployment Using MDT and SCCM

Closing

  • Each Deployment Scenario is Unique
  • Two main goals to balance
    • Keep management simple
    • Keep usability simple
  • Deployment is a Collaborative Effort
  • Open Forum Discussion
    • Blogs
    • Forums
    • Colleagues
  • Contact Info
    • DeGuiraCA@ornl.gov
  • Thank You!
microsoft deployment using mdt and sccm46
Microsoft Deployment Using MDT and SCCM

SCCM – Distribution Points Improve Redundancy

microsoft deployment using mdt and sccm47
Microsoft Deployment Using MDT and SCCM

MDT is not designed to handle redundancy

microsoft deployment using mdt and sccm48
Microsoft Deployment Using MDT and SCCM

SCCM – Distribution Points Improve MDT Redundancy

microsoft deployment using mdt and sccm49
Microsoft Deployment Using MDT and SCCM

SCCM – Distribution Points Improve MDT Redundancy

microsoft deployment using mdt and sccm50
Microsoft Deployment Using MDT and SCCM

SCCM – Distribution Points Improve MDT Redundancy
