Presentation Transcript
what will we cover
What Will We Cover?
  • Pre-installation requirements
  • Server roles
  • The installation process
  • Migration and co-existence
helpful experience
Helpful Experience

IT administration experience with Microsoft Exchange Server 2003, Exchange 2000 Server, or Exchange Server 5.5

Level 200

agenda
Agenda
  • Understanding Installation Requirements
  • Introducing Server Roles and Topology
  • Deploying Exchange Server
  • Coexisting and Migrating
exchange 2007 themes
Exchange 2007 Themes
  • Role-based deployment
  • Better management tools
  • PowerShell
  • Users want easy access to all their communications
  • Mobile devices are increasingly common
  • High availability
  • Improved scalability

AnywhereAccess

Scalability & Reliability

Control

agenda6
Agenda
  • Understanding Installation Requirements
  • Introducing Server Roles and Topology
  • Deploying Exchange Server
  • Coexisting and Migrating
hardware requirements
Hardware Requirements
  • 64-bit Intel or AMD processor required in production environment
  • Minimum 512 MB of RAM
  • 1 GB disk space on installation drive plus 200 MB on system drive
  • NTFS file system
software requirements
Software Requirements
  • Microsoft Windows Server 2003 SP1
  • Microsoft Windows Server 2003 R2 supported
  • Microsoft .NET Framework 2.0
  • MMC 3.0

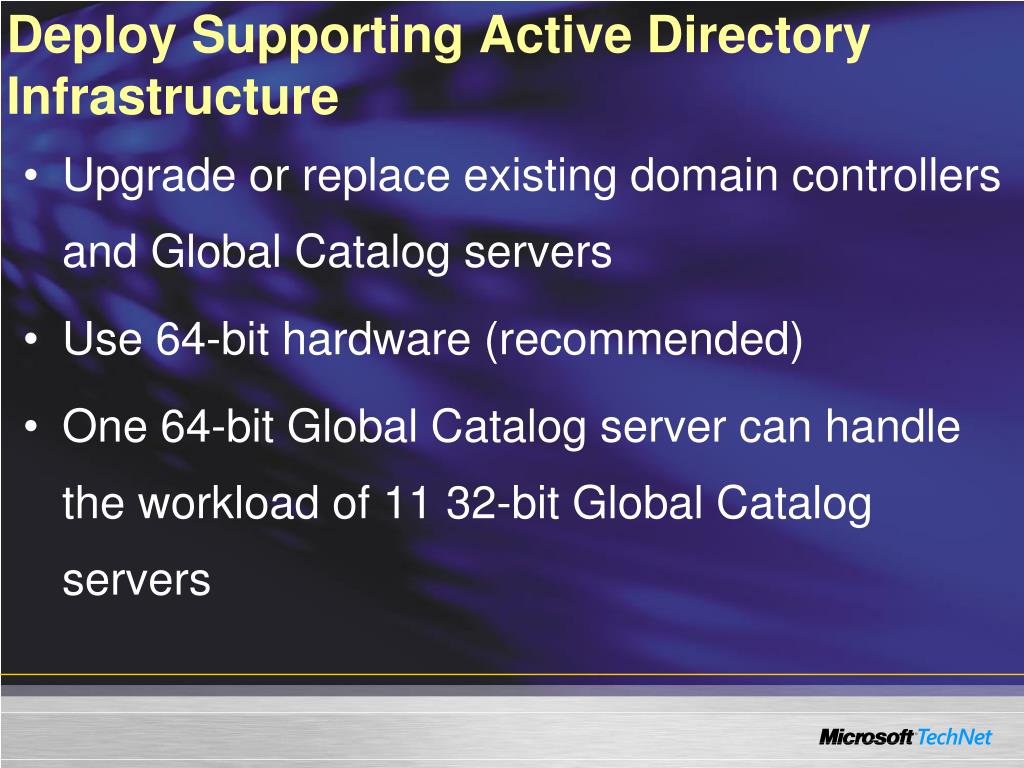

deploy supporting active directory infrastructure
Deploy Supporting Active Directory Infrastructure
  • Upgrade or replace existing domain controllers and Global Catalog servers
  • Use 64-bit hardware (recommended)
  • One 64-bit Global Catalog server can handle the workload of 11 32-bit Global Catalog servers
agenda15
Agenda
  • Understanding Installation Requirements
  • Introducing Server Roles and Topology
  • Deploying Exchange Server
  • Coexisting and Migrating
exchange 2007 server roles
Exchange 2007 Server Roles

Exchange 2007 Edge Server

Exchange 2007 Server

Intranet

Perimeter

exchange 2007 enterprise topology
Exchange 2007 Enterprise Topology

Hub Transport

Edge

Transport

Hygiene

Routing

Policy

Routing

Unified Messaging

Applications:

OWA, Outlook Anywhere

Voice Messaging

Protocols:

EAS, POP, IMAP, Outlook Anywhere

Mailbox

Fax

Programmability:

Web services, Web parts

Mailbox

Client Access

Public

Folders

Enterprise Network

PBX or VoIP

OtherSMTPServers

I

N

T

E

R

N

E

T

edge transport role
Edge Transport Role
  • Edge Transport Role must be on dedicated server
  • Requires Active Directory Application Mode (ADAM)
edgesync
EdgeSync
  • Run on Hub Transport server
  • One-way replication of recipient and configuration information to Edge server
  • Edge server subscribes to Active Directory site
  • Data sent hashed for security
edge transport role continued
Edge Transport Role Continued
  • Safe e-mail in your organization and inbox
  • Protect communications over untrusted networks
  • Easily manage communications with your partners
  • Highly available messaging reduces downtime
administering the edge transport server role
Administering the Edge Transport Server Role
  • Transport rules provide message filtering
  • Connectors enable message flow
  • Customized Exchange Management Console
slide22

demonstration

  • Administering the Edge
    • Prepare EdgeSync on the Edge Transport Server
    • Configure EdgeSync on the Hub Transport Server

Demo

hub transport role

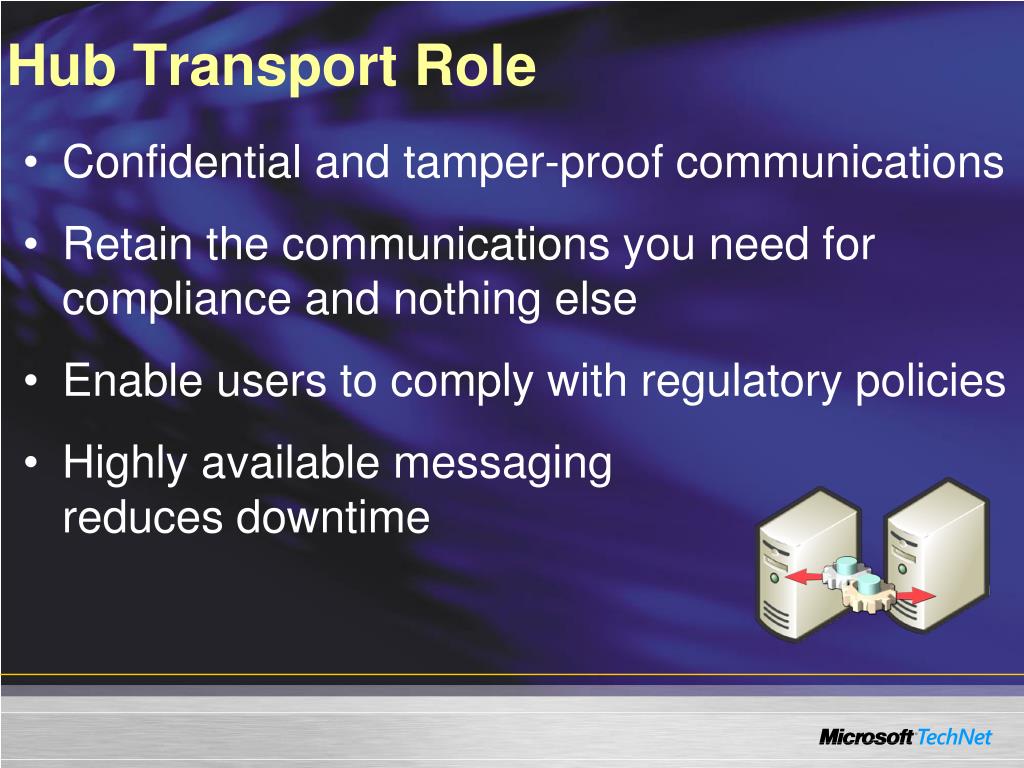

Hub Transport Role
  • Confidential and tamper-proof communications
  • Retain the communications you need for compliance and nothing else
  • Enable users to comply with regulatory policies
  • Highly available messaging reduces downtime
hub transport role continued
Hub Transport Role Continued
  • Predictable routing reduces maintenance
  • One Hub server per site where Mailbox role is deployed
  • Connectivity to Exchange 2003 through connectors
hub transport routing
Hub Transport Routing

Exchange 2007 Edge Server to Hub Server SMTP with TLS

Exchange 2007 Hub Servers use SMTP Kerberos/TLS to communicate

Perimeter

EdgeSync over 1389

Site C

Site B

Site A

Intranet

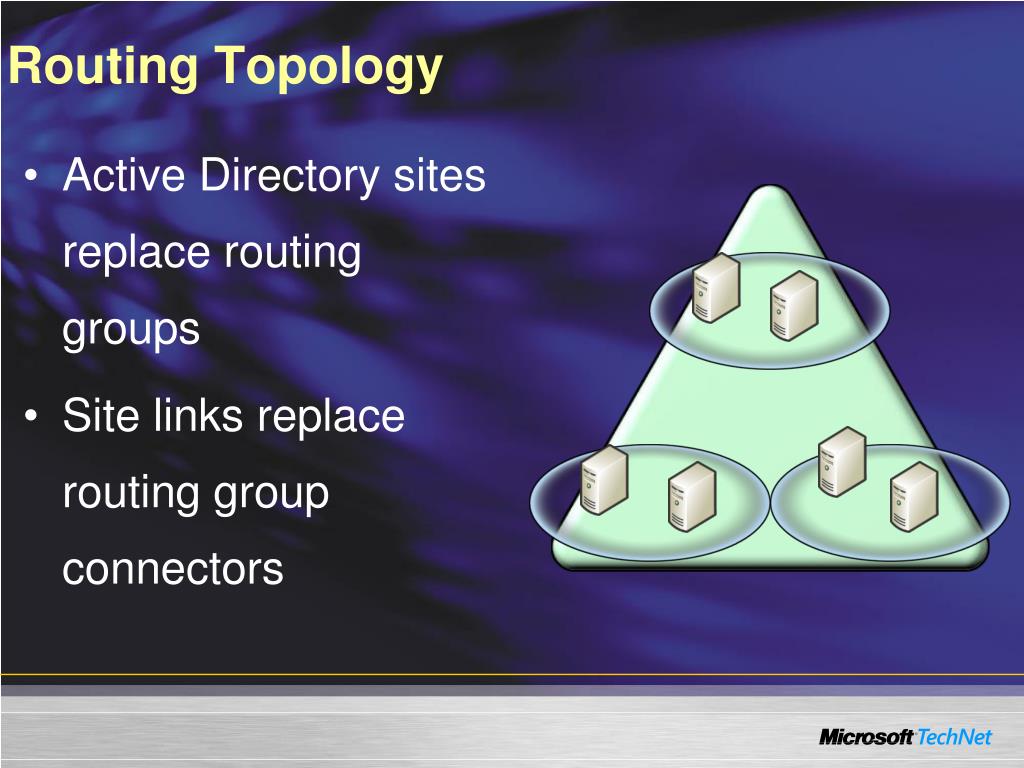

routing topology
Routing Topology
  • Active Directory sites replace routing groups
  • Site links replace routing group connectors

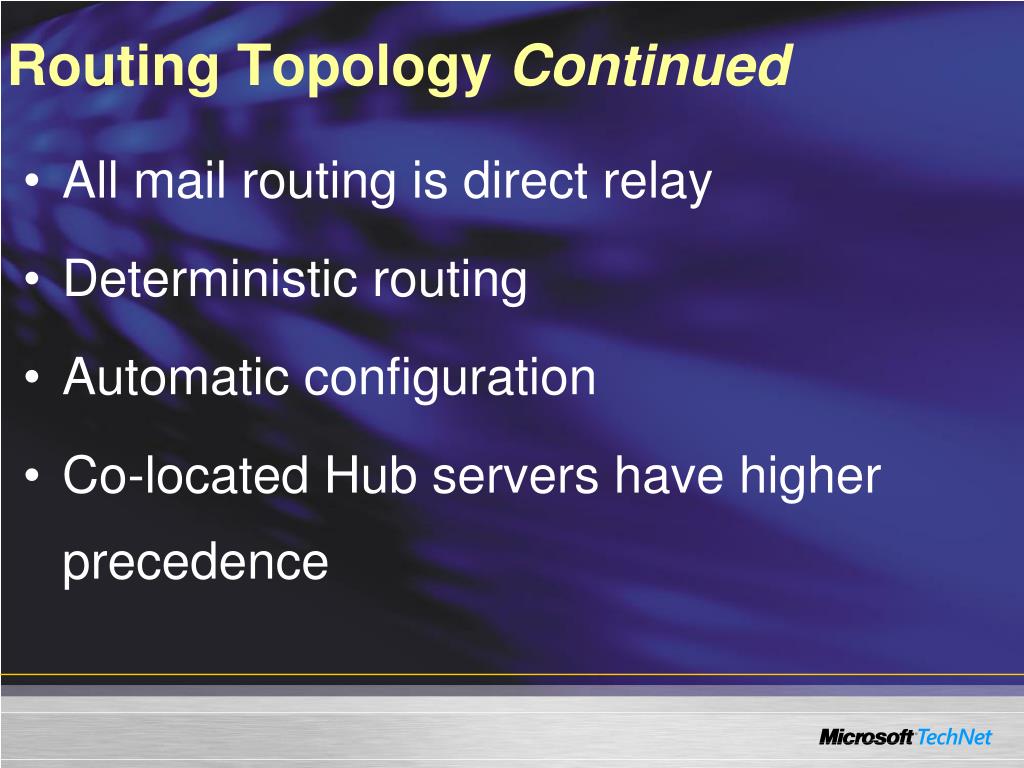

routing topology continued
Routing Topology Continued
  • All mail routing is direct relay
  • Deterministic routing
  • Automatic configuration
  • Co-located Hub servers have higher precedence
administering the hub transport server role
Administering the Hub Transport Server Role
  • Define connectors
  • Transport rules
  • Ethical firewall
mailbox server role

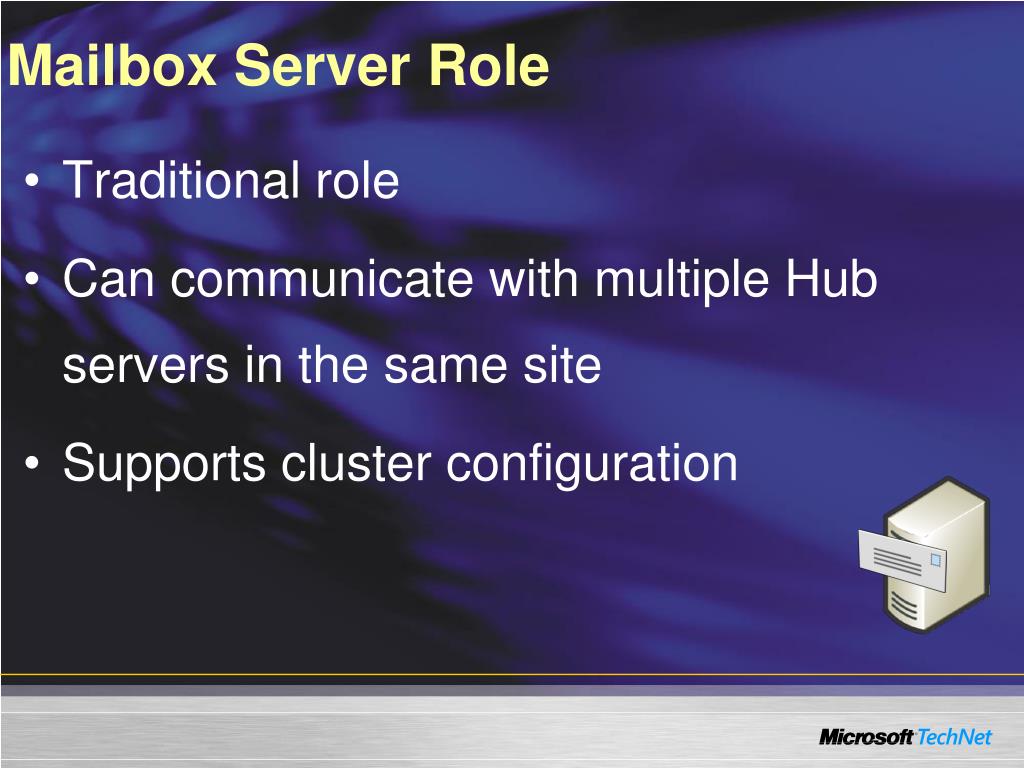

Mailbox Server Role
  • Traditional role
  • Can communicate with multiple Hub servers in the same site
  • Supports cluster configuration
administering the mailbox server role
Administering the Mailbox Server Role
  • Configure and manage storage
  • Local continuous replication
  • Clustered continuous replication
client access server role
Client Access Server Role
  • One Client Access server per site
  • Supports multiple client protocols: OWA, POP and IMAP, RPC over HTTPS, EAS
  • Provides AutoDiscover services
  • Proxy and redirect
autodiscover
AutoDiscover

Active Directory

Client Access server

1

3

2

client access and mixed exchange versions
Client Access and Mixed Exchange Versions
  • Client Access server provides legacy access to Exchange 2000/2003 back-end server
  • Exchange 2000/2003 front-end server cannot connect to an Exchange 2007 Mailbox server
agenda35

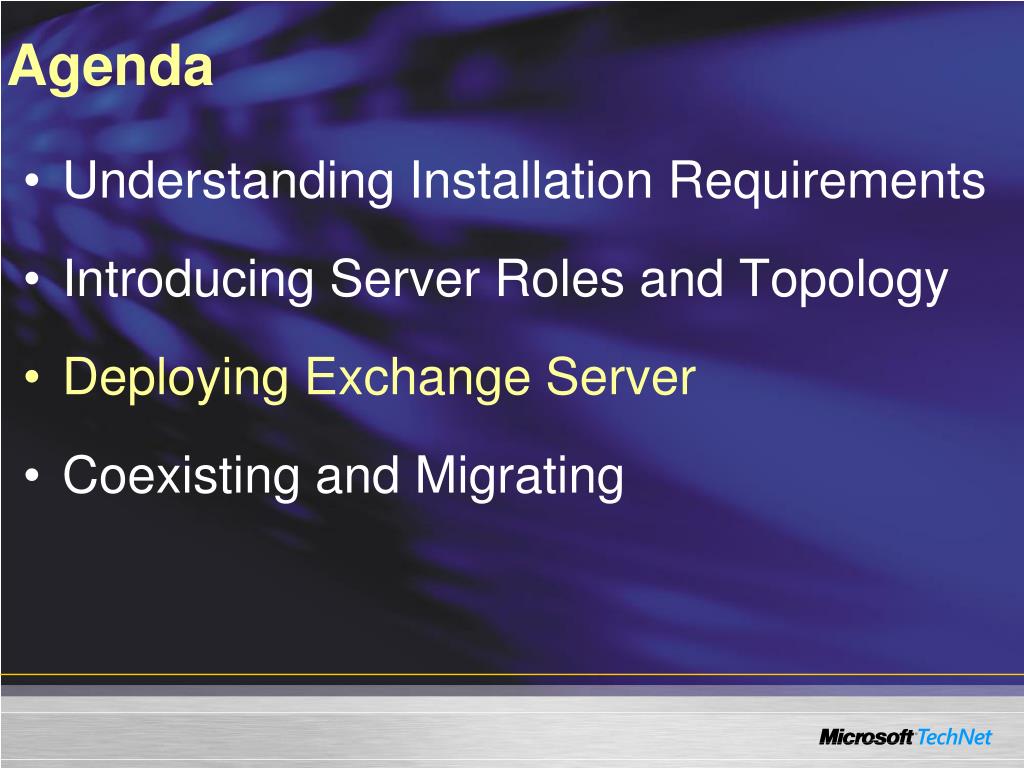

Agenda
  • Understanding Installation Requirements
  • Introducing Server Roles and Topology
  • Deploying Exchange Server
  • Coexisting and Migrating

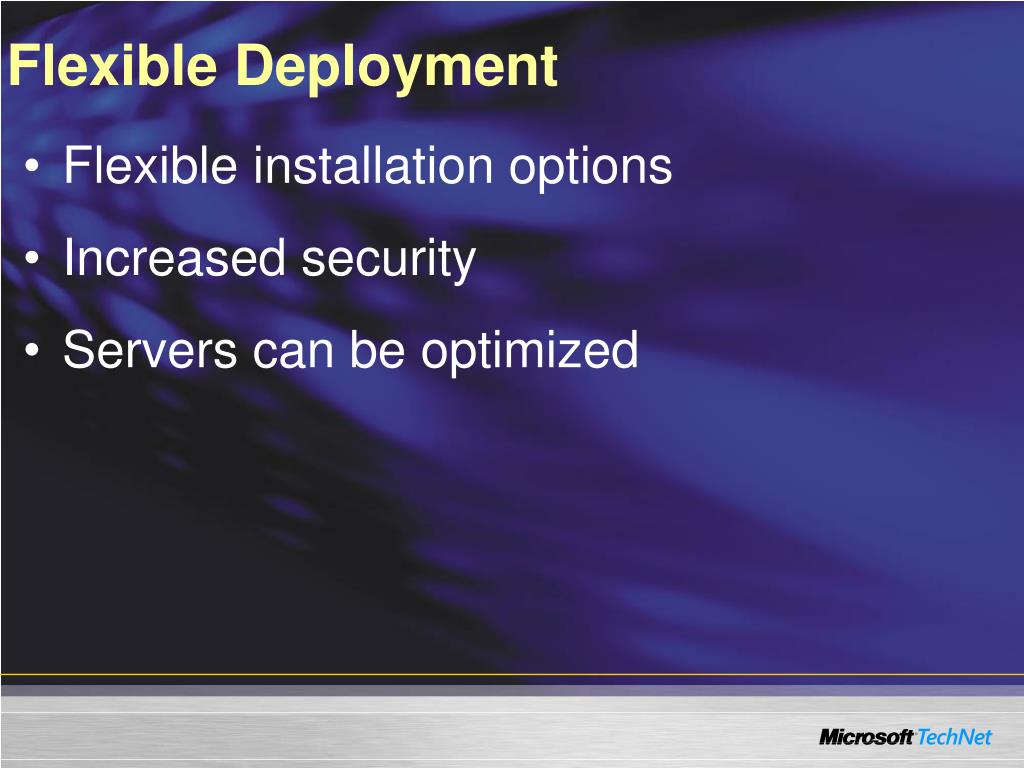

flexible deployment
Flexible Deployment
  • Flexible installation options
  • Increased security
  • Servers can be optimized
flexible deployment continued
Flexible Deployment Continued
  • Increased availability
  • Patching by roles reduces maintenance outages
  • Management by server roles is more intuitive
command line setup
Command-Line Setup
  • Fully customizable, unattended install
  • Separate server deployment from organization preparation
slide45

demonstration

  • Deploying a Server
    • Add a Server Role

Demo

verify the exchange server 2007 installation
Verify the Exchange Server 2007 Installation
  • Get-ExchangeServer
  • Check Event Viewer for events 1003 and 1004 in application log
  • ExBPA
agenda47
Agenda
  • Understanding Installation Requirements
  • Introducing Server Roles and Topology
  • Deploying Exchange Server
  • Coexisting and Migrating
exchange server 5 5
Exchange Server 5.5
  • To add 2007 to a legacy organization, upgrade all 5.5 servers to 2000/2003, and then switch organization to native mode
  • Alternatively, install 2007 as separate organization and migrate using inter-organizational migration tools
installing exchange server 2007 into existing organization

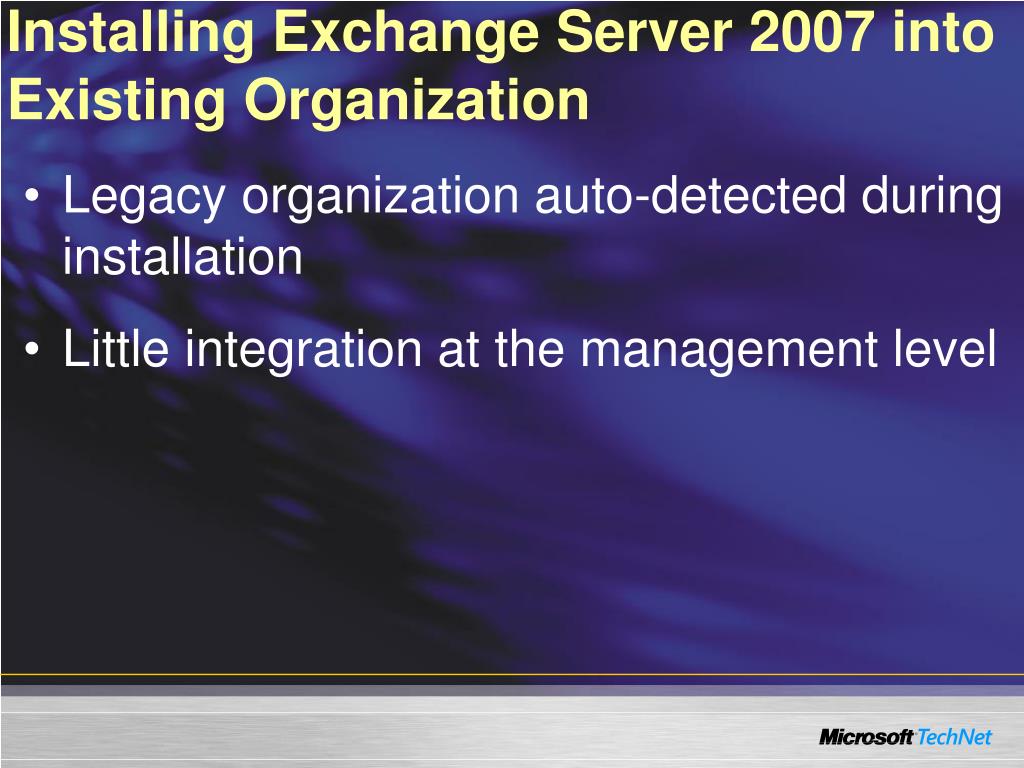

Installing Exchange Server 2007 into Existing Organization
  • Legacy organization auto-detected during installation
  • Little integration at the management level
migrating users
Migrating Users
  • Move Mailbox Wizard
  • Move-Mailbox command
  • Restrictions on using the Exchange 200x Move Mailbox Wizard
slide54

demonstration

  • Moving Mailboxes
    • Move Mailboxes with the PowerShell

Demo

session summary
Session Summary
  • Deployment requirements
  • New role-based architecture
  • Coexistence and upgrade options
for more information
For More Information

Visit TechNet at:www.microsoft.com/technet

Visit the following site for additional information:

www.microsoft.com/technet/ITPROEXC-109
