Presentation Transcript

  1. Image Segmentation by Complex-Valued Units Cornelius Weber Hybrid Intelligent Systems School of Computing and Technology University of Sunderland Presented at the Perceptual Dynamics Laboratory, RIKEN 8th December 2005

  2. Contents • Attractor Network which Converges • Non-Convergence and Spike Synchrony • Coupled Chaotic Oscillators for Spike Phases • Outlook

  3. Contents • Attractor Network which Converges • Non-Convergence and Spike Synchrony • Coupled Chaotic Oscillators for Spike Phases • Outlook

  4. Attractor Network:Competition via Relaxation rate profile weight profile rate update ri(t+1) = f (Σj wij rj(t))

  5. Response Characteristics linear sparse competitive winner Weber , C. Self-Organization of Orientation Maps, Lateral Connections, and Dynamic Receptive Fields in the Primary Visual Cortex. Proc. ICANN (2001)

  6. Learning Object Recognition apple green Binding- and learning problem? background red Active units (features) not separated attractor network Learning objects in cluttered background is difficult Stringer, S.M. and Rolls, E.T. Position invariant recognition in the visual system with cluttered environments. Neural Networks 13, 305-15 (2000)

  7. Contents • Attractor Network which Converges • Non-Convergence and Spike Synchrony • Coupled Chaotic Oscillators for Spike Phases • Outlook

  8. Necker Cube Attractor networks that minimize an energy function do not account for bi-stability

  9. Neuronal Spike Chaos • A wide range of spiking neuron models displays three distinct categories of behavior: • quiescence • intense periodic seizure-like activity • sustained chaos in normal operational conditions Banerjee, A. On the Phase-Space Dynamics of Systems of Spiking Neurons. I: Model and Experiments. Neural Computation, 13(1), 161-93 (2001)

  10. Neuronal Synchrony “cortical neurons often engage in oscillatory activity which is not stimulus locked but caused by internal interactions” “activity synchronization was present in the expectation period before stimulus presentation and could not be induced de novo by the stimulus” Singer, W. Synchronization, Bining and Expectancy. In: The Handbook of Brain Theory and Neural Networks, pp. 1136-43 (2003) Cardoso de Oliviera, S., Thiele, A. and Hoffmann, K.P. Synchronization of neuronal activity during stimulus expectation in a direction discrimination task. J. Neurosci., 17, 9248-60 (1997)

  11. Neuronal Spike Chaos • We need a method to: • create patterns of synchronization • avoid long-term stabilization (bi-stability is welcome!) van Leeuwen, C., Steyvers, M. and Nooter, M. Stability and Intermittency in Large-Scale Coupled Oscillator Models for Perceptual Segmentation. J. Mathematical Psychology, 41(4), 319-44 (1997)

  12. Contents • Attractor Network which Converges • Non-Convergence and Spike Synchrony • Coupled Chaotic Oscillators for Spike Phases • Outlook

  13. Complex Number i z r r rate φ phase φ 1 z = r eiφ = r cos φ + i r sin φ

  14. Deterministic Chaos Logistic map: Ф(t+1) = A Ф(t) (1-Ф(t)) Phase φ = 2πФ

  15. Coupling of the Phases “Net input” to neuron k: For rates:Σj wkj rj weighted field For phases: Σj wkj rj eiφ≡ zkwf } j } complex number coupling strength for phases

  16. Relaxation of the Phases Compute “net input”: zkwf = Σj wkj rj eiφ j From zwf, take phase φwf Compute new phase: Фk(t+1) = A Фkwf(t) (1-Фkwf(t)) (remember: φ = 2πФ)

  17. Relaxation of Rates and Phases Phase of any neuron behaves chaotically Coupled neurons have similar phases

  18. Phase Separation Histogram Large phase differences at boundary of activation hill

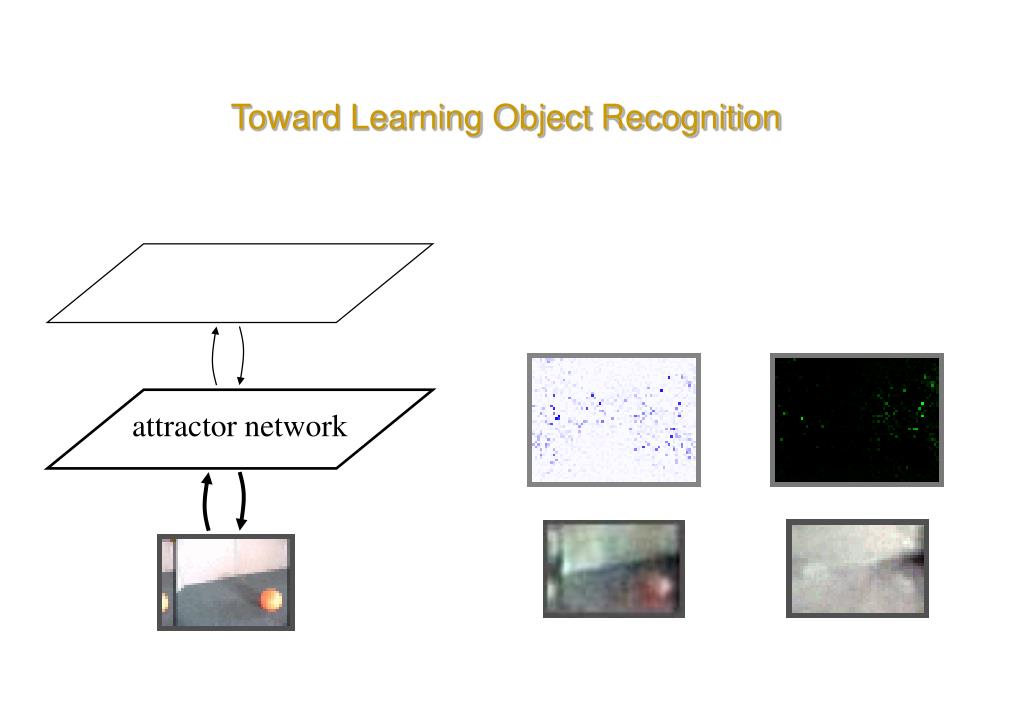

  19. Toward Learning Object Recognition attractor network

  20. Toward Learning Object Recognition attractor network

  21. Contents • Attractor Network which Converges • Non-Convergence and Spike Synchrony • Coupled Chaotic Oscillators for Spike Phases • Outlook

  22. Plans and Questions • - The higher hierarchical level shall benefit! • Should the rates depend on the phases? • → This would influence learning! • Learning with Phase Timing Dependent Plasticity?
