  1. 03/14/2008 Vasculature Modeling • Rohit Yengisetty • Qusai Shikari Laboratory for Product and Process Design (LPPD) Advisors: Andreas Linninger Anargyros Politis

  2. Goal • Create an anatomically accurate model of the cerebral vasculature

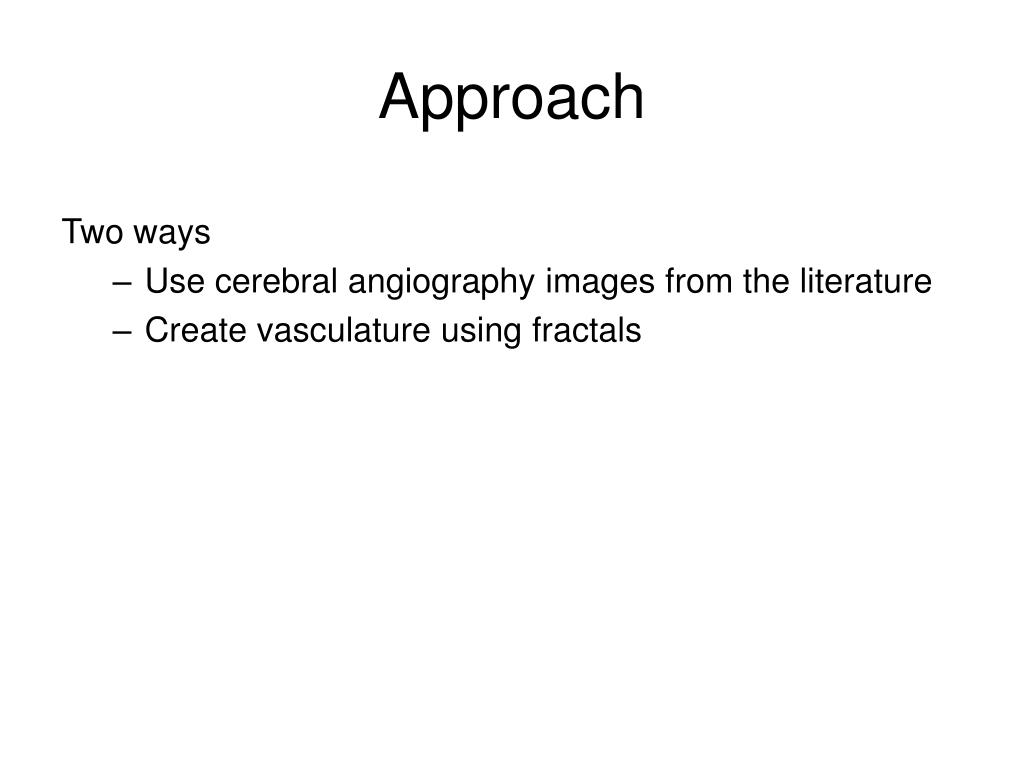

  3. Approach Two ways • Use cerebral angiography images from the literature • Create vasculature using fractals

  4. Cerebral Angiography Literature • Vasculature of the brain and cranial base: variations in clinical anatomy / Walter Grand, L.N. Hopkins; foreword by Axel Perneczky; illustrated by Paul H. Dressel; art design and photography by Paul H. Dressel and Walter Grand • Cerebral angio-CT / Kazuhiko Sadamoto, Keiji Fukui • Magnetic resonance angiography of the head and neck: a teaching file / Jeffrey S. Ross. • Angiography of cerebral circulation / Kurt Decker and Herbert Backmund. • Practical neuroangiography / P. Pearse Morris. • Atlas of the arteries of the human brain / Georges Salamon; avec la collaboration de J.M. Corbaz...[et al.] ; Préface du Doyen G. Lazorthes. • Arteries and veins of the human brain / Roger B. Stephens and Donald L. Stilwell. • Cerebral angiography / Krayenbühl/Yaşargil • Cerebral radionuclide angiography / Frank H. DeLand • 3D angiographic atlas of neurovascular anatomy and pathology / Neil M. Borden; with text contributions by, Jay K. Costantini; foreword by Robert F. SPetzler

  5. < Library of the cerebral vascular Images >

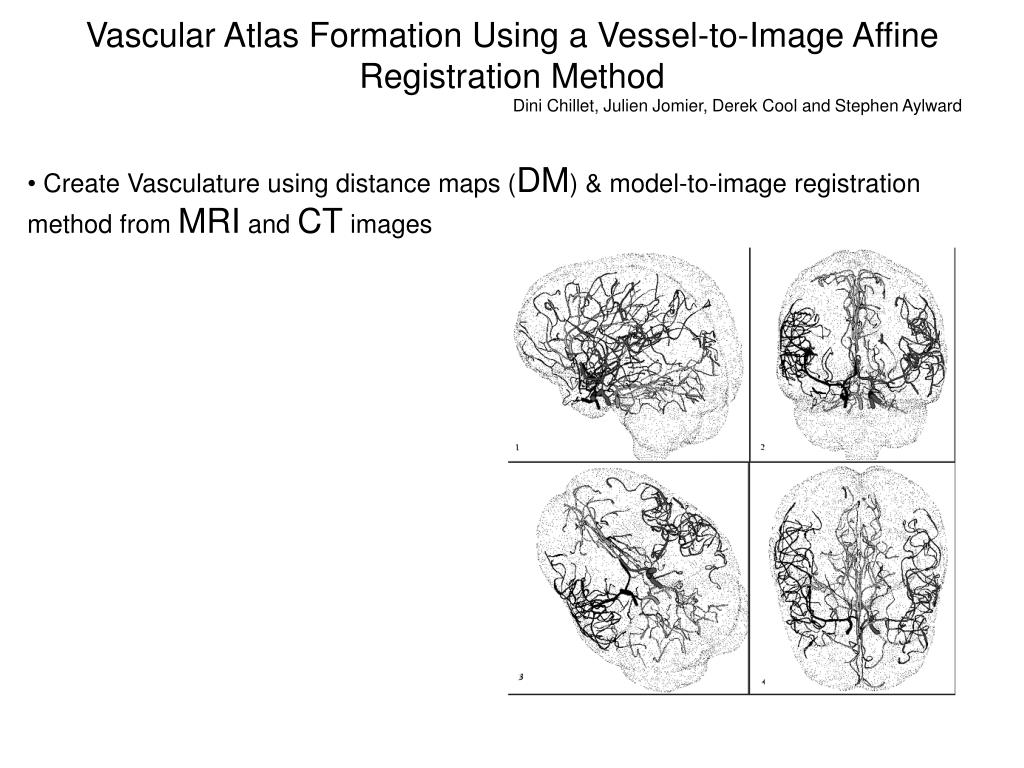

  6. Vascular Atlas Formation Using a Vessel-to-Image Affine Registration Method • Create Vasculature using distance maps (DM) & model-to-image registration method from MRI and CT images Dini Chillet, Julien Jomier, Derek Cool and Stephen Aylward

  7. Distance Map (DM) - A DM is an image in which each voxel’s intensity corresponds to the distance to the nearest vessel ( Intensity α Distance to the nearest vessel) Distance Map Inverted Distance Map (IDM) Inverted Distance Map (IDM) - The intensity of the DM is inverted to get the Inverted Distance Map where the brightest pixels are near a vessel. (Intensity α 1/Distance to the nearest vessel)

  8. Inverted Distance Map

  9. Atlas Formation • Vascular Networks (Vi) • IDMi computed • IDMtemplate • Generate transformation parameter sets( Ti ) using vessel-to-image registration • Apply Ti to IDMi to transform them into the same coordinate system as IDMi Mean and Variance of IDMi’s form the Vasculature Atlas

  10. Vessel-to-Image Registration - Affine Matrix (R) - Offset Vector (0) The goal is to find a maximal metric for which centerline points ( Xi ) map to the brightest pixels in the IDM

  11. Monte Carlo Simulations 8 failed to converge on a solution 5 failed to converge on a solution

  12. Z-value validation Arterio-venous malformation

  13. Fractal Dimensions and Multifractility in Vascular BranchingM.Zamir Murray’s law for an arterial bifurcation Fractal Dimension (D) n is the number of branches s is the cross-sectional area of the branch
