Restriction Enzymes

Restriction Enzymes. Aims: Must be able to recall the basic functions of restriction enzymes. Should be able to outline how specific restriction enzymes work. Could be able to explain the different ends produced by restriction enzymes and their benefits. Restriction Enzymes.

boris
Download Presentation

Restriction Enzymes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Restriction Enzymes • Aims: • Must be able to recall the basic functions of restriction enzymes. • Should be able to outline how specific restriction enzymes work. • Could be able to explain the different ends produced by restriction enzymes and their benefits.

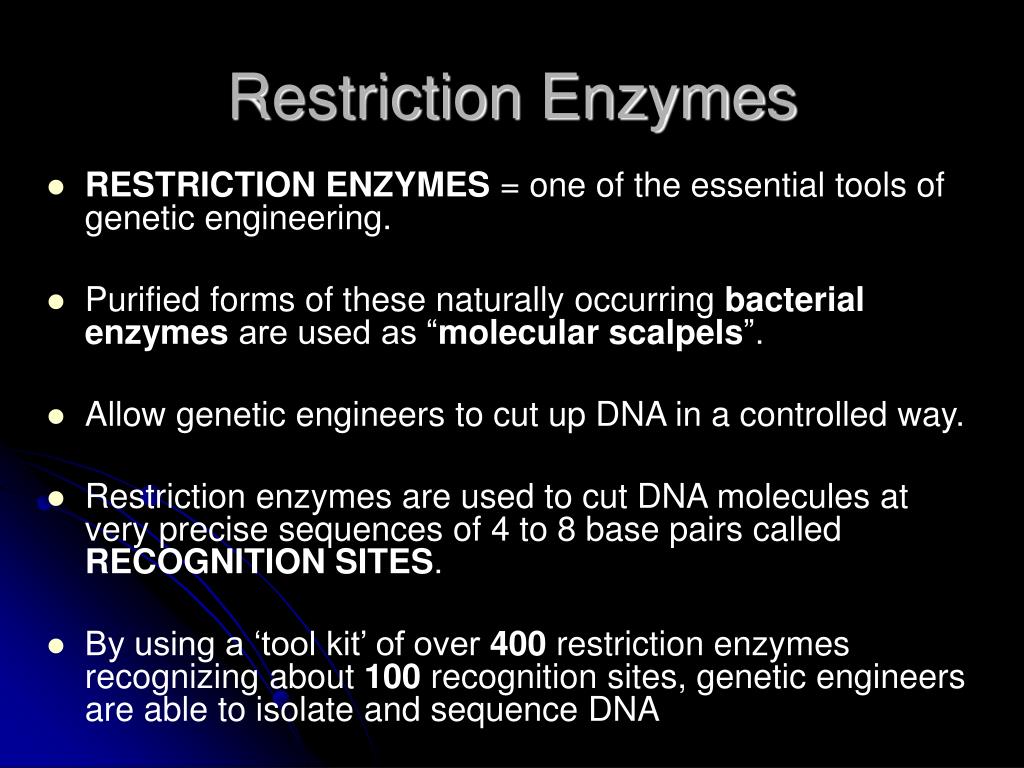

  2. Restriction Enzymes • RESTRICTION ENZYMES = one of the essential tools of genetic engineering. • Purified forms of these naturally occurring bacterialenzymes are used as “molecularscalpels”. • Allow genetic engineers to cut up DNA in a controlled way. • Restrictionenzymes are used to cut DNA molecules at very precise sequences of 4 to 8 base pairs called RECOGNITION SITES. • By using a ‘tool kit’ of over 400 restriction enzymes recognizing about 100 recognition sites, genetic engineers are able to isolate and sequence DNA

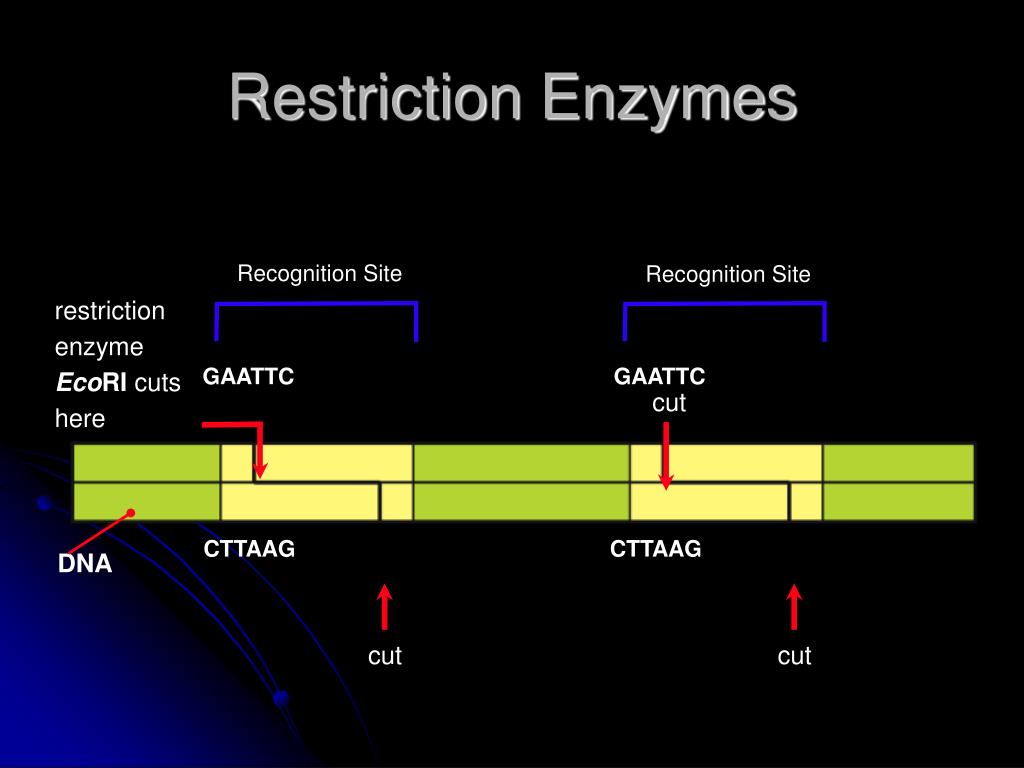

  3. Recognition Site cut Recognition Site cut cut Restriction Enzymes restriction enzyme EcoRI cuts here GAATTC GAATTC CTTAAG CTTAAG DNA

  4. Specific Recognition Sequences • Named according to the bacterial species first isolated from. • Followed by a number to distinguish different enzymes isolated from the same organism. • e.g. BamHI was isolated from the bacteria Bacillus amyloliquefaciens strain H. • A restriction enzyme cuts the double-stranded DNA molecule at its specific recognition site:

  5. A restriction enzyme cuts the double-stranded DNA molecule at its specific recognition site A A T T C G C T T A A G The cuts produce a DNA fragment with two “sticky” ends A A T T C A A T T C G G The two different fragments cut by the same restriction enzyme have identical sticky ends and are able to join together G G C T T A A C T T A A When two fragments of DNA cut by the same restriction enzyme come together, they can join by base-pairing Sticky Ends • It is possible to use restriction enzymes that cut leaving an overhang; a so-called “sticky end”. • DNA cut in such a way produces ends which may only be joined to other sticky ends with a complementary base sequence. Restriction enzyme: EcoRI Fragment A A T T C G C T T A A G Restriction enzyme: EcoRI Sticky end DNA from another source

  6. C C C C C C G G G G G G G G G C C C G G G G G G C C C C C C DNA G G G G G G G G G C C C C C C C C C C C C G G G G G G C C C cut cut C C C G G G C C C G G G Blunt Ends • Possible to use restriction enzymes that cut leaving no overhang; a so-called “blunt end”. • DNA cut in such a way is able to be joined to any other blunt end fragment, but tends to be non-specific because there are no sticky ends as recognition sites. Recognition Site Recognition Site Restriction enzyme cuts here The cut by this type of restriction enzyme leaves no overhang DNA from another source A special group of enzymes can join the pieces together

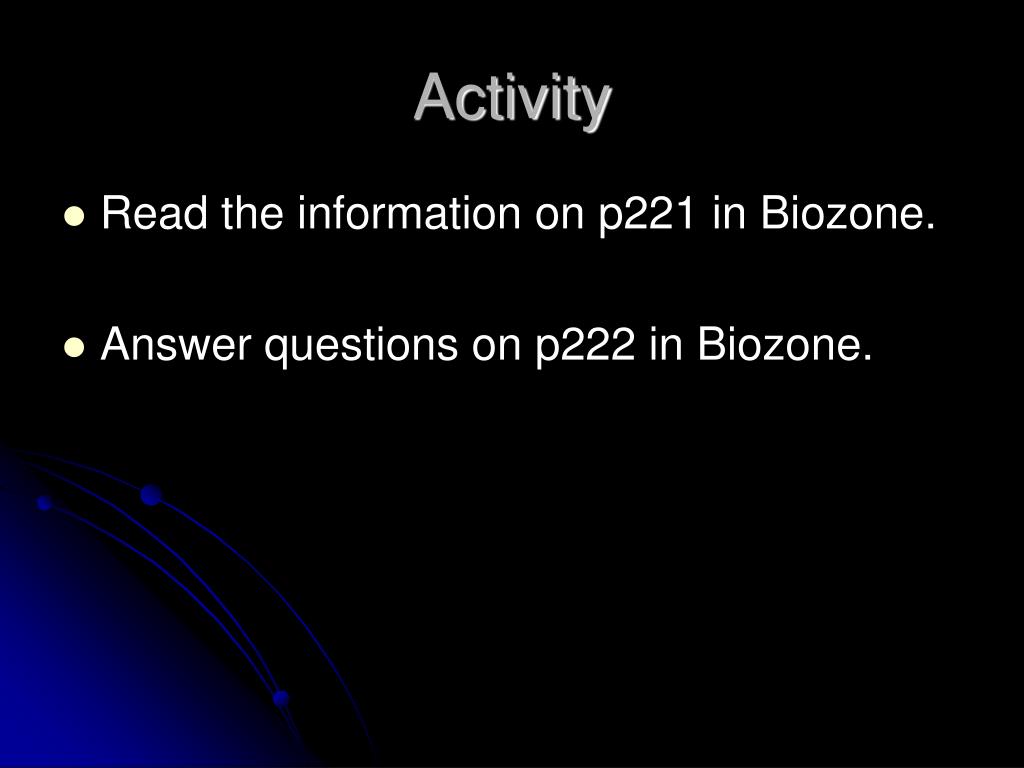

  7. Activity • Read the information on p221 in Biozone. • Answer questions on p222 in Biozone.
