Restriction Enzymes

Restriction Enzymes. Enzymes that CUT DNA at a specific nucleotide sequence May produce blunt ends or sticky ends. Sequence cut is a palindrome - same letters forward and backwards! . Blunt End Cuts. Used to isolate a fragment of DNA

lang
Download Presentation

Restriction Enzymes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Restriction Enzymes • Enzymes that CUT DNA at a specific nucleotide sequence • May produce bluntends or sticky ends. • Sequence cut is a palindrome - same letters forward and backwards!

  2. Blunt End Cuts • Used to isolate a fragment of DNA • Used to cut DNA into pieces for DNA fingerprinting

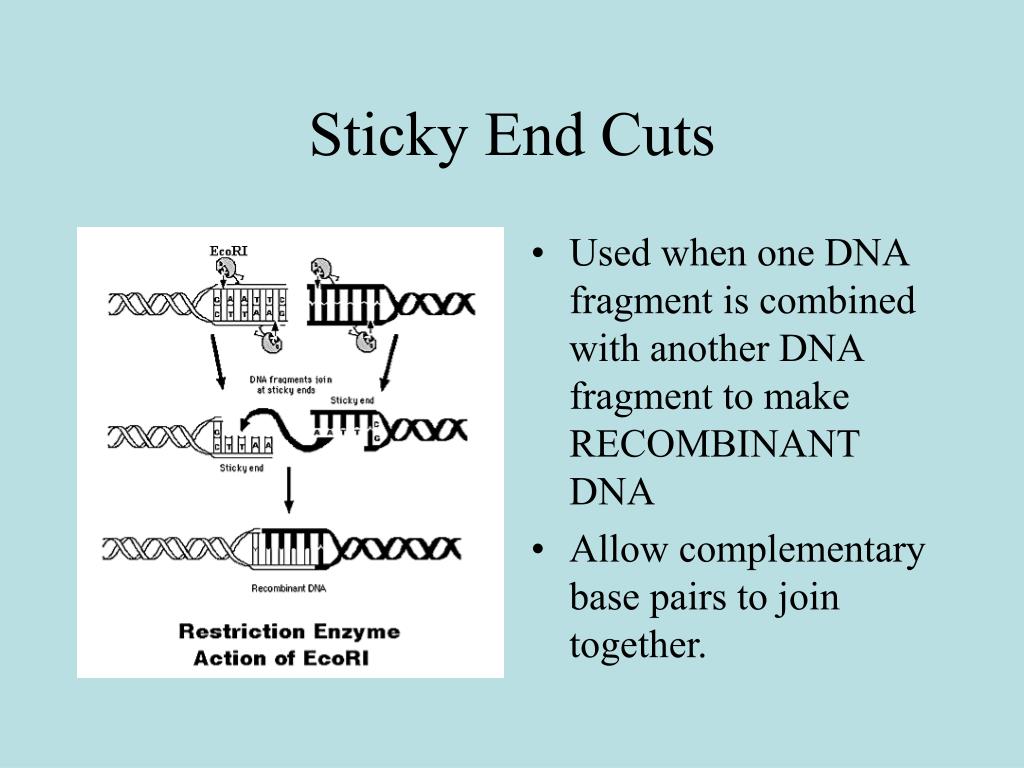

  3. Sticky End Cuts • Used when one DNA fragment is combined with another DNA fragment to make RECOMBINANT DNA • Allow complementary base pairs to join together.

  4. Where do Restriction Enzymes come from? • Found in bacteria • Enzymes are used to cut and degrade viruses that enter their cells • Named for species in which R.E. was found • Example: EcoR1 was first R.E. to be isolated from E. coli Picture of the protein molecule Sequence of bases cut by EcoR1

  5. Practical Applications • Gene for human insulin or human growth hormone placed into a bacterial plasmid. • Gene for disease resistance placed into DNA in cells of a corn plant

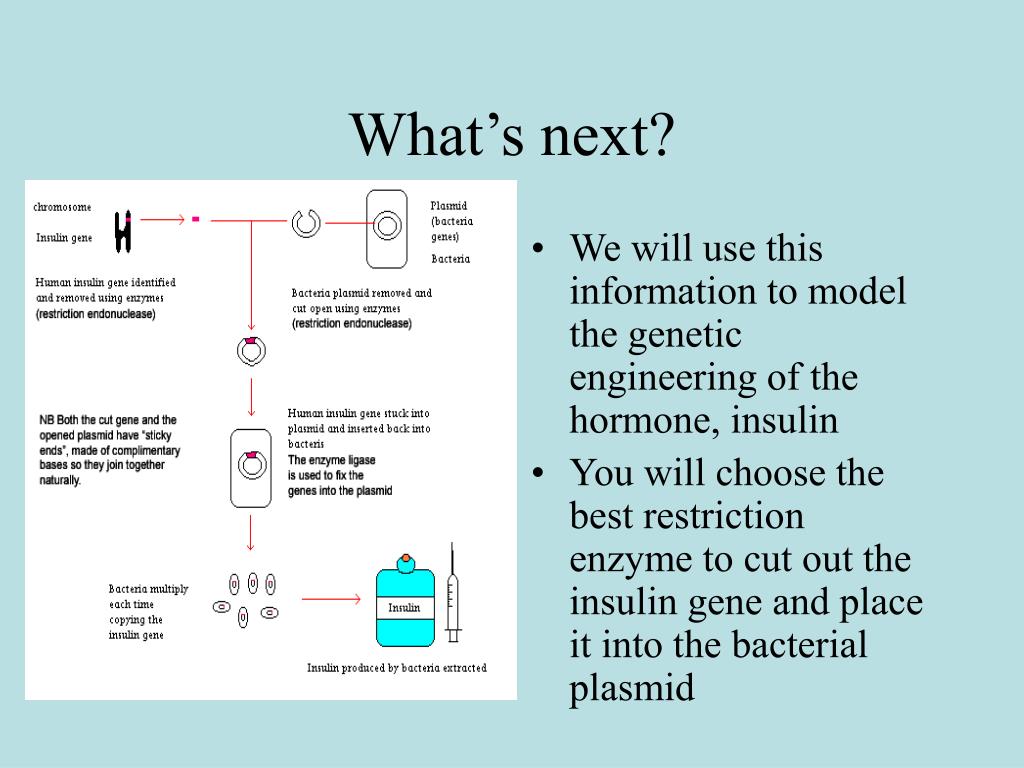

  6. What’s next? • We will use this information to model the genetic engineering of the hormone, insulin • You will choose the best restriction enzyme to cut out the insulin gene and place it into the bacterial plasmid
