Presentation Transcript
abstract
ABSTRACT
  • principle of firing angle delay of thyristors using back to back SCR’s with control being fed from a microcontroller via optoisolators
  • The firing angle would be adjusted to maintain the load power by an up and down switch
hardware components
HARDWARE COMPONENTS
  • POWER SUPPLY BLOCK
  • MICROCONTROLLER (AT89S52 / AT89C51)
  • OPTO-ISOLATOR
  • OPAMP
  • THYRISTOR
  • LED
  • LOAD
  • RESISTORS & CAPACITORS

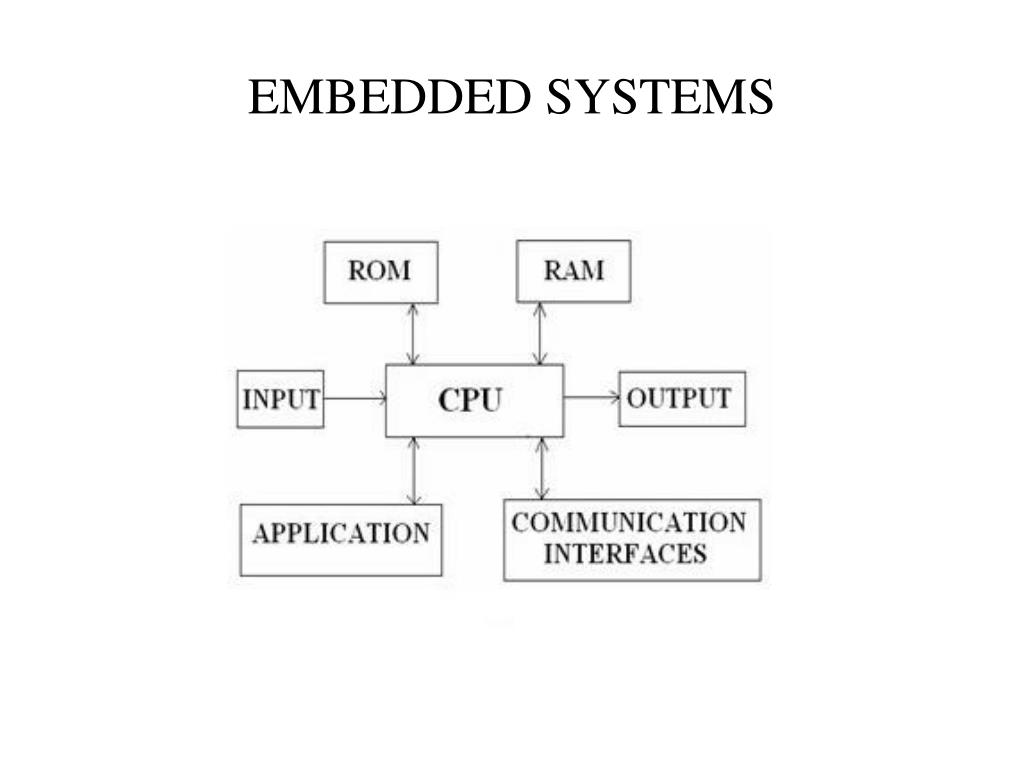

embedded systems
EMBEDDED SYSTEMS

Definition for :- EMBEDDED SYSTEMS

  • A combination of hardware and software which together

form a component of a larger machine.

  • An example of an embedded system is a microprocessor that

controls an automobile engine.

  • An embedded system is designed to run on its own without

human intervention, and may be required to respond to

events in real time.

micro controller
MICRO CONTROLLER

AT89S52

  • Compatible with MCS®-51 Products
  • 8K Bytes of In-System Programmable (ISP) Flash Memory
  • 4.0V to 5.5V Operating Range
  • Crystal Frequency 11.0592MHZ
  • Three-level Program Memory Lock
  • 256 x 8-bit Internal RAM
  • 32 Programmable I/O Lines
  • Three 16-bit Timer/Counters
  • Eight Interrupt Sources
  • Full Duplex UART Serial Channel
  • Watchdog Timer
moc3021 opto coupler
MOC3021 ( OPTO COUPLER )
  • Opto-couplers are made up of a LED and a light sensitive device, all wrapped up in one package
  • no electrical connection between the two devices
  • The light sensitive device may be a photodiode, phototransistor, or more esoteric devices such as thyristors, triacs etc.
lm 358 opamp
LM 358 (OPAMP)
  • Internally frequency compensated for unity gain.
  • Large dc voltage gain: 100 Db.
  • Wide bandwidth (unity gain): 1 MHz (temperature compensated)
  • Wide power supply range:
    • Single supply: 3V to 32V
    • or dual supplies: ±1.5V to ±16V
  • Very low supply current drain (500 µA)-essentially independent of supply voltage.
  • Low input offset voltage: 2 mV
  • Input common-mode voltage range includes ground.
  • Differential input voltage range equal to the power supply voltage.
lm 358 pin diagram
LM 358 PIN DIAGRAM
  • 1 - Output 1
  • 2 - Inverting input
  • 3 - Non-inverting input
  • 4 – VCC-
  • 5 - Non-inverting input 2
  • 6 - Inverting input 2
  • 7 - Output 2
  • 8 – VCC+
thyristor
THYRISTOR

PIN 1 -- INPUT (ANODE)

PIN 2– GATE

PIN 3-- OUTPUT (KATHODE)

MODES OF OPERATION:

In the normal "off" state, the device restricts current to the leakage current

When the gate-to-cathode voltage exceeds a certain threshold the device turns "on" and conducts current.

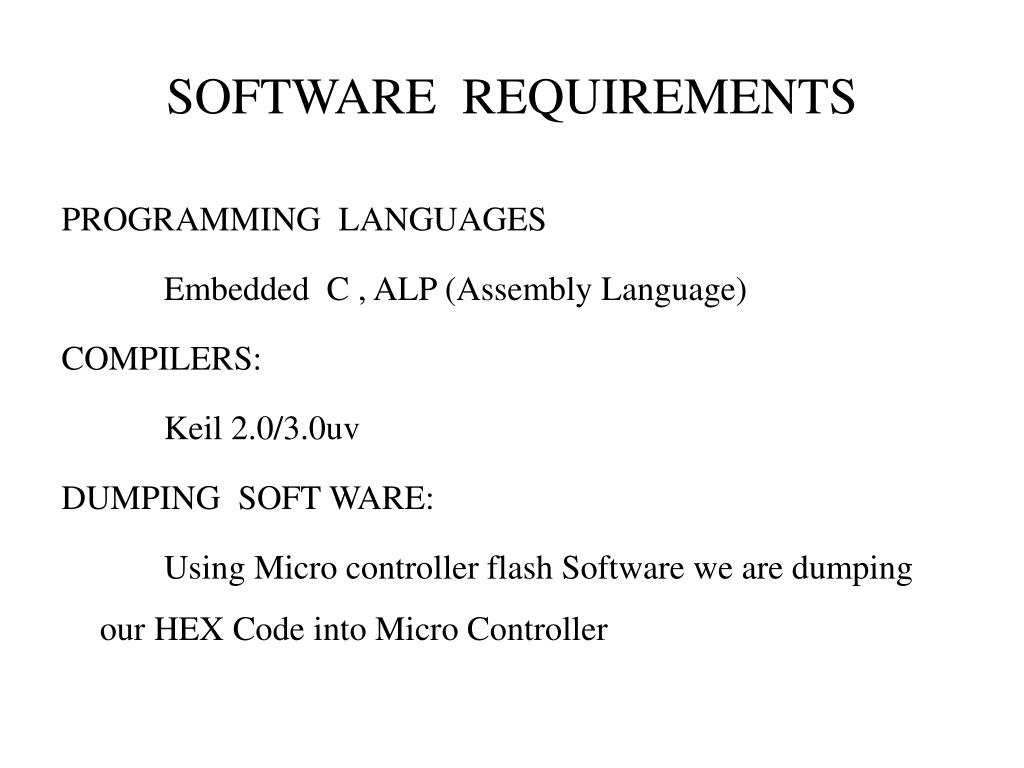

software requirements
SOFTWARE REQUIREMENTS

PROGRAMMING LANGUAGES

Embedded C , ALP (Assembly Language)

COMPILERS:

Keil 2.0/3.0uv

DUMPING SOFT WARE:

Using Micro controller flash Software we are dumping our HEX Code into Micro Controller

bibilography
BIBILOGRAPHY
  • The 8051 Microcontroller and Embedded systems” by Muhammad Ali Mazidi and Janice Gillispie Mazidi , Pearson Education.
  • ATMEL 89S52 Data Sheets.
  • www.atmel.com
  • www.beyondlogic.org
  • www.wikipedia.org
  • www.howstuffworks.com
  • www.alldatasheets.com
