  1. U.S. AIR FORCE AUXILIARY ES Aircrew2009 Update Training US National Grid Awareness Lt. Col. Stan KegelMinnesota Wing April 2009

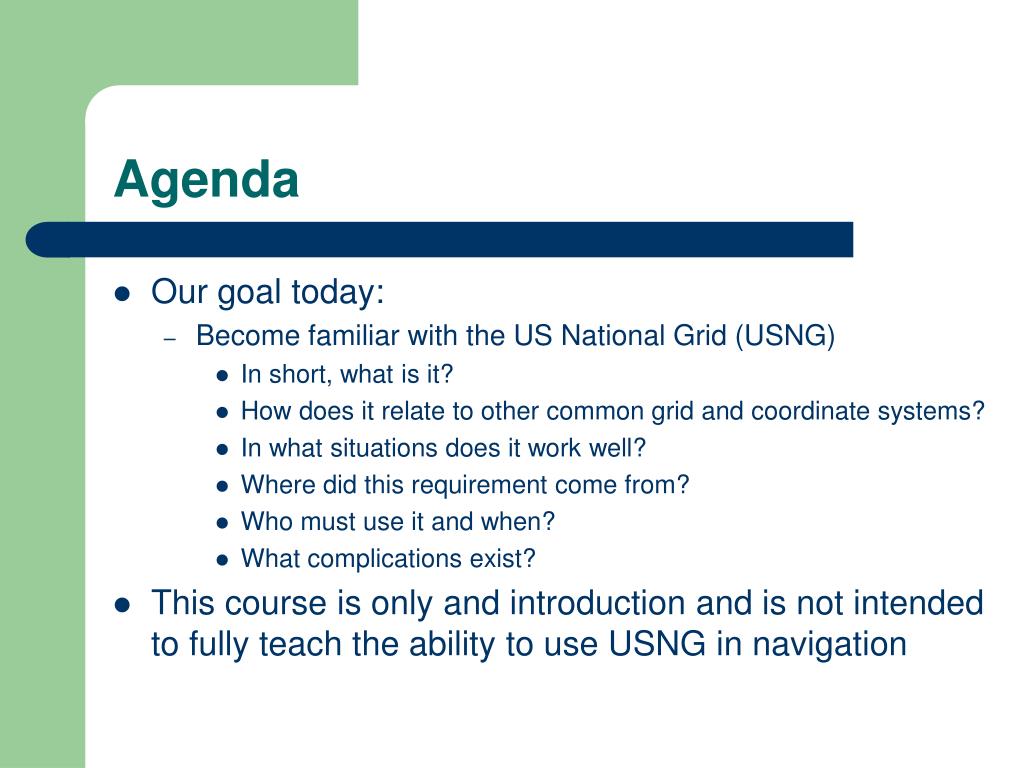

  2. Agenda • Our goal today: • Become familiar with the US National Grid (USNG) • In short, what is it? • How does it relate to other common grid and coordinate systems? • In what situations does it work well? • Where did this requirement come from? • Who must use it and when? • What complications exist? • This course is only and introduction and is not intended to fully teach the ability to use USNG in navigation

  3. What is USNG? • A GRID System • Each numbered grid describes a square area (not a point like Lat/Long) • Supports grids of many scales, from 100 km down to 1 meter (or, theoretically even smaller) • Flat, square coordinate system • Seamless with respect to political boundaries • Truncated (abbreviated) form can be used often (when context tells us what part of the country is relevant) • Based on UTM (Universal Transverse Mercator) Coordinates • USGS topographic map “Grid North” refers to the UTM (and USNG) coordinate system

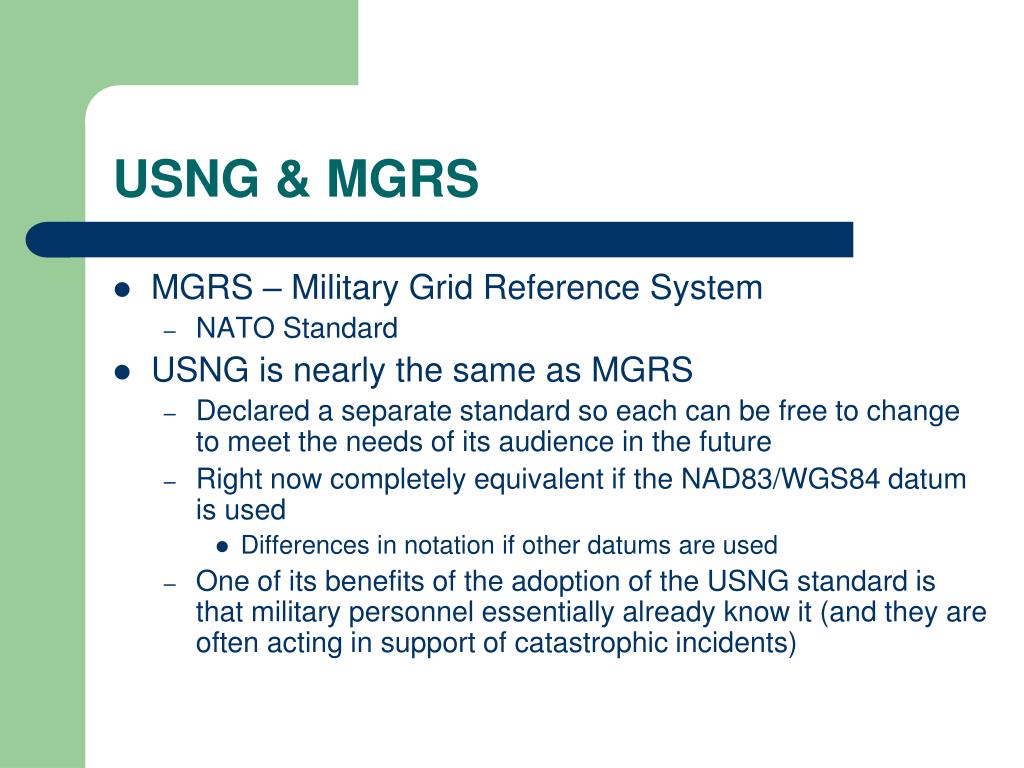

  4. USNG & MGRS • MGRS – Military Grid Reference System • NATO Standard • USNG is nearly the same as MGRS • Declared a separate standard so each can be free to change to meet the needs of its audience in the future • Right now completely equivalent if the NAD83/WGS84 datum is used • Differences in notation if other datums are used • One of its benefits of the adoption of the USNG standard is that military personnel essentially already know it (and they are often acting in support of catastrophic incidents)

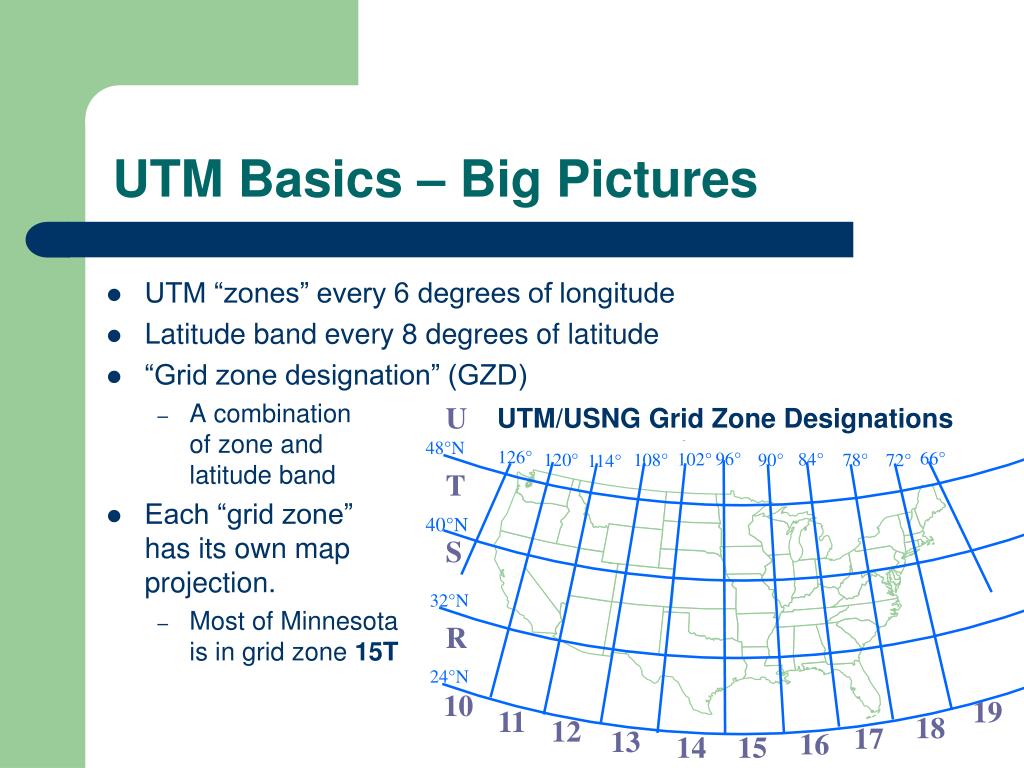

  5. UTM Basics – Big Pictures • UTM “zones” every 6 degrees of longitude • Latitude band every 8 degrees of latitude • “Grid zone designation” (GZD) • A combination of zone andlatitude band • Each “grid zone” has its own map projection. • Most of Minnesota is in grid zone 15T U UTM/USNG Grid Zone Designations 48°N 126° 66° 96° 102° 84° 120° 108° 90° 78° 72° 114° T 40°N S 32°N R 24°N 10 19 11 18 12 17 13 16 14 15 08/27/98

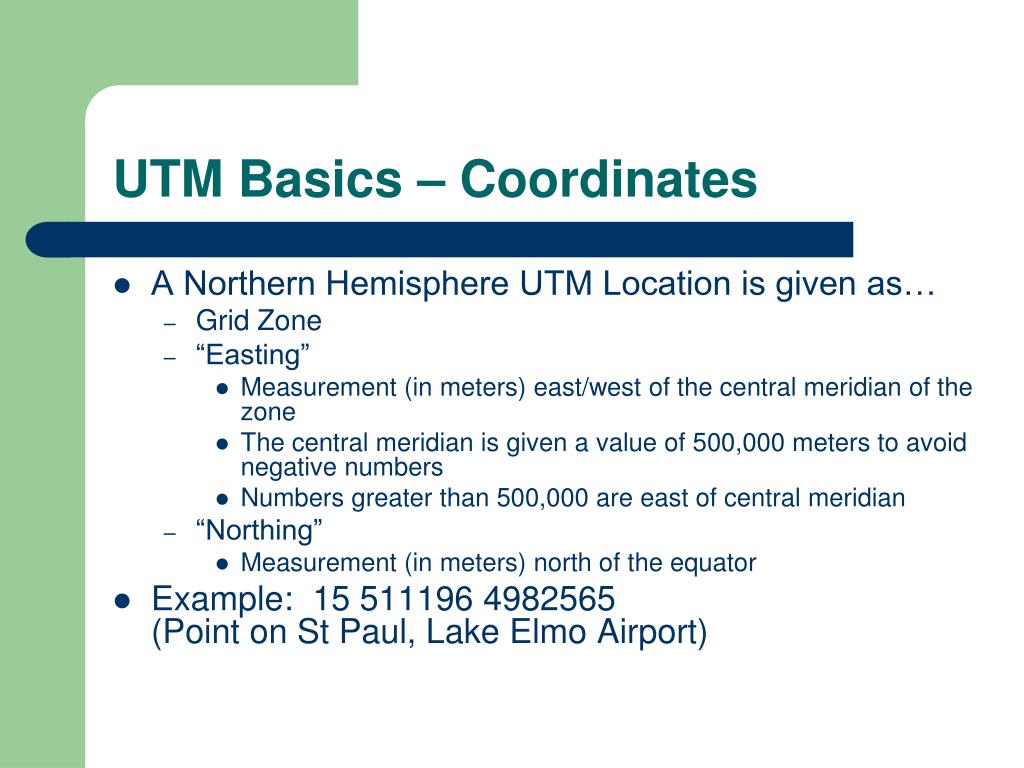

  6. UTM Basics – Coordinates • A Northern Hemisphere UTM Location is given as… • Grid Zone • “Easting” • Measurement (in meters) east/west of the central meridian of the zone • The central meridian is given a value of 500,000 meters to avoid negative numbers • Numbers greater than 500,000 are east of central meridian • “Northing” • Measurement (in meters) north of the equator • Example: 15 511196 4982565 (Point on St Paul, Lake Elmo Airport)

  7. USNG Grids – Differences from UTM • Grid zones broken up into “100,000 m Squares” • Caveat: On the edges of the Grid zone, the 100,000 m squares are not square. • Each “Square” is given a two letter “ID” • The IDs are arranged so that the same ID occurs only a few times in the country and always a long way away • This allows for “truncated” grid references (i.e. omitting the GZD and the 100,000 m Square ID) • The use of 100,000 m Squares means that we don’t need the first 2 digits of the UTM Northing and the 1st digit of the UTM Easting, so these digits are omitted from USNG grid coordinates

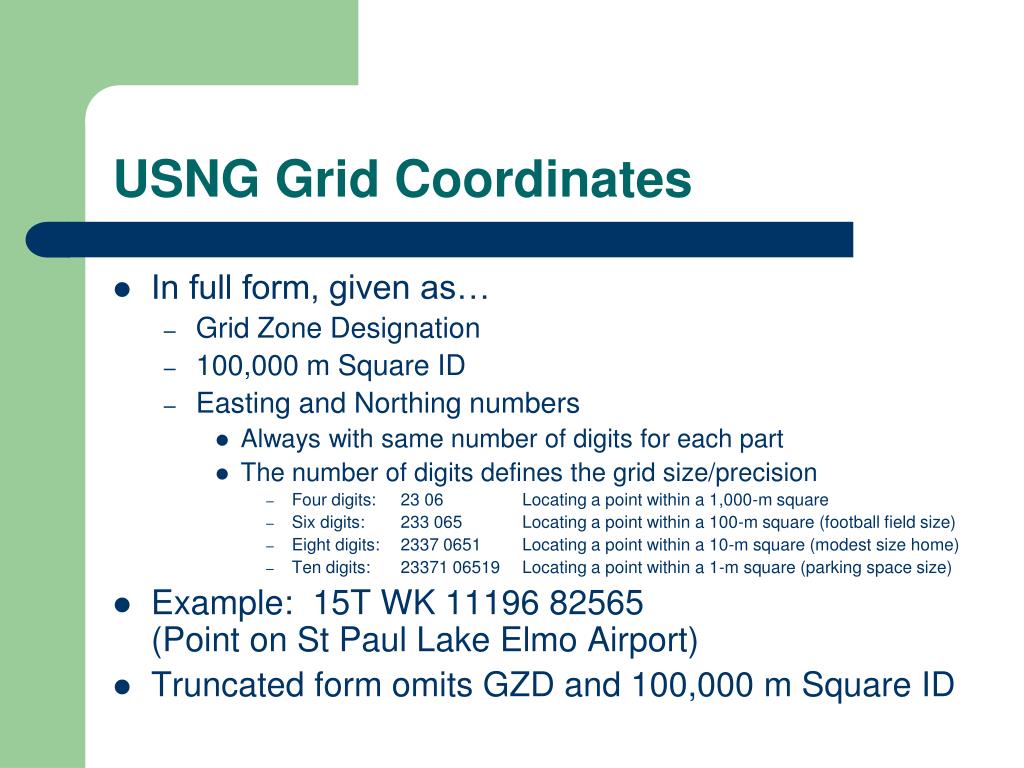

  8. USNG Grid Coordinates • In full form, given as… • Grid Zone Designation • 100,000 m Square ID • Easting and Northing numbers • Always with same number of digits for each part • The number of digits defines the grid size/precision • Four digits: 23 06 Locating a point within a 1,000-m square • Six digits: 233 065 Locating a point within a 100-m square (football field size) • Eight digits: 2337 0651 Locating a point within a 10-m square (modest size home) • Ten digits: 23371 06519 Locating a point within a 1-m square (parking space size) • Example: 15T WK 11196 82565 (Point on St Paul Lake Elmo Airport) • Truncated form omits GZD and 100,000 m Square ID

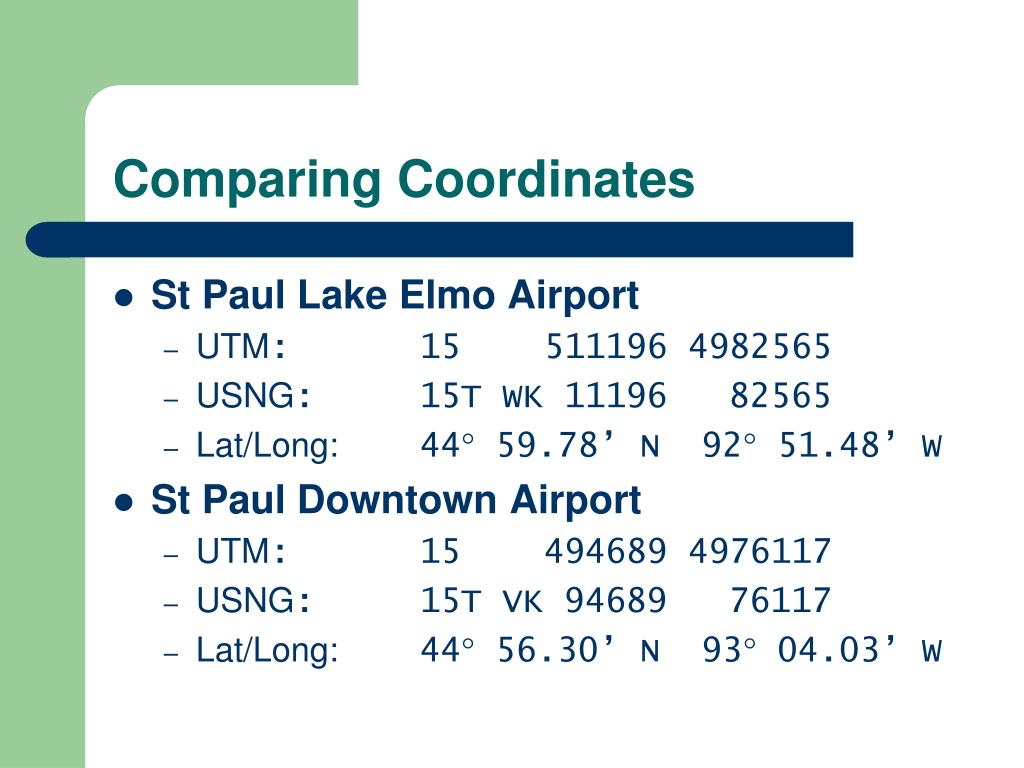

  9. Comparing Coordinates • St Paul Lake Elmo Airport • UTM: 15 511196 4982565 • USNG: 15T WK 11196 82565 • Lat/Long: 44 59.78’ N 92 51.48’ W • St Paul Downtown Airport • UTM: 15 494689 4976117 • USNG: 15T VK 94689 76117 • Lat/Long: 44 56.30’ N 93 04.03’ W

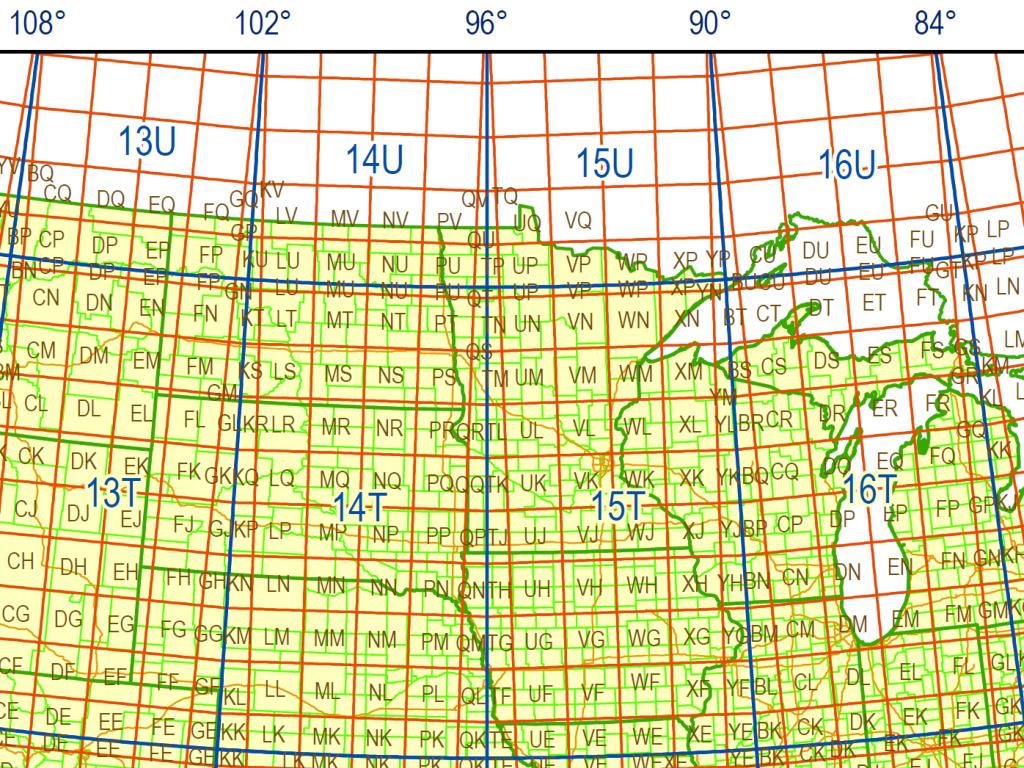

  10. USNG – Minnesota

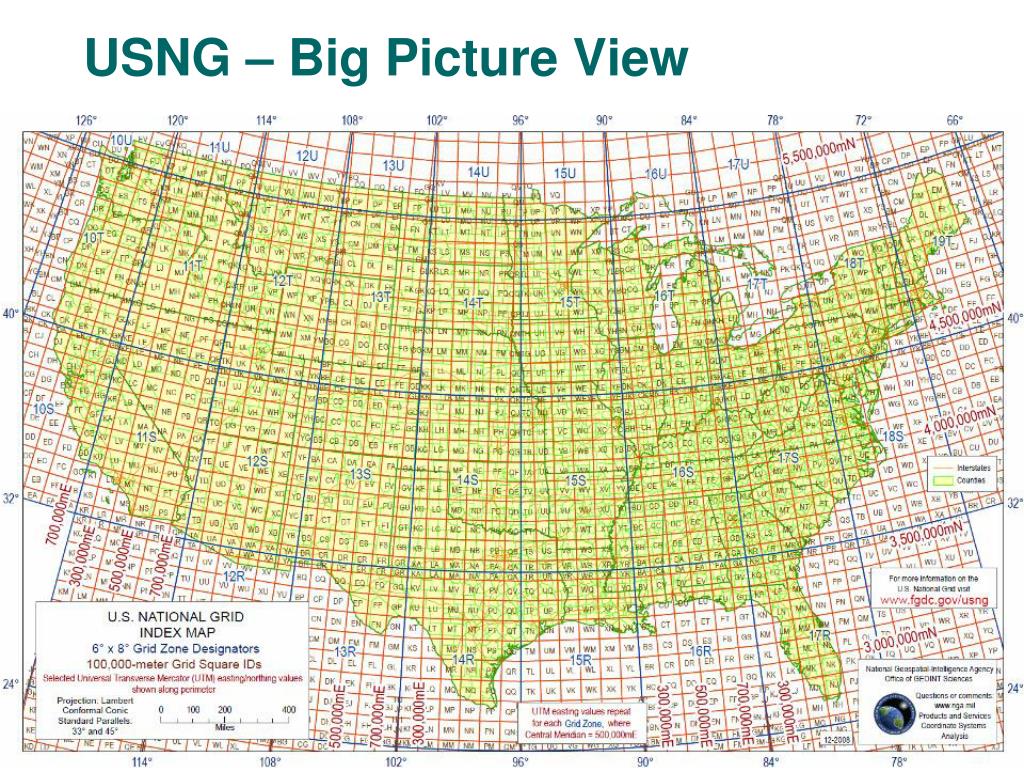

  11. USNG – Big Picture View

  12. Strengths • For terrestrial navigation • Not for aeronautical/maritime use • Works best over relatively small areas • The land can be modeled reasonably as a flat area when working in small areas

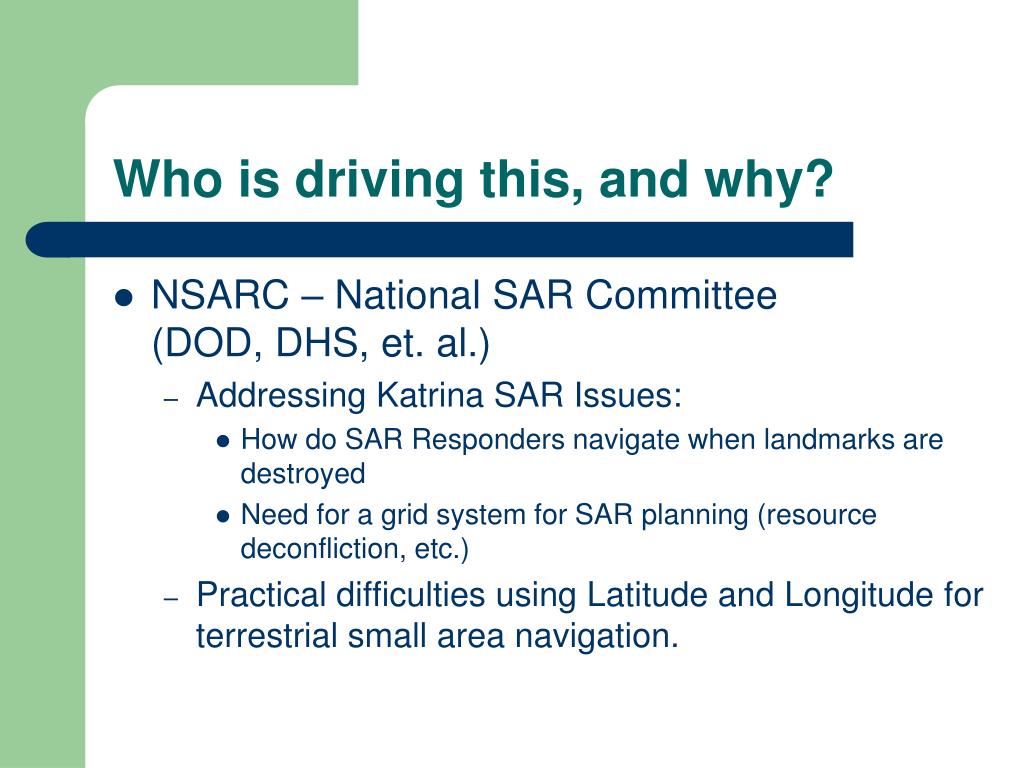

  13. Who is driving this, and why? • NSARC – National SAR Committee (DOD, DHS, et. al.) • Addressing Katrina SAR Issues: • How do SAR Responders navigate when landmarks are destroyed • Need for a grid system for SAR planning (resource deconfliction, etc.) • Practical difficulties using Latitude and Longitude for terrestrial small area navigation.

  14. USNG: What scenarios are driving this? • “Catastrophic Incident” SAR • Think Hurricane Katrina • Think 35W Bridge Collapse

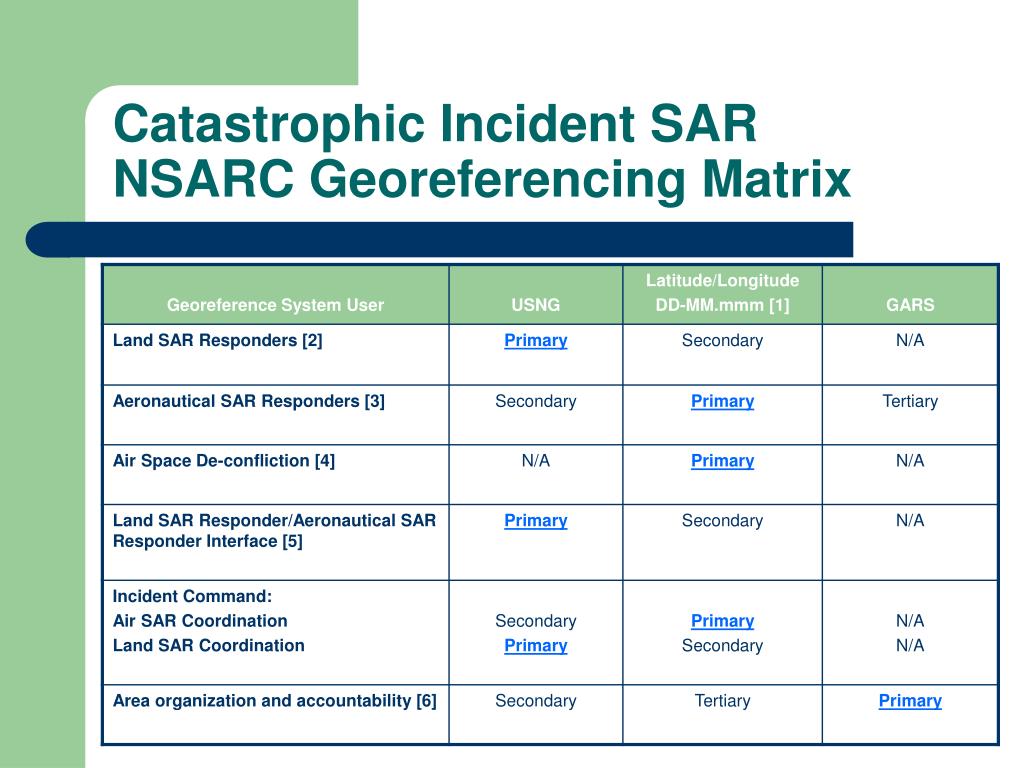

  15. Catastrophic Incident SARNSARC Georeferencing Matrix

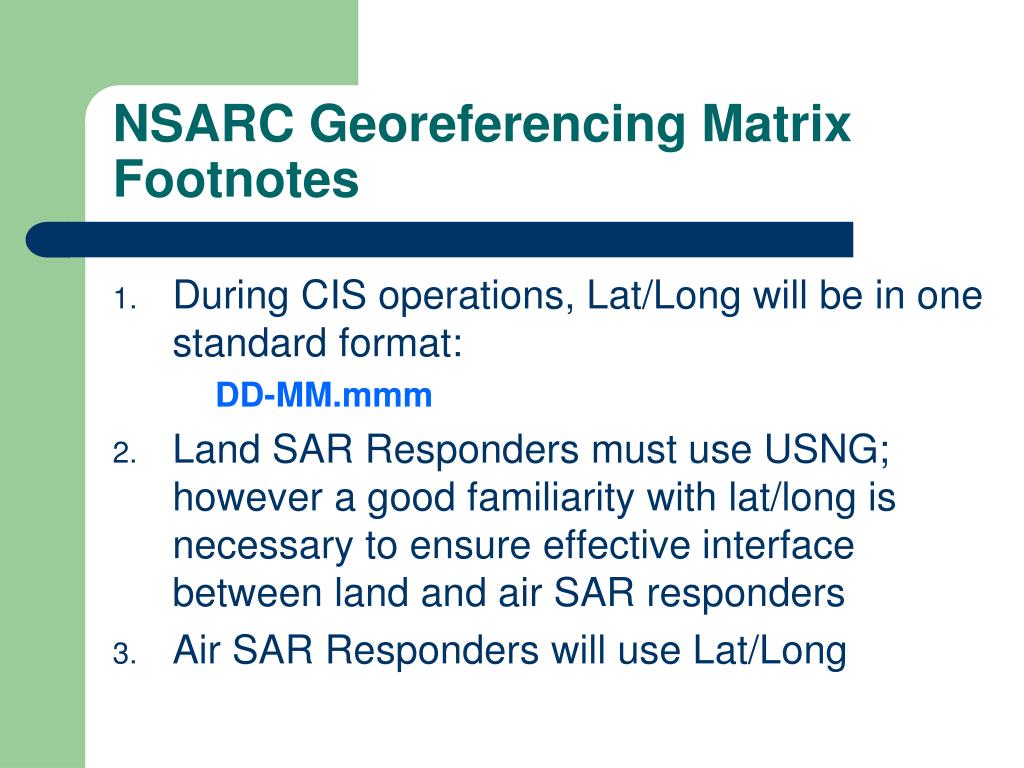

  16. NSARC Georeferencing Matrix Footnotes • During CIS operations, Lat/Long will be in one standard format: DD-MM.mmm • Land SAR Responders must use USNG; however a good familiarity with lat/long is necessary to ensure effective interface between land and air SAR responders • Air SAR Responders will use Lat/Long

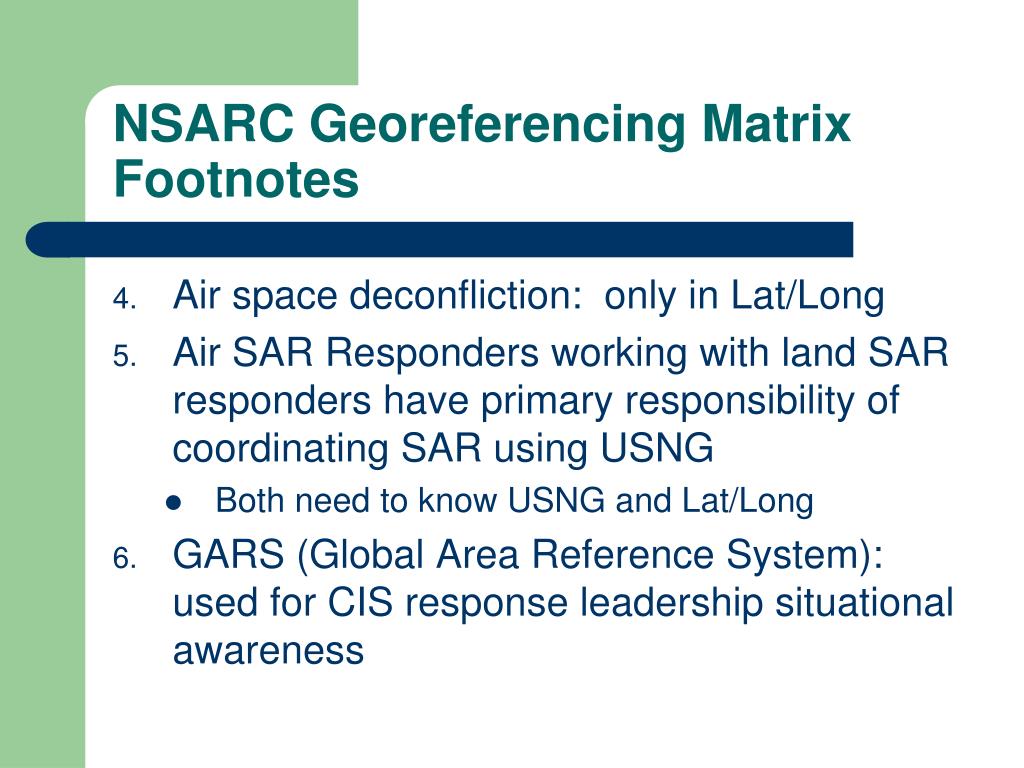

  17. NSARC Georeferencing Matrix Footnotes • Air space deconfliction: only in Lat/Long • Air SAR Responders working with land SAR responders have primary responsibility of coordinating SAR using USNG • Both need to know USNG and Lat/Long • GARS (Global Area Reference System): used for CIS response leadership situational awareness

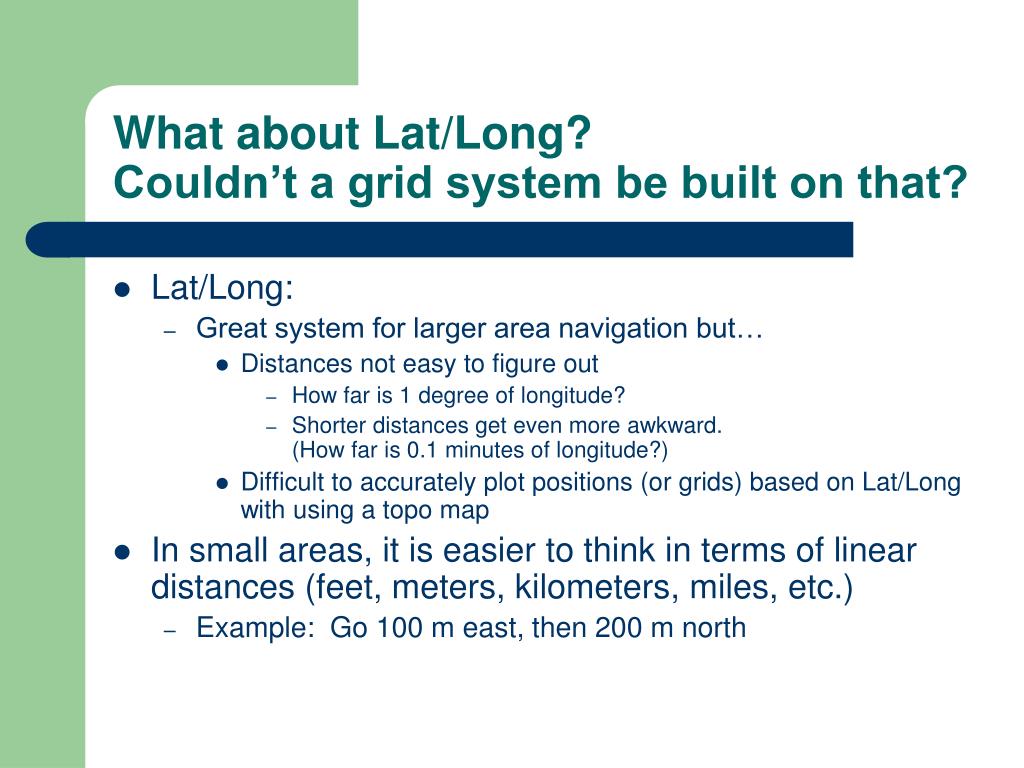

  18. What about Lat/Long?Couldn’t a grid system be built on that? • Lat/Long: • Great system for larger area navigation but… • Distances not easy to figure out • How far is 1 degree of longitude? • Shorter distances get even more awkward. (How far is 0.1 minutes of longitude?) • Difficult to accurately plot positions (or grids) based on Lat/Long with using a topo map • In small areas, it is easier to think in terms of linear distances (feet, meters, kilometers, miles, etc.) • Example: Go 100 m east, then 200 m north

  19. Would a scrolling-map GPS device solve the problem? • GPS devices are great for providing position info … in a variety of possible display formats • Lat/Long (DD MM.mmm, DD MM SS.s, …) • UTM • USNG • etc. • They are horrible maps, however

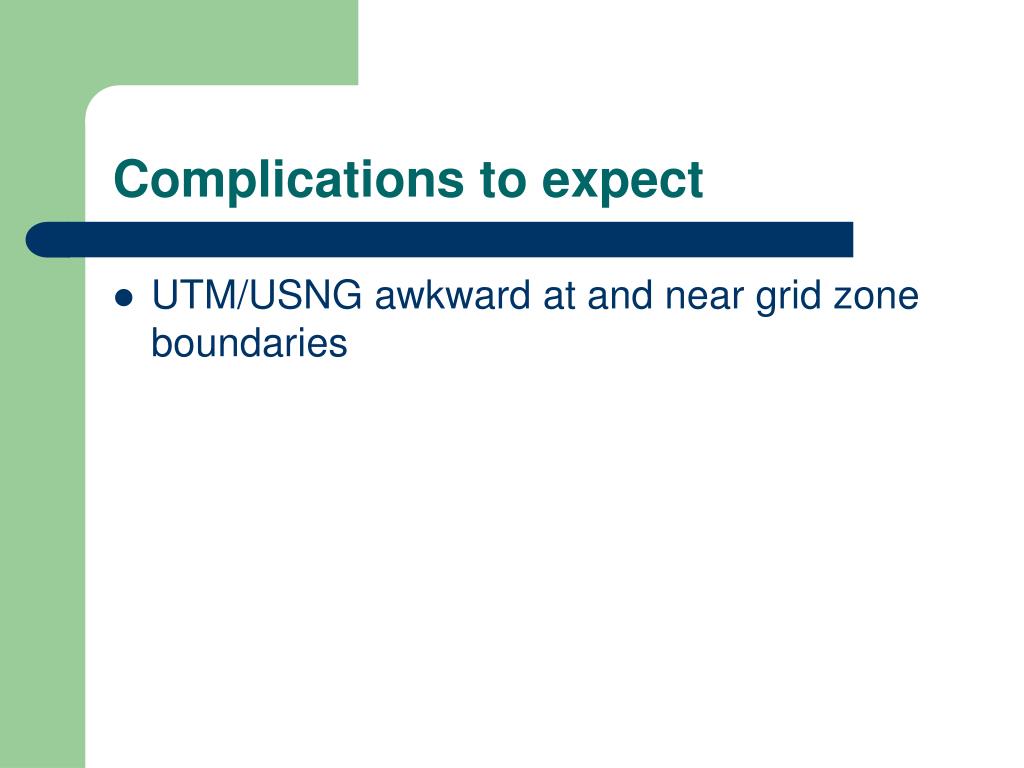

  20. Complications to expect • UTM/USNG awkward at and near grid zone boundaries

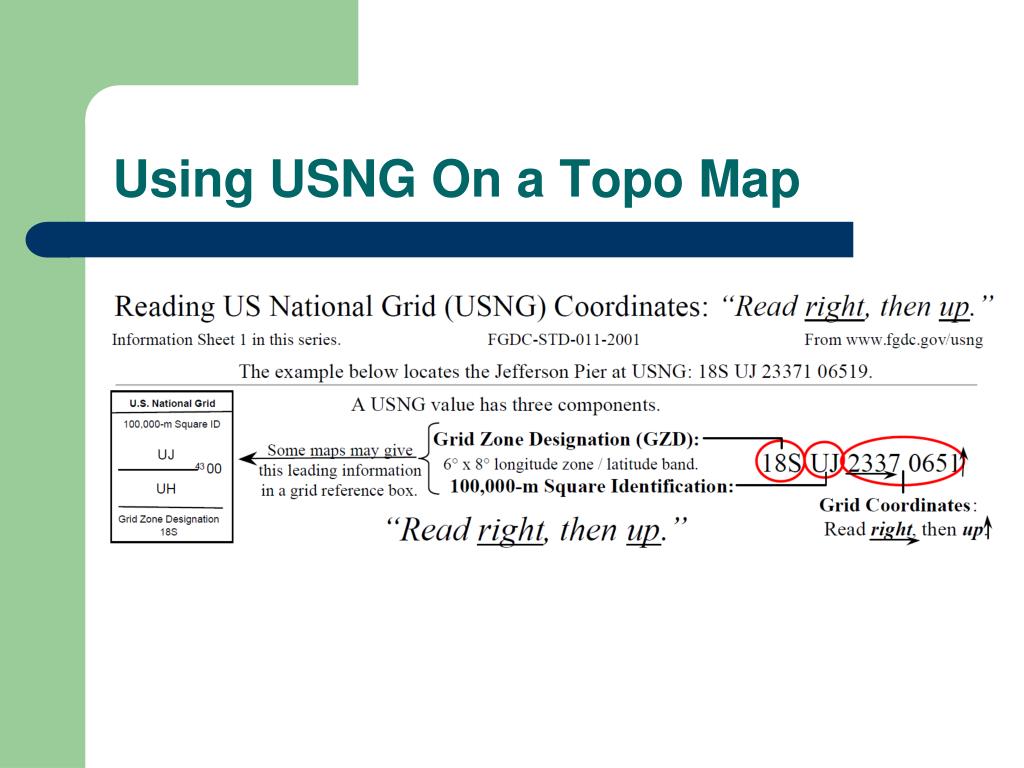

  21. Using USNG On a Topo Map

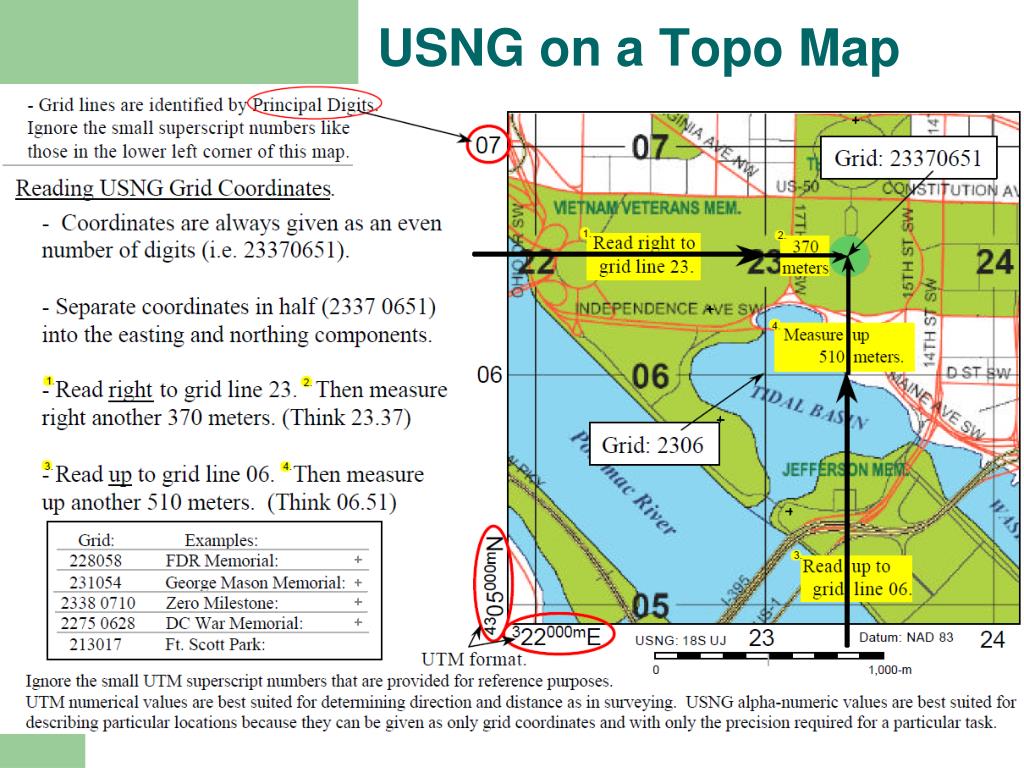

  22. USNG on a Topo Map

  23. Plotter for Use for USNGOn Topo Maps

  24. The Example on the Big-Picture

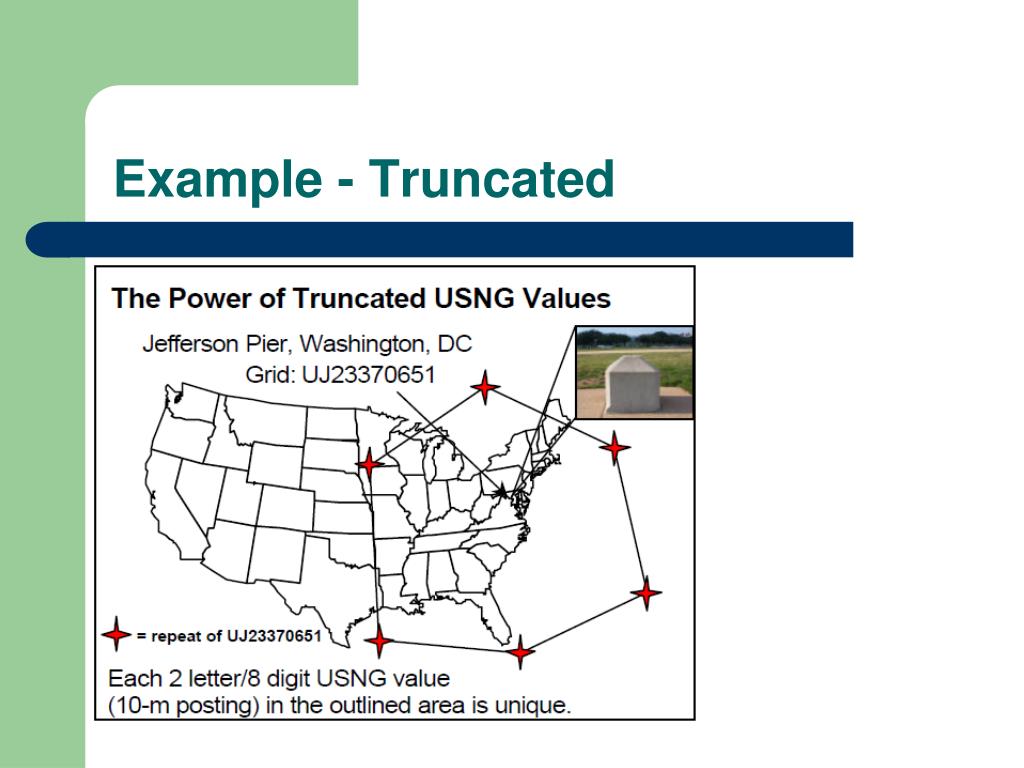

  25. Example - Truncated

  26. Questions
