  1. Perspectives in Designing and Operating a Regional Ammonia Monitoring NetworkGary LearUSEPAClean Air Markets Division

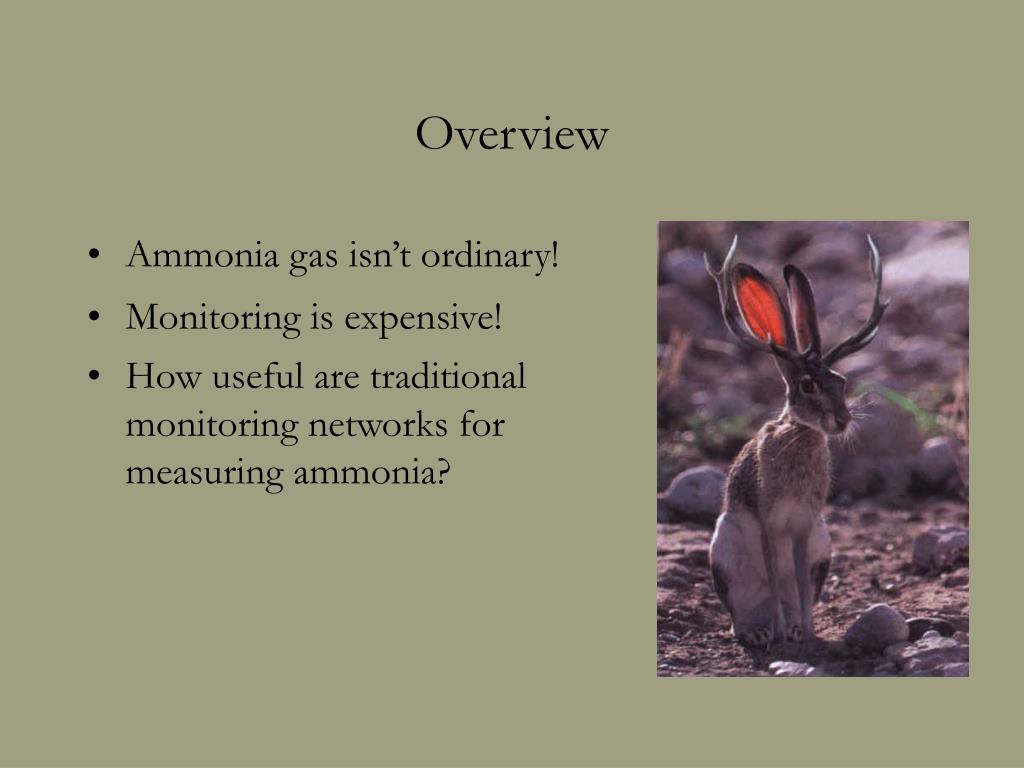

  2. Overview • Ammonia gas isn’t ordinary! • Monitoring is expensive! • How useful are traditional monitoring networks for measuring ammonia?

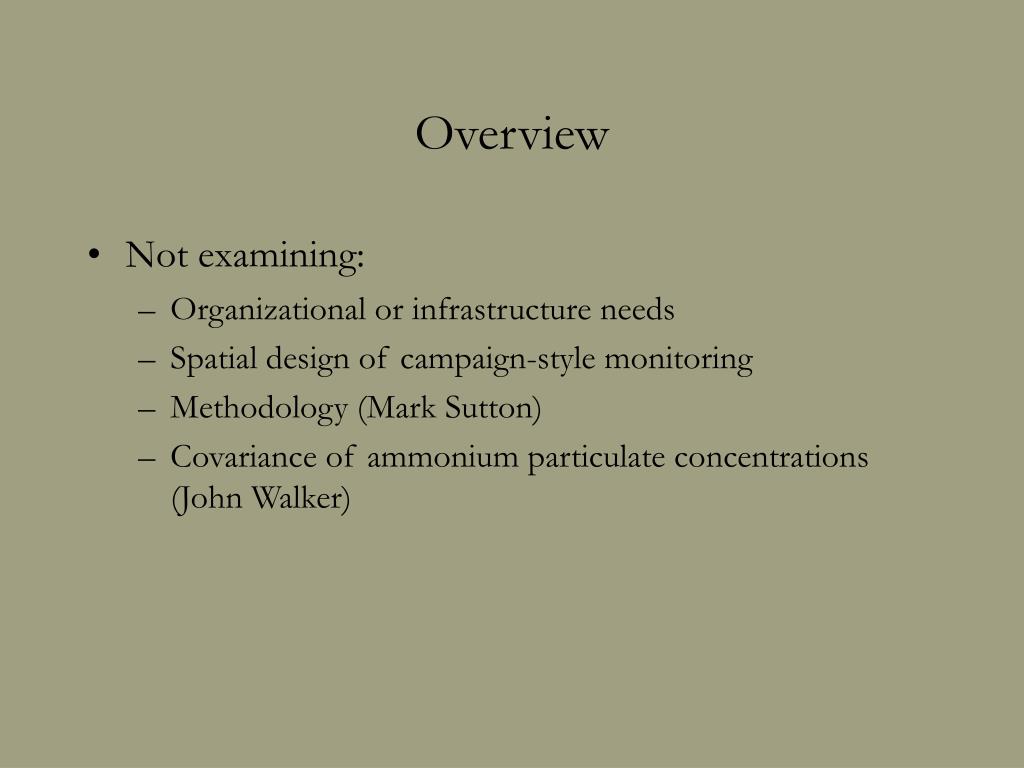

  3. Overview • Not examining: • Organizational or infrastructure needs • Spatial design of campaign-style monitoring • Methodology (Mark Sutton) • Covariance of ammonium particulate concentrations (John Walker)

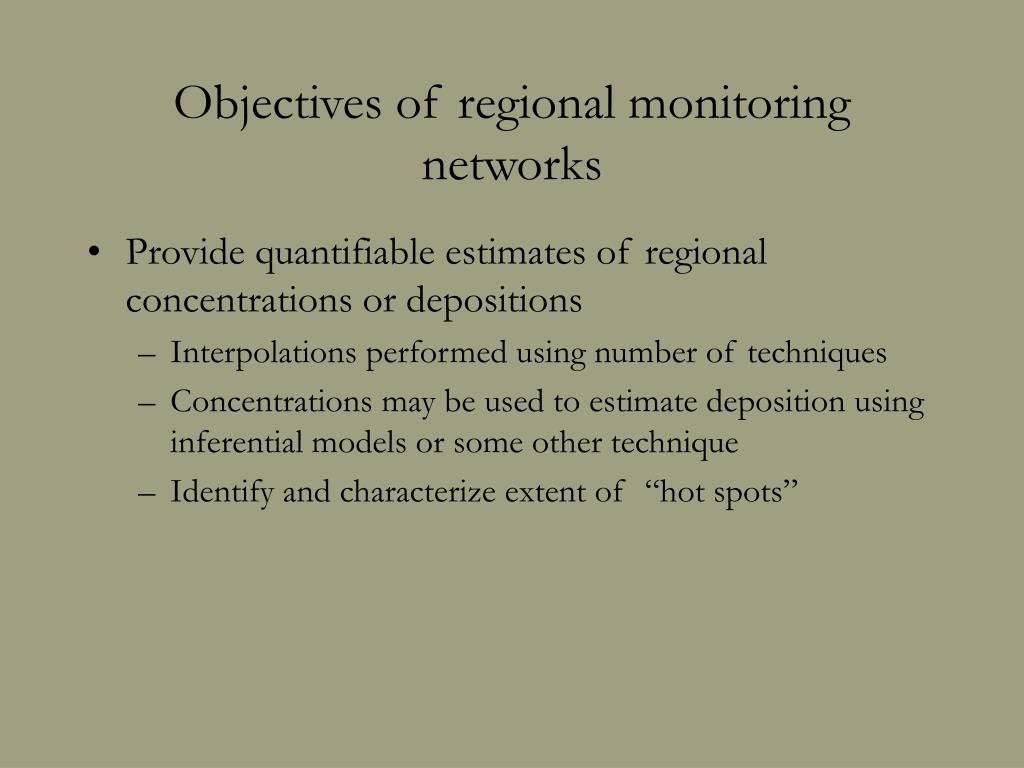

  4. Objectives of regional monitoring networks • Provide quantifiable estimates of regional concentrations or depositions • Interpolations performed using number of techniques • Concentrations may be used to estimate deposition using inferential models or some other technique • Identify and characterize extent of “hot spots”

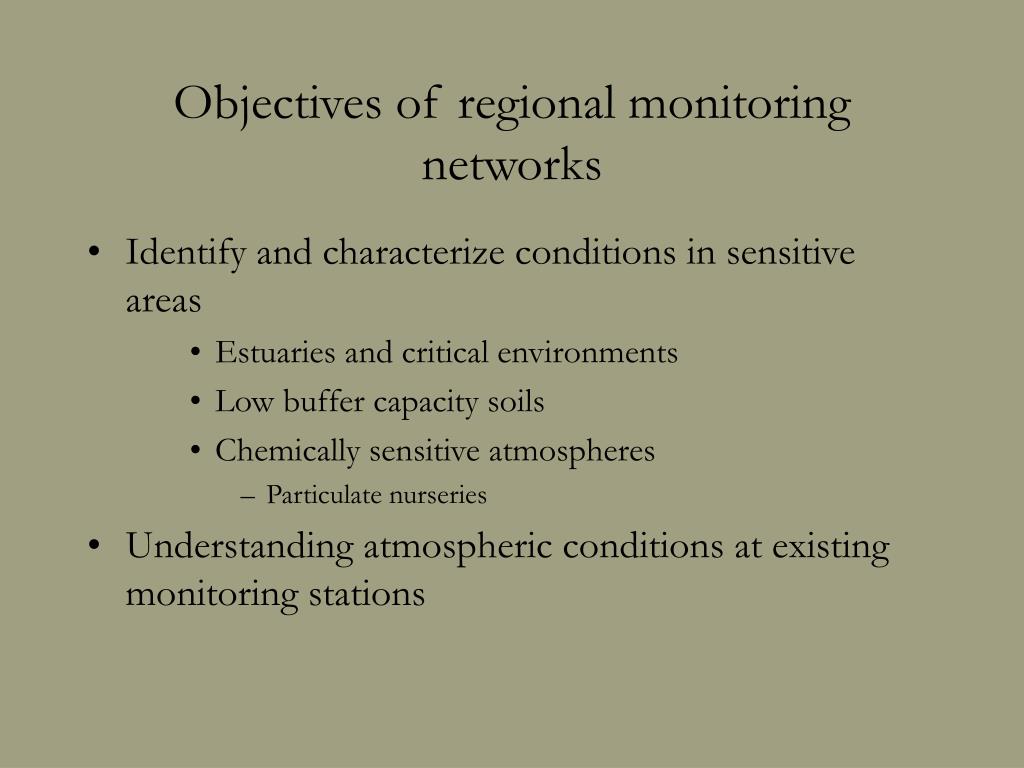

  5. Objectives of regional monitoring networks • Identify and characterize conditions in sensitive areas • Estuaries and critical environments • Low buffer capacity soils • Chemically sensitive atmospheres • Particulate nurseries • Understanding atmospheric conditions at existing monitoring stations

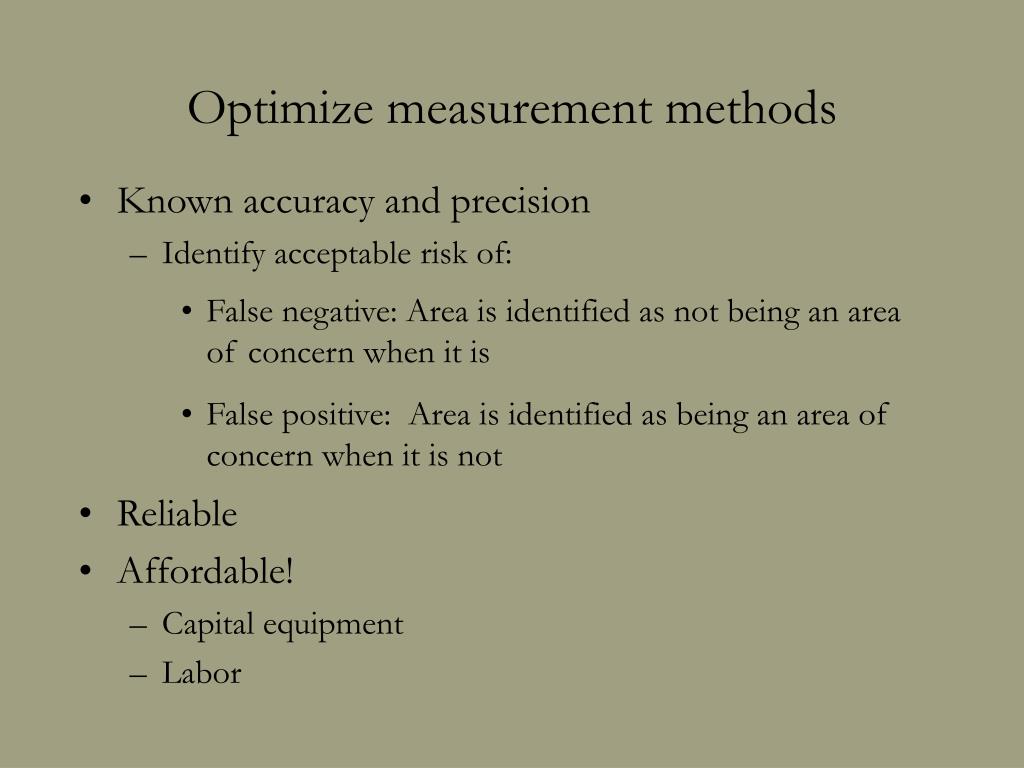

  6. Optimize measurement methods • Known accuracy and precision • Identify acceptable risk of: • False negative: Area is identified as not being an area of concern when it is • False positive: Area is identified as being an area of concern when it is not • Reliable • Affordable! • Capital equipment • Labor

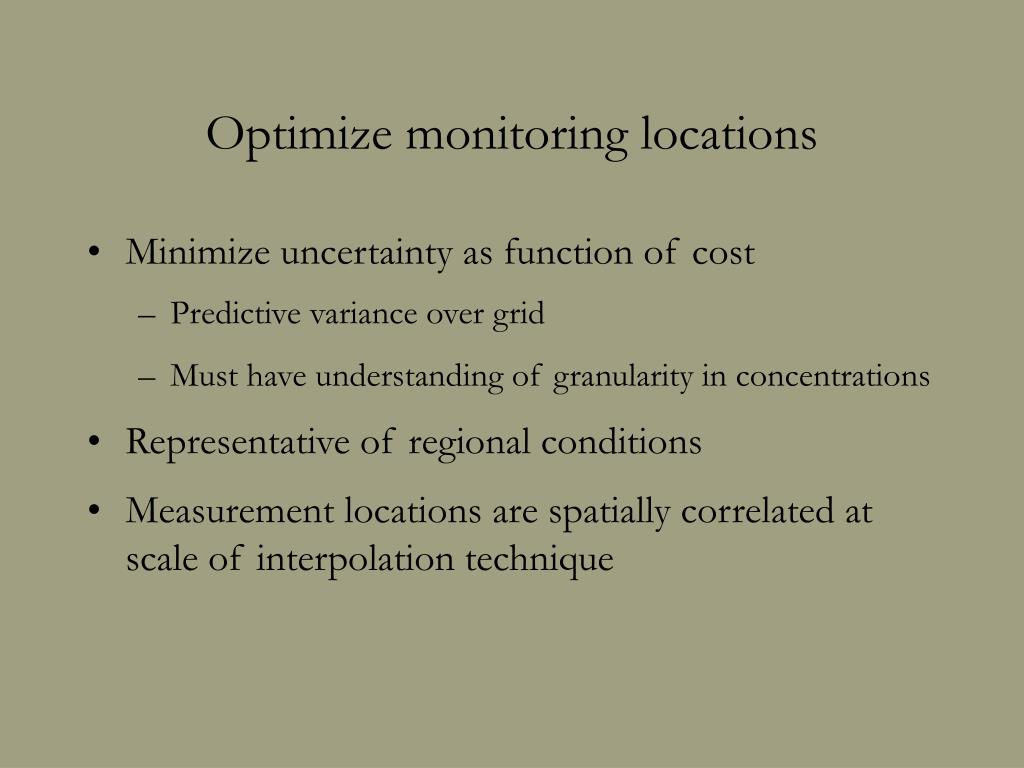

  7. Optimize monitoring locations • Minimize uncertainty as function of cost • Predictive variance over grid • Must have understanding of granularity in concentrations • Representative of regional conditions • Measurement locations are spatially correlated at scale of interpolation technique

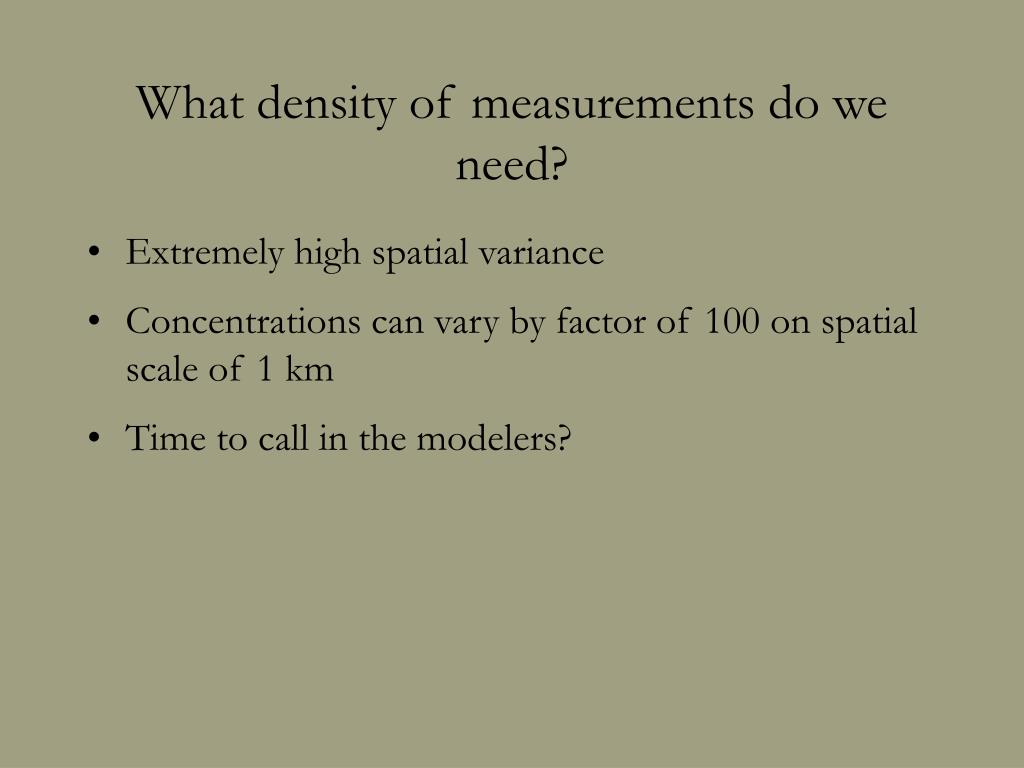

  8. What density of measurements do we need? • Extremely high spatial variance • Concentrations can vary by factor of 100 on spatial scale of 1 km • Time to call in the modelers?

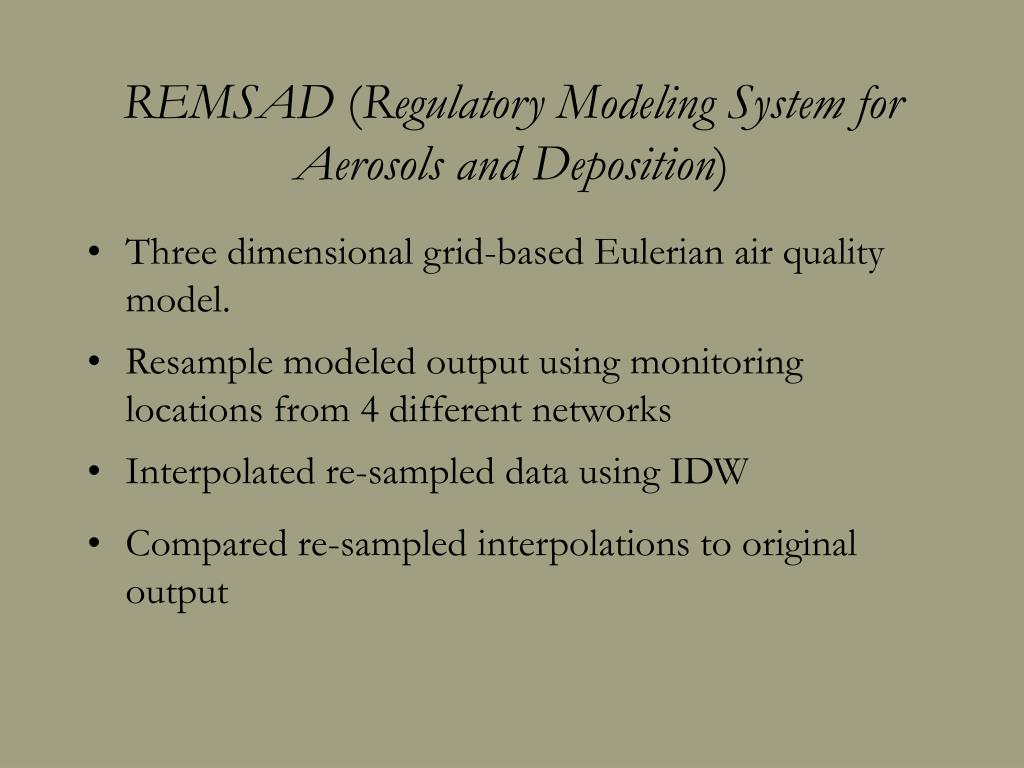

  9. REMSAD (Regulatory Modeling System for Aerosols and Deposition) • Three dimensional grid-based Eulerian air quality model. • Resample modeled output using monitoring locations from 4 different networks • Interpolated re-sampled data using IDW • Compared re-sampled interpolations to original output

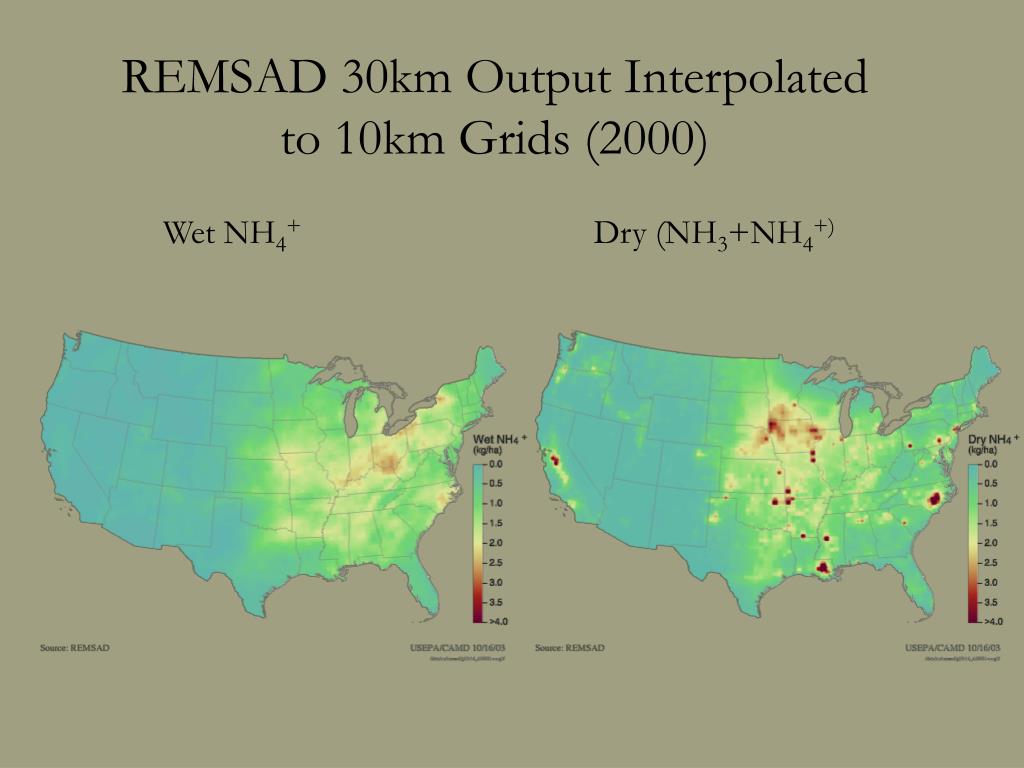

  10. REMSAD 30km Output Interpolated to 10km Grids (2000) Wet NH4+ Dry (NH3+NH4+)

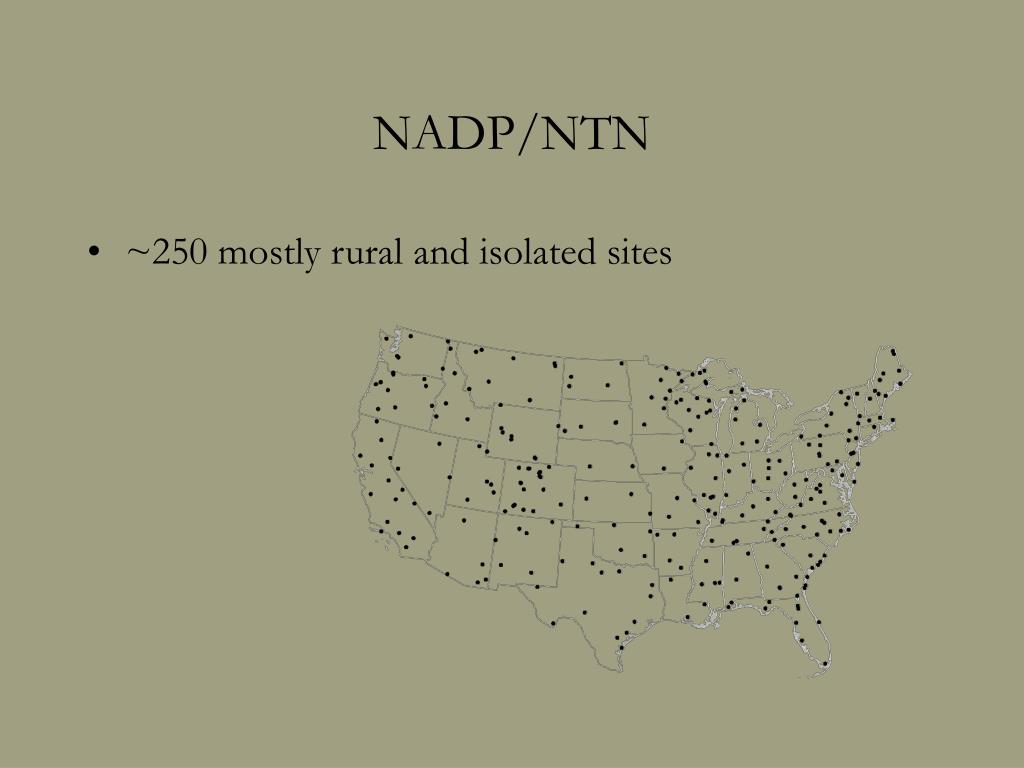

  11. NADP/NTN • ~250 mostly rural and isolated sites

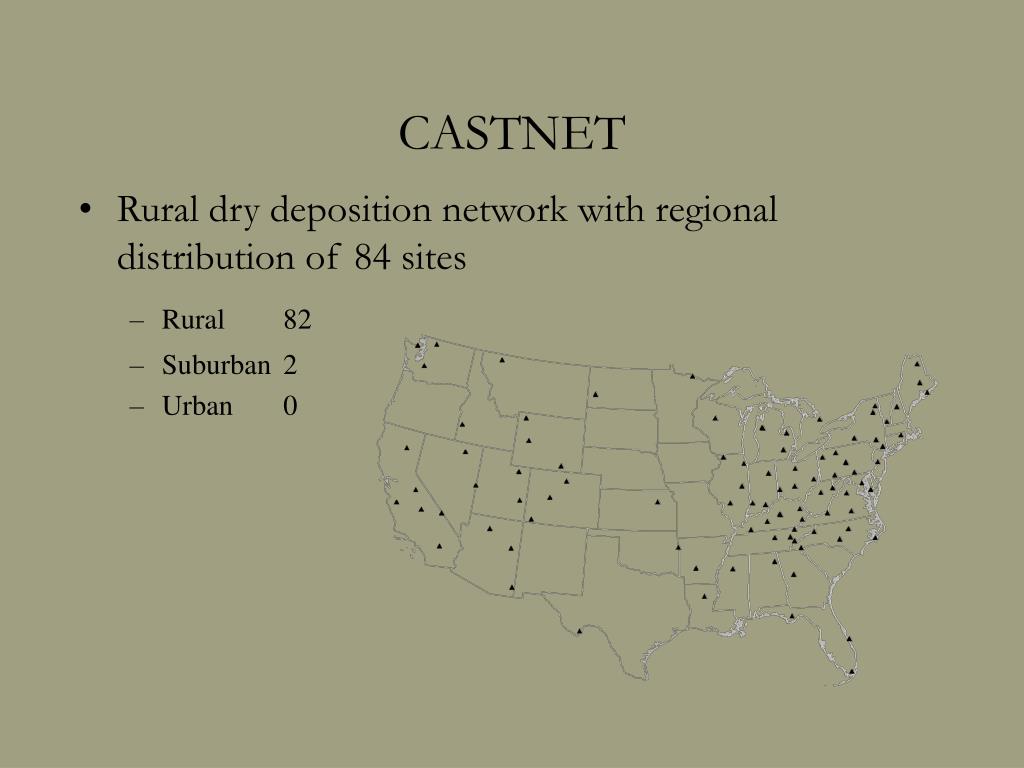

  12. CASTNET • Rural dry deposition network with regional distribution of 84 sites • Rural 82 • Suburban 2 • Urban 0

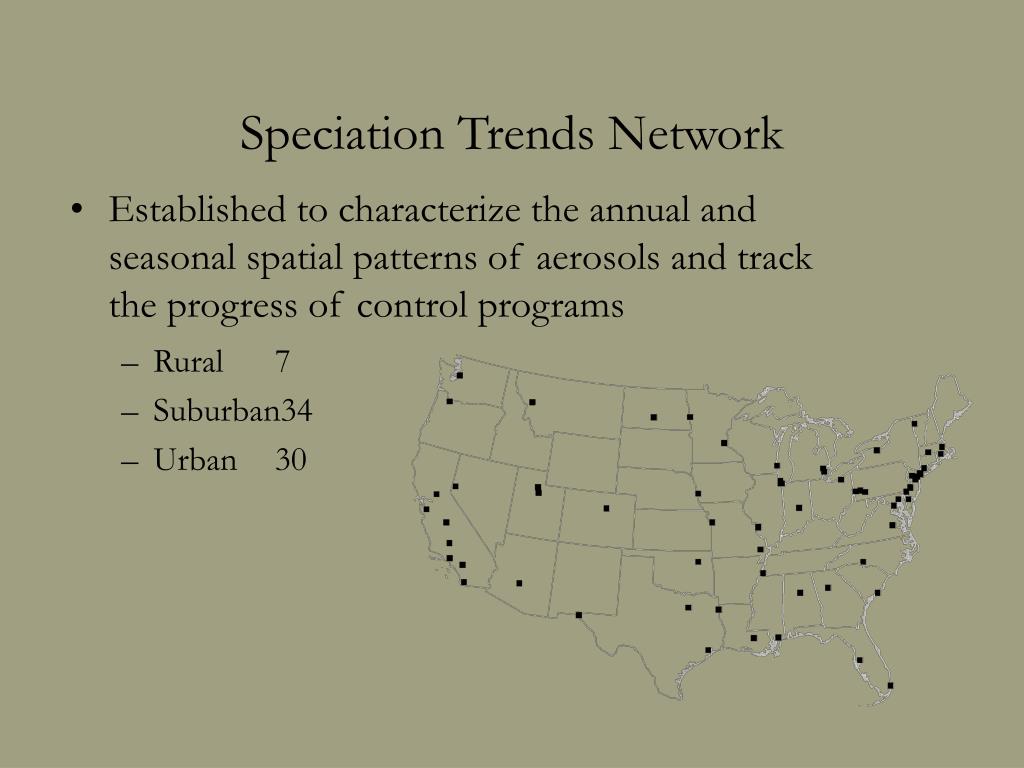

  13. Speciation Trends Network • Established to characterize the annual and seasonal spatial patterns of aerosols and track the progress of control programs • Rural 7 • Suburban34 • Urban 30

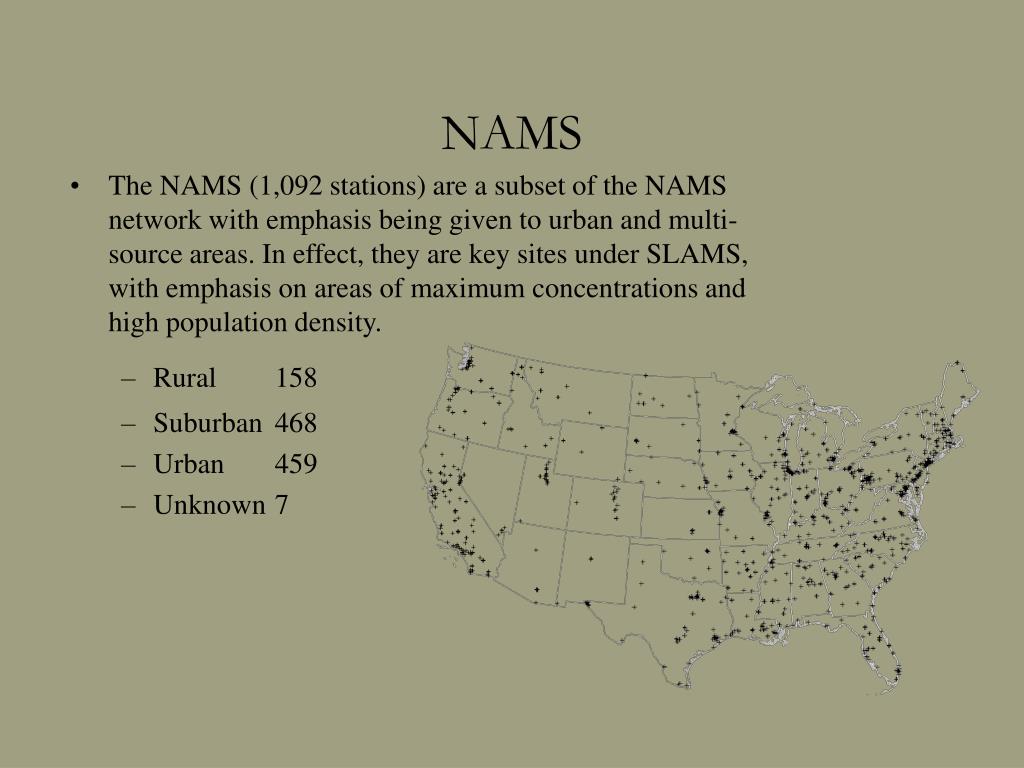

  14. NAMS • The NAMS (1,092 stations) are a subset of the NAMS network with emphasis being given to urban and multi-source areas. In effect, they are key sites under SLAMS, with emphasis on areas of maximum concentrations and high population density. • Rural 158 • Suburban 468 • Urban 459 • Unknown 7

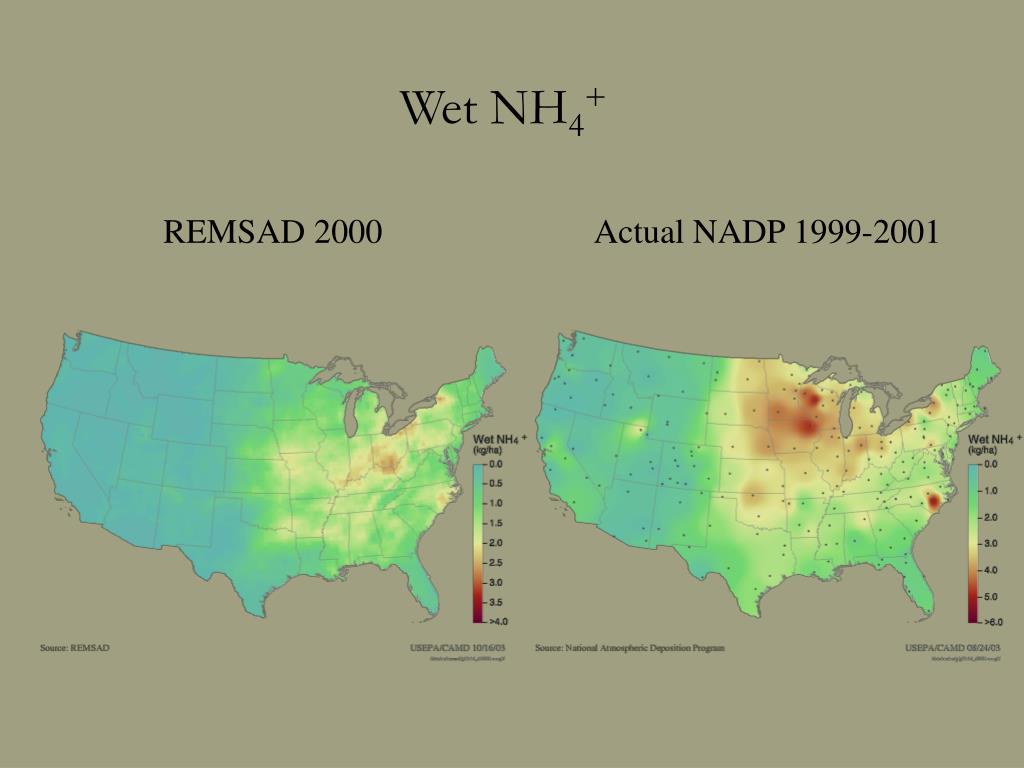

  15. Wet NH4+ REMSAD 2000 Actual NADP 1999-2001

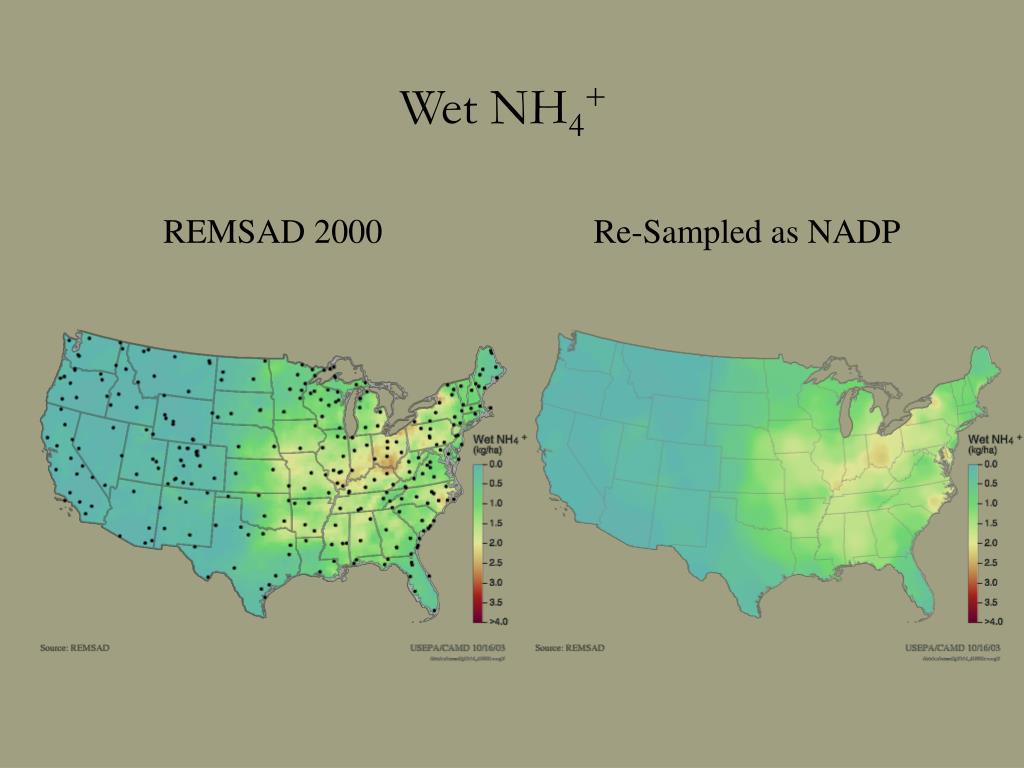

  16. Wet NH4+ REMSAD 2000 Re-Sampled as NADP

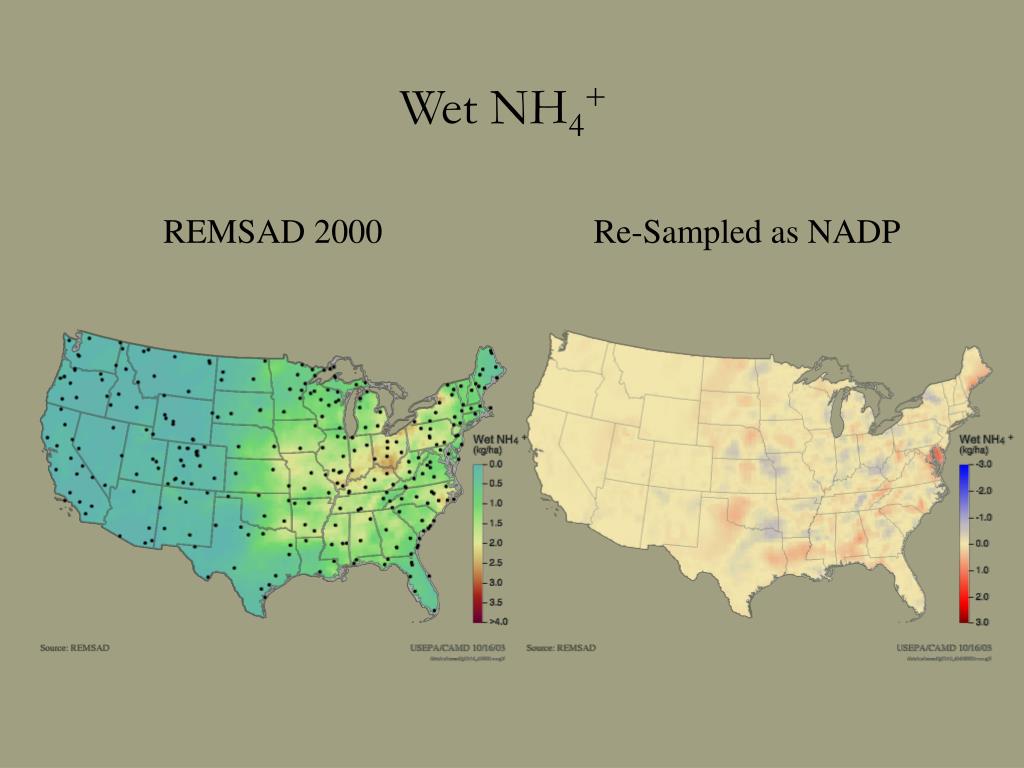

  17. Wet NH4+ REMSAD 2000 Re-Sampled as NADP

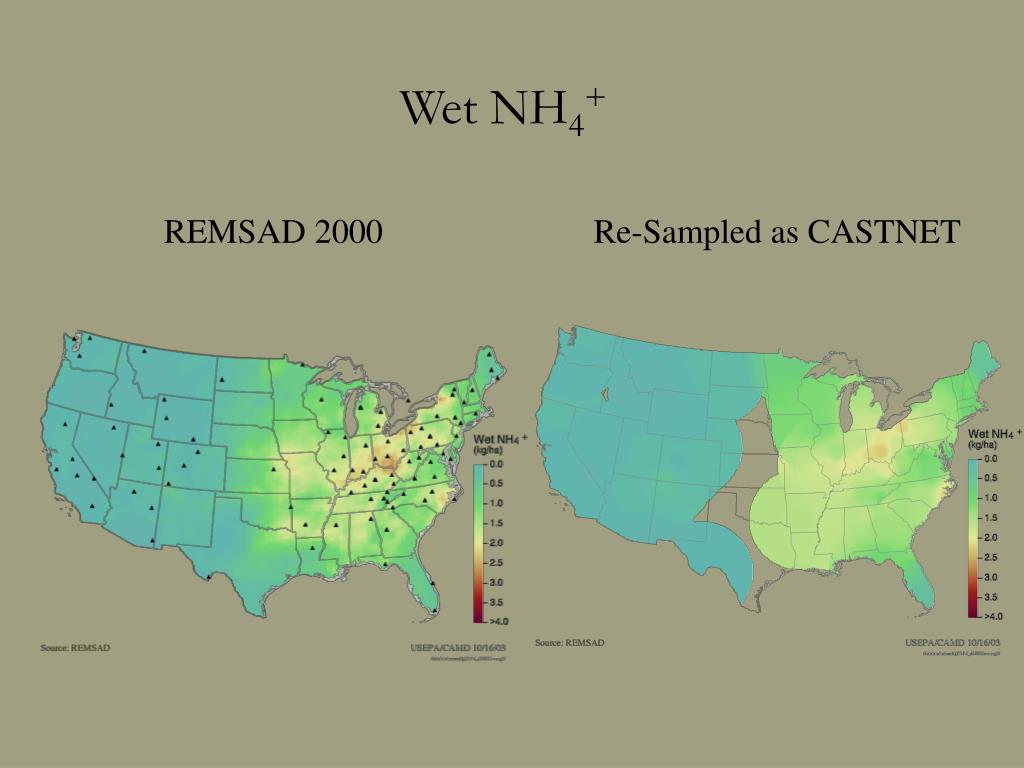

  18. REMSAD 2000 Wet NH4+ Re-Sampled as CASTNET

  19. REMSAD 2000 Wet NH4+ Re-Sampled as CASTNET

  20. REMSAD 2000 Wet NH4+ Re-Sampled as STN

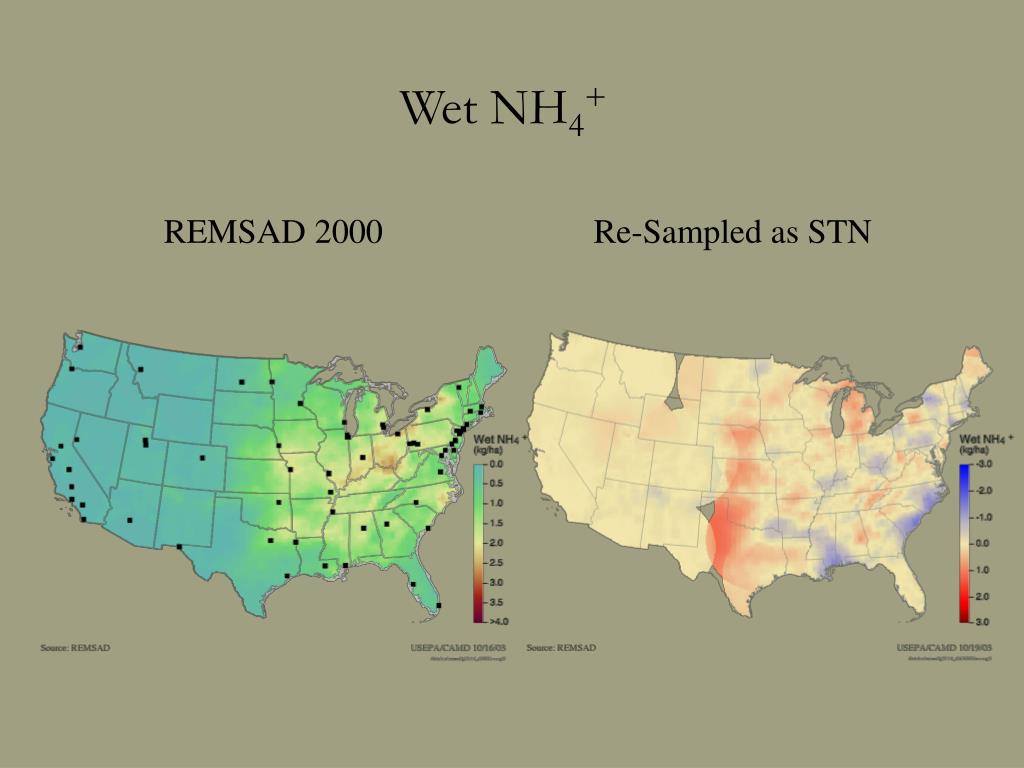

  21. REMSAD 2000 Wet NH4+ Re-Sampled as STN

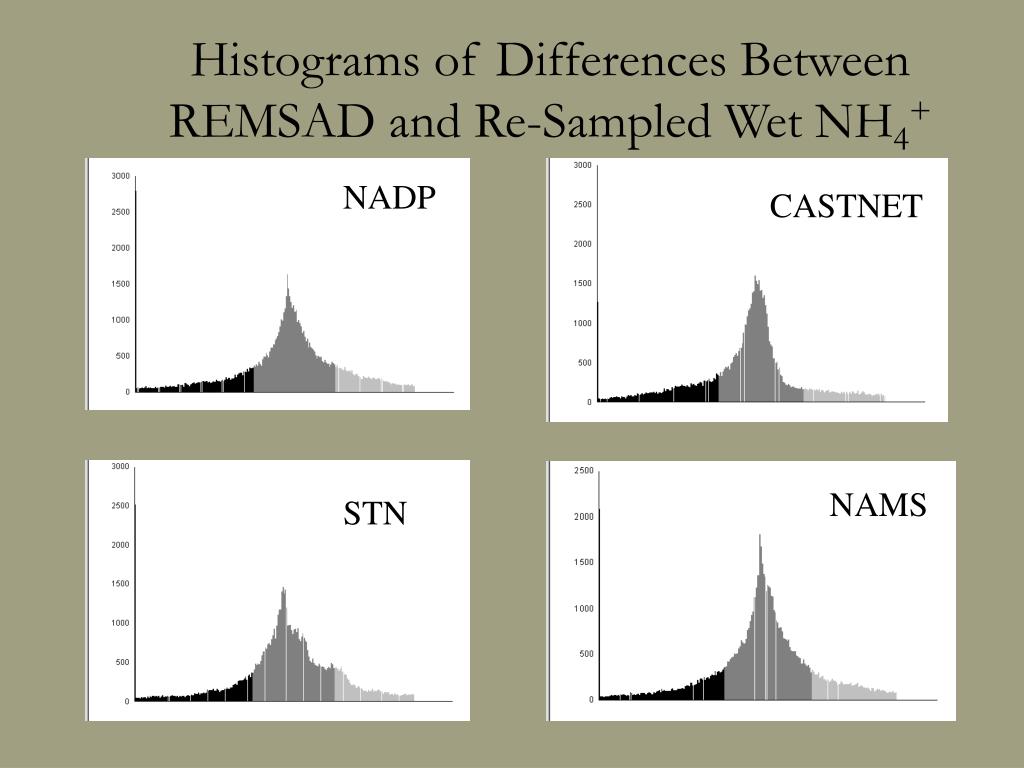

  22. Histograms of Differences Between REMSAD and Re-Sampled Wet NH4+ NADP CASTNET Re-Sampled as STN NAMS STN

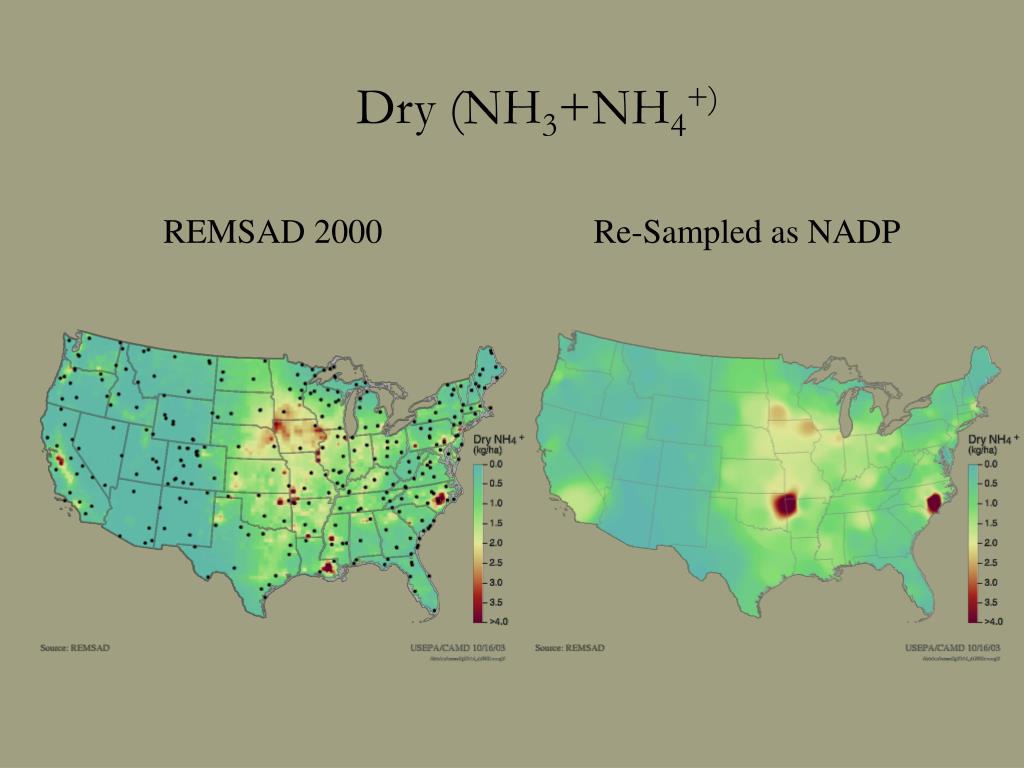

  23. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as NADP

  24. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as NADP

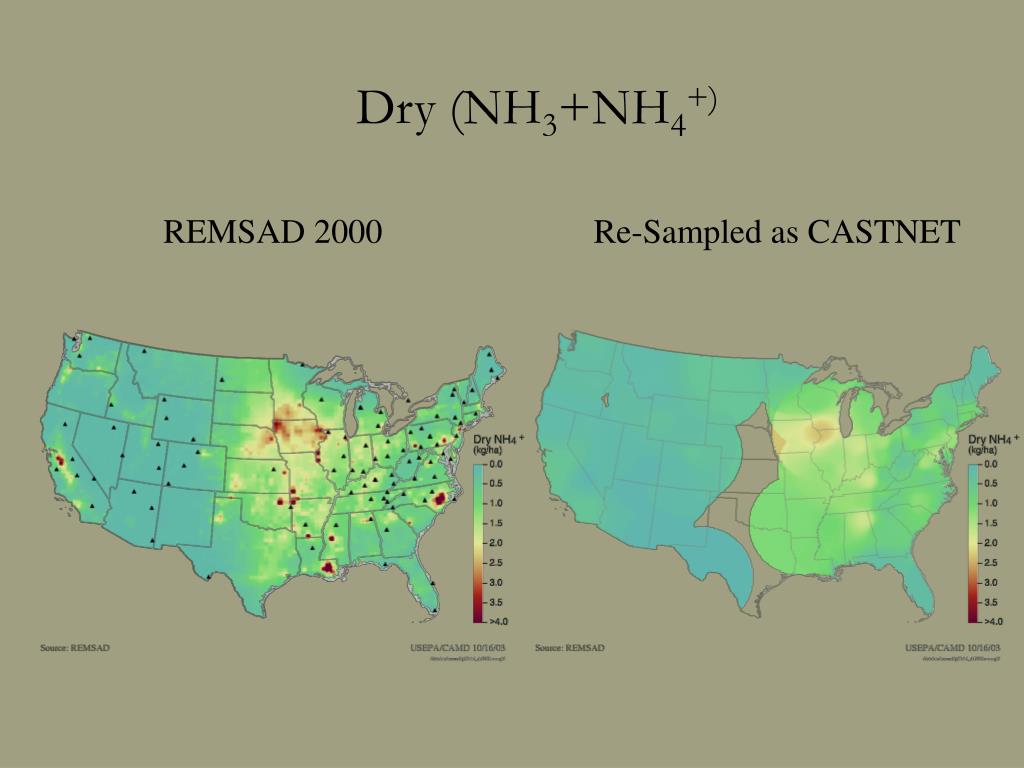

  25. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as CASTNET

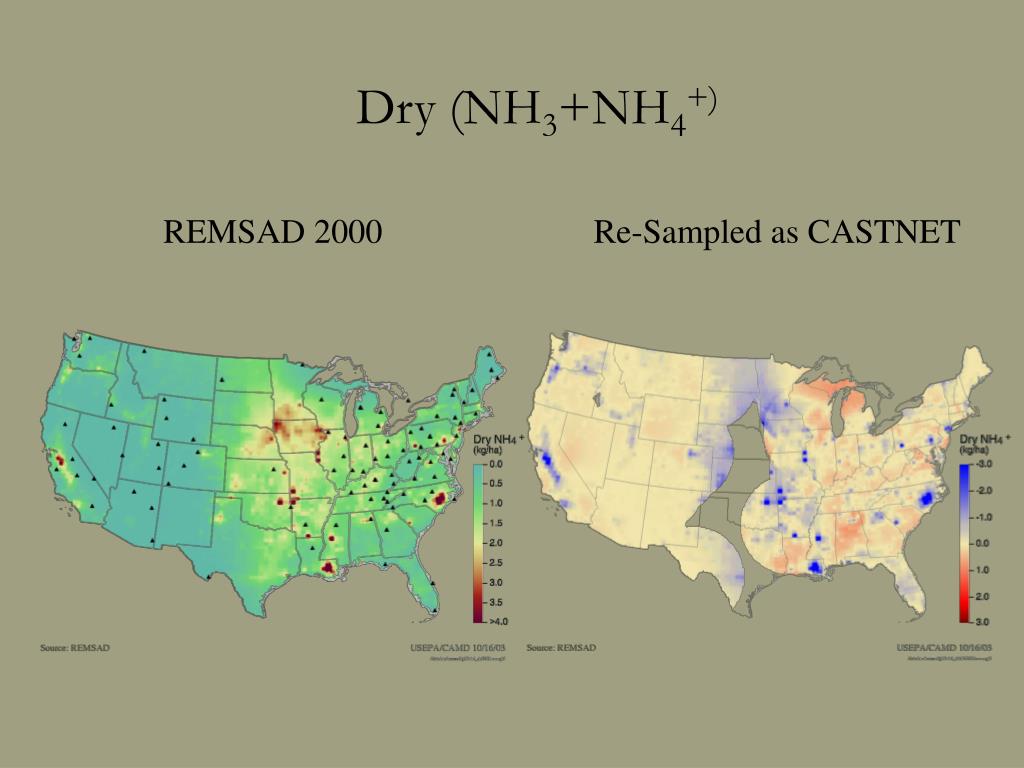

  26. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as CASTNET

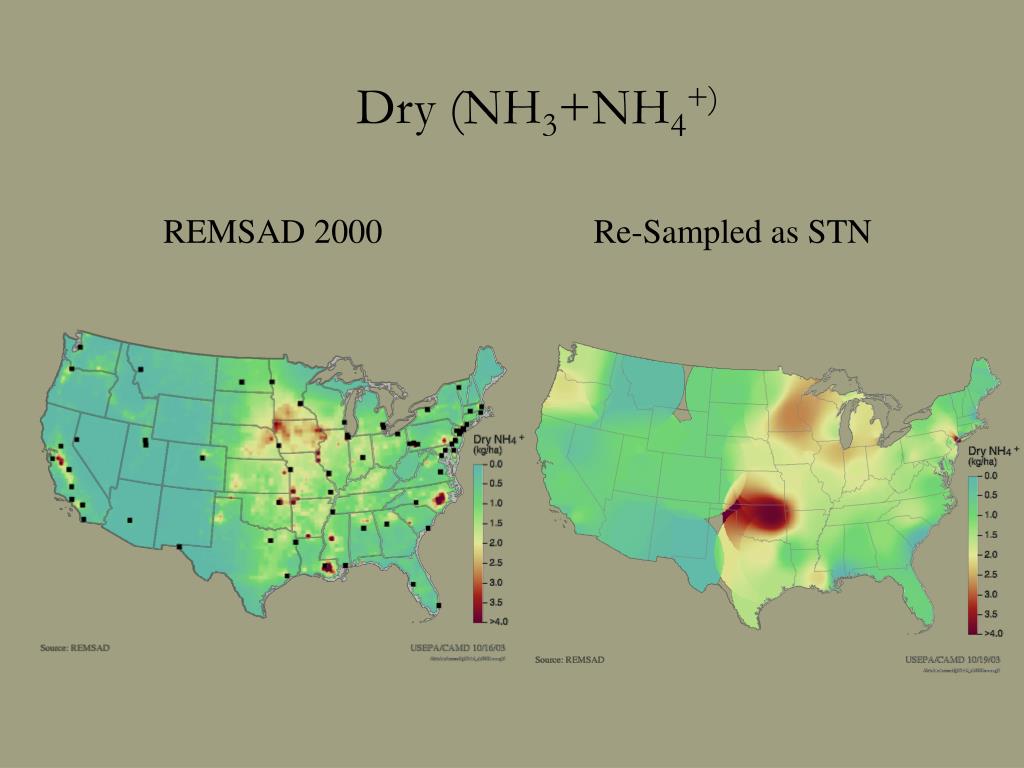

  27. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as STN

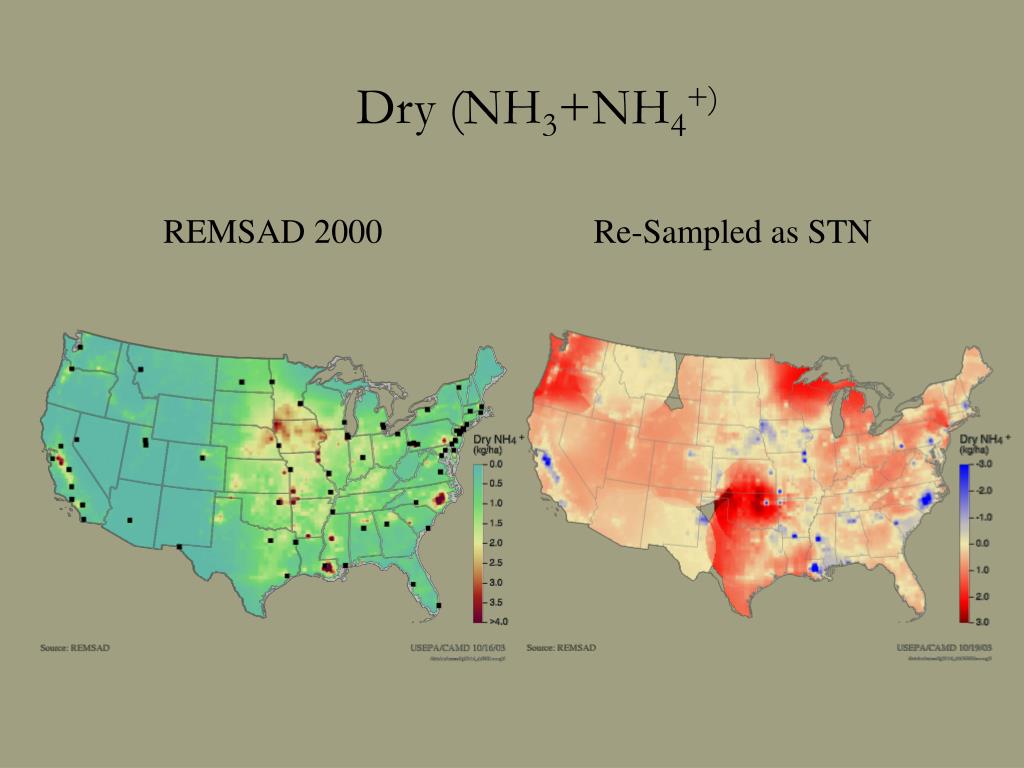

  28. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as STN

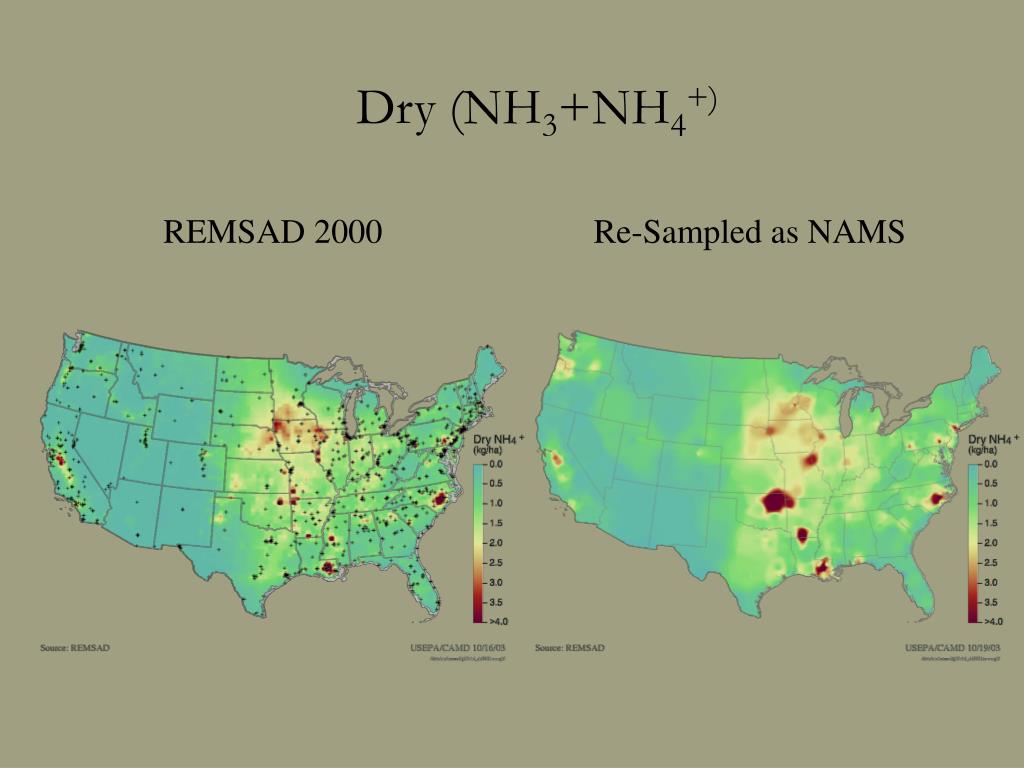

  29. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as NAMS

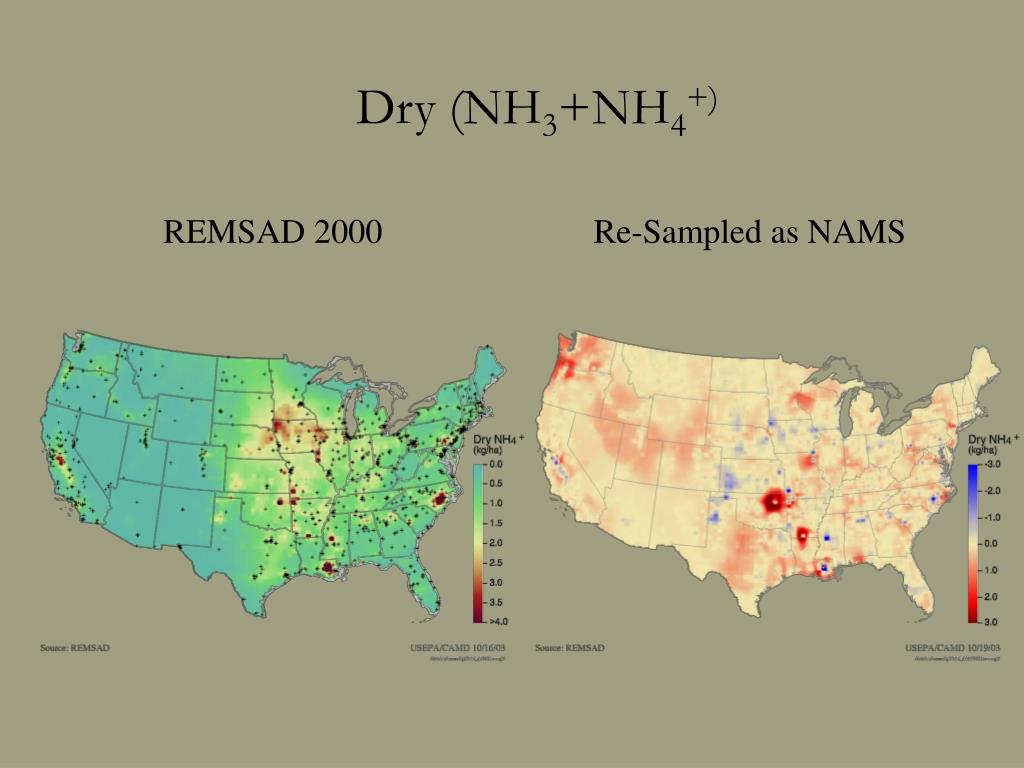

  30. REMSAD 2000 Dry (NH3+NH4+) Re-Sampled as NAMS

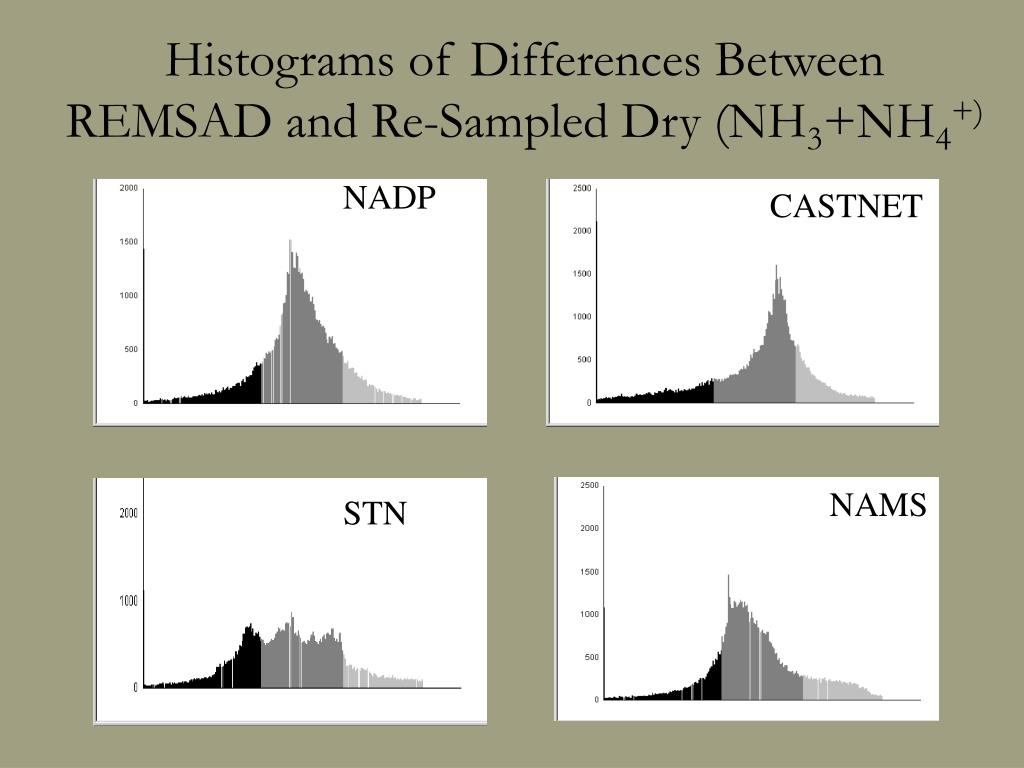

  31. Histograms of Differences Between REMSAD and Re-Sampled Dry (NH3+NH4+) NADP CASTNET NAMS STN

  32. Summary • Traditional monitoring networks do have a role, but… • are likely to miss areas of highest concentrations • may have a substantial bias in interpolations • Rural monitoring appear to have less bias than urban networks

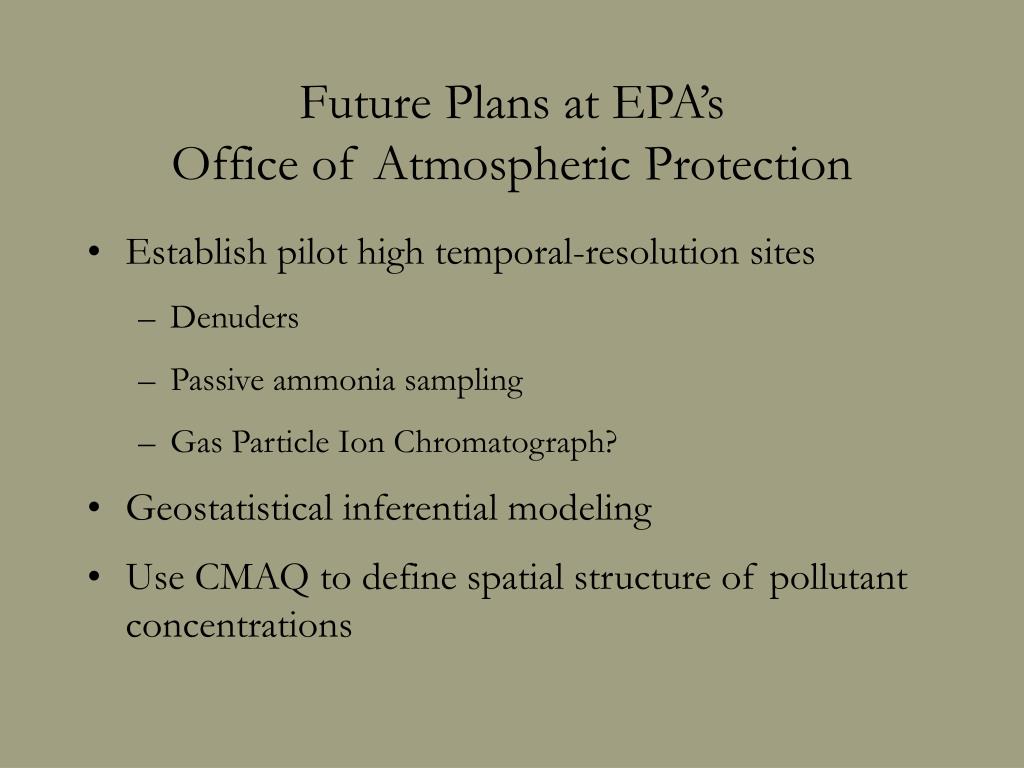

  33. Future Plans at EPA’sOffice of Atmospheric Protection • Establish pilot high temporal-resolution sites • Denuders • Passive ammonia sampling • Gas Particle Ion Chromatograph? • Geostatistical inferential modeling • Use CMAQ to define spatial structure of pollutant concentrations
