  1. GSM Short Message Service

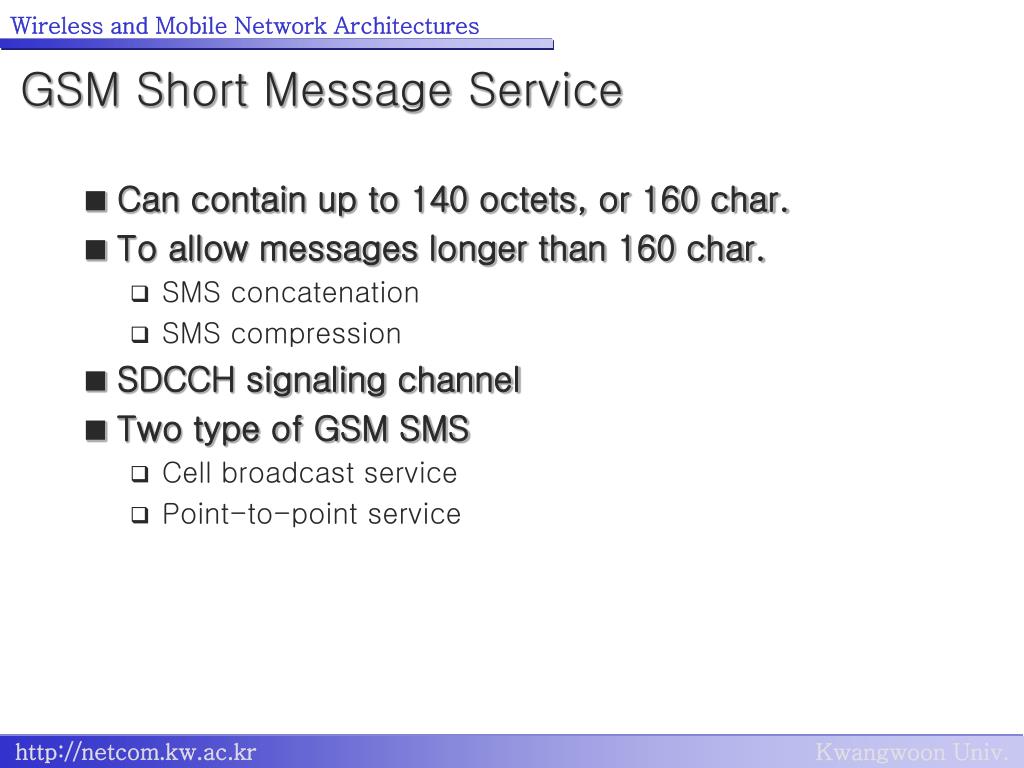

  2. GSM Short Message Service • Can contain up to 140 octets, or 160 char. • To allow messages longer than 160 char. • SMS concatenation • SMS compression • SDCCH signaling channel • Two type of GSM SMS • Cell broadcast service • Point-to-point service

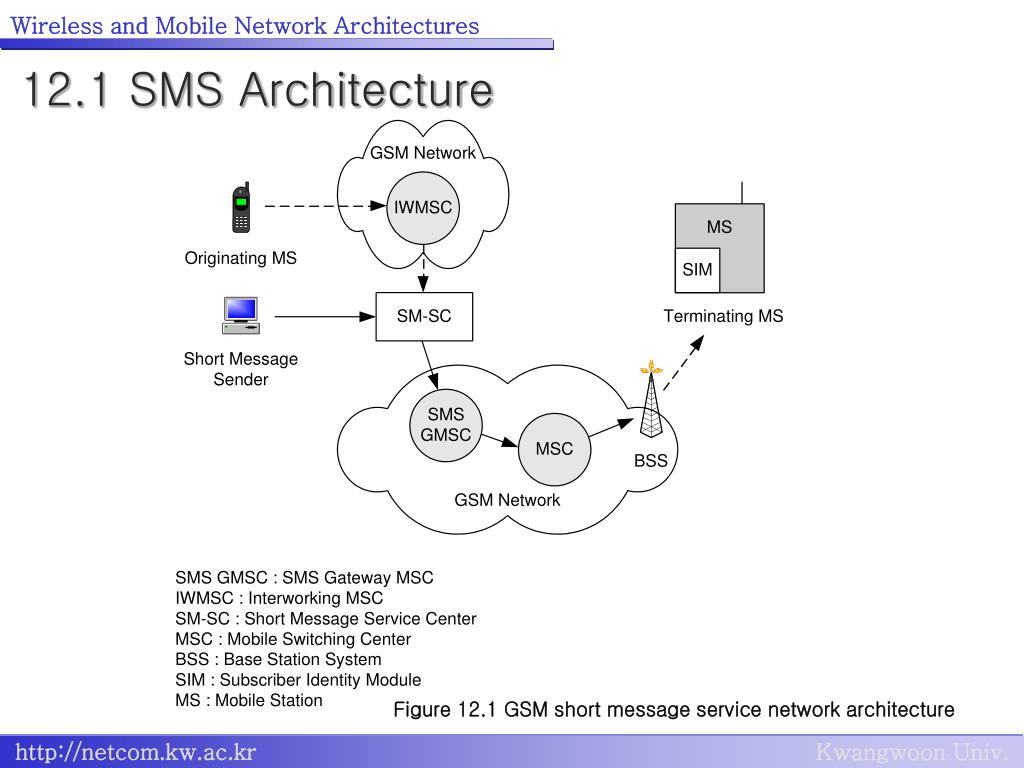

  3. 12.1 SMS Architecture Figure 12.1 GSM short message service network architecture

  4. 12.2 SMS Protocol Hierarchy Figure 12.2 SMS MS-MSC protocol hierarchy (mobile origination)

  5. 12.2 SMS Protocol Hierarchy 12.2.1 Short Message Transfer Layer • Provides services to transfer SM-AL short msg. • Generate a reference number SMI (short message identifier) • SM-AL SMI is not carried between the MS and SM-SC • Four types of transfer protocol data units (TPDUs) • SMS-SUBMIT • SMS-DELIVER • SMS-STATUS-REPORT • SMS-COMMAND

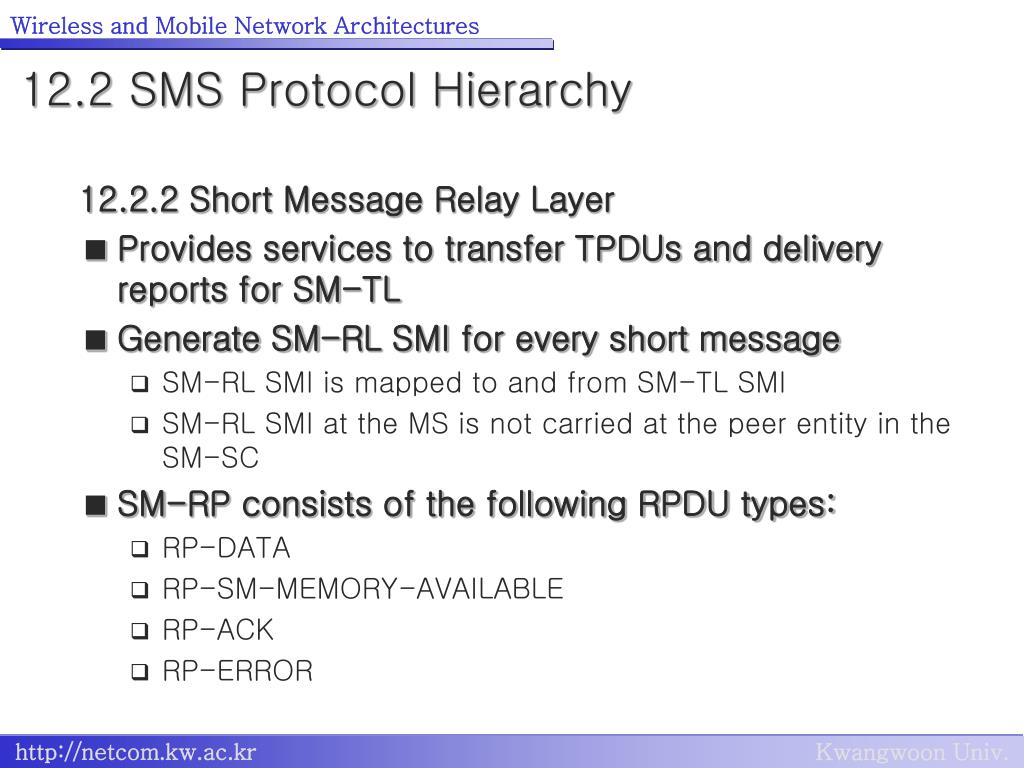

  6. 12.2 SMS Protocol Hierarchy 12.2.2 Short Message Relay Layer • Provides services to transfer TPDUs and delivery reports for SM-TL • Generate SM-RL SMI for every short message • SM-RL SMI is mapped to and from SM-TL SMI • SM-RL SMI at the MS is not carried at the peer entity in the SM-SC • SM-RP consists of the following RPDU types: • RP-DATA • RP-SM-MEMORY-AVAILABLE • RP-ACK • RP-ERROR

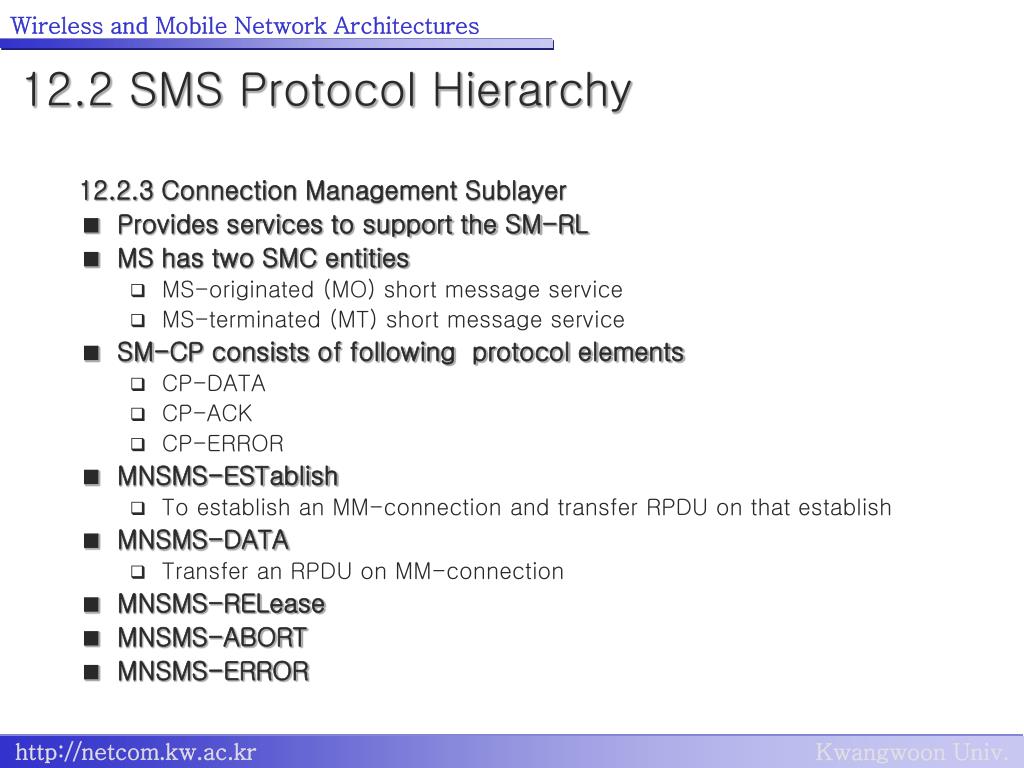

  7. 12.2 SMS Protocol Hierarchy 12.2.3 Connection Management Sublayer • Provides services to support the SM-RL • MS has two SMC entities • MS-originated (MO) short message service • MS-terminated (MT) short message service • SM-CP consists of following protocol elements • CP-DATA • CP-ACK • CP-ERROR • MNSMS-ESTablish • To establish an MM-connection and transfer RPDU on that establish • MNSMS-DATA • Transfer an RPDU on MM-connection • MNSMS-RELease • MNSMS-ABORT • MNSMS-ERROR

  8. 12.3 Mobile-Originated Messaging • The logical message path is : • MS -> originating MSC -> IWMSC -> SM-SC Figure 12.3 Mobile-originated short messaging (part 1)

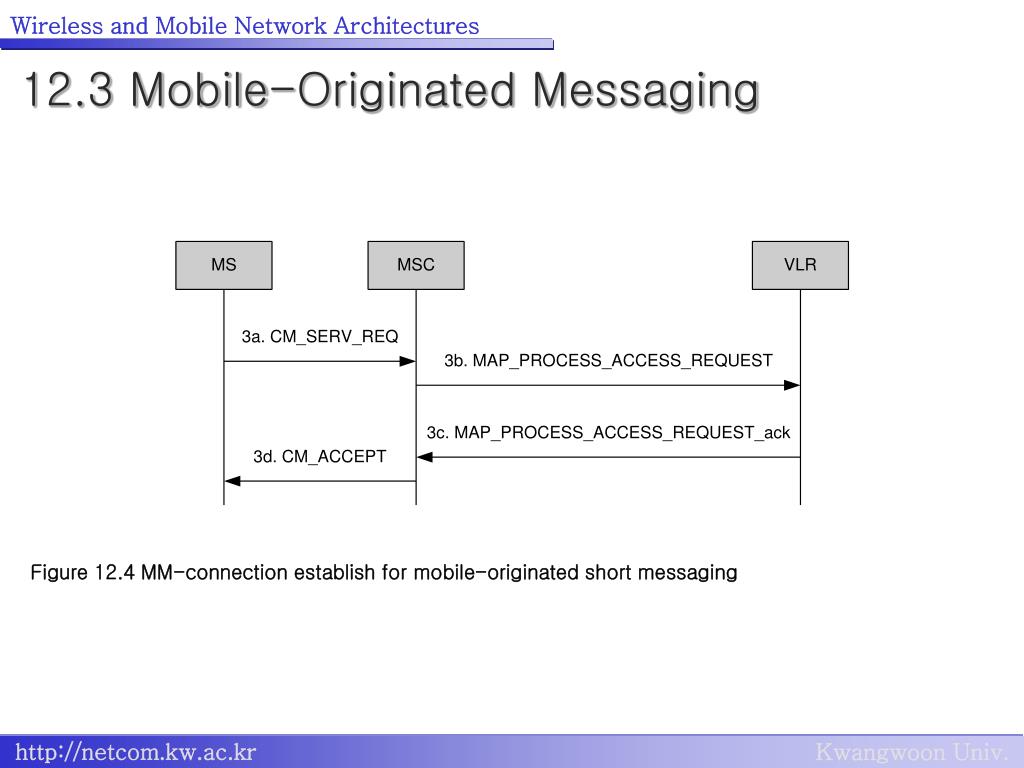

  9. 12.3 Mobile-Originated Messaging Figure 12.4 MM-connection establish for mobile-originated short messaging

  10. 12.3 Mobile-Originated Messaging Figure 12.5 Mobile-originated short messaging (part 2)

  11. 12.3 Mobile-Originated Messaging Figure 12.6 Mobile-originated short messaging (part 3)

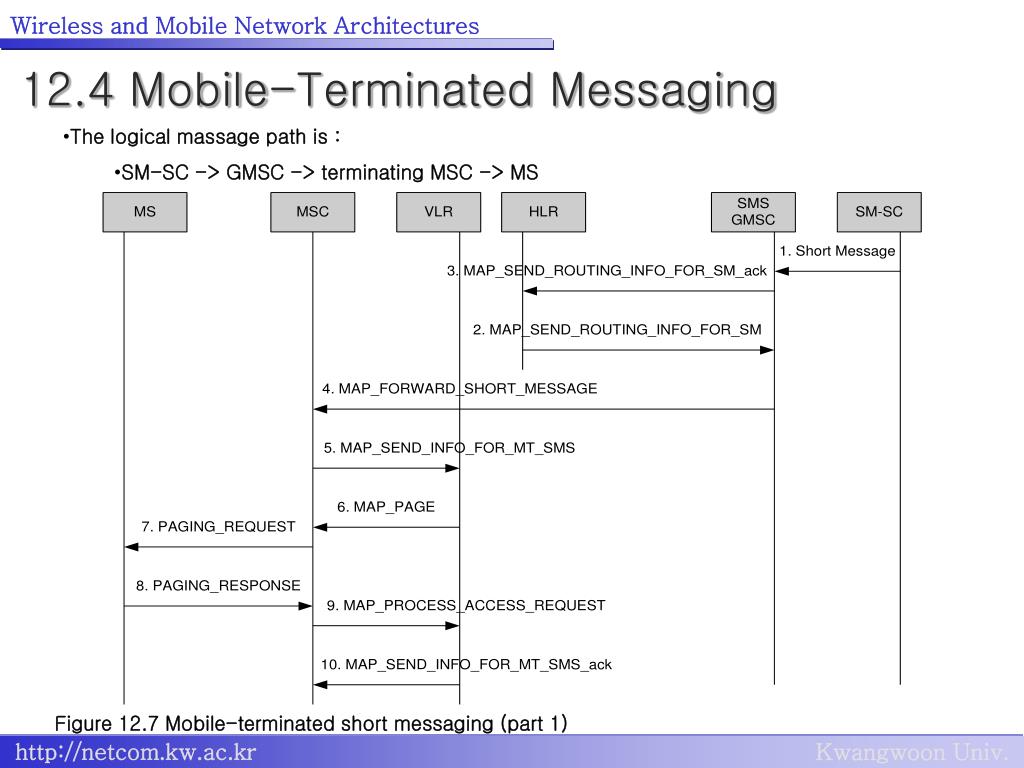

  12. 12.4 Mobile-Terminated Messaging • The logical massage path is : • SM-SC -> GMSC -> terminating MSC -> MS Figure 12.7 Mobile-terminated short messaging (part 1)

  13. 12.4 Mobile-Terminated Messaging Figure 12.8 Mobile-terminated short messaging (part2)

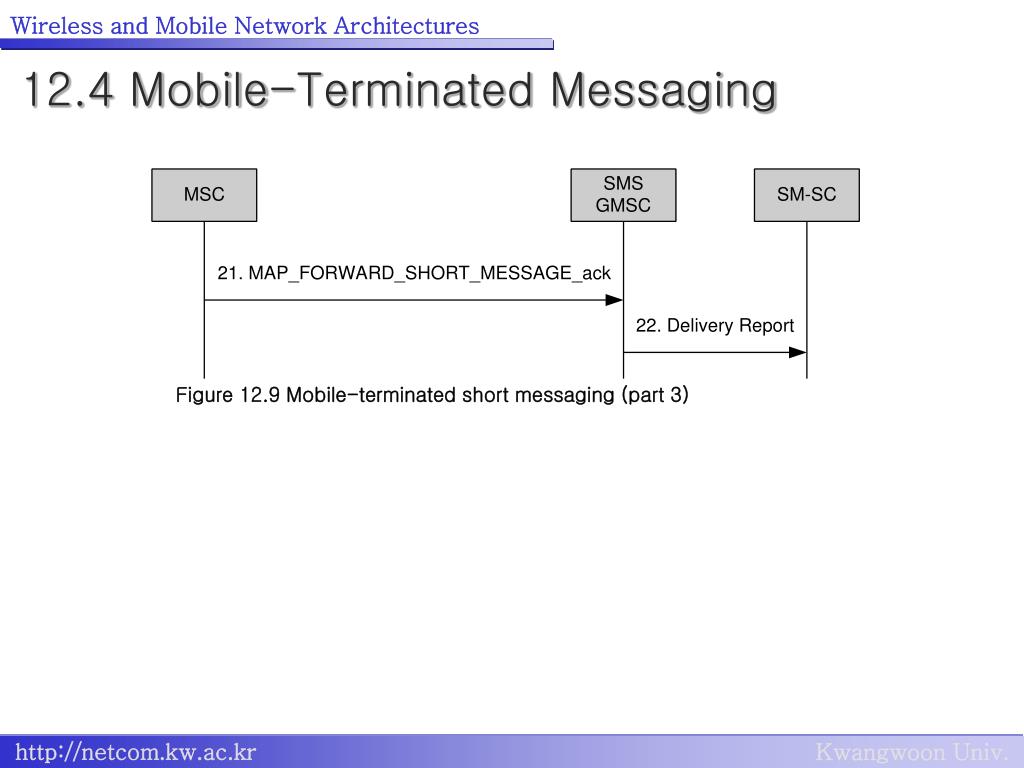

  14. 12.4 Mobile-Terminated Messaging Figure 12.9 Mobile-terminated short messaging (part 3)
