    1. ebXML Message Service Dept of Computer Engineering Khon Kaen University

    2. Outline • What and Why Message Service? • Functional modules of MSH (Message Service Handler) • Packaging • ebXML SOAP Extensions • Reliable messaging • Security • Versioning 168493: XML and Web Services (II/2546)

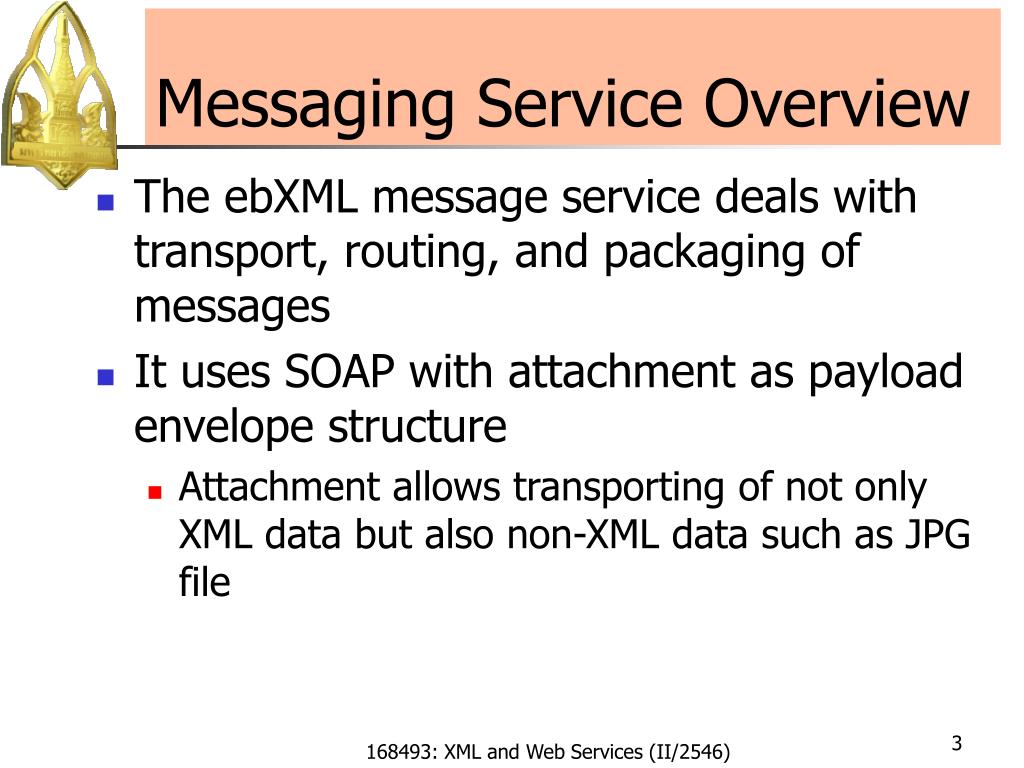

    3. Messaging Service Overview • The ebXML message service deals with transport, routing, and packaging of messages • It uses SOAP with attachment as payload envelope structure • Attachment allows transporting of not only XML data but also non-XML data such as JPG file 168493: XML and Web Services (II/2546)

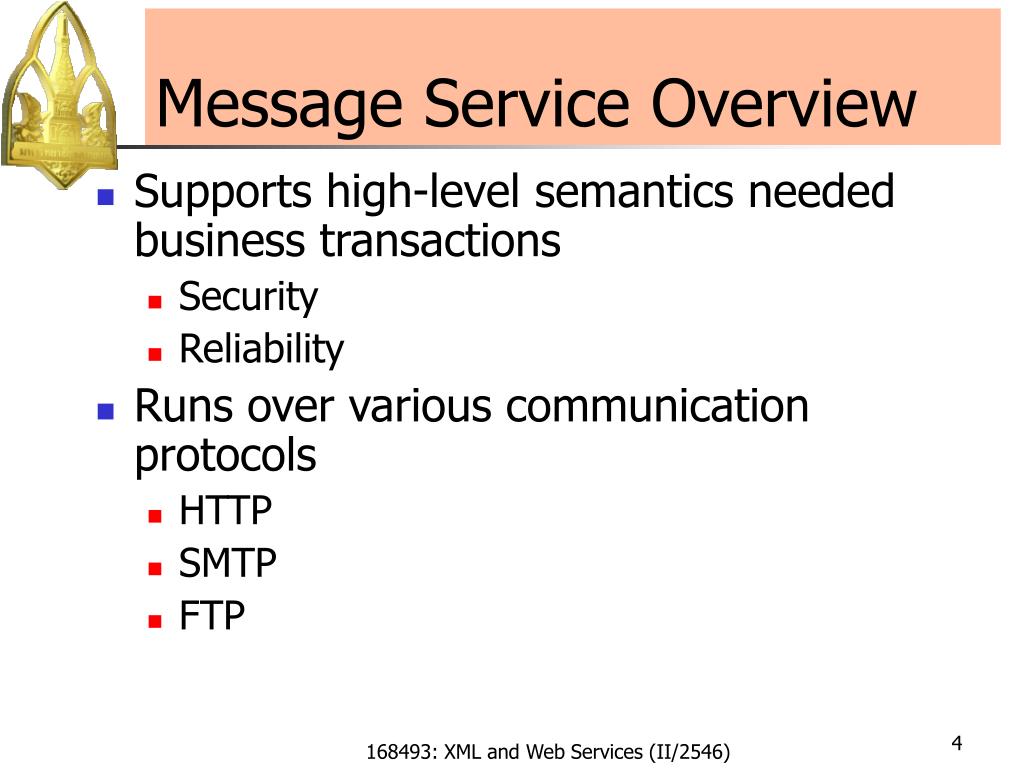

    4. Message Service Overview • Supports high-level semantics needed business transactions • Security • Reliability • Runs over various communication protocols • HTTP • SMTP • FTP 168493: XML and Web Services (II/2546)

    5. Message Service Design Goals • Robust, yet basic, functionality to transfer messages between trading parties • Using various existing communication protocols • Allowing for messaging reliability, persistence, security, and extensibility • Allowing robust, yet low-cost solution 168493: XML and Web Services (II/2546)

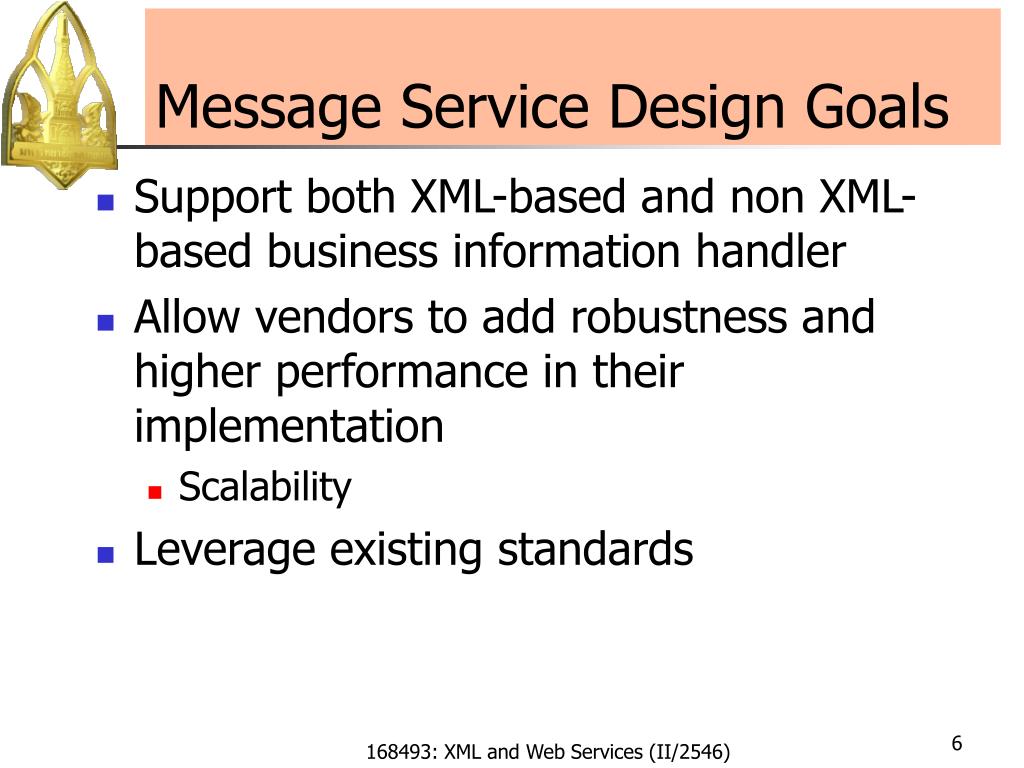

    6. Message Service Design Goals • Support both XML-based and non XML-based business information handler • Allow vendors to add robustness and higher performance in their implementation • Scalability • Leverage existing standards 168493: XML and Web Services (II/2546)

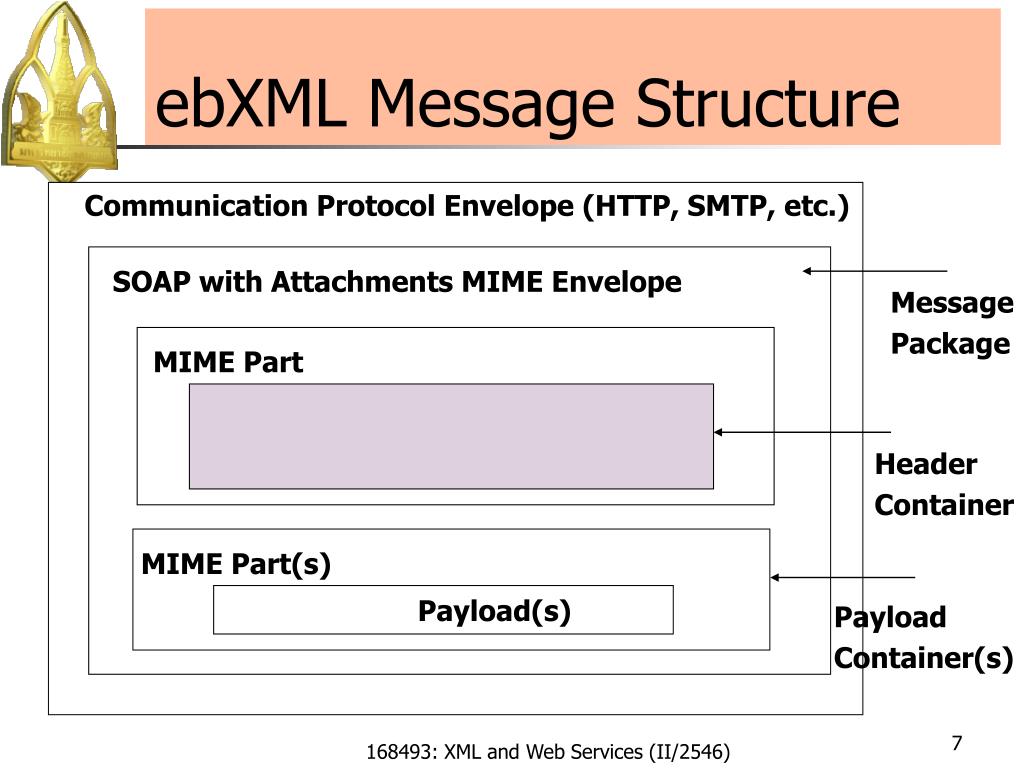

    7. ebXML Message Structure Communication Protocol Envelope (HTTP, SMTP, etc.) SOAP with Attachments MIME Envelope Message Package MIME Part Header Container MIME Part(s) Payload(s) Payload Container(s) 168493: XML and Web Services (II/2546)

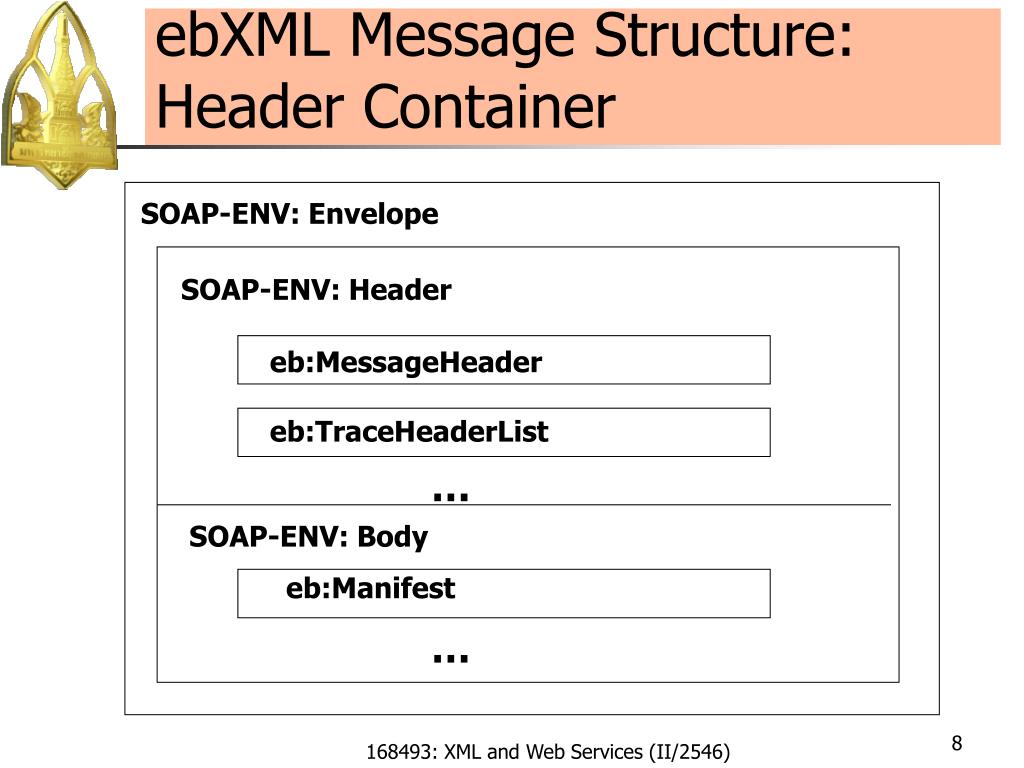

    8. ebXML Message Structure: Header Container SOAP-ENV: Envelope SOAP-ENV: Header eb:MessageHeader eb:TraceHeaderList … SOAP-ENV: Body eb:Manifest … 168493: XML and Web Services (II/2546)

    9. Message Service and SOAP • ebXML Message packaging comply with • SOAP 1.1 • SOAP Messages with Attachments • ebXML Message Service defines a set of namespace-qualified SOAP Header and Body element extensions within the SOAP Envelope 168493: XML and Web Services (II/2546)

    10. ebXML Message Envelope <SOAP-ENV:Header ….> <eb:MessageHeader …> … </eb:MessageHeader> </SOAP-ENV:Header> <SOAP-ENV:Body …> <eb:Manifest …> … </eb:Manifest> </SOAP-ENV:Body> 168493: XML and Web Services (II/2546)

    11. ebXML SOAP Extensions • SOAP Header extensions • MessageHeader • TraceHeaderList • ErrorList • Signature • Acknowledgment • Via • SOAP Body extensions • Manifest • StatusRequest • StatusResponse • DeliveryReceipt 168493: XML and Web Services (II/2546)

    12. ebXML SOAP Extensions • MessageHeader • A REQUIRED element that contains routing information for the message as well as other context information about the message • TraceHeaderList • An element that contains entries that identifies the Message Service Handler(s) that send and receive the message • Manifest • An element that points to any data present either in the Payload Container or elsewhere on the web 168493: XML and Web Services (II/2546)

    13. ebXML Message Service • ebXML message service functionality is provided by message service handler • Message Service Handlers (MSH), on behalf of applications, perform reliable and secure message delivery 168493: XML and Web Services (II/2546)

    14. MSH Node MSH Node Application ebXML and MSH Application Application ebXML Message Service 168493: XML and Web Services (II/2546)

    15. MSH Node MSH Node Application MSH Service #1: Is Remote Partner Reachable? Ping Application Pong Eb:Service & eb:Action elements  Message Type Ping: Are you Alive? Pong: Obviously! 168493: XML and Web Services (II/2546)

    16. MSH Node MSH Node Application MSH Service #2: What happened to my Message? Query Status Application Report Status Eb:Service & eb:Action elements  Message Type Query: MSH Ack received; no business response Report: Message undelivered or Response lost 168493: XML and Web Services (II/2546)

    17. Reliable Messaging • Reliability is achieved by a Receiving MSH responding to a message with an Acknowledgment message • The receiving party should receive the message once and only once • It should be able to withstand • System failure • Network failure 168493: XML and Web Services (II/2546)

    18. Reliable Messaging • A MSH that supports Reliable Messaging MUST keep messages that are sent or received reliably in persistent storage • What is a persistent storage? • The storage in which data is still there after a system failure or interruption • Things to be maintained in persistent storage • MessageId • Complete message (recommendation) • Time the message was received • Complete response message 168493: XML and Web Services (II/2546)

    19. Resending Unacknowledged Messages Party A MSH Party B Application Party A Application Party B MSH Data Message Acknowledgment Data Ack. lost Msg. lost Message Message Acknowledgment Ignore Duplicate 168493: XML and Web Services (II/2546)
