4. 5. 6. 7. 8. 9. 1. 2. 3. 11. 12. 10. 13. 24. 14. Identify anatomical structures 1 - 24. 18. 19. 17. 20. 21. 16. 22. 15. 23. Fig. 1.10 A midline Post-contrast Sagittal T 1 Weighted MRI. 4. 5. 6. 7. 8. 9. 1. 2. 3. 11. 12. 10. 13. 24. 14. 1. Scalp fat

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Fig. 1.10 A midline Post-contrast Sagittal T 1 Weighted MRI' - blade


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

4

5

6

7

8

9

1

2

3

11

12

10

13

24

14

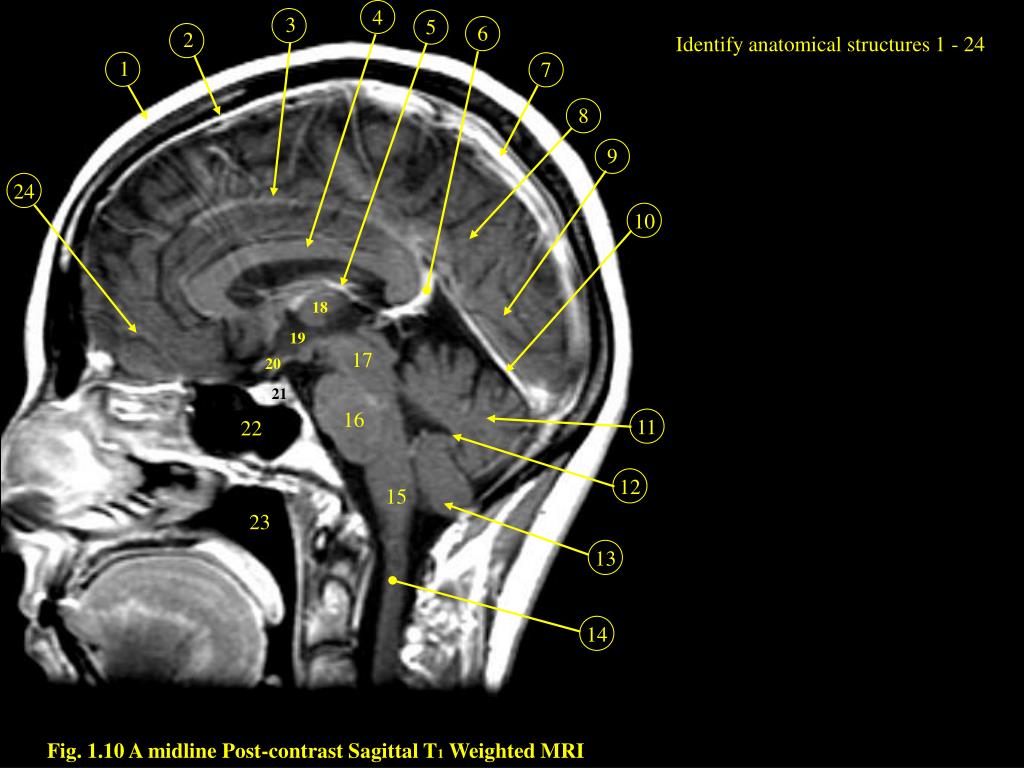

Identify anatomical structures 1 - 24

18

19

17

20

21

16

22

15

23

Fig. 1.10 A midline Post-contrast Sagittal T1 Weighted MRI

slide2

4

5

6

7

8

9

1

2

3

11

12

10

13

24

14

1. Scalp fat

2. Bone

3. Inferior sagittal sinus

4. Corpus callosum

5. Internal cerebral vein

6. Vein of Galen

7. Superior sagittal sinus

8. Parietal lobe

9. Occipital lobe

10. Straight sinus

11. Vermis

12. IV ventricle

13. Cerebellar tonsil

14. Cervical cord

15. Medulla

16. Pons

17. Midbrain

18. Mass intermedia of thalamus

19. Anterior III ventricle

20. Optic chiasm

21. Pituitary gland

22. Sphenoid sinus

23. Nasopharynx

24. Frontal lobe

18

19

17

20

21

16

22

15

23

Fig. 1.10 A midline Post-contrast Sagittal T1 Weighted MRI

slide3

8

7

6

5

4

2

3

1

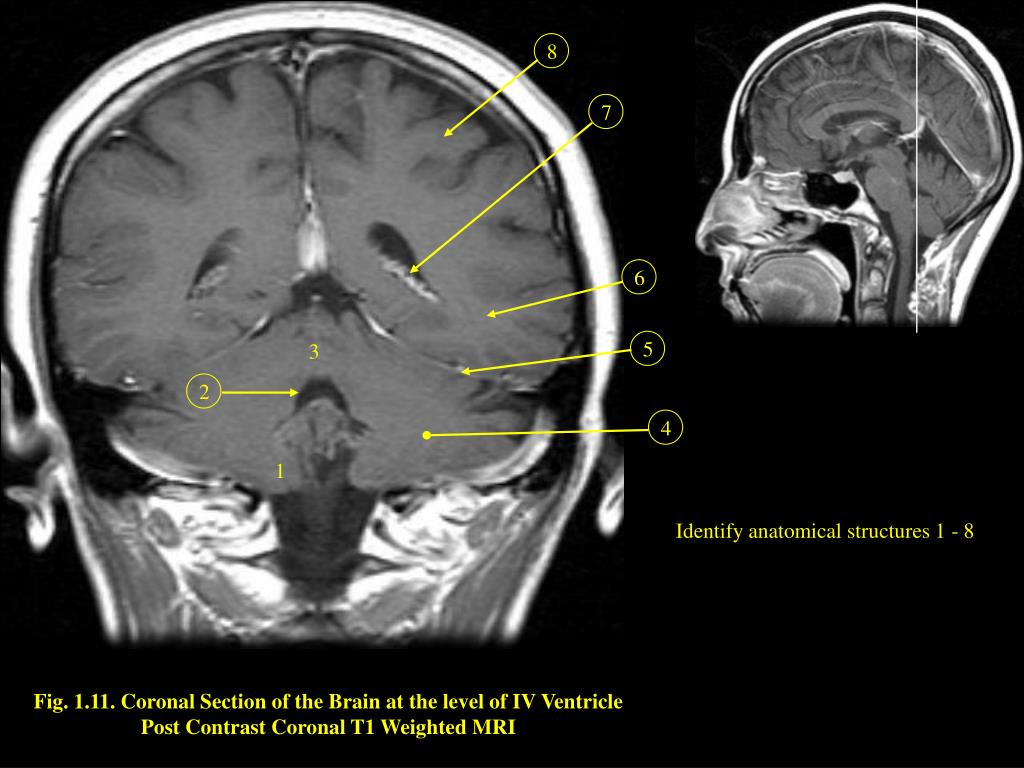

Identify anatomical structures 1 - 8

Fig. 1.11. Coronal Section of the Brain at the level of IV Ventricle

Post Contrast Coronal T1 Weighted MRI

slide4

8

7

6

5

4

2

3

1

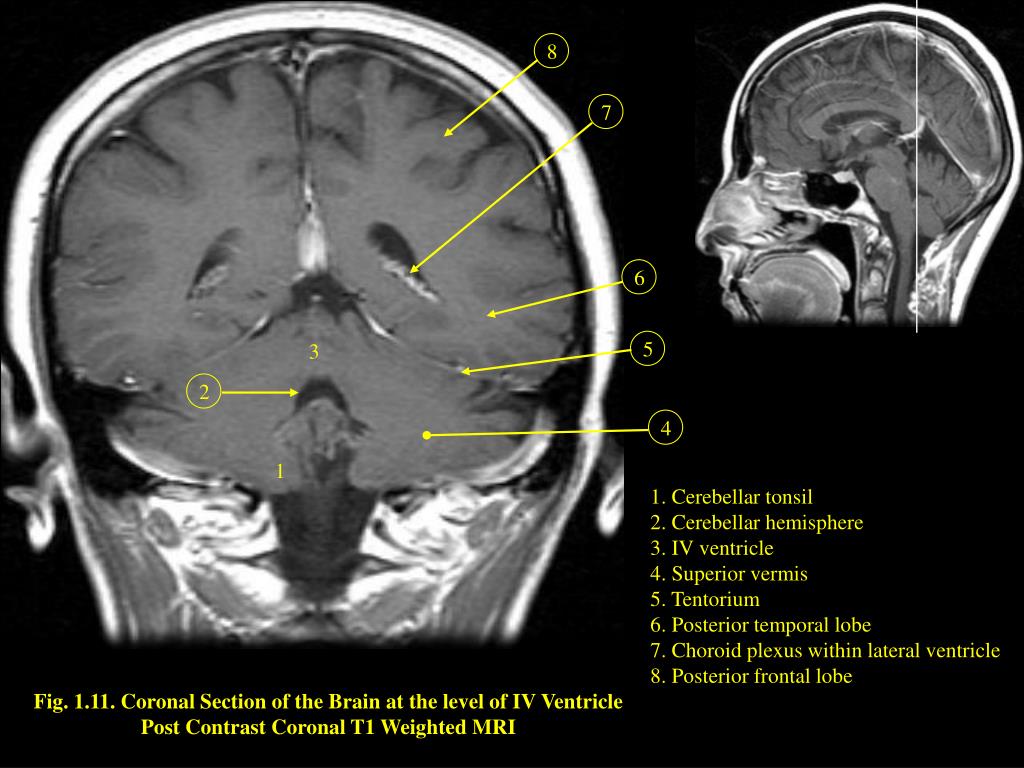

1. Cerebellar tonsil

2. Cerebellar hemisphere

3. IV ventricle

4. Superior vermis

5. Tentorium

6. Posterior temporal lobe

7. Choroid plexus within lateral ventricle

8. Posterior frontal lobe

Fig. 1.11. Coronal Section of the Brain at the level of IV Ventricle

Post Contrast Coronal T1 Weighted MRI

slide5

1

5

6

7

9

2

3

4

8

11

10

Identify anatomical structures 1 - 12

12

Fig. 1.12. Coronal Section of the Brain at the level of Pituitary gland

Post Contrast Coronal T1 Weighted MRI

slide6

1

5

6

7

9

2

3

4

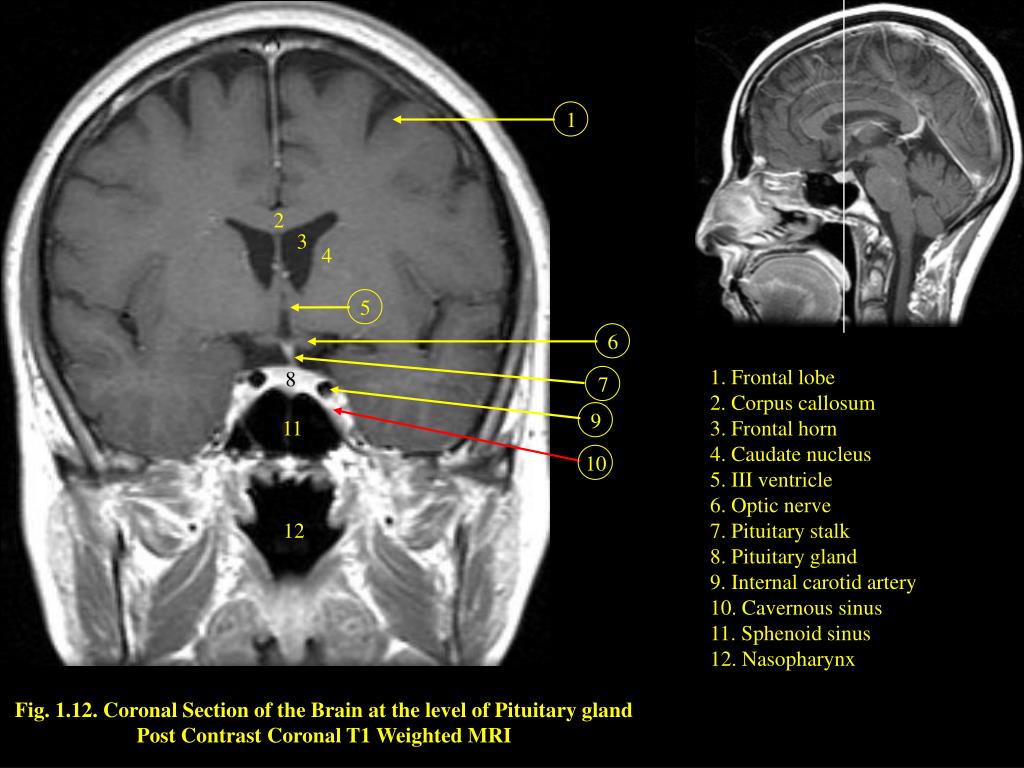

1. Frontal lobe

2. Corpus callosum

3. Frontal horn

4. Caudate nucleus

5. III ventricle

6. Optic nerve

7. Pituitary stalk

8. Pituitary gland

9. Internal carotid artery

10. Cavernous sinus

11. Sphenoid sinus

12. Nasopharynx

8

11

10

12

Fig. 1.12. Coronal Section of the Brain at the level of Pituitary gland

Post Contrast Coronal T1 Weighted MRI

slide7

1

2

3

4

5

Identify anatomical structures 1 - 5

Fig. 1.13. Coronal Section of the Brain at the level of the orbits.

Post Contrast Coronal T1 Weighted MRI.

slide8

1

2

3

4

5

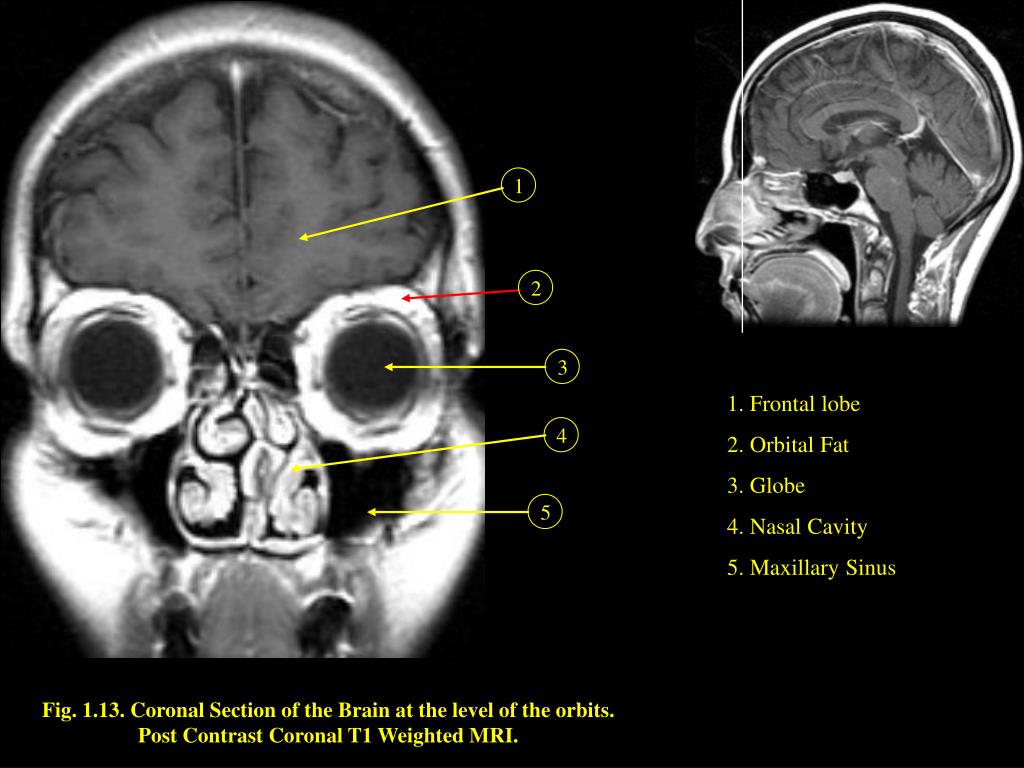

1. Frontal lobe

2. Orbital Fat

3. Globe

4. Nasal Cavity

5. Maxillary Sinus

Fig. 1.13. Coronal Section of the Brain at the level of the orbits.

Post Contrast Coronal T1 Weighted MRI.
