chapter 3 operating system structure
CHAPTER 3 OPERATING SYSTEM STRUCTURE
  • OS Components
  • OS Services (for designer)
  • OS API (for programmers)
  • OS Apps (for application users)
  • OS Structures
  • OS Generation
os components

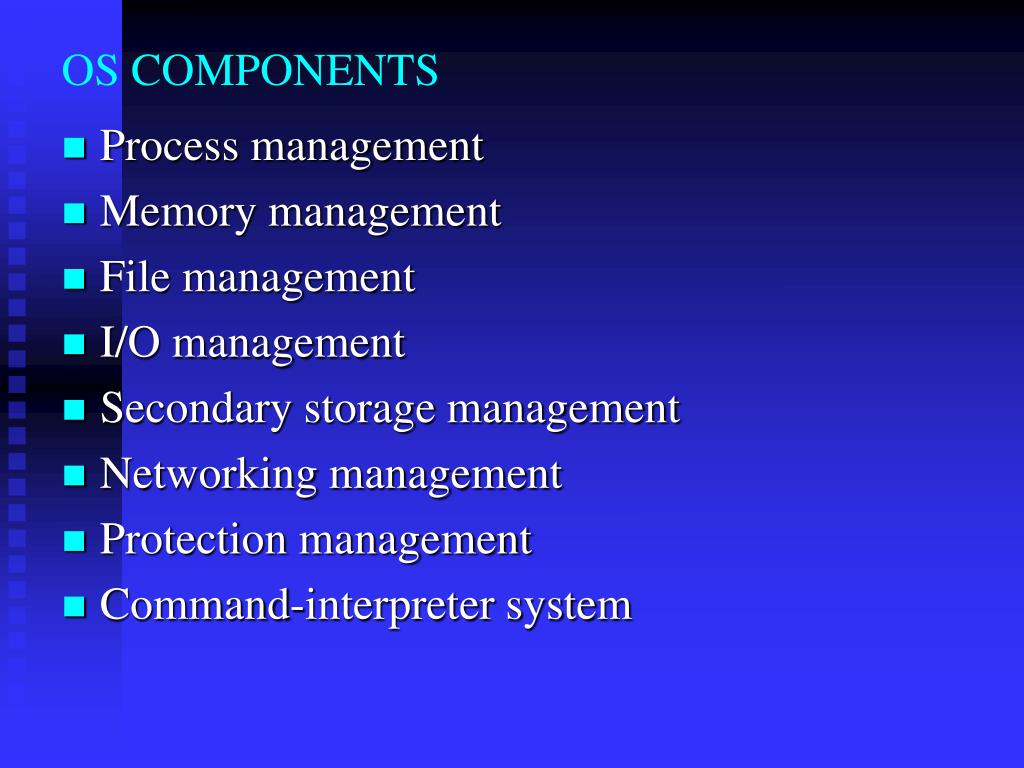

OS COMPONENTS
  • Process management
  • Memory management
  • File management
  • I/O management
  • Secondary storage management
  • Networking management
  • Protection management
  • Command-interpreter system
os components process management
OS Components: Process management
  • A process (进程) is a program in execution.
  • A process needs certain resources, including CPU time, memory, files, and I/O devices, to accomplish its task.
  • A process is an active (活动) entity whereas a program is a passive (被动) entity.
  • OS process management activities:
    • Process creation and deletion.
    • process suspension and resumption.
    • Process synchronization.
    • Process communication.
    • Process deadlock handling.
os components memory management
OS Components: Memory management
  • Memory (内存) is a large array of words or bytes, each with its own address.
  • Memory is a repository of quickly accessible data shared by the CPU and I/O devices.
  • Main memory is a volatile storage device. It loses its contents in the case of system failure.
  • OS memory management activities:
    • Keep track of which parts of memory are used and by whom.
    • Decide which processes are to be loaded when memory space becomes available.
    • Allocate and deallocate memory space as needed.
os components file management
OS Components: File management
  • The OS provides a uniform logical view of information storage. (Many different types of physical media.)
  • A file is a collection of related information defined by its creator. File contents, file formats, file structures, file attributes.
  • Files are organized into directories.
  • OS file management activities
    • File creation and deletion.
    • Directory creation and deletion.
    • Support of primitives for manipulating files and directories.
    • Mapping files onto secondary storage.
    • File backup on stable (nonvolatile) storage media.
os components i o management

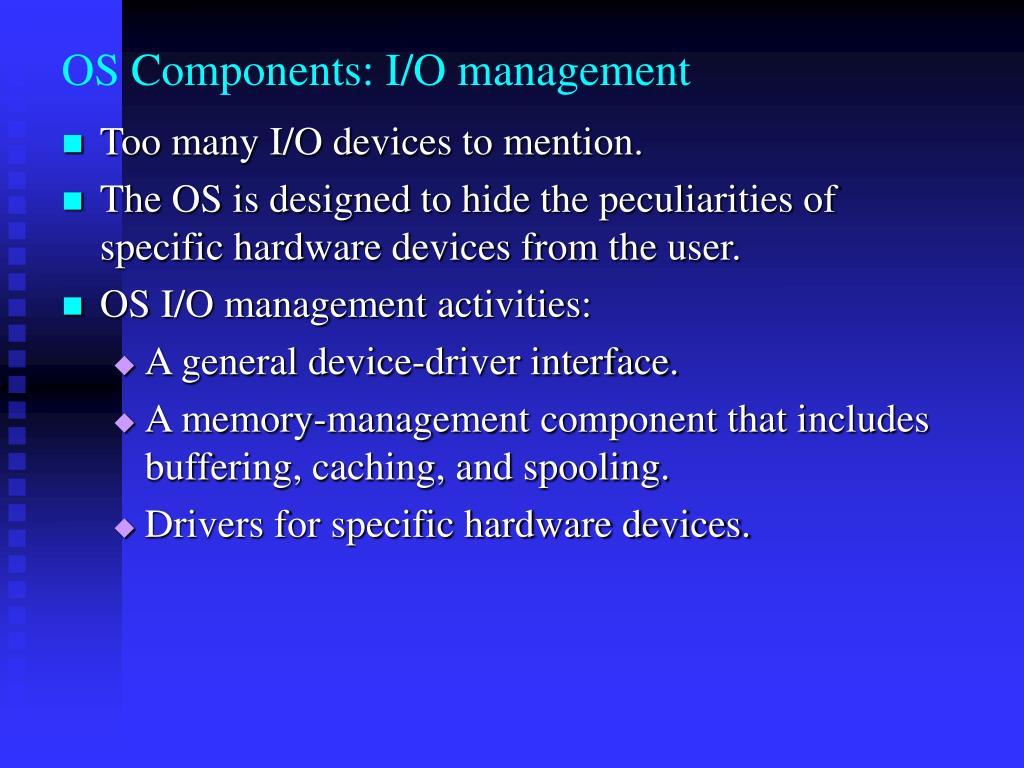

OS Components: I/O management
  • Too many I/O devices to mention.
  • The OS is designed to hide the peculiarities of specific hardware devices from the user.
  • OS I/O management activities:
    • A general device-driver interface.
    • A memory-management component that includes buffering, caching, and spooling.
    • Drivers for specific hardware devices.
os components secondary storage management
OS Components: Secondary-storage management
  • Since main memory (primary storage,内存) is volatile and too small to accommodate all data and programs permanently, the computer system must provide secondary storage (外存)to back up main memory.
  • Most modern computer systems use disks as the principle on-line storage medium, for both programs and data.
  • The operating system is responsible for the following activities in connection with disk management:
    • Free space management,
    • Storage allocation,
    • Disk scheduling.
os components networking management
OS Components: Networking management
  • Network:
    • Computation speed-up,
    • Increased data availability,
    • Enhanced reliability,
    • Communication (WWW, BBS),
  • OS networking management activities
    • Network protocols (TCP/IP),
    • Network device drivers (Physical layer and data link layer).
os components protection management
OS Components: Protection management
  • A computer system has multiple users and processes.
  • Protection refers to a mechanism for controlling access by programs, processes, or users to both system and user resources.
  • Protection mechanism must provide
    • means for specification of the controls to be imposed,
    • means for enforcement.
  • OS protection management activities:
    • distinguish between authorized and unauthorized usage.
    • specify the controls to be imposed.
    • provide a means of enforcement.
os components command interpreter system
OS Components: Command-interpreter system
  • Command-interpreter is the interface between the user and the operating system. Character-based and GUI-based interpreters.
  • Command-interpreter can be used for both interactive and batch users.
  • Many commands are given to the operating system by control statements which deal with:
    • Process creation and management,
    • Main-memory management, file-system access,
    • I/O handling, secondary-storage management,
    • Networking,
    • Protection.
os services

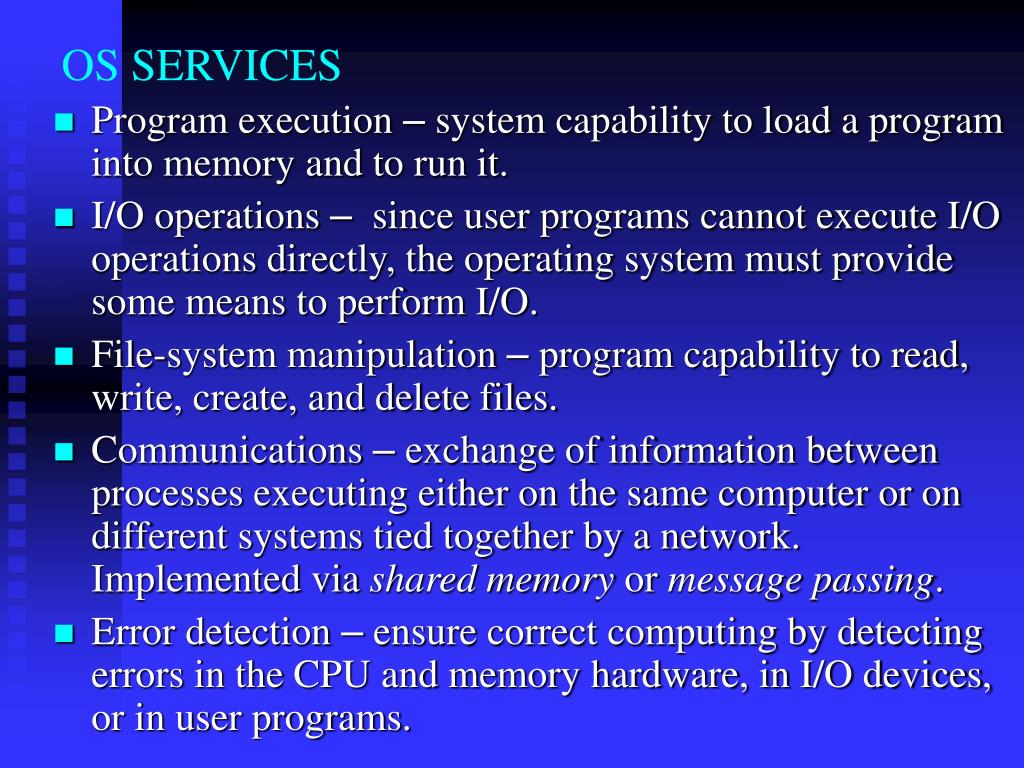

OS SERVICES
  • Program execution – system capability to load a program into memory and to run it.
  • I/O operations – since user programs cannot execute I/O operations directly, the operating system must provide some means to perform I/O.
  • File-system manipulation – program capability to read, write, create, and delete files.
  • Communications – exchange of information between processes executing either on the same computer or on different systems tied together by a network. Implemented via shared memory or message passing.
  • Error detection – ensure correct computing by detecting errors in the CPU and memory hardware, in I/O devices, or in user programs.
os services additional
OS Services (Additional )
  • Resource allocation – allocating resources to multiple users or multiple jobs running at the same time.
  • Accounting – keeping track of and record which users use how much and what kinds of computer resources for account billing or for accumulating usage statistics.
  • Protection – ensuring that all access to system resources is controlled. A chain is only as strong as its weakest link.
os api system call

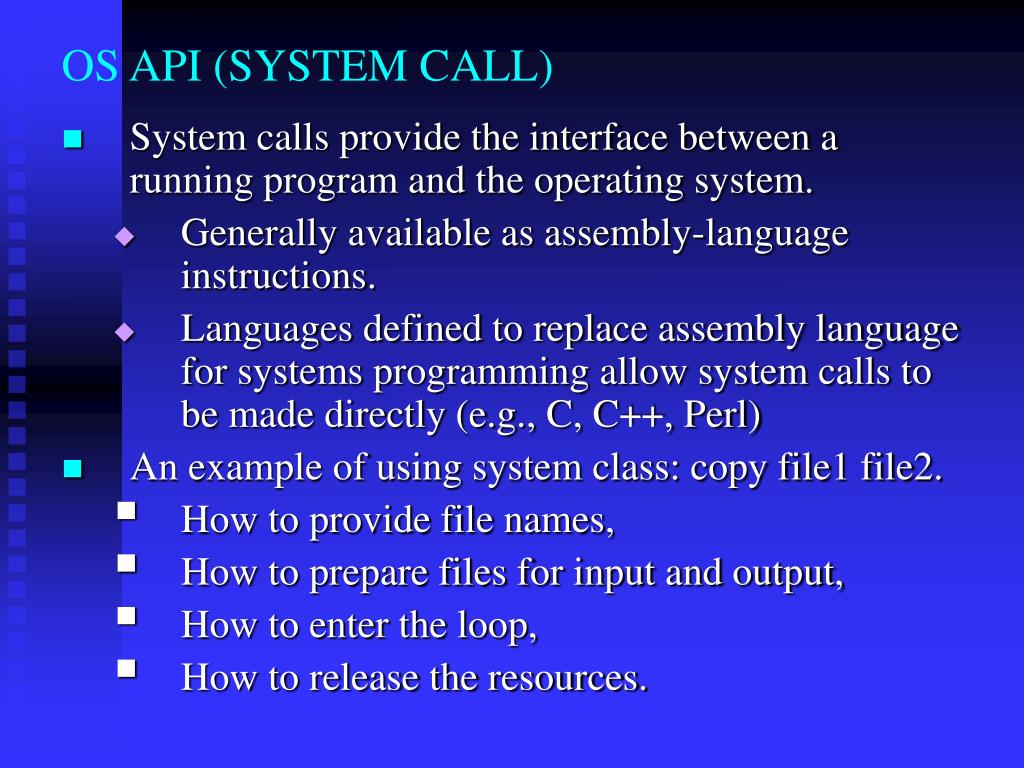

OS API (SYSTEM CALL)
  • System calls provide the interface between a running program and the operating system.
    • Generally available as assembly-language instructions.
    • Languages defined to replace assembly language for systems programming allow system calls to be made directly (e.g., C, C++, Perl)
  • An example of using system class: copy file1 file2.
    • How to provide file names,
    • How to prepare files for input and output,
    • How to enter the loop,
    • How to release the resources.
os api system call1
OS API (System Call)
  • Three general methods are used to pass parameters between a running program and the operating system.
    • Pass parameters in registers.
    • Store the parameters in a table in memory, and the table address is passed as a parameter in a register. (linux) (see the next slide)
    • Push (store) the parameters onto the stack by the program, and pop off the stack by operating system.
os api types of system calls
OS API: Types of system calls
  • Process control
  • File management
  • Device management
  • Information maintenance
  • Communications
os api process control

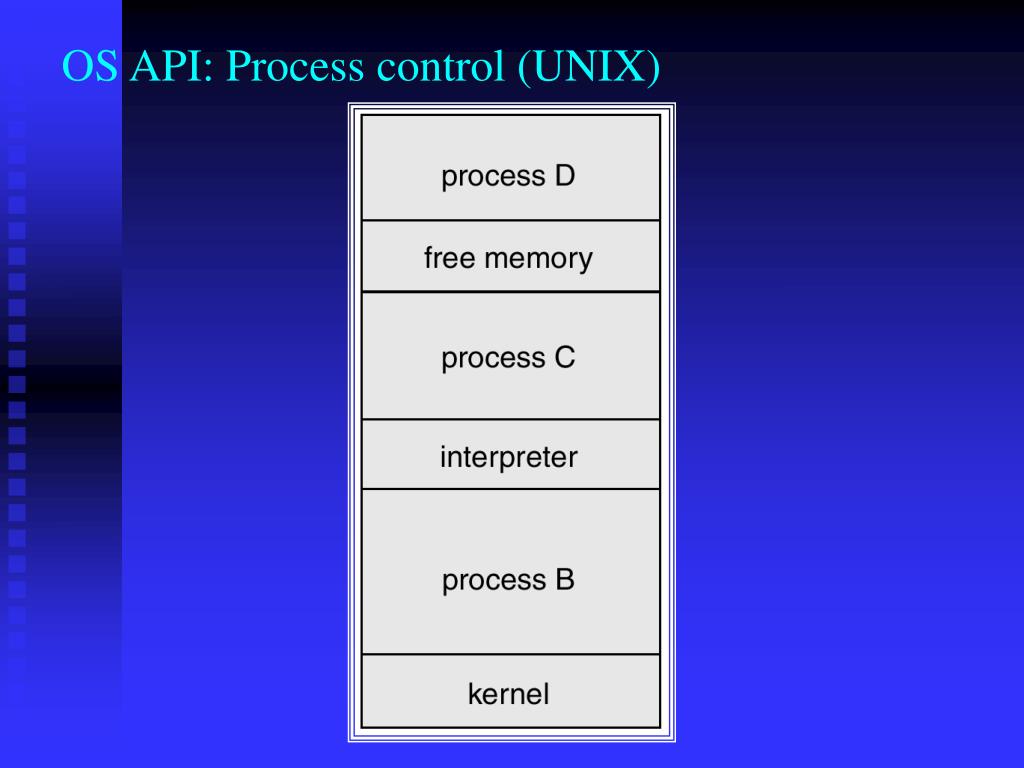

OS API: Process control
  • Create and terminate processes: fork, exit.
  • Execute processes: exec.
  • Get/set process attributes.
  • Abort, end processes.
  • Wait for time, wait for event, signal event.
  • Allocate and free memory.
os api file management

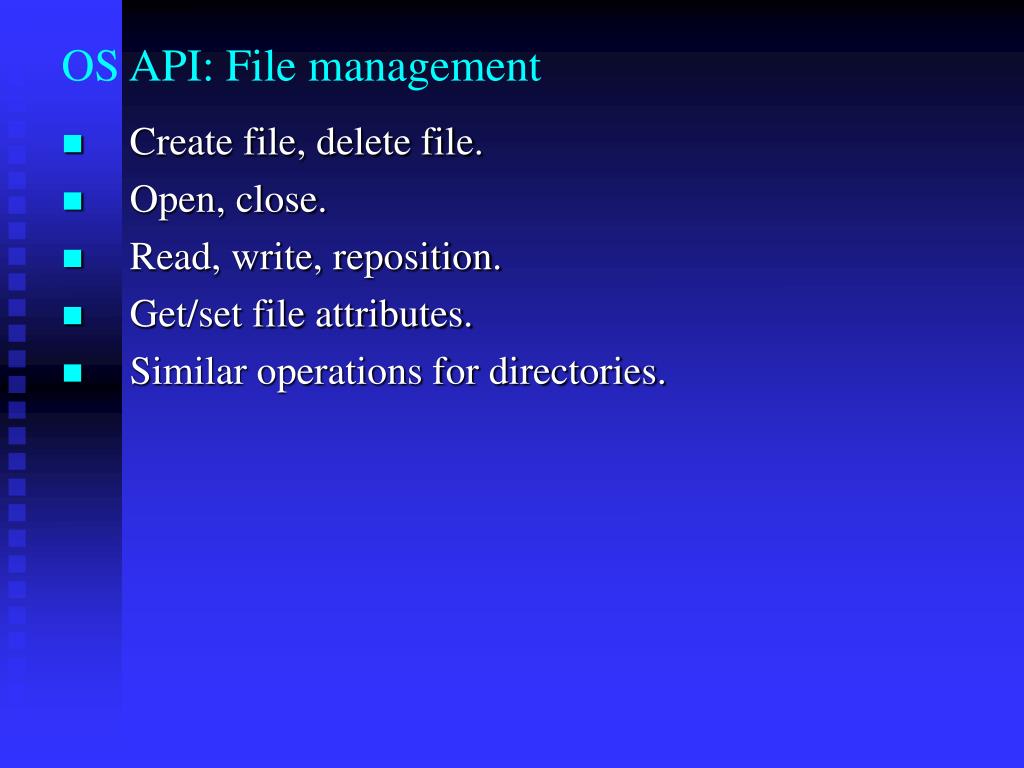

OS API: File management
  • Create file, delete file.
  • Open, close.
  • Read, write, reposition.
  • Get/set file attributes.
  • Similar operations for directories.
os api device management
OS API: Device management
  • Request/release device.
  • Read, write, reposition.
  • Get/set device attributes.
  • Logically attach or detach devices.
os api communication

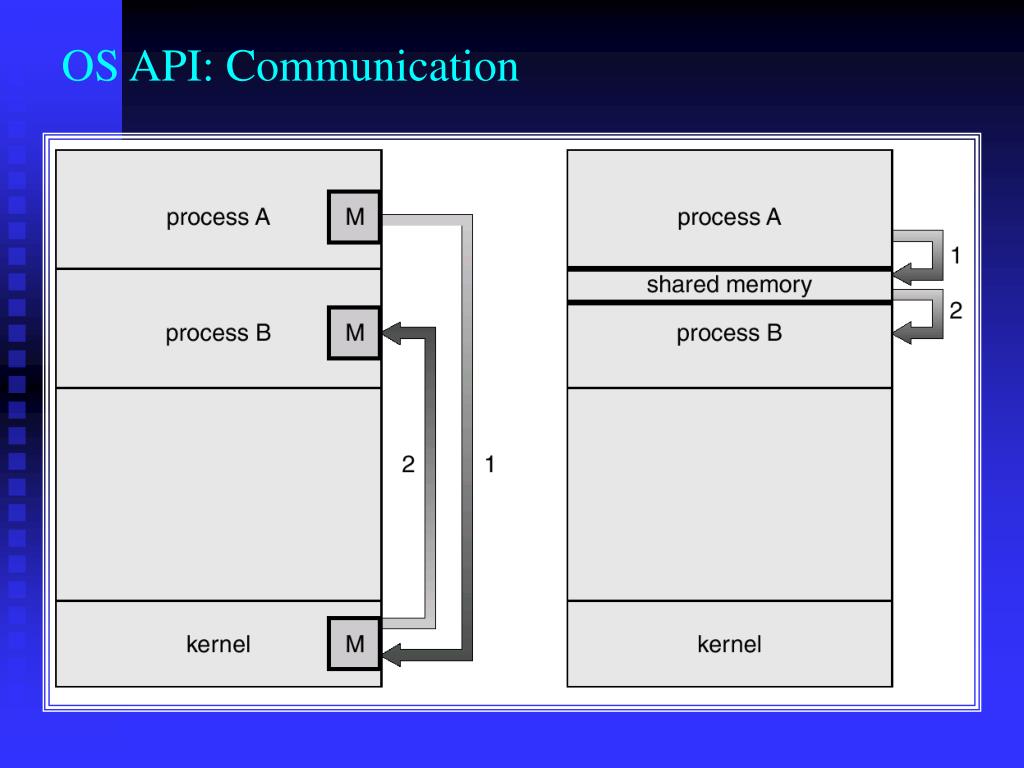

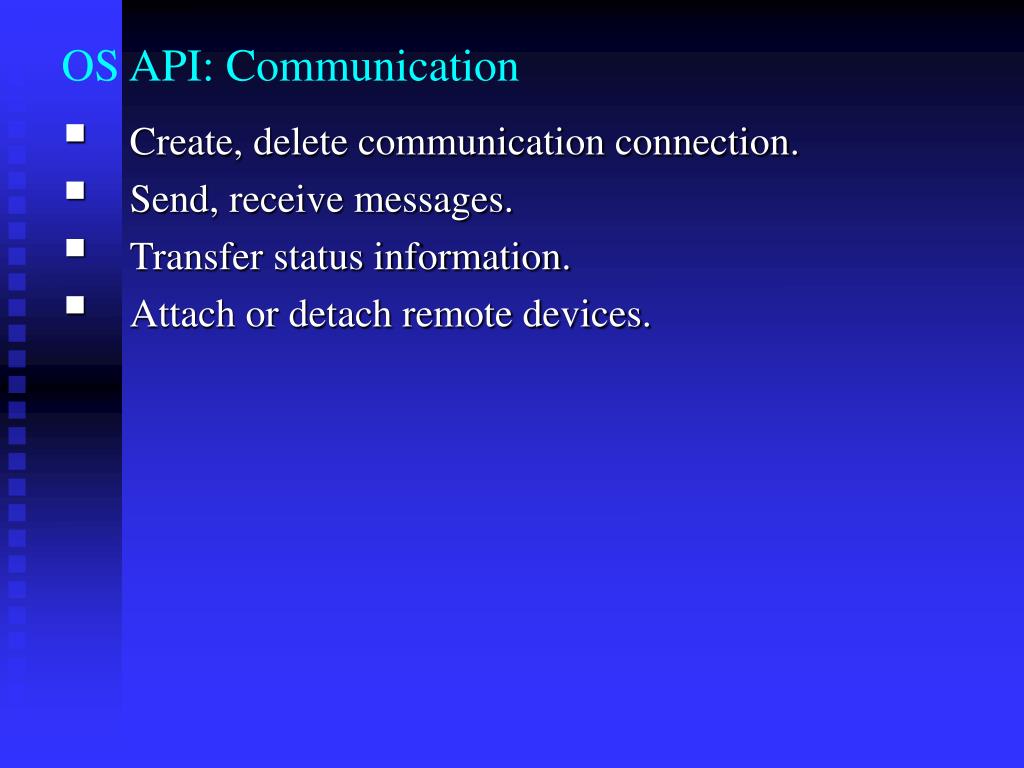

OS API: Communication
  • Create, delete communication connection.
  • Send, receive messages.
  • Transfer status information.
  • Attach or detach remote devices.
os api information maintenance

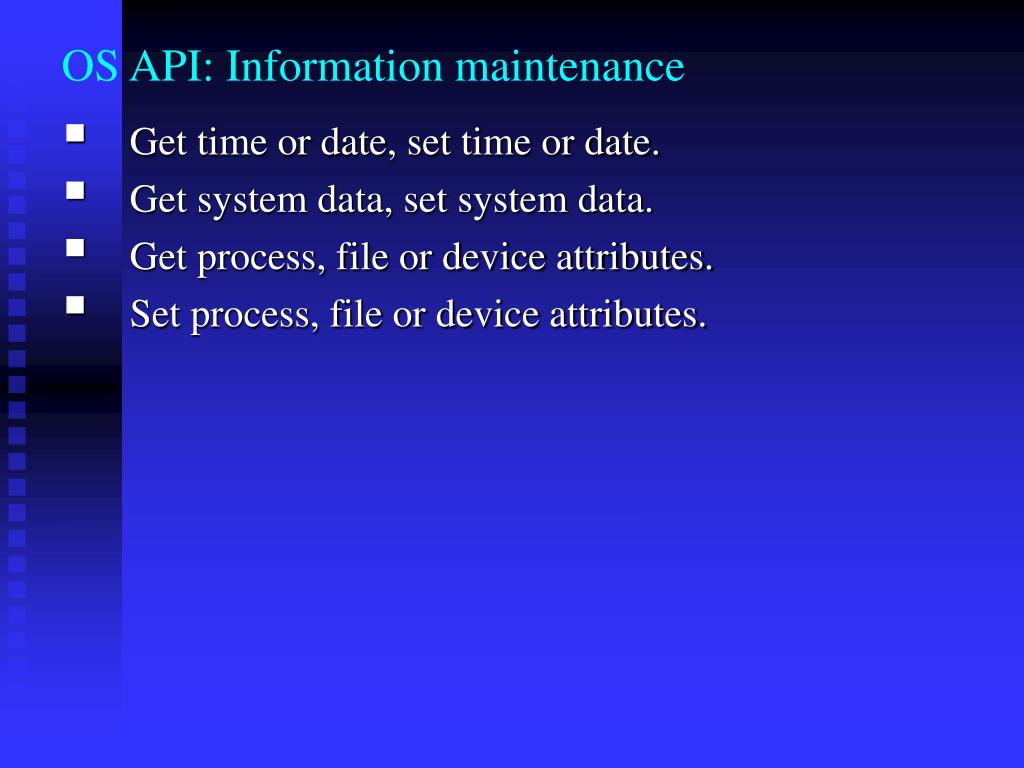

OS API: Information maintenance
  • Get time or date, set time or date.
  • Get system data, set system data.
  • Get process, file or device attributes.
  • Set process, file or device attributes.
os system programs

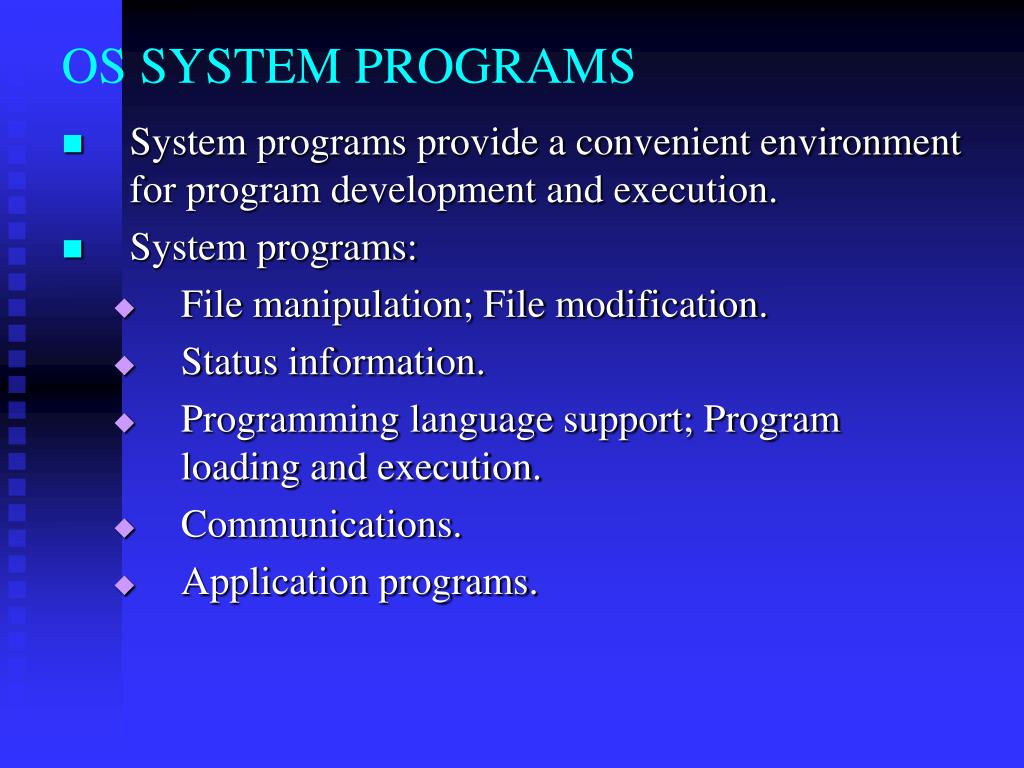

OS SYSTEM PROGRAMS
  • System programs provide a convenient environment for program development and execution.
  • System programs:
    • File manipulation; File modification.
    • Status information.
    • Programming language support; Program loading and execution.
    • Communications.
    • Application programs.
system programs
System programs
  • The most important system program: command interpreter.
  • The command interpreter
    • can contain code segments,
    • or invoke utilities to execute commands.
  • Most users’ view of the operation system is defined by system programs, not the actual system calls.
os structures
OS STRUCTURES
  • Monolithic (单层) Structure
  • Layered (分层) Structure
  • Microkernel (微内核) Structure
  • Virtual machine (虚拟机器)Structure
os structure monolithic structure
OS Structure: Monolithic structure
  • MS-DOS – written to provide the most functionality in the least space.
    • not divided into modules.
    • Although MS-DOS has some structure, its interfaces and levels of functionality are not well separated.
os structure monolithic structure2

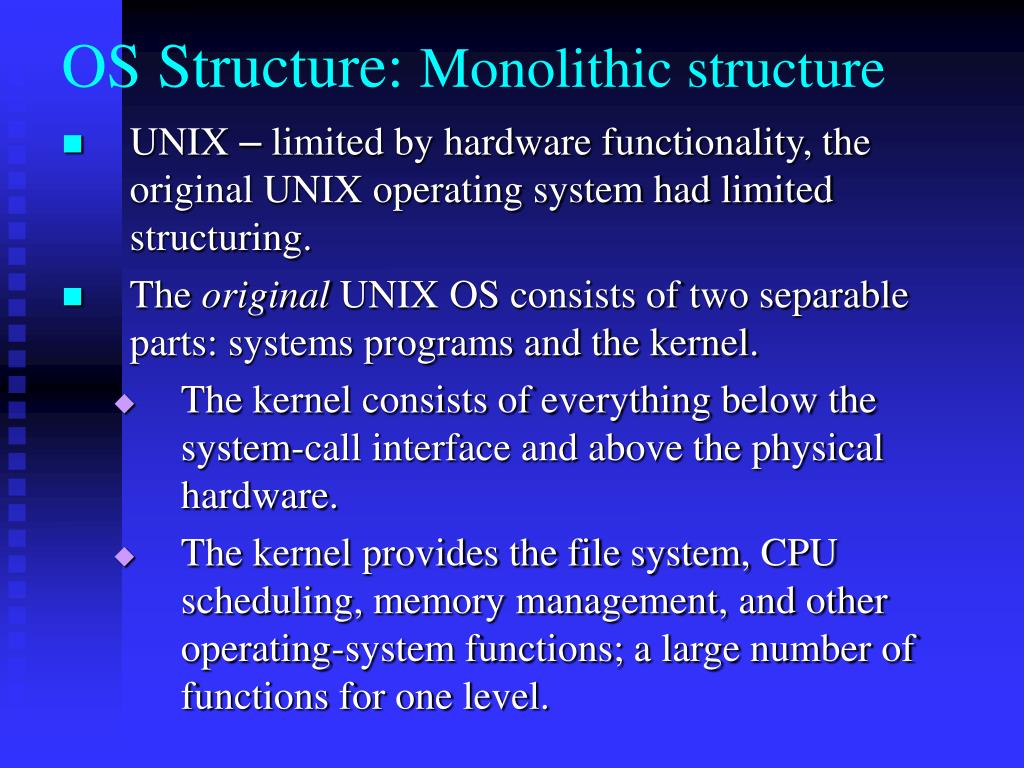

OS Structure: Monolithic structure
  • UNIX – limited by hardware functionality, the original UNIX operating system had limited structuring.
  • The original UNIX OS consists of two separable parts: systems programs and the kernel.
    • The kernel consists of everything below the system-call interface and above the physical hardware.
    • The kernel provides the file system, CPU scheduling, memory management, and other operating-system functions; a large number of functions for one level.
os structure layered structure

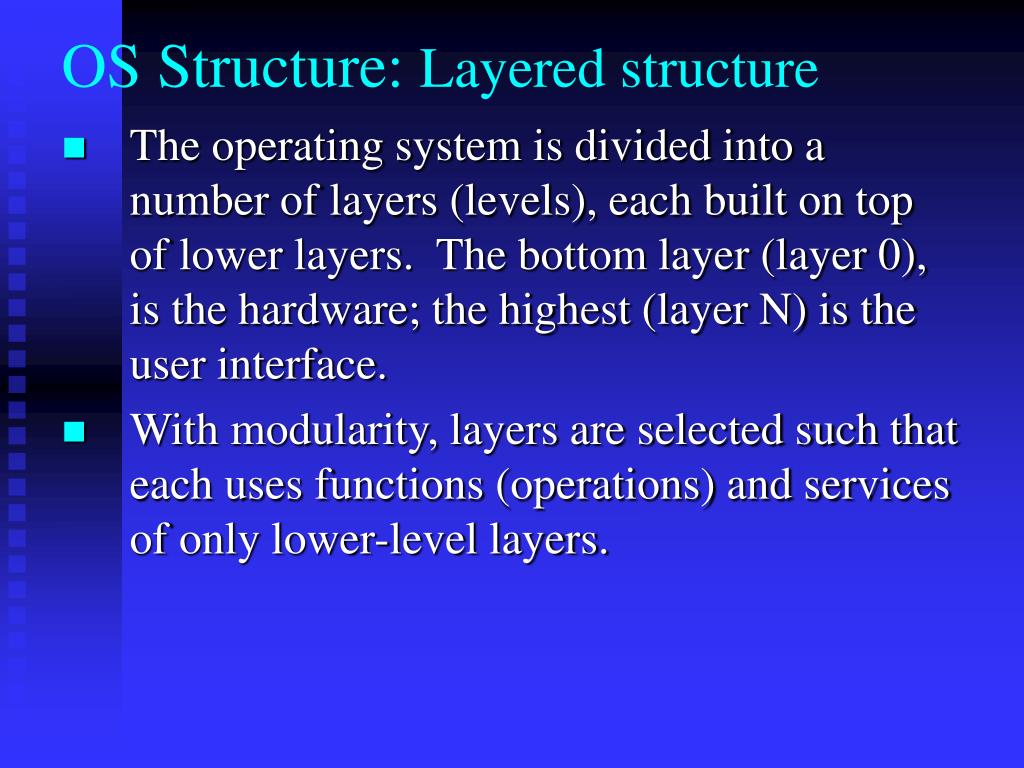

OS Structure: Layered structure
  • The operating system is divided into a number of layers (levels), each built on top of lower layers. The bottom layer (layer 0), is the hardware; the highest (layer N) is the user interface.
  • With modularity, layers are selected such that each uses functions (operations) and services of only lower-level layers.
os structure microkernel structure
OS Structure: Microkernel structure
  • Moves as much from the kernel into “user” space.
  • Communication takes place between user modules using message passing.
  • Benefits:

- easier to extend a microkernel,

- easier to port the operating system to new architectures,

- more reliable (less code is running in kernel mode),

- more secure.

os structure microkernel structure1
OS Structure: Microkernel structure

Windows NT Client-Server Structure

virtual machines
VIRTUAL MACHINES
  • A virtual machine takes the layered approach to its logical conclusion. It treats hardware and the operating system kernel as though they were all hardware.
  • A virtual machine provides an interface identical to the underlying bare hardware.
  • The operating system creates the illusion of multiple processes, each executing on its own processor with its own (virtual) memory.
virtual machines1
Virtual Machines
  • The resources of the physical computer are shared to create the virtual machines.
    • CPU scheduling can create the appearance that users have their own processor.
    • Spooling and a file system can provide virtual card readers and virtual line printers.
    • A normal user time-sharing terminal serves as the virtual machine operator’s console.
virtual machines implementation

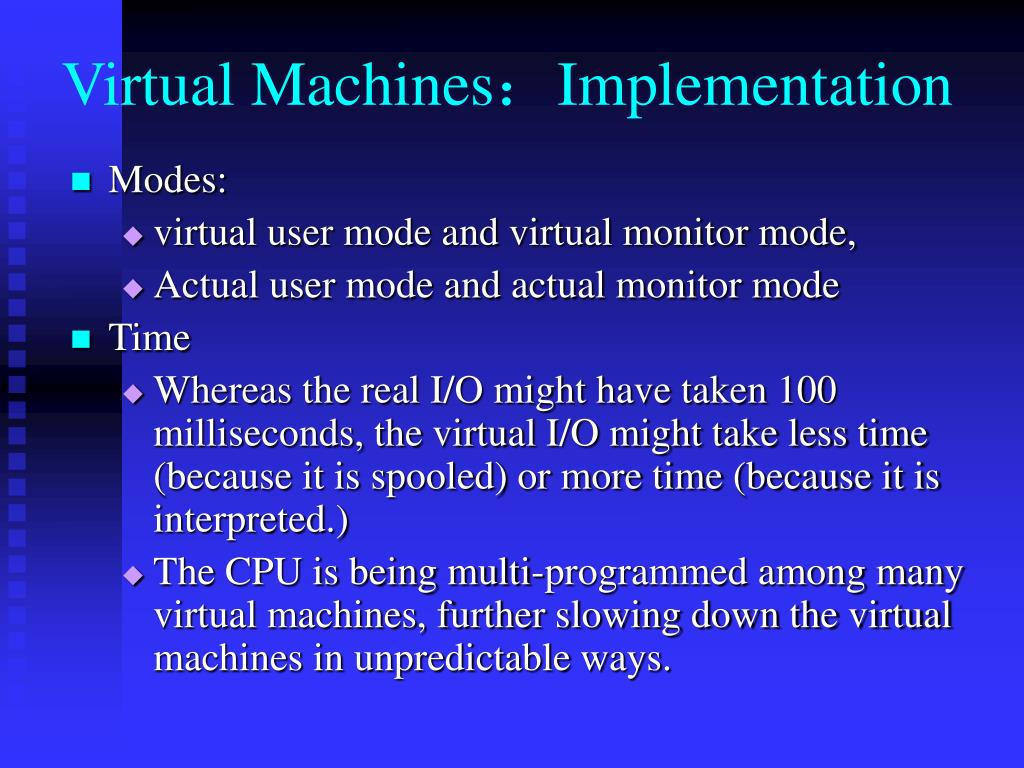

Virtual Machines:Implementation
  • Modes:
    • virtual user mode and virtual monitor mode,
    • Actual user mode and actual monitor mode
  • Time
    • Whereas the real I/O might have taken 100 milliseconds, the virtual I/O might take less time (because it is spooled) or more time (because it is interpreted.)
    • The CPU is being multi-programmed among many virtual machines, further slowing down the virtual machines in unpredictable ways.
virtual machines benefits

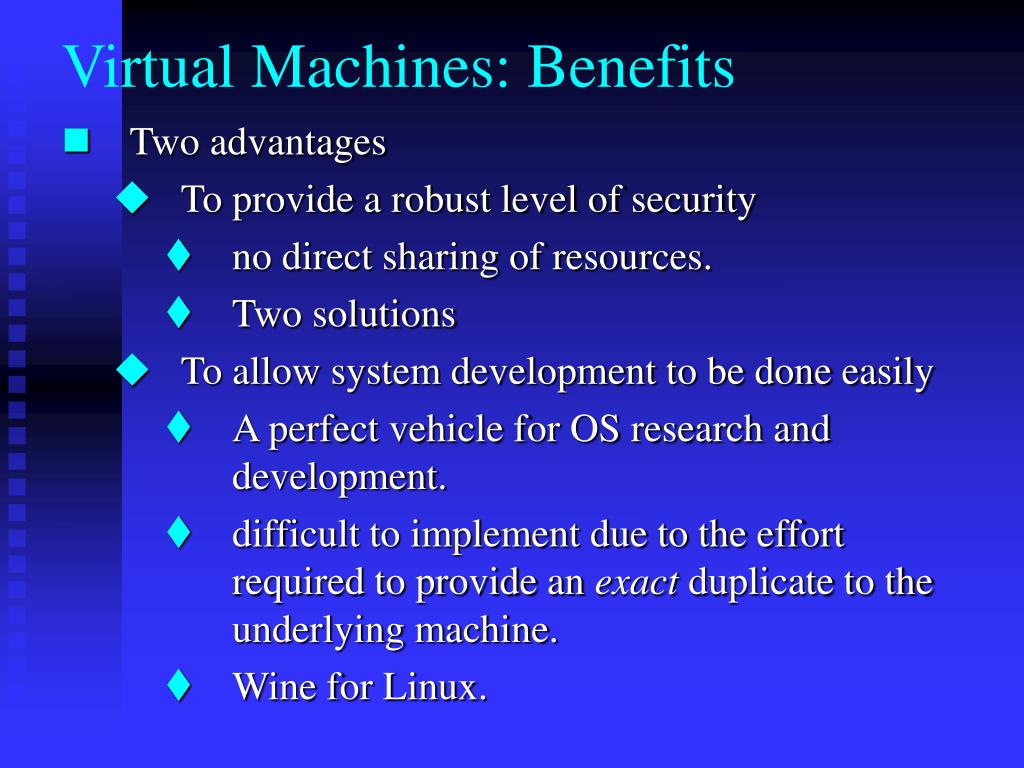

Virtual Machines: Benefits
  • Two advantages
    • To provide a robust level of security
      • no direct sharing of resources.
      • Two solutions
    • To allow system development to be done easily
      • A perfect vehicle for OS research and development.
      • difficult to implement due to the effort required to provide an exact duplicate to the underlying machine.
      • Wine for Linux.
virtual machines jvm
Virtual Machines: JVM
  • Compiled Java programs are platform-neutral bytecodes executed by a Java Virtual Machine (JVM).
  • JVM consists of

- class loader

- class verifier

- runtime interpreter

  • Just-In-Time (JIT) compilers increase performance
system design implementation and generation

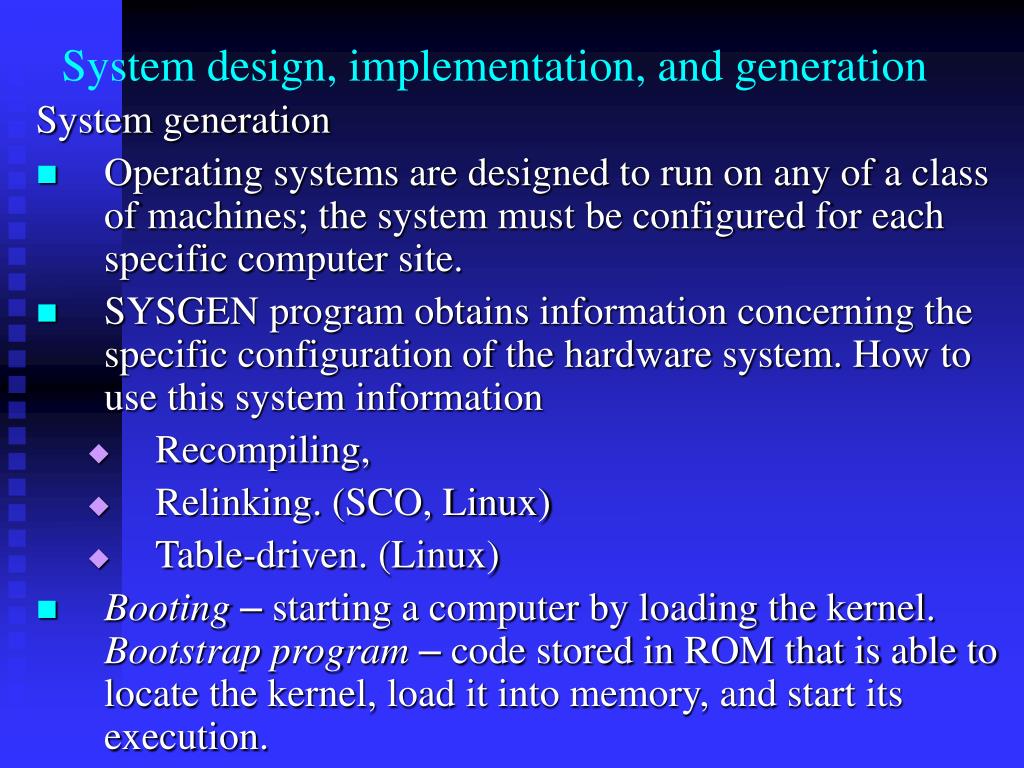

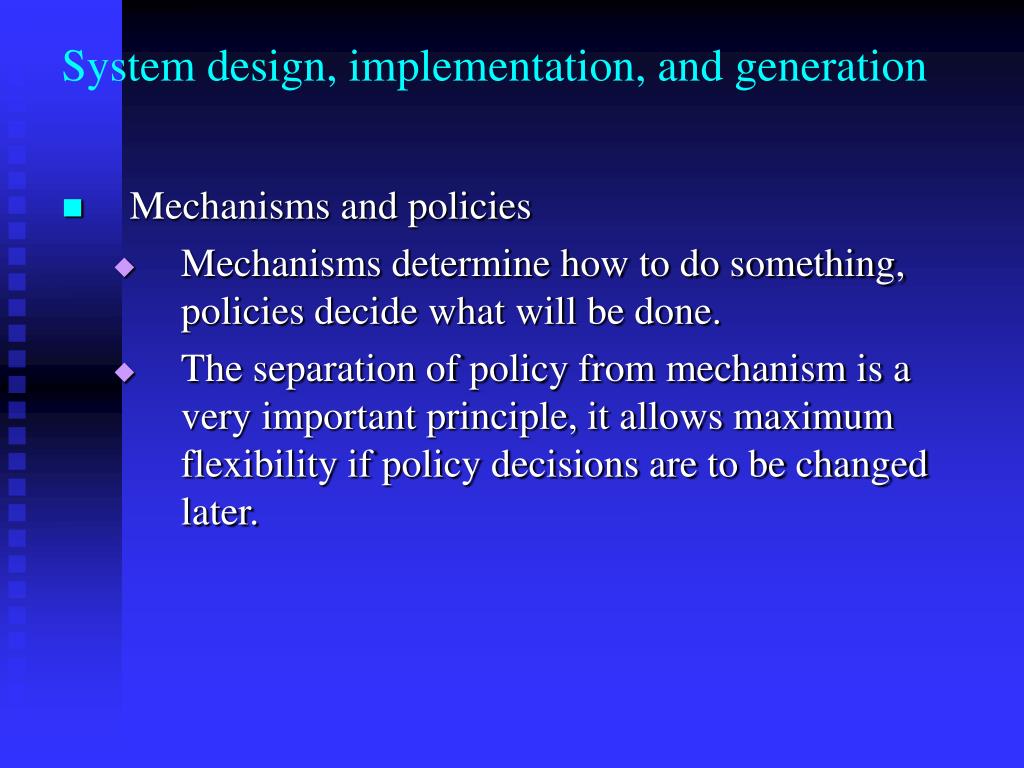

SYSTEM DESIGN, IMPLEMENTATION, AND GENERATION
  • System design goals
    • System type: batch, time shared, single user, multi-user, distributed, real time, or general purpose
    • Two goals
      • User goals – operating system should be convenient to use, easy to learn, reliable, safe, and fast.
      • System goals – operating system should be easy to design, implement, and maintain, as well as flexible, reliable, error-free, and efficient.
system design implementation and generation1
System design, implementation, and generation
  • Mechanisms and policies
    • Mechanisms determine how to do something, policies decide what will be done.
    • The separation of policy from mechanism is a very important principle, it allows maximum flexibility if policy decisions are to be changed later.
system design implementation and generation2
System design, implementation, and generation
  • System implementation
    • Traditionally written in assembly language, operating systems can now be written in higher-level languages.
    • Code written in a high-level language:
      • can be written faster.
      • is more compact.
      • is easier to understand and debug.
      • An operating system is far easier to port (move to some other hardware) if it is written in a high-level language.
system design implementation and generation3
System design, implementation, and generation

System generation

  • Operating systems are designed to run on any of a class of machines; the system must be configured for each specific computer site.
  • SYSGEN program obtains information concerning the specific configuration of the hardware system. How to use this system information
    • Recompiling,
    • Relinking. (SCO, Linux)
    • Table-driven. (Linux)
  • Booting– starting a computer by loading the kernel. Bootstrap program– code stored in ROM that is able to locate the kernel, load it into memory, and start its execution.
