  1. Transport Processes 2005/4/24 Dept. Physics, Tunghai Univ. Biophysics‧C. T. Shih

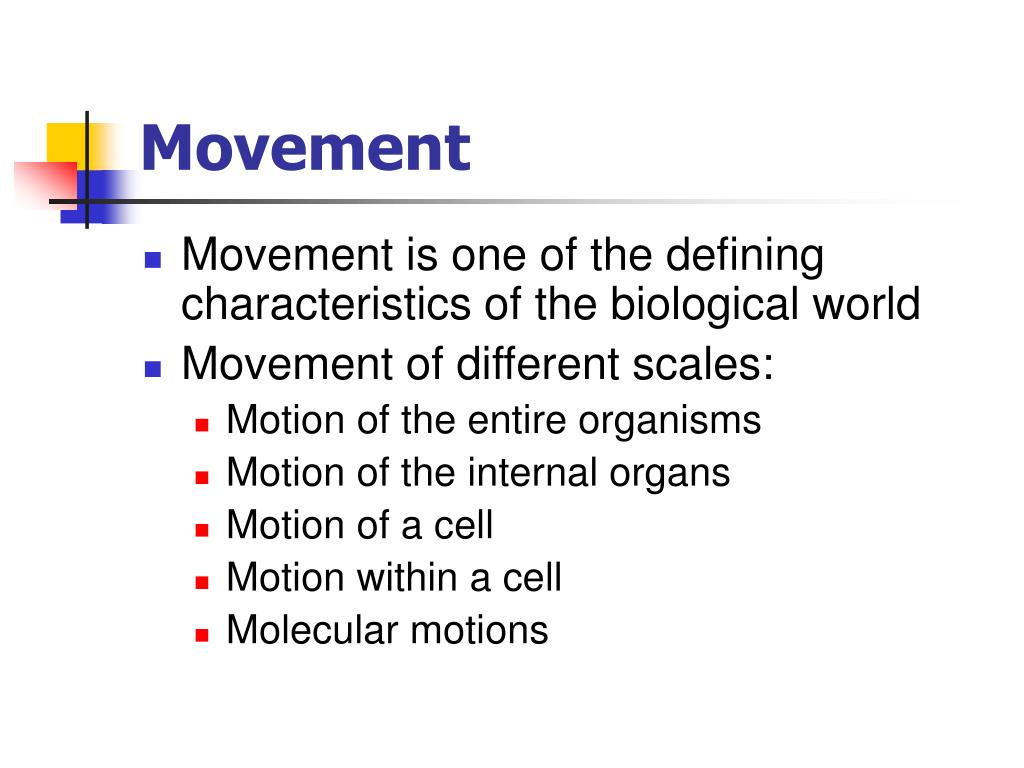

  2. Movement • Movement is one of the defining characteristics of the biological world • Movement of different scales: • Motion of the entire organisms • Motion of the internal organs • Motion of a cell • Motion within a cell • Molecular motions

  3. Diffusion – Passive Transport • Motion of particles through space • Mixing of particles amongst one another – usually for biological systems • Brownian motion: • Discovered by botanist Robert Brown in 1828 – pollen particles in water • Explained by Albert Einstein in 1905

  4. Brown, R. "A Brief Account of Microscopical Observations Made in the Months on June, July, and August, 1827, on the Particles Contained in the Pollen of Plants; and on the General Existence of Active Molecules in Organic and Inorganic Bodies."Phil. Mag. 4, 161-173, 1828.

  5. Einstein, A. "Über die von der molekularkinetischen Theorie der Wärme geforderte Bewegung von in ruhenden Flüssigkeiten suspendierten Teilchen."Ann. Phys. 17, 549, 1905.

  6. Brownian Motion • Einstein showed that Brownian motion is caused by the impacts on the pollen particles of water molecules • The process can be characterized by a series of random walk • The trajectory of a particle can be divided into small straight paths • The particle jumps from point to point • Each jump is independent of the history of movement – the process is stochastic (Markov chain)

  7. Random Walk • For the random walk by m steps without directional bias: • Unit length of each step • Mean distance <r>=0 • Root mean square distance rrms=√m • For a stochastic Brownian motion, • D: diffusion coefficient, net flow of particles per unit time per unit area (perpendicular to the direction of flow)

  8. Diffusion Driven by Density Difference J • One dimension diffusion, at a certain time • b: the length of a single diffusive jump • C(x): number of particles per unit length • f: frequency of jumps • J: flux of particles (per unit area per unit time) • Fick’s First Law: • The particles move from the region of higher density toward the lower one

  9. Time-Dependent Diffusion • The net flux into the region between x and x+L is J(x+L)-J(x), where • Fick’s Second Law

  10. Solution of Fick’s 2nd Equation • Separate the variable: C(x,t)=S(x)T(t) and the equation becomes (let D=a2) • LFS: depends only on x; RHS: depends only on t • The only possibility is that both sides equal to a constant, say –a2k2

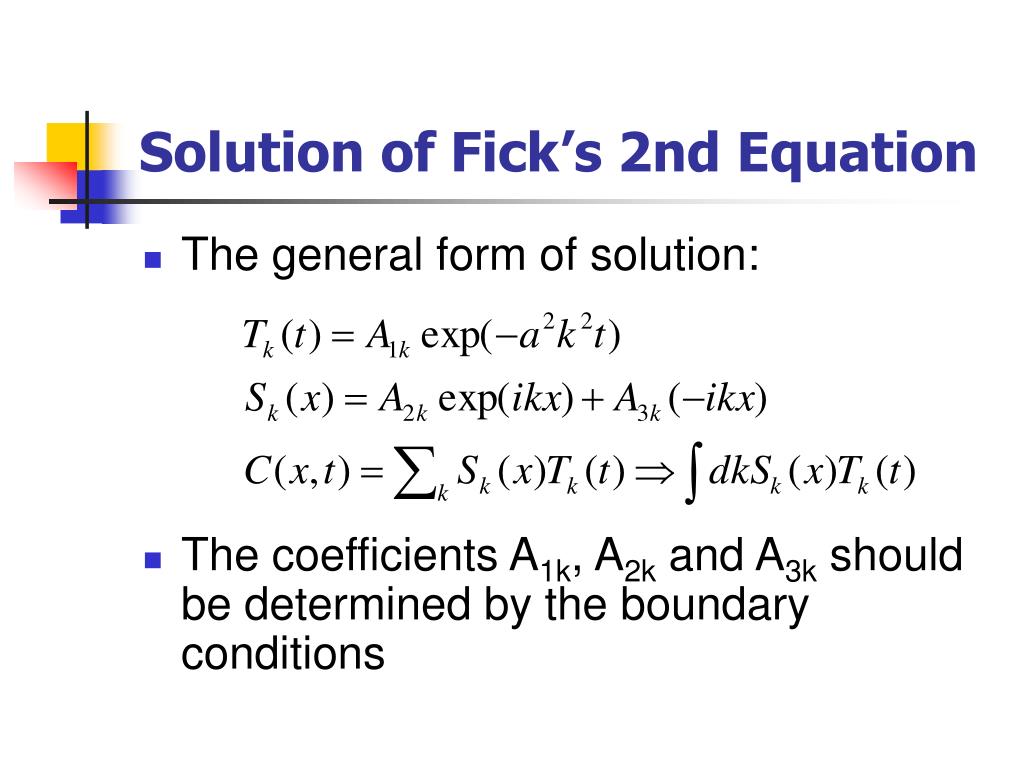

  11. Solution of Fick’s 2nd Equation • The general form of solution: • The coefficients A1k, A2k and A3k should be determined by the boundary conditions

  12. Example: Step Function

  13. Poor Efficiency of Diffusion • Typical values of D (in cm2s-1): • Solid: 10-9 • Liquid: 10-5 • Gas: 10-1 • To reach the distance 10m: • It takes 4 months for gas • For liquid, reaches 10 cm only • For solid, 0.1 cm • Some other methods necessary for transport in organisms • For charged particles, the transport can be accelerated by an external electric field

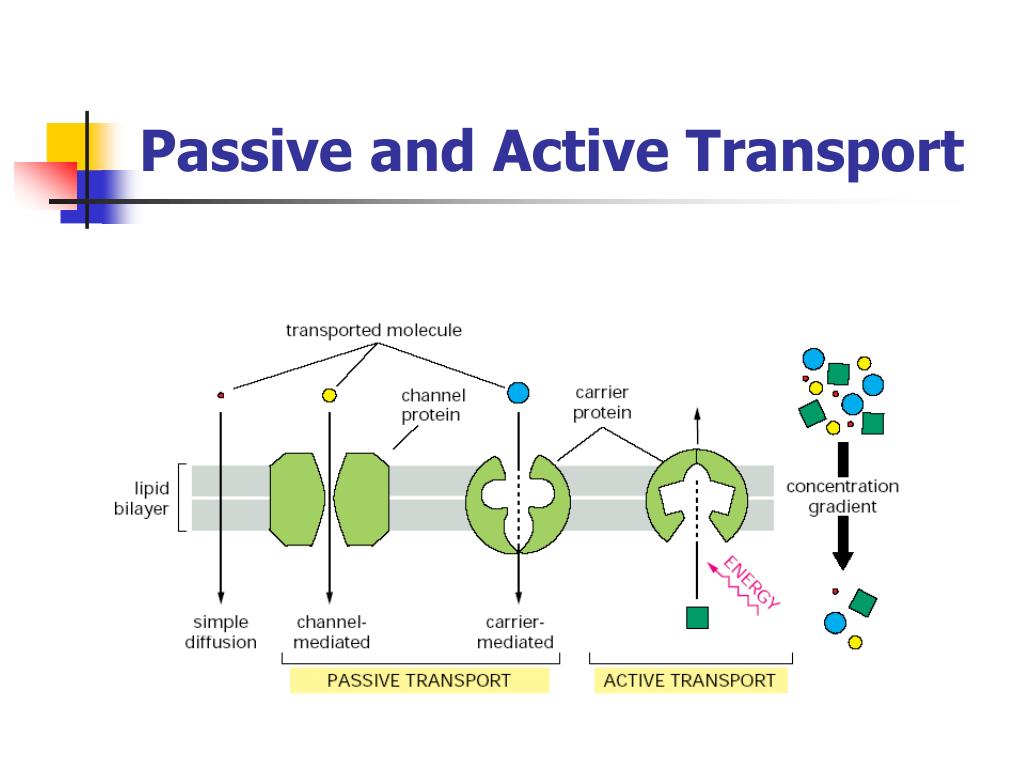

  14. Passive and Active Transport

  15. Electric Field Driven Transport • If the molecules are charged, they can be drifted by an external electric field • Let the diffusion flux contributed by the density gradient denoted by Jchem • The drift velocity of the charged particle is vdrift=mE • What is the relation between the diffusion coefficient D and the mobility m?

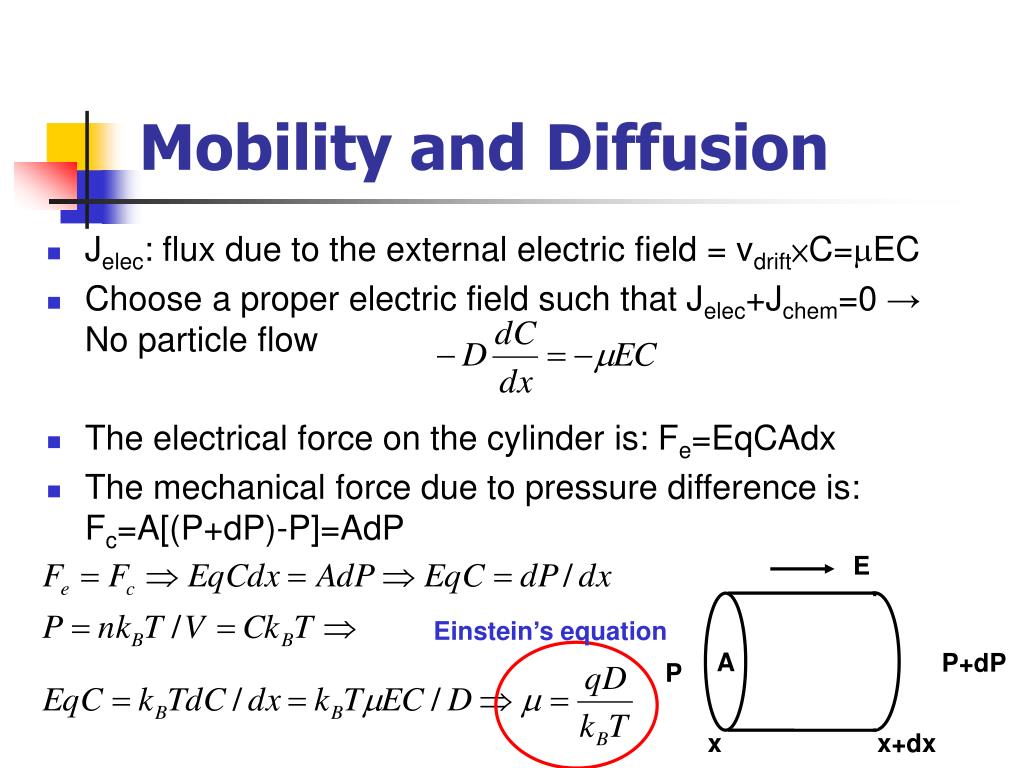

  16. Mobility and Diffusion • Jelec: flux due to the external electric field = vdrift×C=mEC • Choose a proper electric field such that Jelec+Jchem=0 → No particle flow • The electrical force on the cylinder is: Fe=EqCAdx • The mechanical force due to pressure difference is: Fc=A[(P+dP)-P]=AdP E A Einstein’s equation P+dP P x x+dx
