Computational Morphology

1. Computational Morphology Lauri Karttunen

2. Computational morphology • The big questions • Efficient generation and recognition • Common data format • Common "runtime" algorithm for all languages • Established results • Lexical representations are regular languages • Morphological alternations are regular relations • Regular relations can be compiled into finite-state transducers • Burning issues • Nonconcatenative phenomena: reduplication (Malay), interdigitation (Arabic) • Nonlocal dependencies • Syntax/morphology interface

3. Overview • Computational morphology • A success story … • Realizational Morphology (is finite-state) • Lexical representations • Realization rules • Morphophonological rules • Rules of referral • Elsewhere principle (Panini's principle) • Challenges

4. Analysis Generation hang V Past leaf N Pl leave N Pl leave V Sg3 leaves hanged hung Computational morphology

5. Two challenges • Morphotactics • Words are composed of smaller elements that must be combined in a certain order: • piti-less-ness is English • piti-ness-less is not English • Phonological alternations • The shape of an element may vary depending on the context • pity is realized as pitiin pitilessness • die becomes dy in dying

6. Morphology is regular (=rational) • The relation between the surface forms of a language and the corresponding lexical forms can be described as a regular relation. • A regular relation consists of ordered pairs of strings. • leaf+N+Pl : leaves hang+V+Past : hung • Any finite collection of such pairs is a regular relation. • Regular relations are closed under operations such as concatenation, iteration, union, and composition. • Complex regular relations can be derived from simple relations.

7. l e a f +N +Pl l e a v e s final state initial state path Morphology is finite-state • A regular relation can be defined using the metalanguage of regular expressions. • A regular expression can be compiled into a finite-state transducer that implements the relation computationally.

8. Regular morphotactics • Principles of word-formation in most languages can be defined as a regular language or relation using operators such as concatenation and union. • Toy example: | = union, () = optionality • Noun: ear | father • Adj: clear | clever | fat • Adv: ever • NPref: anti • AdjSuff : er | est • NSuf : s • English: (NPref) Noun (NSuf) | Adj (AdjSuff) | Adv

9. Simple lexicon a e n i t f a t a a r l e c v e h r a e s t r v e r f s e e a t h e (NPref) Noun (NSuf) | Adj (AdjSuff) | Adv

10. Regular alternations • Phonological alternations can be represented as regular relations using special regular expression operators • Ordered rewrite systems (Panini 500 BC, Chomsky&Halle 1968) • Parallel “two-level” systems (Koskenniemi 1983) • Simple gemination rule for English • t -> t t || .#. C* V _ e [ r | s t ] • “Geminate t at the end of a monosyllabic stem with a single vowel that is followed by er or est.” (fat+er -> fatter vs. great+er->greater).

11. Transducer lexicon a e n i t f a t a a r l e c v e h r a e s t r v e r f e s e 0:t a t h e [(NPref) Noun (NSuf) | Adj (AdjSuff) | Adv] .o. [t -> t t || _ e [r | s t]

12. vouloir +IndP +SG + P3 Finite-state transducer veut citation form inflection codes v o u l o i r +IndP +SG +P3 v e u t inflected form Lexical transducer • Bidirectional: generation or analysis • Compact and fast • Comprehensive systems have been built for over 20 languages: • English, German, Dutch, French, Italian, Spanish, Portuguese, Finnish, Russian, Turkish, Japanese, Basque, Greek, Arabic, Bulgarian, …

13. Lexicon Regular Expression Lexicon FST Lexical Transducer (a single FST) Compiler composition Rules Regular Expressions Rule FSTs Morphology is a solved problem

14. Who cares? • The success of computational morphology has not made any impact within linguistics. • Computational concerns: • completeness of coverage, physical size, speed of application, formal power, … • Academic concerns: • explanation, universal principles, generalizations, theoretical predictions, elegant formalism, … • Let's try to build a bridge …

15. Realizational Morphology • Gregory Stump, Inflectional Morphology. A Theory of Paradigm Structure. Cambridge U. Press. 2001. • A rich set of notational conventions designed to capture important linguistic generalizations. • Interpretable, precise formalism. • Computational implementation in DATR (Finkel & Stump 2002). • The good news: Realizational morphology is a finite-state model.

16. Finite-state advantage • Casting Stump's system into a regular expression formalism that has a compiler has a fundamental advantage over implementation in systems such as DATR. • DATR can be used to generate an inflected surface form from its lexical representation but it is not directly usable for recognition. In contrast, finite-state transducers are bidirectional generator/recognizers. • Issues to be addressed: • Lexical representations • Realization rules (= rules of exponence) • Morphophonological rules • Rules of referral • Rule ordering by general principles

17. Lingala verb nakobeti 'I hit you': <bet, {Sub:[Per:1, Num:Sg], Obj:[Per:2, Num:Sg], Tns:Past:Rec}> Lexical representation < Stem, Features> A phonological representation A set of morphological properties

18. RR3, Obj:[Per:2, Num:Sg], V(<X,s>) =def <koX, s> The singular second person object agreement features are realized by prefixing "ko" to the beginning of the current phonological form. The rule appears in Block 3 and applies to verbs. Realization rule phonological input phonological output features RRn,t,C(<X,s>) =def <Y', s> rule block features realized by the rule category

19. Rule application • Realization rules are ordered into blocks by the linguist. • Within blocks, the ordering is determined by specificity (Elsewhere rule, Panini's principle). • The final output of a realization rule may depend on morphophonological rules. • X " Y " Y'

20. RR3, Obj:[Per:2, Num:Sg], V(<X,s>) =def <koX, s> <kobet, {Sub:[Per:1, Num:Sg], Obj:[Per:2, Num:Sg], Tns:Past:Rec}> RR1, Subj:[Per:1, Num:Sg], V(<X,s>) =def <naX, s> <nakobet, {Sub:[Per:1, Num:Sg], Obj:[Per:2, Num:Sg], Tns:Past:Rec}> RR5, Tnsj:Past:Rec, V(<X,s>) =def <Xi, s> <nakobeti, {Sub:[Per:1, Num:Sg], Obj:[Per:2, Num:Sg], Tns:Past:Rec}> 1 3 5 Cascade of rule applications <bet, {Sub:[Per:1, Num:Sg], Obj:[Per:2, Num:Sg], Tns:Past:Rec}>

21. Observations • The lexical representations of Realizational Morphology constitute a regular language. • They can be described by a regular expression. • All examples of realization rules given in Stump's book represent regular relations. • They can be compiled compiled into finite-state transducers. • Because regular relations are closed under composition, the cascade of rule applications yields a single transducer. • We can eliminate the features from the surface side once the composition has been done.

22. , Sub e < b t { : a k b t i n o e [ Per : 1 , Num : Sg ] … etc. A path in the lexical transducer for Lingala mapping the surface form nakobetidirectly into its lexical representation <bet, {Sub:[Per:1, Num: Sg], Obj:[Per:2, Num:Sg],Tns:Past:Rec}>, and vice versa. Literal example In a real application, one would prefer a more parsimonious encoding of the feature structure.

23. Realization rules • Stump's realization rules can easily be expressed in Parc/XRCE regular expression formalism. • Example: • RR3, Obj:[Per:2, Num:Sg], V(<X,s>) =def <koX, s> • define R301 [. .] -> {ko} || "<" _ $[ObjAgr & $2 & $Sg] • "Rule R301: Insert (= rewrite the empty string as) "ko" • to the beginning of a phonological form whose object • agreement features contain the values 2 and Sg."

24. Morphophonological rules • The output of a realization rule may be subject to a morphophonological rule. • Stump's morphophonemic rules are simple rewrite rules, easily expressed in the Parc/XRCE regular expression formalism. • If X=W[vowel1] and Y=X[vowel2]Z, then the indicated [volwel2] is absent from Y'. • Vowel -> 0 || Vowel "+" _ ; • where "+" marks the place where the suffix is inserted.

25. Rules of referral • Realization rules may be defined in terms of other realization rules. • The same affix can express more than one bundle of morphological features (syncretism). • In Lingala, mo expresses class 4 singular 3rd person agreement for subjects and objects. • In the Parc/XRCE regular expression formalism, a rule of referral corresponds to a substitution operation. • If R305 is the object agreement rule, the corresponding subject agreement rule is • `[R305, Obj, Sub] • It yields a transducer identical to R305 except that the insertion of mo is controlled by subject agreement features.

26. Elsewhere principle • While the rule blocks are ordered by the linguist, the realization rules within each block and the morphophonologicalrules are ordered by specificity. • A specific rule takes precedence over a more general rule in cases where both are applicable. • This principle is very important for Stump. But he gives no precise definition for it within his formalism. • The Elsewhere Principle is an extremely simple notion for realization rules and for symbol-to-symbol morphophonological rules in a finite-state model.

27. Rule A k -> 0 || Vowel _ Vowel Rule B k -> v || u _ u Specific vs. General

28. Input/Output languages • Rule A and Rule B have the same input language: the universal (= "sigma star") language. • Both rules can be applied without failure to any string. If the context is not met, the output is the same as the input. • The output languages are not the same. • A "successful" application an obligatory rule removes from the output language the strings to which it has applied. • Every string missing from the output language of Rule B is missing from the output language of Rule A, but not vice versa. • The output language of Rule A is a proper subset of the output language of Rule B.

29. Output language of Rule A Rule A k -> 0 || Vowel _ Vowel Rule B k -> v || u _ u

30. Output language of Rule B Rule A k -> 0 || Vowel _ Vowel Rule B k -> v || u _ u

31. Principled rule ordering • The relationship of any two rules A and B that insert a string or replace a particular symbol can be determined by the following method: • Extract the output languages (a finite-state operation). • Check whether one is the proper subset of the other (a finite-state operation). • This determination can be done efficiently and without any knowledge of how the rules were expressed.

32. Discussion • It is evident that Realizational Morphology is yet another variant of finite-state morphology. • Stump could say: "Your theory is a notational variant of mine but mine is better." • There are many examples where notation matters: • B => A _ C "B must occur between A and C." • ~[ [~[?* A] B ?*] | [?* B ~[C ?*] ] ] • Stump's convoluted and cumbersome notation takes no advantage of the nice formal and computational properties that it in fact has. It is a finite-state model that does not know its name.

33. Morphotactic challenges • Most languages build words by concatenation • un+think+ing+ly • paris+mut+nngau+niraq+lauq+sima+nngit+junga (Inuktitut) • (parimunngauniralauqsimanngittunga = I never said I wanted to go to Paris) • Some languages also have nonconcatenative processes of word formation • Arabic interdigitation • Malay reduplication

34. Non-concatenative stem:ktb CVVCVC ui “root” “template” “vocalization” kuutib Interdigitation in Arabic Concatenative: kuutib + a “stem” “suffix” The root, template and vocalization morphemes “interdigitate” into a stem.

35. Full-stem reduplication in Malay • In Malay, the overt plural of bagi (“suitcase”) is bagibagi (orthographically bagi-bagi); the plural of peraturan (“rule”) is peraturanperaturan, etc. • To model such pluralization, you need to copy the stem, no matter what it is and no matter how long it is. • Such “full-stem reduplication” appears to be far beyond finite-state power • The copy language, {ww | we L}, is context-sensitive.

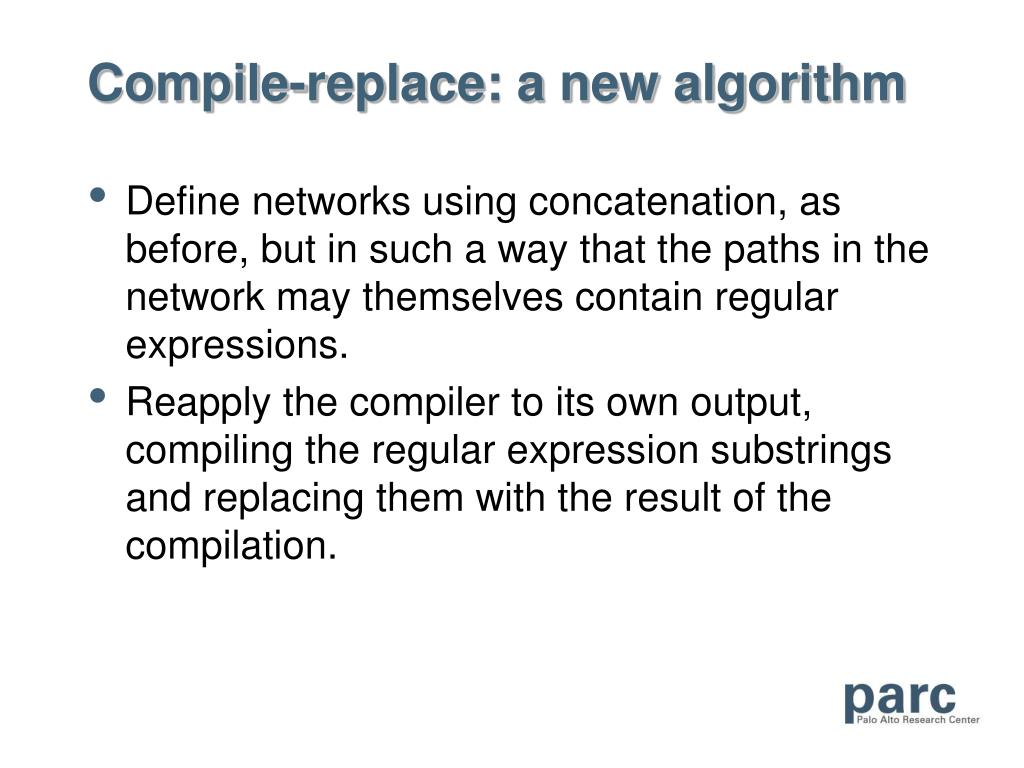

36. Compile-replace: a new algorithm • Define networks using concatenation, as before, but in such a way that the paths in the network may themselves contain regular expressions. • Reapply the compiler to its own output, compiling the regular expression substrings and replacing them with the result of the compilation.

37. a ^[ * ^] A non-linguistic example: before compile-replace Network containing a regular expression, a* delimited with ^[ and ^] .

38. *:a 0:a a *:0 a:0 *:0 Non-linguistic example: after compile-replace Maps every string in the infinite a* language to the regular expression from which the language was compiled.

39. Iteration operator • ^n • A^2 denotes two concatenations of the languageA with itself, equvalent to [A A]. • A = {bagi, pelanbuhan}, • A^2 = {bagibagi, bagipelanbuhan, pelanbuhanbagi, pelanbuhanpelanbuhan}. • Finite-state languages and relations are closed under n-ary concatenation.

40. Compile-replace in Malay • Before • Lemma: b a g i +Noun +Plural • Underlying form: ^[ { b a g i } ^2 ^] • After • Lemma: b a g i +Noun +Plural • Surface string: b a g i b a g i • The compile replace operation does not create any ill-formed reduplicates such as pelabuhanbagi.

41. Merge operators for Arabic • Merge a Filler into a Template • .m>.is the “merge to the right” operator and • .<m.is the “merge to the left operator”. k t b .m>. C V V C V C • k V V t V b • k V V t V b .<m. u* i • k u u t i b

42. Compile-replace in Arabic:before and after • Before • Lemma: k t b =Root C V C V C =Template a + =Voc • Underlying: ^[ k t b .m>. C V C V C .<m. a + ^] • After • Lemma: k t b =Root C V C V C =Template a + =Voc • Surface: k a t a b Alternation rules apply to the interdigitated stems to produce the real surface strings.

43. XRCE Arabic • Lexicon • 4930 roots • 400 phonologically distinct patterns • 90,000 stems • 72 million words • Rules • 66 alternation rules for deletion, assimilation, etc. • Construction • compile-replace algorithm merges roots and patterns to form stems • composition with alternation rules creates the final transducer with optional vowels • time required: a few minutes

44. Remaining issues • Efficient treatment of non-local dependencies • prefix … stem … suffix … Conclusion • Computationally, morphology is a solved problem. Syntax-morphology interface

45. References Lauri Karttunen, "Computing with Realizational Morphology" in CICLing-2003, A. Gelbukh (ed.), Lecture Notes in Computer Science 2588, pages 205-216. Springer Verlag. 2003. • For a copy write to karttune@parc.com • This PowerPoint presentation will be available at a local web site. Kenneth R. Beesley & Lauri Karttunen, Finite-State Morphology, CSLI Publications. February 2003. (Software included).
