benefits and concerns when constructing an enterprise scale geodatabase

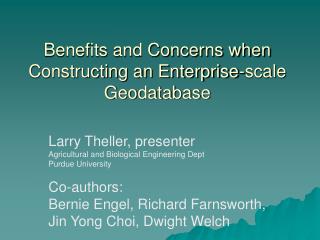

Benefits and Concerns when Constructing an Enterprise-scale Geodatabase

Larry Theller, presenter

Agricultural and Biological Engineering Dept

Purdue University

Co-authors:

Bernie Engel, Richard Farnsworth,

Jin Yong Choi, Dwight Welch

background
Background
  • Campus has 125+ ArcGIS users
  • My dept. provides GIS data for many groups who use same layers
  • First step was FTP/download site for 1998 orthos and statewide topo map layer.
  • Statewide DEM, NASS, 2003 orthos…
our solution
Our solution
  • SDE Geodatabase to act as library
  • Mostly static layers, users not editing
  • Fast raster delivery is critical
  • Off-campus use is a plus
  • Clients will be various GIS programs
the geodatabase
The Geodatabase
  • ArcGIS native data format
  • Stores feature classes that have one geometry type
  • Can store feature and attribute behavior
  • Spatial and attribute data stored in RDBMS
  • Two physical implementations
    • Personal geodatabase
    • ArcSDE Geodatabse
capabilities of enterprise geodatabase
Capabilities of Enterprise Geodatabase
  • Rule-based, Enhanced (network) topology
  • Multi-user (versioned) editing
  • Attribute validation (domains, subtypes)
  • Scaleable storage solutions
  • Referential Integrity in relationships
  • Custom features ( behavior of objects)
when do you need geodatabase
When do you need Geodatabase?
  • Raster data access drives ours
    • Can’t afford to move aerial photography
  • 150 casual users storing multiple copies of data.
  • We use distributed GIS client but with limited WEB access
    • So want one-stop data access
    • but…restrict “download” of some data
slide7

Purdue’s IT group now offers ArcGIS on Citrix

This increases the need for “one-stop data shopping”

just sde or add ims
Just SDE? Or add IMS?
  • Physical overhead of SDE database connections versus cost of ArcIMS license.
  • Will the database be the sole source?

-Will you need to interface files (images, changing vectors) with geodatabase features?

  • Consider AXL service in ArcIMS.
arcims feature service
ArcIMS Feature Service
  • An ArcIMS Feature Service streams the actual data features to you over the Internet, similar to the way audio and video are streamed. Each feature service contains one or more ArcIMS feature classes.
  • A layer based on an ArcIMS feature class works the same as any other feature layer. An ArcIMS feature class is simply another feature data source for a layer, just as a shapefile is a feature data source for a layer.
  • If you add an ArcIMS Feature Service to ArcMap, you'll get a new group layer containing one sublayer for each of the feature classes in the service.
  • As its name suggests, an ArcIMS Feature Service cannot contain raster data.
client software
Browser/viewer

ArcExplorer 9

WMS viewers

IE (thin client)

Full-feature GIS

ArcGIS

Custom Models

Client Software
client software12
Browser/viewer

ArcExplorer 9

free

No images from SDE direct

No metadata

Will support images from ArcIMS AXL

WMS viewers

User must customize

Full-feature GIS

ArcGIS

Direct Connect

ArcIMS connect

Metadata from SDE

Steeper learning curve

price

Client Software
direct connect to sde
Direct Connect to SDE

One connection per client

ArcCatalog

ArcCatalog

ArcCatalog

ArcCatalog

ArcCatalog

SDE

Database

ArcMap

ArcMap

Issues on Windows XP

ArcMap

ArcMap

arcims as broker to sde
ArcIMS as broker to SDE

ArcMap

ArcCatalog

ArcCatalog

ArcMap

ArcCatalog

ArcCatalog

ArcCatalog

SDE

Database

ArcIMS

Feature server

Image Server

ArcIMS uses 4 connections regardless of client load.

slide16

Using ArcCatalog

“Add GIS Server”

slide18

You can get a list of Feature Data Sets.

Each dataset may contain

many feature classes.

Restricted services are supported.

metadata24
Metadata
  • ArcSDE – database has one format for direct connection
  • ArcIMS –axl service uses different format than web service
  • ArcIMS metadata server is still another different entity
  • ArcExplorer – can’t see anything but an embedded url.
    • Updates must cascade through different file formats and software products.
    • Needs (!!) to be streamlined by ESRI.
metadata process
Metadata process
  • Import into SDE for ArcCatalog
  • Employ XML version for ArcIMS Metadata server to enable searching.
  • ArcExplorer users – can export a URL from an attribute - with poor results.
  • Provide in HTML for ArcIMS web thin clients.
sde connects to arcims

Database

SDE Connects to ArcIMS

ArcMap

ArcCatalog

ArcMap

ArcCatalog

ArcCatalog

ArcExplorer

SDE

Web

Browser

AXL Services

Web

Browser

ArcIMS

Feature server

Image Server

ArcIMS uses 4 connections regardless of client load.

HTML

services

drawbacks of this approach
Drawbacks of this approach
  • Design of master GDB is complex.
  • Requires database management experience (not as much GIS.)
  • Thin client (IE) aspects not robust.
  • Metadata: 3 client types, 3 separate copies!
  • Data presentation not uniform.
  • ArcIMS components add labor.
    • Requires more management than static GDB.
conclusions
Conclusions
  • SDE Geodatabase is MUCH faster access to raster data than MrSid.
  • ArcIMS is key broker for multiple client TYPES.
  • ArcIMS adds significantly to management load.
  • Future development will be in ArcGIS Server (split-off thin client.)
lessons
Lessons
  • Create metadata for all layers, in XML and HTML.
  • Import Metadata to SDE from beginning
  • In retrospect, flat feature tree would be preferable.
  • Oracle’s unlimited table size is a plus.
enterprise geodatabase
Enterprise Geodatabase?

Questions we asked

  • Raster and Vector?
  • Who is software client?
    • Full capability with all users?
    • Or are some just browsers
  • Will we allow multiple edits?
  • Read the books or buy training?
  • Which database? SQL or Oracle?
  • Who trains “shapefile” users?
