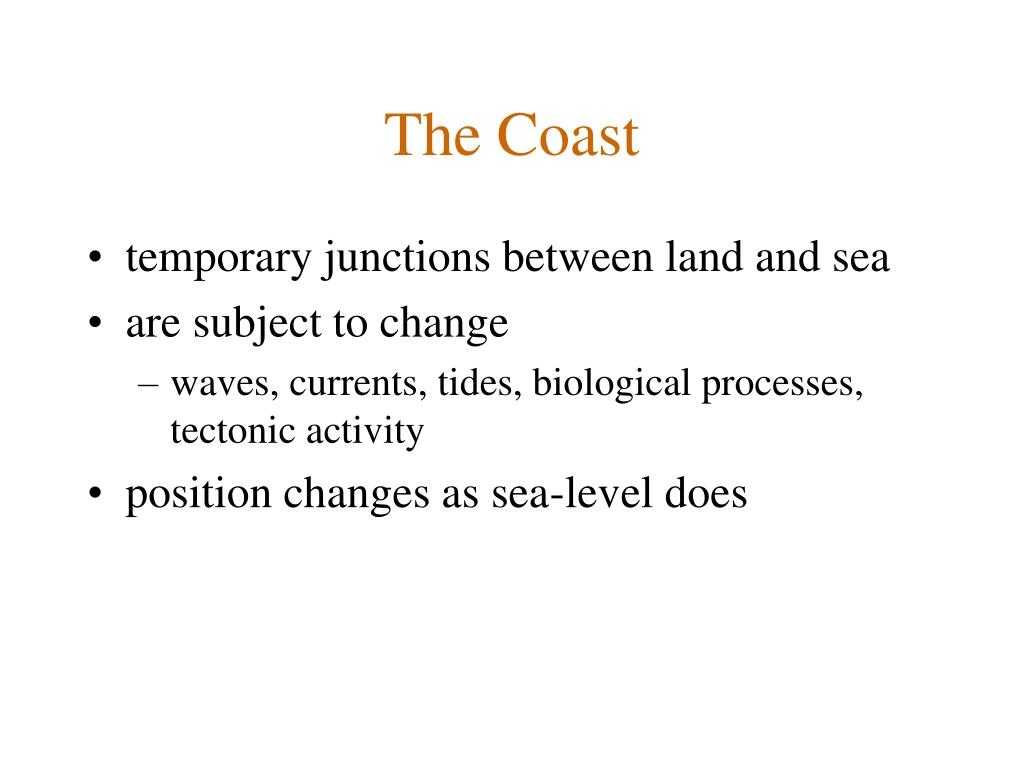

  1. The Coast • temporary junctions between land and sea • are subject to change • waves, currents, tides, biological processes, tectonic activity • position changes as sea-level does

  2. Sea level 18,000 years ago during last ice age

  3. If sea level rises 60cm (20ft)

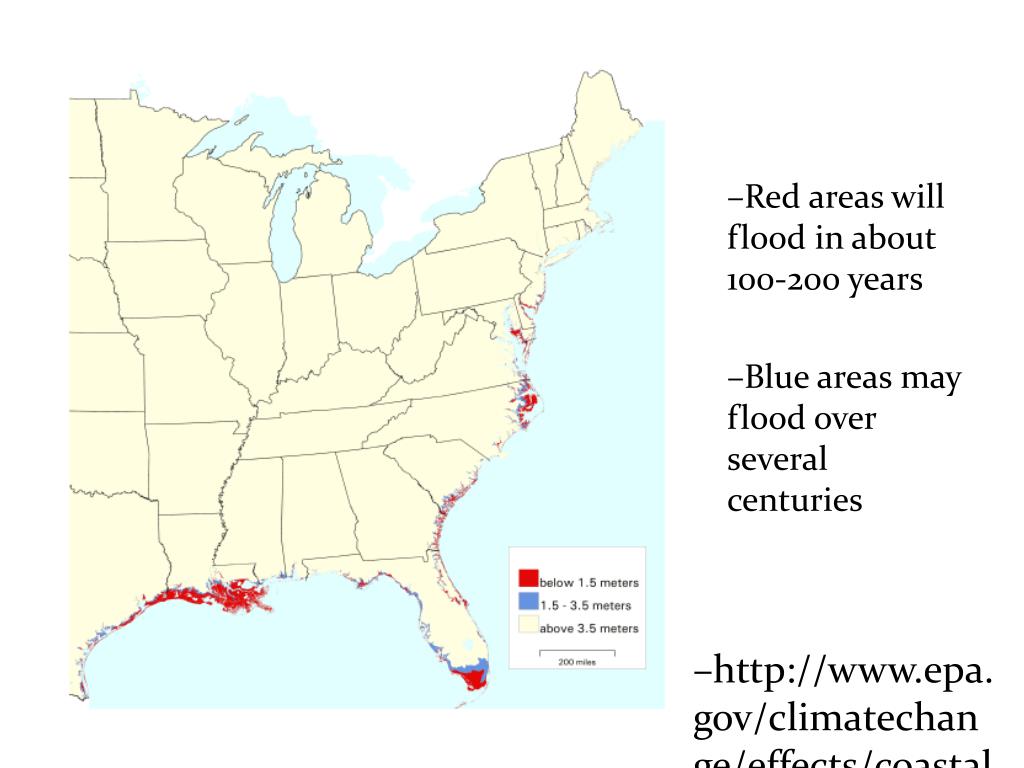

  4. Red areas will flood in about 100-200 years • Blue areas may flood over several centuries • http://www.epa.gov/climatechange/effects/coastal/slrmaps_sealevelmap.html

  5. Over the next century, sea level is most likely to rise 55-60 cm along most of the U.S. Atlantic • Red areas would flood during spring high tides • http://www.epa.gov/climatechange/effects/coastal/slrmaps_ne_liny.html

  6. Sea Level Rise Does Matter • Superstorm Sandy produced record storm surge levels for locations in and around the NY City metropolitan region • Sea levels have risen more than a foot in the New York City region since the Industrial Revolution. • So what difference did this extra foot make for the citizens of New York City? Quite a lot. 6,000 more people impacted for each inch of rise! • 70,929 more people and 30,551 more homes flooded. • According to Dr. Ben Strauss, Chief Operating Officer and Director of the Program on Sea Level Rise at Climate Central

  7. Beaches • a zone of loose particles that covers part of the shore • extends from a landward limit • cliff, permanent dunes, seawall • extends to the seaward limit where movement of sediment on and offshore ceases

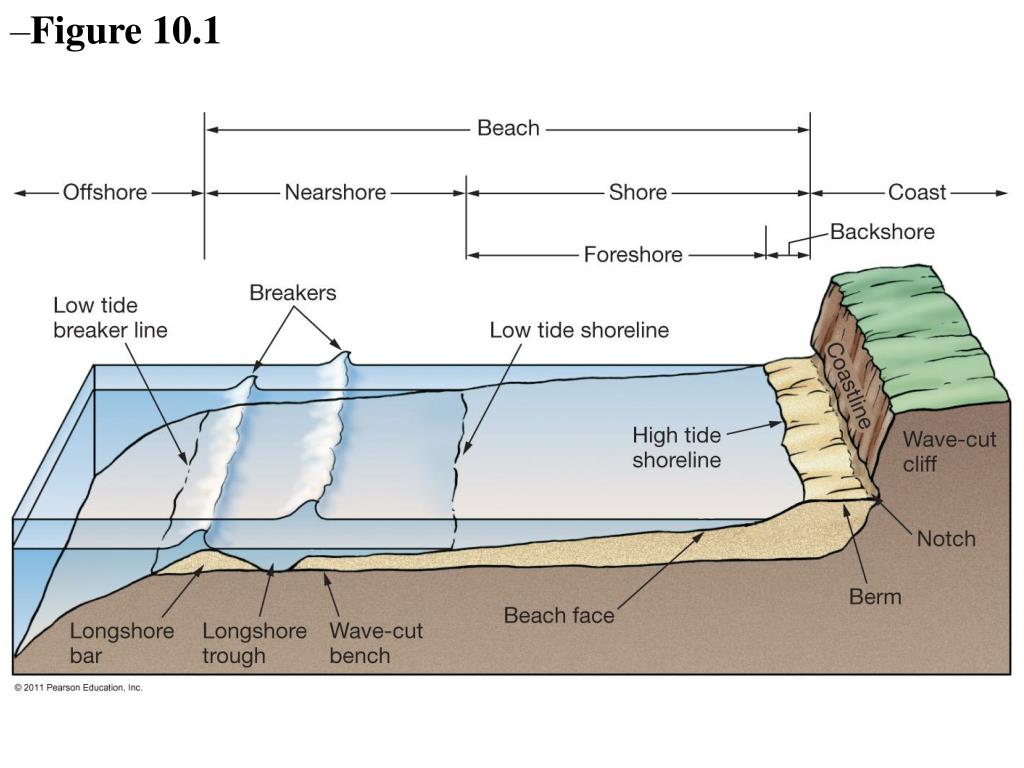

  8. Figure 10.1

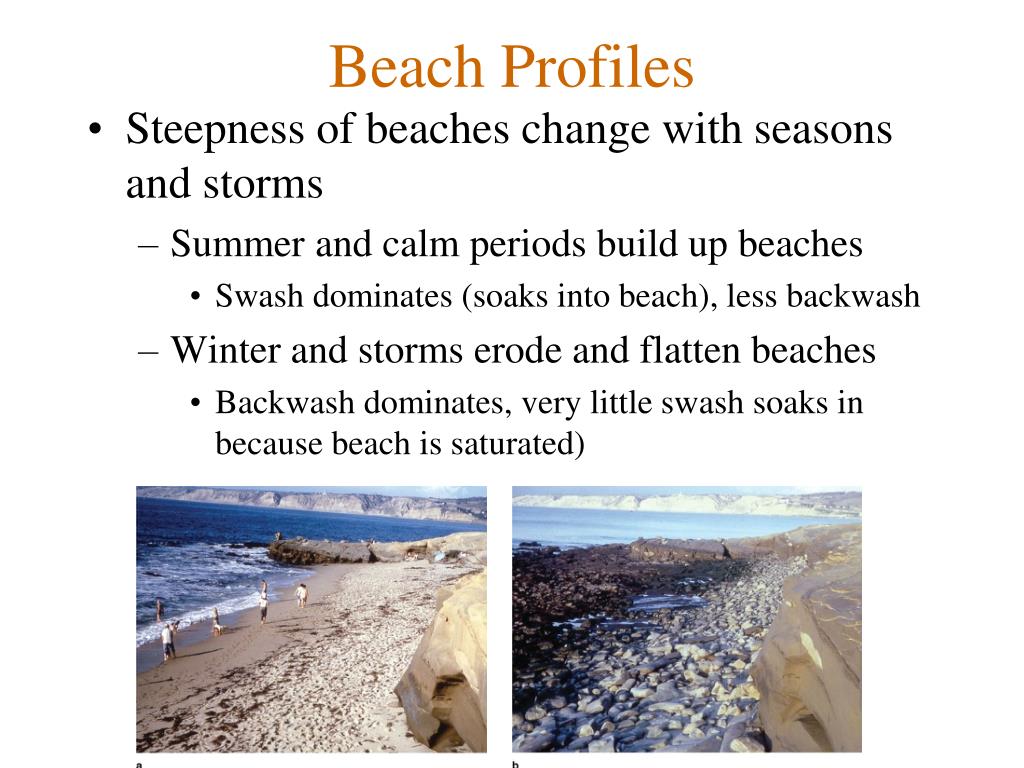

  9. Beach Profiles • Steepness of beaches change with seasons and storms • Summer and calm periods build up beaches • Swash dominates (soaks into beach), less backwash • Winter and storms erode and flatten beaches • Backwash dominates, very little swash soaks in because beach is saturated)

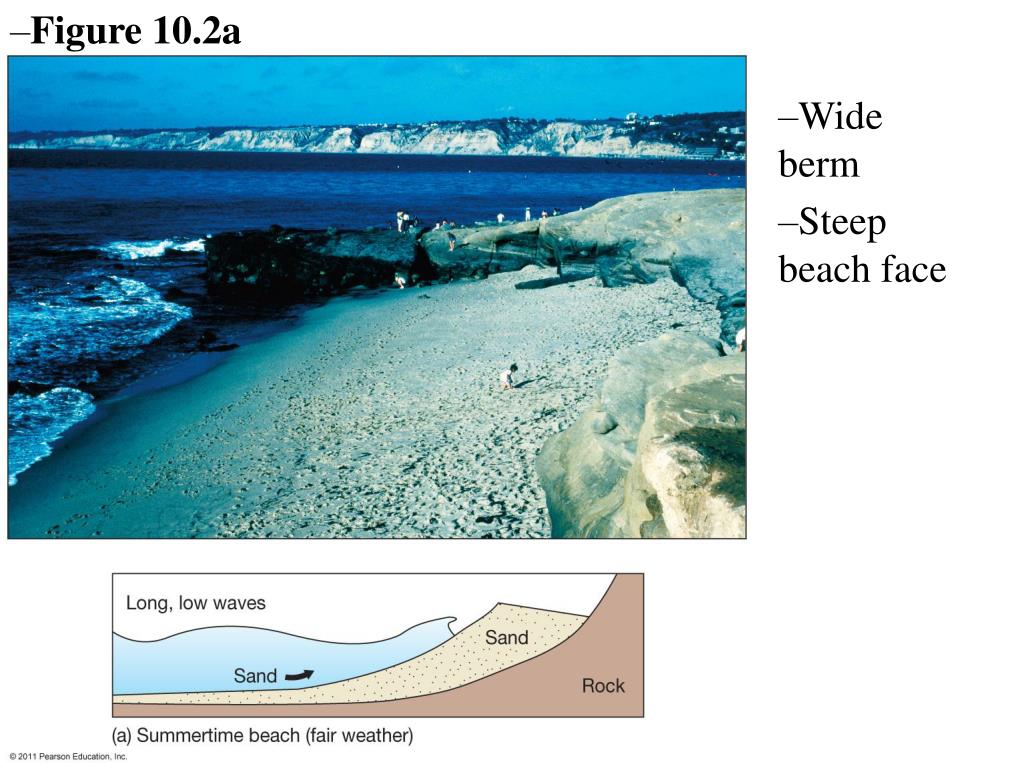

  10. Figure 10.2a • Wide berm • Steep beach face

  11. Figure 10.2d • Narrow berm • Flatter beach face • longshore bar

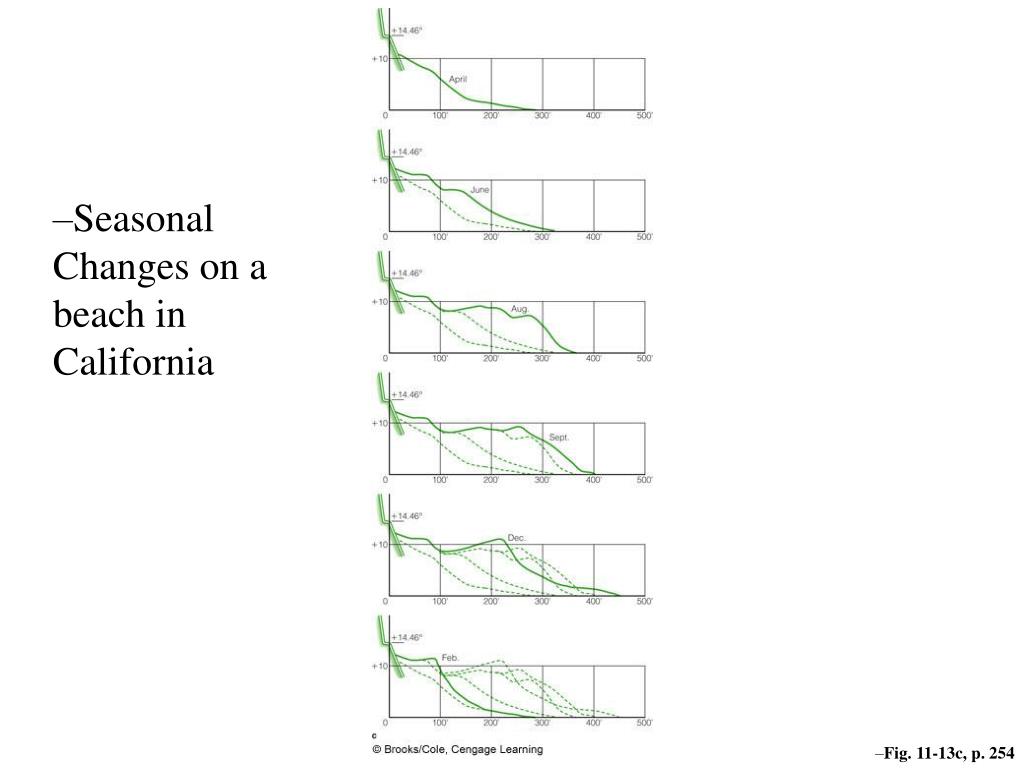

  12. Seasonal Changes on a beach in California • Fig. 11-13c, p. 254

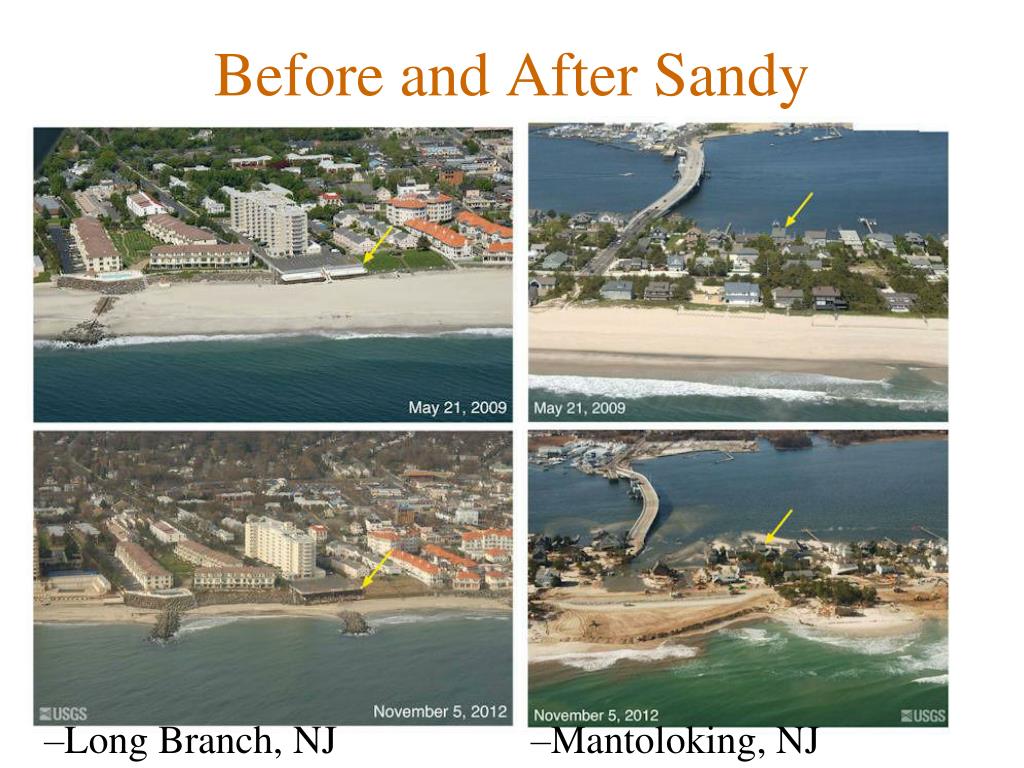

  13. Before and After Sandy • Long Branch, NJ • Mantoloking, NJ

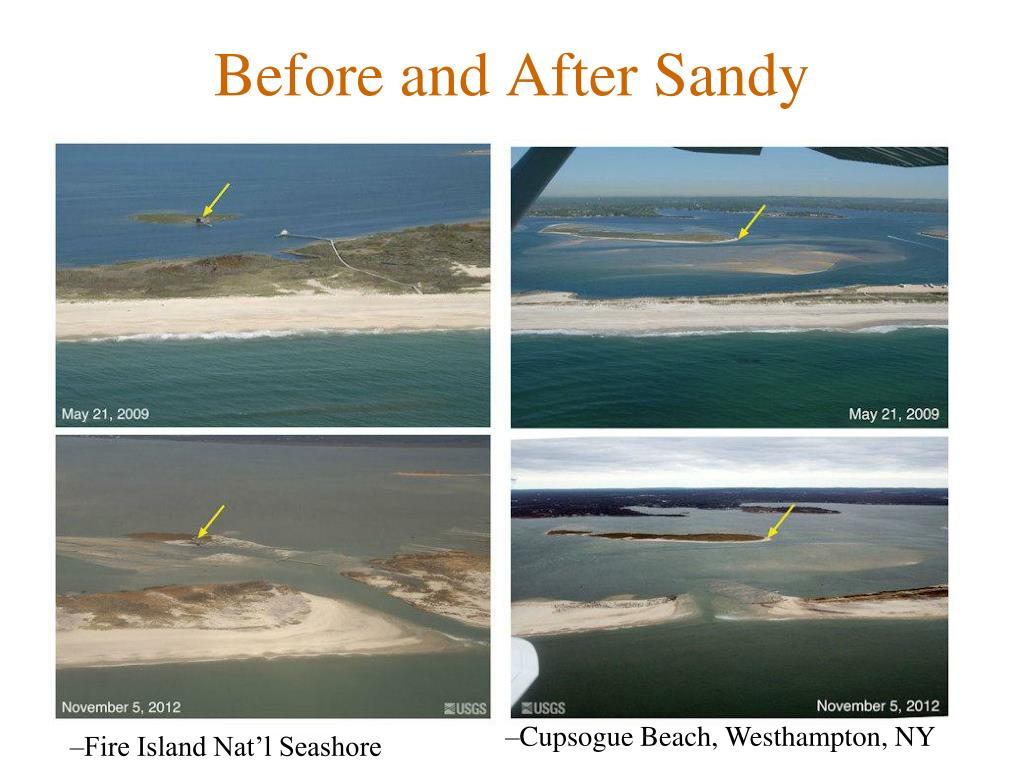

  14. Before and After Sandy • Cupsogue Beach, Westhampton, NY • Fire Island Nat’l Seashore

  15. Beaches • exist in a delicate balance between accumulation and destruction • Waves can transport sand onshore or offshore • Longshore currents transport sand along the coastline

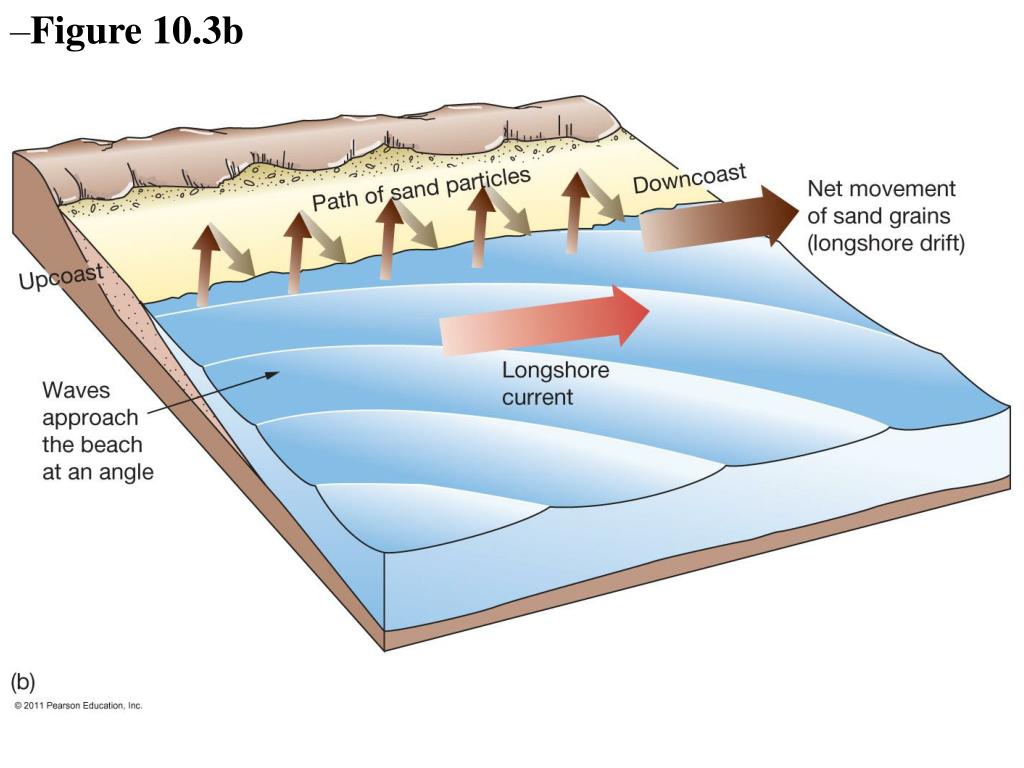

  16. Figure 10.3b

  17. Barrier Islands • Are essentially large sand bars • Protect the coast behind them • Very unstable themselves

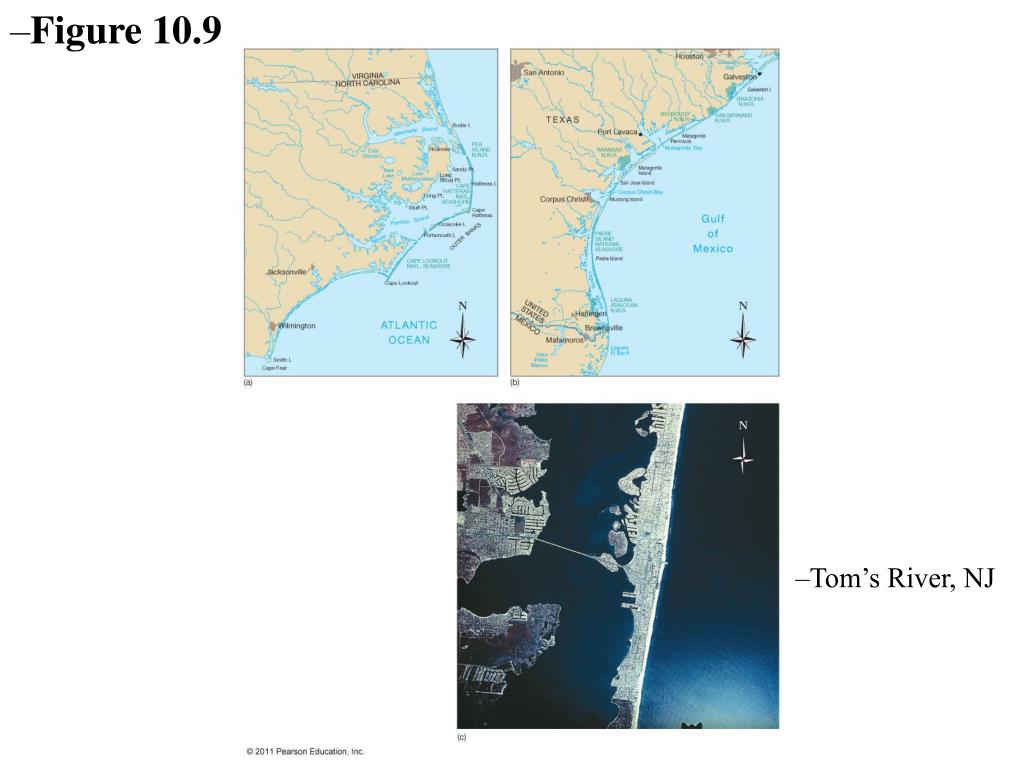

  18. Figure 10.9 • Tom’s River, NJ

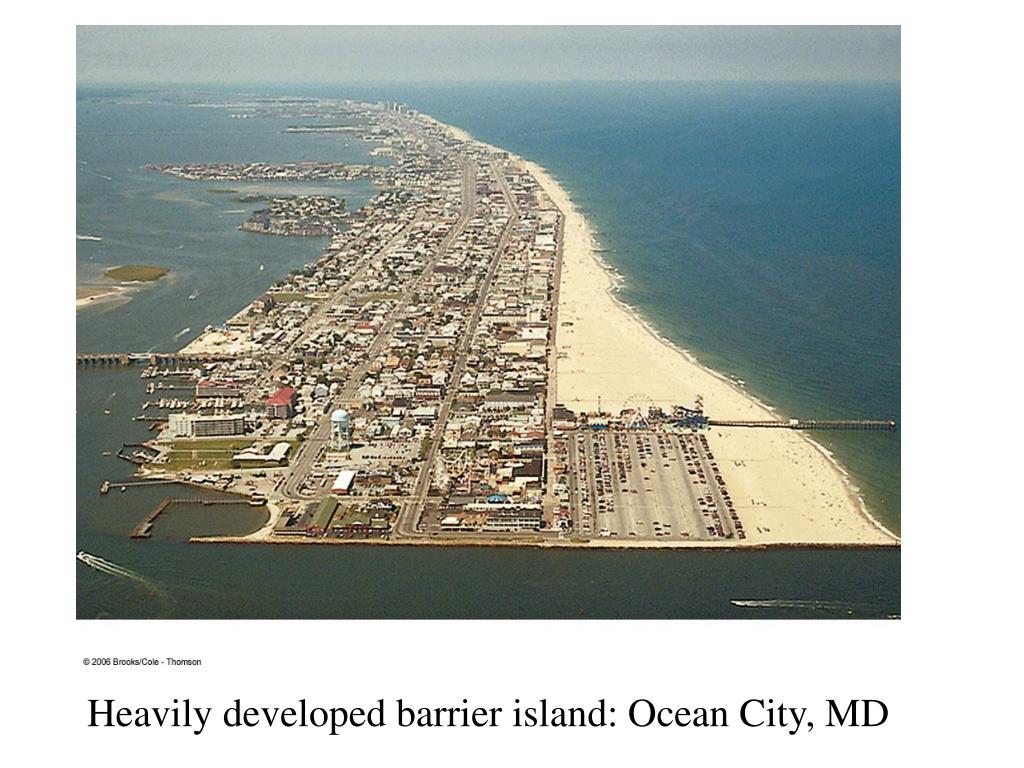

  19. Heavily developed barrier island: Ocean City, MD

  20. Barrier Island Migration • Figure 10.10

  21. Fig. 11-19, p. 258

  22. Human Impact on Beaches • Attempts to “save” beaches or property often fail or make matters worse

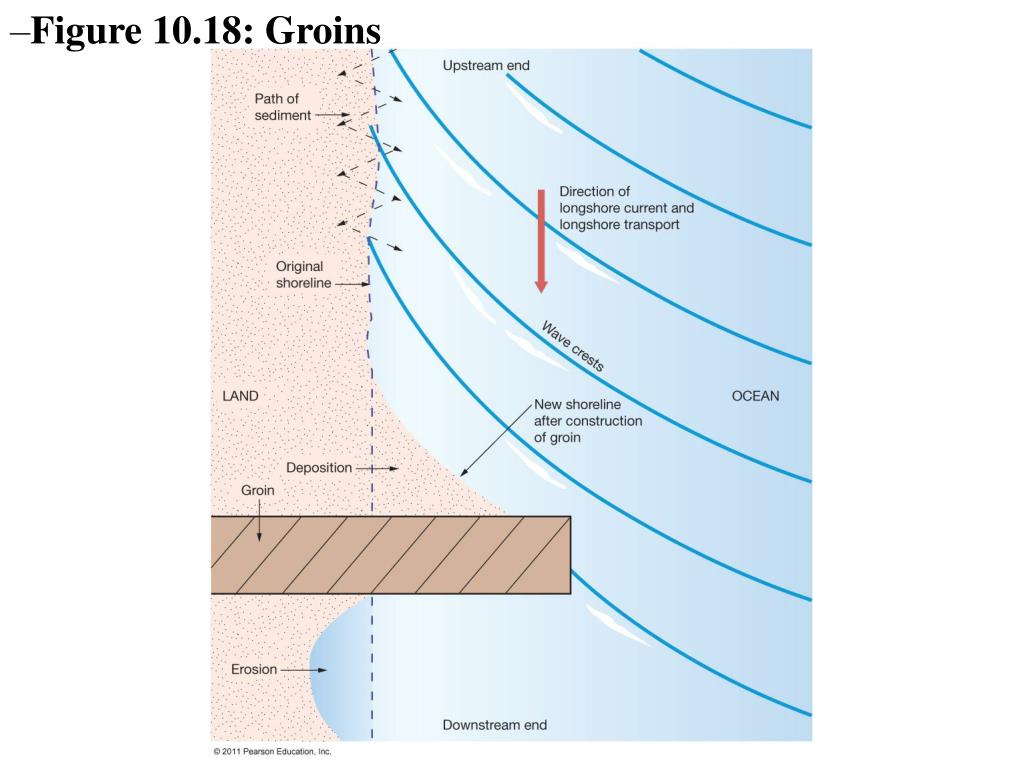

  23. Figure 10.18: Groins

  24. Figure 10.19 • Shipbottom, NJ

  25. Groin Field Cape May, NJ

  26. Figure 10.20: Jetties

  27. Figure 10.21 • Santa Cruz Harbor, CA

  28. Break water Santa Monica, CA

  29. Designed to protect harbors from waves • Can cause excessive erosion, requiring dredging to keep area stable

  30. Figure 10.24: Seawalls

  31. Alternative: Beach Replenishment

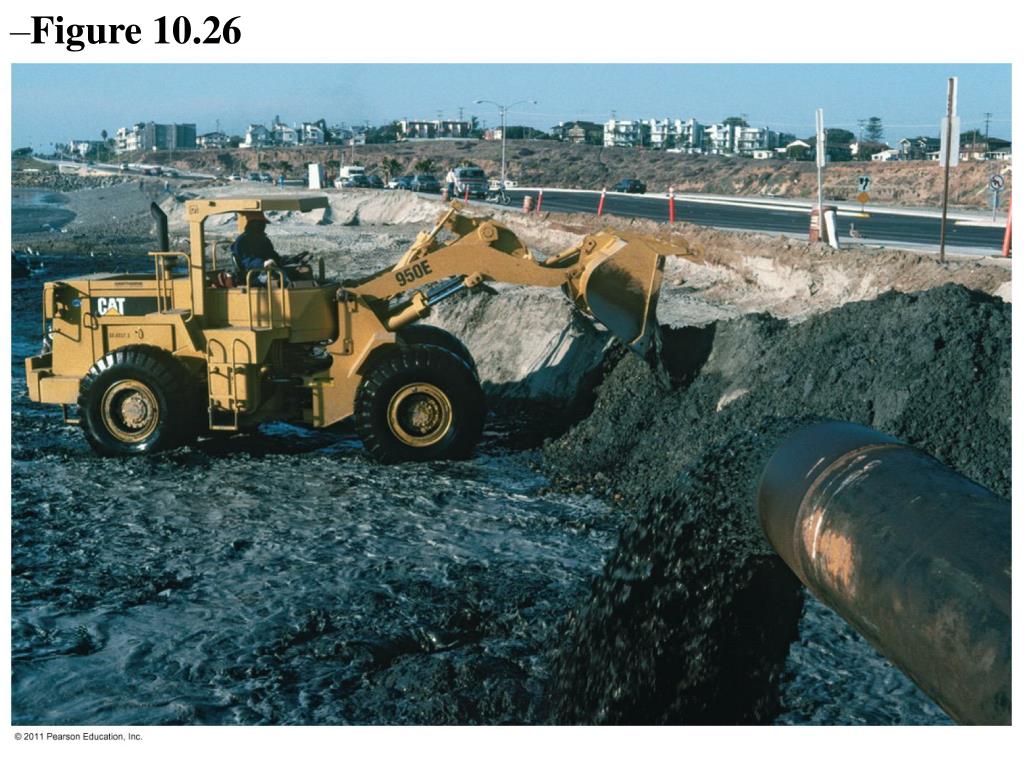

  32. Figure 10.26

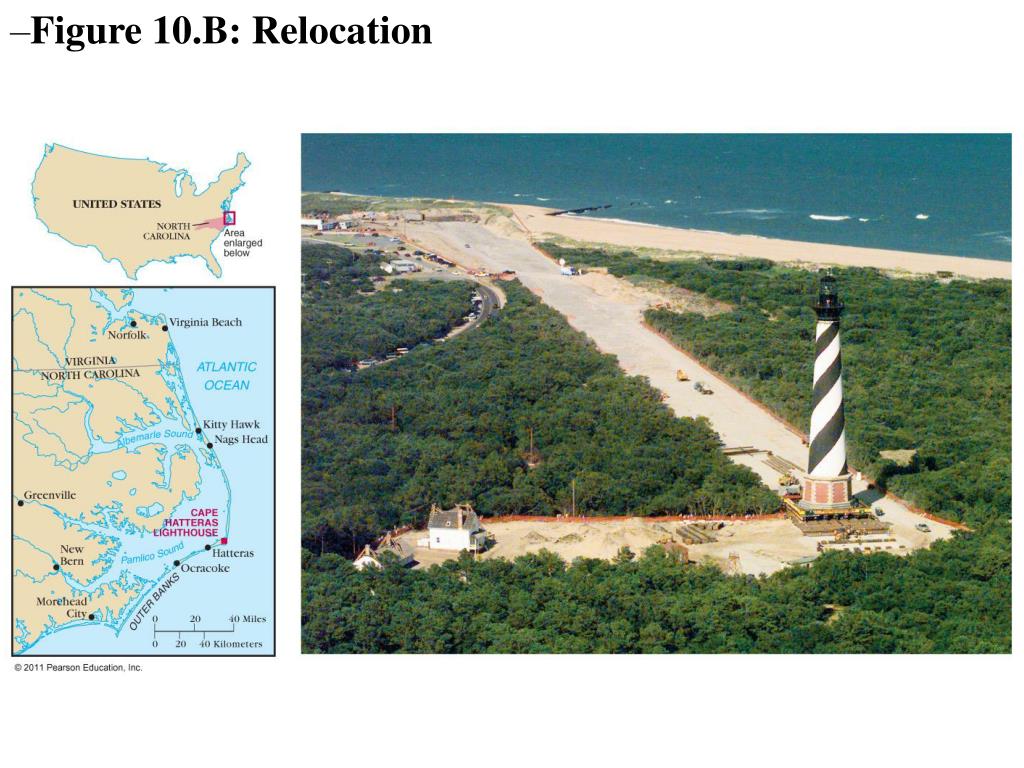

  33. Figure 10.B: Relocation
