Climate change and power sector

Climate Change and Power Sector

NTPC Ltd.



World energy scenario main contributors of co 2 emission
World Energy Scenario: Main Contributors of CO2 Emission

1973

2006

Gas 14.4 %

Gas 19.4%

Oil 38.5%

Oil 50.6 %

Coal 34.9 %

Coal 41.7%

15640 Mt of CO2

28003 Mt of CO2

Source: IEA, Key Energy Statistics, 2008


Primary energy supply mix of the world
Primary Energy Supply Mix of the world

1973- 6115 Mtoe

2006- 11741 Mtoe

Source: IEA, Key Energy Statistics, 2008


World power generation different modes

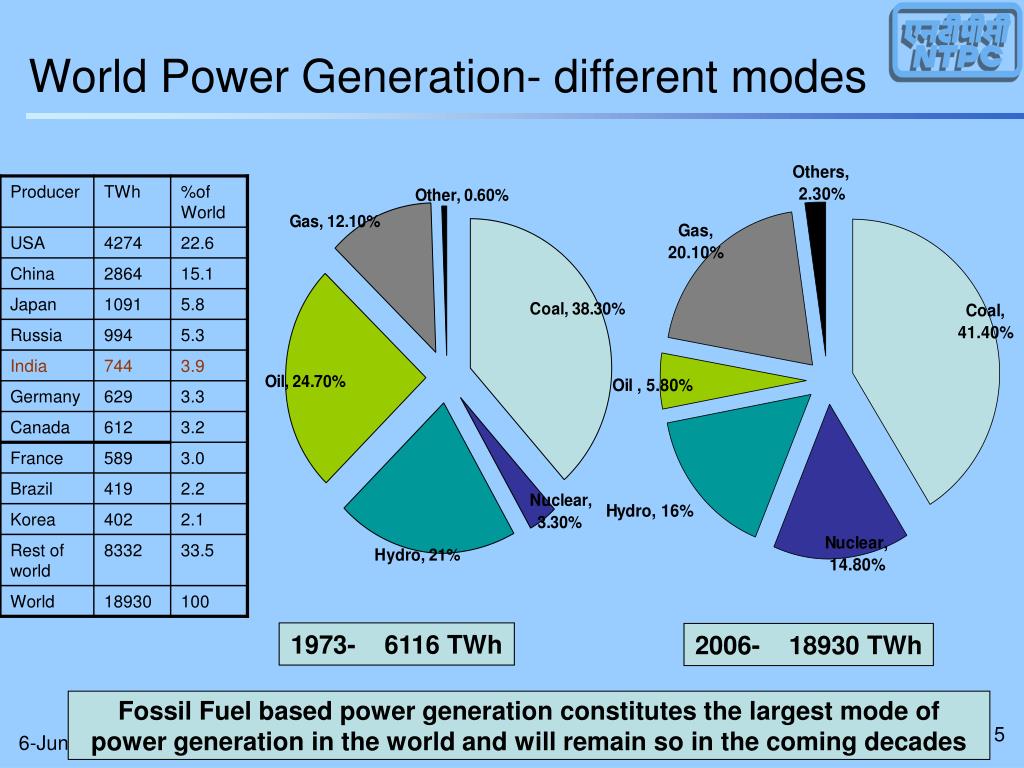

World Power Generation- different modes

1973- 6116 TWh

2006- 18930 TWh

Fossil Fuel based power generation constitutes the largest mode of power generation in the world and will remain so in the coming decades


Power generation mix of india
Power Generation Mix of India

Coal is expected to

remain the preferred fuel for coming decades.

64% of the 11th plan targets consists of coal based generation.

Recent developments are encouraging for the nuclear fuel based generation.

Nuclear

Renewable

Hydro

Coal

Oil & gas

(Figures in MW)

Source: CEA,

Dec 2008


National power objectives
National Power Objectives

Ambitious Capacity Addition Plans

  • Power for all by 2012

  • Per capita consumption of power to be increased to 1000 Units by 2012.

  • Min. lifeline consumption of 1 unit/ household/ day by 2012.

  • Accessibility of electricity by all households by 2012.

Issue: How to develop strategies for rapid capacity addition

without detrimental effects on the environment.



NTPC- Powering India’s Growth

NTPC

NTPC

All India

All India


NTPC – AMONGST THE CLEANEST FOSSIL FUEL POWER GENERATORS

SOURCE: CARMA.ORG: NTPC ANALYSIS*

  • Assumptions:

  • The largest generating companies with Annual generation above 150 BU

  • The companies having minimum fossil fuel mix of 50%


Ntpc s vision on climate change
NTPC’s vision on climate change

“Going Higher on Generation, lowering GHG intensity”



Ntpc approach

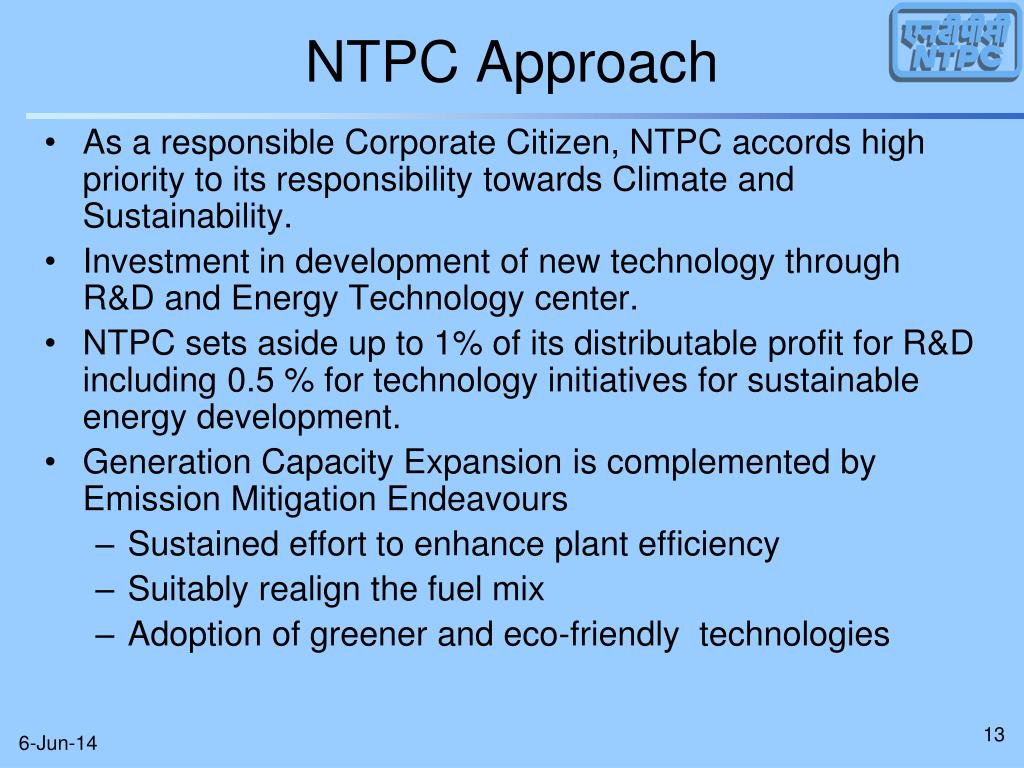

NTPC Approach

  • As a responsible Corporate Citizen, NTPC accords high priority to its responsibility towards Climate and Sustainability.

  • Investment in development of new technology through R&D and Energy Technology center.

  • NTPC sets aside up to 1% of its distributable profit for R&D including 0.5 % for technology initiatives for sustainable energy development.

  • Generation Capacity Expansion is complemented by Emission Mitigation Endeavours

    • Sustained effort to enhance plant efficiency

    • Suitably realign the fuel mix

    • Adoption of greener and eco-friendly technologies


Netra focus on research and new technologies

R&D DEPARTMENT FOR APPLIED RESEARCH

ENERGY TECHNOLOGIES: WORKING ON 14 PROJECTS THROUGH IDENTIFIED INSTITUTIONS IN AREAS PERTAINING TO

POWER PLANT EFFICIENCY IMPROVEMENT

CARBON SEQUESTRATION

WASTE HEAT UTILISATION, ETC

ET AND R&D CENTRE BEING MERGED TO FORM NETRA (NTPC ENERGY TECHNOLOGIES RESEARCH ALLIANCE)TO ENABLE MORE FOCUS AND SYNERGISTIC RESEARCH

INTEGRATED GASIFICATION COMBINED CYCLE (IGCC):

NTPC IN COLLABORATION WITH BHEL IS IN PROCESS OF INSTALLING AN IGCC PROJECT IN AURAIYA.

NTPC, IN ASSOCIATION WITH NEXANT, HAS DONE STUDY ON GASIFIER SUITABLE FOR INDIAN COAL.

NETRA – Focus on Research and new Technologies

14



Higher efficiency lower emission

SUB CRITICAL

SUPER CRITICAL

ULTRA SUPER CRITICAL

PLANT EFFICIENCY*

34 %

37%

41%

FUEL CONSUMPTION

BASE

BASE - 8 %

BASE - 17 %

CO2 EMISSIONS

(272,000 mg/nM3)

1008

926

835 gm/Kwh

NOX EMISSIONS

(650 mg/nM3)**

2.41

2.22

2.00 gm/Kwh

SOX EMISSIONS

(2,000 mg/nM3)**

7.43

6.82

6.16 gm/Kwh

PARTICULATES

(50 mg/nM3)**

0.19

0.17

0.15 gm/Kwh

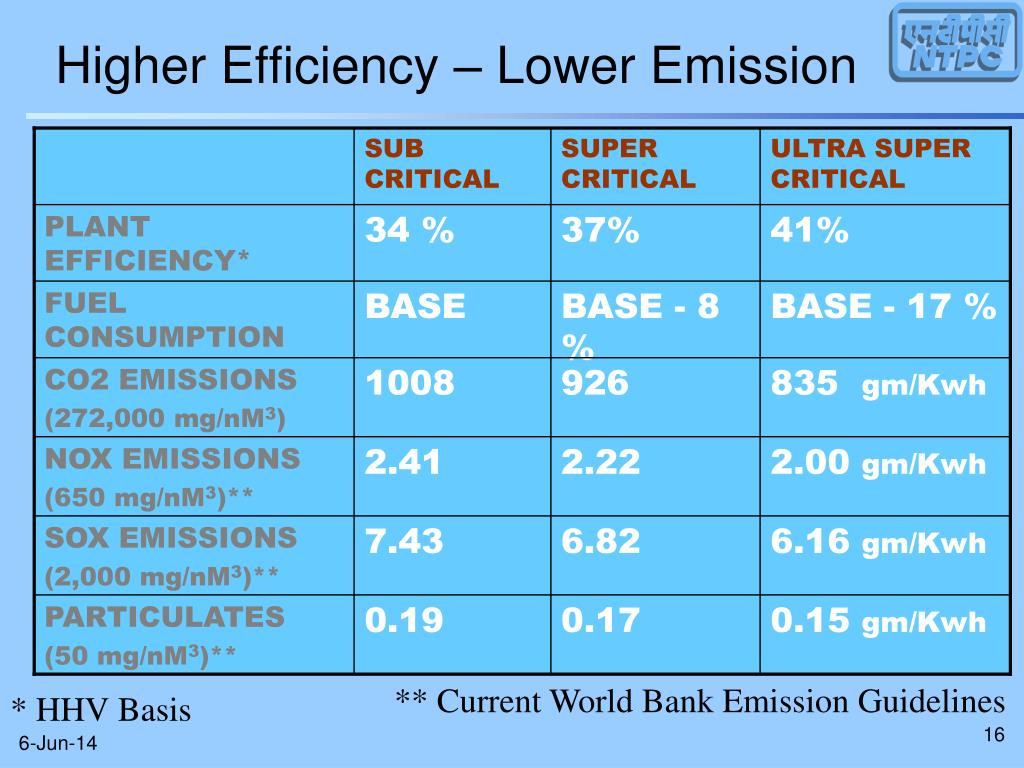

Higher Efficiency – Lower Emission

** Current World Bank Emission Guidelines

* HHV Basis


Super critical technology in ntpc
Super Critical Technology in NTPC

NTPC adopted supercritical technology for unit size over 500 MW in steps as under:

  • PLANTS IN ADVANCE STAGE OF CONSTRUCTION

    • 3 x 660 MW Sipat STPP Stage-I

    • 3 x 660 MW Barh STPP Stage-I

  • UPCOMING PLANTS

    • Barh-II, Bihar – 2x660 MW (Order Placed)

    • North Karanpura, Jharkhand – 3x660 MW

    • Darlipali, Orissa – 4x800 MW

    • Lara, Chattisgarh – 5x800 MW

    • Marakanam, Tamilnadu – 4x800 MW

    • Tanda-II, Uttar Pradesh - 2x660 MW

    • Meja, Uttar Pradesh - 2x660 MW

    • Sholapur – 2x660 MW

    • New Nabinagar-3x660 MW

    • Many more projects under formulation


Efficiency improvement through renovation modernization
Efficiency Improvement through Renovation & Modernization

After 100,000 operating hours machine become due for R&M

R&M offers a quick and low cost capacity addition and efficiency enhancement option.

R&M objectives are:

  • Restoration, Sustenance & Enhancement of Efficiency

  • Capacity enhancement

  • Life extension of old units

  • Mitigate obsolescence

  • Compliance to applicable pollution norms

  • Equipment safety

  • Improvement in equipment / system reliability


NTPC Fuel Mix by 2017

Capacity mix - TODAY

(29,894 MW)

Capacity mix- 2012

(50,000 MW)

Capacity mix- 2017

(75,000 MW)


Renewable
Renewable

  • NTPC plans to add 1000 MW from renewable sources by 2017.

  • Recently signed MoU for 500 MW of wind power in Karnataka.

  • MoU with ADB for development of 500 MW from renewable sources.

  • NTPC has taken major initiatives for fast tracking its solar power development programme.

  • We hope to set up 15MW solar capacity by 2012 and 50 MW capacity by 2014.


Distributed generation
Distributed Generation

  • NTPC has commissioned 10 projects in off-grid distributed power generation mode based on bi-mass, solar PV, micro hydel etc in villages around projects.

  • Several others are planned as part of CSR activities.

  • There is also proposal for setting up mini hydel projects at several places in Punjab and North-eastern states.


Green measures

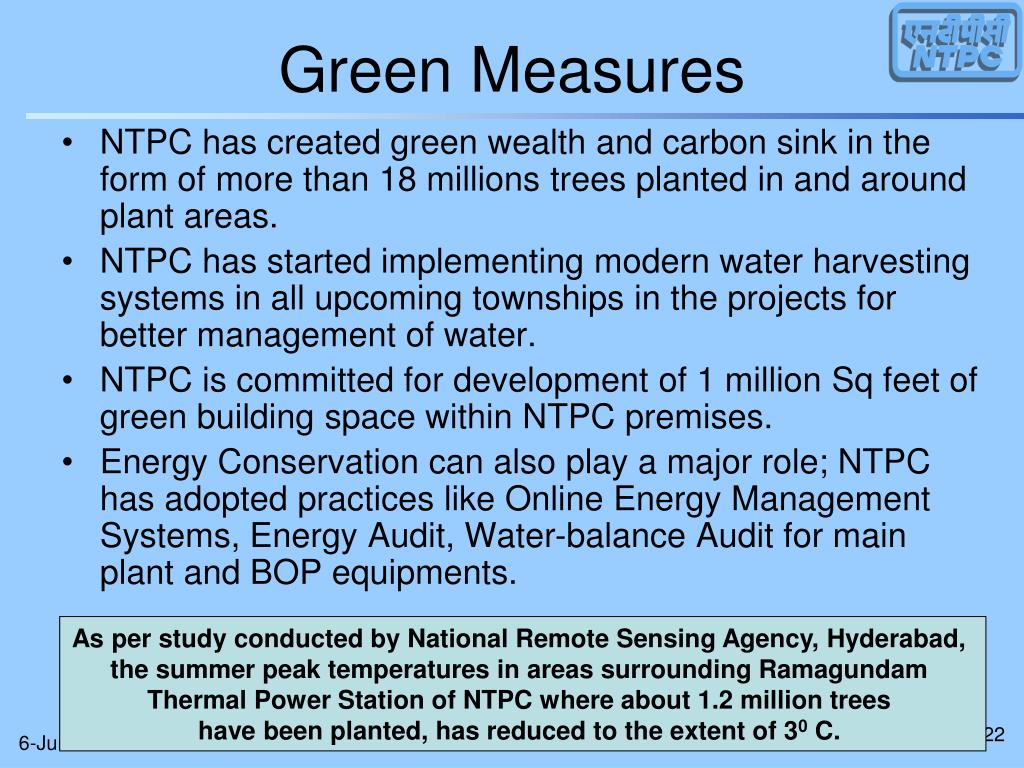

Green Measures

  • NTPC has created green wealth and carbon sink in the form of more than 18 millions trees planted in and around plant areas.

  • NTPC has started implementing modern water harvesting systems in all upcoming townships in the projects for better management of water.

  • NTPC is committed for development of 1 million Sq feet of green building space within NTPC premises.

  • Energy Conservation can also play a major role; NTPC has adopted practices like Online Energy Management Systems, Energy Audit, Water-balance Audit for main plant and BOP equipments.

As per study conducted by National Remote Sensing Agency, Hyderabad,

the summer peak temperatures in areas surrounding Ramagundam

Thermal Power Station of NTPC where about 1.2 million trees

have been planted, has reduced to the extent of 30 C.


Conclusion

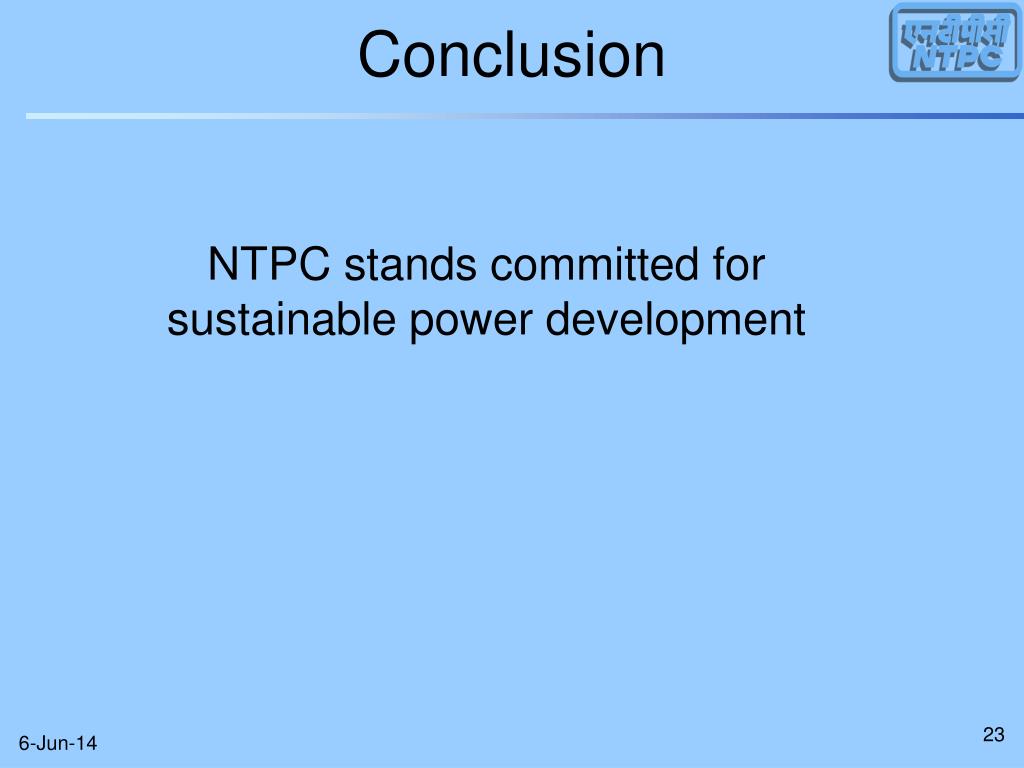

Conclusion

NTPC stands committed for sustainable power development


POWER PRODUCER OF INTERNATIONAL REPUTE

TOWARDS GREENER TOMORROW

THANK YOU
