Presentation Transcript

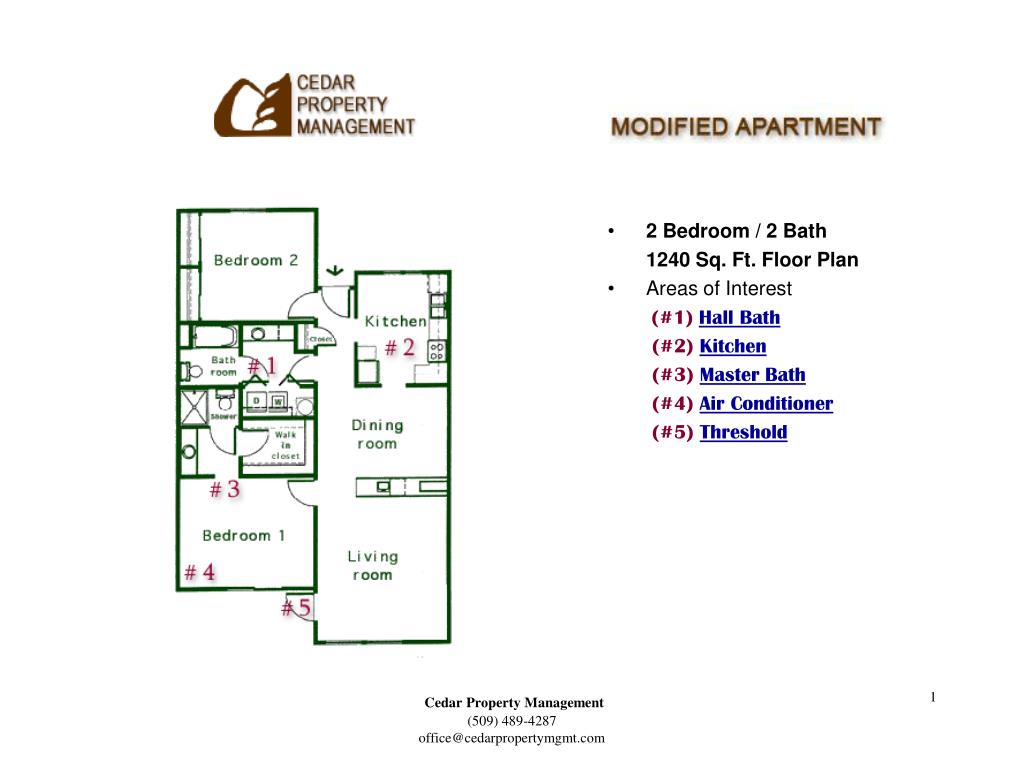

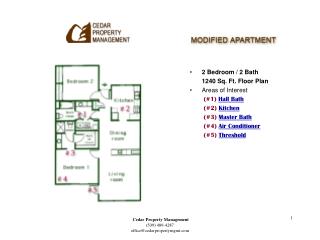

slide1

2 Bedroom / 2 Bath

1240 Sq. Ft. Floor Plan

  • Areas of Interest

(#1) Hall Bath

(#2) Kitchen

(#3) Master Bath

(#4) Air Conditioner

(#5) Threshold

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide2

(#1)BEFORE

  • Hall Bathroom

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide3

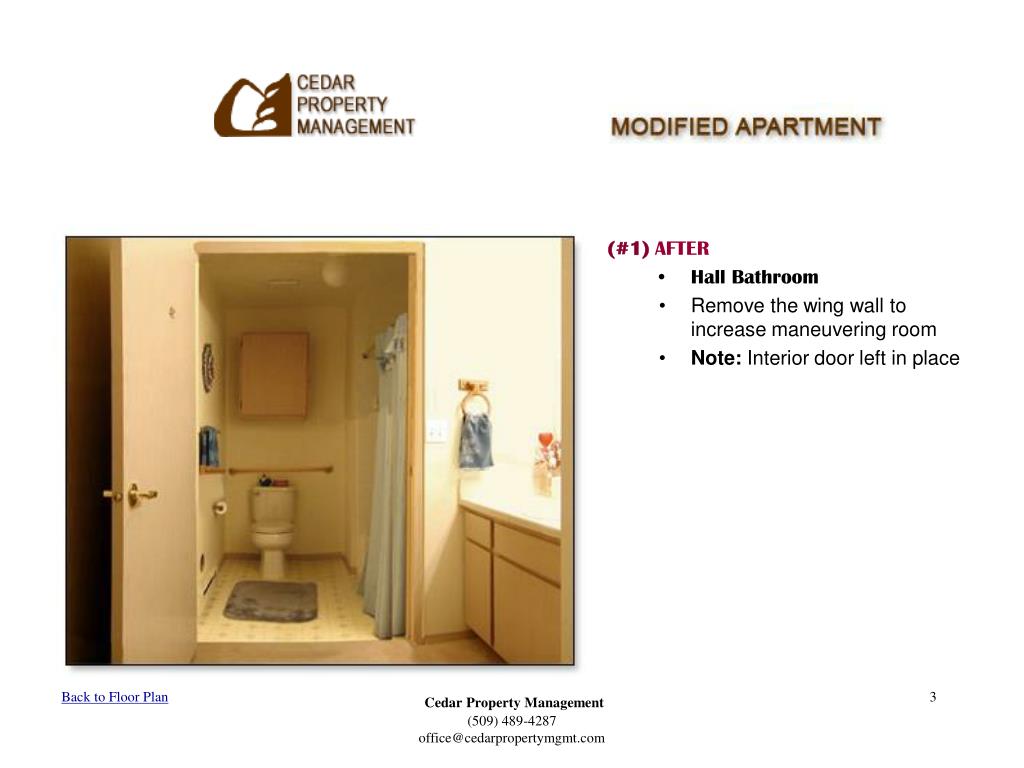

(#1)AFTER

  • Hall Bathroom
  • Remove the wing wallto increase maneuvering room
  • Note: Interior door left in place

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide4

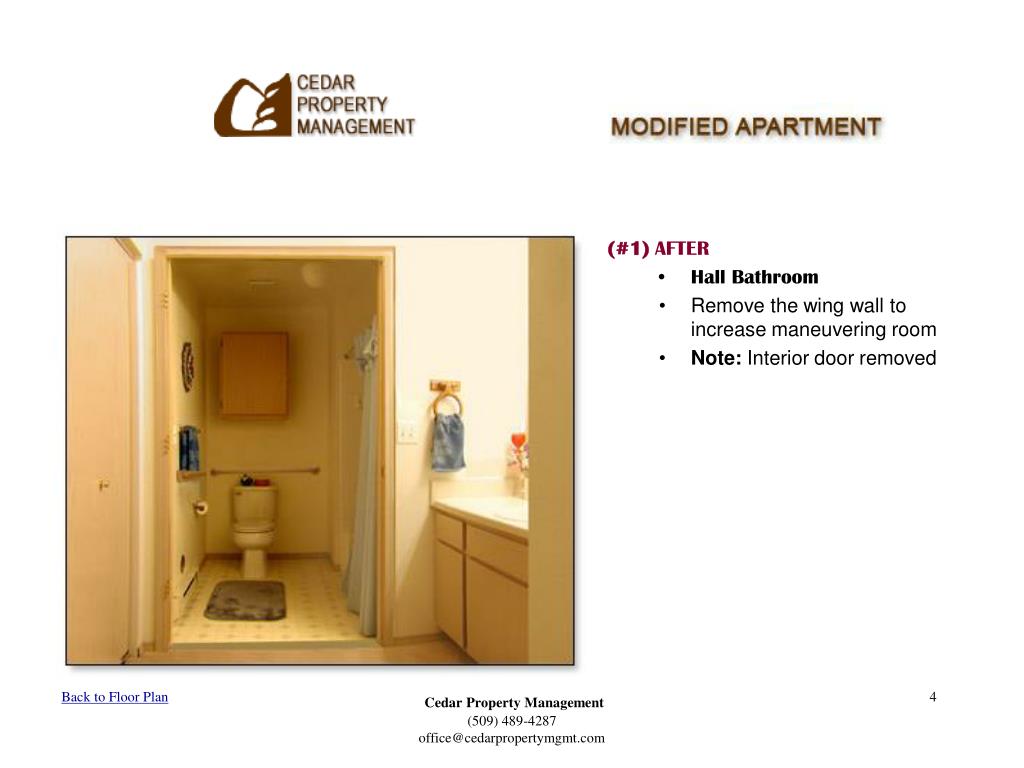

(#1) AFTER

  • Hall Bathroom
  • Remove the wing wallto increase maneuvering room
  • Note: Interior door removed

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide5

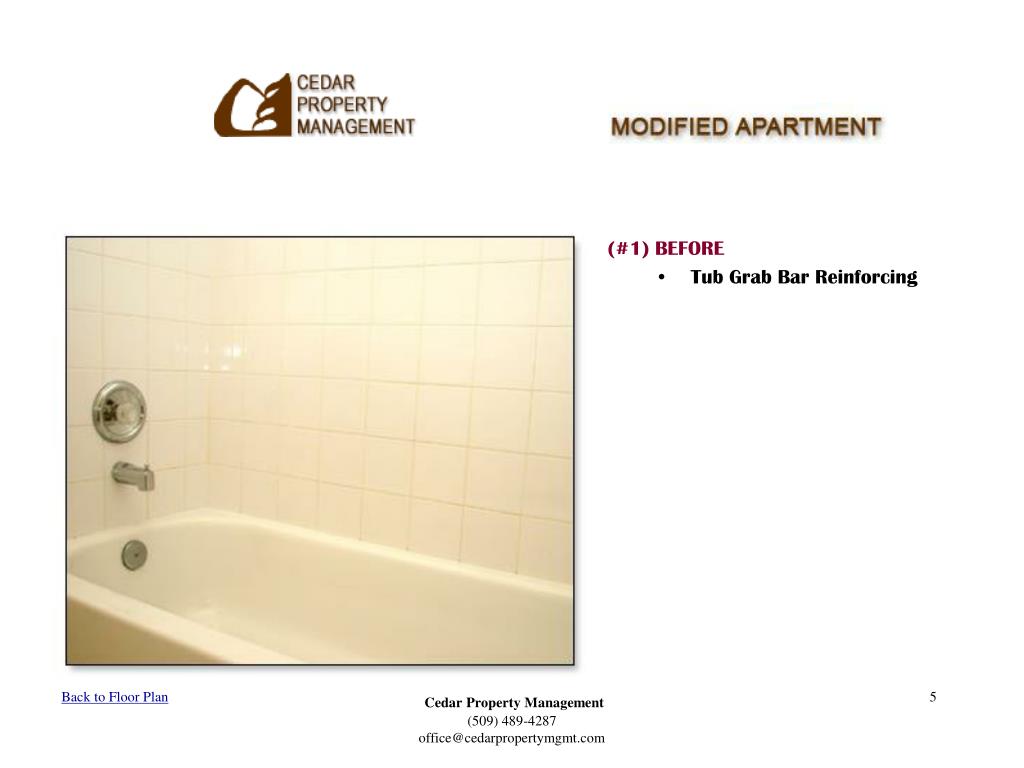

(#1) BEFORE

  • Tub Grab Bar Reinforcing

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide6

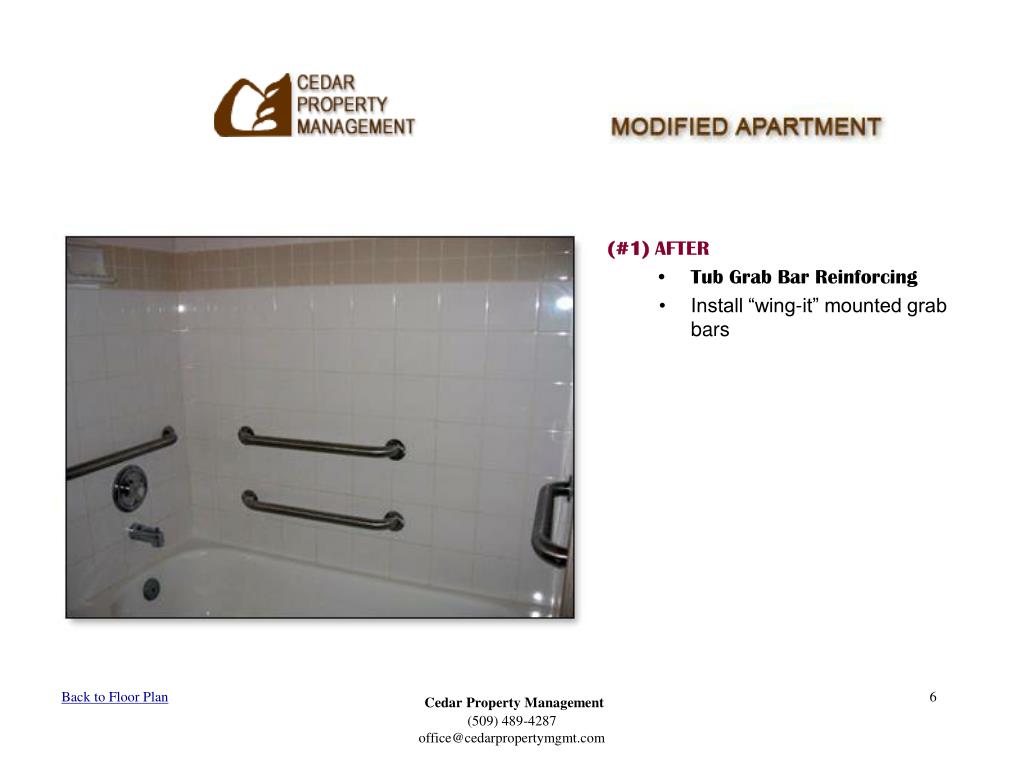

(#1) AFTER

  • Tub Grab Bar Reinforcing
  • Install “wing-it” mounted grab bars

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide7

(#1) BEFORE

  • Toilet Grab Bar Reinforcing

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide8

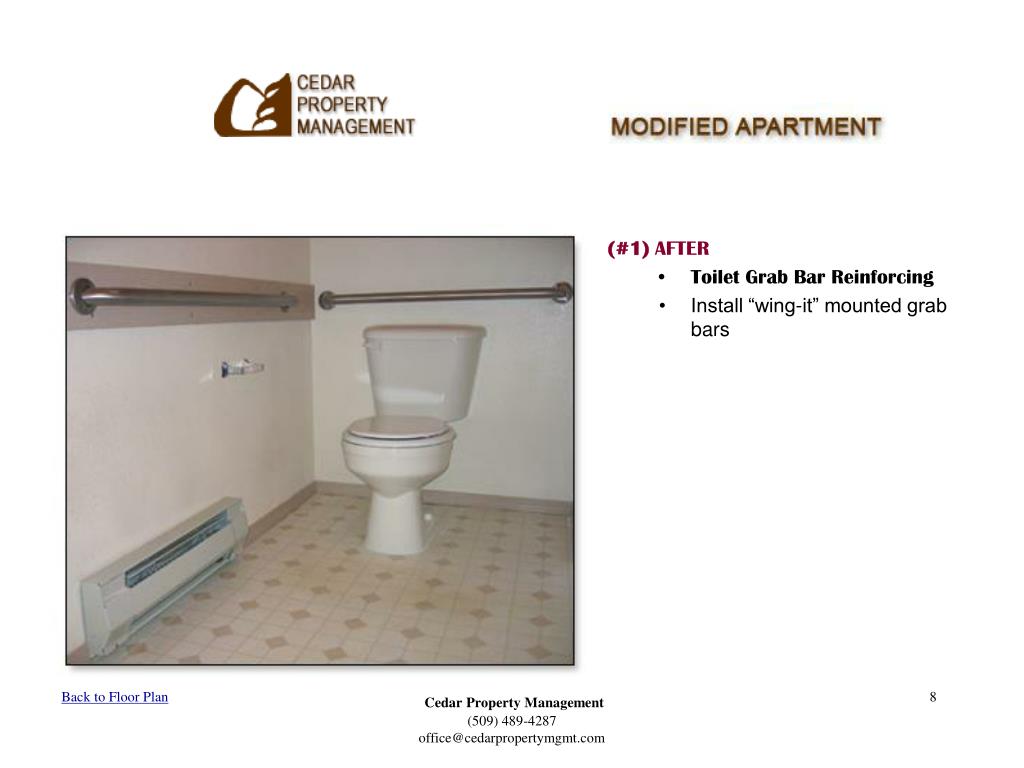

(#1) AFTER

  • Toilet Grab Bar Reinforcing
  • Install “wing-it” mounted grab bars

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide9

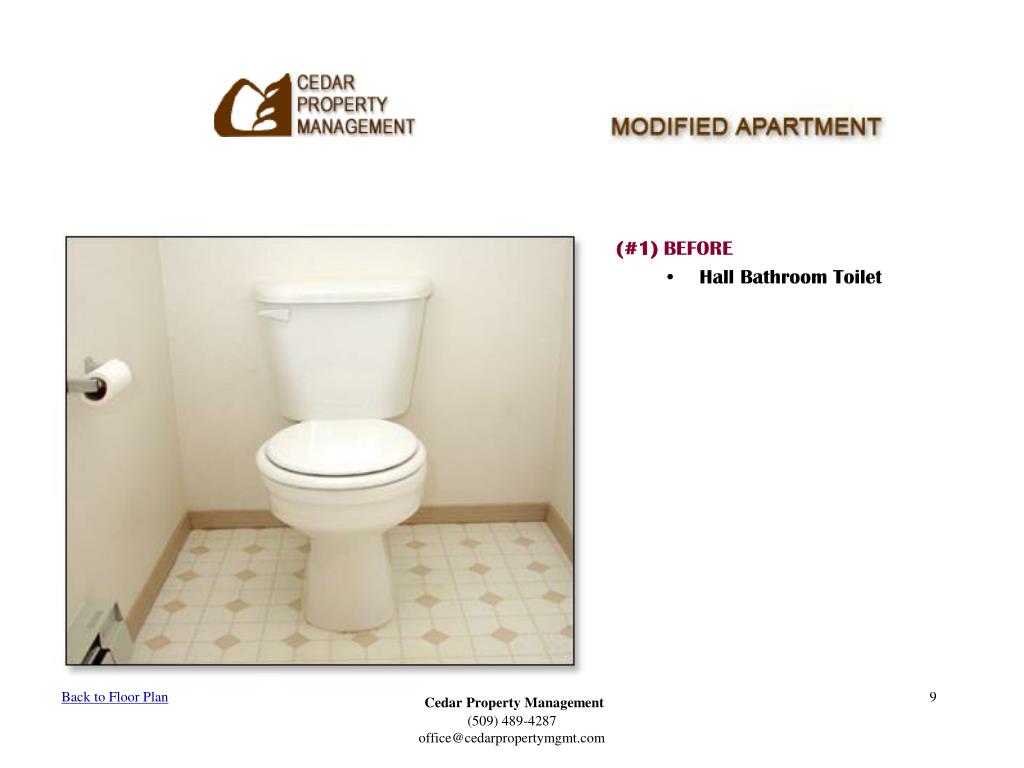

(#1) BEFORE

  • Hall Bathroom Toilet

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

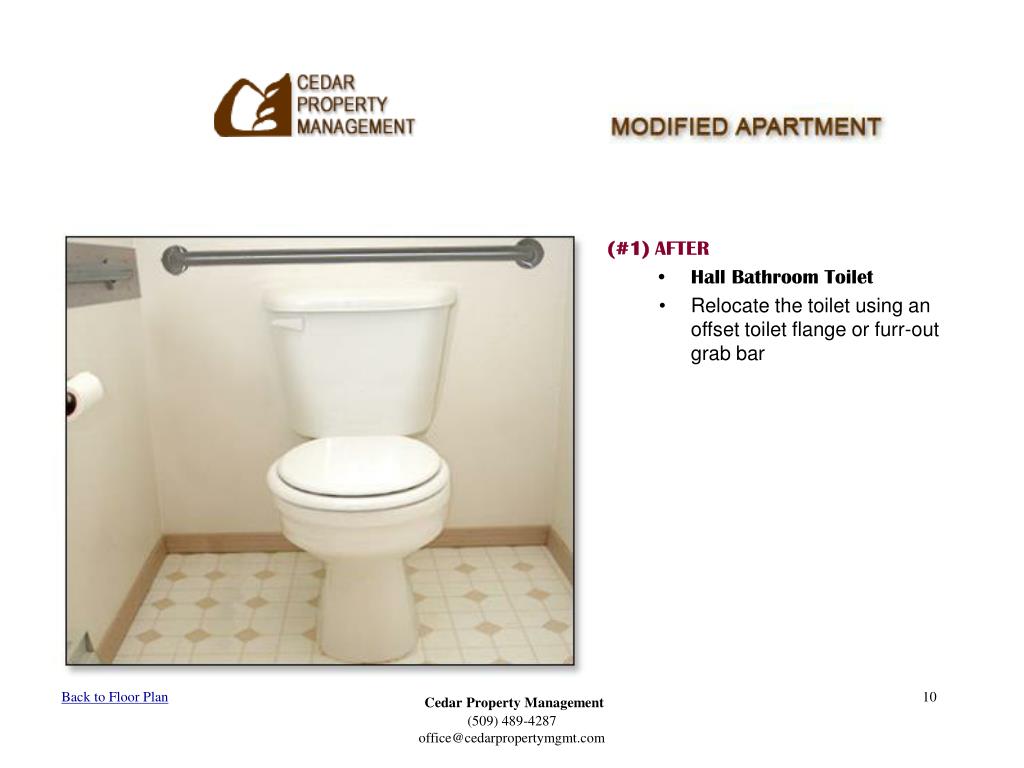

slide10

(#1) AFTER

  • Hall Bathroom Toilet
  • Relocate the toilet using an offset toilet flange or furr-out grab bar

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide11

(#2) – BEFORE

  • Kitchen Range
  • Note: Cabinet located to right of stove

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

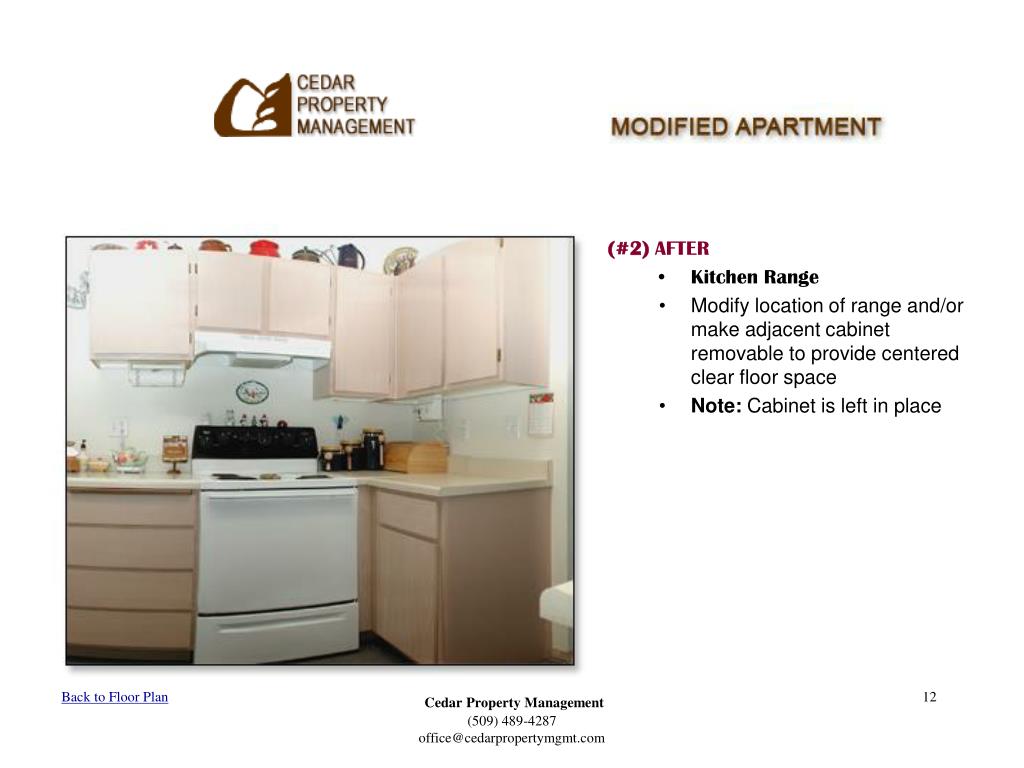

slide12

(#2) AFTER

  • Kitchen Range
  • Modify location of range and/or make adjacent cabinet removable to provide centered clear floor space
  • Note: Cabinet is left in place

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

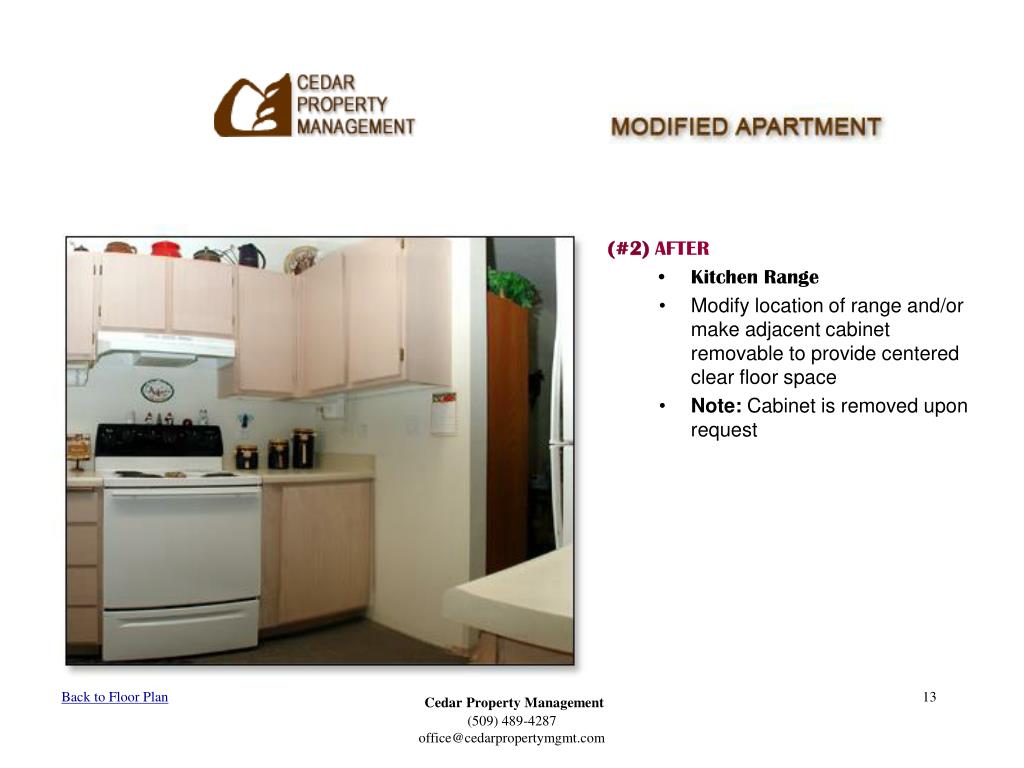

slide13

(#2)AFTER

  • Kitchen Range
  • Modify location of range and/or make adjacent cabinet removable to provide centered clear floor space
  • Note: Cabinet is removed upon request

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide14

(#2) BEFORE

  • Kitchen Counter Outlets
  • Standard outlet

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide15

(#2) AFTER

  • Kitchen Counter Outlets
  • Provide a surface mounted outlet extender

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

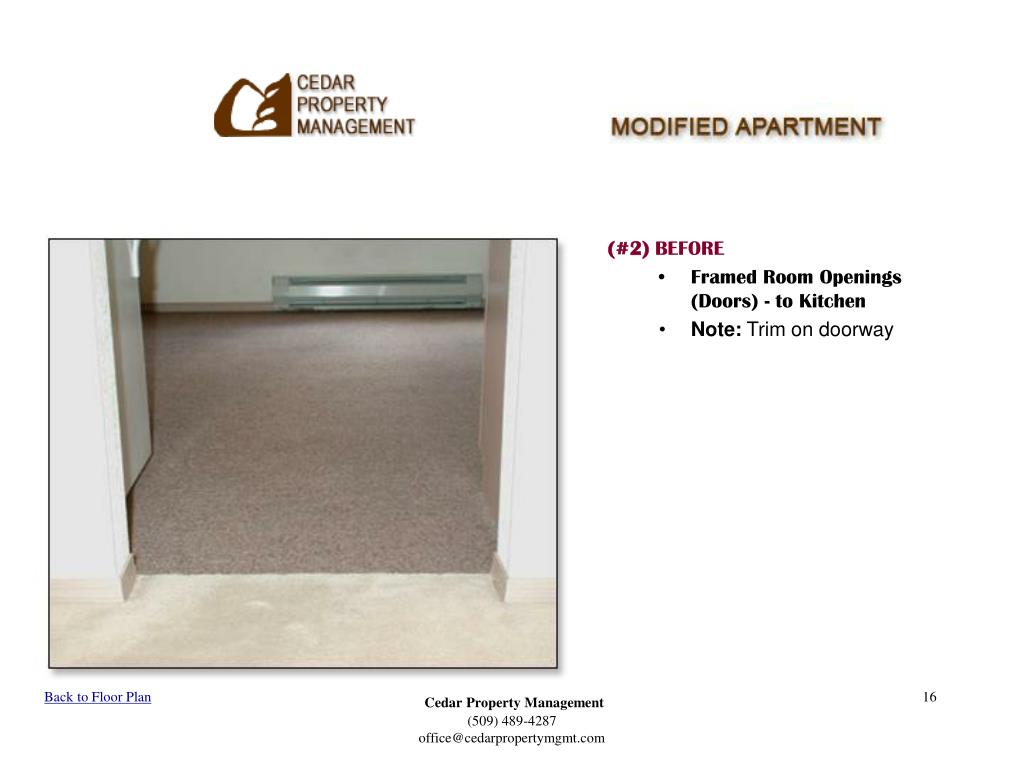

slide16

(#2) BEFORE

  • Framed Room Openings (Doors) - to Kitchen
  • Note: Trim on doorway

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide17

(#2) AFTER

  • Framed Room Openings (Doors) - to Kitchen
  • Remove wood base trim to increase door width

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

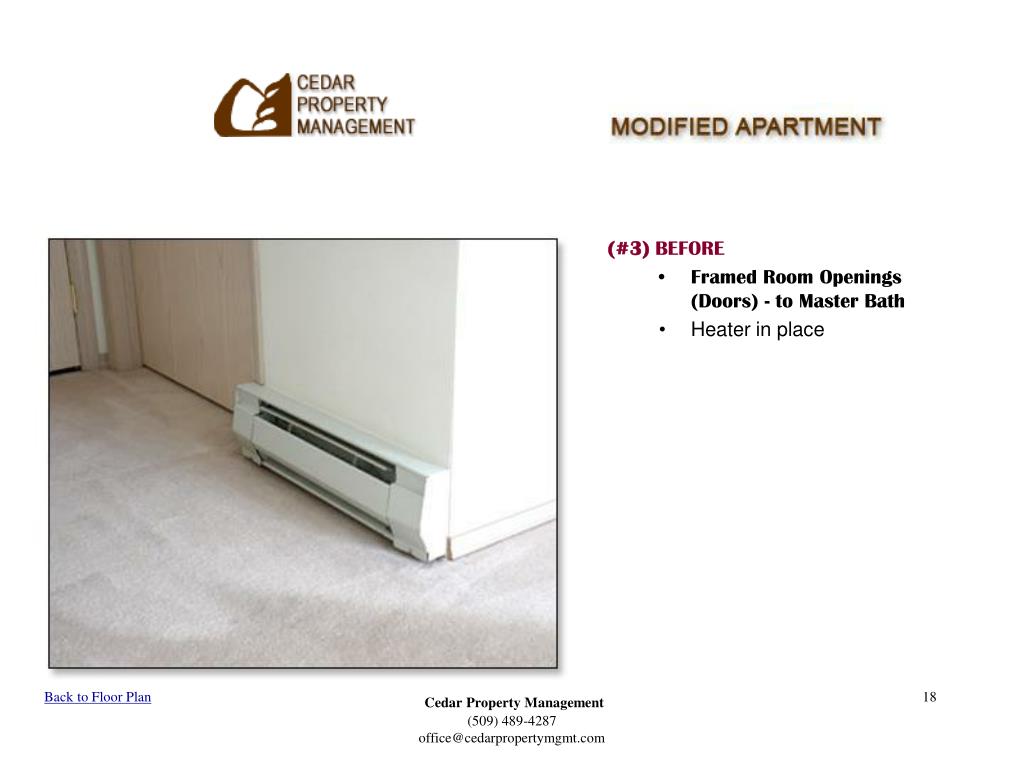

slide18

(#3) BEFORE

  • Framed Room Openings (Doors) - to Master Bath
  • Heater in place

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide19

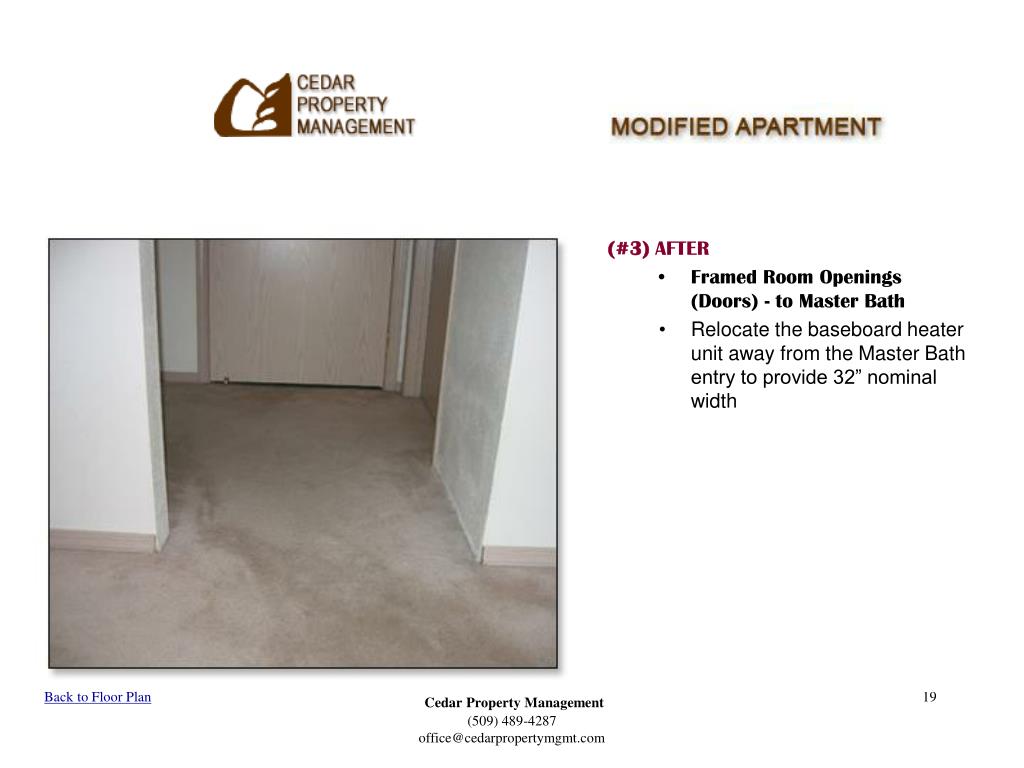

(#3) AFTER

  • Framed Room Openings (Doors) - to Master Bath
  • Relocate the baseboard heater unit away from the Master Bath entry to provide 32” nominal width

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide20

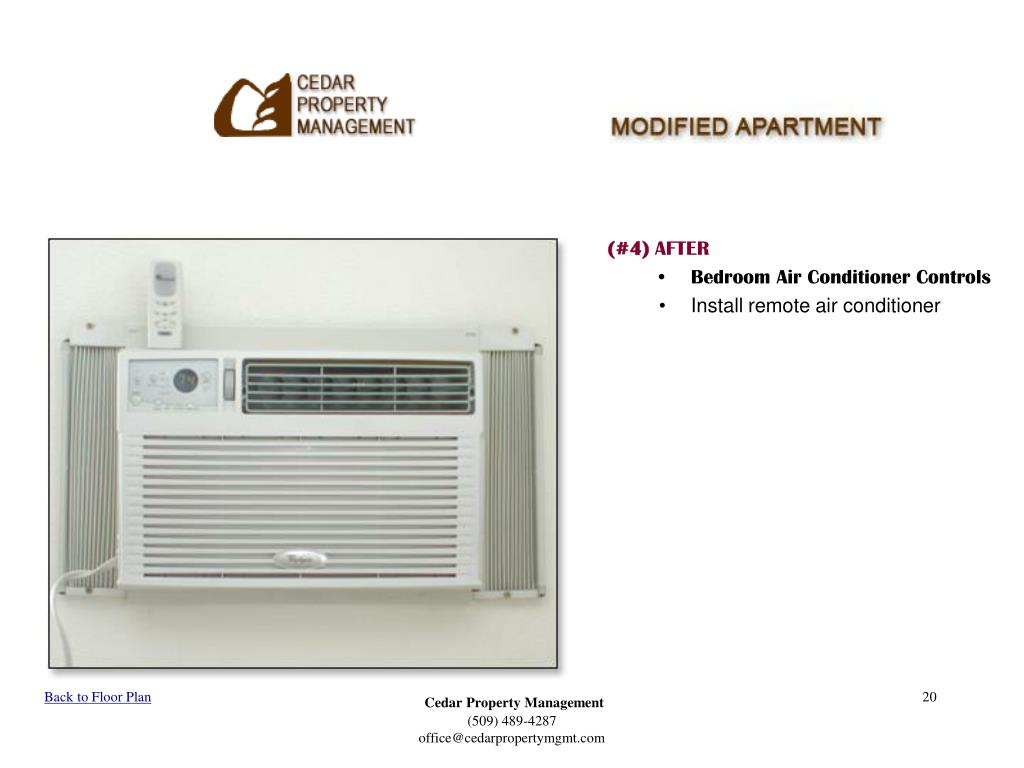

(#4) AFTER

  • Bedroom Air Conditioner Controls
  • Install remote air conditioner

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

slide21

(#5) AFTER

  • Primary Entry Door Thresholds
  • Modify (lower) primary entry door thresholds

Back to Floor Plan

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com

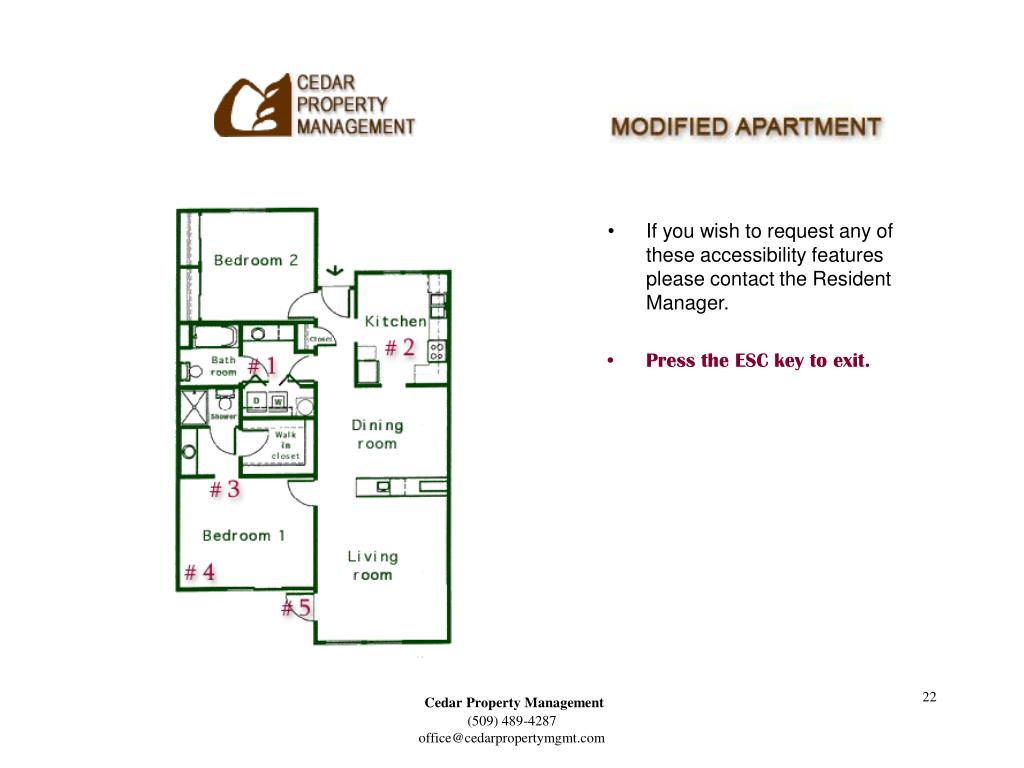

slide22

If you wish to request any of these accessibility features please contact the Resident Manager.

  • Press the ESC key to exit.

Cedar Property Management(509) 489-4287

office@cedarpropertymgmt.com
