  1. Thermal Properties and Moisture Diffusivity 24th February, 2010

  2. Thermal Properties, Moisture Diffusivity Processing and Storage of Ag Products • Heating • Cooling • Combination of heating and cooling • Grain dried for storage • Noodles dried • Fruits/Vegetables rapidly cooled • Vegetables are blanched, maybe cooked and canned • Powders such as spices and milk: dehydrated • Cooking, cooling, baking, pasteurization, freezing, dehydration: all involve heat transfer • Design of such processes require knowledge of thermal properties of material

  3. Continue…. Heat is transferred by • Conduction: Temperature gradient exists within a body…heat transfer within the body • Convection: Heat transfer from one body to another by virtue that one body is moving relative to the other • Radiation: Transfer of heat from one body to another that are separated in space in a vacuum. (blackbody heat transfer) We’ll consider • Conduction w/in the product • Convection: transfer by forced convection from product to moving fluid Moisture movement through agricultural product is similar to movement of heat by conduction • Moisture diffusivity • Volume change due to moisture content change

  4. Continue…. Terms used to define thermal properties • Specific heat • Thermal conductivity • Thermal diffusivity • Thermal expansion coefficient • Surface heat transfer coefficient • Sensible and Latent heat • Enthalpy

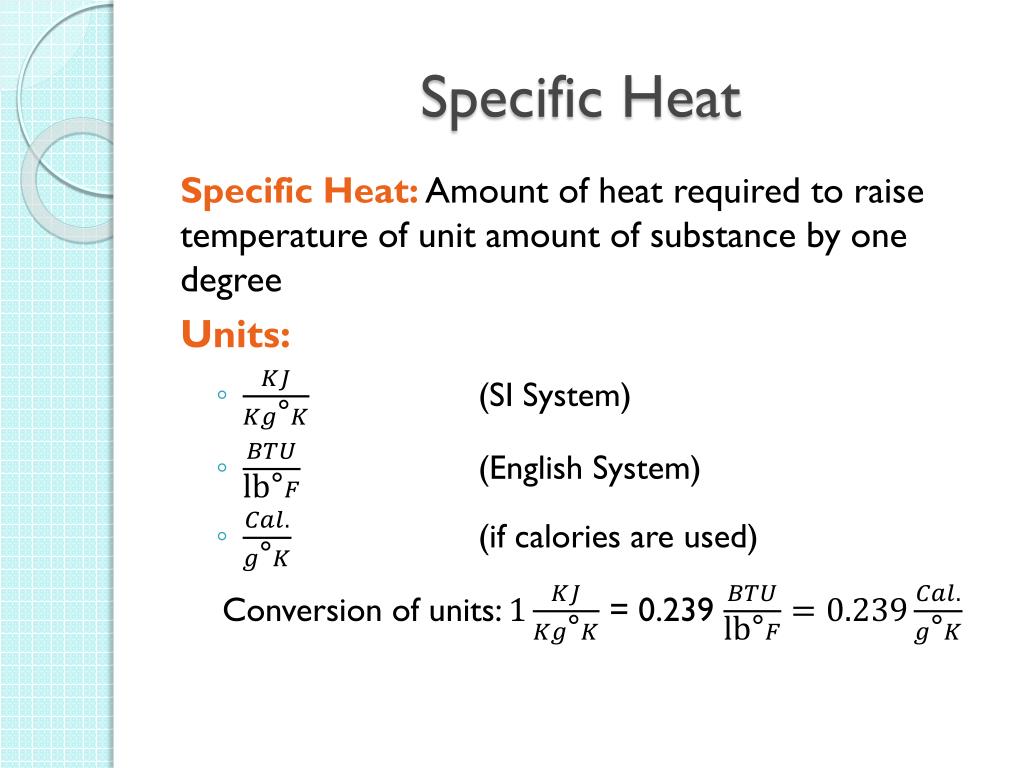

  5. Specific Heat Specific Heat: Amount of heat required to raise temperature of unit amount of substance by one degree Units: • (SI System) • (English System) • (if calories are used) Conversion of units: = 0.239

  6. Specific Heat Once Specific heat of material is known, then the amount of heat (Q) needed to increase temp. from T1 to T2 is calculated by: Q = M Cp (T2-T1) Where, Q = quantity of heat required to change temperature of a mass Cp= Specific heat at constant pressure M = mass or weight Water is a major component of all agricultural products Cp of water = 4.18 = 1 Cpof oils and fats =½ of Cpof water ………See Table 8.1 pg. 219 Cpof grains, powders = ¼ to 1/3 of Cpof water Cp of ice = ½ CpofH2O ( therefore, less heat required to raise temp. of frozen product then the same product when it is thawed)

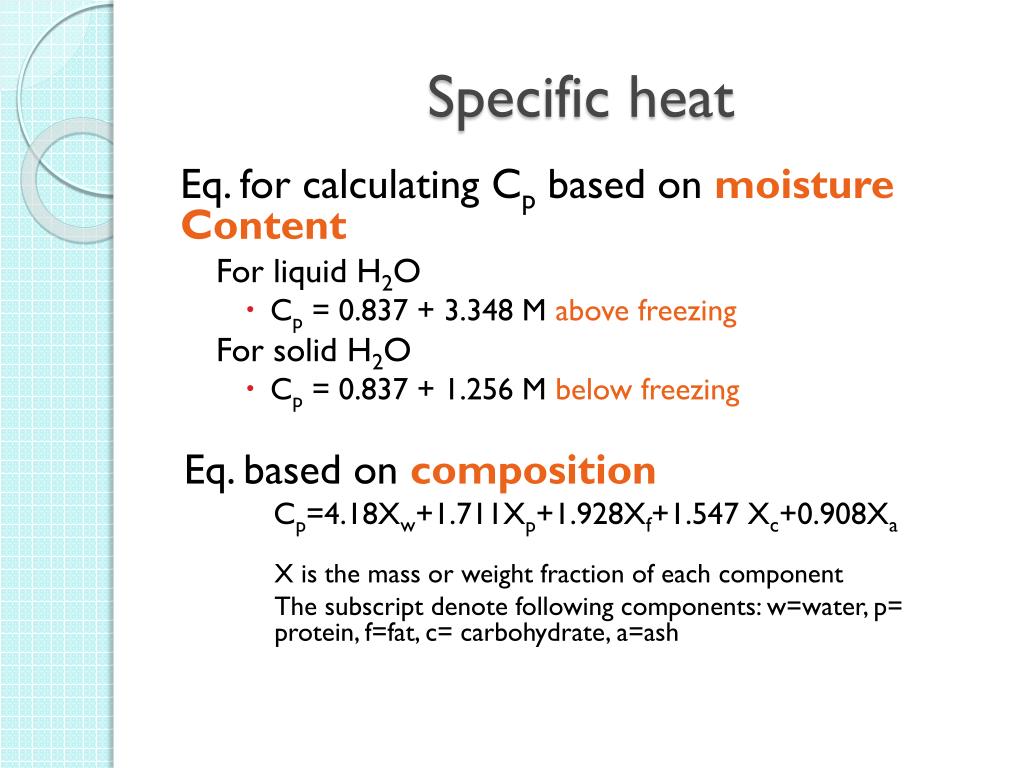

  7. Specific heat Eq. for calculating Cp based on moisture Content For liquid H2O • Cp = 0.837 + 3.348 M above freezing For solid H2O • Cp = 0.837 + 1.256 M below freezing Eq. based on composition Cp=4.18Xw+1.711Xp+1.928Xf+1.547 Xc+0.908Xa X is the mass or weight fraction of each component The subscript denote following components: w=water, p= protein, f=fat, c= carbohydrate, a=ash

  8. Thermal Conductivity (k) Measure of ability to transmit heat = -k A K= coefficient of thermal conductivity For one dimensional heat flow in x direction, k is numerically equal to the quantity of heat (Q) that will flow across a unit cross sectional area (A) per unit of time (t) in response to a temperature gradient () of 1 degree per unit distance in x direction Units: (SI system) (English System) 1 = 1.731

  9. Thermal Conductivity (k) k water=0.566 at 0°C = 0.602 at 20°C = 0.654 at 60°C • At room temp. value of k for endosperm of cereal grains, flesh of fruits and veg., dairy pdts, fats and oil and sugar are less than that of water. • Higher the moisture content higher will be thermal conductivity of food product • Another factor is porosity e.g. freeze dried products and porous fruits like apple have low thermal conductivity.

  10. Thermal Conductivity (k) If we don’t know thermal conductivity, approximate using... K = kwXw + ks(1-Xw) Where, Kw =Thermal conductivity of water Xw= Weight fraction of water Ks = Thermal conductivity of solids = 0.259 If the moisture in product is more than 50%, then K = 0.056 + 0.57Xw

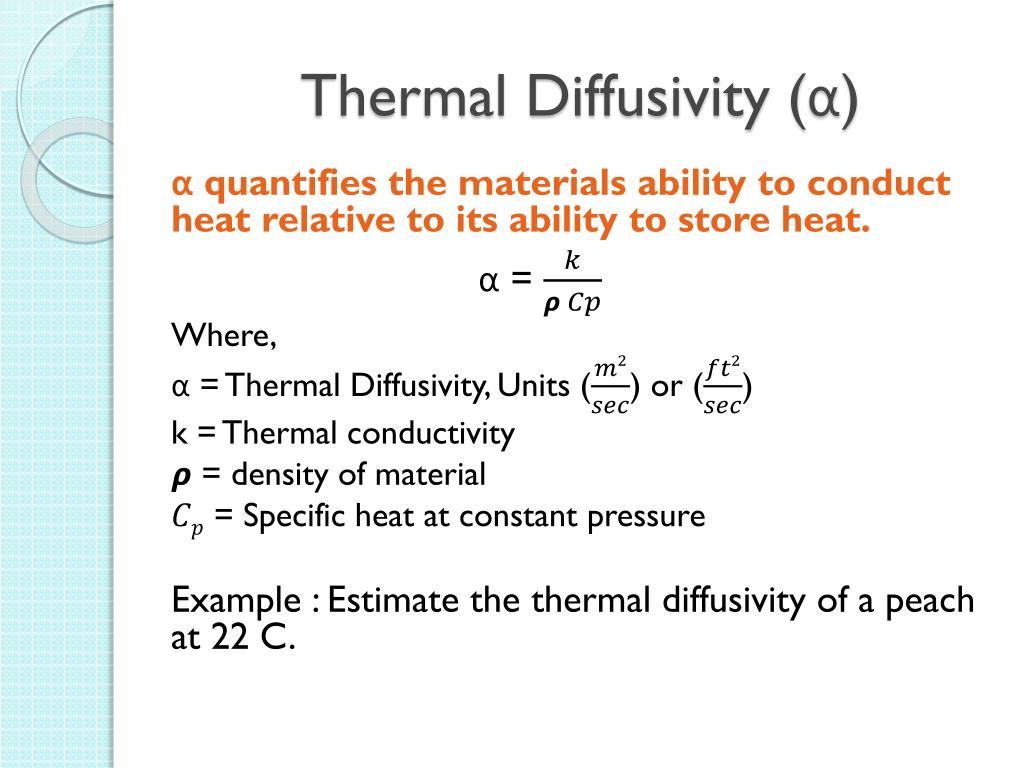

  11. Thermal Diffusivity (α) α quantifies the materials ability to conduct heat relative to its ability to store heat. α = Where, α = Thermal Diffusivity, Units () or () k = Thermal conductivity = density of material = Specific heat at constant pressure Example : Estimate the thermal diffusivity of a peach at 22 C.

  12. Surface heat transfer coefficient (h) When a body is placed in flowing stream of liquid or gas, the body’s temperature will change until it eventually reaches in equilibrium with the fluid. In eq. form also known as Newton’s Law of cooling = h A (Tf- Ts) Where, h = surface heat transfer coefficient and has same units as k i.e. Tf = temp. of fluid Ts= temp of solid body • h depends on fluid velocity, surface characteristics of solids, size and shape of solid and fluid properties ( density and viscosity) • Difficult to tabulate value of h, therefore experimentally determined

  13. Sensible and Latent heat Sensible heat: Temperature that can be sensed by touch or measured with a thermometer. Temperature change due toheat transfer into or out of product Latent heat: Transfer of heat energy with no accompanying change in temperature. Happens during a phase change...solid to liquid...liquid to gas...solid to gas

  14. Latent heat (L) Latent Heat, L, (kJ/kg or BTU/lb) • Heat that is exchanged during a change in phase • Dominated by the moisture content of foods • Requires more energy to freeze foods than to cool foods (90kJ removed to lower 1 kg of water from room T to 0 °C and 4x that amount to freeze food) • 420 kJ to raise T of water from 0 ° C to 100 ° C, 5x that to evaporate 1 kg of water • Heat of vaporization is about 7x greater than heat of fusion (freezing) • Therefore, evaporation of water is energy intensive (concentrating juices, dehydrating foods…)

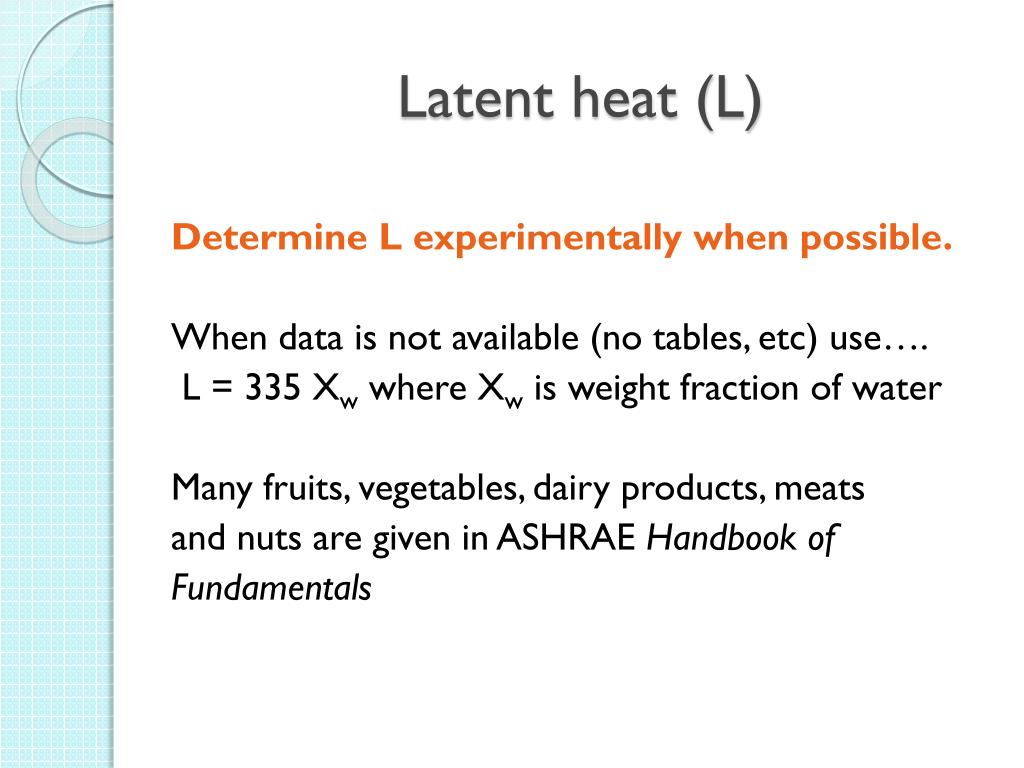

  15. Latent heat (L) Determine L experimentally when possible. When data is not available (no tables, etc) use…. L = 335 Xw where Xw is weight fraction of water Many fruits, vegetables, dairy products, meats and nuts are given in ASHRAE Handbook of Fundamentals

  16. Enthalpy (h) Units: (kJ/kg or BTU/lb) • Heat content of a material. • Used frequently to evaluate changes in heat content of steam or moist air Combines latent heat and sensible heat changes ΔQ = M(h2-h1) Where, ΔQ = amount of heat needed to raise temperature from T1 to T2 M = mass of product h2= enthalpy at temp T1 h1 = enthalpy at temp T2

  17. Enthalpy (h) Approach useful when one of the temperature is below freezing • Measurements based on zero values of enthalpy at a specified temperature e.g. at -40°C, -18°C or 0°C. • Enthalpy changes rapidly near the freezing point Change in enthalpy of a frozen food can be calculated from eq. below: Δh = M cp(T2 – T1) + MXwL Xwis the mass fraction of water that undergoes phase change(frozen fraction) L is the latent heat of fusion of water M is the mass of product Δh = Change in enthalpy of frozen food

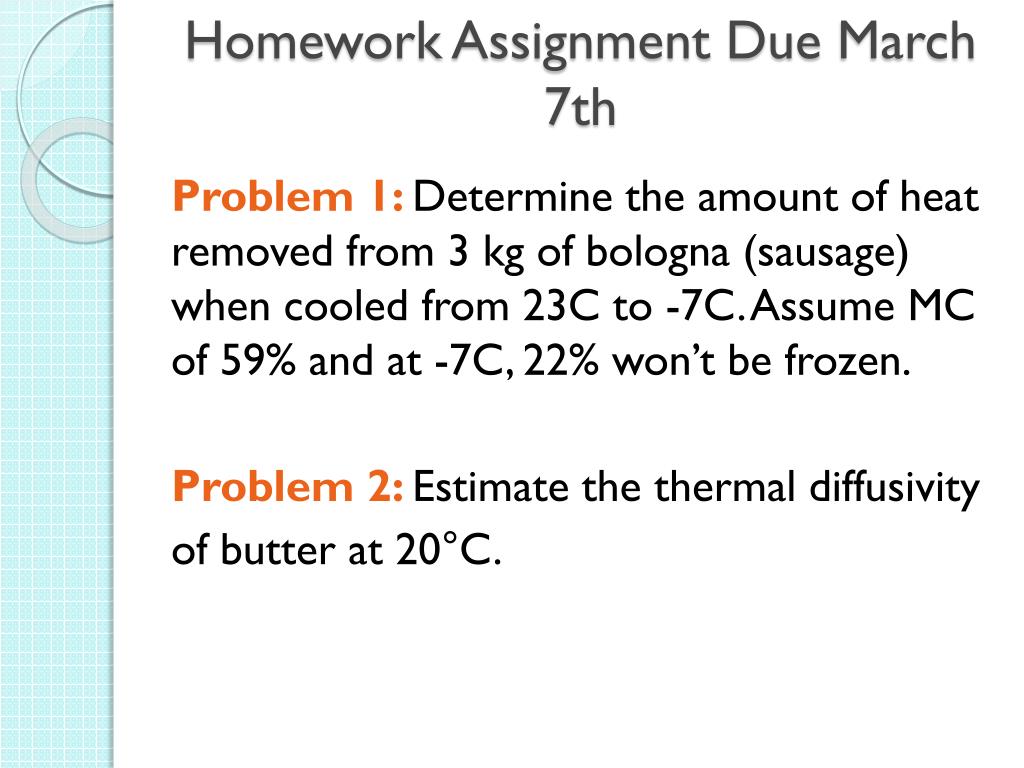

  18. Example Example 8.3: Calculate the amount of heat which must be removed from 1 kg of raspberries when their temperature is reduced from 25C to -5C. Assume that the specific heat of raspberries above freezing is 3.7 kJ/kgC and their specific heat below freezing is 1.86 kJ/kgC. The moisture content of the raspberries is 81% and the ASHRAE tables for freezing of fruits and vegs. Indicate that at -5C, 27% will not yet be frozen.
