Thermal Properties of Materials. Thermal conductivity (electrons, phonons) Heat capacity (specific heat) at constant volume Heat capacity (specific heat) at constant pressure Thermal expansion. Thermal Conductivity (Survey). Contribution to thermal conductivity:

Download Presentation
## Thermal Properties of Materials

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

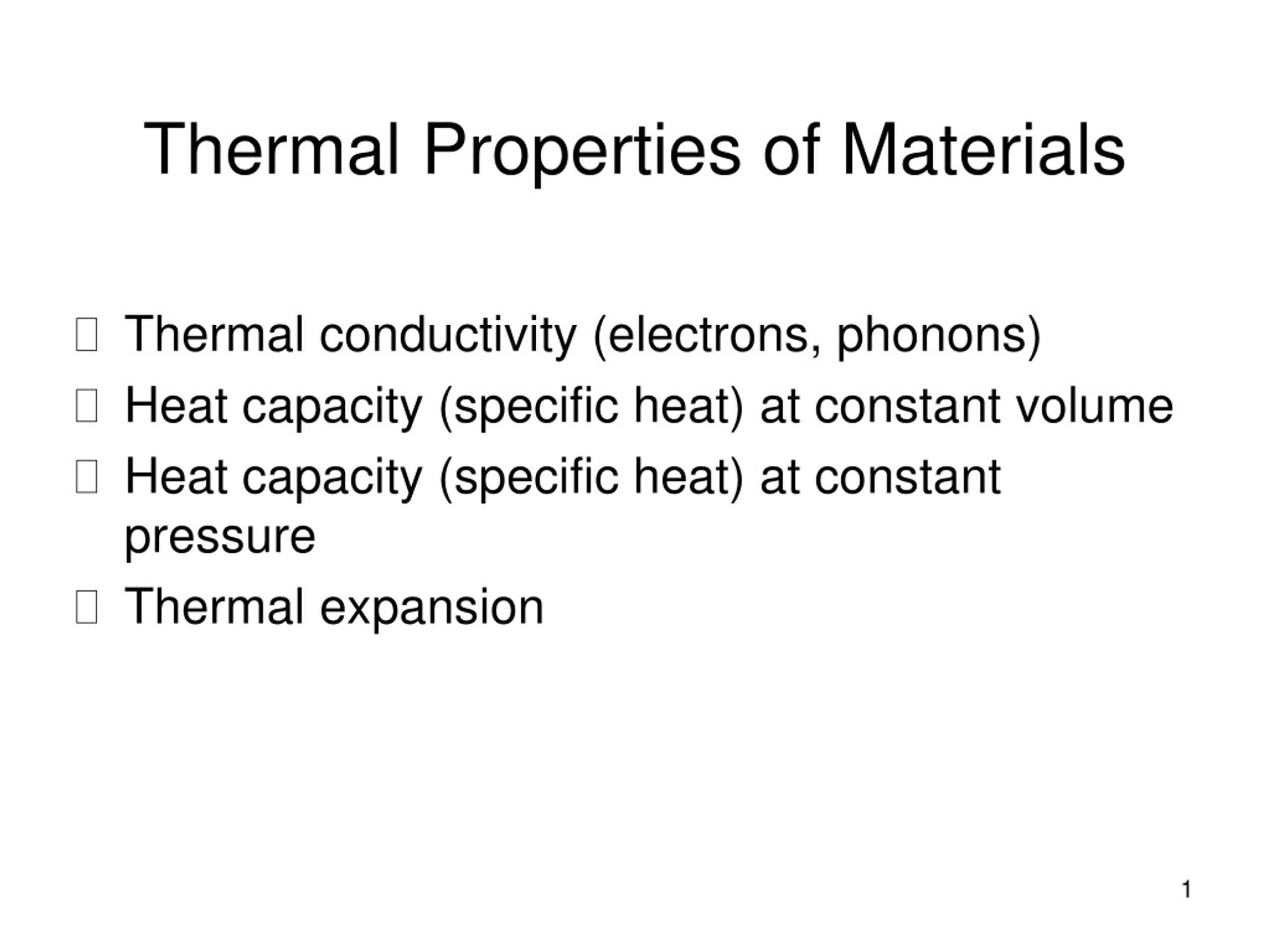

**Thermal Properties of Materials**• Thermal conductivity (electrons, phonons) • Heat capacity (specific heat) at constant volume • Heat capacity (specific heat) at constant pressure • Thermal expansion**Thermal Conductivity (Survey)**• Contribution to thermal conductivity: • Phonons (lattice vibrations) low contribution to thermal conductivity • Electrons (connected to electrical conductivity) high contribution to thermal conductivity**Specific Heat(Heat Capacity)**Einstein and Debye models – quantum mechanical description of transport phenomena**Definition of the Heat**… change in energy of a thermodynamic system ( is the work performed by the system, is the heat) Assumption, that:**Heat Capacity**The amount of heat (energy) required to raise the systems temperature by one degree (usually expressed in Kelvin) … heat capacity at a constant volume … heat capacity at a constant pressure ( is the enthalpy) … coefficient of thermal expansion … (absolute) temperature … volume of material … compressibility**Specific Heat**… per mole: … per unit of mass: Temperature dependency**Temperature Dependency of Specific Heat**CV = 25 J mol-1 K-1 = 5.98 cal mol-1 K-1 • Experimental results: • Specific heat of materials with one atom per unit cell is about 25 J mol-1 K-1 at room temperature. • At low temperatures the specific heat decreases.Metals: Insulators: • In magnetic materials specific heat increases if ordering of magnetic moments increases Fig. 5.26 a Specific heat capacity of different materials**Specific Heat at Phase Transition**Specific heat capacity of KH2PO4, which has a first-order phase transition at 120 K The material needs additional energy (heat) for the phase transition**Structure Transition in KH2PO4:paraelectric **ferroelectric Ferroelectric RG: Fdd2 (orthorhombic) a = 10.467Å, b = 10.467Å, c = 6.967Å … K … P … O … H Paraelectric RG: I -42d (tetragonal) a = 7.444Å, c = 6.967Å**Magnetic Phase Transition of CePtSn**Antiferromagnetic with Change in ordering of magnetic moments**Ideal Gas**Na = 6.022 x 1023 mol-1 R = kB Na = 8.314 J mol-1 K-1 = 1.986 cal mol-1 K-1 Kinetic energy of ideal gas … pressure … impulse … area … number of . atoms … temperature**Classical Theory of Heat Capacity (Ideal Gas)**CV = 25 J mol-1 K-1 = 5.98 cal mol-1 K-1 … energy per mole Good compliance with experiments at higher temperatures**Quantum Theory of Heat Capacity**1903: Einstein postulated the quantum behavior of lattice vibrations (lattice oscillations) analogous to the quantum behavior of electrons. The quanta of lattice vibrations are called phonons. … energy … impulse (de Broglie) Longitudinal oscillations Transversal oscillations**Dispersion Relation (Phonon Dispersion)**Analogy to the band structure Optical phonons (optical branch) Frequency Acoustic phonons (acoustic branch) Frequency of phonons (THz) Wave vector Optical phonons… higher energy (frequency) Acoustic phonons… lower energy (frequency) in [111]-direction**Phonon dispersion as obtained from the neutron diffraction**experiments Fig. 5.17 Acoustic and optical branches determined by neutron diffractiona) for aluminumb) for potassium bromideA – acoustic; O – optical; T – transversal; L – longitudinal**Acoustic and Optical Branches of a Linear Atomic Chain**Acoustic branch Optical branch Fig. 5.23Typical movement pattern of atoms in a linear chain**Energy of a Quantum Mechanical Oscillator**… quantum energies … Bose-Einstein distribution … Fermi function (distribution) of electrons**Heat Capacity – The Einstein Model**E = 0.01 eV KP QM Number of phonons Temperature [K]**Heat Capacity – The Einstein Model**Classical approximation CV = 3R CV exp(-/kBT) Temperature [K] Extreme case:**Comparison of Theoretical and Experimental Results**• Experimental results: • Specific heat of materials with one atom per unit cell is about 25 J mol-1K-1 at room temperature. • At low temperatures the specific heat decreases.Metals: Insulators: • Theory (Einstein model): • Specific heat is about 25 J mol-1 K-1 at high temperatures. • At low temperatures the specific heat decreases exponentially. The Einstein model considers only phonons with particular (discrete) frequencies.**Heat Capacity – The Debye Model**Phonons with different energies … number of (acoustic) phonons … distribution (density) of oscillation frequency [DOS* of electrons] vs … speed of sound * Density of states**Debye Temperatures**Fig. 5.26 a Specific heat capacity of different materials**Heat Capacity at High and Low Temperatures (Debye Model)**: Better compliance with experimental values at low temperatures !!! For insulators !!!**Total Heat Capacity**Phonons (Debye model) T < QD Electrons … contribution of phonons … contribution of electrons**Experimental Methods**for the investigation of lattice vibrations X-ray diffraction Profile change of electron density (thermal vibrations of electrons) Influence on the intensities of diffraction lines Neutron diffraction Interaction between low-energy (slow) neutrons and the Phonons**Heat Conductivity**Thermal conductivity: K Partial differential equation: Solution for definite initial and boundary conditions Temperature dependency – similar to the change in concentration at diffusion processes J = 0 J = 0 = const. = const.**Thermal Conductivity**… number of electrons … free path between two collisions (electron-phonon) … velocity of electrons**Thermal Conductivity**Metals Dielectrics Thermal conductivity, W/cm/K Temperature, K Material K [W/cm/K] SiO2 0,13 – 0,50 (at 273K or 80K) NaCl 0,07 – 0,27 (at 273K or 80K) Al2O3 200 at 30K Cu 50 at 20K Ga 845 at 1.8 K Wiedemann-Franz law: Materials with high electrical conductivity exhibits a high thermal conductivity**Thermal Expansion**Intramolecular force Harmonic vibrations: Thermal expansion Inharmonic vibrations:**Thermal Expansion**Change of mean interatomic distance with temperature: Temperature dependency of lattice parameters: Argon (kfz) Lattice parameter increases quadratically with the temperature The thermal expansion at is zero Lattice parameter [Å] Density [g/cm³] Temperature [K]
