LDA, CCC, Mars-Modul. ATCalMZ Montagsmeeting. 08.04.2013. Passive PCB: 1. Wing with 32 HDMI c onnectors ( almost finished ) :. LDA Layout. 99mm. 367,5mm. 1. Passive PCB: 2. Central module with 32 HDMI connectors (almost finished):. LDA Layout. 99mm. 365mm. 2. LDA Layout.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'LDA, CCC, Mars-Modul' - beau-berry


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
lda ccc mars modul

LDA, CCC, Mars-Modul

ATCalMZ

Montagsmeeting

08.04.2013

lda layout

Passive PCB:

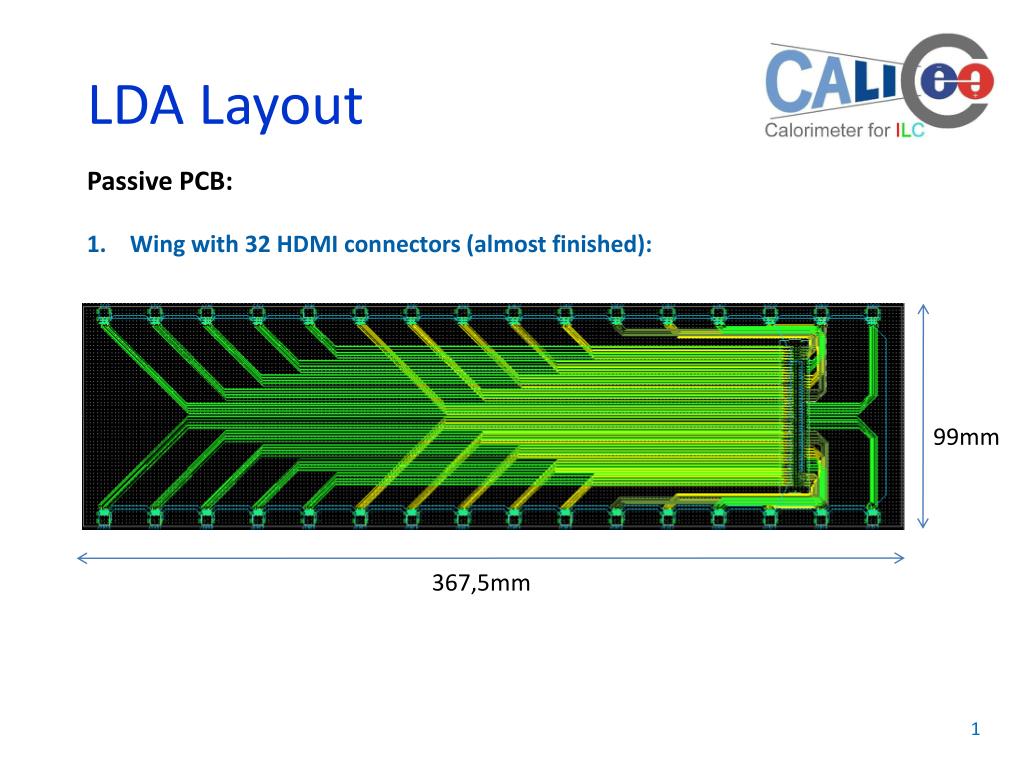

1. Wing with 32 HDMI connectors (almostfinished):

LDA Layout

99mm

367,5mm

1

lda layout1

Passive PCB:

2. Central module with 32 HDMI connectors (almost finished):

LDA Layout

99mm

365mm

2

slide4

LDA Layout

Active PCB:

3. Daughter module:

FPGA

FPGA

FPGA

FPGA

RJ45

80mm

MARS

SD

HDMI-CCC

300mm

3

slide5

LDA Layout

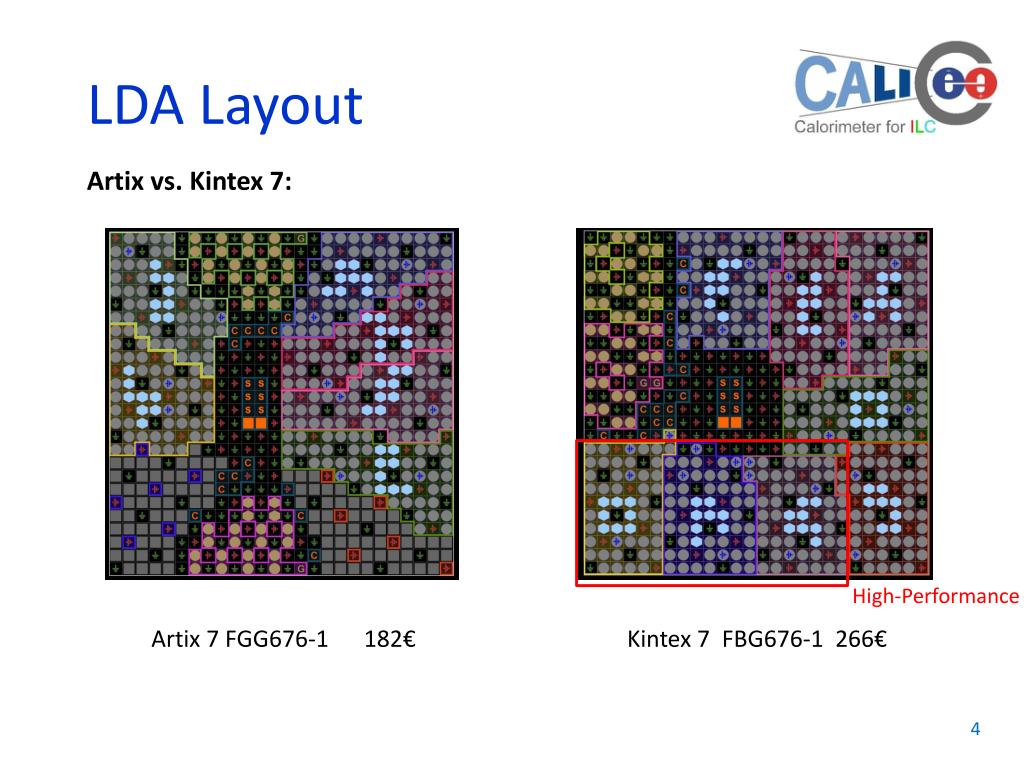

Artix vs. Kintex 7:

FPGA

FPGA

FPGA

FPGA

RJ45

MARS

SD

HDMI-CCC

High-Performance

Artix 7 FGG676-1 182€

Kintex 7 FBG676-1 266€

4

slide6

Mars-Modul

  • Problems: (until Wednesday, we hope)
  • Doesn’t work (debugging too)
  • Enclustra will helpusthisweek
  • First non engineeringsamplesat May
  • Programm Interface Configurater, almostfinished

FPGA

FPGA

FPGA

RJ45

4

ccc and lda c onfiguration

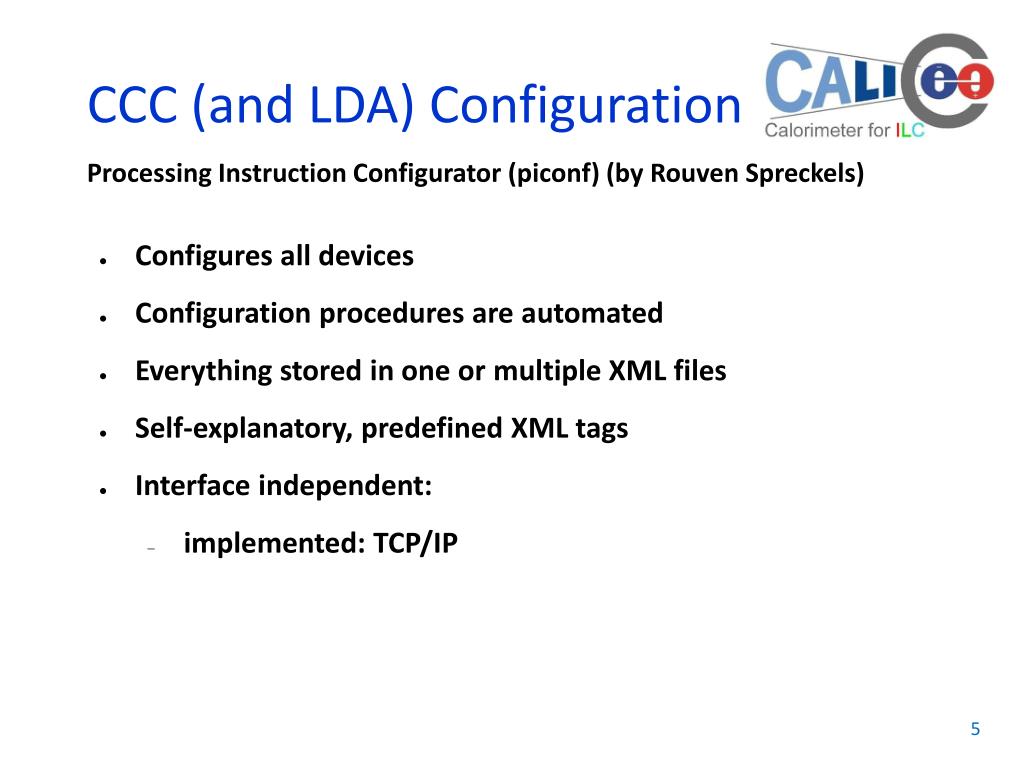

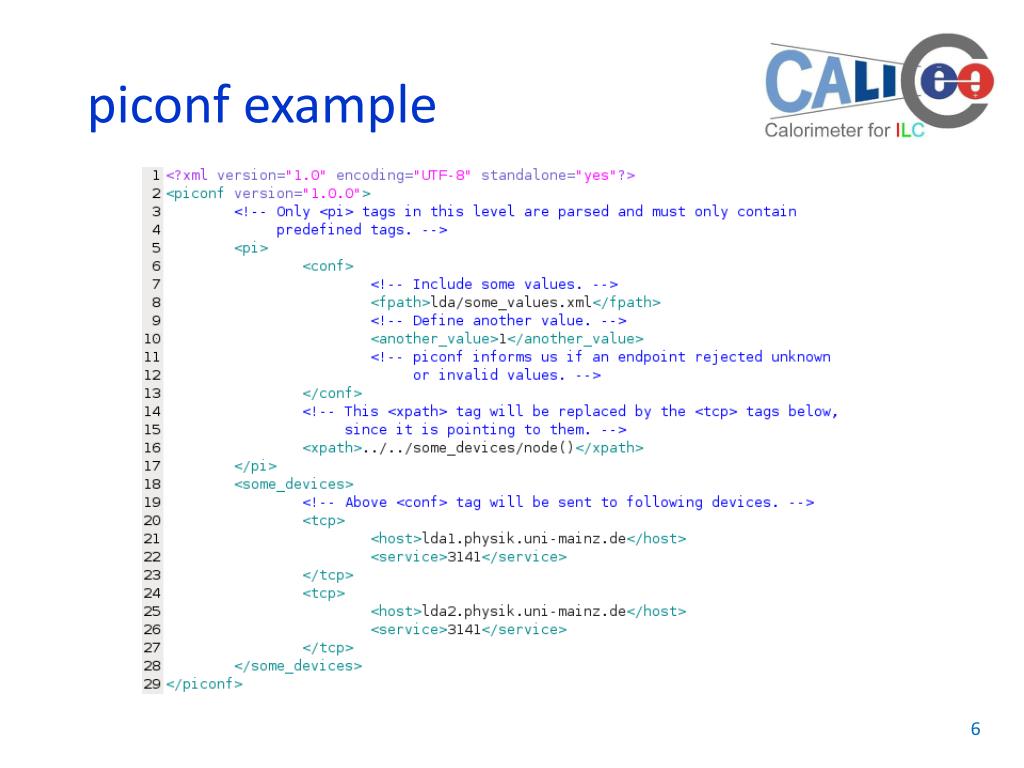

Processing Instruction Configurator (piconf) (by RouvenSpreckels)

  • Configures all devices
  • Configurationproceduresareautomated
  • Everythingstored in oneor multiple XML files
  • Self-explanatory, predefined XML tags
  • Interface independent:
    • implemented: TCP/IP

CCC (and LDA) Configuration

5

aida meeting

Vidyo-Meeting:

  • 11th April 10:30 o’clock
  • About the CCC and TLU upgrades
  • David Cussans will give us the TLU VHDL code, so “easy” implementing
  • Two possibilities:
  • Baseline software or fallback hardware(or switched)
  • Timeline July 2013

AIDA Meeting

7

ccc desy support

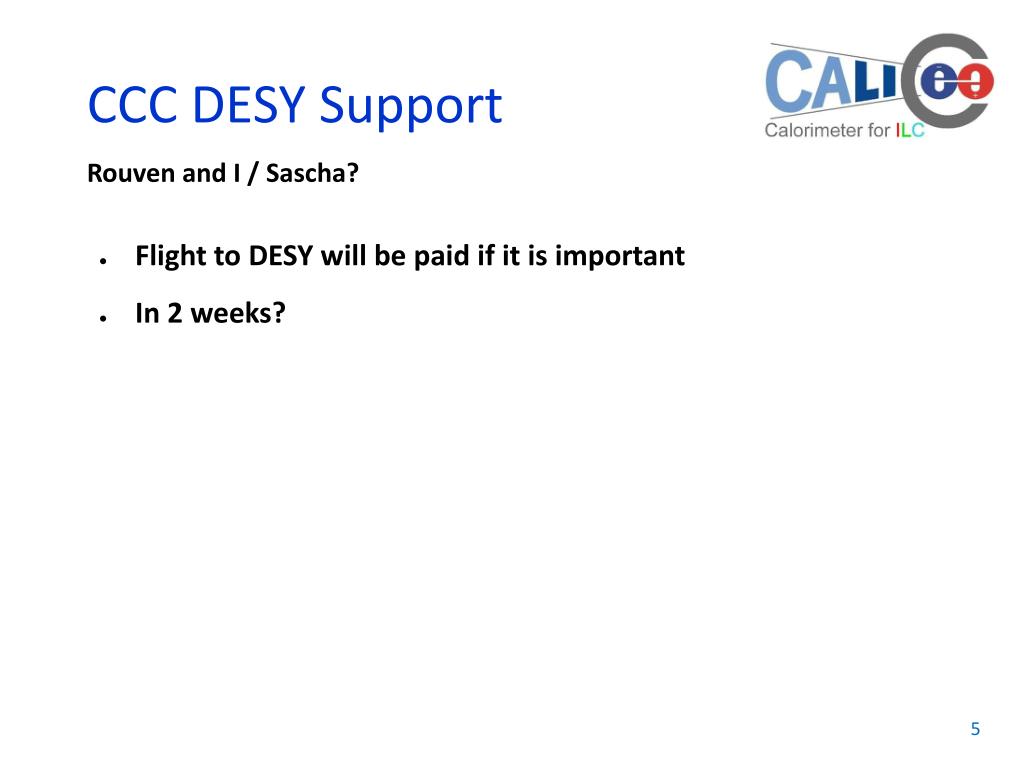

Rouven and I / Sascha?

  • Flight to DESY will bepaidifitisimportant
  • In 2 weeks?

CCC DESY Support

5
