  1. Unit 4: Electricity for Everyone

  2. Essential Questions • What is electricity and how is it measured? • How do generators work? • How is energy converted from one form to another? • What are parallel and series circuits? • What is a load limit, and how is it calculated? • What does electricity cost?

  3. Chapter Challenge • For this unit’s chapter challenge, you will be using the scenario on page 444-445 • This is what your final exam will be in December • A rubric will be given to you beforehand, so you know the criteria you will be assessed on • You may prepare for the chapter challenge, but you can not bring any of your written work to the exam, only your textbook and rubric

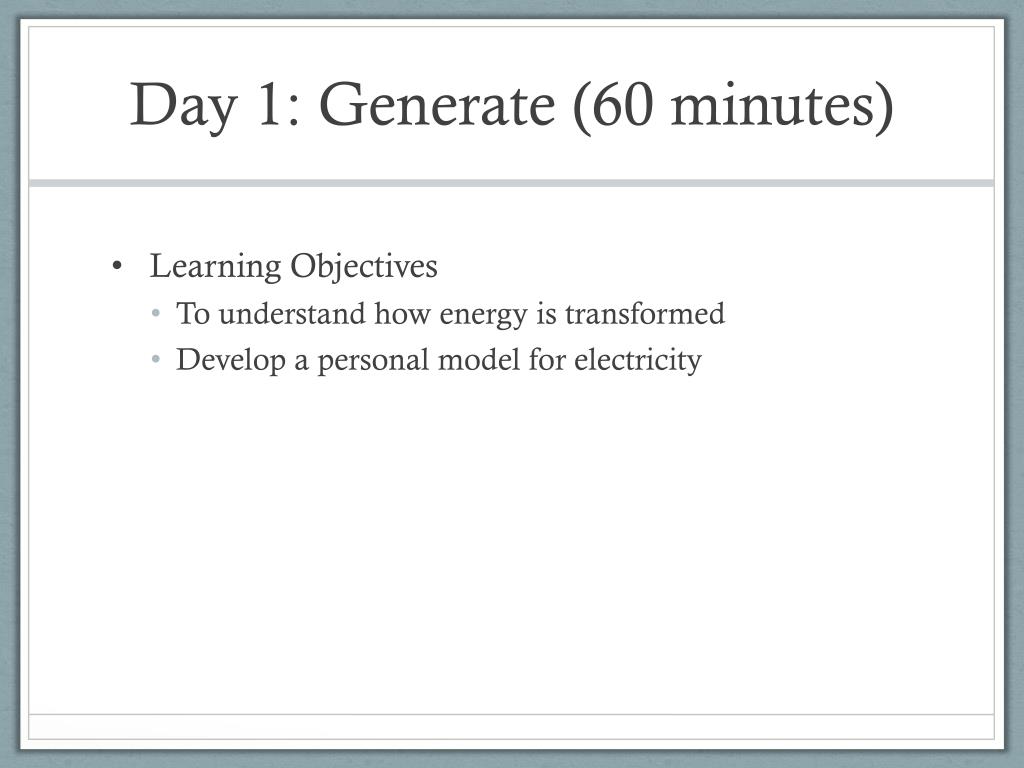

  4. Day 1: Generate (60 minutes) • Learning Objectives • To understand how energy is transformed • Develop a personal model for electricity

  5. Starter • What are different ways that you use electricity in your daily life? • Is there any “free” electricity available? Why pay for it if it is free? • Time: 10 minutes

  6. Activity 1 • Watch the following video and think of the following: • How would the light bulb not light? • What are the effects of changing the speed or direction of cranking the generator? • Time:

  7. Activity 2 • You will be given a number which represents the group you are in • You will research with your group and present what you find in a particular way • Powerpoint • Poster • Poem/Story/Comic strip

  8. What to research? • What is a generator? • How does it work? • What are the different types of generators? • How is energy transformed using a generator? • Time: 40 minutes • Presentations – next class

  9. Closing and Homework • Physics to Go, pg. 449 #2, 3, 4, 6

  10. Day 2: Lighten Up • Learning Objectives: • Qualitatively describe current, resistance and voltage • Define coulomb, ampere, volt • Compare series and parallel circuits • Recognize generator output load • Extend your personal model of electricity

  11. Starter • Lights were the first electric appliances for the home • How do light bulbs work? • How does the electricity that makes the light bulbs glow work? • Time: 15 minutes

  12. Activity 1 • Present your information that you researched about generators • Time: 15-30 minutes

  13. Activity 2 • Draw 2 diagrams of a circuit, one in series and one in parallel. They should have • 3 light bulbs • Battery • What are the pros and cons of each type of circuit? • Time: 10 minutes

  14. Activity 3 • Set up your circuits, one at a time • Measure the voltage using the voltmeter to see if there are any differences in voltage in the two different circuits • Check the voltage at various points in the circuit • Write down your findings • Time: 30 minutes

  15. Activity 4 • Discuss the following questions: • What is resistance, current, and voltage? • Where is there more current and voltage – in a series circuit or parallel circuit? • Will electricity continue to flow if the circuit is broken in a parallel circuit? A series circuit? Why or why not? Use a diagram to help explain. • Time: 20 minutes

  16. Closing and Homework • Read “For you to Read”, pg. 452 • Physics to go, pg. 454 #1 • What is resistance, current, and voltage? • Where is there more current and voltage – in a series circuit or parallel circuit? • Will electricity continue to flow if the circuit is broken in a parallel circuit? A series circuit? Why or why not? Use a diagram to help explain. • Vocabulary list: • Volt • Ampere • Coulomb • Resistance • Current

  17. Day 3: Ohm’s Law • Learning Objectives • Calculate the resistance of an unknown resistor given the potential drop and current • Construct a series circuit • Properly use a voltmeter and ammeter in a series circuit • Graph the relationship between voltage and current for a resistor that obeys Ohm’s Law

  18. Starter • What determines the brightness of a light bulb? • How can a dimmer switch make the same light bulb appear dim or bright? • What is resistance, current, and voltage? • Where is there more current and voltage – in a series circuit or parallel circuit? • Will electricity continue to flow if the circuit is broken in a parallel circuit? A series circuit? Why or why not? Use a diagram to help explain. • Time: 15 minutes

  19. Activity 1 • Read through rules on pg. 456-457 • Connect various resistors from the box to the battery source • Measure the voltage and current for the different resistors • What happens if you have more than 1 resistor? • Record your data • Time: 30 minutes

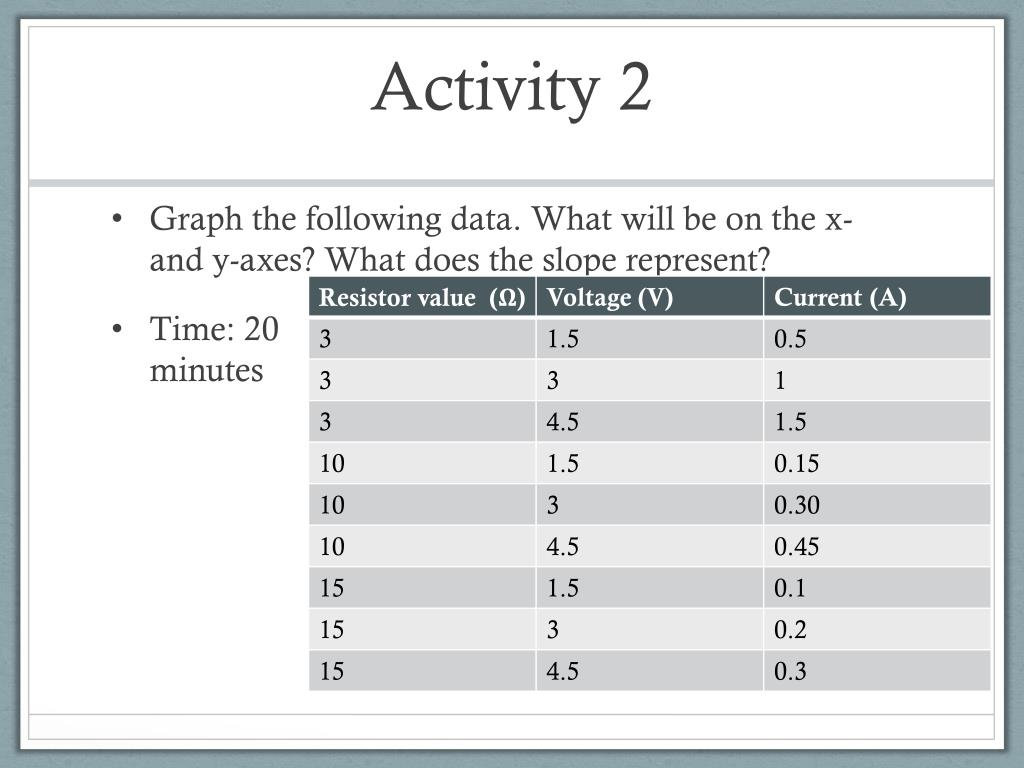

  20. Activity 2 • Graph the following data. What will be on the x- and y-axes? What does the slope represent? • Time: 20 minutes

  21. Activity 3 • What is the relationship between resistance, voltage and current? • Try to write an equation that represents the relationship • Think: how do you calculate slope? • Time: 5 minutes

  22. Activity 4 • Ohm’s Law Calculations: • Example: Calculate the resistance in Ohms of a 9V battery that carries a current of 3A. • Complete the calculations questions • Time: 20 minutes

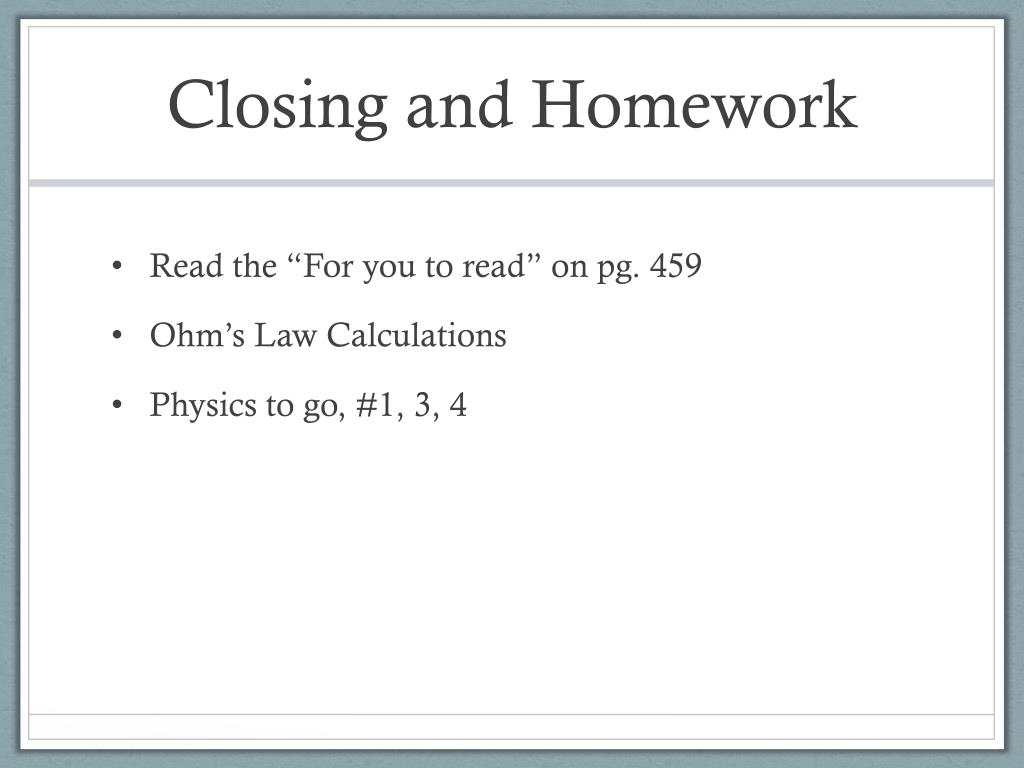

  23. Closing and Homework • Read the “For you to read” on pg. 459 • Ohm’s Law Calculations • Physics to go, #1, 3, 4

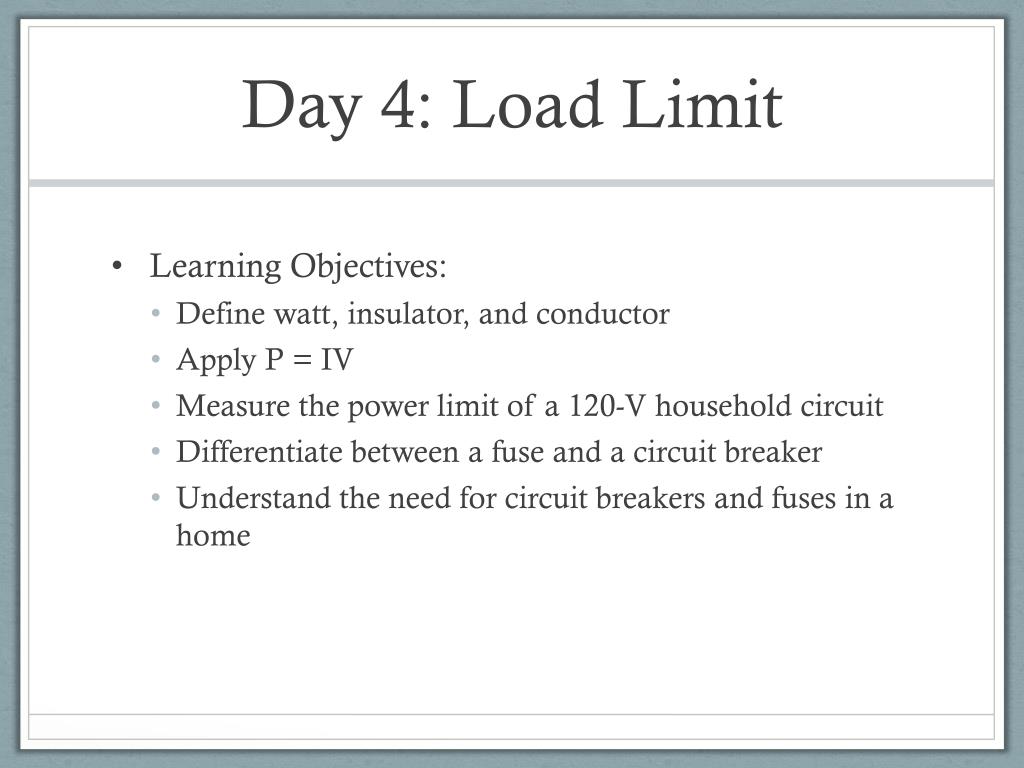

  24. Day 4: Load Limit • Learning Objectives: • Define watt, insulator, and conductor • Apply P = IV • Measure the power limit of a 120-V household circuit • Differentiate between a fuse and a circuit breaker • Understand the need for circuit breakers and fuses in a home

  25. Starter • You have heard the term “blown a fuse” or “tripped” a circuit breaker • What is a fuse? • What is a circuit breaker? • What conditions do you think make a fuse “blow” or a circuit breaker “trip”? • Time: 15 minutes

  26. Activity 1 • How do we calculate the load limit? This will help you in your chapter challenge Homes for Everyone dwelling • Power = Current x Voltage (P = IV), where power is measured in watts (W) • Suppose you have 40 60W light bulbs plugged into a 120V circuit. What is the current flowing through the circuit? • When a 41st light bulb is plugged in, the circuit blows. What is the load limit of the circuit? • How many 100W light bulbs could be plugged into this circuit? • Time: 20 minutes

  27. Activity 2 • Determine the load limit of 1 1.5V battery • Determine the load limit of 2 1.5V batteries • (To do this, you must determine the current going through the circuit) • See how many light bulbs you can hook up to try to determine the wattage of the light bulbs • Time: 30 minutes

  28. Activity 3 • Complete the sample equations. • Formulas are on next slide • Time: 20 minutes

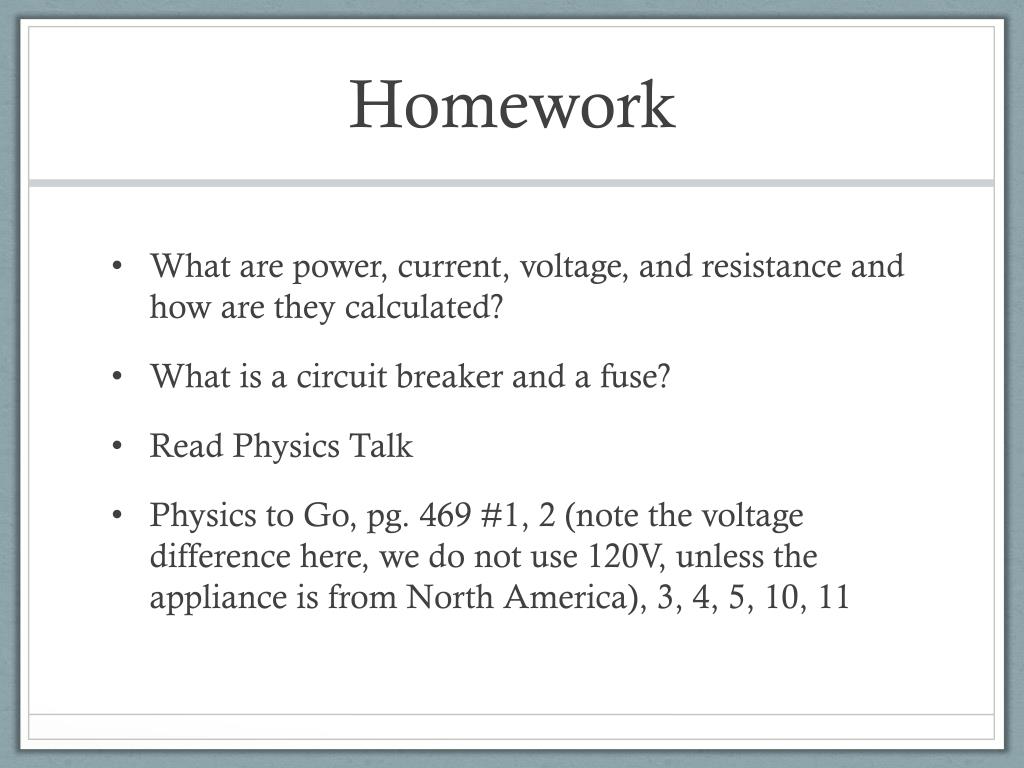

  29. Homework • What are power, current, voltage, and resistance and how are they calculated? • What is a circuit breaker and a fuse? • Read Physics Talk • Physics to Go, pg. 469 #1, 2 (note the voltage difference here, we do not use 120V, unless the appliance is from North America), 3, 4, 5, 10, 11

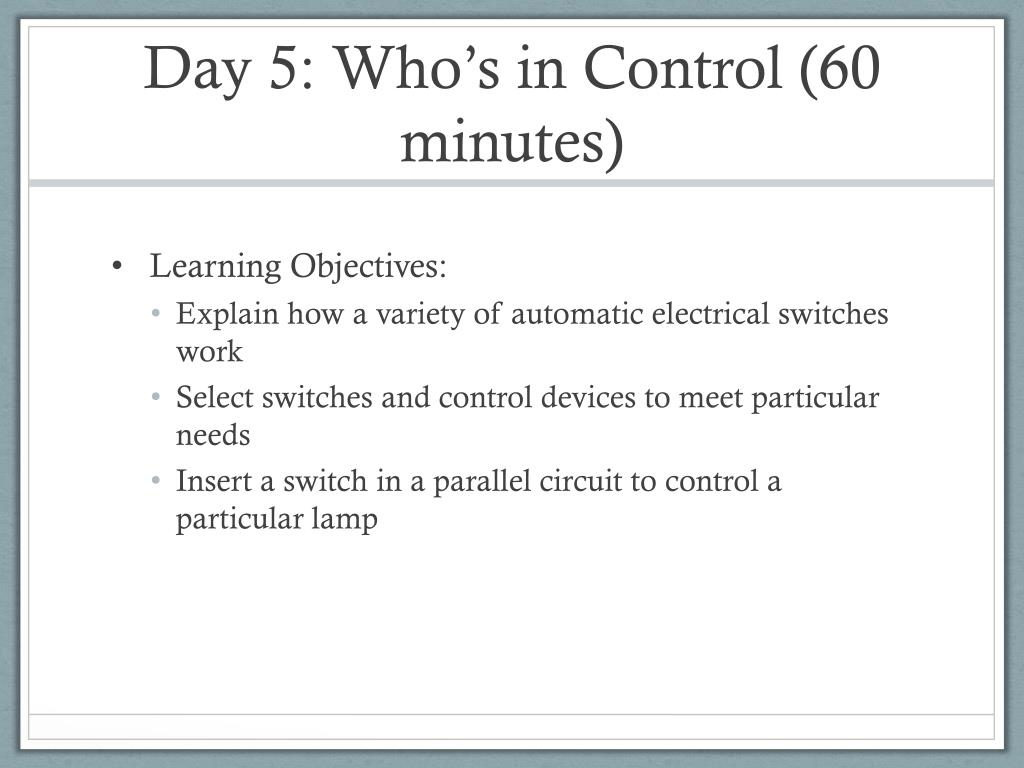

  30. Day 5: Who’s in Control (60 minutes) • Learning Objectives: • Explain how a variety of automatic electrical switches work • Select switches and control devices to meet particular needs • Insert a switch in a parallel circuit to control a particular lamp

  31. Starter • Many electrical switches are operated manually, and many others are automatic • List as many different kinds of automatic switching devices as you can • What are the conditions that cause the on/off action of the switch? • Time: 15 minutes

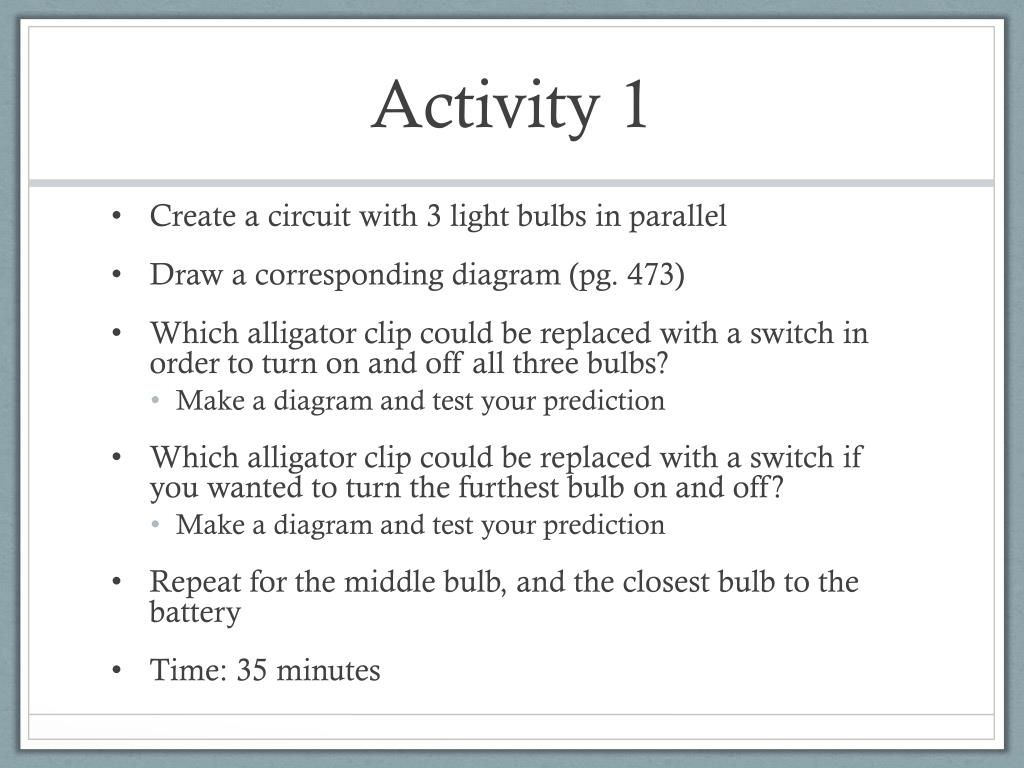

  32. Activity 1 • Create a circuit with 3 light bulbs in parallel • Draw a corresponding diagram (pg. 473) • Which alligator clip could be replaced with a switch in order to turn on and off all three bulbs? • Make a diagram and test your prediction • Which alligator clip could be replaced with a switch if you wanted to turn the furthest bulb on and off? • Make a diagram and test your prediction • Repeat for the middle bulb, and the closest bulb to the battery • Time: 35 minutes

  33. Activity 2 • Share your diagrams and conclusions with a person from another group • Discuss any discrepancies you have in your data • Time: 5 minutes

  34. Homework • Read Physics Talk, pg. 475 • Physics to go, pg. 483 #2, 3, 4, 6, 7, 9

  35. Day 6: Cold Shower • Learning Objectives: • Calculate the heat gained by a sample of water • Calculate the electrical energy dissipated by a resistor • Recognize and quantify an ideal mechanical/electrical equivalent of heat • Calculate the efficiency of a transformation of electrical energy to heat • Explore the power ratings and energy consumption levels of a variety of electrical appliances

  36. Starter • The entire daily energy output of a Homes For Everyone (HFE) generator would not be enough to heat water for an average American family for a day. • If an electrical heating coil (a type of resistor) were submerged in a container of water, and if a current were to flow through the coil to make it hot, what factors would affect the temperature increase of the water? Predict how each factor affects the water temperature. • Time: 15 minutes

  37. Activity 1 • Before we begin our data collection, there are some formulas we need to understand • Q = mcΔT, where Q = Heat energy, m = mass, c = specific heat of material, ΔT = change in temperature • P = E/t, where P = power, E = energy, t = time (E=Pt) • Calculate the heat energy for a 0.5kg sample of water that went from 20°C to 45°C. The specific heat for water is 4.180J/kg°C. • What was the energy input needed to heat the water sample if 1500W of power were used and it took 120s to heat the water? • Time: 20 minutes

  38. Activity 2 • You will heat up a 100g sample of water • Complete the table on pg. 487 • We will not use a calorimeter, just a hotplate and a beaker • Have the hotplate going for 5 minutes • Repeat, this time using 250g of water • Complete a 2nd column for your table • Time: 20 minutes

  39. Activity 3 • Calculate the Q and E values for each of your samples. • Q = mcΔT • E = Pt • You will have to get the power value from your hotplate • Time: 10 minutes

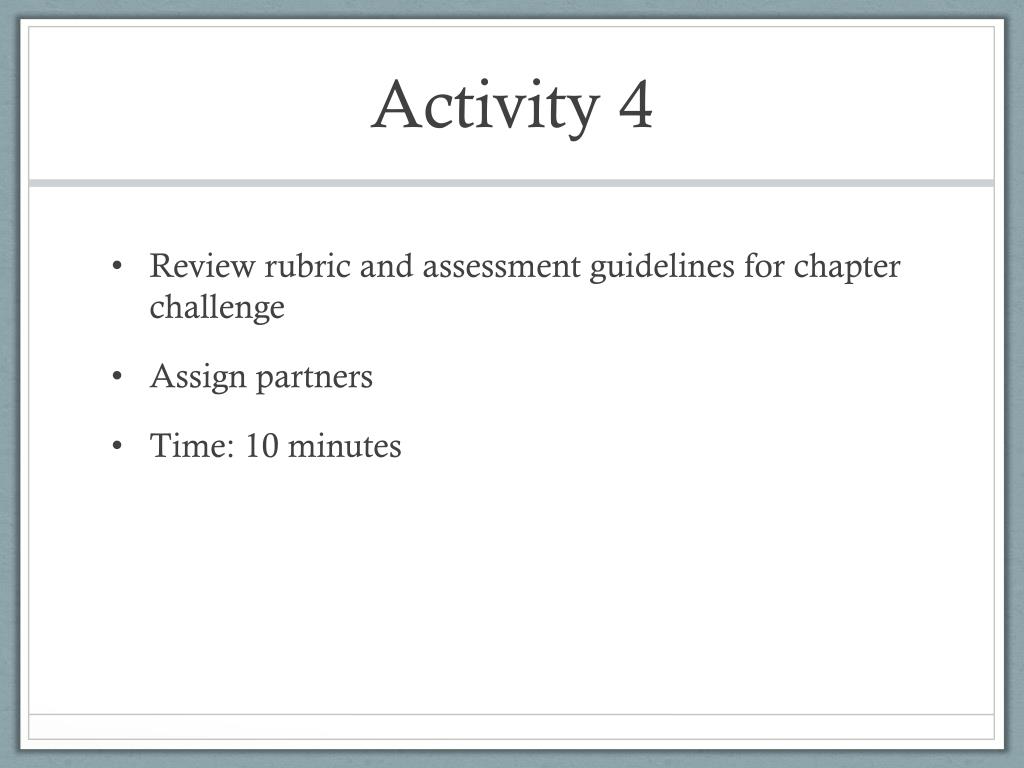

  40. Activity 4 • Review rubric and assessment guidelines for chapter challenge • Assign partners • Time: 10 minutes

  41. Homework • Read Physics Talk, pg. 489 • Physics to go, pg. 492, #1, 2, 3, 4, 5, 7, 8, 9

  42. Day 7: Pay Up

  43. Day 8: More for Your Money
