  1. Chapter 2 HTML (Hypertext Markup Language) Part I

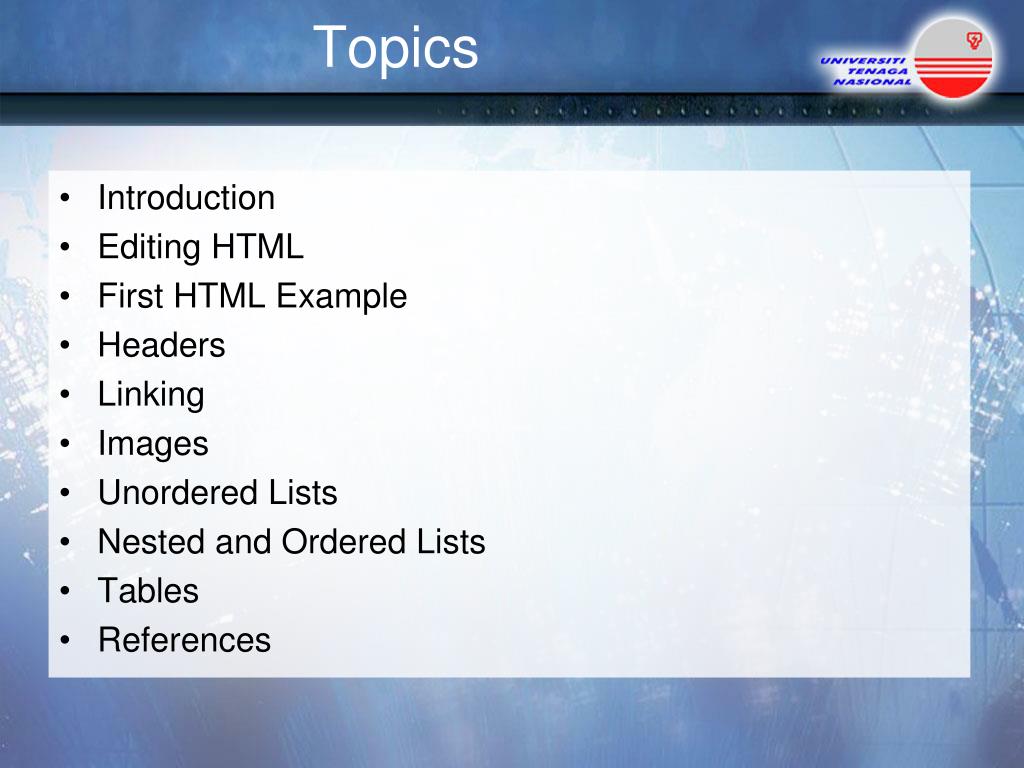

  2. Topics • Introduction • Editing HTML • First HTML Example • Headers • Linking • Images • Unordered Lists • Nested and Ordered Lists • Tables • References

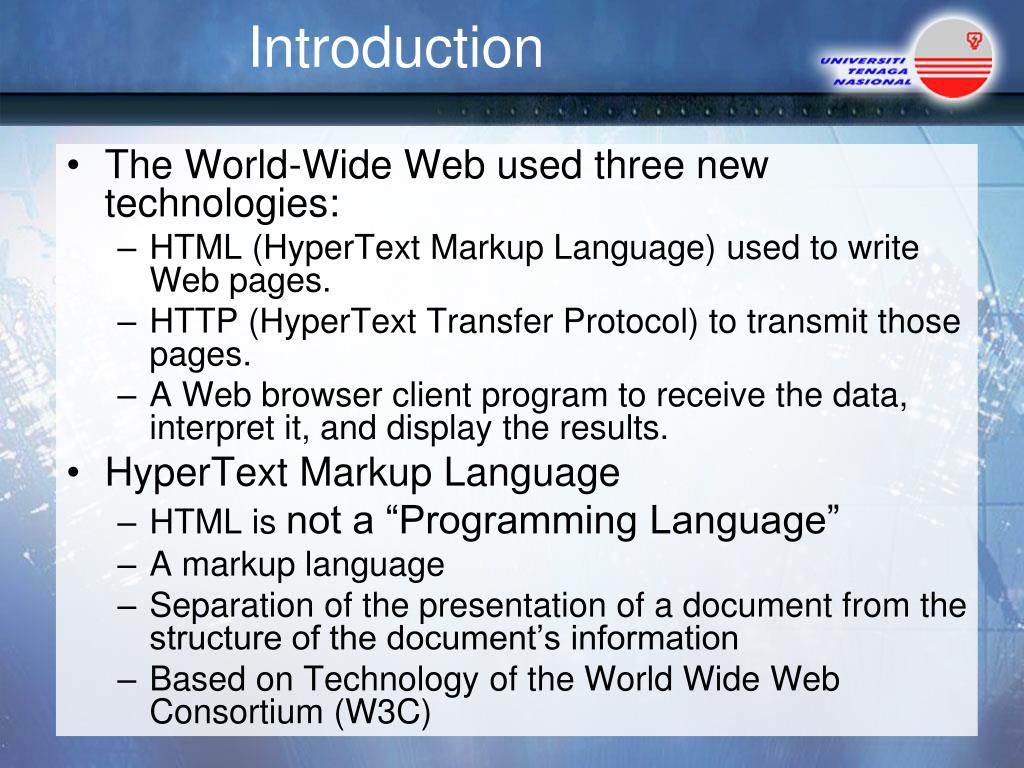

  3. Introduction • The World-Wide Web used three new technologies: • HTML (HyperText Markup Language) used to write Web pages. • HTTP (HyperText Transfer Protocol) to transmit those pages. • A Web browser client program to receive the data, interpret it, and display the results. • HyperText Markup Language • HTML is not a “Programming Language” • A markup language • Separation of the presentation of a document from the structure of the document’s information • Based on Technology of the World Wide Web Consortium (W3C)

  4. Introduction • HTML documents can contain: • flashy elements: graphics, animations, video clips, audio sounds, and even interactive games • HTML isn't just for Web pages anymore • create corporate intranets • flashy e-mail • news postings • user interfaces for applications: web forms

  5. Editing HTML • HTML documents • Source-code form • Text editor (e.g. Notepad, Wordpad) • .html or .htm file-name extension • Web server • Apache, Internet Information Services (IIS) • Stores HTML documents • Web browser • Requests HTML documents

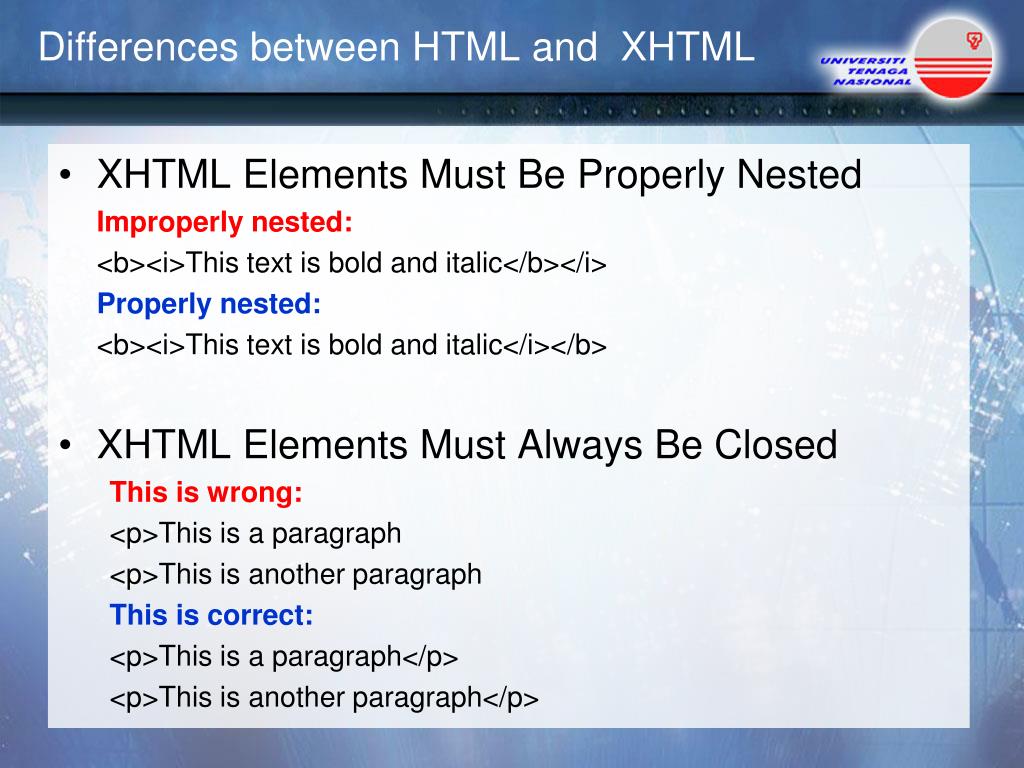

  6. Differences between HTML and XHTML • XHTML Elements Must Be Properly Nested Improperly nested: <b><i>This text is bold and italic</b></i> Properly nested: <b><i>This text is bold and italic</i></b> • XHTML Elements Must Always Be Closed This is wrong: <p>This is a paragraph <p>This is another paragraph This is correct: <p>This is a paragraph</p> <p>This is another paragraph</p>

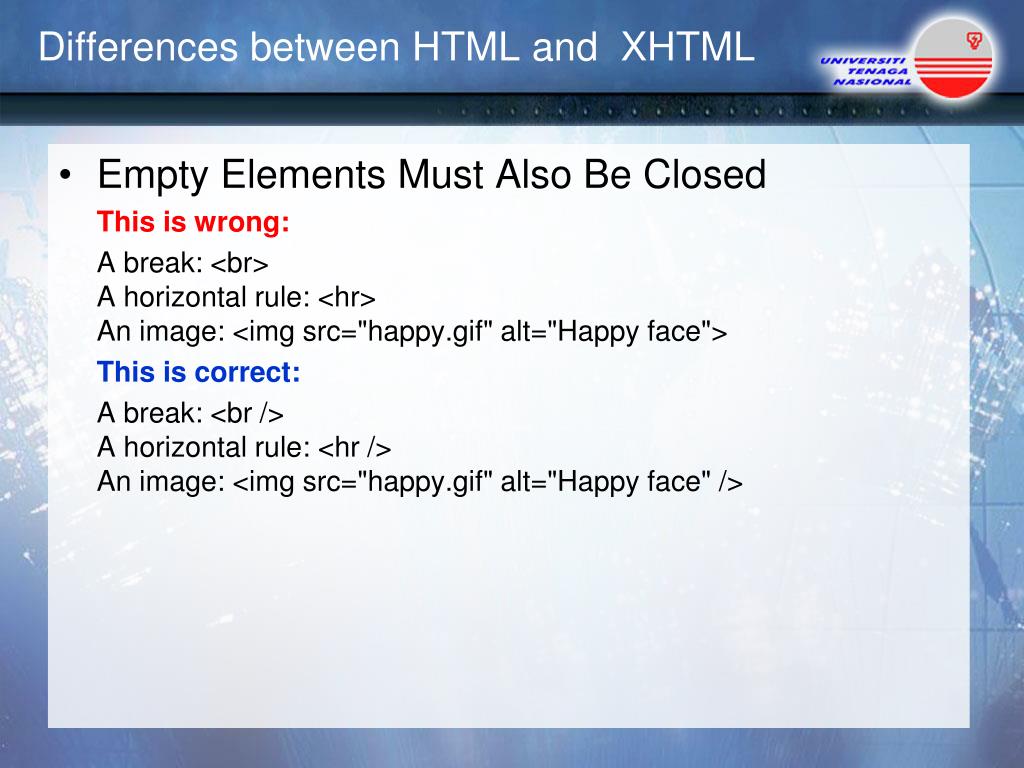

  7. Differences between HTML and XHTML • Empty Elements Must Also Be Closed This is wrong: A break: <br>A horizontal rule: <hr>An image: <img src="happy.gif" alt="Happy face"> This is correct: A break: <br />A horizontal rule: <hr />An image: <img src="happy.gif" alt="Happy face" />

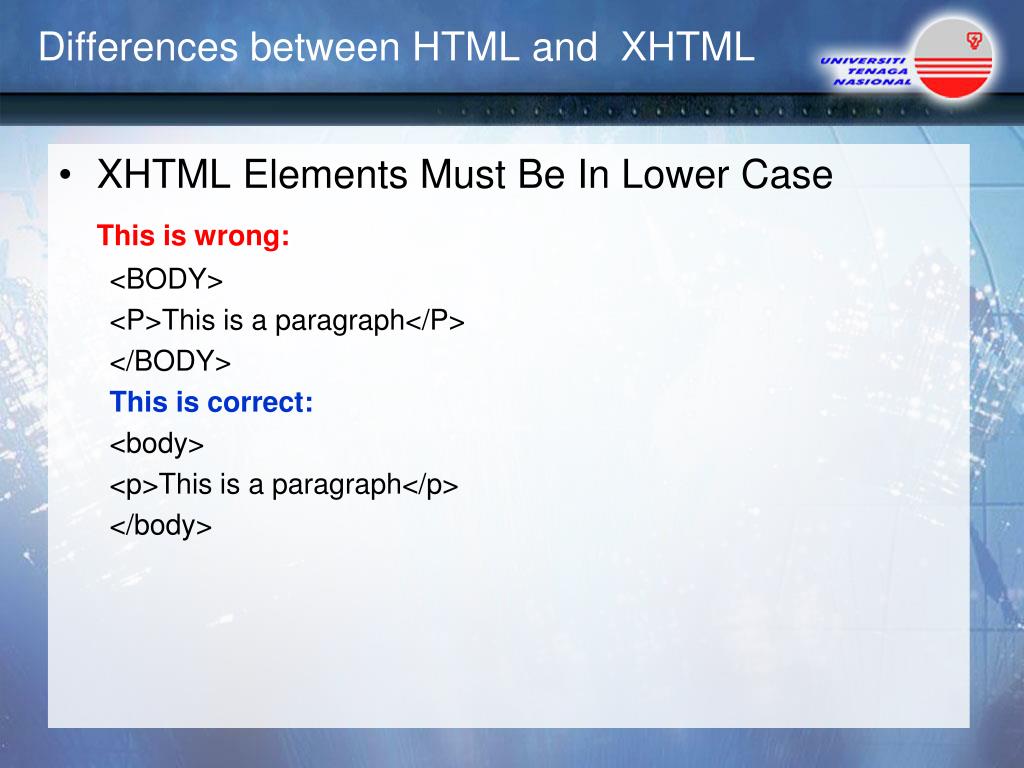

  8. Differences between HTML and XHTML • XHTML Elements Must Be In Lower Case This is wrong: <BODY> <P>This is a paragraph</P> </BODY> This is correct: <body> <p>This is a paragraph</p> </body>

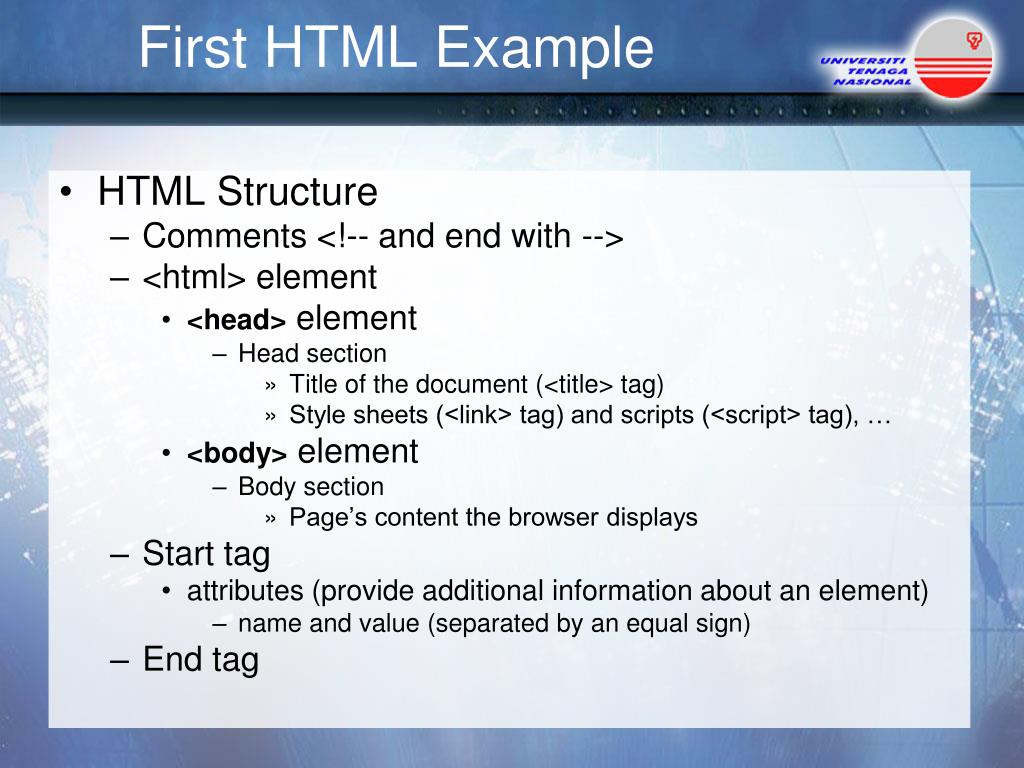

  9. First HTML Example • HTML Structure • Comments <!-- and end with --> • <html> element • <head> element • Head section • Title of the document (<title> tag) • Style sheets (<link> tag) and scripts (<script> tag), … • <body> element • Body section • Page’s content the browser displays • Start tag • attributes (provide additional information about an element) • name and value (separated by an equal sign) • End tag

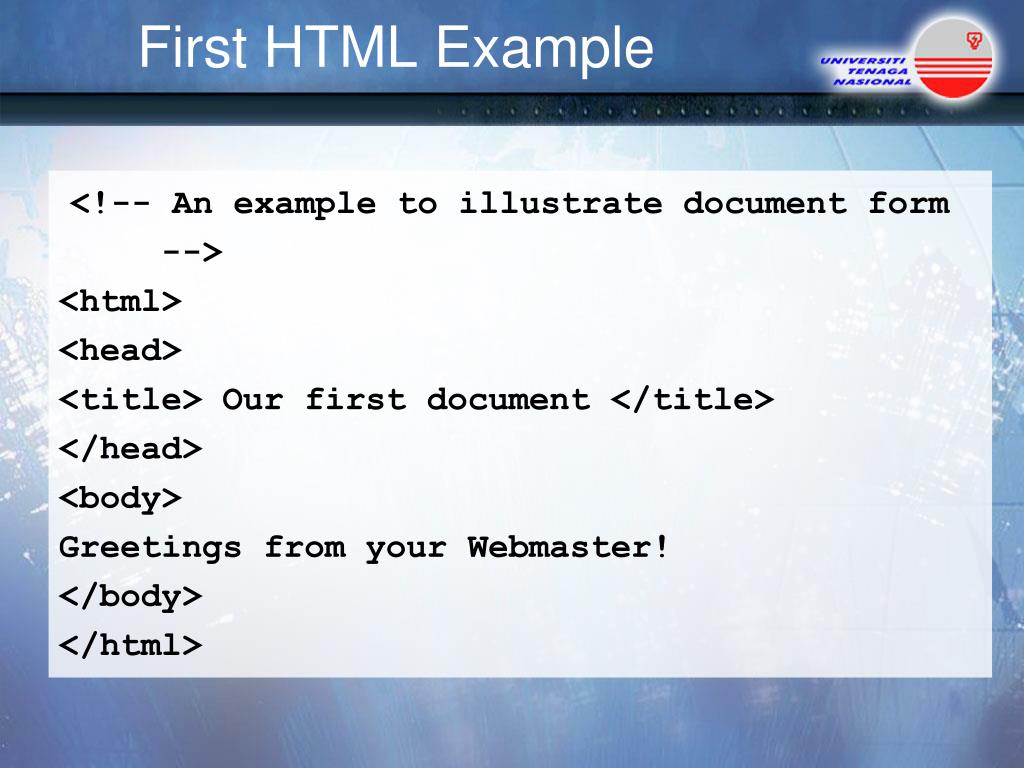

  10. First HTML Example <!-- An example to illustrate document form --> <html> <head> <title> Our first document </title> </head> <body> Greetings from your Webmaster! </body> </html>

  11. BODY Element Tags and Attributes • Attributes provide additional information about HTML elements. There are many attributes that you can explore later by yourselves. • Now, let us explore some of the attributes that relate to <BODY element.

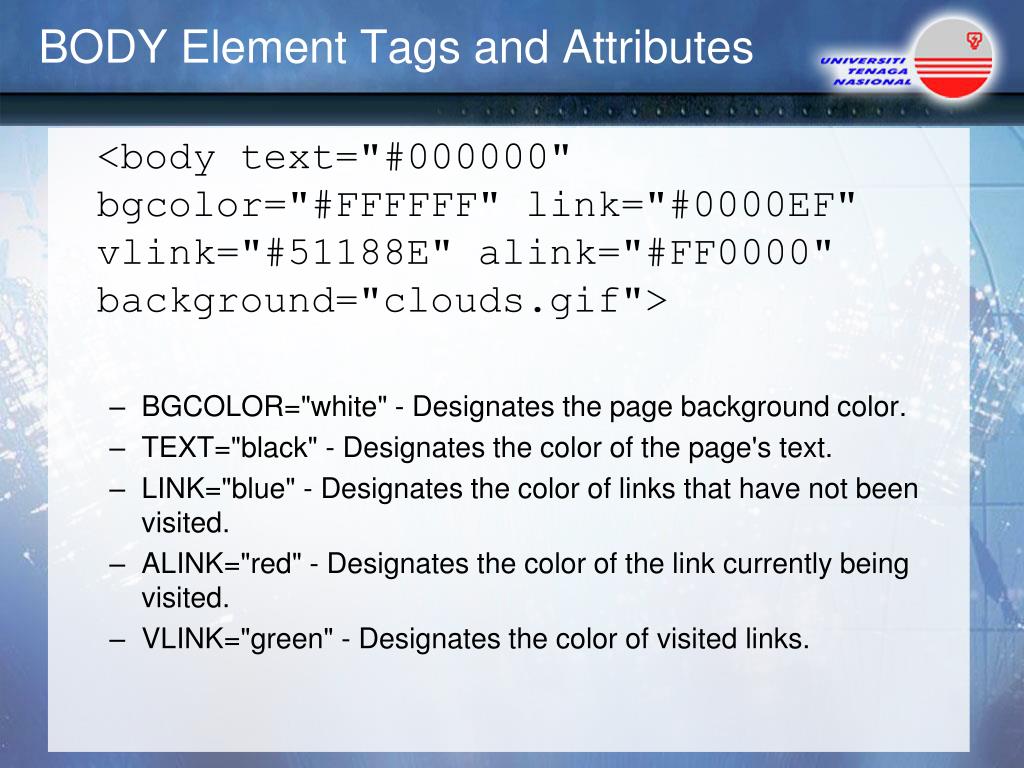

  12. BODY Element Tags and Attributes <body text="#000000" bgcolor="#FFFFFF" link="#0000EF" vlink="#51188E" alink="#FF0000" background="clouds.gif"> • BGCOLOR="white" - Designates the page background color. • TEXT="black" - Designates the color of the page's text. • LINK="blue" - Designates the color of links that have not been visited. • ALINK="red" - Designates the color of the link currently being visited. • VLINK="green" - Designates the color of visited links.

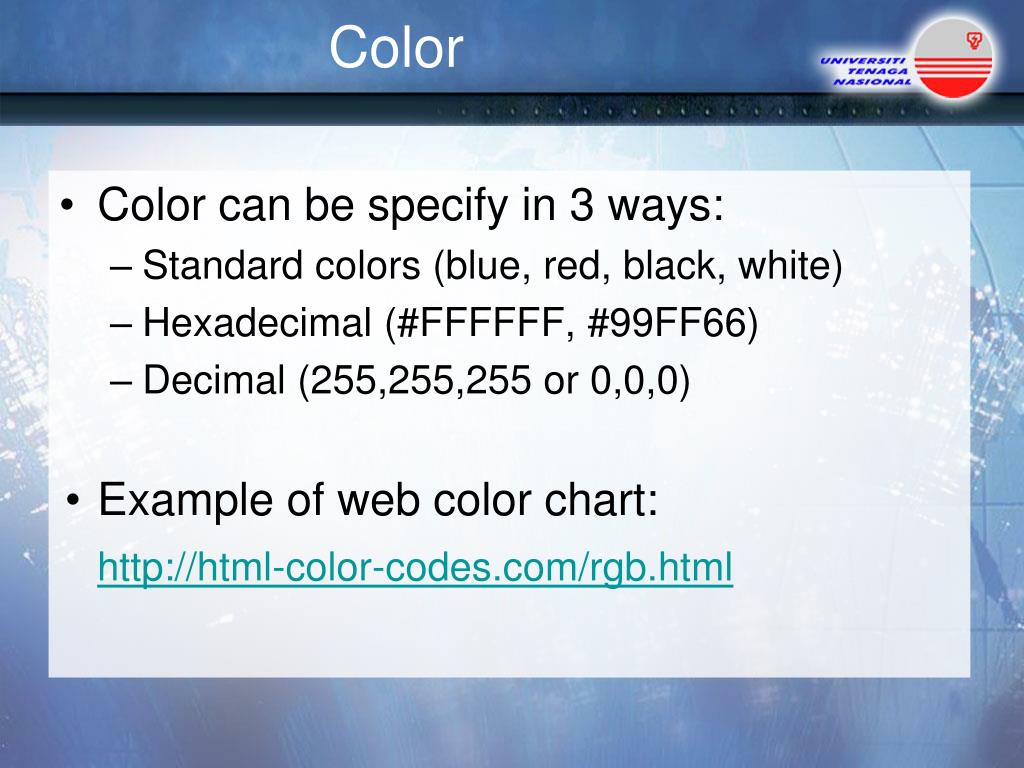

  13. Color • Color can be specify in 3 ways: • Standard colors (blue, red, black, white) • Hexadecimal (#FFFFFF, #99FF66) • Decimal (255,255,255 or 0,0,0) • Example of web color chart: http://html-color-codes.com/rgb.html

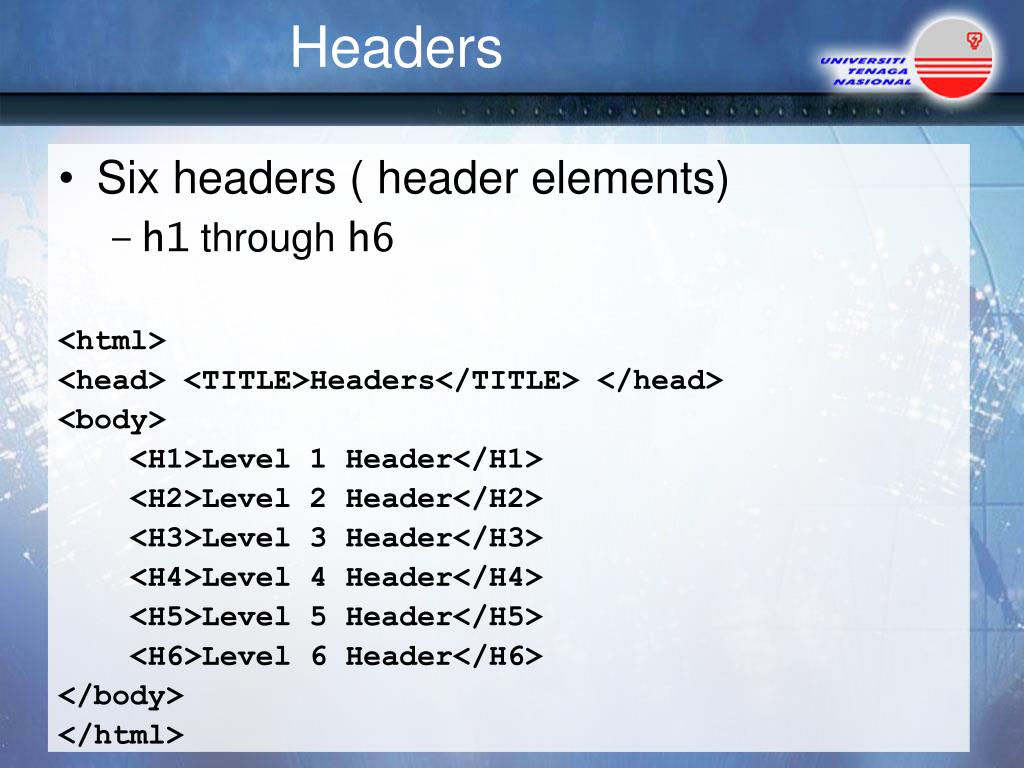

  14. Headers • Six headers ( header elements) • h1 through h6 <html> <head> <TITLE>Headers</TITLE> </head> <body> <H1>Level 1 Header</H1> <H2>Level 2 Header</H2> <H3>Level 3 Header</H3> <H4>Level 4 Header</H4> <H5>Level 5 Header</H5> <H6>Level 6 Header</H6> </body> </html>

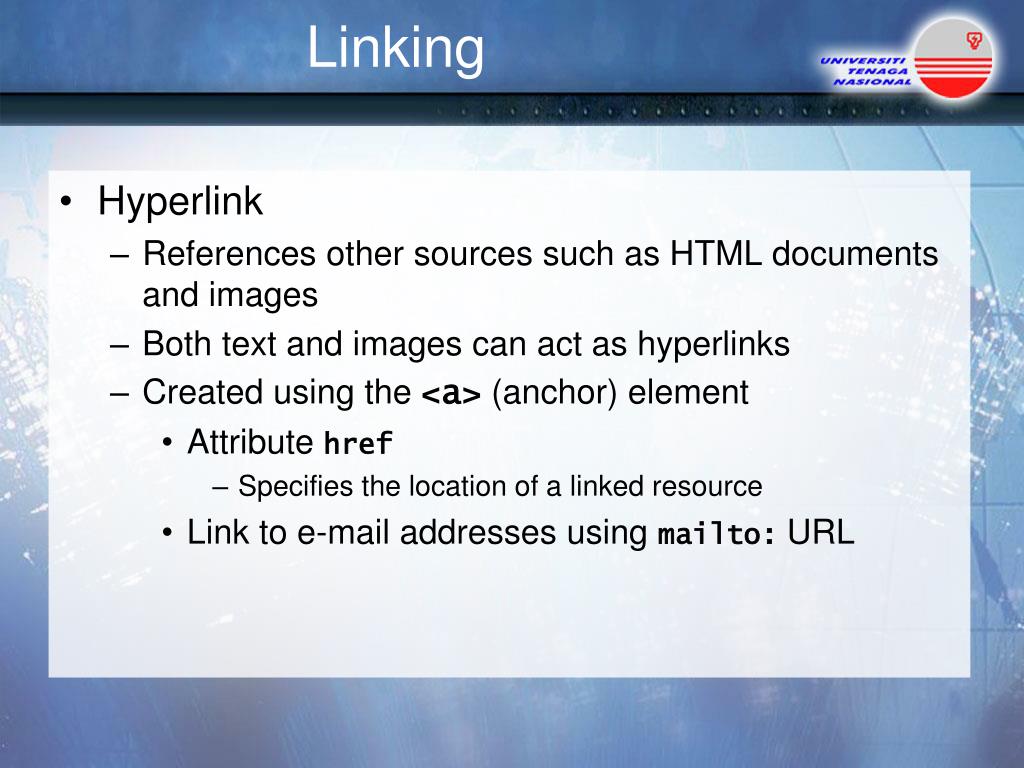

  15. Linking • Hyperlink • References other sources such as HTML documents and images • Both text and images can act as hyperlinks • Created using the <a> (anchor) element • Attribute href • Specifies the location of a linked resource • Link to e-mail addresses using mailto: URL

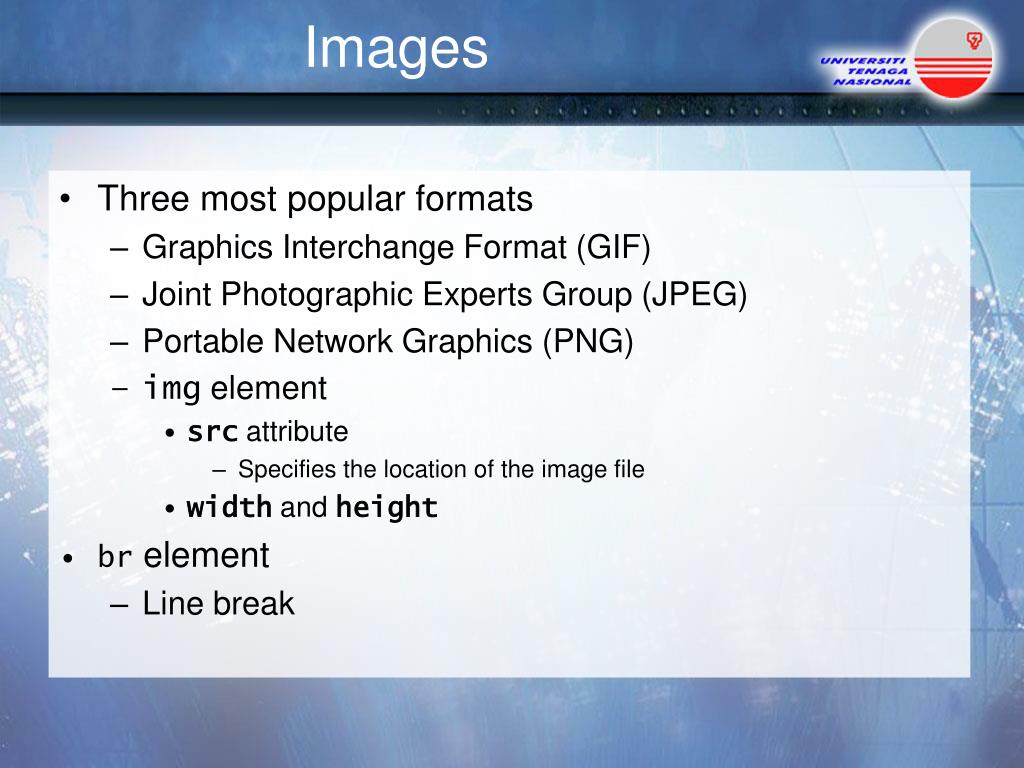

  16. Images • Three most popular formats • Graphics Interchange Format (GIF) • Joint Photographic Experts Group (JPEG) • Portable Network Graphics (PNG) • img element • src attribute • Specifies the location of the image file • width and height • br element • Line break

  17. Basic Text Formatting • Blockquotes • Content of <blockquote> • To set a block of text off from the normal flow and appearance of text • Or, using a simple word, <blockquote> indents the text as though it were a quote.

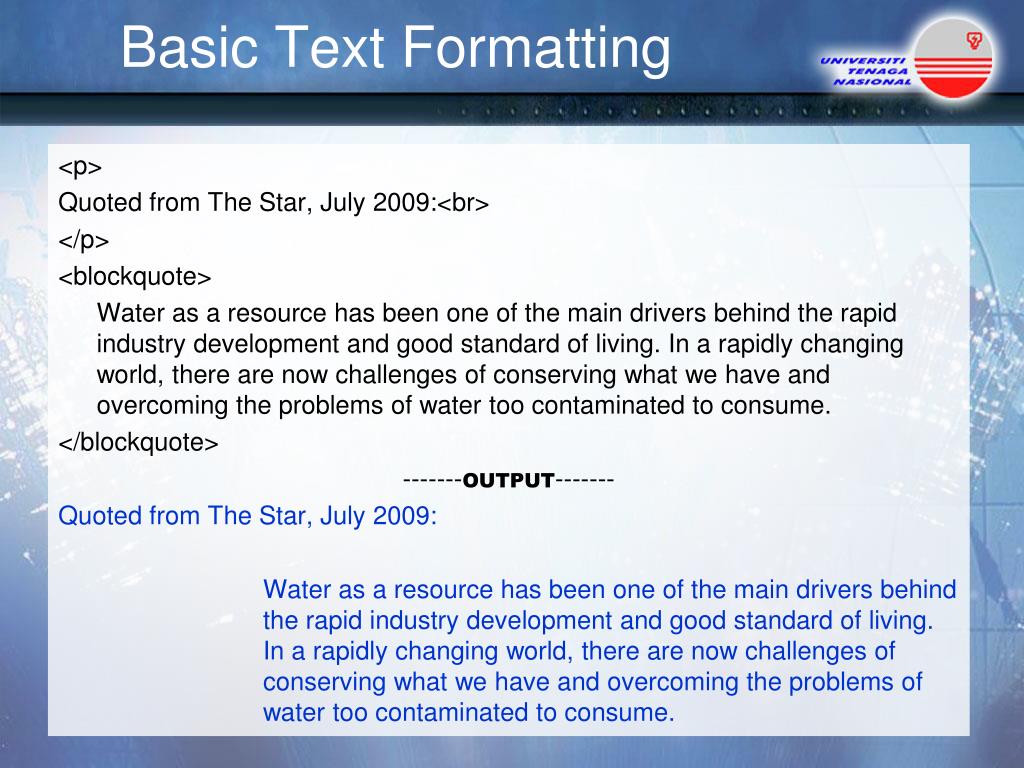

  18. Basic Text Formatting <p> Quoted from The Star, July 2009:<br> </p> <blockquote> Water as a resource has been one of the main drivers behind the rapid industry development and good standard of living. In a rapidly changing world, there are now challenges of conserving what we have and overcoming the problems of water too contaminated to consume. </blockquote> -------OUTPUT------- Quoted from The Star, July 2009: Water as a resource has been one of the main drivers behind the rapid industry development and good standard of living. In a rapidly changing world, there are now challenges of conserving what we have and overcoming the problems of water too contaminated to consume.

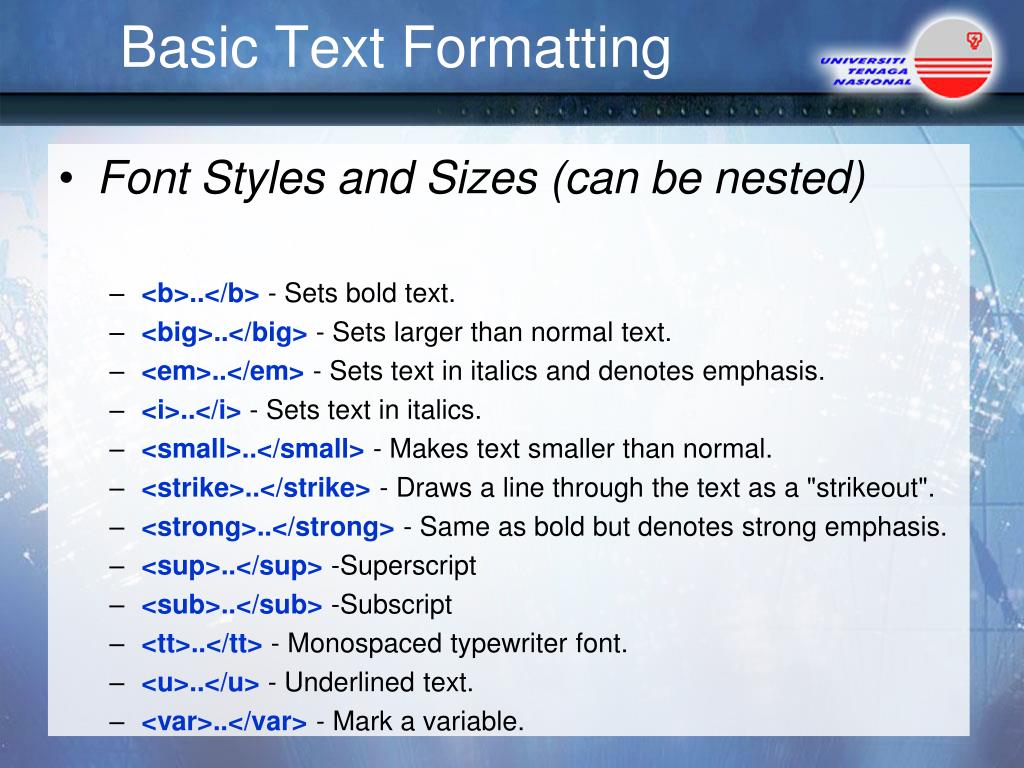

  19. Basic Text Formatting • Font Styles and Sizes (can be nested) • <b>..</b> - Sets bold text. • <big>..</big> - Sets larger than normal text. • <em>..</em> - Sets text in italics and denotes emphasis. • <i>..</i> - Sets text in italics. • <small>..</small> - Makes text smaller than normal. • <strike>..</strike> - Draws a line through the text as a "strikeout". • <strong>..</strong> - Same as bold but denotes strong emphasis. • <sup>..</sup> -Superscript • <sub>..</sub> -Subscript • <tt>..</tt> - Monospaced typewriter font. • <u>..</u> - Underlined text. • <var>..</var> - Mark a variable.

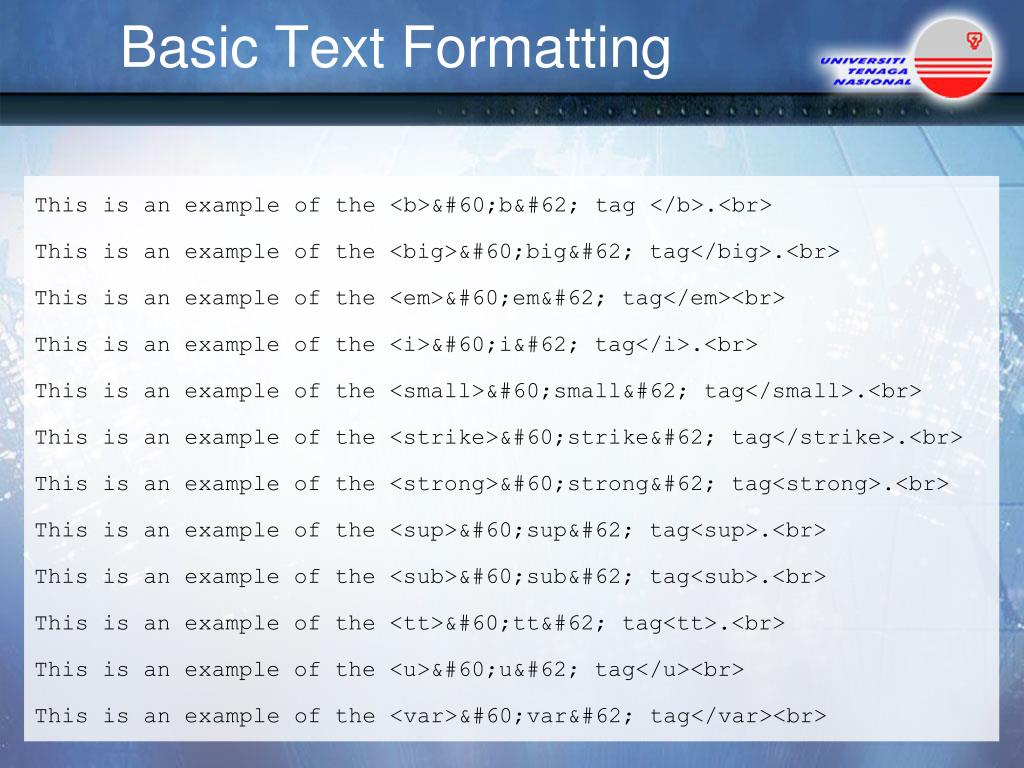

  20. Basic Text Formatting This is an example of the <b>&#60;b&#62; tag </b>.<br> This is an example of the <big>&#60;big&#62; tag</big>.<br> This is an example of the <em>&#60;em&#62; tag</em><br> This is an example of the <i>&#60;i&#62; tag</i>.<br> This is an example of the <small>&#60;small&#62; tag</small>.<br> This is an example of the <strike>&#60;strike&#62; tag</strike>.<br> This is an example of the <strong>&#60;strong&#62; tag<strong>.<br> This is an example of the <sup>&#60;sup&#62; tag<sup>.<br> This is an example of the <sub>&#60;sub&#62; tag<sub>.<br> This is an example of the <tt>&#60;tt&#62; tag<tt>.<br> This is an example of the <u>&#60;u&#62; tag</u><br> This is an example of the <var>&#60;var&#62; tag</var><br>

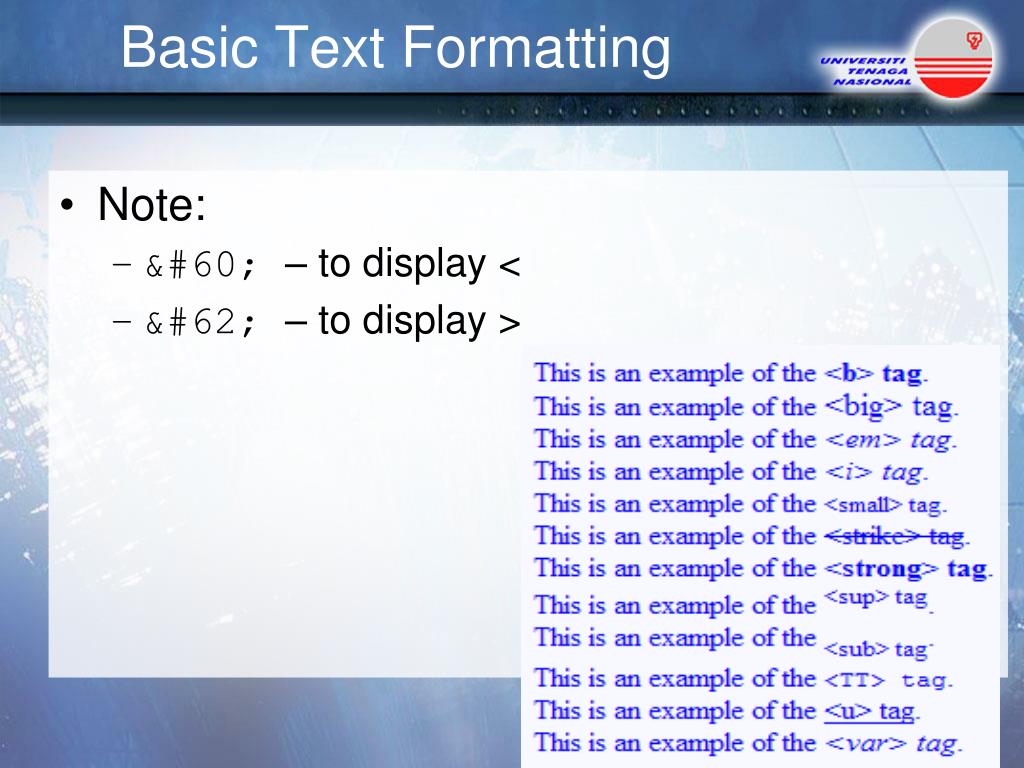

  21. Basic Text Formatting • Note: • &#60; – to display < • &#62; – to display >

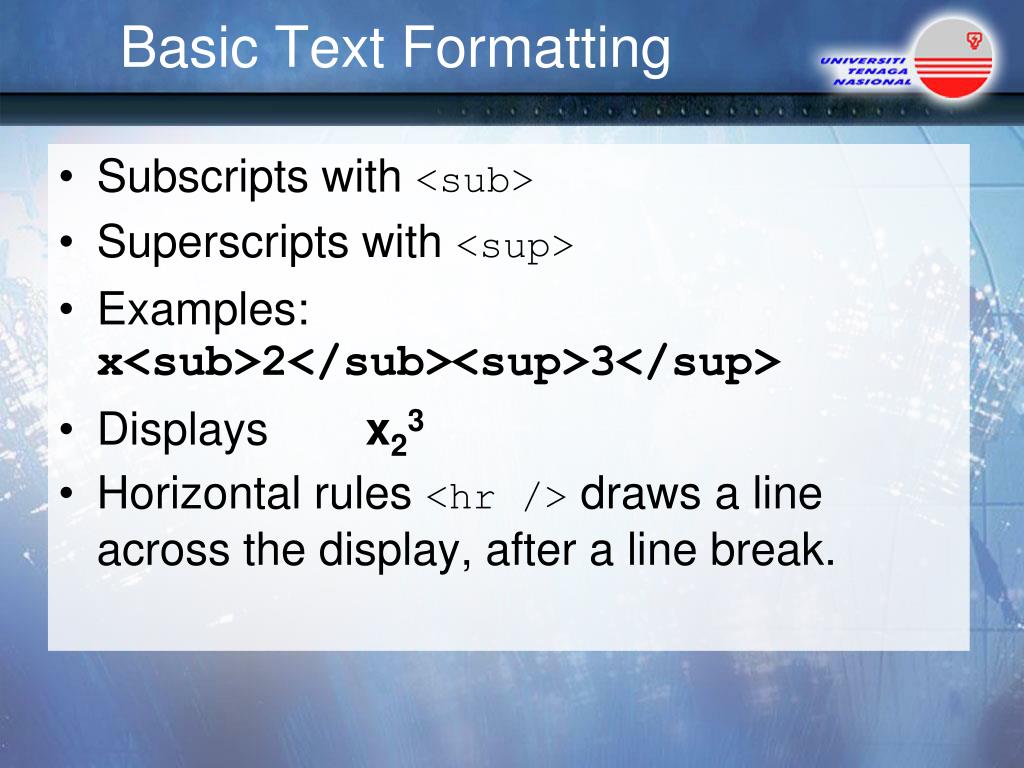

  22. Basic Text Formatting • Subscripts with <sub> • Superscripts with <sup> • Examples:x<sub>2</sub><sup>3</sup> • Displays x23 • Horizontal rules <hr /> draws a line across the display, after a line break.

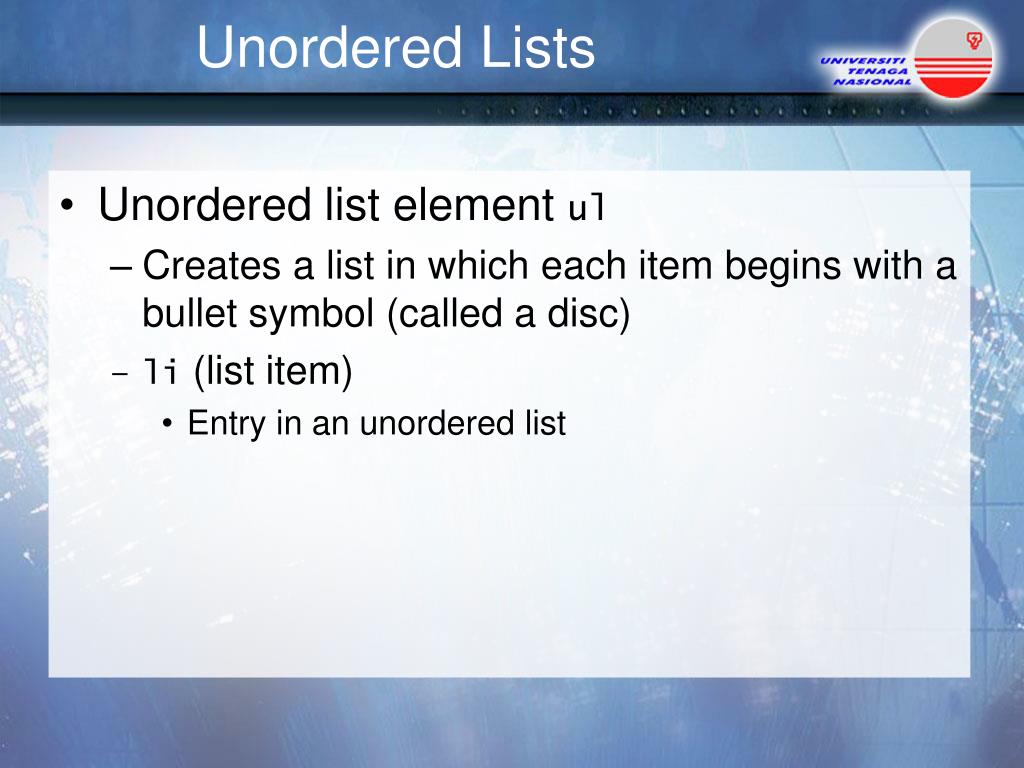

  23. Unordered Lists • Unordered list element ul • Creates a list in which each item begins with a bullet symbol (called a disc) • li (list item) • Entry in an unordered list

  24. Nested and Ordered Lists • Represent hierarchical relationships • Ordered lists (ol) • Creates a list in which each item begins with a number

  25. Table • A table is a matrix of rows and columns, each possibly having content • Each position in a table is called a cell • Some cells have labels, but most have data • A table is specified as the content of a <table> tag • A border attribute in the <table> tag specifies a border between the cells

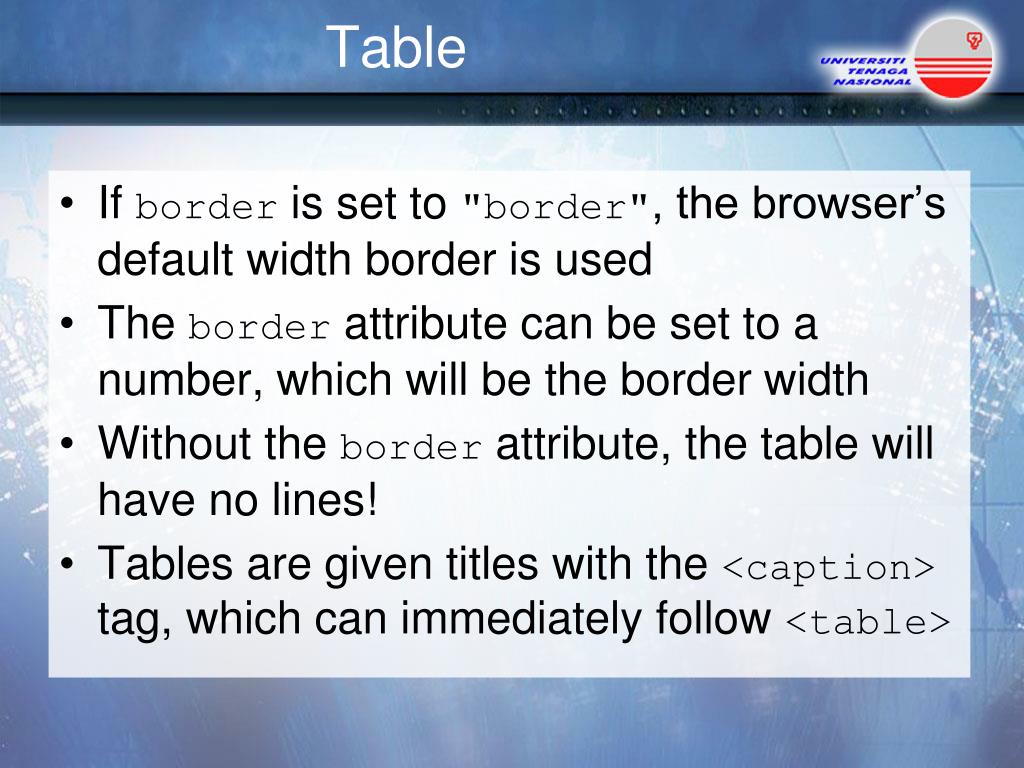

  26. Table • If border is set to "border", the browser’s default width border is used • The border attribute can be set to a number, which will be the border width • Without the border attribute, the table will have no lines! • Tables are given titles with the <caption> tag, which can immediately follow <table>

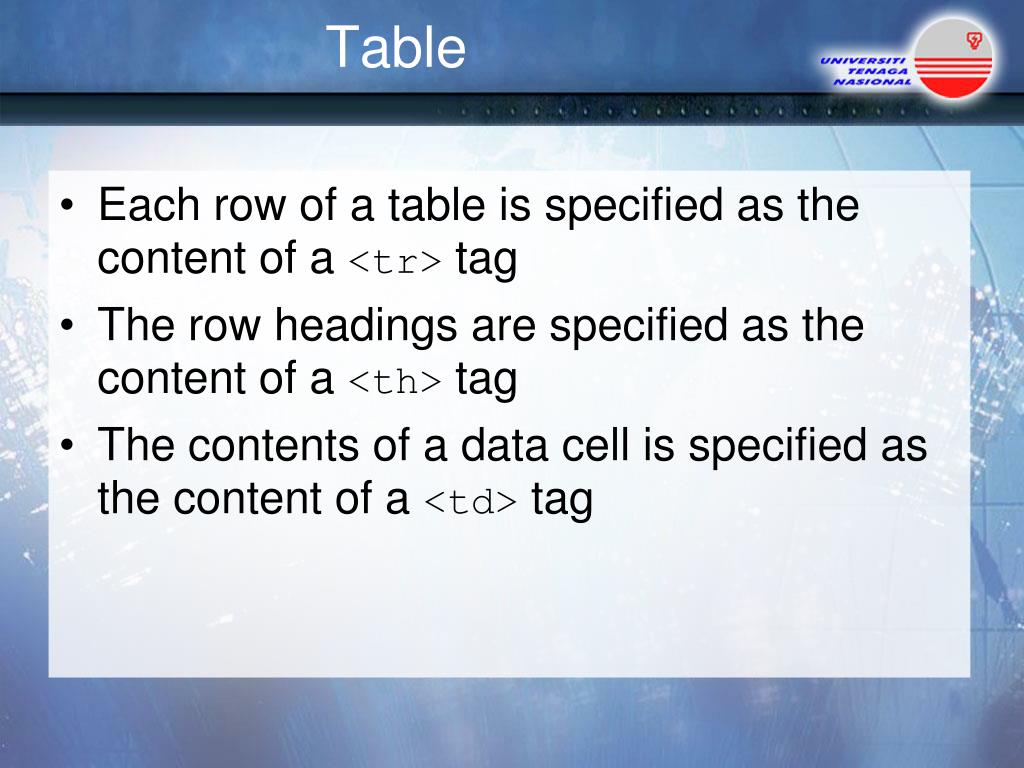

  27. Table • Each row of a table is specified as the content of a <tr> tag • The row headings are specified as the content of a <th> tag • The contents of a data cell is specified as the content of a <td> tag

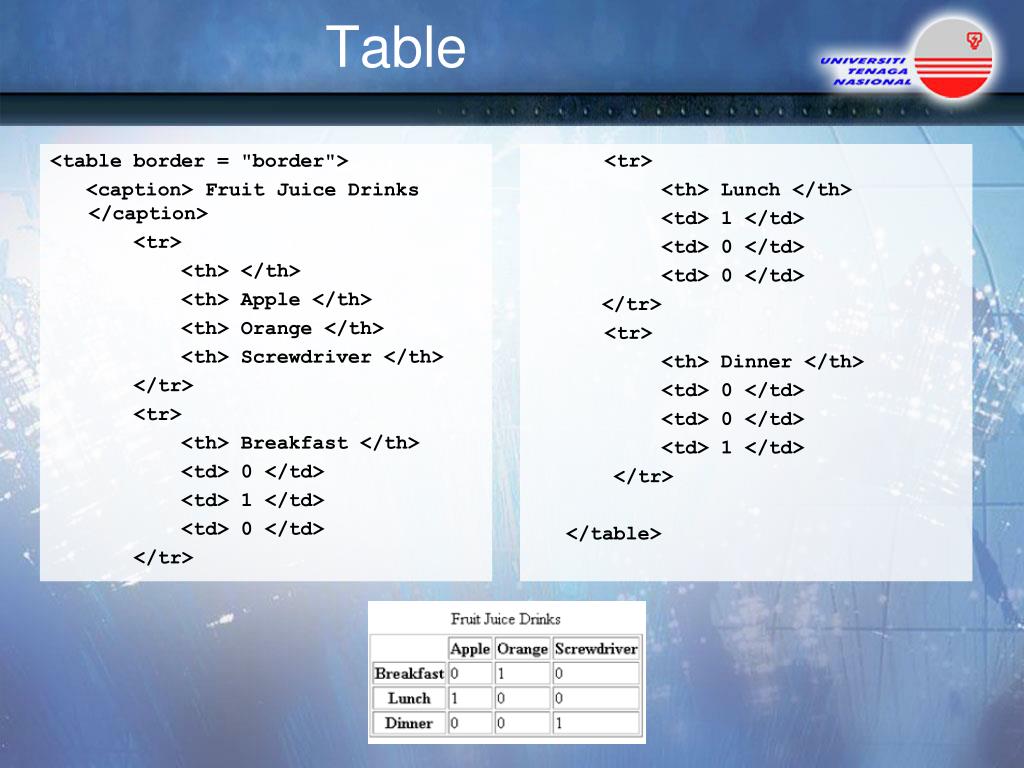

  28. Table <table border = "border"> <caption> Fruit Juice Drinks </caption> <tr> <th> </th> <th> Apple </th> <th> Orange </th> <th> Screwdriver </th> </tr> <tr> <th> Breakfast </th> <td> 0 </td> <td> 1 </td> <td> 0 </td> </tr> <tr> <th> Lunch </th> <td> 1 </td> <td> 0 </td> <td> 0 </td> </tr> <tr> <th> Dinner </th> <td> 0 </td> <td> 0 </td> <td> 1 </td> </tr> </table>

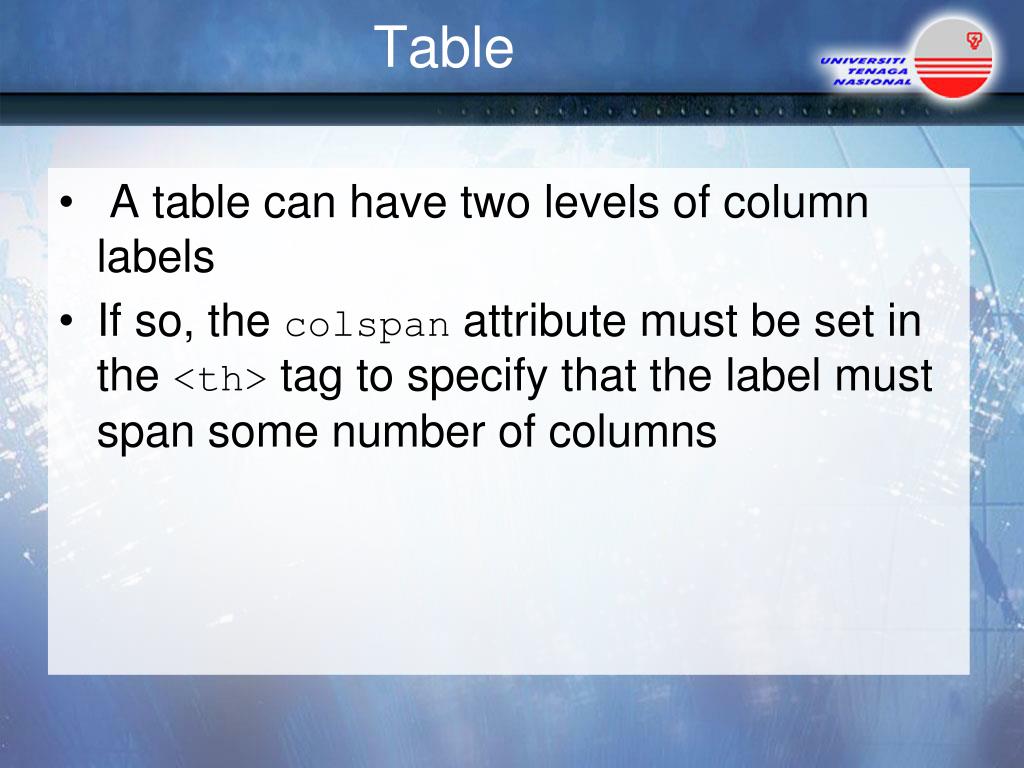

  29. Table • A table can have two levels of column labels • If so, the colspan attribute must be set in the <th> tag to specify that the label must span some number of columns

  30. Table <tr> <th colspan = "3"> Fruit Juice Drinks </th> </tr> <tr> <th> Orange </th> <th> Apple </th> <th> Screwdriver </th> </tr>

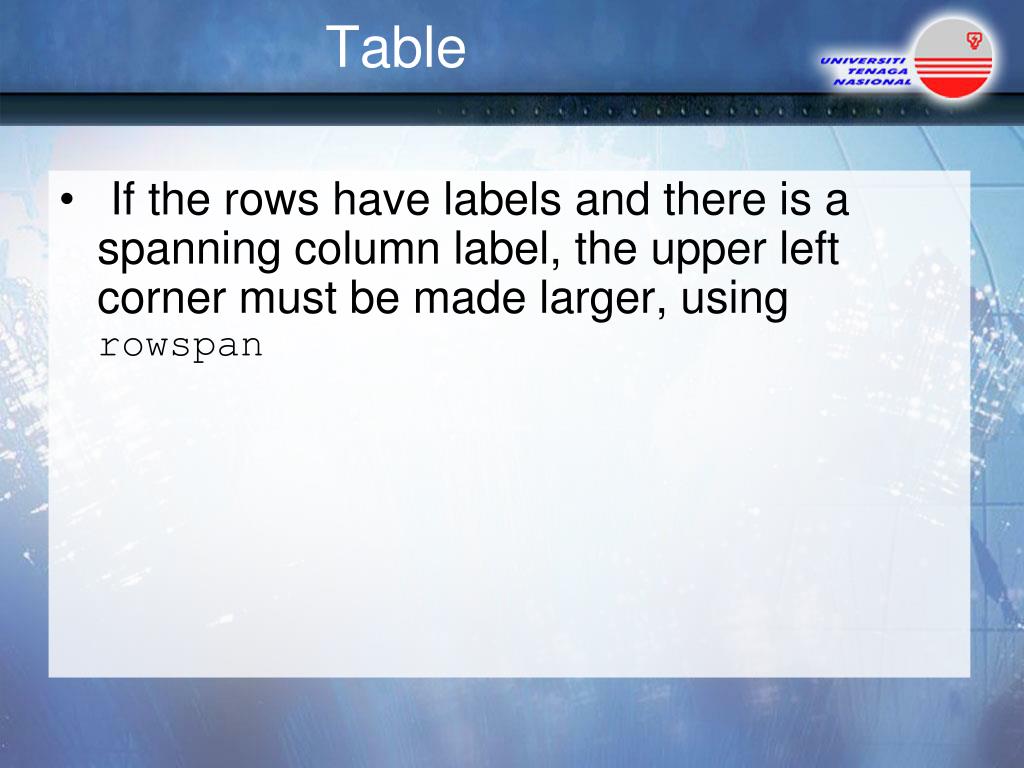

  31. Table • If the rows have labels and there is a spanning column label, the upper left corner must be made larger, using rowspan

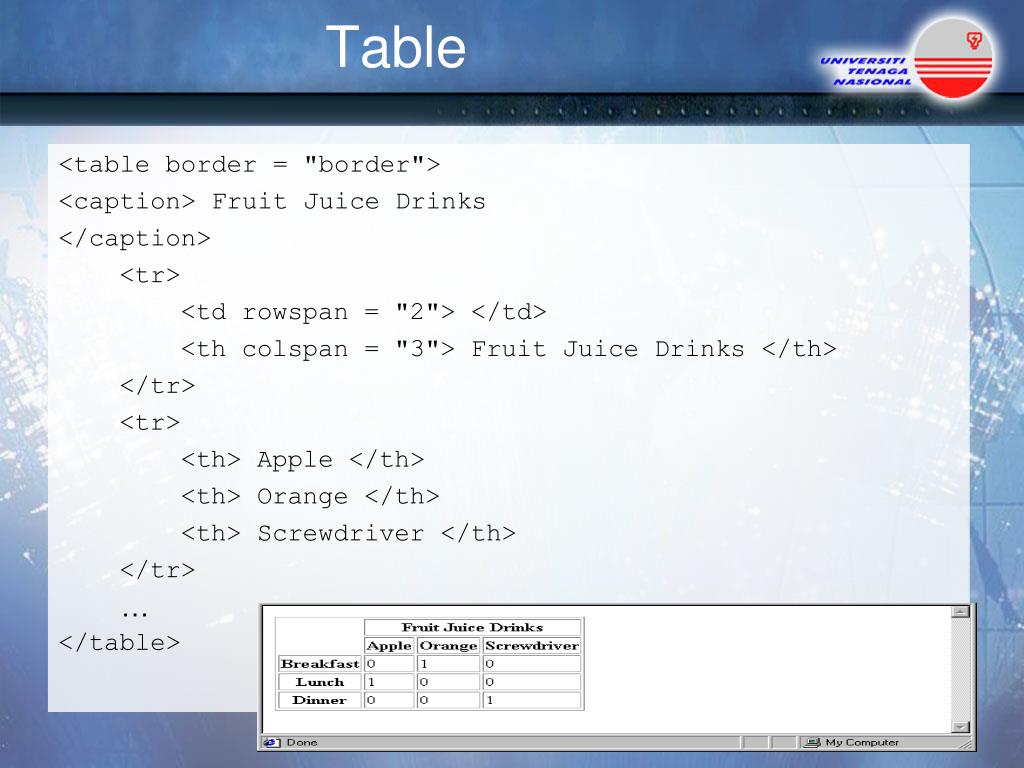

  32. Table <table border = "border"> <caption> Fruit Juice Drinks </caption> <tr> <td rowspan = "2"> </td> <th colspan = "3"> Fruit Juice Drinks </th> </tr> <tr> <th> Apple </th> <th> Orange </th> <th> Screwdriver </th> </tr> … </table>

  33. References • Programming The WWW Third Edition Robert W. Sebesta Pearson Prentice Hall ISBN 0-321-31257-0 • http://www.comptechdoc.org/independent/web/html/index.html • http://www.w3schools.com/XHTML/xhtml_html.asp
