Presentation Transcript

  1. 9. Linking and Sharing 9.1 Single-Copy Sharing • Why Share • Requirements for Sharing • Linking and Sharing 9.2 Sharing in Systems without Virtual Memory 9.3 Sharing in Paging Systems • Sharing of Data • Sharing of Code 9.3 Sharing in Segmented Systems

  2. Single-Copy Sharing • Focus: sharing a single copy of code or data in memory • Why share? • Processes need to access common data • producer/consumer, task pools, file directories • Better utilization of memory • code, system tables, data bases

  3. Linking and Sharing • Linking resolves external references • Sharing links the same copy of a module into two or more address spaces • Static linking/sharing: • Resolve references before execution starts • Dynamic linking/sharing: • While executing

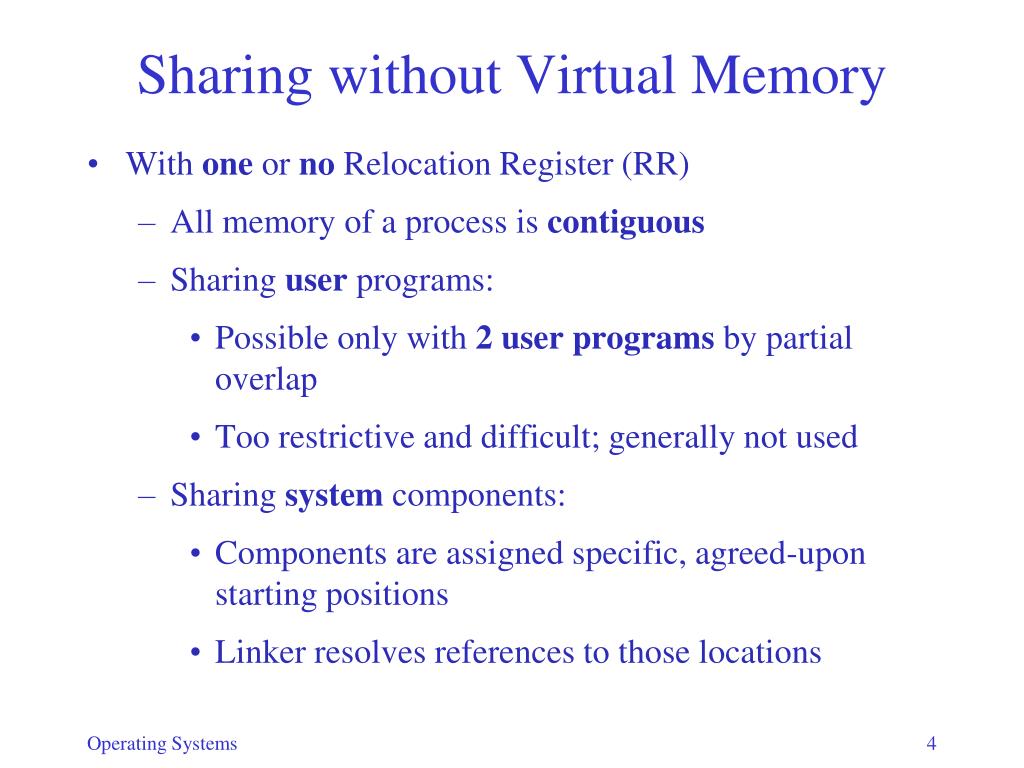

  4. Sharing without Virtual Memory • With one or no Relocation Register (RR) • All memory of a process is contiguous • Sharing user programs: • Possible only with 2 user programs by partial overlap • Too restrictive and difficult; generally not used • Sharing system components: • Components are assigned specific, agreed-upon starting positions • Linker resolves references to those locations

  5. Sharing without Virtual Memory • With multiple RRs • CBR: Code Base Points to shared copy of code • SBR: Stack Base Points to private copy of stack • DBR: Data Base Points to private copy of data • Multiple processes can share code or data

  6. Sharing in Paging Systems • Sharing of data pages: • PT entries of different processes point to same pages • If shared pages contain no addresses, linker can: • assign arbitrary page numbers to shared pages • record in PT • So shared data page can have a different page # in different processes • But address in shared page does not work

  7. Sharing in Paging Systems • Sharing of code pages • Solution 1: assign the same page numbers to all shared pages • Restrictive • Solution 2: no page numbers in shared code • Compile self-references relative to CBR • Compile data/stack references relative to DBR/SBR • Limitation: shared code cannot contain any external references

  8. Sharing of Code Pages in Paging Systems When to resolve external references (to shared pages)? • loader could check which shared pages are resident, adjust PT (e.g. n2) • too much overhead • many shared libs are never accessed • solution: defer linking until first access: • dynamic linking • using transfer vector

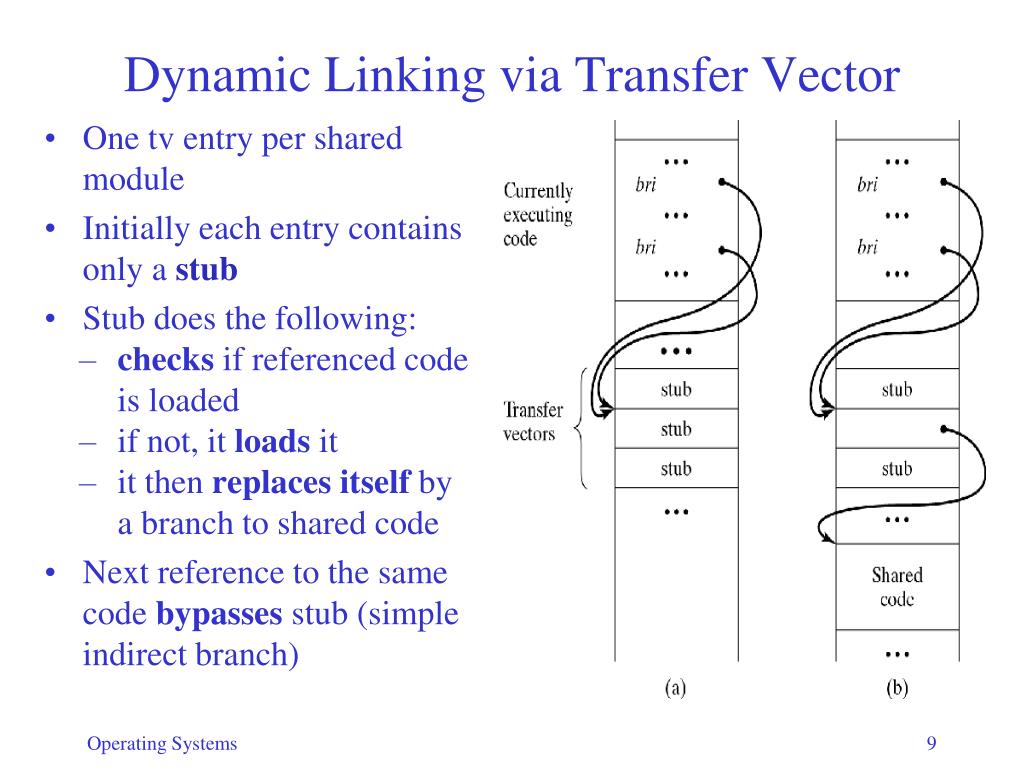

  9. Dynamic Linking via Transfer Vector • One tv entry per shared module • Initially each entry contains only a stub • Stub does the following: • checks if referenced code is loaded • if not, it loadsit • it then replacesitself by a branch to shared code • Next reference to the same code bypasses stub (simple indirect branch)

  10. Sharing in Segmented Systems • Similar to paging • Data pages: assign any segment numbers • Code pages: • Assign same segment numbers in all STs, or • Use base registers for self/data/stack references • Limitation: no addresses in shared segments • But segments are logical entities—permit general solution: • Keep private linkage section (LS) for each segment • External references are in LS, not in code • Every process has its own copy of LS: • Can use different segment numbers • Introduced in Multics (1968)

  11. Unrestricted Dynamic Linking/Sharing • Self-references resolved using CBR • Other references via addresses but kept in private LS • sharing is unrestricted (can use different page #s, shared segments can contain external references) • Linking/sharing is dynamic • External reference kept symbolic: (S,W), where Sis a program name and W is a label, e.g. (HelloWorld, start) • At runtime, on first use: • (S,W) is resolved to (s,w), using trapmechanism • (s,w) is entered in linkage section of process • code is unchanged • Subsequent references use (s,w) without involving OS

  12. Dynamic Linking/Sharing Before and After External Reference is Executed
