FORENSIC SCIENCE DNA

1. FORENSIC SCIENCE DNA

2. Historical Information • In 1953, James Watson and Francis Crick discovered the configuration of the DNA molecule • In 1980, Ray White described first polymorphic RFLP marker • In 1985, Alec Jeffreys isolated DNA markers and called them DNA fingerprints • In 1985, Kary Mullis developed PCR testing • In 1988, the FBI starts DNA casework • In 1991, the first STR paper was written • In 1998, the FBI launches CODIS database.

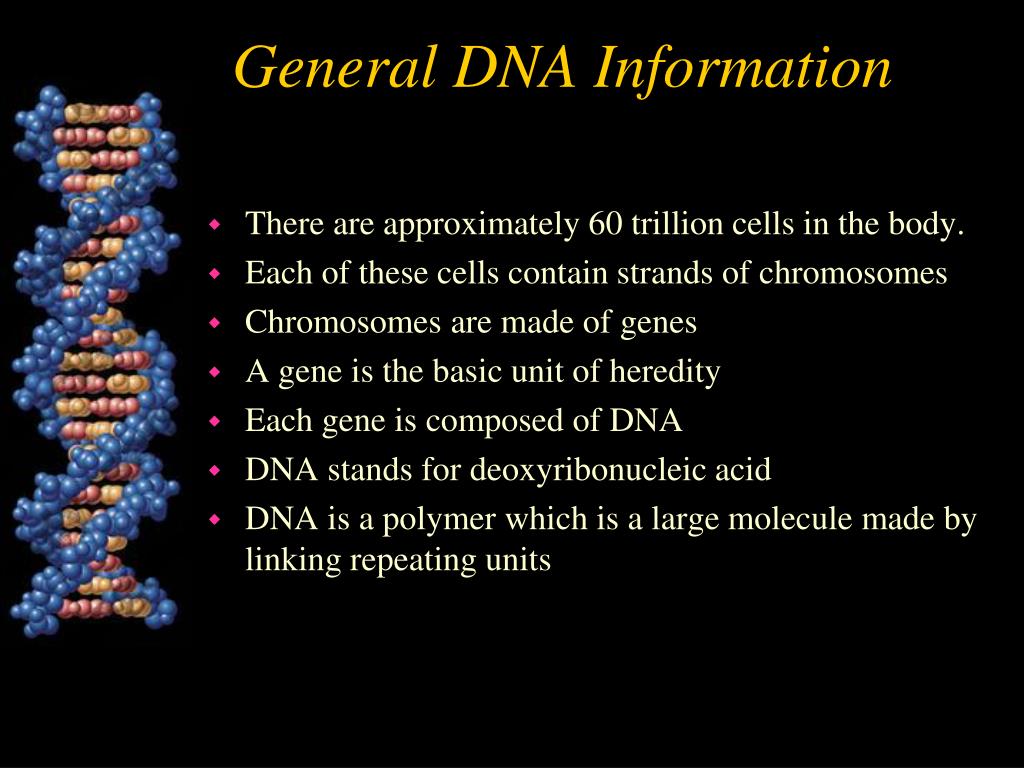

3. General DNA Information • There are approximately 60 trillion cells in the body. • Each of these cells contain strands of chromosomes • Chromosomes are made of genes • A gene is the basic unit of heredity • Each gene is composed of DNA • DNA stands for deoxyribonucleic acid • DNA is a polymer which is a large molecule made by linking repeating units

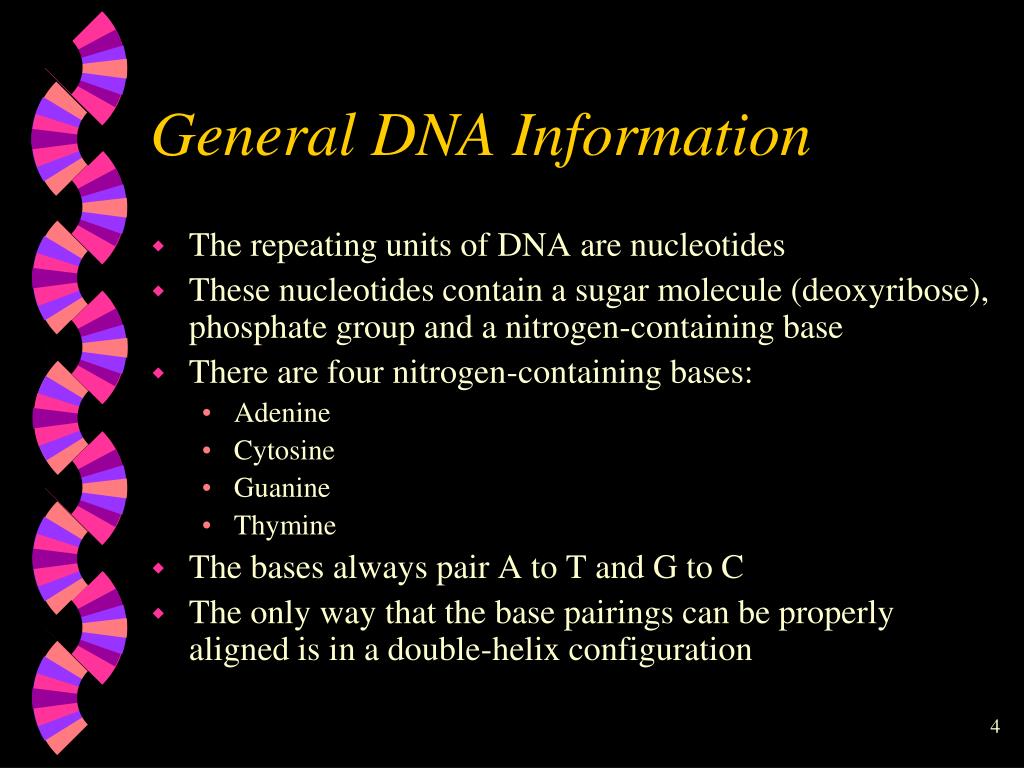

4. General DNA Information • The repeating units of DNA are nucleotides • These nucleotides contain a sugar molecule (deoxyribose), phosphate group and a nitrogen-containing base • There are four nitrogen-containing bases: • Adenine • Cytosine • Guanine • Thymine • The bases always pair A to T and G to C • The only way that the base pairings can be properly aligned is in a double-helix configuration

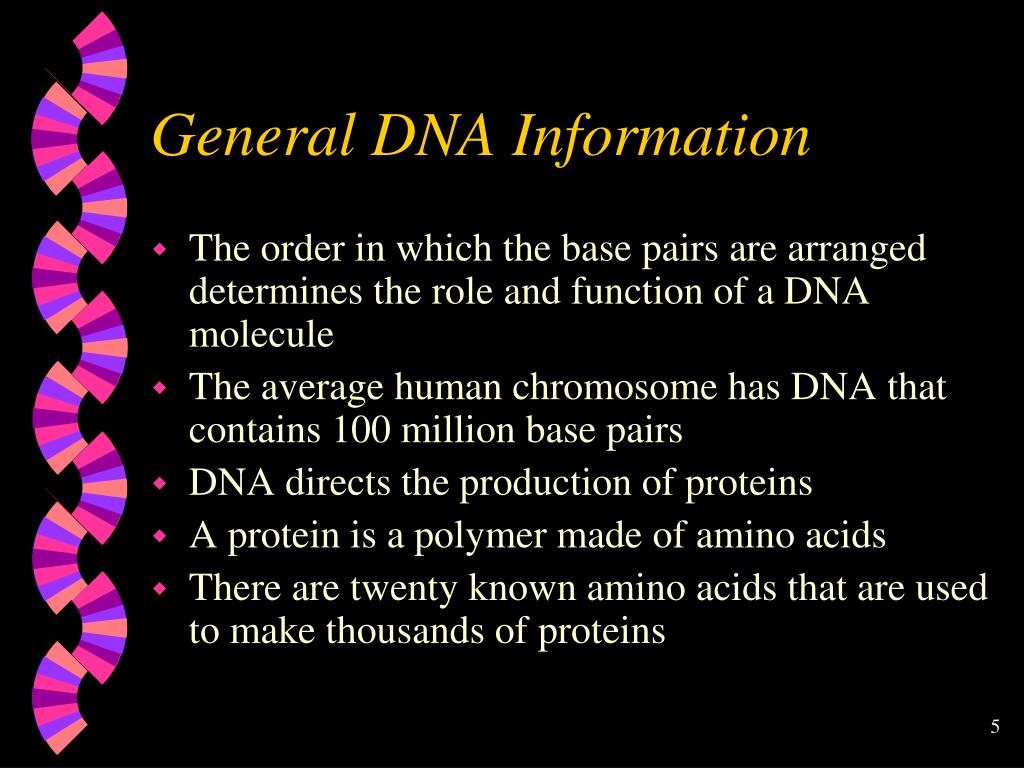

5. General DNA Information • The order in which the base pairs are arranged determines the role and function of a DNA molecule • The average human chromosome has DNA that contains 100 million base pairs • DNA directs the production of proteins • A protein is a polymer made of amino acids • There are twenty known amino acids that are used to make thousands of proteins

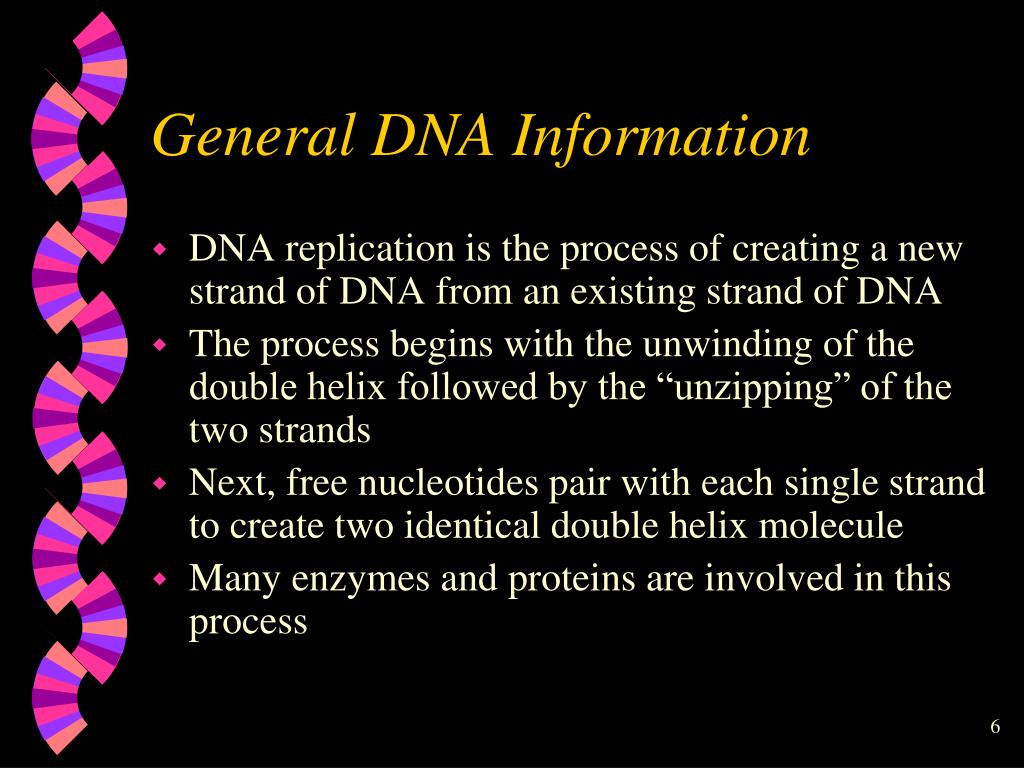

6. General DNA Information • DNA replication is the process of creating a new strand of DNA from an existing strand of DNA • The process begins with the unwinding of the double helix followed by the “unzipping” of the two strands • Next, free nucleotides pair with each single strand to create two identical double helix molecule • Many enzymes and proteins are involved in this process

7. DNA Body Locations • Can be found in all body cells--blood, semen, saliva, urine, hair, teeth, bone, tissue • Most abundant in our buccal (cheek) cells • Blood is 99.9% red blood cells that have no nuclei; and therefore, no nuclear DNA • DNA obtained from blood comes from white blood cells

8. Collection and Preservation of Evidence • DNA may be extracted from one cell so the collection of even the smallest item is crucial • All biological evidence should be photographed close up and recorded in notes and sketches • All body fluids and biological evidence must be collected with a minimum of human contact • Gloves should be changed frequently during the collection process

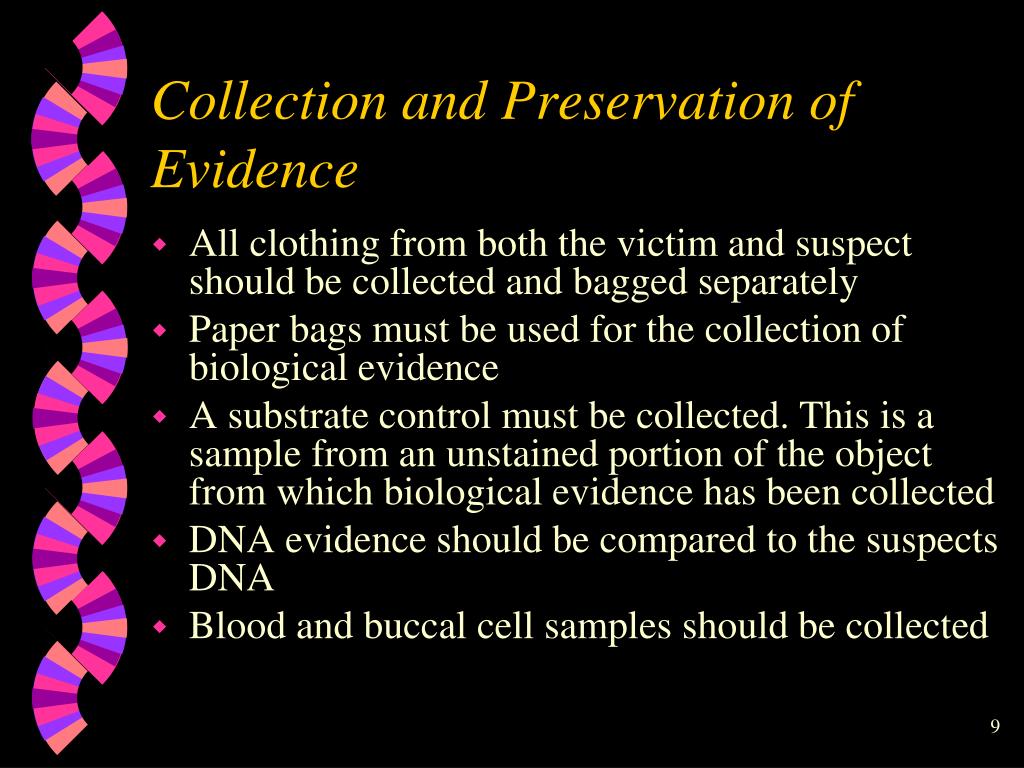

9. Collection and Preservation of Evidence • All clothing from both the victim and suspect should be collected and bagged separately • Paper bags must be used for the collection of biological evidence • A substrate control must be collected. This is a sample from an unstained portion of the object from which biological evidence has been collected • DNA evidence should be compared to the suspects DNA • Blood and buccal cell samples should be collected

10. Collection and Preservation of Evidence • If an individual is not available to give a DNA sample, items should as a toothbrush, razor and comb may be collected and swabbed • Small items should be collected with clean forceps. A new pair of forceps should be used for each item

11. At the Laboratory • Once the evidence has been checked into the lab, the technicians will need to extract the DNA from the objects • Contamination must be avoided so each piece of evidence will be examined separately before another piece is brought into the area • After DNA has been extracted, the process of DNA typing begins

12. DNA TYPING DNA typing is a method in which DNA is converted into a series of bands that ultimately distinguishes each individual. Only one-tenth of a single percent of DNA (about 3 million bases) differs from one person to the next. Scientists use these regions to generate a DNA profile of an individual.

13. Non-Coding Regions • 3 percent of the human DNA sequences code for proteins • 97 percent is non-coding and is repetitive; repeating the same sequence over and over • 50 percent of the human genome has interspersed repetitive sequences

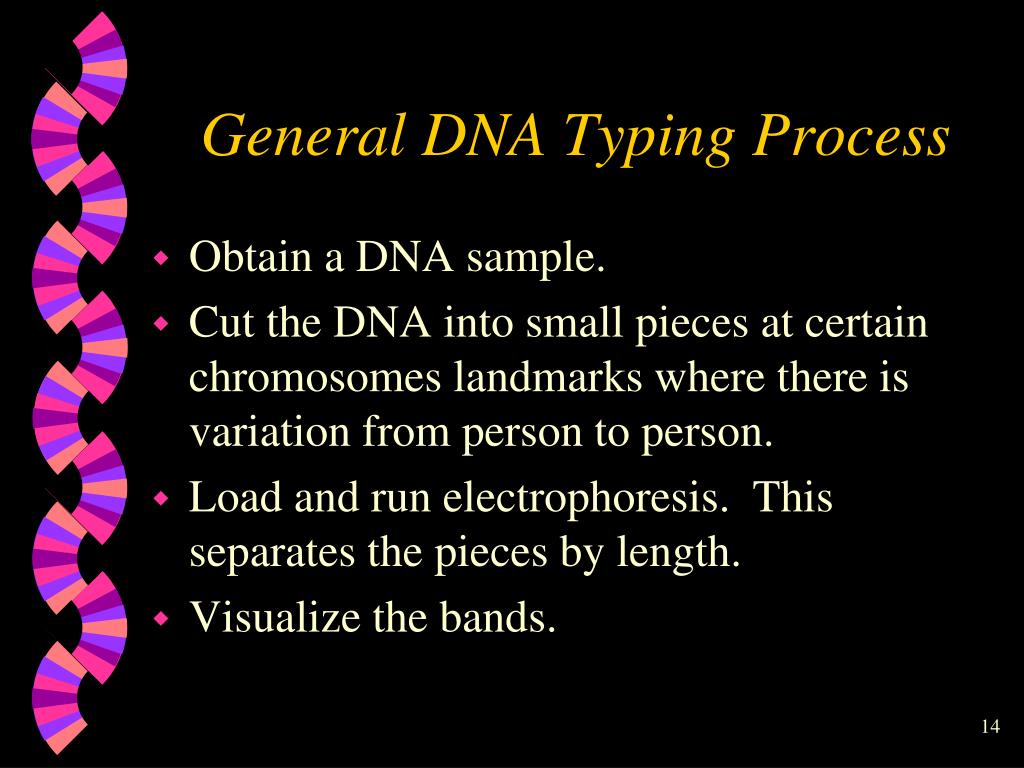

14. General DNA Typing Process • Obtain a DNA sample. • Cut the DNA into small pieces at certain chromosomes landmarks where there is variation from person to person. • Load and run electrophoresis. This separates the pieces by length. • Visualize the bands.

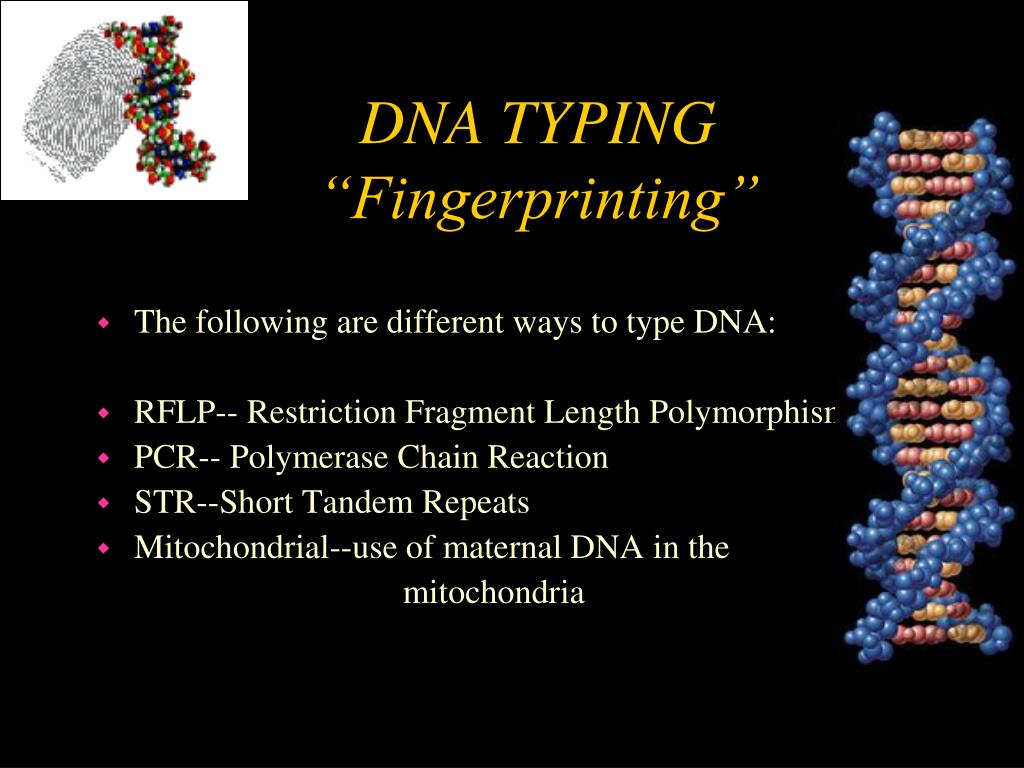

15. DNA TYPING“Fingerprinting” • The following are different ways to type DNA: • RFLP-- Restriction Fragment Length Polymorphism • PCR-- Polymerase Chain Reaction • STR--Short Tandem Repeats • Mitochondrial--use of maternal DNA in the mitochondria

16. RFLP--Restriction Fragment Length Polymorphisms • Fragments are cut from the sequence of bases by a restriction enzyme. • The enzyme find its combination, bonds at one end and dissolves through the DNA at the other. • Fragments are loaded into a gel and run by electrophoresis. • DNA is extracted from the gel by blotting it into a nylon membrane.

17. RFLP--Restriction Fragment Length Polymorphisms • Radioactive phosphorus-32 probes are added to the membrane which bond to the precise DNA fragments making them radioactive. • Then the membrane is placed over standard X-ray film where the radiation emitted from the P-32 gradually exposes the film and shows the DNA bands. This process takes about 10 weeks to complete.

18. PCR--Polymerase Chain Reaction PCR is a technique for making many copies of a defined segment of a DNA molecule. It looks at six different inherited traits, each controlled by a specific gene. Every gene has at least two alternative forms called alleles. An individual receives one allele from mother and one from father. If the alleles are the same, the individual is said to be homozygous for the trait; if the two alleles are different, the individual is heterozygous.

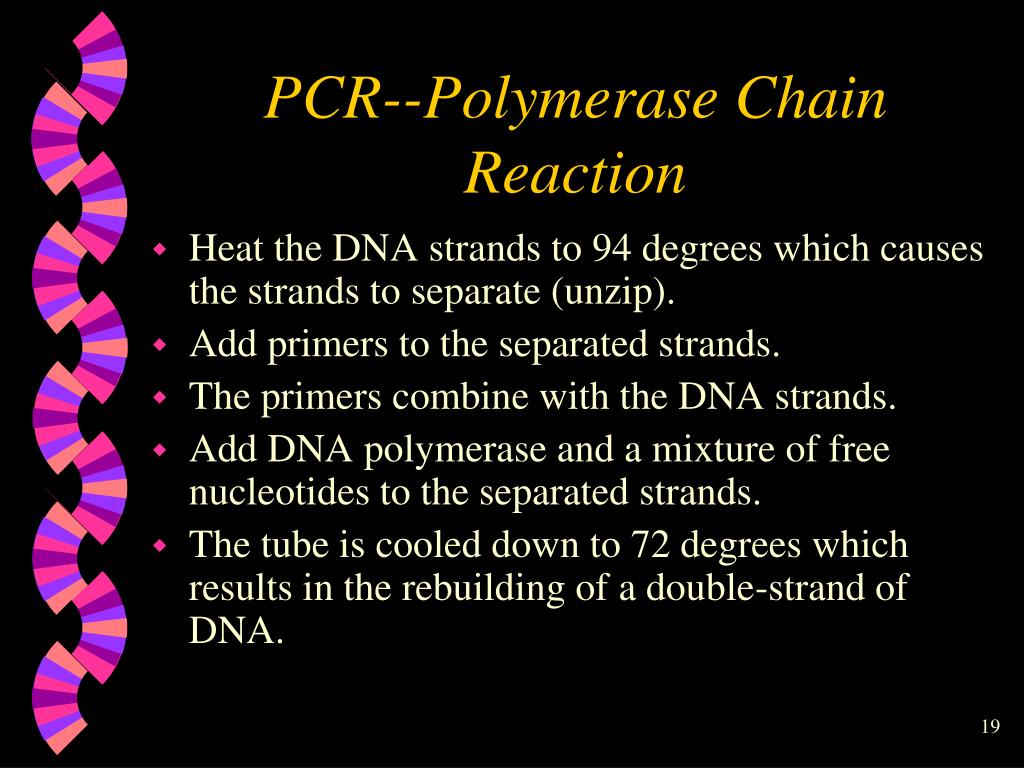

19. PCR--Polymerase Chain Reaction • Heat the DNA strands to 94 degrees which causes the strands to separate (unzip). • Add primers to the separated strands. • The primers combine with the DNA strands. • Add DNA polymerase and a mixture of free nucleotides to the separated strands. • The tube is cooled down to 72 degrees which results in the rebuilding of a double-strand of DNA.

20. PCR--Polymerase Chain Reaction The outcome is a doubling of the number DNA strands. Heating, cooling, and strand rebuilding is repeated typically 25 to 30 times, yielding more than one million copies of the original DNA molecule. Each cycle takes less than two minutes from start to finish.

21. Advantages of PCR • Minute amounts of DNA template may be used from as little as a single cell. • DNA degraded to fragments only a few hundred base pairs in length can serve as effective templates for amplification. • Large numbers of copies of specific DNA sequences can be amplified simultaneously with multiplex PCR reactions. • Commercial kits are now available for easy PCR reaction setup and amplification. Problem: Contaminant DNA, such as fungal and bacterial sources, will not amplify because human-specific primers are used.

22. Short Tandem Repeats (STR) STR is the latest method of DNA typing. STR’s are locations (loci) on the chromosome that contain short sequences of 3 to 7 bases that repeat themselves with the DNA molecule. This method’s advantages include a higher discrimination than RFLP, less time, smaller sample size, and less susceptible to degradation.

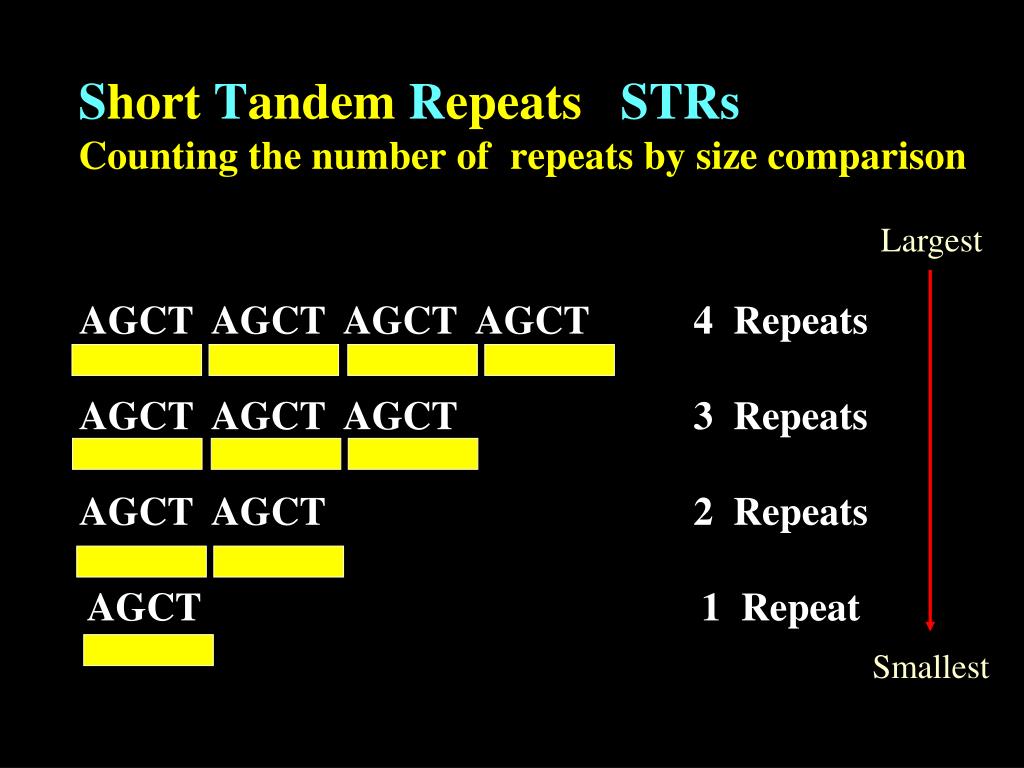

23. Short Tandem Repeats STRsCounting the number of repeats by size comparison Largest AGCT AGCT AGCT AGCT 4 Repeats AGCT AGCT AGCT 3 Repeats AGCT AGCT 2 Repeats AGCT 1 Repeat Smallest

25. Short Tandem Repeats (STR) • Extract the gene TH01 from the sample. (TH01 has seven human variants and a repeating sequence of A-A-T-G) • Amplify the sample by means of PCR • Separate by electrophoresis • Examine the distance the STR migrates to determine the number of times TH01 repeats

26. Short Tandem Repeats (STR) Each person has two STR types for TH01--one inherited from each parent. By continuing the process with additional STRs from other genes, you can narrow down the probability of DNA belonging to only one possible person.

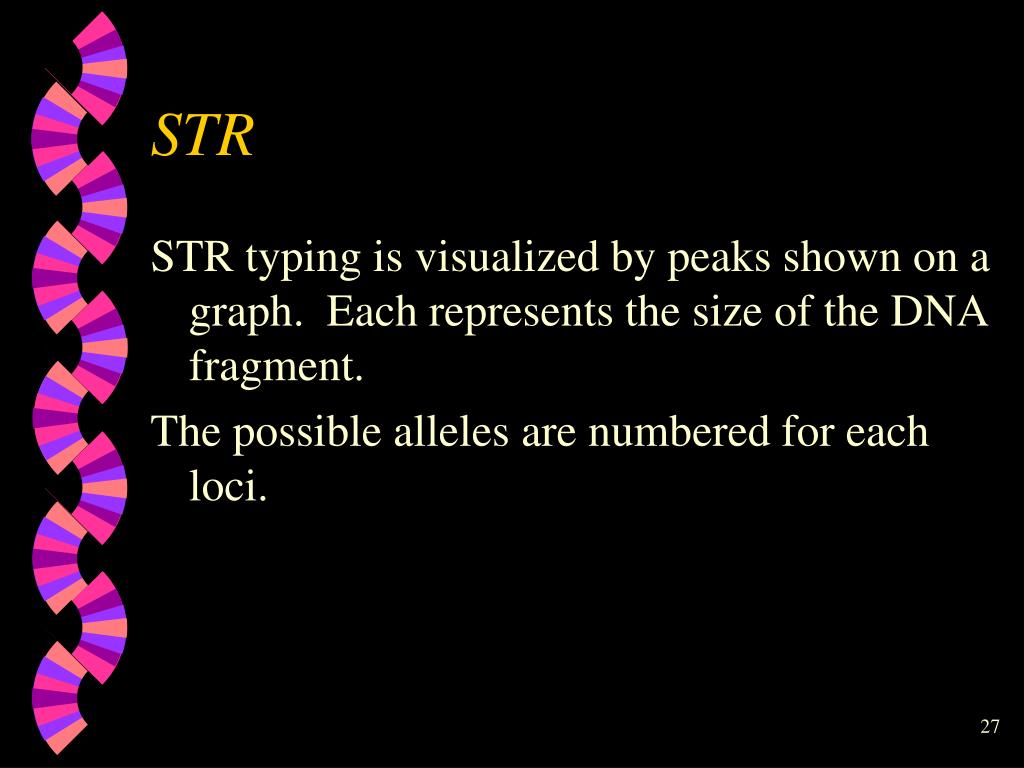

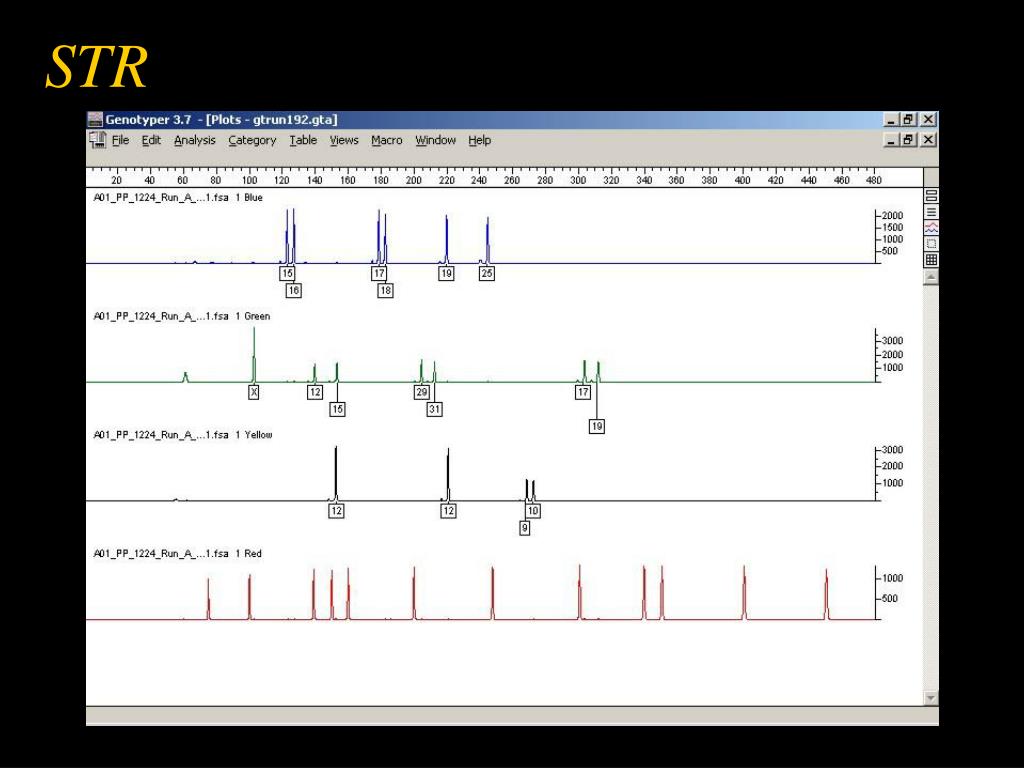

27. STR STR typing is visualized by peaks shown on a graph. Each represents the size of the DNA fragment. The possible alleles are numbered for each loci.

28. Profiler Plus Allelic Ladders VWA D3S1358 FGA AMEL D8S1179 D21S11 D18S51 D13S317 D5S818 D7S820

29. COfiler Allelic Ladders D3S1358 D16S539 AMEL TH01 TPOX CSF1PO D7S820

30. STR

32. Probability of Matching Previous STR

33. Electrophoresis An electrical current moves through a substance causing molecules to sort by size. Smaller, lighter molecules will move the furthest on the gel.

34. Electrophoresis Pipette the DNA.

35. Electrophoresis (cont.) Load DNA into the gel wells.

36. Electrophoresis (cont.) • Run the gel. • Observe and compare bands of DNA.

37. Fill with Polymer Solution Argon Ion Laser - + Inlet (cathode) Outlet (anode) 5-20 kV Capillary Electrophoresis (CE) 50-100 m x 27 cm Burn capillary window DNA Separation occurs in minutes... Data Acquisition and Analysis

38. Three Possible Outcomes • Match--The DNA profile appears the same. Lab will determine the frequency. • Exclusion – The genotype comparison shows profile differences that can only be explained by the two samples originating from different sources. • Inconclusive – The data does not support a conclusion as to whether the profiles match.

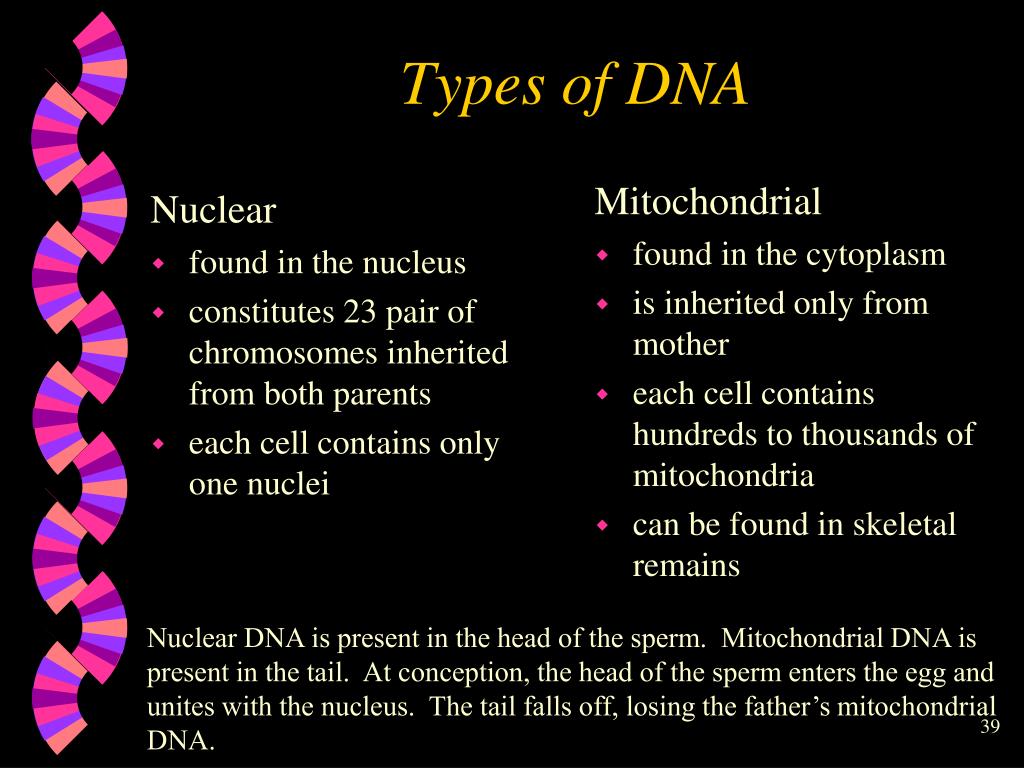

39. Nuclear found in the nucleus constitutes 23 pair of chromosomes inherited from both parents each cell contains only one nuclei Mitochondrial found in the cytoplasm is inherited only from mother each cell contains hundreds to thousands of mitochondria can be found in skeletal remains Types of DNA Nuclear DNA is present in the head of the sperm. Mitochondrial DNA is present in the tail. At conception, the head of the sperm enters the egg and unites with the nucleus. The tail falls off, losing the father’s mitochondrial DNA.

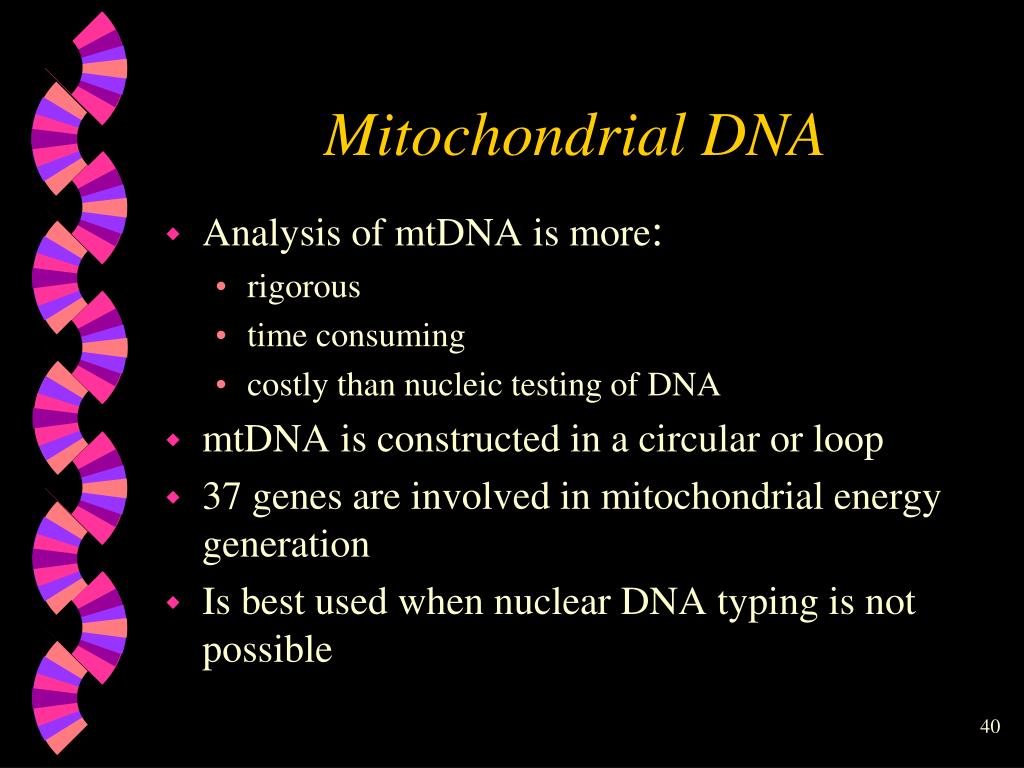

40. Mitochondrial DNA • Analysis of mtDNA is more: • rigorous • time consuming • costly than nucleic testing of DNA • mtDNA is constructed in a circular or loop • 37 genes are involved in mitochondrial energy generation • Is best used when nuclear DNA typing is not possible

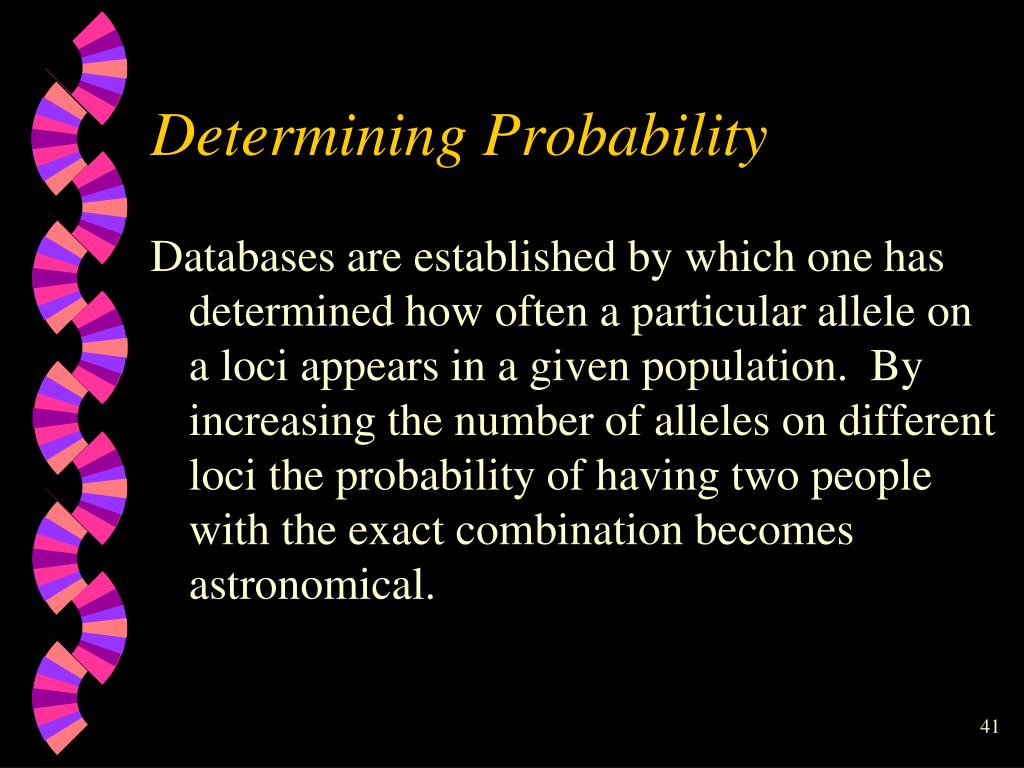

41. Determining Probability Databases are established by which one has determined how often a particular allele on a loci appears in a given population. By increasing the number of alleles on different loci the probability of having two people with the exact combination becomes astronomical.

42. Probability of a Random Match Using 13 CODIS STR Markers

43. Probability Numbers:What do they mean? 1,000,000 million 1,000,000,000 billion 1,000,000,000,000 trillion 1 x 1015quadrillion 1 x 1018quintillion 1 x 1021 sextillion 1 x 1024septillion 1 x 1027octillion 1 x 1030nonillion 1 x 1033decillion

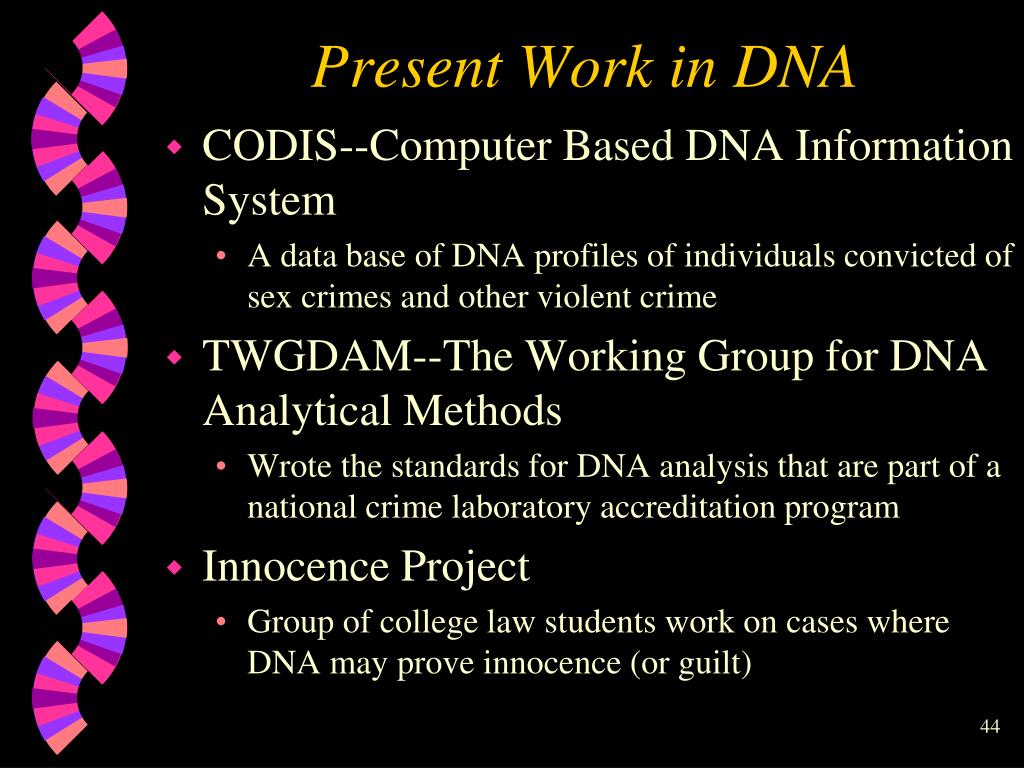

44. Present Work in DNA • CODIS--Computer Based DNA Information System • A data base of DNA profiles of individuals convicted of sex crimes and other violent crime • TWGDAM--The Working Group for DNA Analytical Methods • Wrote the standards for DNA analysis that are part of a national crime laboratory accreditation program • Innocence Project • Group of college law students work on cases where DNA may prove innocence (or guilt)

45. FBI’s CODIS DNA Database Combined DNA Index System • Used for linking serial crimes and unsolved cases with repeat offenders • Launched October 1998 • Links all 50 states • Requires >4 RFLP markers and/or 13 core STR markers

46. The Future • Greater automation of the DNA typing process • Use of SNP’s--single nucleotide polymorphism which measures a one nucleotide change or difference from one individual to another. More sites are needed to differentiate between individuals (30 to 50 SNPs to attain the frequencies of the 13 STR loci), but it can be done with robots and automation.

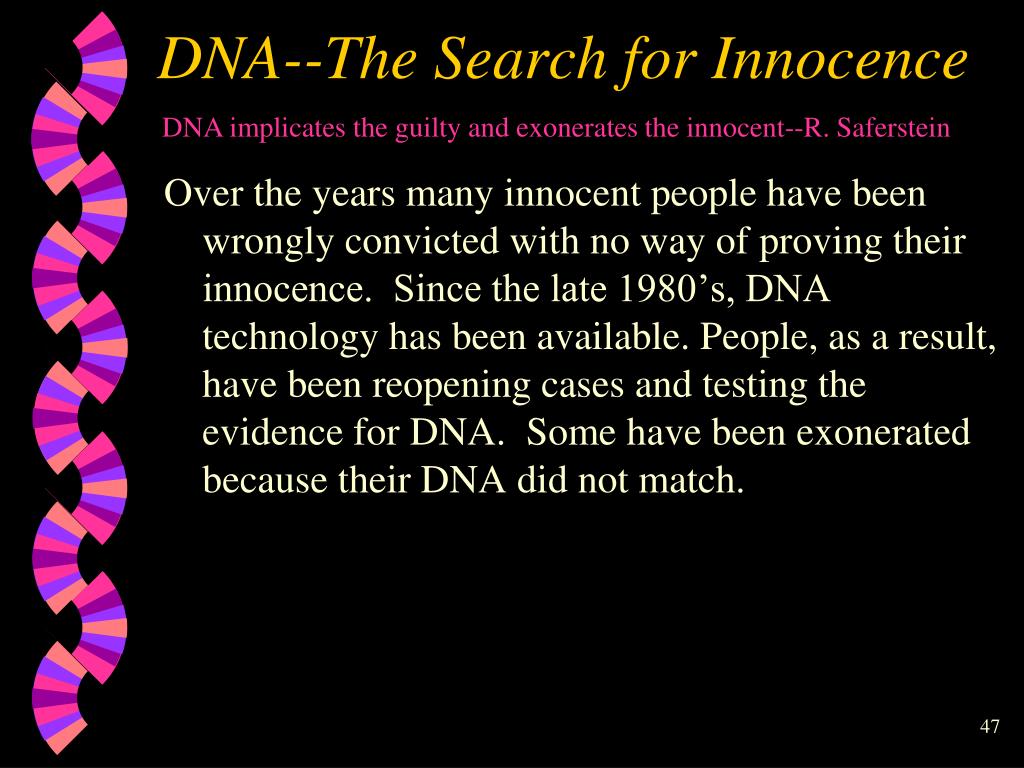

47. DNA--The Search for Innocence DNA implicates the guilty and exonerates the innocent--R. Saferstein Over the years many innocent people have been wrongly convicted with no way of proving their innocence. Since the late 1980’s, DNA technology has been available. People, as a result, have been reopening cases and testing the evidence for DNA. Some have been exonerated because their DNA did not match.
