Problem 7-75 Draw the shear and moment diagrams for the beam. Shear & Moment Diagrams- Cont. 8 kN. 15 kN/m. 20 kN.m. 2m. 3m. 2m. 1m. Support reactions: ∑M B = 0 : Ay =-14.3 kN = 14.3 kN ∑F y = 0 : By = 67.3 kN

badru
Download Presentation

Shear & Moment Diagrams- Cont.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Problem 7-75 Draw the shear and moment diagrams for the beam. Shear & Moment Diagrams- Cont. 8 kN 15 kN/m 20 kN.m 2m 3m 2m 1m

  2. Support reactions: ∑MB = 0 : Ay =-14.3 kN = 14.3 kN ∑Fy = 0 : By = 67.3 kN We need 3 sections to derive the shear eqs: 0 < x < 2, 2- 2 <x< 5 and 5< x< 8 We need 4 sections to derive the moment eqs: 0 < x < 2, 2 < x < 3, 3 <x< 5 and 5< x< 8 8 kN 15 kN/m 20 kN.m Problem 7-75 1m 3m 2m 2m 8kN 15kN/m 20kN.m 14.3kN 67.3kN 4 1 2 3

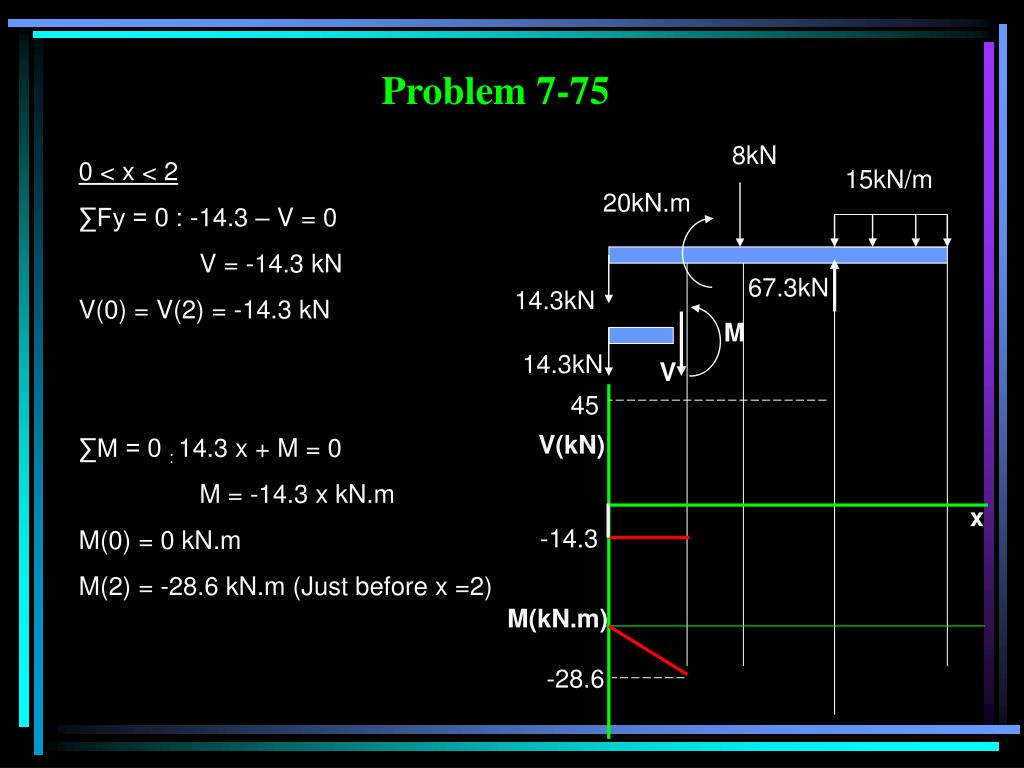

  3. 8kN 0 < x < 2 ∑Fy = 0 : -14.3 – V = 0 V = -14.3 kN V(0) = V(2) = -14.3 kN ∑M = 0 : 14.3 x + M = 0 M = -14.3 x kN.m M(0) = 0 kN.m M(2) = -28.6 kN.m (Just before x =2) 15kN/m 20kN.m Problem 7-75 67.3kN 14.3kN M 14.3kN V 45 V(kN) x -14.3 M(kN.m) -28.6

  4. 8kN 2 < x < 3 ∑Fy = 0 : -14.3 – V = 0 V = -14.3 kN V(2) = -14.3 kN V(3) = -14.3 kN (just before x = 3) ∑M = 0 : 14.3 x -20 + M = 0 M = 20 -14.3 x kN.m M(2) = -8.6 kN.m (just after x=2) M(3) = -22.9 kN.m 15kN/m 20kN.m Problem 7-75 67.3kN 14.3kN M 14.3kN V 45 V(kN) x -14.3 -8.6 M(kN.m) -28.6 -22.9

  5. 8kN 15kN/m 20kN.m 3 < x < 5 ∑Fy = 0 : -14.3 -8 -+67.V = 0 V = -22.3 kN V(3) = -22.3 kN (just after x=3) V(5) = -22.3 kN (just before x = 5) ∑M = 0 : 14.3 x -20+8(x-3)+M=0 M = -44+22.3x kN.m M(3) = -22.9 kN.m M(5) = -67.5 kN.m 14.3kN 67.3kN Problem 7-75 M V V(kN) x -14.3 -22.3 x -8.6 -28.6 M(kN.m) -22.9 -67.5

  6. 8kN 15kN/m 20kN.m 5 < x < 8 ∑Fy = 0 : -14.3 -8 +67.3-15(x-5)-V = 0 V =120-15x kN V(5) = 45 kN (just after x=5) V(8) = 0 ∑M=0: 14.3 x -20+8(x-3) -67.3(x-5)+15(x-5)(x-5)/2+M=0 M =-7.5(x-8)2 kN.m M(5) = -67.5 kN.m M(8) = 0 kN.m 14.3kN 67.3kN Problem 7-75 15(x-5) M V 45 V(kN) x -14.3 -22.3 x -8.6 M(kN.m) -28.6 -22.9 -67.5
