ECE 447: Lecture 16 Common Errors & Good Programming Style

Typical Assembly Language Program Bugs

ECE 447: Typical Assembly Language Program Bugs 1. Improper transfer to subroutines Correct: JSR, BSR Incorrect: JMP, BRA 2. Forgetting to initialize stack pointer section .bss rmb 128 stack_end done by default by the startup code when you call your assembly language routine from the main() function written in C section .text lds #stack_end-1

ECE 447: Typical Assembly Language Program Bugs 3. Not allocating enough memory for the stack program execution data data stack stack

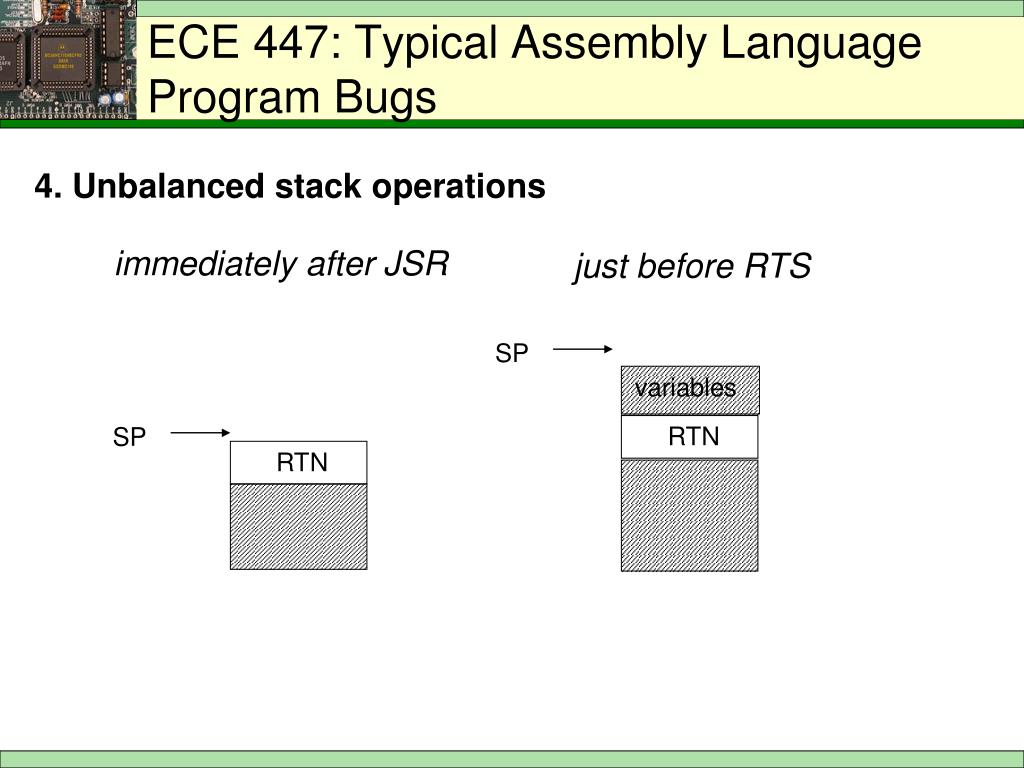

ECE 447: Typical Assembly Language Program Bugs 4. Unbalanced stack operations immediately after JSR just before RTS SP variables RTN SP RTN

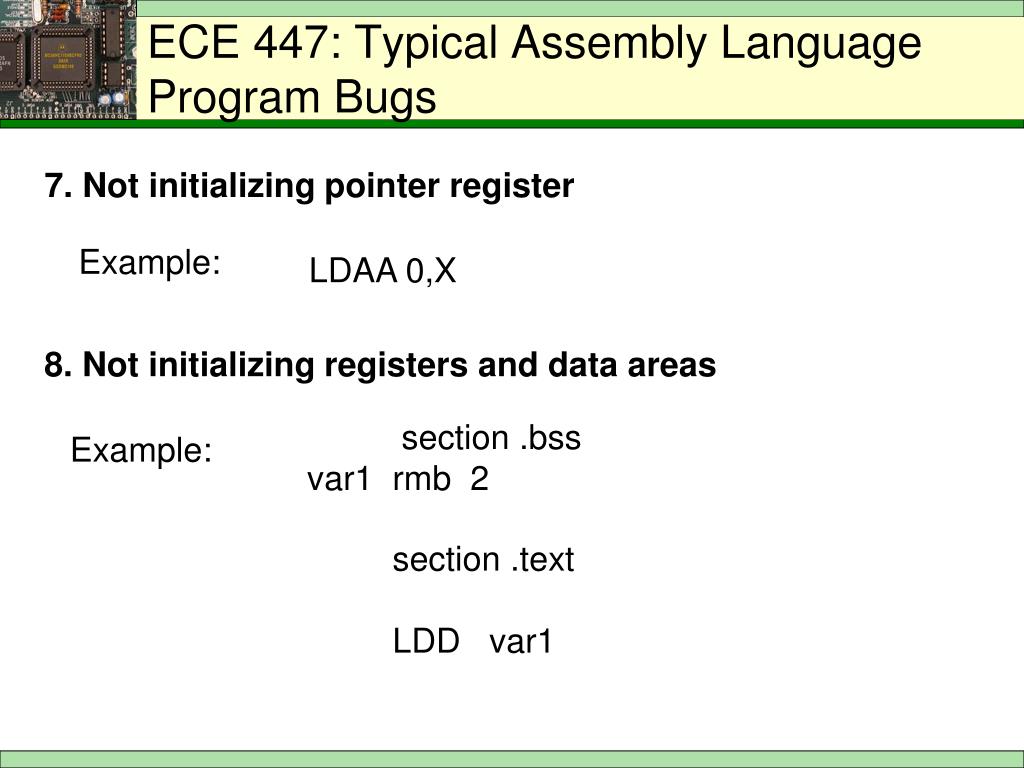

ECE 447: Typical Assembly Language Program Bugs 5. Using subroutines that change registers Example: LDX #ADDRESS JSR changer LDAA 0,X 6. Transposed registers Examples: TBA vs. TAB PSHA PSHB PULX PSHB PSHA PULX instead of

ECE 447: Typical Assembly Language Program Bugs 7. Not initializing pointer register Example: LDAA 0,X 8. Not initializing registers and data areas section .bss var1 rmb 2 Example: section .text LDD var1

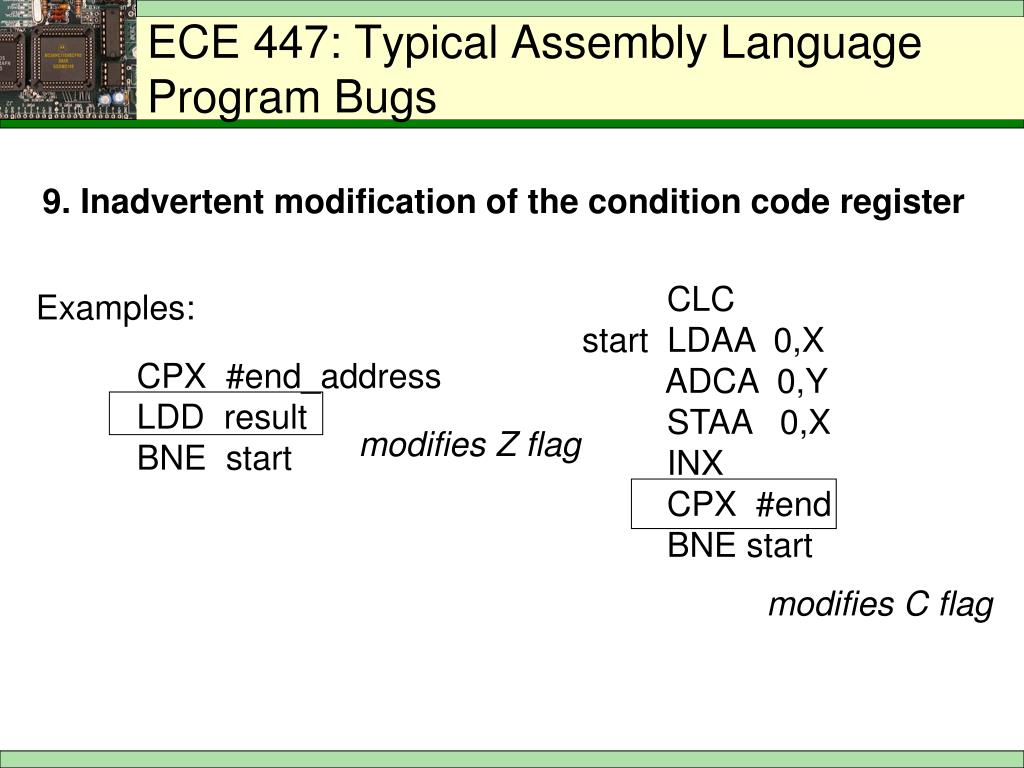

ECE 447: Typical Assembly Language Program Bugs 9. Inadvertent modification of the condition code register CLC start LDAA 0,X ADCA 0,Y STAA 0,X INX CPX #end BNE start Examples: CPX #end_address LDD result BNE start modifies Z flag modifies C flag

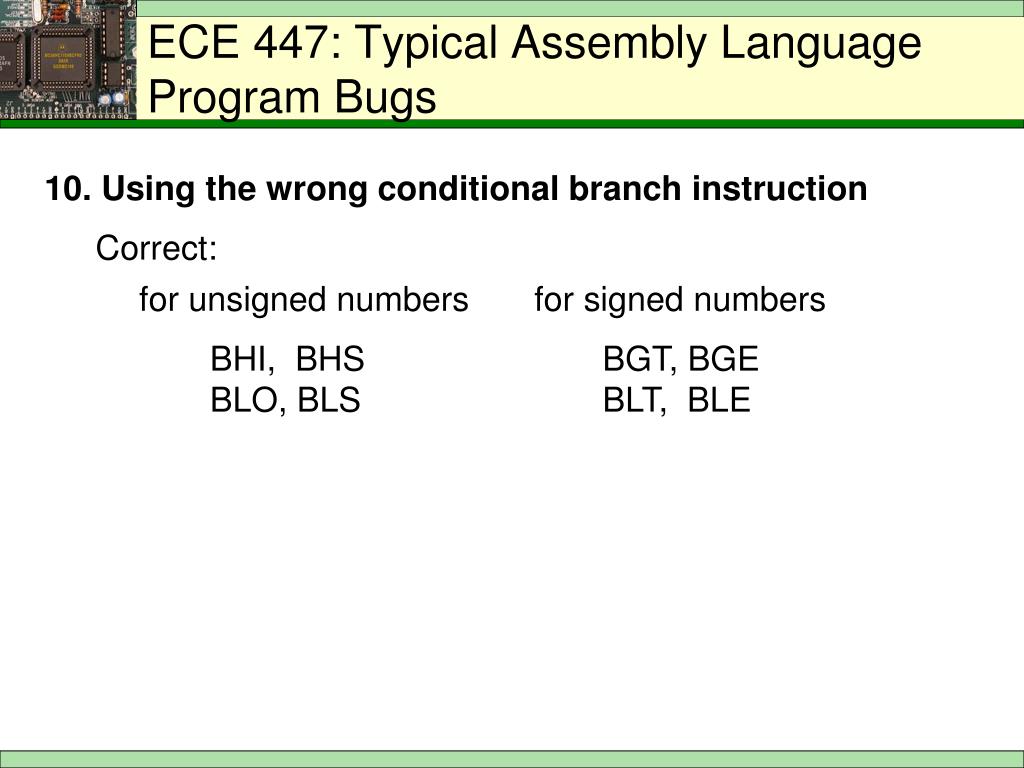

ECE 447: Typical Assembly Language Program Bugs 10. Using the wrong conditional branch instruction Correct: for unsigned numbers for signed numbers BHI, BHS BLO, BLS BGT, BGE BLT, BLE

ECE 447: Branch Instructions (1) N Z V C – – – – REL after comparison register vs. memory unsigned numbers signed numbers BHI higher > BLO lower < BHS higher or same  BLS lower or same  BGT greater than > BLT less than < BGE greater than or equal  BLE less than or equal  BEQ equal = BNE not equal 

ECE 447: Typical Assembly Language Program Bugs 11. Using the wrong addressing mode Examples: INIT EQU 1 var1 fdb 5 LDD #var1 LDD INIT instead of LDD var1 instead of LDD #INIT

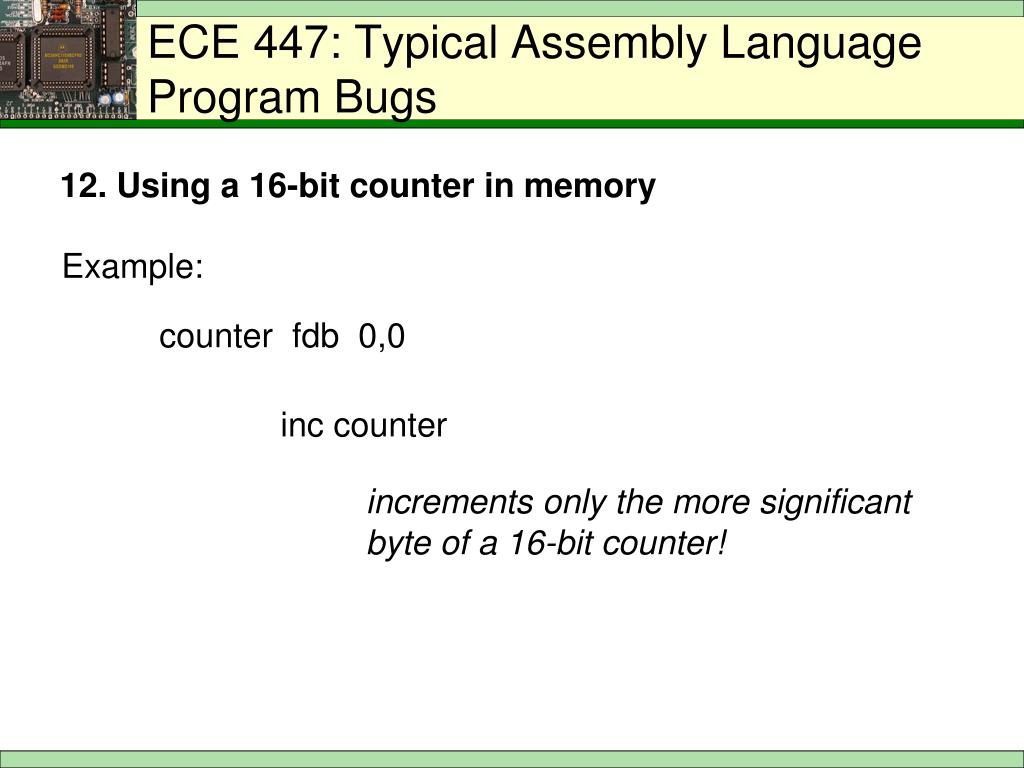

ECE 447: Typical Assembly Language Program Bugs 12. Using a 16-bit counter in memory Example: counter fdb 0,0 inc counter increments only the more significant byte of a 16-bit counter!

Good Programming Style

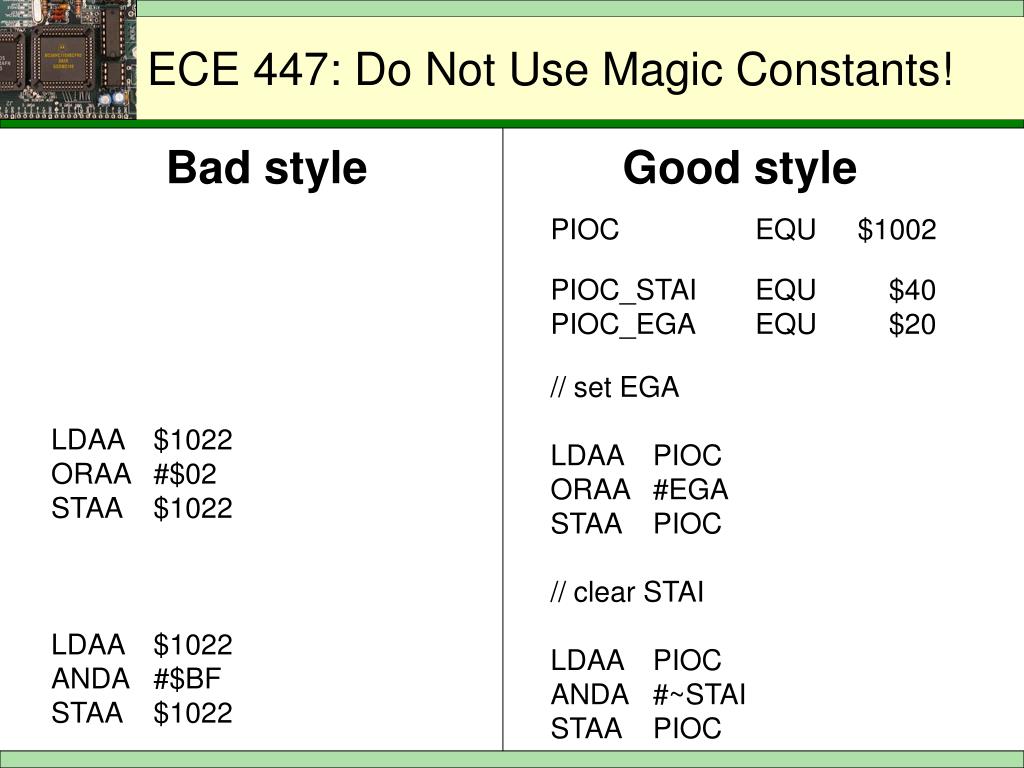

ECE 447: Do Not Use Magic Constants! Bad style Good style #include <hc11e9.h> #include <hc11e9.h> PIOC |= 0x40; PIOC &= 0xBF; // set EGA PIOC |= EGA; // clear STAI PIOC &= ~STAI;

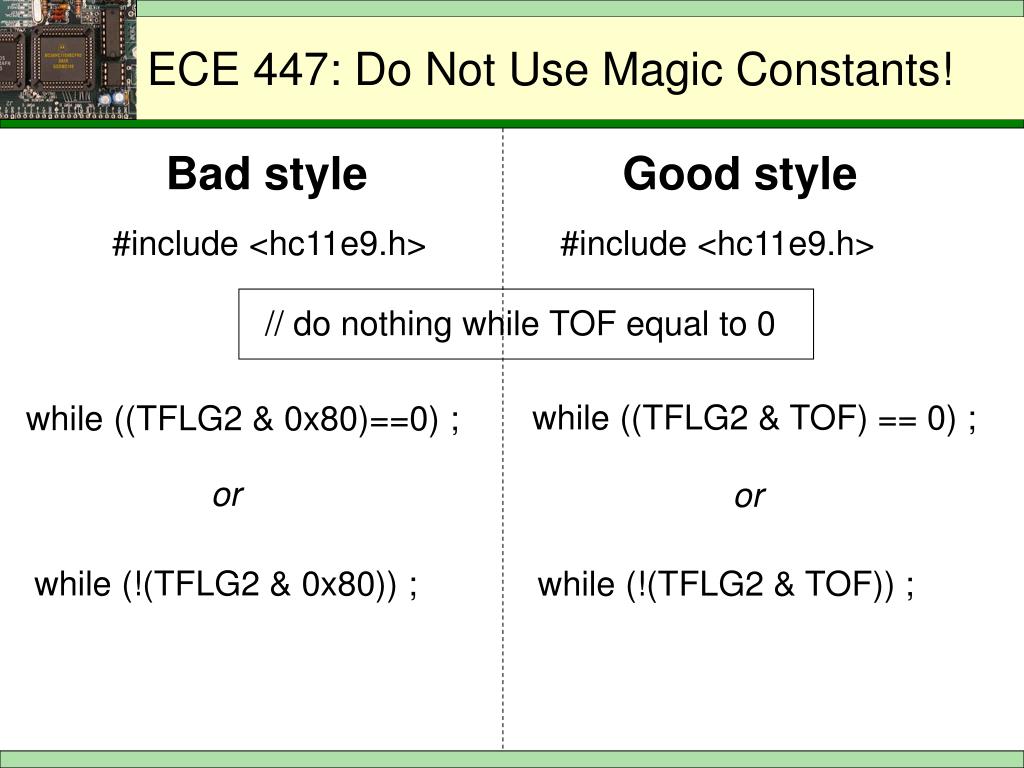

ECE 447: Do Not Use Magic Constants! Bad style Good style #include <hc11e9.h> #include <hc11e9.h> // do nothing while TOF equal to 0 while ((TFLG2 & TOF) == 0) ; while ((TFLG2 & 0x80)==0) ; or or while (!(TFLG2 & 0x80)) ; while (!(TFLG2 & TOF)) ;

ECE 447: Do Not Use Magic Constants! Bad style Good style PIOC EQU $1002 PIOC_STAI EQU $40 PIOC_EGA EQU $20 // set EGA LDAA PIOC ORAA #EGA STAA PIOC // clear STAI LDAA PIOC ANDA #~STAI STAA PIOC LDAA $1022 ORAA #$02 STAA $1022 LDAA $1022 ANDA #$BF STAA $1022

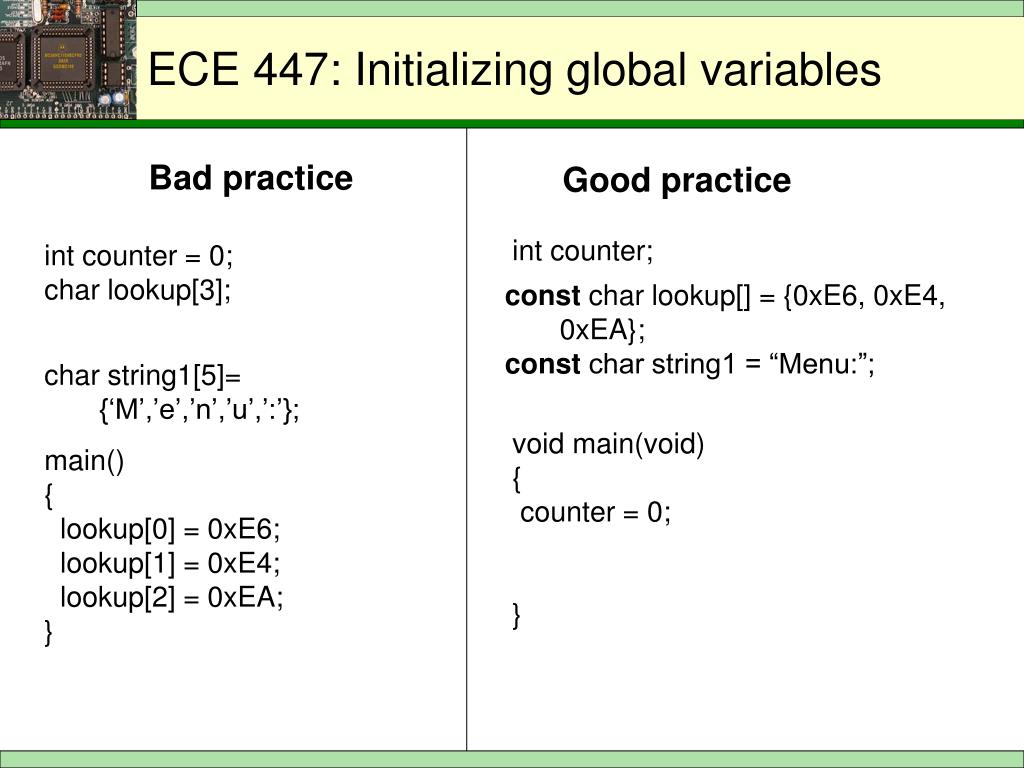

ECE 447: Initializing global variables Bad practice Good practice int counter; int counter = 0; char lookup[3]; const char lookup[] = {0xE6, 0xE4, 0xEA}; const char string1 = “Menu:”; char string1[5]= {‘M’,’e’,’n’,’u’,’:’}; void main(void) { counter = 0; } main() { lookup[0] = 0xE6; lookup[1] = 0xE4; lookup[2] = 0xEA; }

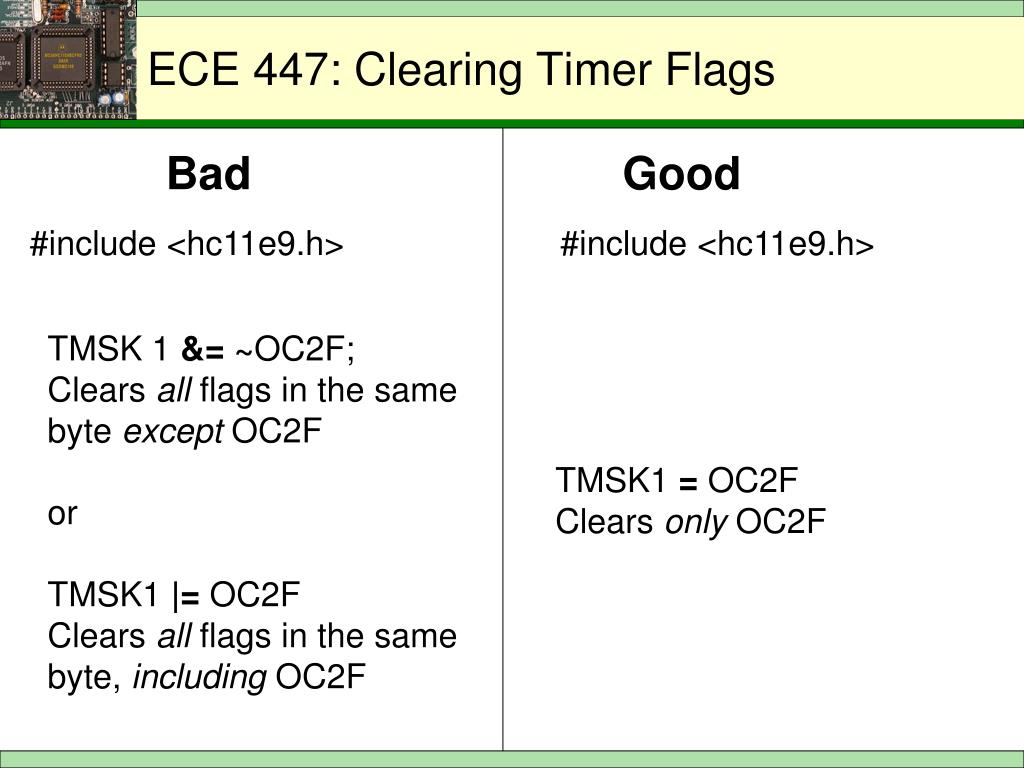

ECE 447: Clearing Timer Flags Bad Good #include <hc11e9.h> #include <hc11e9.h> TMSK 1 &= ~OC2F; Clears all flags in the same byte except OC2F or TMSK1 |= OC2F Clears all flags in the same byte, including OC2F TMSK1 = OC2F Clears only OC2F

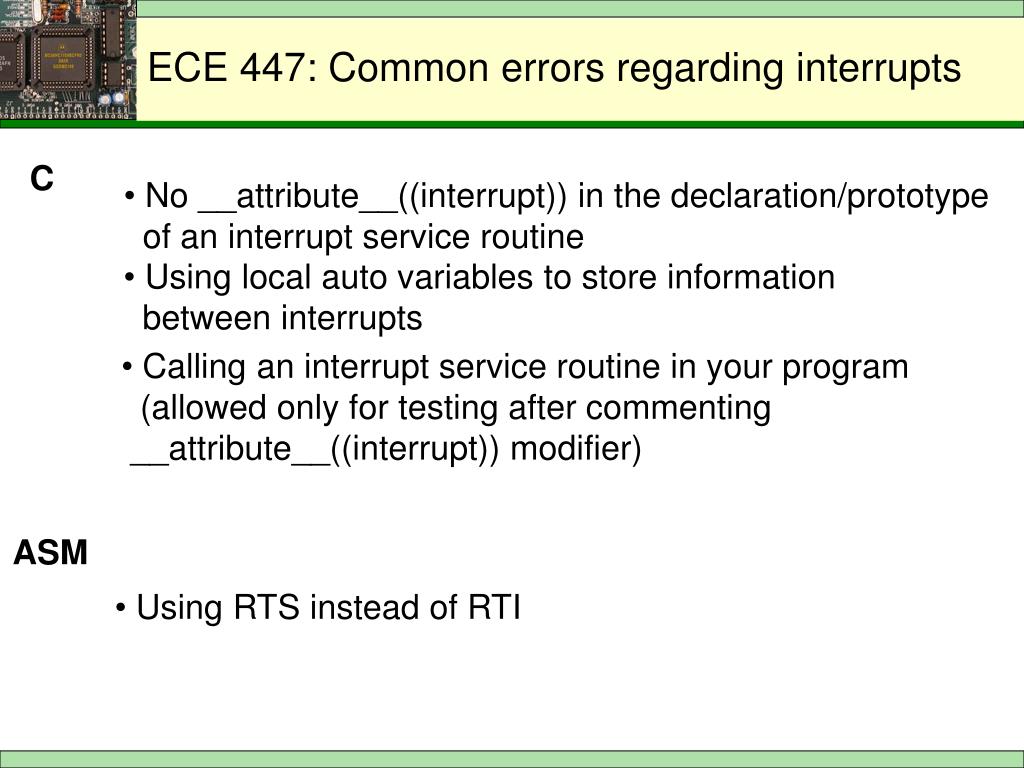

ECE 447: Common errors regarding interrupts C • No __attribute__((interrupt)) in the declaration/prototype • of an interrupt service routine • Using local auto variables to store information • between interrupts • Calling an interrupt service routine in your program • (allowed only for testing after commenting • __attribute__((interrupt)) modifier) ASM • Using RTS instead of RTI

ECE 447: Common errors regarding interrupts C & ASM • No CLI • No setting of the local interrupt enable flag • Waiting for a flag to be set INSIDE of an interrupt

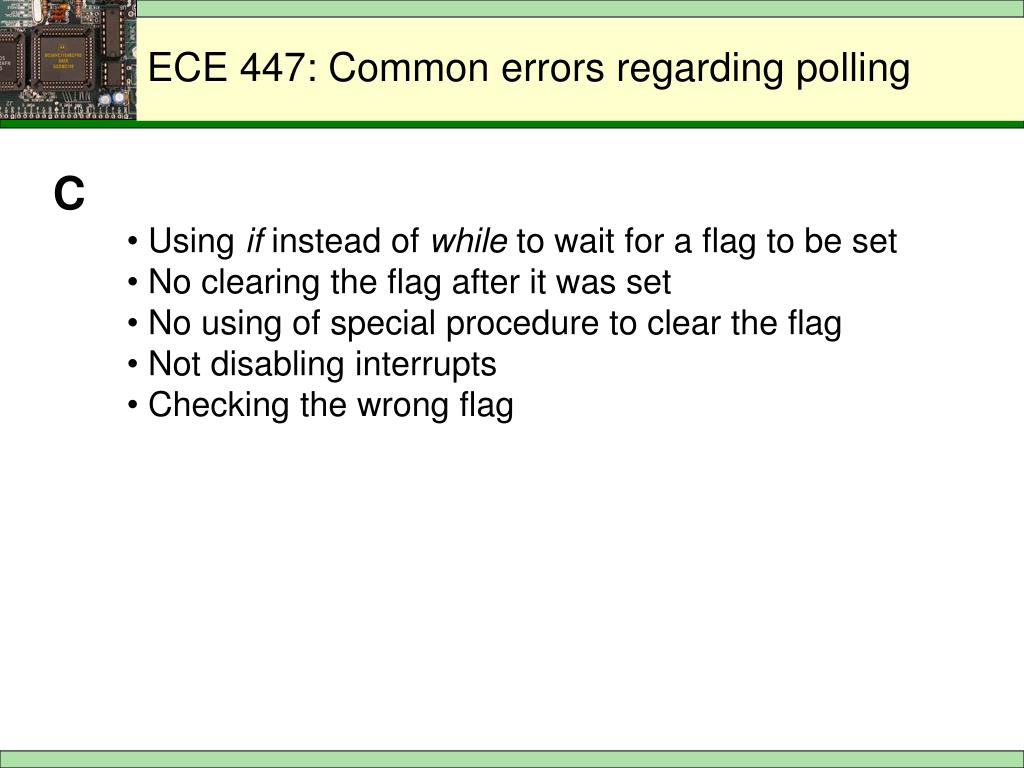

ECE 447: Common errors regarding polling C • Using if instead of while to wait for a flag to be set • No clearing the flag after it was set • No using of special procedure to clear the flag • Not disabling interrupts • Checking the wrong flag

ECE 447: Common errors regarding polling ASM Using too complicated procedure to check the flag Bad style Good style LOOP LDAA PIOC ANDA #STAF CMPA #0 BEQ LOOP LOOP TST PIOC BPL LOOP

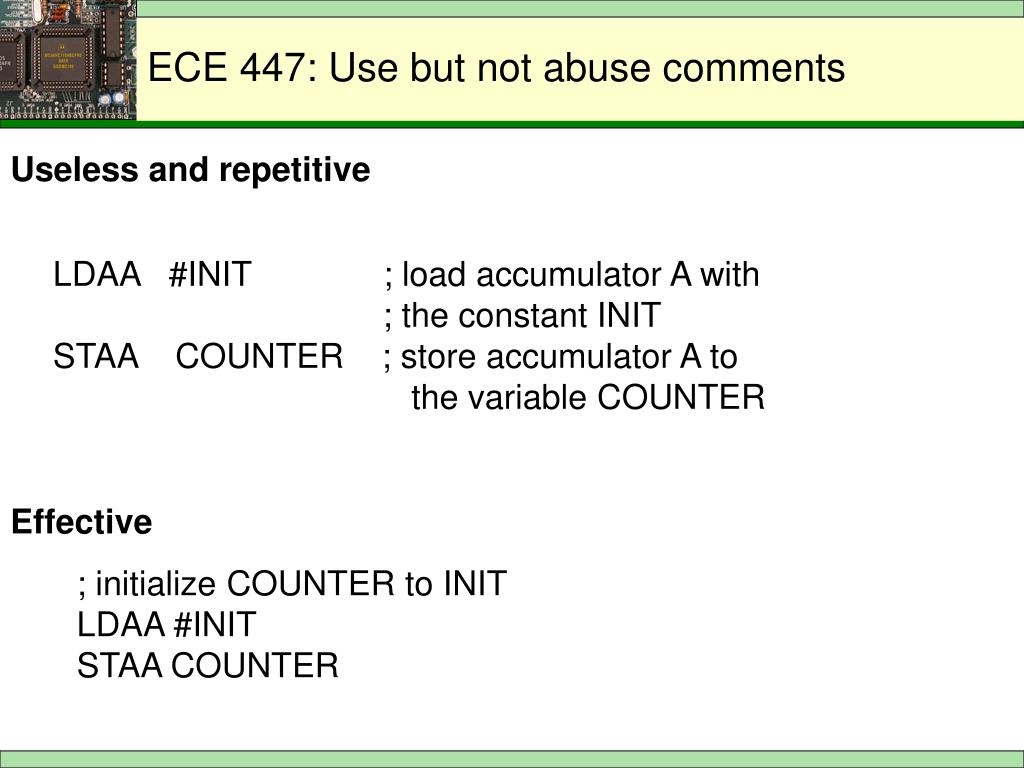

ECE 447: Use but not abuse comments Useless and repetitive LDAA #INIT ; load accumulator A with ; the constant INIT STAA COUNTER ; store accumulator A to the variable COUNTER Effective ; initialize COUNTER to INIT LDAA #INIT STAA COUNTER

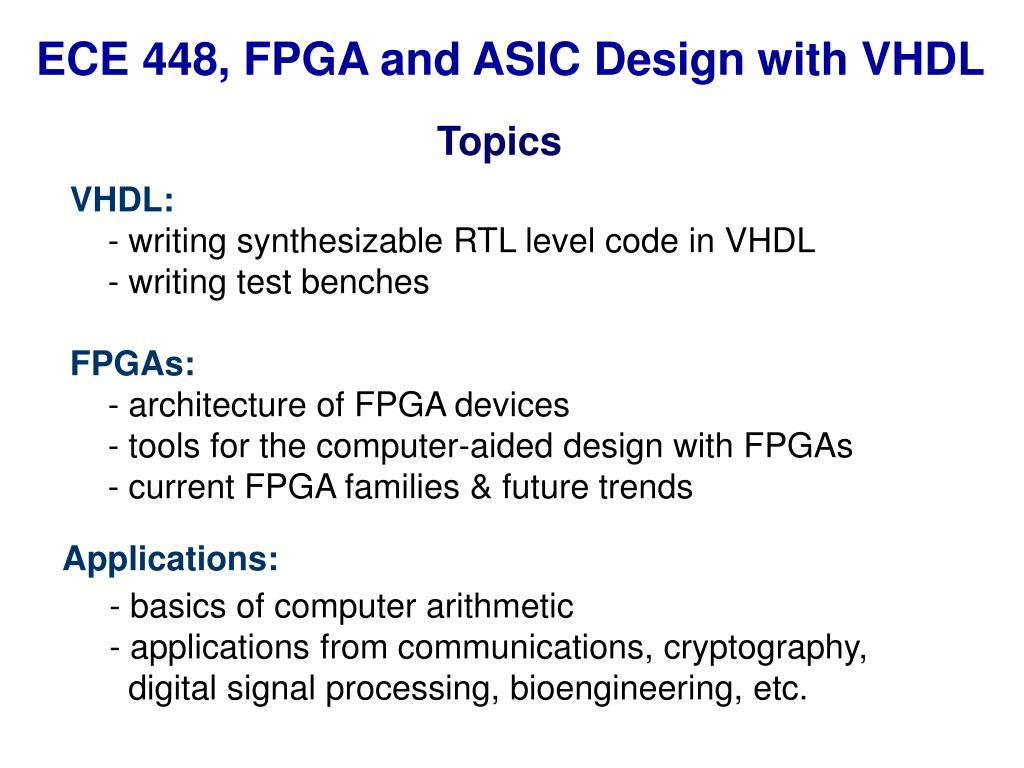

ECE 448, FPGA and ASIC Design with VHDL Topics VHDL: - writing synthesizable RTL level code in VHDL - writing test benches FPGAs: - architecture of FPGA devices - tools for the computer-aided design with FPGAs - current FPGA families & future trends Applications: - basics of computer arithmetic - applications from communications, cryptography, digital signal processing, bioengineering, etc.
