The cell cycle

The cell cycle. chromosome duplication. S. G2. G1. M. cell division (cytokinesis). nuclear division (mitosis). metaphase- anaphase transition. G2/M transition. Start transition. The cell-cycle control system. M. G2. G1. S.

badrani
Download Presentation

The cell cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

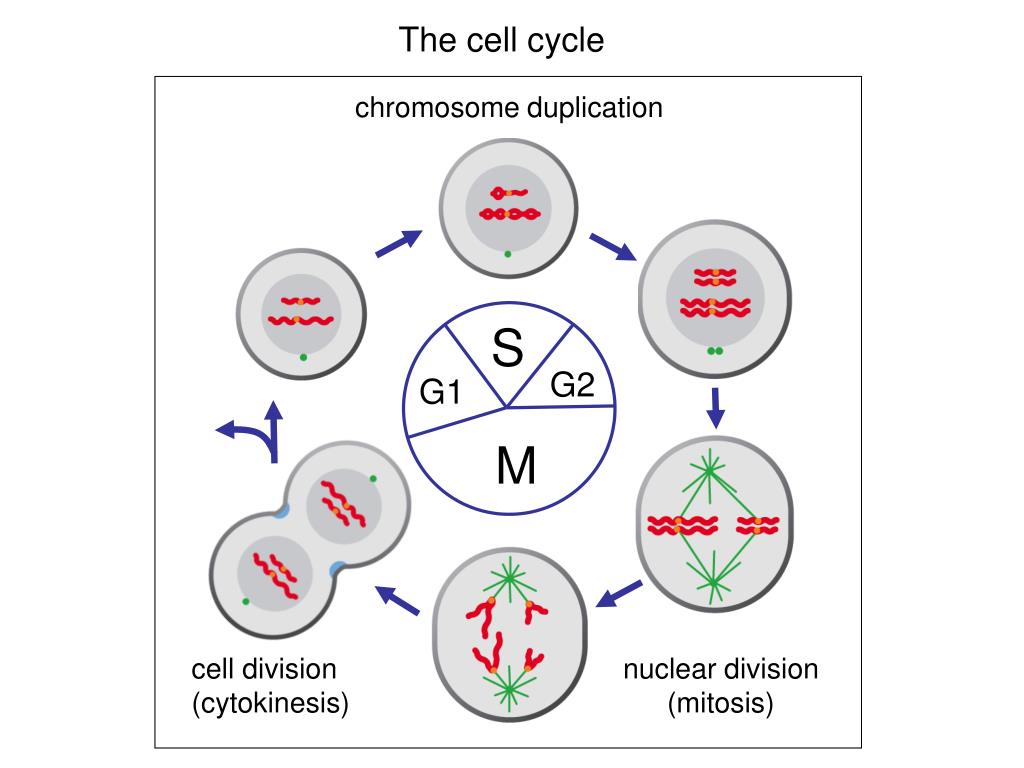

  1. The cell cycle chromosome duplication S G2 G1 M cell division (cytokinesis) nuclear division (mitosis)

  2. metaphase- anaphase transition G2/M transition Start transition The cell-cycle control system M G2 G1 S

  3. The heart of the cell cycle control system: Cyclin-dependent kinase (Cdk) Cdk Cyclin

  4. Basic framework of the cell-cycle control system Yeast: Cln1, 2 Clb5, 6 Clb2 Vertebrate: Cyclin E Cyclin A Cyclin B Order - Completeness - Irreversibility - Robustness - Regulatability

  5. Cdk1 has hundreds of targets in the cell

  6. Cdk1 phosphorylation sites often cluster in disordered loops and termini Site A Site B Ascomycete orthologs Predicted disorder

  7. Quipu Phosphorylation is like Quipu P P P P P P P P P P P P P P P P P P …how is the pattern generated, and how is it decoded?

  8. Cyclin-specific Cdk1 substrates contain motifs that interact with a docking site on the cyclin Cyclin Cdk Active site of Cdk ‘Hydrophobic patch’ on cyclin S/T*-P-x-K/R phosphorylation site on substrate R-x-L motif on substrate

  9. The Cks1 subunit provides an additional docking site for pre-phosphorylated sites substrate

  10. Turning on S-Cdk in budding yeast Start

  11. The switch at G1/S: textbook dogma

  12. Cdc4 E2 Ubiquitin Skp1 SCFCdc4 Rbx1 Cul1 Phosphorylation of Sic1 by Cdk1 triggers its destruction via the ubiquitin ligase SCFCdc4 Ub Ub Ub P P P P Sic1

  13. Cdc4 E2 Ubiquitin Skp1 SCFCdc4 Rbx1 Cul1 Sic1 is loaded with Cdk phosphorylation sites that drive binding to the Cdc4 subunit of SCF

  14. Structure of an ideal phospho-peptide binding to the Cdc4 subunit of SCF The optimal Cdc4-binding site (‘CPD’): L/I-L/I/P-pT-P-[R/K]-[R/K]-[R/K]-[R/K] disfavored Nash et al. (2001) Nature414:514-21. Orlicky et al. (2003) Cell112:243-256.

  15. But the Cdc4-binding sites in Sic1 are pretty bad…why? Optimal Cdc4-binding site (‘CPD’): L/I-L/I/P-pT-P-[R/K]-[R/K]-[R/K]-[R/K] Suboptimal Cdc4-binding sites in Sic1: Nash et al. (2001) Nature414:514-21.

  16. Binding to SCFCdc4 requires six sites of phosphorylation on Sic1 Phospho-Sic1 binding to Cdc4 Nash et al. (2001) Nature414:514-21.

  17. Six suboptimal sites somehow lead to high affinity? Sic1 Cdc4 Cdc4 Cdc4

  18. The model: distributive phosphorylation of Sic1 on six sites leads to ultrasensitive Clb5-Cdk1 activation at G1/S

  19. The model: distributive phosphorylation of Sic1 on six sites leads to ultrasensitive Clb5-Cdk1 activation at G1/S

  20. The first fly in the ointment: a second phosphate binding site on Cdc4 Cdc4 Cyclin E peptide Hao et al. (2007) Mol. Cell26:131-143.

  21. Two or three good di-phosphodegrons in Sic1 7 mM 3 mM Hao et al. (2007) Mol. Cell26:131-143.

  22. The latest complication: processive phosphorylation of Sic1 in vitro Phospho- Sic1 Kõivomägi et al. Nature480, 128 (2011). (Phos-Tag gels)

  23. Processive phosphorylation depends on the Cks1 subunit substrate Kõivomägi et al. Nature480, 128 (2011).

  24. Phosphorylation by Clb5-Cdk gets a boost from a docking site Clb5 hydrophobic patch mutant Clb5 RXL mut substrate Kõivomägi et al. Nature480, 128 (2011).

  25. Cascades of phosphorylation drive Sic1 degradation: Cln-Cdk1 starts things out with the help of a docking site P P P P P Kõivomägi et al. Nature480, 128 (2011).

  26. Clb5-Cdk1 takes it the rest of the way P P P P P P P Kõivomägi et al. Nature480, 128 (2011).

  27. Cascades of phosphorylation events drive Sic1 degradation: mystery solved! P P P P P P P Kõivomägi et al. Nature480, 128 (2011).

  28. The switch at G1/S depends on positive feedback

  29. The central problem of mitosis ? one nucleus containing duplicated chromosomes two nuclei, each with one set of chromosomes

  30. The solution: biorientation of sister chromatids on a bipolar spindle sister chromatid pair kinetochore spindle pole

  31. A thing of beauty is a joy forever Prophase Prometaphase Metaphase Anaphase A Anaphase B Telophase

  32. How sister chromatid pairs are attached: the ‘search and capture’ model
