1 / 21

High Level Group on the Single European Sky

High Level Group on the Single European Sky Confirmed the need to establish technical regulation on the basis of the ‘new approach’…where essential requirements, rules and standards are complementary and consistent. Statements from the interoperability Regulation (1).

baby
Download Presentation

High Level Group on the Single European Sky

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. High Level Group on the Single European Sky Confirmed the need to establish technical regulation on the basis of the ‘new approach’…where essential requirements, rules and standards are complementary and consistent.

  2. Statements from the interoperability Regulation (1) • Enhancing the level of integration at Community level would result in better efficiency and lower costs for system procurement and maintenance and in improved operational coordination. • The predominance of national technical specifications used in procurement has led to fragmentation of the systems market[..;] these practices[…] slow down the introduction of new operational concepts. • The internal market is a Community objective and therefore measures taken under this Regulation should contribute to its progressive development in this sector.

  3. Statements from the interoperability Regulation (2) • It is therefore appropriate to define essential requirements which should apply to the EATMN, its systems, constituents and associated procedures. ER

  4. ER Statements from the interoperability Regulation (3) • Implementing rules for interoperability should be drawn up for systems whenever necessary to complement or further refine the essential requirements; • those rules should also be drawn up where necessary to facilitate the coordinated introduction of new …concepts of operation or technology. IR

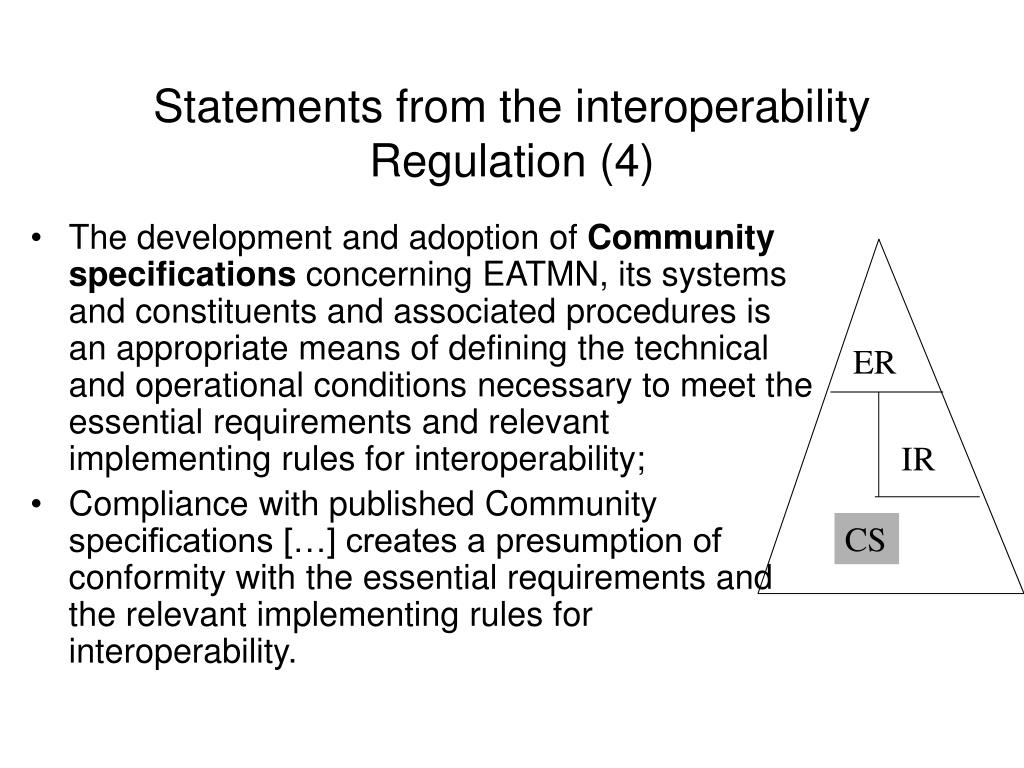

  5. ER IR CS Statements from the interoperability Regulation (4) • The development and adoption of Community specifications concerning EATMN, its systems and constituents and associated procedures is an appropriate means of defining the technical and operational conditions necessary to meet the essential requirements and relevant implementing rules for interoperability; • Compliance with published Community specifications […] creates a presumption of conformity with the essential requirements and the relevant implementing rules for interoperability.

  6. ER IR CS Extracts from Chapter 1 of the interoperability Regulation The EATMN, its systems and their constituents and associated procedures shall meet essential requirements […] Implementing rules for interoperability shall be drawn up whenever necessary to achieve in a coherent way the objectives of this Regulation. […] • In pursuit of the objective of this Regulation, Community specifications may be established. […] • Compliance with the essential requirements and/or the implementing rules for interoperability shall be presumed for systems, together with associated procedures, or constituents that meet relevant Community specifications and whose reference numbers have been published in the Offical Journal of the European Union.

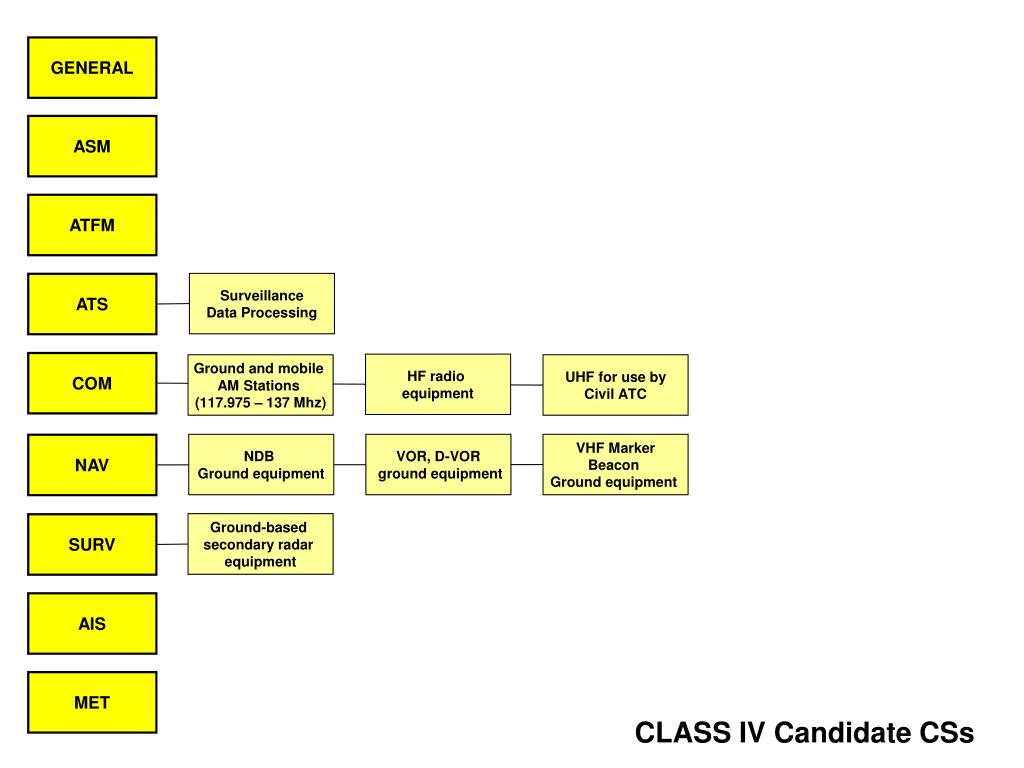

  7. GENERAL ASM ATFM Surveillance Data Processing ATS COM HF radio equipment Ground and mobile AM Stations (117.975 – 137 Mhz) UHF for use by Civil ATC NDB Ground equipment VOR, D-VOR ground equipment VHF Marker Beacon Ground equipment NAV Ground-based secondary radar equipment SURV AIS MET CLASS IV Candidate CSs

  8. Reference CONOPS (2020) ATFM-CDM GENERAL ASM ATFM Advanced Data Exchange Formats Interfaces CWP / Data Processing Interfaces with Flight Data Operator Positions Interfaces with Local centre Sub-systems Flight Plan Information Subscriber Systems ATS Middleware (inter & intra ACC) ATS COM Directory services In Support of AMHS Voice over IP (including air/ground) NAV DME ground equipment ILS ground equipment MLS GBAS CAT II/III SURV AIS Aeronautical Information Exchange (AIXM) CLASS III Candidate CSs (started by 2008 or later) MET

  9. GENERAL ASM ATFM DL Services over ATN in Continental Airspace DL Services over FANS1/A in Continental Airspace DL Services over ACARS in Continental Airspace ATS A-SMGCS (Level 3 & higher) Arrival Management Departure Management Surveillance Performance European AMHS Profile Telephone for ATC purposes Voice over IP (ground only) COM SBAS Galileo, GNSS NAV Ground-based primary radar equipment Multilateration Equipment Surveillances Services using ADS-B SURV Generic Data Process & Principles Integrity - Data Origination Integrity - Data Publication AIS Systems & Procedures For the use of MET info MET CLASS II Candidate CSs (started in 2007)

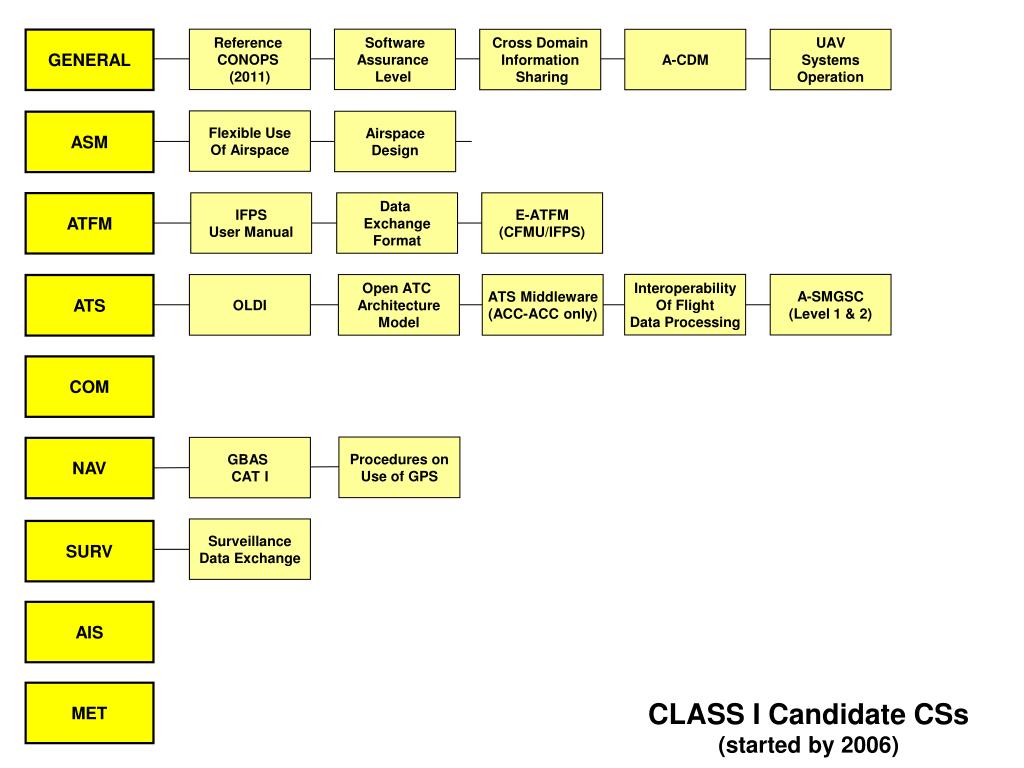

  10. Reference CONOPS (2011) Software Assurance Level Cross Domain Information Sharing A-CDM UAV Systems Operation GENERAL Flexible Use Of Airspace Airspace Design ASM IFPS User Manual Data Exchange Format E-ATFM (CFMU/IFPS) ATFM Interoperability Of Flight Data Processing A-SMGSC (Level 1 & 2) OLDI Open ATC Architecture Model ATS Middleware (ACC-ACC only) ATS COM Procedures on Use of GPS GBAS CAT I NAV Surveillance Data Exchange SURV AIS MET CLASS I Candidate CSs (started by 2006)

  11. Class IVCandidate CSs

  12. Class IIICandidate CSs (to be developed from 2008 onwards)

  13. Class IICandidate CSs (to be developed from 2007 onwards)

  14. AIR TRAFFIC SERVICES CS on DL Services over ATN in Continental airspace CS on DL Services over FANS in Continental airspace CS on DL Services over ACARS in Continental airspace • Support on-going deployment of data link in Europe • IR on data link will define • Set of DL services, communication infrastructure(s), high-level interoperability & certification requirements • CSs selected as Means of Compliance of the IR on data link • Ensure operational and technical interoperability • Contain functional, technical, performance, safety low-level requirements • Based on EUROCAE documents (ED120, ED110, ED100)

  15. AIR TRAFFIC SERVICES CS on Arrival Management CS on Departure Management CS on A-SMGSC (Level 3 & higher) • CSs supporting Essential Requirements • Seamless operation,support of new concept, safety and environmental constraints • Prepare future implementation • AMAN/DMAN (2005-2007), A-SMGCS L3 & L4 (2006-2009) • CSs • Definition of common terminology, functions and rules of use • Based on EUROCONTROL documents (OCD, ORD) and EUROCAE documents (MOPS) • Possible merge with A-CDM CS

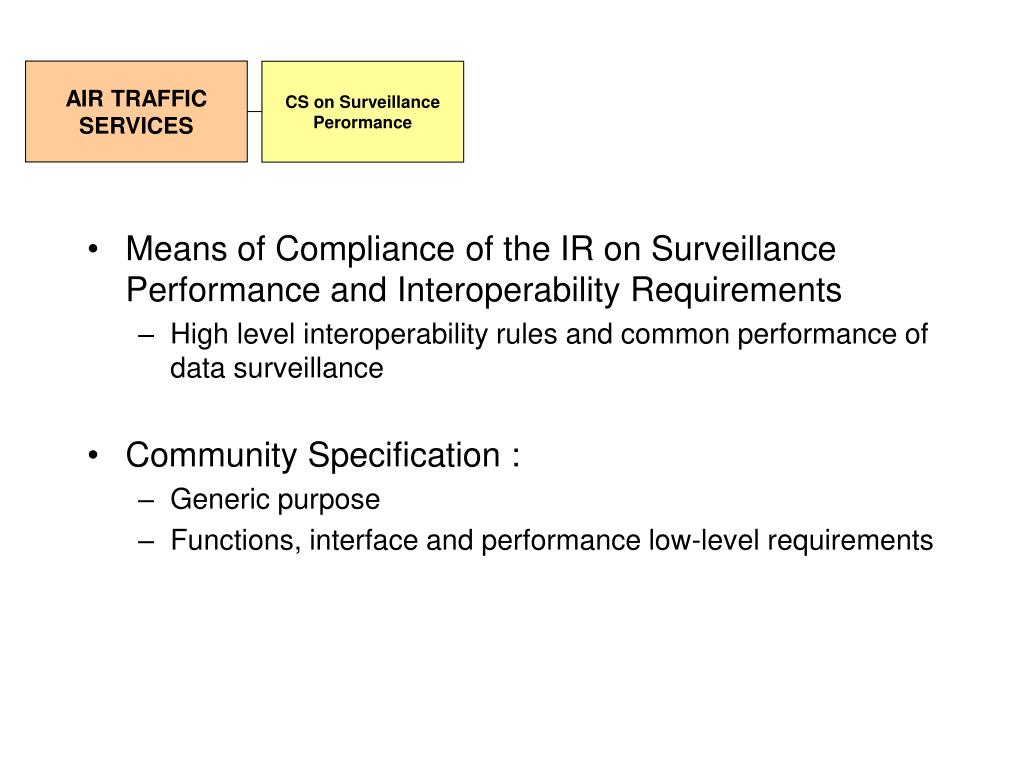

  16. AIR TRAFFIC SERVICES CS on Surveillance Perormance • Means of Compliance of the IR on Surveillance Performance and Interoperability Requirements • High level interoperability rules and common performance of data surveillance • Community Specification : • Generic purpose • Functions, interface and performance low-level requirements

  17. COM CS on Use of Telephone CS on ATM Voice Communications over IP (ground) CS on ATS Message Handling System (AMHS) Profile • CS on AMHS • Define the functional AMHS profile in force in Europe : list of functions/options + TCP/IP internetworking • Use SPACE project deliverables • CS on Telephone • Recognize analogue ATS R2 and digital ATS QSIG standards under the European Regulation • Support R2 to QSIG transition • CS on ATM Voice Communication Over IP • Prepare deployment (2010) • Use EUROCAE-67 specifications (2006/2007): ops/tech specifications, transition, qualification tests

  18. Class ICandidate CSs (to be developed from March 2006 onwards)

  19. GENERAL CONOPS (2011) Cross Domain Info Sharing Software Assurance Level • Not directly related to a specific IR • CONOPS 2011 CSs for elevating the concept of operation at a formal status under the SES regulation • will be part of the reference model for detailed CSs • Based on EUROCONTROL ConOps Volume II • Need for a CS or other options to be discussed? • Cross Domain info sharing • Provide a common model and terminology for CSs which rely on data exchange (e.g. AMAN, DMAN, CDM, ...) • Based on SWIM • Need for a CS or other options to be discussed? • Software Assurance Level • Transposition of EUROCONTROL & EUROCAE doc (e.g. ESARR, DO78A, ...) to be recognised under Interoperability Regulation

  20. AIRSPACE MANAGEMENT UAV Systems Operation Flexible Use Of Airspace Airspace Design • Flexible Use of Airspace • to share airspace between civil and military based on user requirements • Transposition of EUROCONTROL doc • Airspace design • Transposition of EUROCONTROL doc • UAV system operation • Concept of operation of UAVs as part of the ATM • (What should be included in such a standard?)

  21. AIR TRAFFIC FLOW MGNT IFPS User Manual A-CDM Data Exchange E-ATFM • IFPS User Manual • provide the users with access manual to submit, accept, modify and distribute flight plans • Transposition of EUROCONTROL IFPS User Manual status under formal SES regulation • Airport CDM • For Airport partners to receive relevant info on time • Standards available for industry to develop CDM products • Data Exchange • Transposition of EUROCONTROL doc under formal SES regulation to adopt ADEXP format for data exchange • European ATFM • Transposition of EUROCONTROL under formal SES regulation • For ANSPs for verification of system under SES regulation

More Related
