occupational ergonomic hazards of minimal access surgery

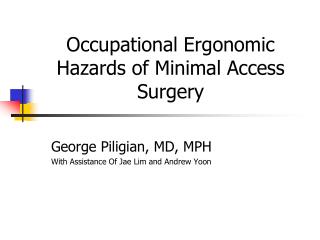

Occupational Ergonomic Hazards of Minimal Access Surgery

George Piligian, MD, MPH

With Assistance Of Jae Lim and Andrew Yoon

surgery
Surgery
  • The practice of treating disease or illness through manual or operative means
current categorization of surgical performance methods
Current Categorization of Surgical Performance Methods
  • Open Surgery
  • Minimally Invasive Surgery- Laparoscopy- NOTES- Robot Assisted
open surgery

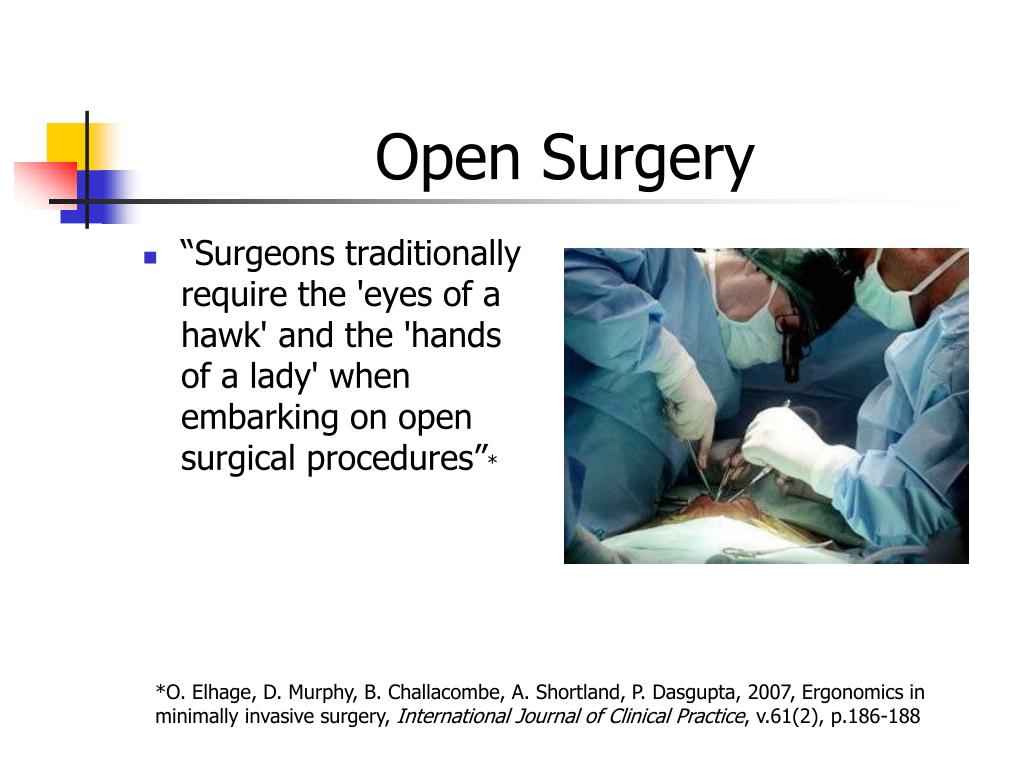

Open Surgery
  • “Surgeons traditionally require the 'eyes of a hawk' and the 'hands of a lady' when embarking on open surgical procedures”*

*O. Elhage, D. Murphy, B. Challacombe, A. Shortland, P. Dasgupta, 2007, Ergonomics in minimally invasive surgery, International Journal of Clinical Practice, v.61(2), p.186-188

minimally invasive surgery laparoscopy

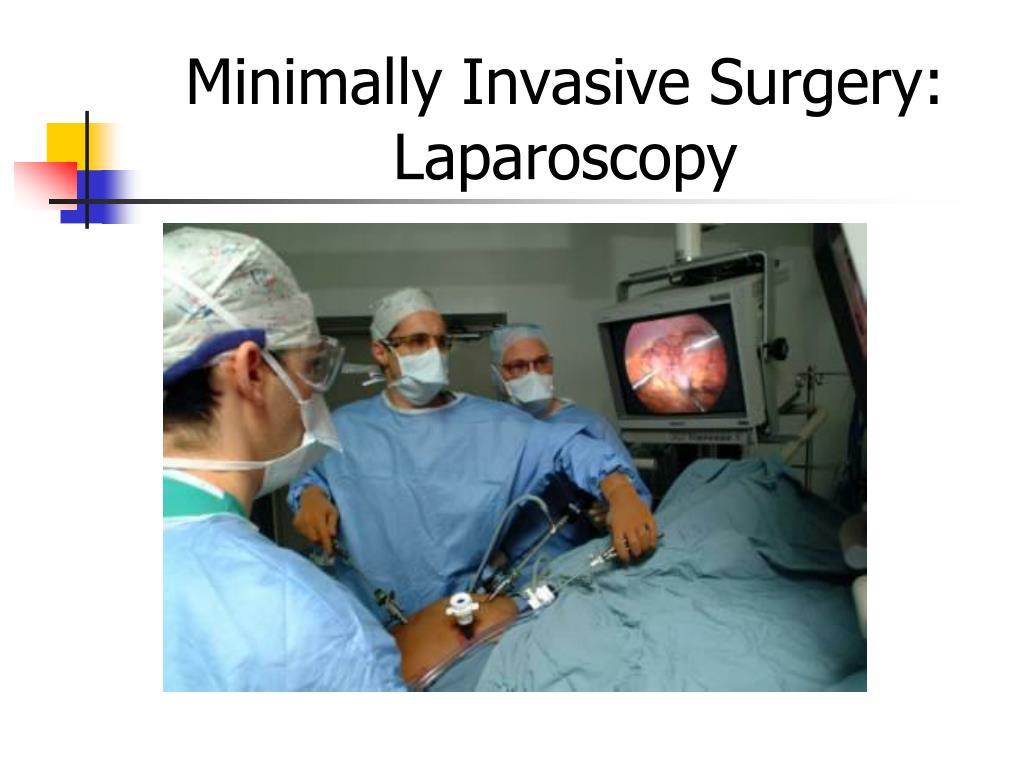

Minimally Invasive Surgery: Laparoscopy
  • Surgical technique in which operations in the abdomen are performed through small incisions (usually 0.5-1.5cm) as compared to larger incisions needed in traditional surgical procedures
minimally invasive surgery notes
Natural Orifice Transluminal Endoscopic Surgery

A new technique that uses natural orifices (e.g., the mouth) as access points and employs both endoscopic and laparoscopic methods with the endoscope as the main platform

Minimally Invasive Surgery: NOTES
minimally invasive surgery robot assisted
Surgery that involves the use of a robot under the direction and guidance of a surgeon*Minimally Invasive Surgery: Robot Assisted

*http://www.surgeryencyclopedia.com/Pa-St/Robot-Assisted-Surgery.html

ergonomics
Ergonomics
  • The concept of designing the working environment to fit the worker*
  • Physicians are starting to take these factors into account when determining an operative approach**

*Nicholas Stylopoulos, MD, David Rattner, MD, 2003, Robotics and ergonomics, Surgical Clinics of North America, v.83(6), p. 1331-1337

**Aditya Bagrodia, Jay D. Raman, 2009, Ergonomics Considerations of Radical Prostatectomy: Physician Perspective of Open, Laparoscopic, and Robot-Assisted Techniques, Journal of Endourology, v.23(4), p. 627-633

ergonomics of open surgery

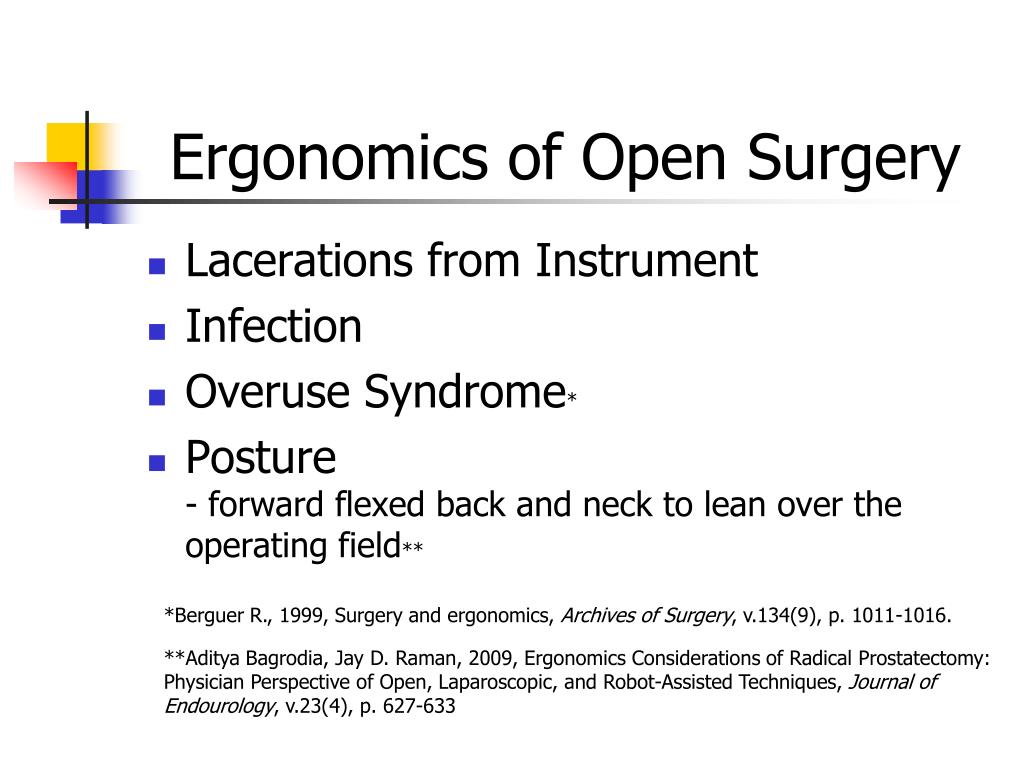

Ergonomics of Open Surgery
  • Lacerations from Instrument
  • Infection
  • Overuse Syndrome*
  • Posture - forward flexed back and neck to lean over the operating field**

*Berguer R., 1999, Surgery and ergonomics, Archives of Surgery, v.134(9), p. 1011-1016.

**Aditya Bagrodia, Jay D. Raman, 2009, Ergonomics Considerations of Radical Prostatectomy: Physician Perspective of Open, Laparoscopic, and Robot-Assisted Techniques, Journal of Endourology, v.23(4), p. 627-633

ergonomics of laparoscopy increased time fatigue
Ergonomics of LaparoscopyIncreased Time/Fatigue
  • Length of instruments- Increased Tremor- Only about 4 Degrees of Freedom compared to human hands that provide 36 DOF and mechanical redundancy
  • Spatial disorientation/ instrument movement- Fulcrum Effect
  • Greater force required to grip instruments
  • Only one size of instruments often available
ergonomics of laparoscopy increased time fatigue14
Ergonomics of LaparoscopyIncreased Time/Fatigue*
  • Reduced ability to sense tissue characteristics
  • Surgical Fatigue Syndrome - A four hour performance “wall” that is manifested by mental exhaustion, irritability, impaired surgical judgment, and reduced manual dexterity
  • Visual fatigue - long term effect is unknown
  • Possibly significant cardiovascular stress

*D. A. G. Reyes, B. Tang, A. Cuschieri, 2006, Minimal access surgery (MAS)-related surgeon morbidity syndromes, Surgical Endoscopy, v.20(1), p. 1-13

ergonomics of laparoscopy posture
Ergonomics of LaparoscopyPosture*
  • Overhead or side placement of monitor- Ideal placement is to the front, near the hands
  • There is an increase in the amount of equipment, which leads to a need to maneuver around them
  • Stiff upright with little movement- Less opportunity to shift weight
  • Requires raised arms placed in awkward positions for extended periods of time

*D. A. G. Reyes, B. Tang, A. Cuschieri, 2006, Minimal access surgery (MAS)-related surgeon morbidity syndromes, Surgical Endoscopy, v.20(1), p. 1-13

Berguer R., 1999, Surgery and ergonomics, Archives of Surgery, v.134(9), p. 1011-1016

ergonomics of notes
Ergonomics Of NOTES
  • No tactile response
  • Visual fatigue
  • Constant holding of the endoscope induces fatigue
  • Endoscopy can lead to musculoskeletal pain in fingers, wrists and shoulders*

Young Hye Byun, Jun Haeng Lee, Moon Kyung Park, 2008, Procedure-related musculoskeletal symptoms in gastrointestinal endoscopists in Korea, World J Gastroenterol, v.14(27)

ergonomics of robotic assisted surgery
Ergonomics Of Robotic Assisted Surgery
  • Effects of flexed neck, fixed seated position are unclear*
  • Fatigue from the use of polarizing head gear in some models**
  • Provides no tactile response
  • High cost of production and maintenance

*Aditya Bagrodia, Jay D. Raman, 2009, Ergonomics Considerations of Radical Prostatectomy: Physician Perspective of Open, Laparoscopic, and Robot-Assisted Techniques, Journal of Endourology, v.23(4), p. 627-633

**D. A. G. Reyes, B. Tang, A. Cuschieri, 2006, Minimal access surgery (MAS)-related surgeon morbidity syndromes, Surgical Endoscopy, v.20(1), p. 1-13

prostatectomy a case study

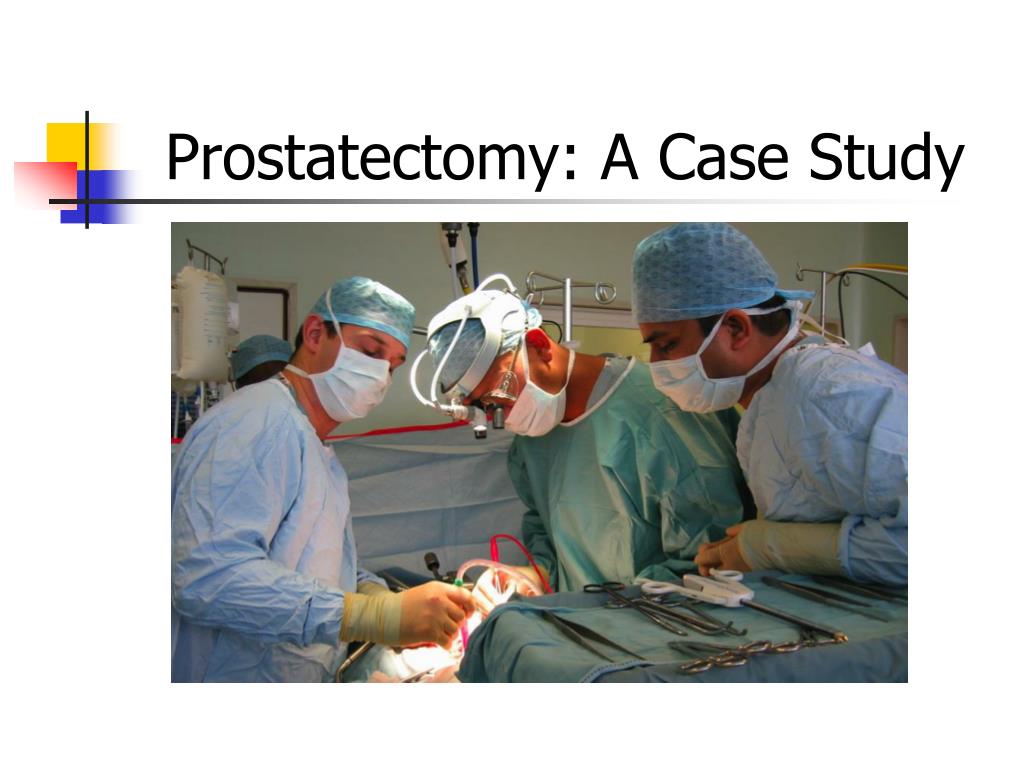

Prostatectomy: A Case Study*
  • Prostatectomy is a relatively difficult open surgical procedure as regards ergonomics of the surgeon
  • For open prostate surgery, 50% of physicians reported pain, with neck pain being the most common, followed by back pain.
  • In comparison, for general open surgery, 30% of surgeons report pain, with pain being more common in the shoulders and lower back than the neck

*Aditya Bagrodia, Jay D. Raman, 2009, Ergonomics Considerations of Radical Prostatectomy: Physician Perspective of Open, Laparoscopic, and Robot-Assisted Techniques, Journal of Endourology, v.23(4), p. 627-633

prostatectomy a case study20

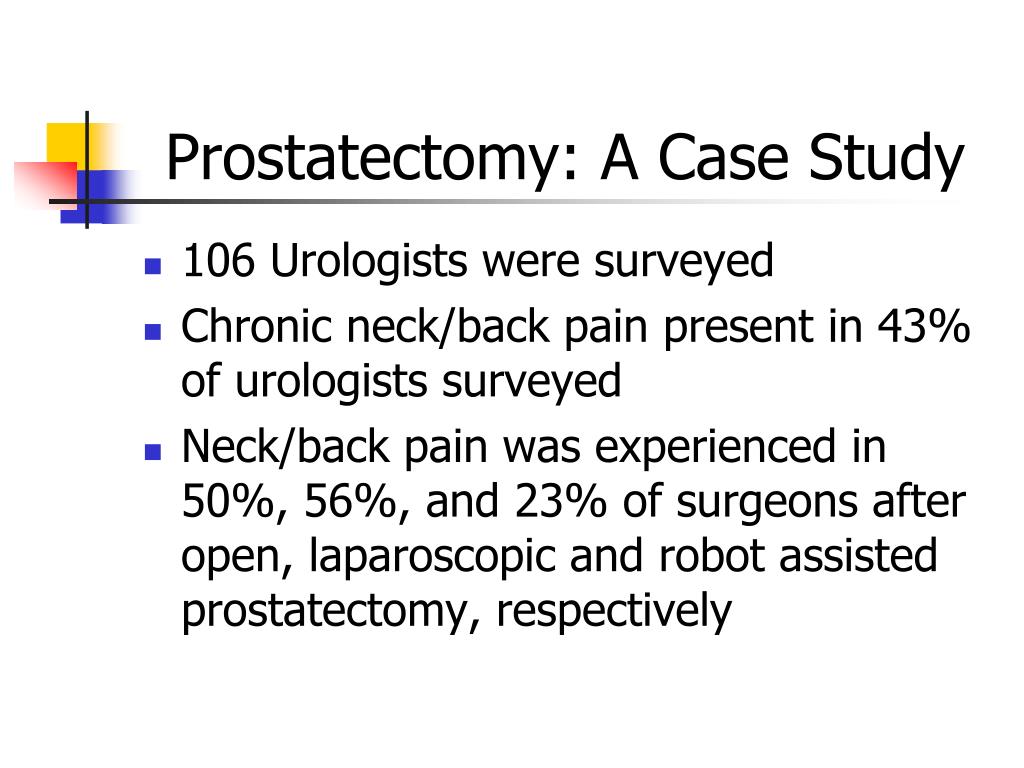

Prostatectomy: A Case Study
  • 106 Urologists were surveyed
  • Chronic neck/back pain present in 43% of urologists surveyed
  • Neck/back pain was experienced in 50%, 56%, and 23% of surgeons after open, laparoscopic and robot assisted prostatectomy, respectively
recommendations for the future
Shared surgical care and rest breaks to help avoid Surgical Fatigue Syndrome

Exoskeletal Support*

Recommendations For The Future

*D. A. G. Reyes, B. Tang, A. Cuschieri, 2006, Minimal access surgery (MAS)-related surgeon morbidity syndromes, Surgical Endoscopy, v.20(1), p. 1-13

the ever changing future

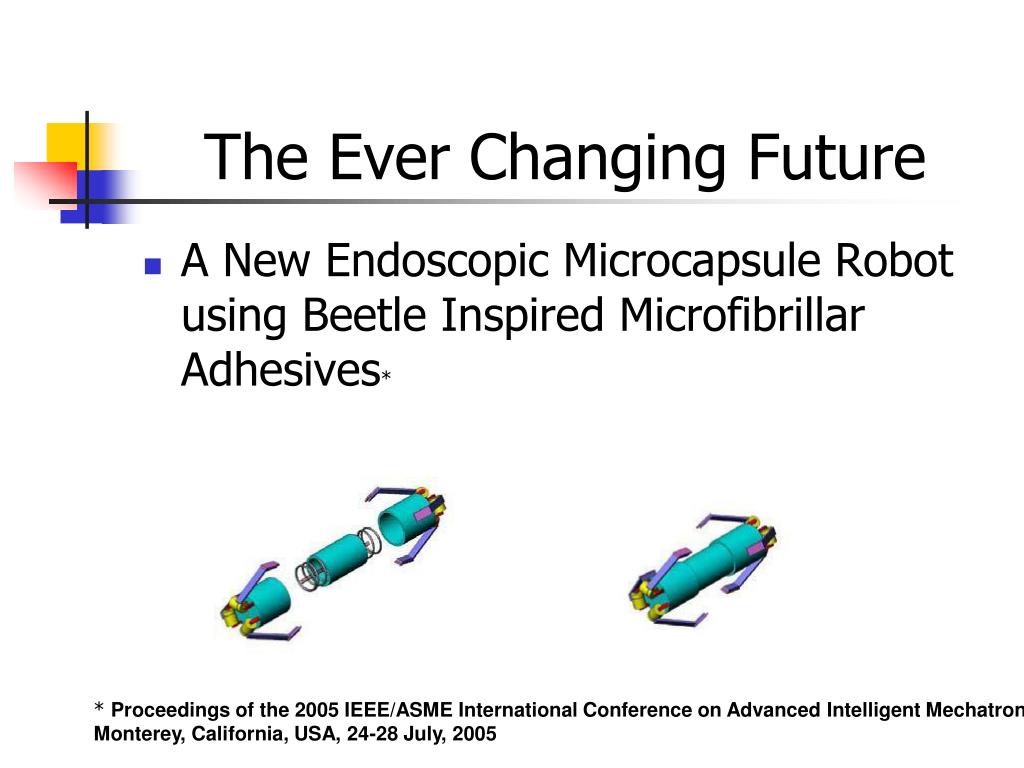

The Ever Changing Future
  • A New Endoscopic Microcapsule Robot using Beetle Inspired Microfibrillar Adhesives*

* Proceedings of the 2005 IEEE/ASME International Conference on Advanced Intelligent Mechatronics

Monterey, California, USA, 24-28 July, 2005

the ever changing future23
The Ever Changing Future
  • Nanobots
  • Operated by Clinician Engineers or Surgeons?
