  1. QR Codes

  2. 1D Barcodes Common Types CODE 39 UPC EAN13 JAN 13 CODE 128 Two-out-of-five code

  3. Code 39 Data

  4. PDF 417 - 2D or not 2D

  5. 2D Barcodes Common Types Data Matrix Maxicode Aztec Code QR Code Microsoft TAG ShotCode ColorCode And there are more…

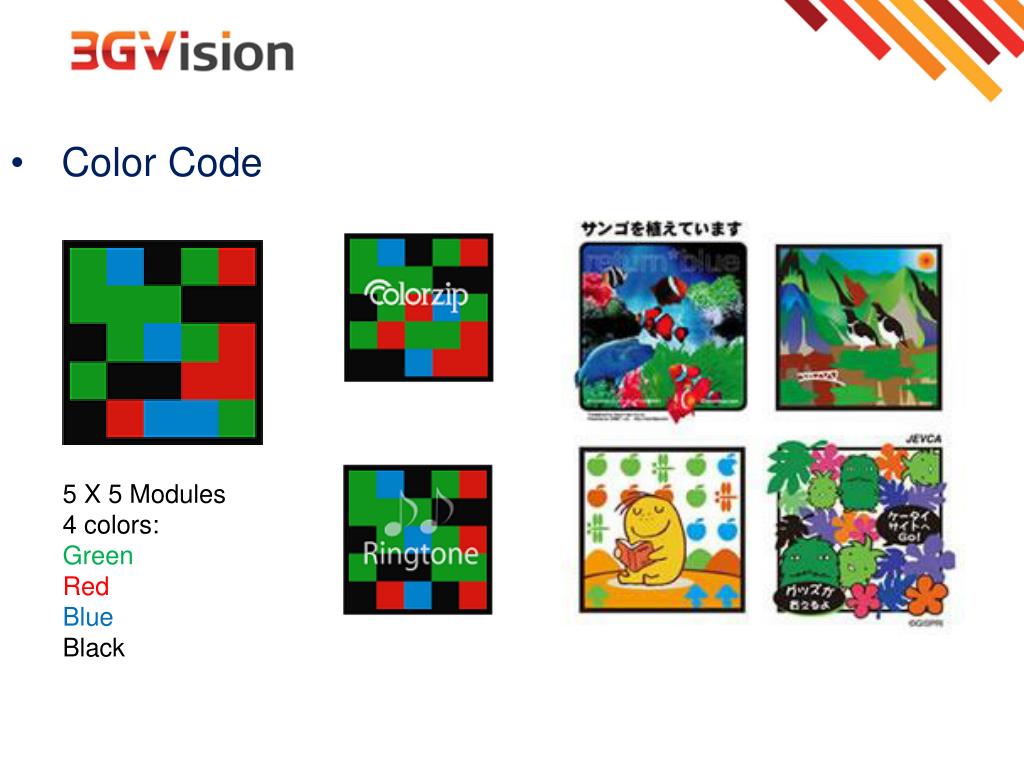

  6. Color Code 5 X 5 Modules 4 colors: Green Red Blue Black

  7. 2D Barcodes data 2D Barcode is 2 dimensional code contains textual data 3GVision's i-nigma is the industry's most comprehensive end-to-end 1D/2D mobile barcode solution incorporating a highly intuitive and simple barcode-creation and powerful advertising and marketing campaign management platform. The solution offers advanced monitoring and reporting tools to improve campaign performance, from planning through to execution and monitoring the success of a mobile barcode campaign. www.google.com http://www.youtube.com/watch?v=AjJ6eZjB4Lw Eran Porat Tel: +972 52 8535958 Email:eran@3gvision.com

  8. Where can I see those barcodes ? 1 Magazines

  9. Where can I see those barcodes ? 2 Products

  10. Where can I see those barcodes ? 3 Buildings

  11. Where can I see those barcodes ?

  12. Modes • numeric 0,1..9 • Alpha numeric 0 -9, A-Z space, $ % * +-. / : ); • Kanji • 8 Bit TechnicalDescription in a Nutshell T e x t 01010100 01100101 01111000 01110100 0 1 2 3 4 5 6 7 Data Patterns Error Correction

  13. T T 01010100 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 Data Patterns Error Correction

  14. T T 01010100 0 1 2 3 4 5 6 7 XOR =

  15. QR Levels

  16. Error Correction levels • (L) Low 7% • (M) Medium 15% • (Q) Quality 25% • (H) High 30%

  17. Designed QR Deleted information

  18. Designed QR

  19. ? Questions

  20. Thank You Eran Porat eran@3gvision.com
