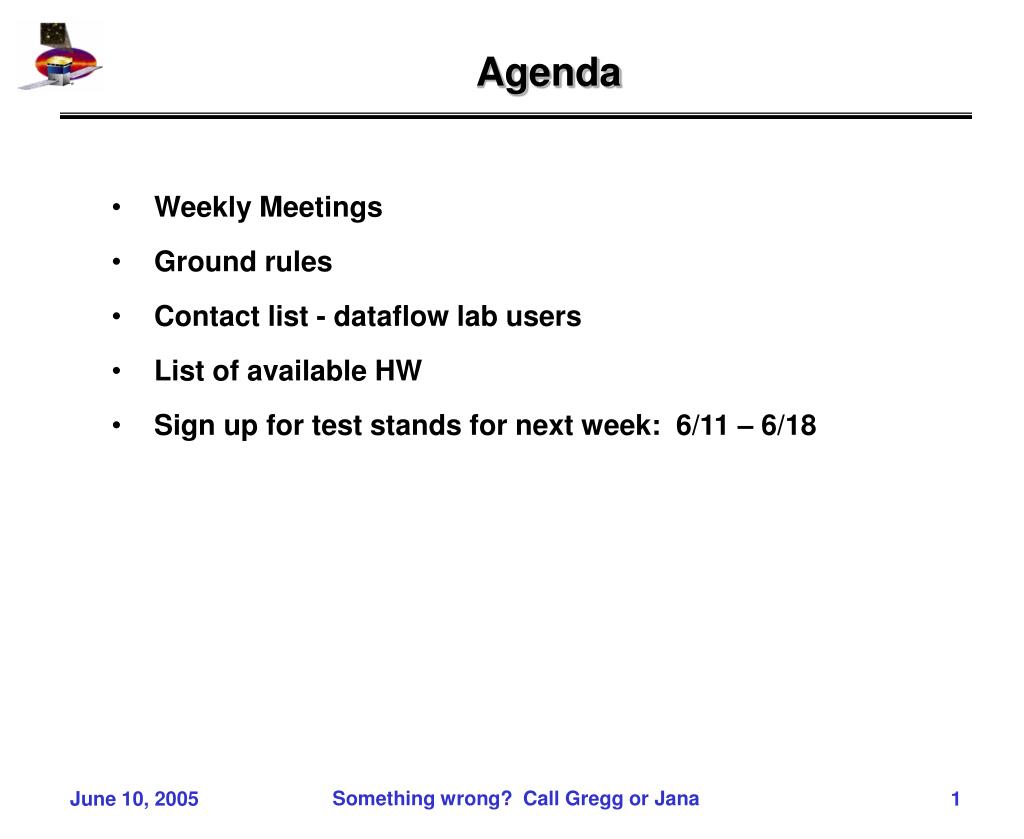

  1. Agenda • Weekly Meetings • Ground rules • Contact list - dataflow lab users • List of available HW • Sign up for test stands for next week: 6/11 – 6/18 Something wrong? Call Gregg or Jana

  2. Weekly meetings • Agenda for future (10-minute) meetings • Status update on previous week’s activities • Set priorities for coming week • Demos • High visibility projects • Development and test • Other users: • FSW, FSW test, ELX test, VSC development, I&T, ISOC, Thermal control system test, flight production • Request new HW configurations • Adding/Subtracting equipment from a test stand (see next slides) • Burning new PBC or VXW • Schedule HW in lab • Open Questions: • When to have this meeting in the future? • Suggestions for how to schedule? Something wrong? Call Gregg or Jana

  3. Guidelines • Be nice • Log off cleanly when done using test stand • Indicate on sign up sheet if you finish in less time than you signed up for • Do not schedule yourself for time you do not actually need • When in doubt (about anything), ask Gregg or Jana • In case of emergency • First, make sure you are safe • If life-threatening, call 9-911 then security x2551 • If safety allows, turn off equipment • Get Gregg (x5097, 650-498-9935) or Jana (x4956, 650-498-9935) • Go through contact list on door, if Gregg or Jana not available • Contact list is on both doors Jana Thayer x4956 (650) 498-9935 Mike Huffer x4269 (650) 498-8404 Gunther Haller x4257 (415) 548-0080 Something wrong? Call Gregg or Jana

  4. Contact List – page 1 Something wrong? Call Gregg or Jana

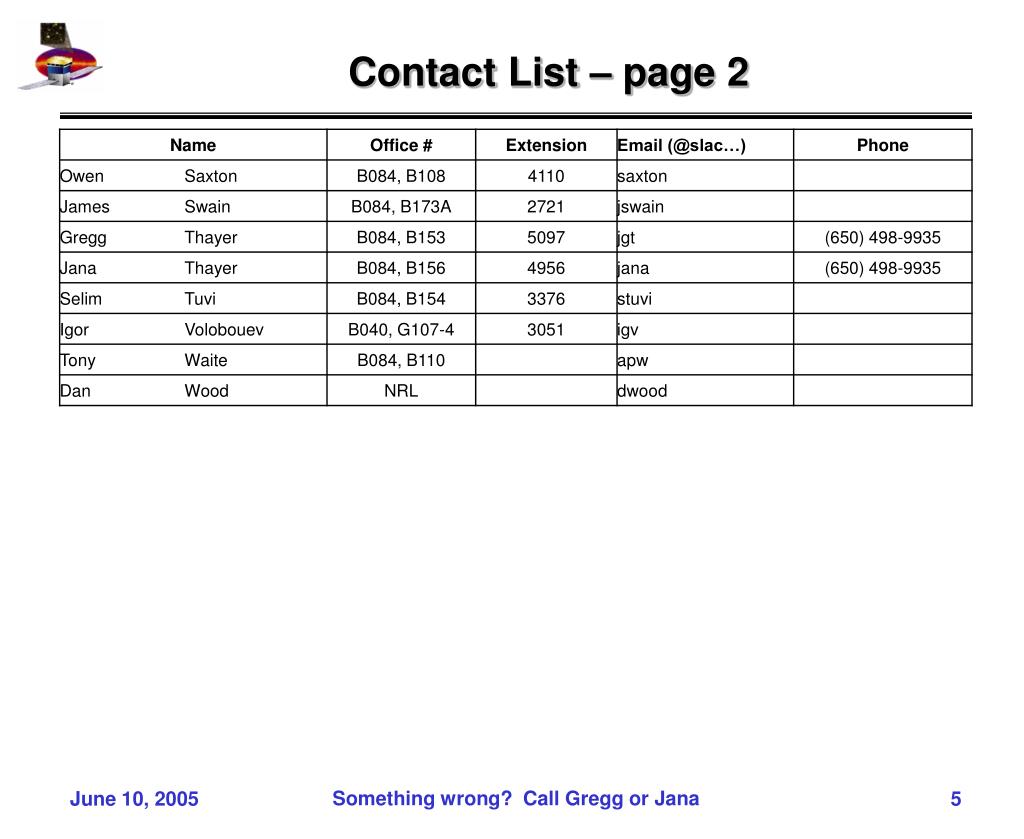

  5. Contact List – page 2 Something wrong? Call Gregg or Jana

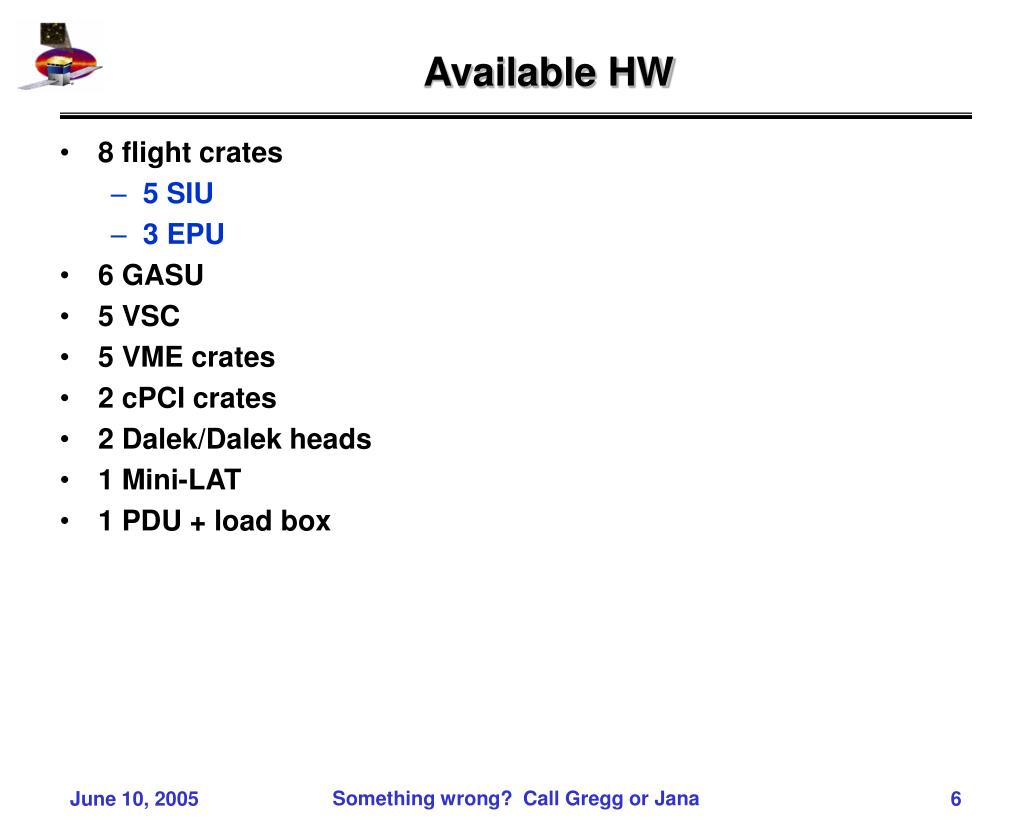

  6. Available HW • 8 flight crates • 5 SIU • 3 EPU • 6 GASU • 5 VSC • 5 VME crates • 2 cPCI crates • 2 Dalek/Dalek heads • 1 Mini-LAT • 1 PDU + load box Something wrong? Call Gregg or Jana

  7. Available test stands – Test bed • Test bed • VSC test stand 1 VSC w/ LCB, 1553, bus coupler (lat-elf18) 1 SIU flight crate (lat-elf17) 1 EPU flight crates (lat-elf27) 1 Front end simulator (FES) Notes: 1 VME crate w/ LCB will be added to be external crate VSC will lose its LCB and gain a second 1553 Something wrong? Call Gregg or Jana

  8. Available test stands – NE • NE Corner (Bench 1) • Multi Crate Setup 1 cPCI w/ LCB, 1553, Bus Coupler, (lat-elf13) 1 VSC w/ LCB, 1553, bus coupler 1 GASU (3-port) • TCT test stand 1 VME w/ LCB, 1553, bus coupler (lat-elf14) 1 PDU 1 GASU (2-port) 1 SIU flight crate (lat-elf28) Something wrong? Call Gregg or Jana

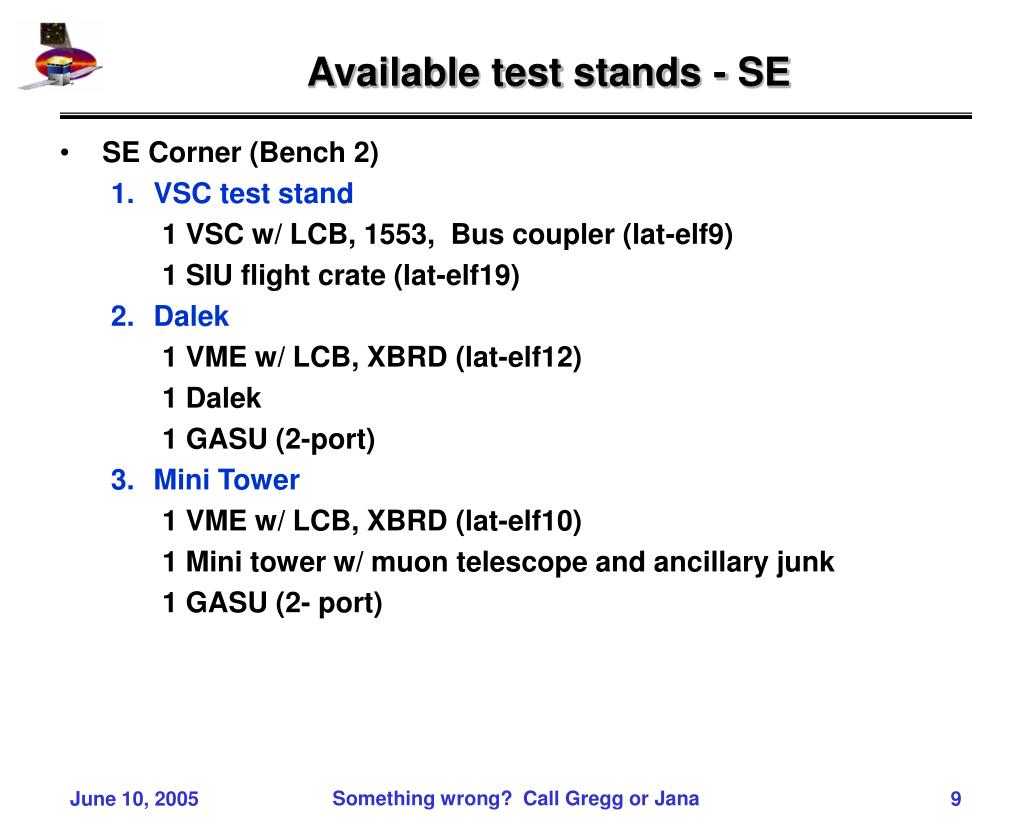

  9. Available test stands - SE • SE Corner (Bench 2) • VSC test stand 1 VSC w/ LCB, 1553, Bus coupler (lat-elf9) 1 SIU flight crate (lat-elf19) • Dalek 1 VME w/ LCB, XBRD (lat-elf12) 1 Dalek 1 GASU (2-port) • Mini Tower 1 VME w/ LCB, XBRD (lat-elf10) 1 Mini tower w/ muon telescope and ancillary junk 1 GASU (2- port) Something wrong? Call Gregg or Jana

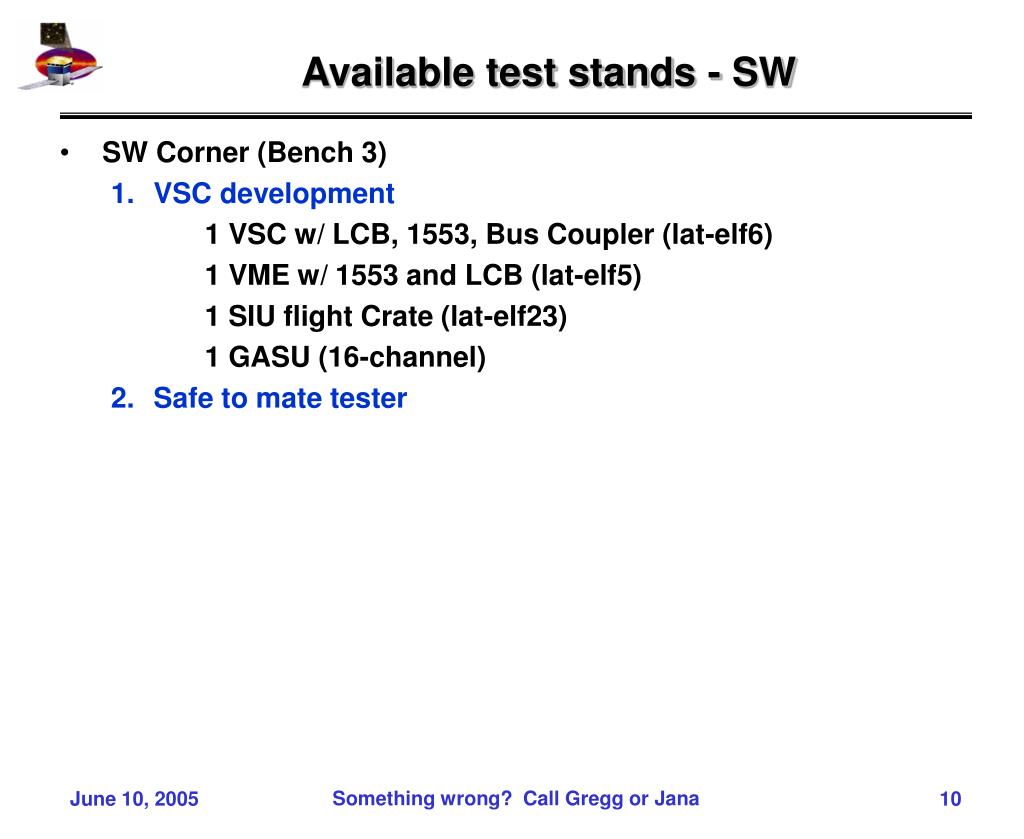

  10. Available test stands - SW • SW Corner (Bench 3) • VSC development 1 VSC w/ LCB, 1553, Bus Coupler (lat-elf6) 1 VME w/ 1553 and LCB (lat-elf5) 1 SIU flight Crate (lat-elf23) 1 GASU (16-channel) • Safe to mate tester Something wrong? Call Gregg or Jana

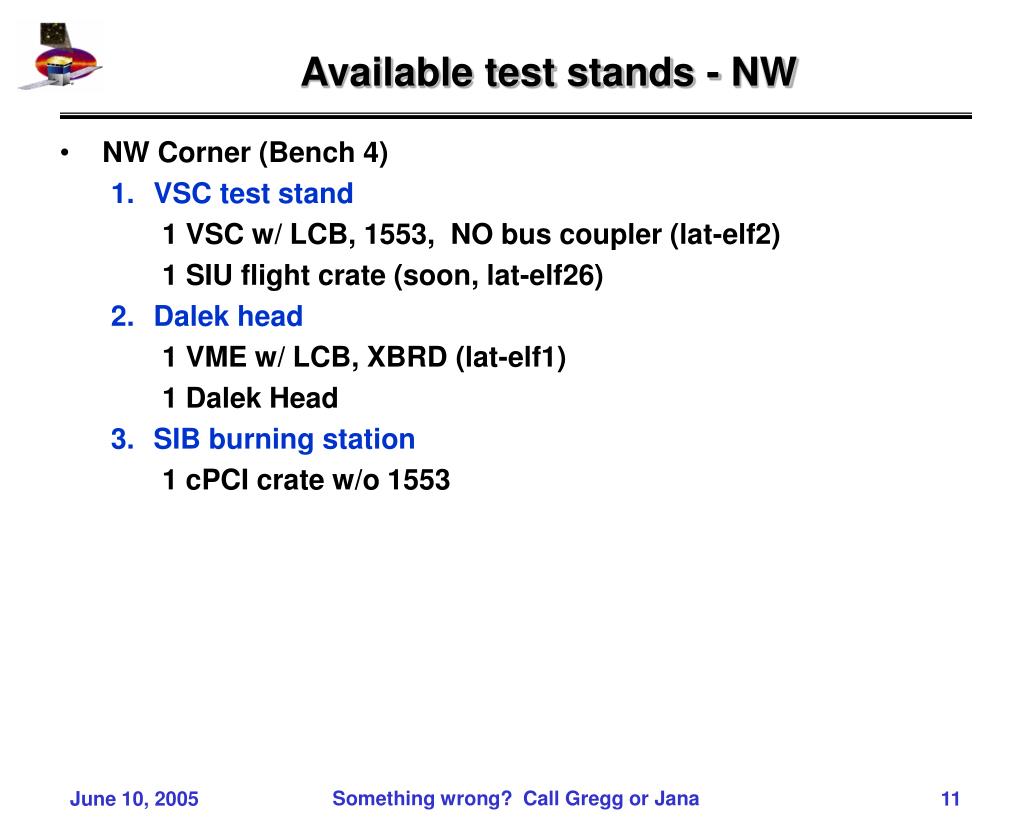

  11. Available test stands - NW • NW Corner (Bench 4) • VSC test stand 1 VSC w/ LCB, 1553, NO bus coupler (lat-elf2) 1 SIU flight crate (soon, lat-elf26) • Dalek head 1 VME w/ LCB, XBRD (lat-elf1) 1 Dalek Head • SIB burning station 1 cPCI crate w/o 1553 Something wrong? Call Gregg or Jana

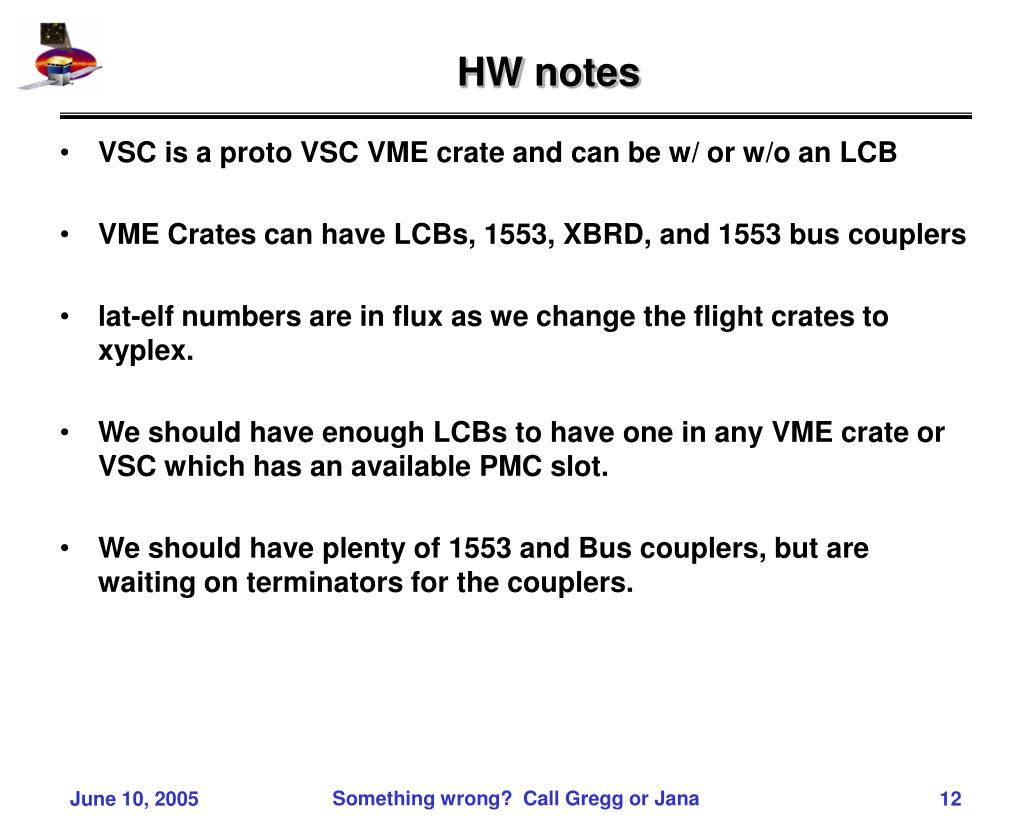

  12. HW notes • VSC is a proto VSC VME crate and can be w/ or w/o an LCB • VME Crates can have LCBs, 1553, XBRD, and 1553 bus couplers • lat-elf numbers are in flux as we change the flight crates to xyplex. • We should have enough LCBs to have one in any VME crate or VSC which has an available PMC slot. • We should have plenty of 1553 and Bus couplers, but are waiting on terminators for the couplers. Something wrong? Call Gregg or Jana

  13. Dataflow lab Something wrong? Call Gregg or Jana
