  1. Yong Kheng Goh, Anthony Holt University of Essex, U. K. Günther Haase, Tomas Landelius SMHI, Sweden Improving radar Doppler wind information extraction

  2. Radar Observations • Some radars used in operational forecasting only provide Reflectivity data. • Some others provide Radial Velocity data from Doppler measurements. They can suffer from velocity ambiguity due to folding. • In this study we also make use of the reasonably close proximity of two Doppler radars in the Po Valley in Italy.

  3. CARPE DIEM WP2 objectives • Improve the use of Doppler wind data via: 1) Super-observation product (SMHI) 2) Operational dual-Doppler wind retrieval (ESSEX)

  4. Dual Doppler Wind Retrieval Procedure: 1) Terrain analysis – establish areas amenable to dual-Doppler analysis. 2) Data gridding – interpolating polar data into Cartesian data. 3) Calculating wind field. 4) Verifying wind field (a) by re-constructing PPI and comparing with original PPI; (b) comparing “along-track” components.

  5. Italian Po Valley

  6. Problems with terrain and radar orientation

  7. Height Profile

  8. Italian terrain

  9. Location of Po Valley study region

  10. Data Gridding • Typical dimension: • 60 x 60 cells x 4 layers • 0.5 km x 0.5 km x 0.9 km • Search and average method. • Resource hungry process. • E.g. 60x60x50x50x4 = 36,000,000 times per data set.

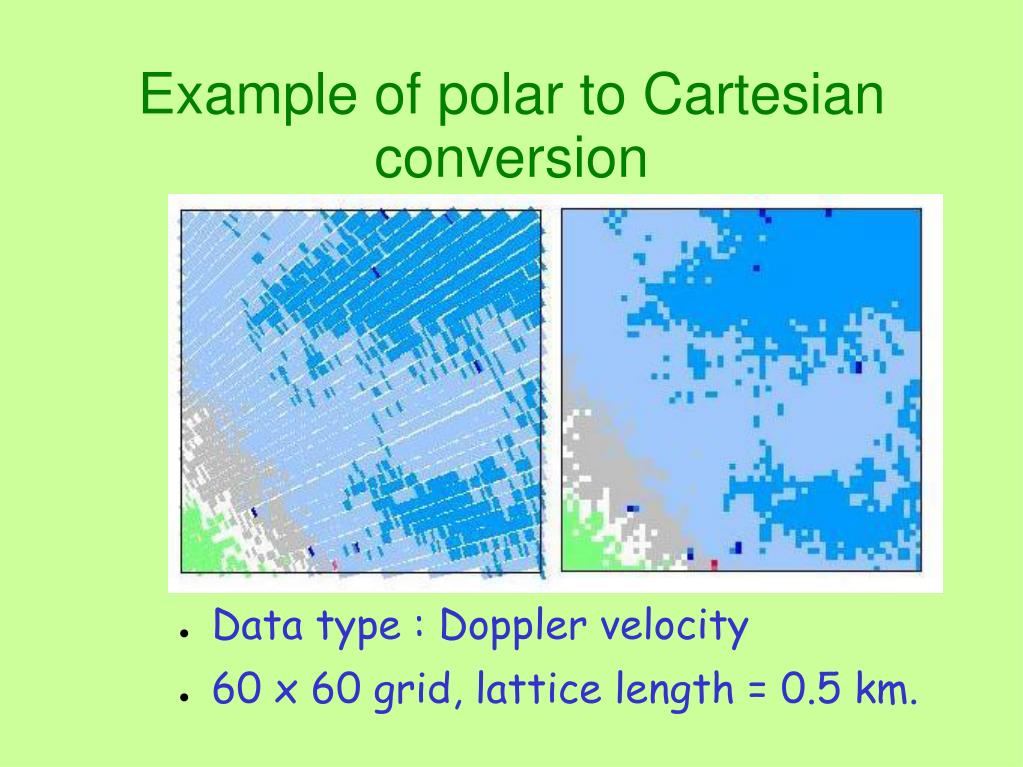

  11. Example of polar to Cartesian conversion • Data type : Doppler velocity • 60 x 60 grid, lattice length = 0.5 km.

  12. Calculating wind field • Fundamental equations:

  13. Numerical procedures • Iterative method: • horizontal components • vertical component • Boundary conditions: • zero velocity on ground • Typical convergent factor

  14. Comparison of reconstructed radial velocity field and radar measurement measurement Reconstructed

  15. “along-track” components v r1 r2 r12 v . (r12 + r2 – r1) = 0  = v(cal).r12+ vr2(obs) r2 – vr1(obs) r1 Typical relative deviation, /(v .r12) < ±1%

  16. WP2: de-aliasing & super-observations (SMHI) Quality control (e.g. de-aliasing) Radar winds VVP profilesand super-observations Assimilation into NWP models

  17. De-aliasing algorithm • Innovation: radar observations are mapped onto the surface of a torus (assuming linear winds) • Advantage: no need for additional wind data from other instruments or NWP models • Performance: accurate and robust tool for eliminating multiple folding • Assimilation: benefits through improved quality of wind profiles and super-observations

  18. Wind velocity profiles (VVP) Vantaa (Finland): 4 December 1999, 12:00 UTC

  19. Wind direction profiles (VVP) Vantaa (Finland): 4 December 1999, 12:00 UTC

  20. Super-observations towards away Vantaa (Finland): 4 December 1999, 12:00 UTC

  21. De-aliased Doppler measurements towards away Gattatico (Italy): 31 July 2003, 17:34 UTC

  22. Summary • Real time dual Doppler wind retrieval can provide useful 3D wind velocity field information to the weather radar operators. • De-aliased Doppler winds can be assimilated into NWP models through super-observations. • To-do: • Comparison with NWP model. • Triple Doppler wind retrieval.
