  1. Ordinary Least-Squares Ordinary Least-Squares

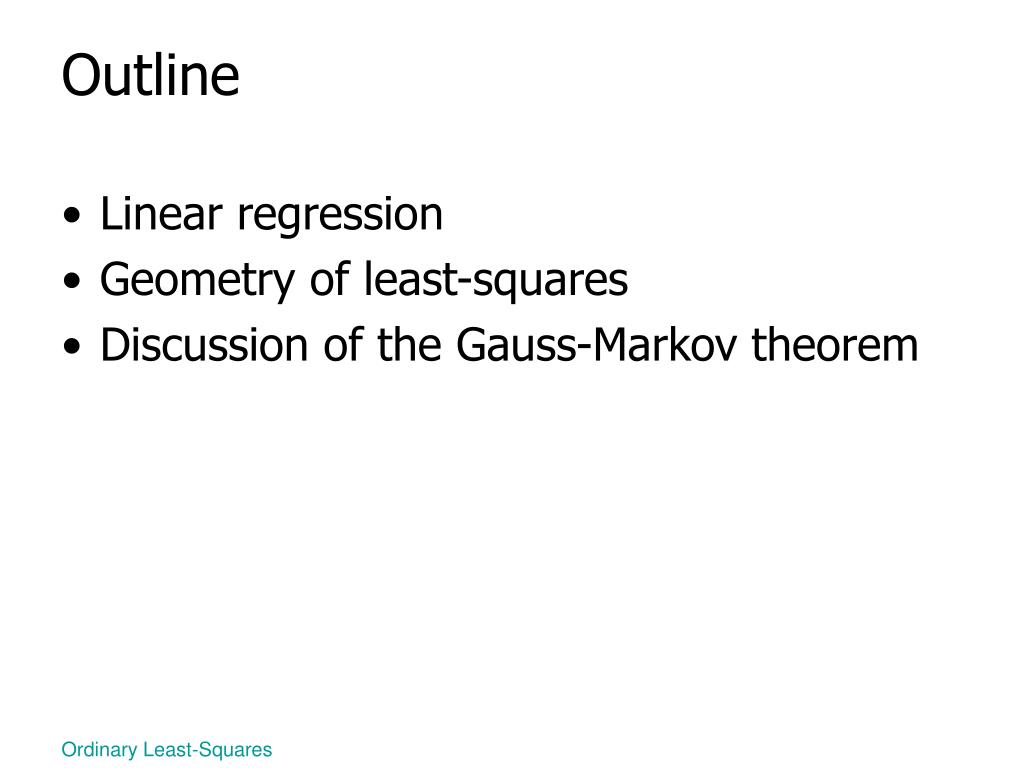

  2. Outline • Linear regression • Geometry of least-squares • Discussion of the Gauss-Markov theorem Ordinary Least-Squares

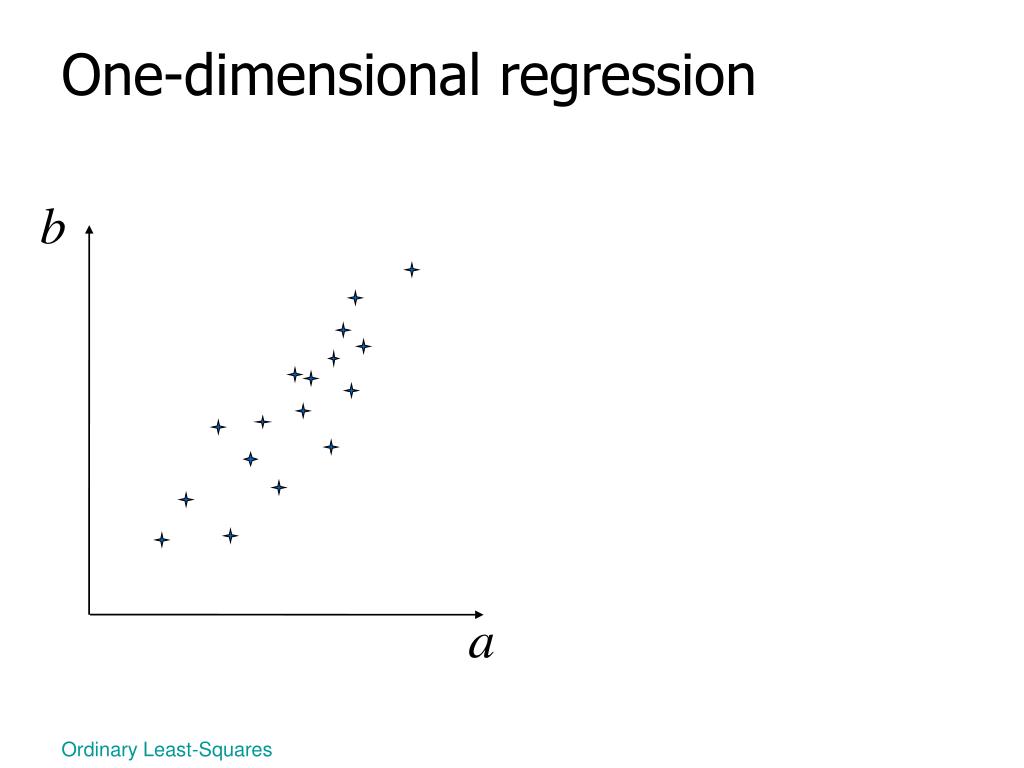

  3. One-dimensional regression Ordinary Least-Squares

  4. One-dimensional regression Find a line that represent the ”best” linear relationship: Ordinary Least-Squares

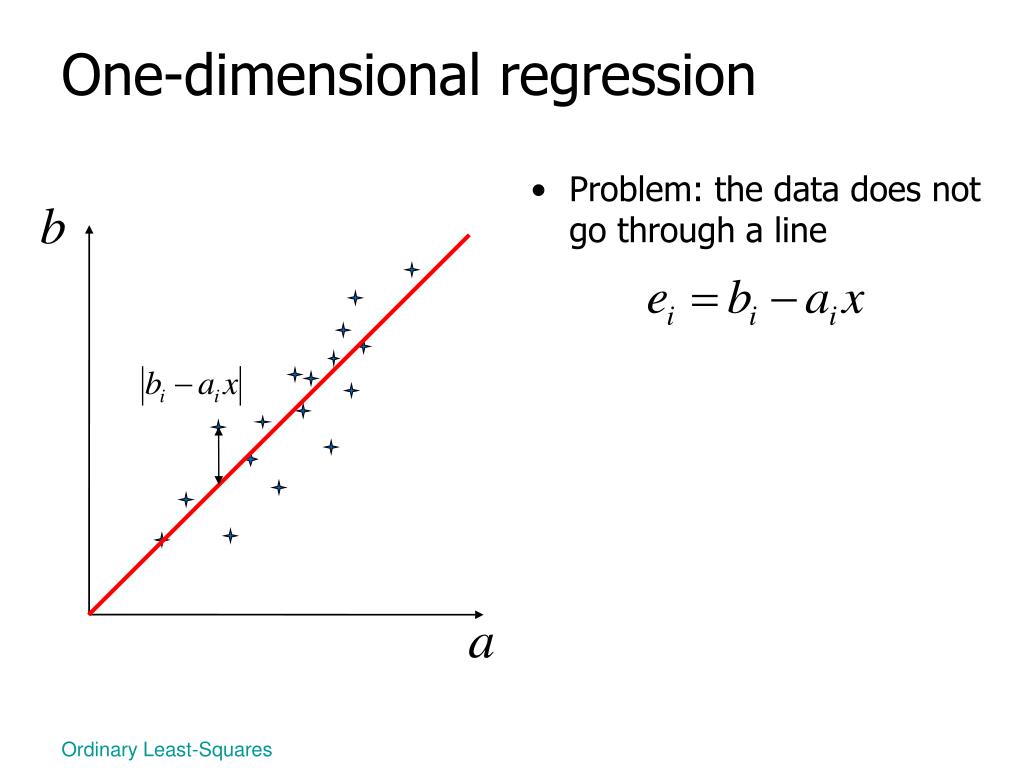

  5. One-dimensional regression • Problem: the data does not go through a line Ordinary Least-Squares

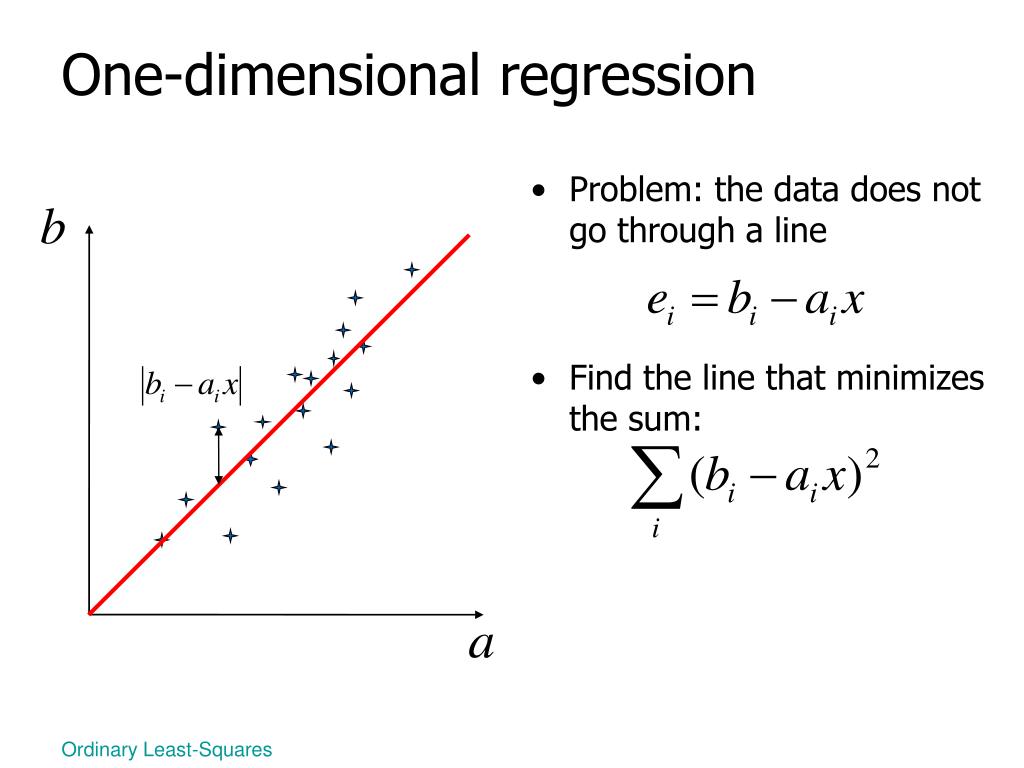

  6. One-dimensional regression • Problem: the data does not go through a line • Find the line that minimizes the sum: Ordinary Least-Squares

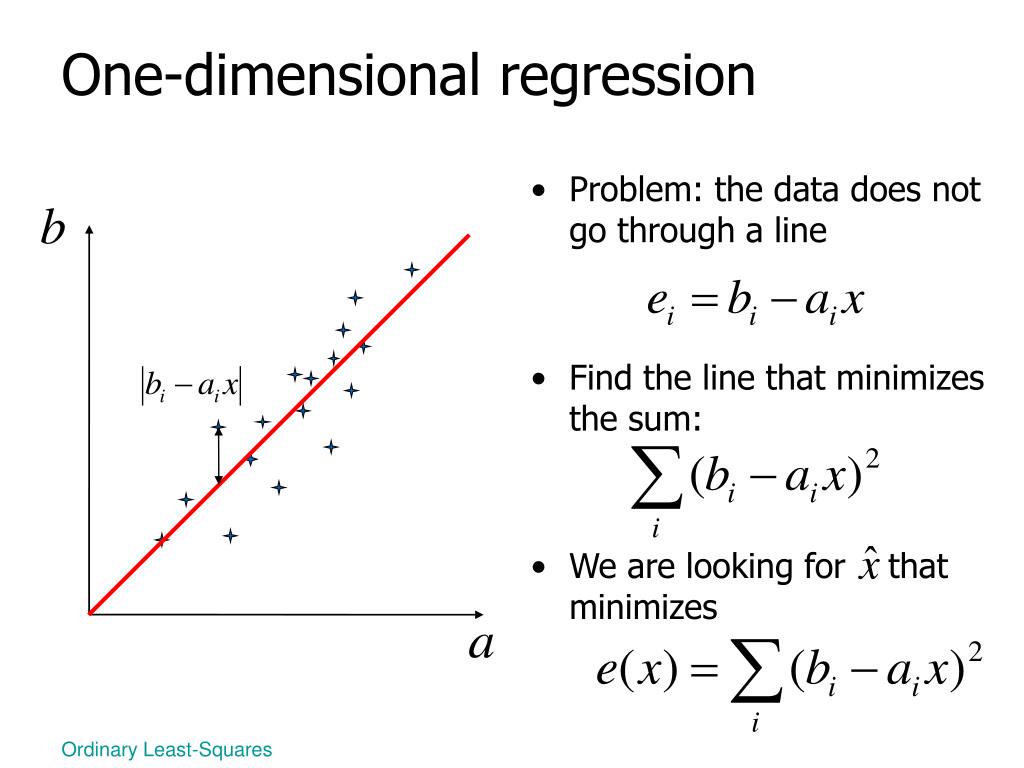

  7. One-dimensional regression • Problem: the data does not go through a line • Find the line that minimizes the sum: • We are looking for that minimizes Ordinary Least-Squares

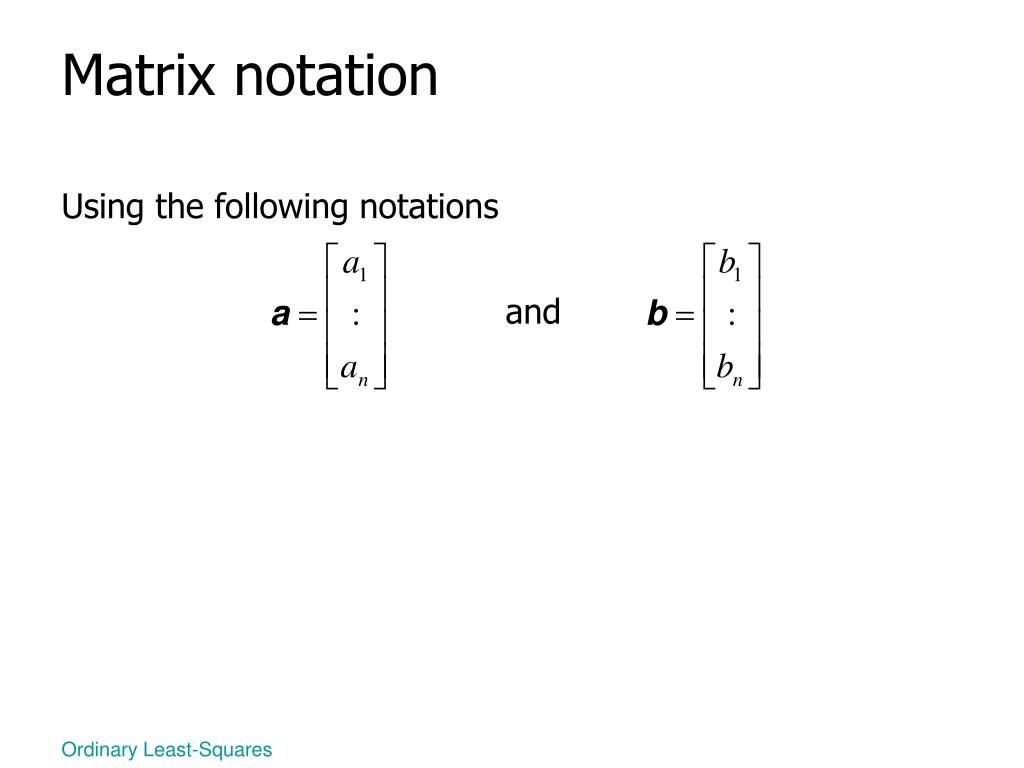

  8. Matrix notation Using the following notations and Ordinary Least-Squares

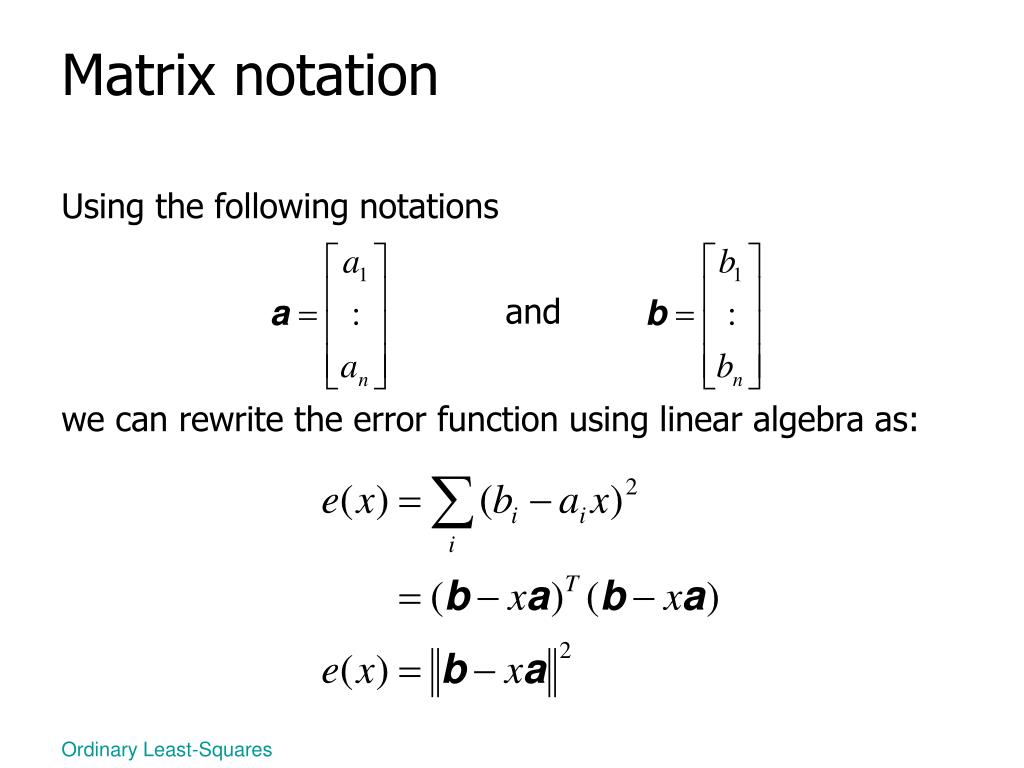

  9. Matrix notation Using the following notations and we can rewrite the error function using linear algebra as: Ordinary Least-Squares

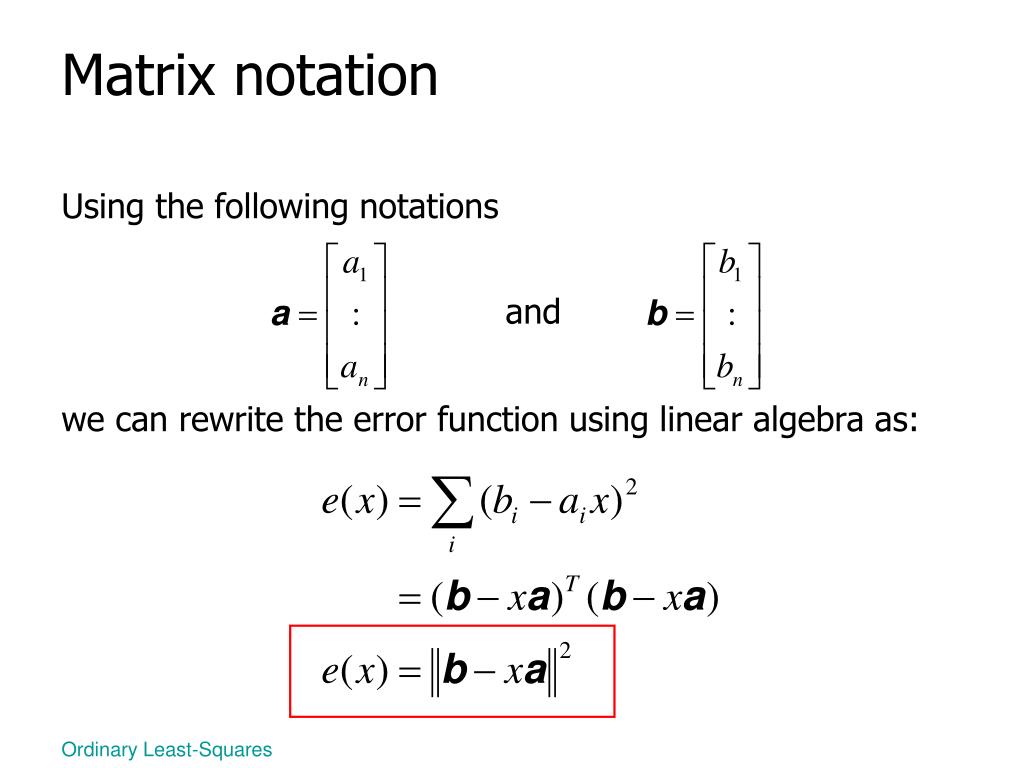

  10. Matrix notation Using the following notations and we can rewrite the error function using linear algebra as: Ordinary Least-Squares

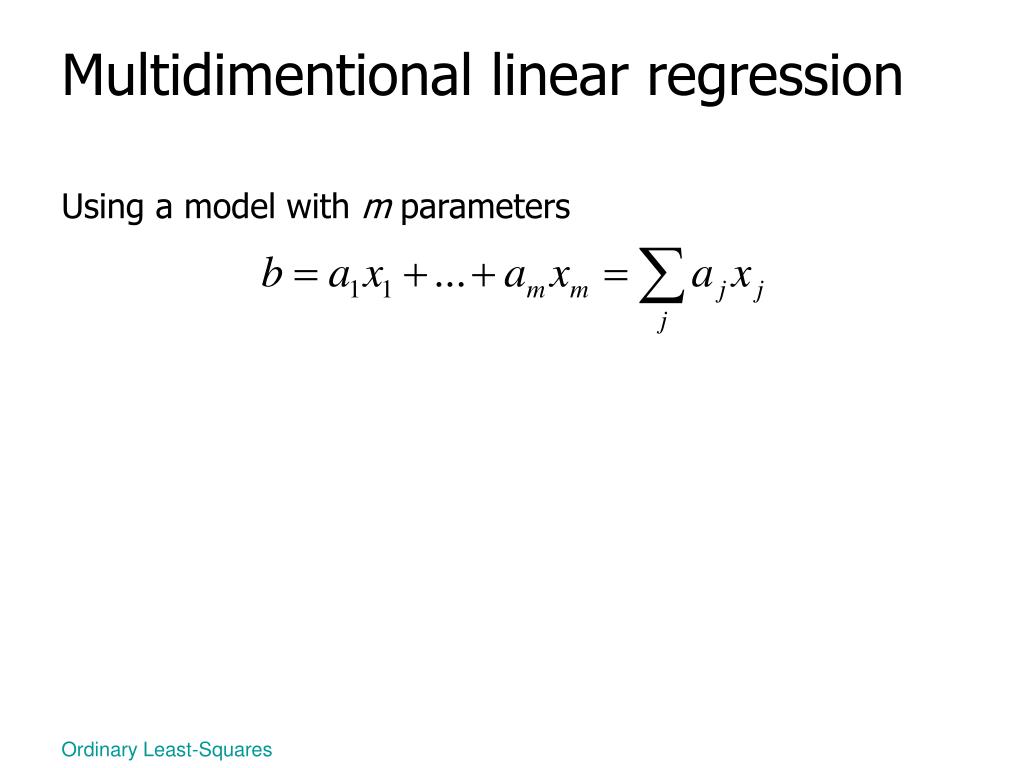

  11. Multidimentional linear regression Using a model with m parameters Ordinary Least-Squares

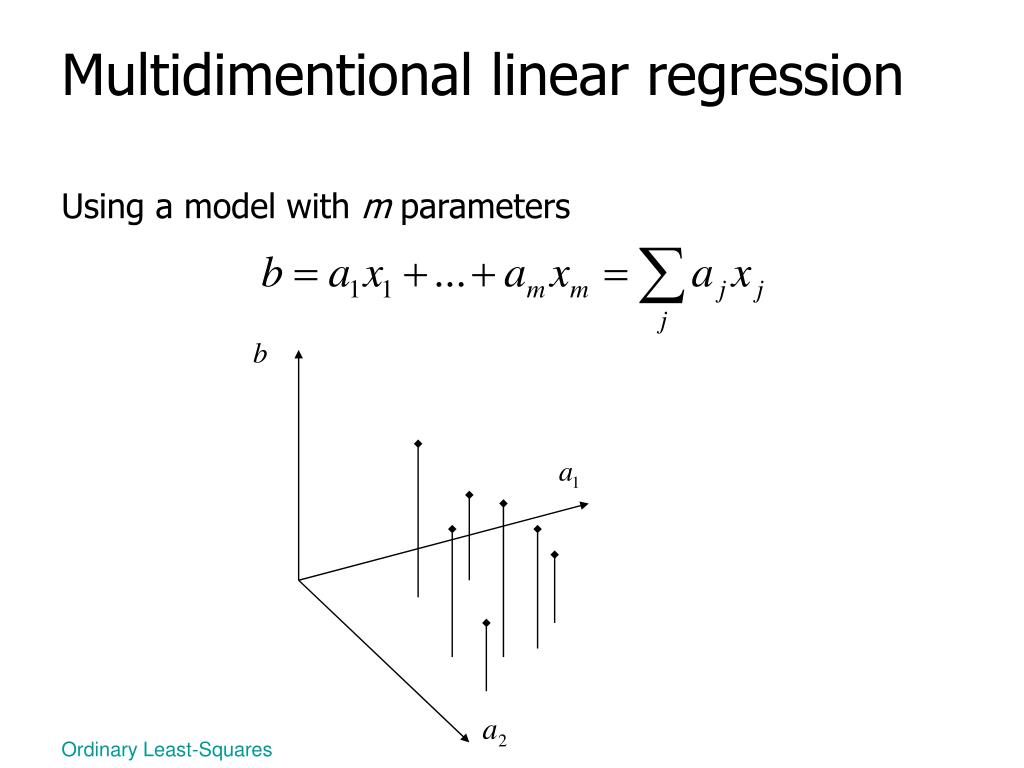

  12. Multidimentional linear regression Using a model with m parameters Ordinary Least-Squares

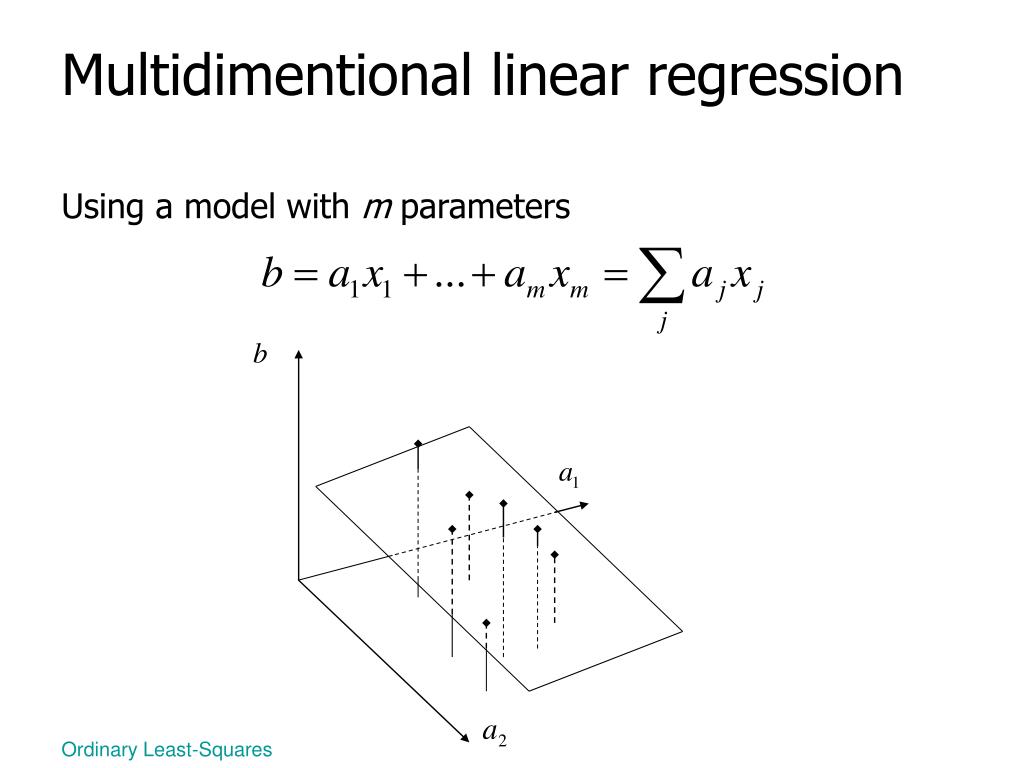

  13. Multidimentional linear regression Using a model with m parameters Ordinary Least-Squares

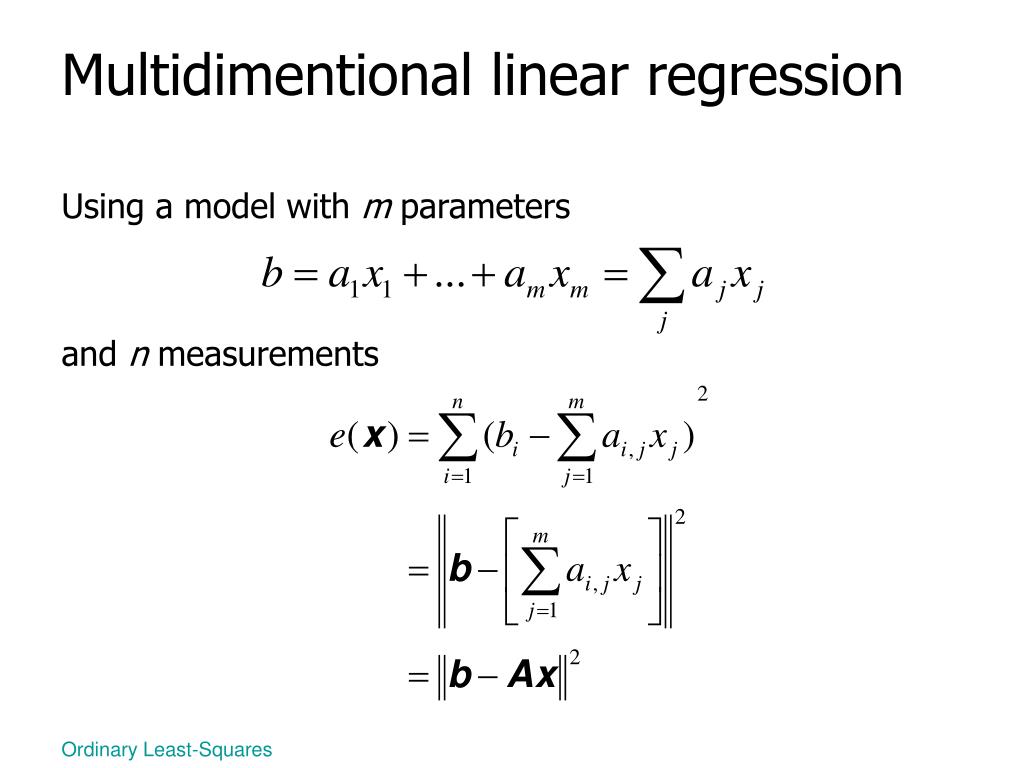

  14. Multidimentional linear regression Using a model with m parameters and n measurements Ordinary Least-Squares

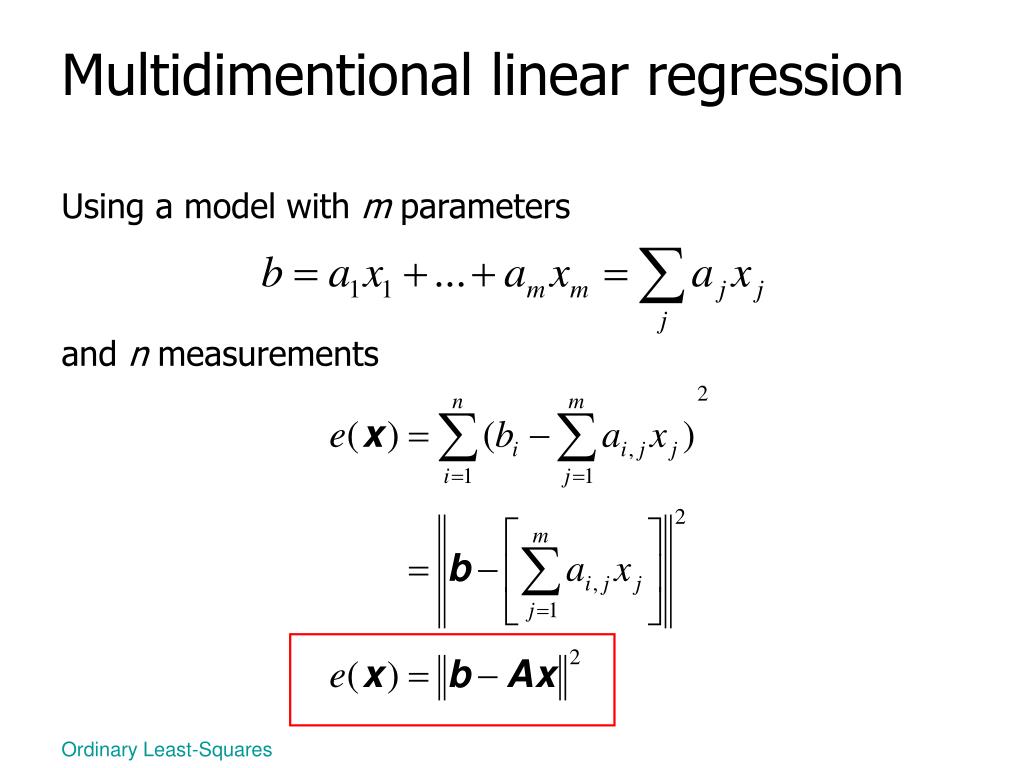

  15. Multidimentional linear regression Using a model with m parameters and n measurements Ordinary Least-Squares

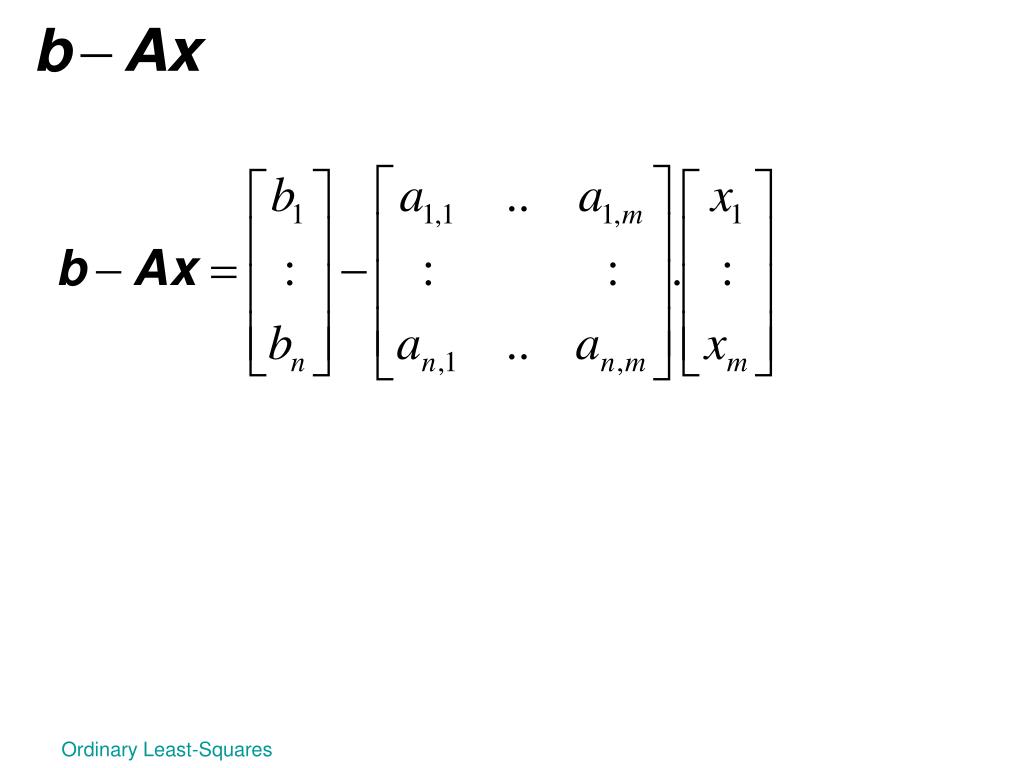

  16. Ordinary Least-Squares

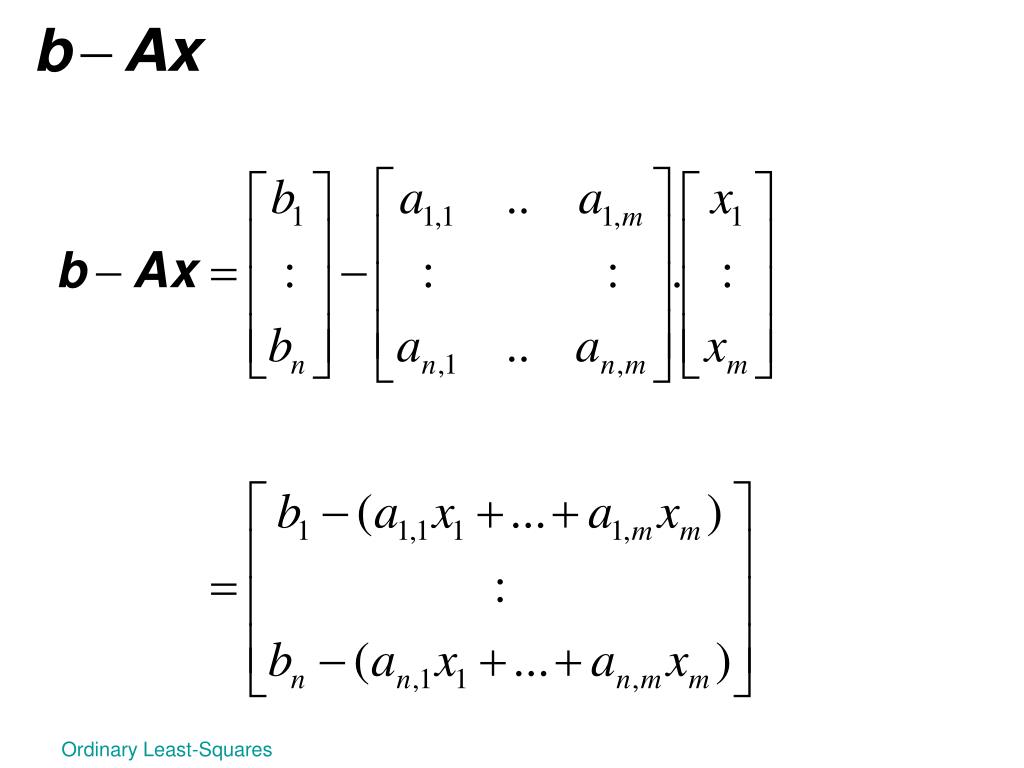

  17. Ordinary Least-Squares

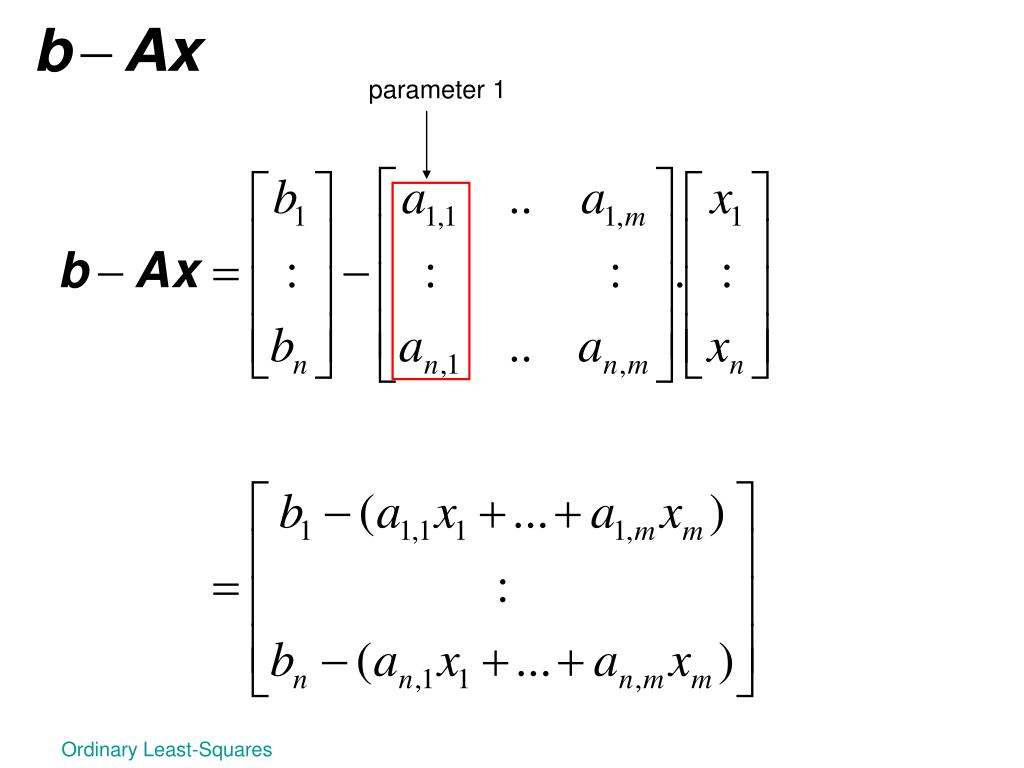

  18. parameter 1 Ordinary Least-Squares

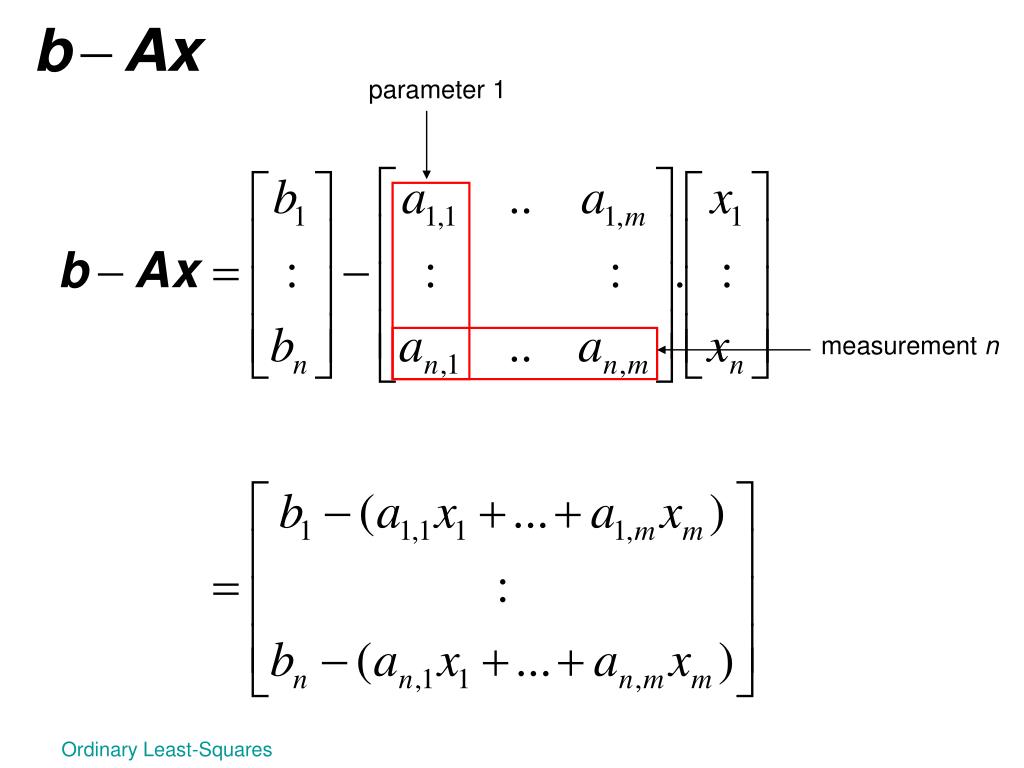

  19. parameter 1 measurement n Ordinary Least-Squares

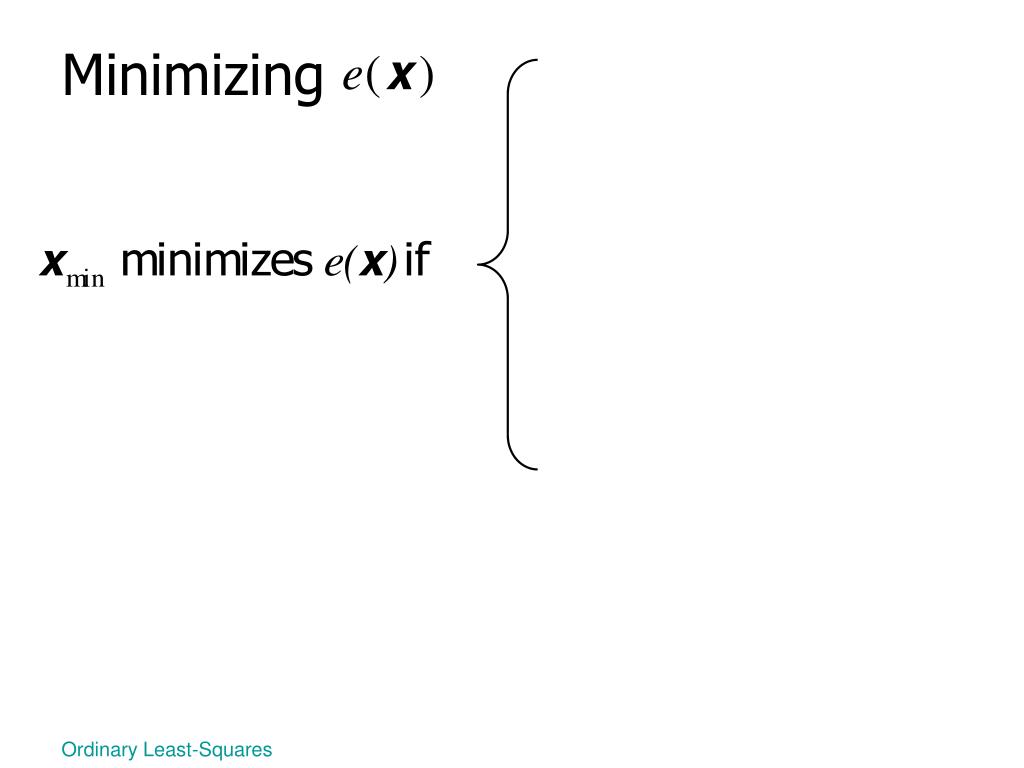

  20. Minimizing Ordinary Least-Squares

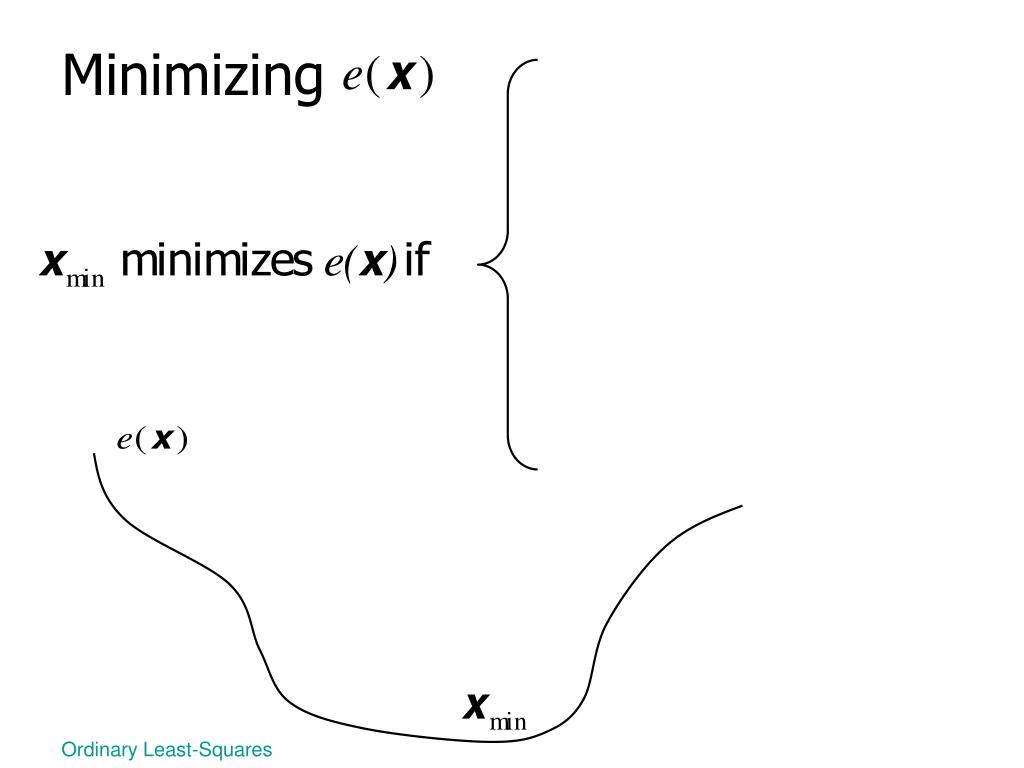

  21. Minimizing Ordinary Least-Squares

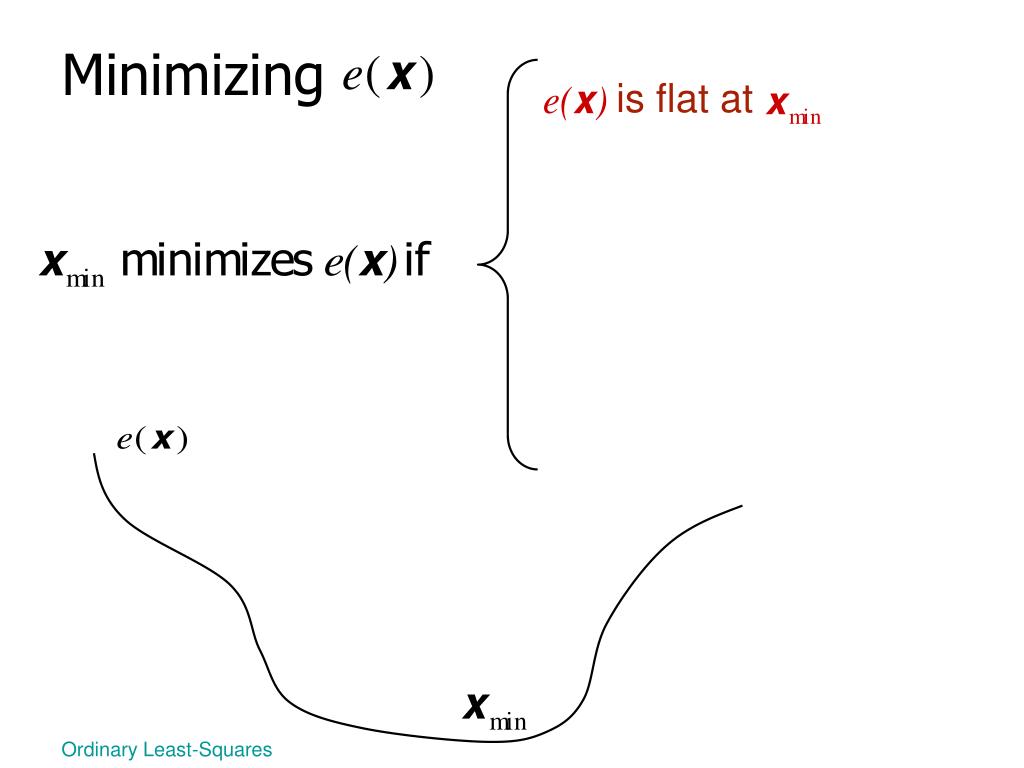

  22. Minimizing is flat at Ordinary Least-Squares

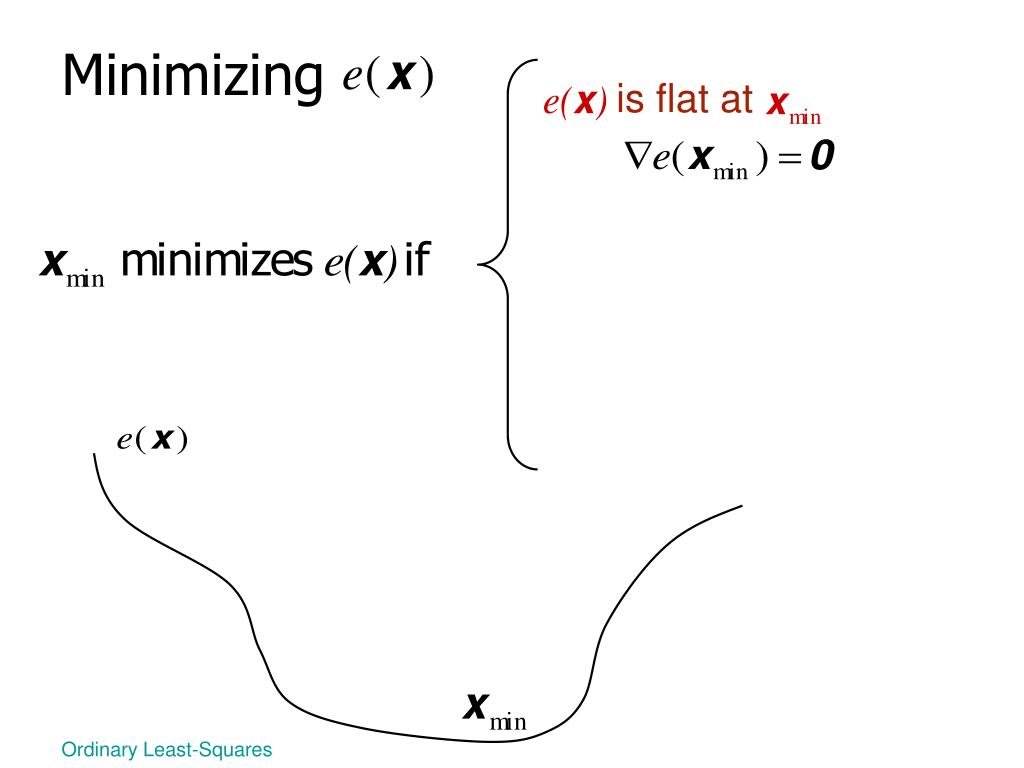

  23. Minimizing is flat at Ordinary Least-Squares

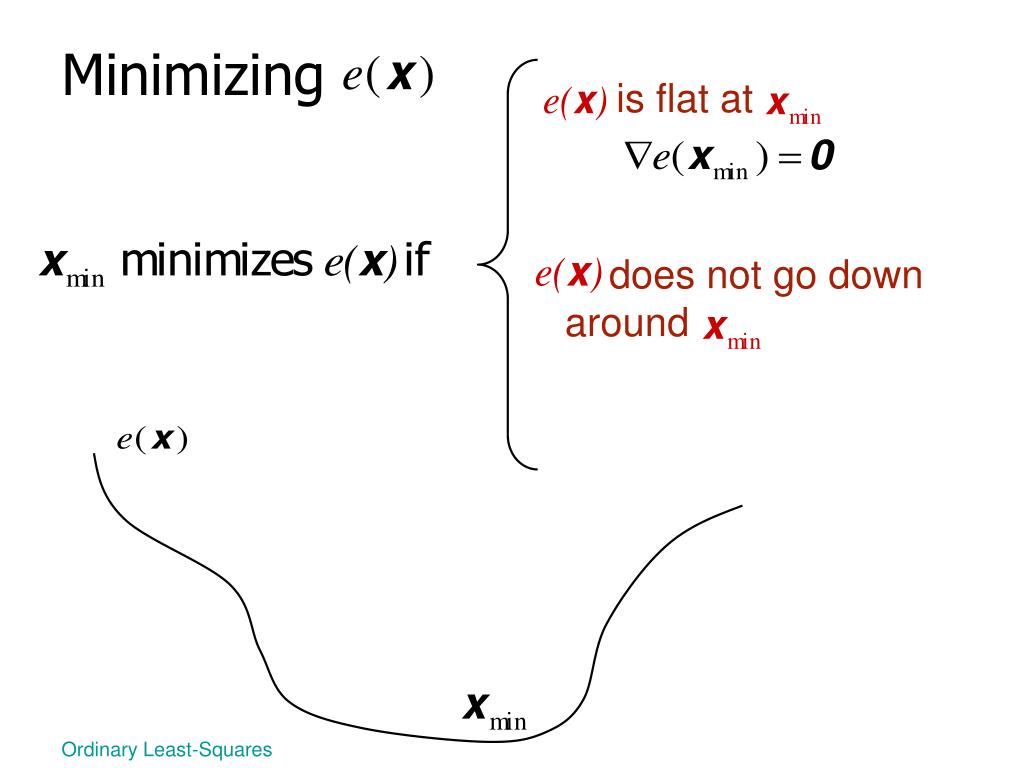

  24. Minimizing is flat at does not go down around Ordinary Least-Squares

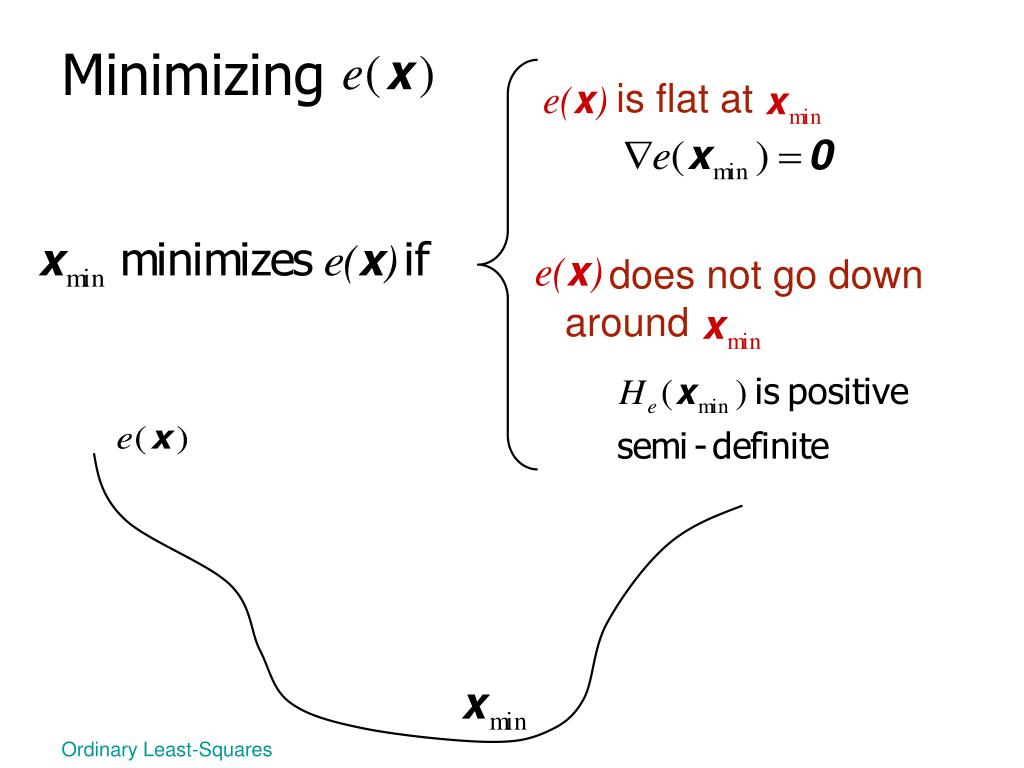

  25. Minimizing is flat at does not go down around Ordinary Least-Squares

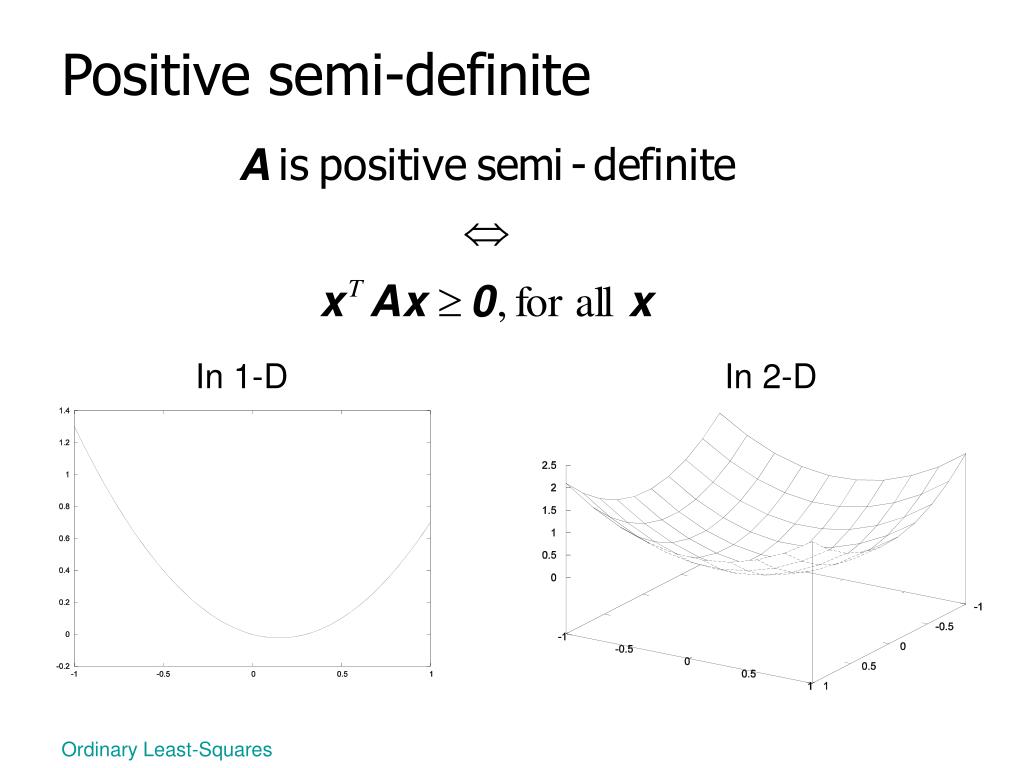

  26. Positive semi-definite In 1-D In 2-D Ordinary Least-Squares

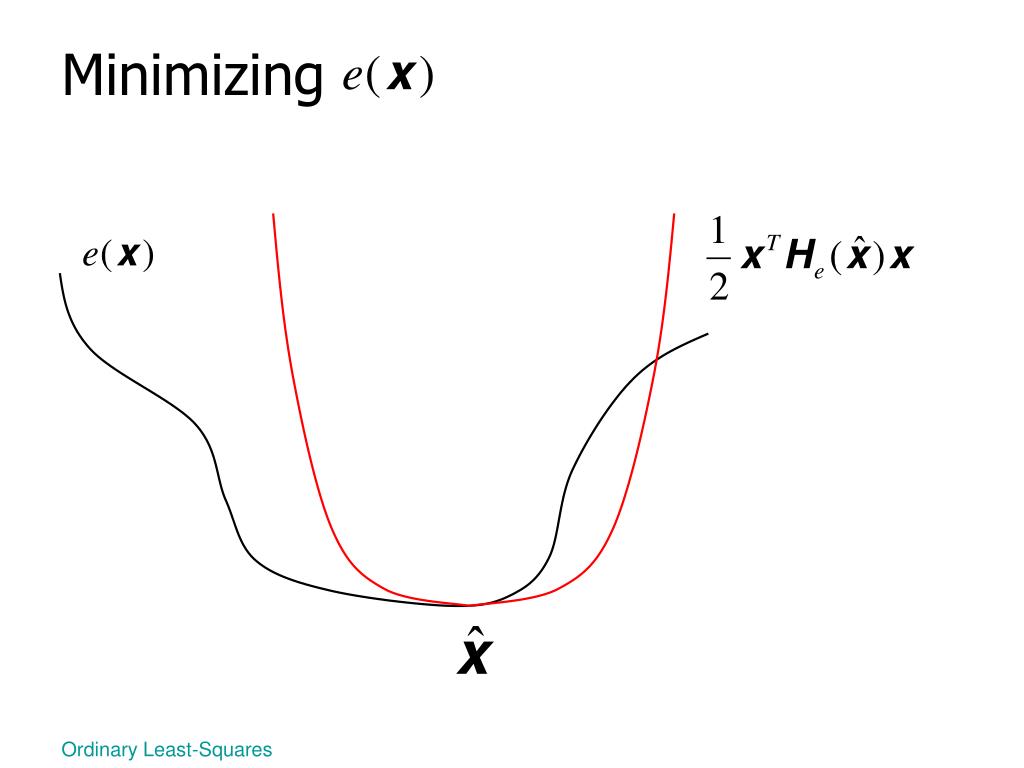

  27. Minimizing Ordinary Least-Squares

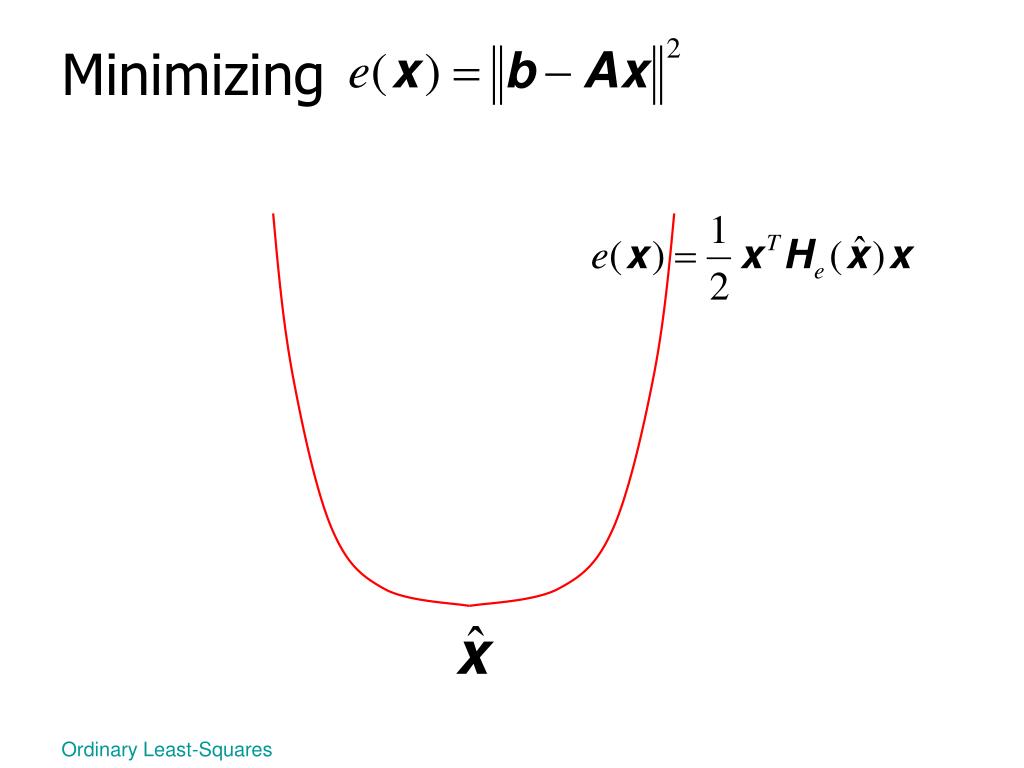

  28. Minimizing Ordinary Least-Squares

  29. Minimizing Ordinary Least-Squares

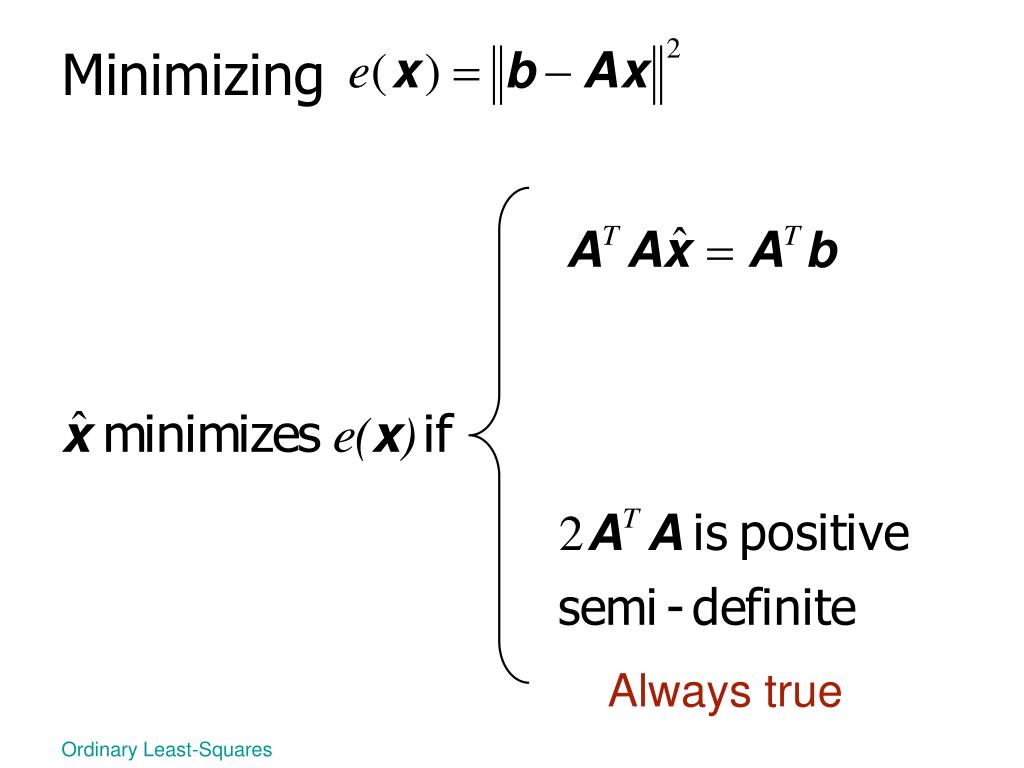

  30. Minimizing Always true Ordinary Least-Squares

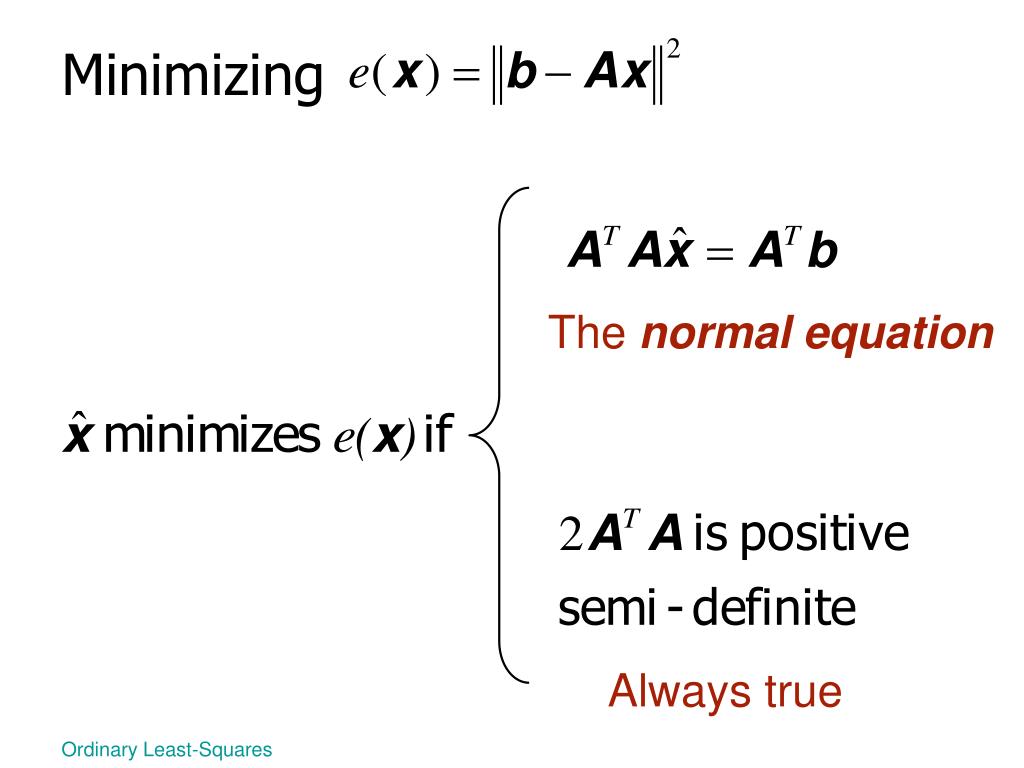

  31. Minimizing The normal equation Always true Ordinary Least-Squares

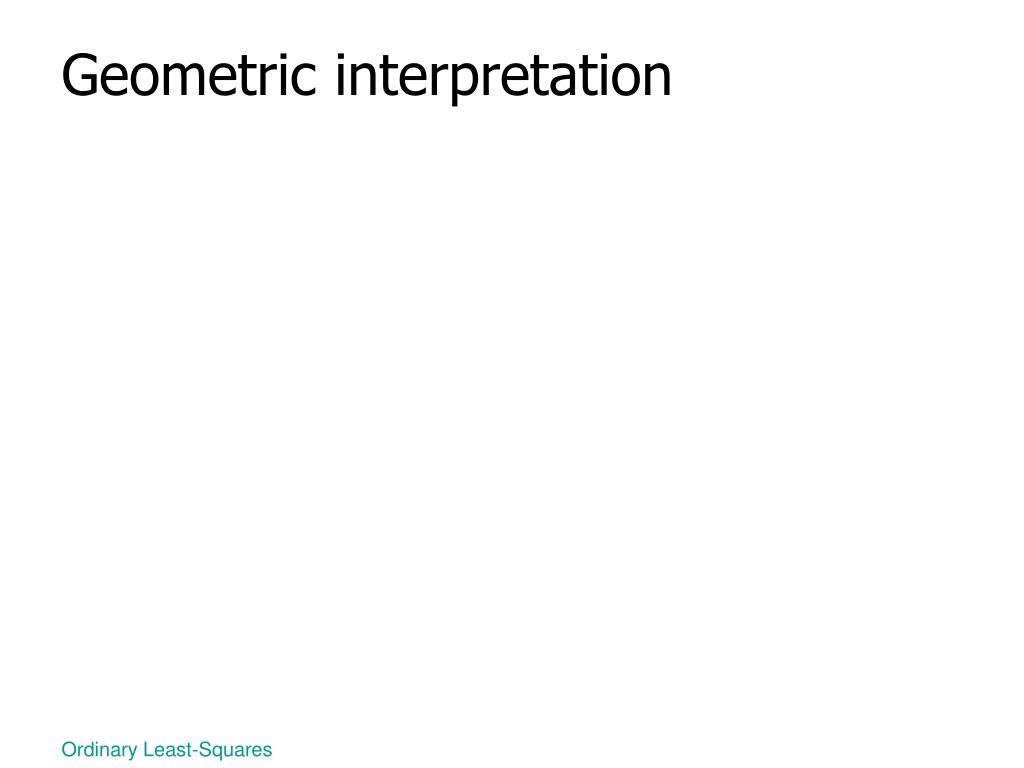

  32. Geometric interpretation Ordinary Least-Squares

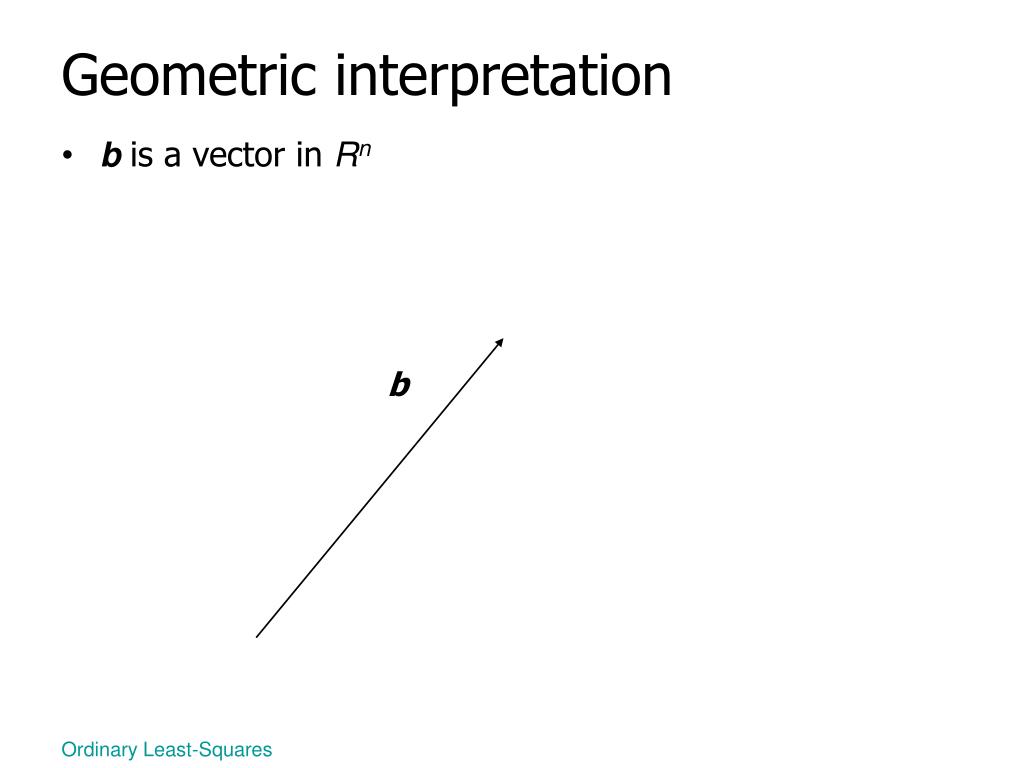

  33. Geometric interpretation • b is a vector in Rn Ordinary Least-Squares

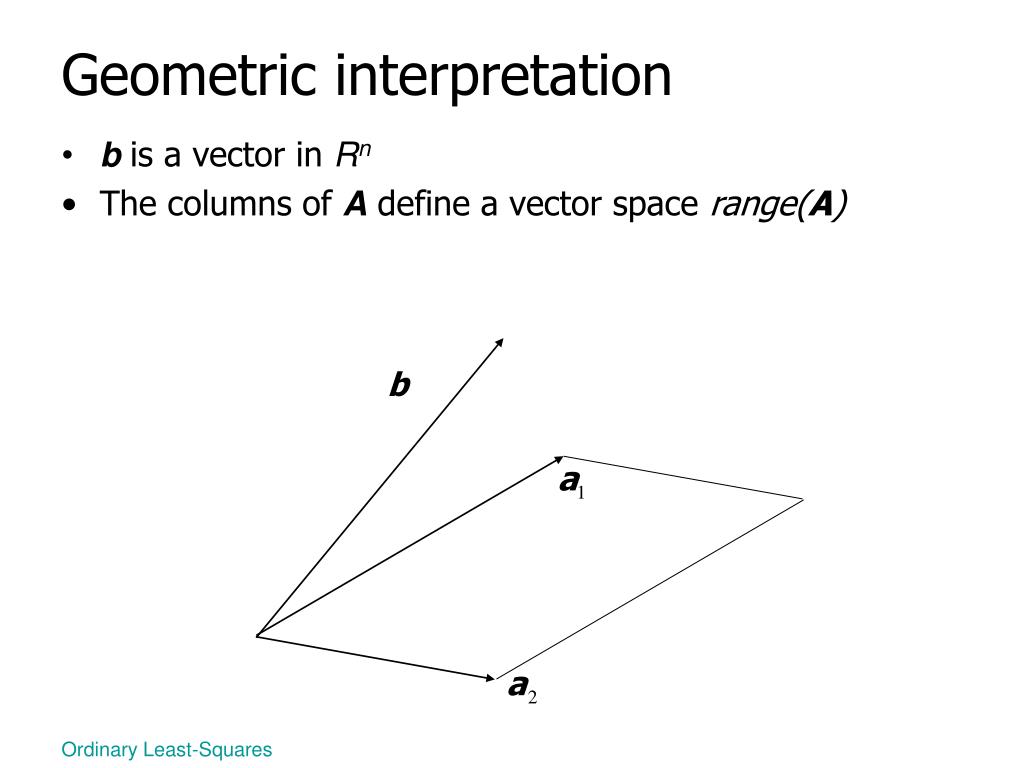

  34. Geometric interpretation • b is a vector in Rn • The columns of A define a vector space range(A) Ordinary Least-Squares

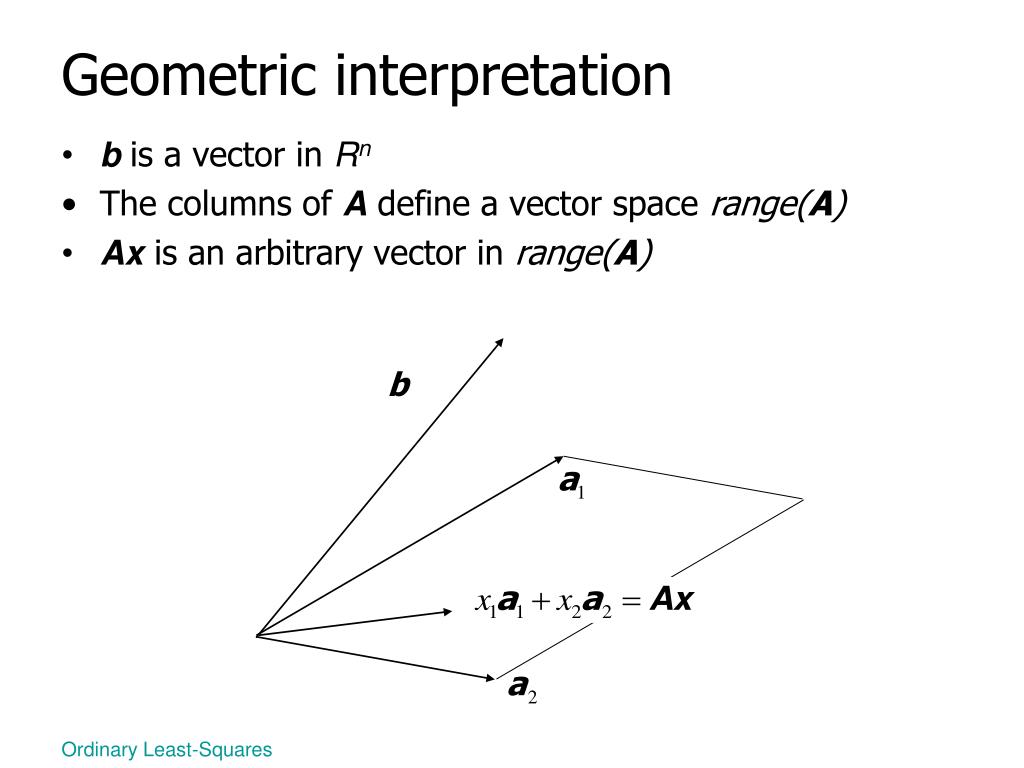

  35. Geometric interpretation • b is a vector in Rn • The columns of A define a vector space range(A) • Ax is an arbitrary vector in range(A) Ordinary Least-Squares

  36. Geometric interpretation • b is a vector in Rn • The columns of A define a vector space range(A) • Ax is an arbitrary vector in range(A) Ordinary Least-Squares

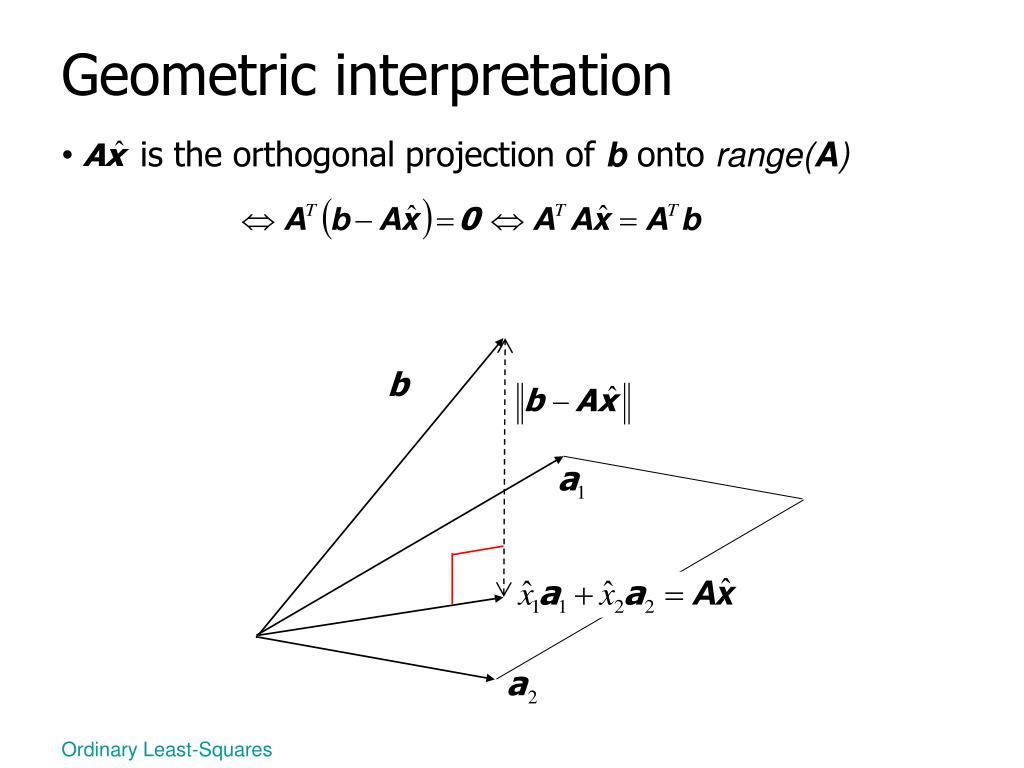

  37. Geometric interpretation • is the orthogonal projection of b onto range(A) Ordinary Least-Squares

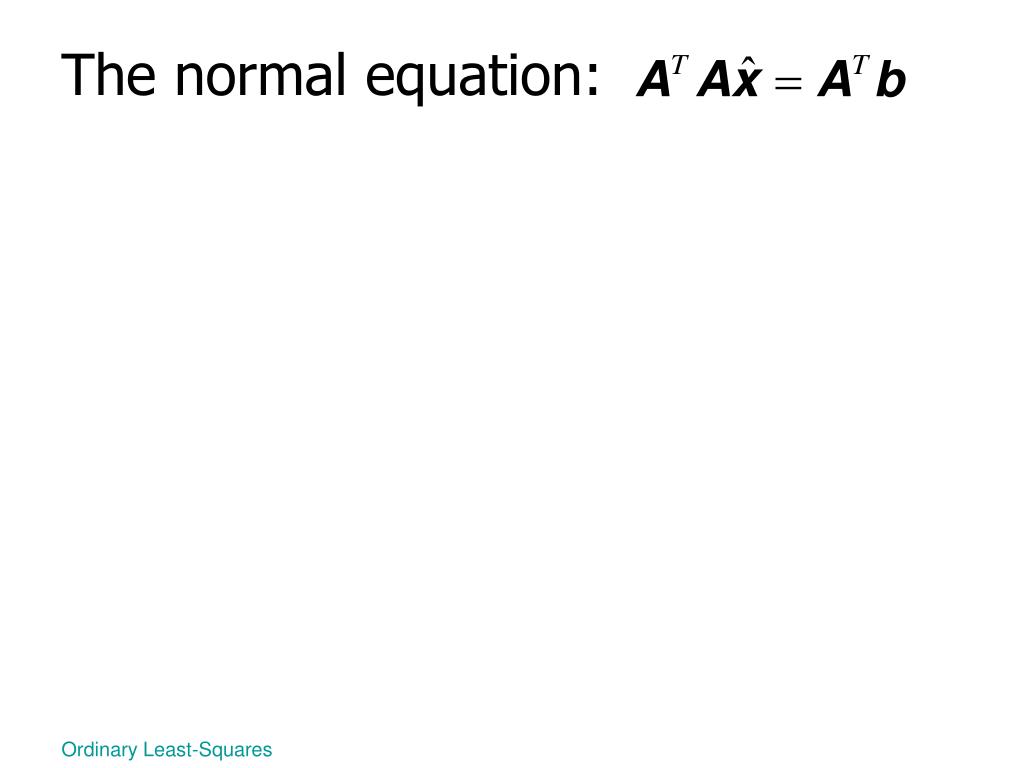

  38. The normal equation: Ordinary Least-Squares

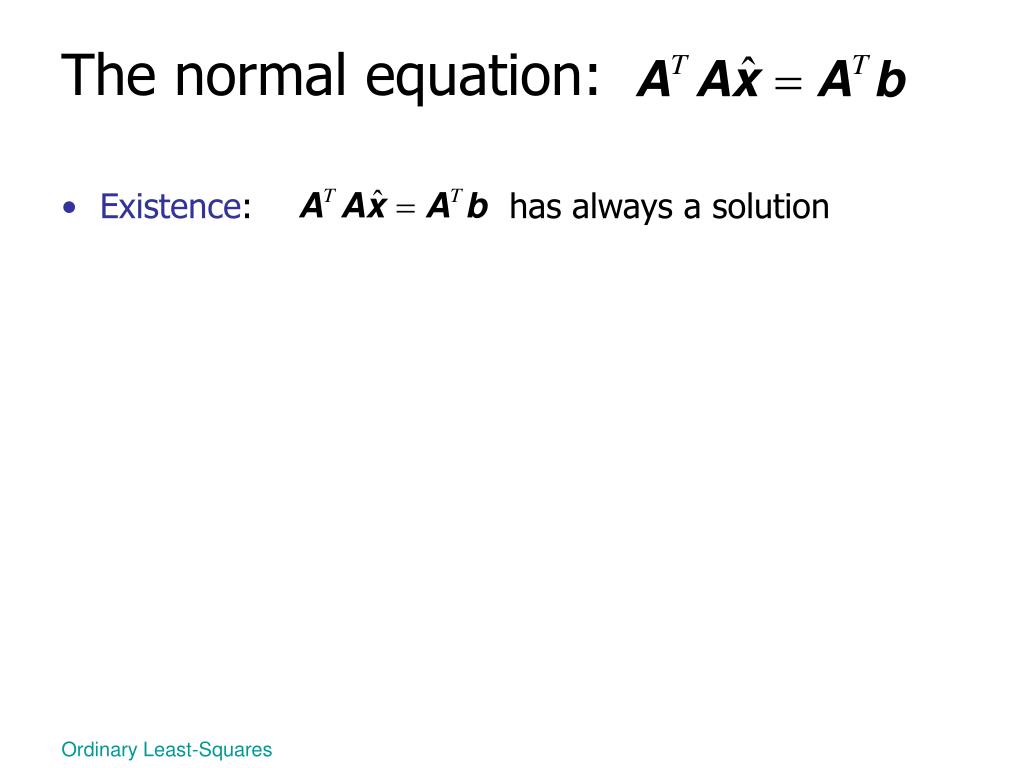

  39. The normal equation: • Existence: has always a solution Ordinary Least-Squares

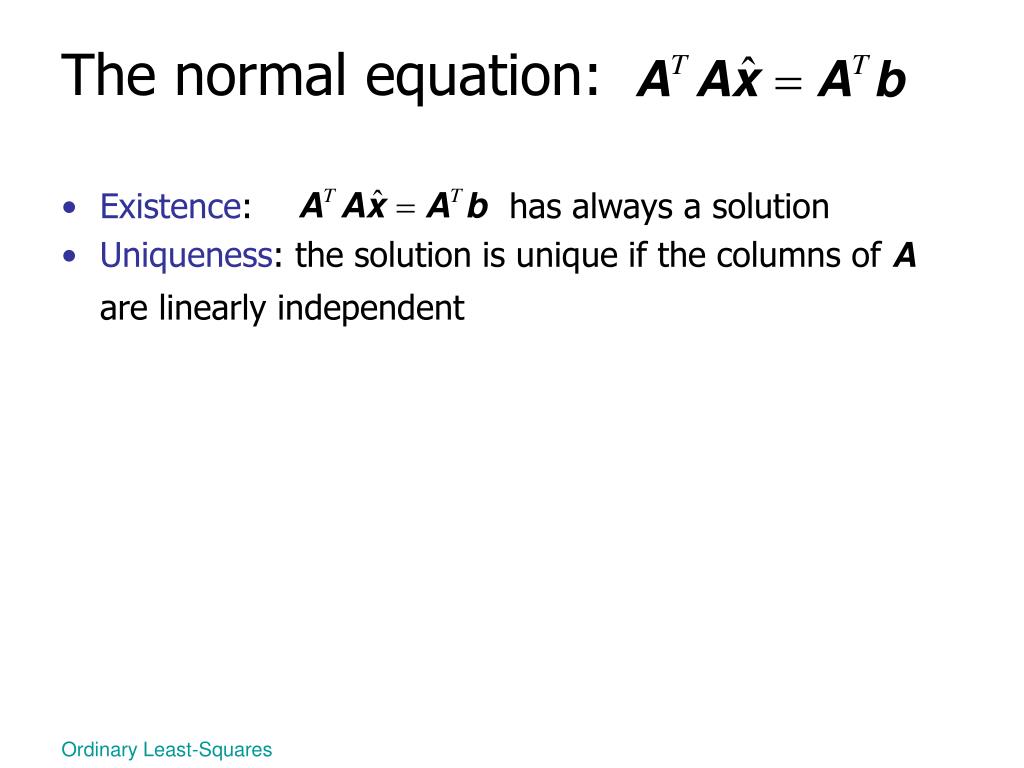

  40. The normal equation: • Existence: has always a solution • Uniqueness: the solution is unique if the columns of A are linearly independent Ordinary Least-Squares

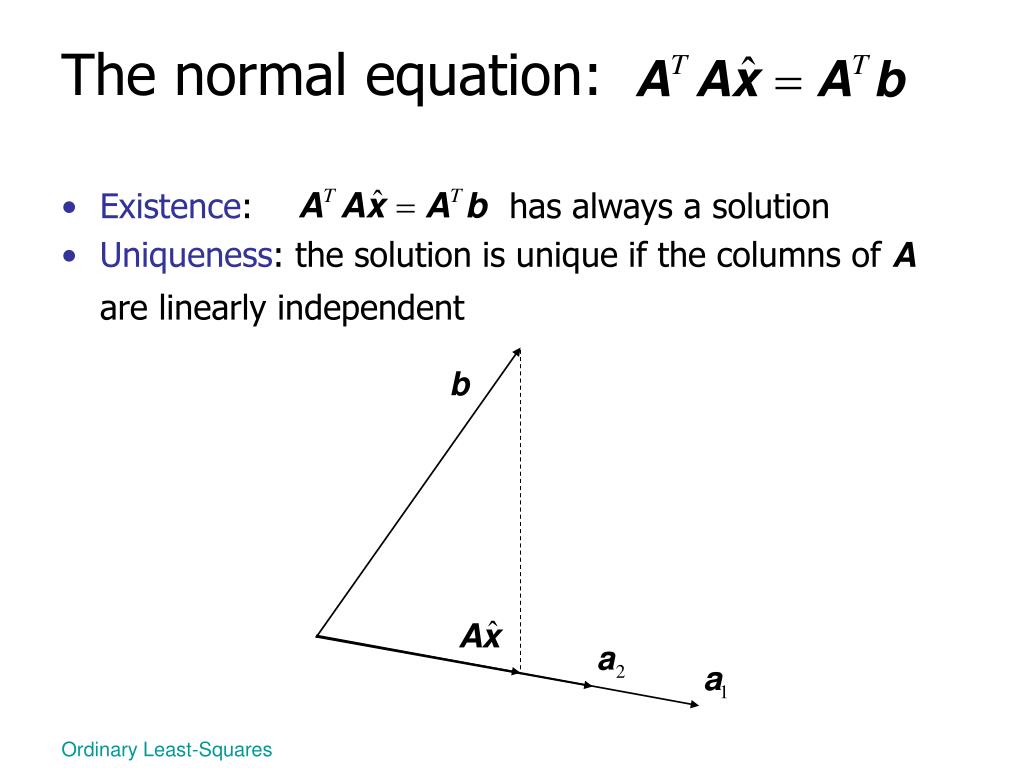

  41. The normal equation: • Existence: has always a solution • Uniqueness: the solution is unique if the columns of A are linearly independent Ordinary Least-Squares

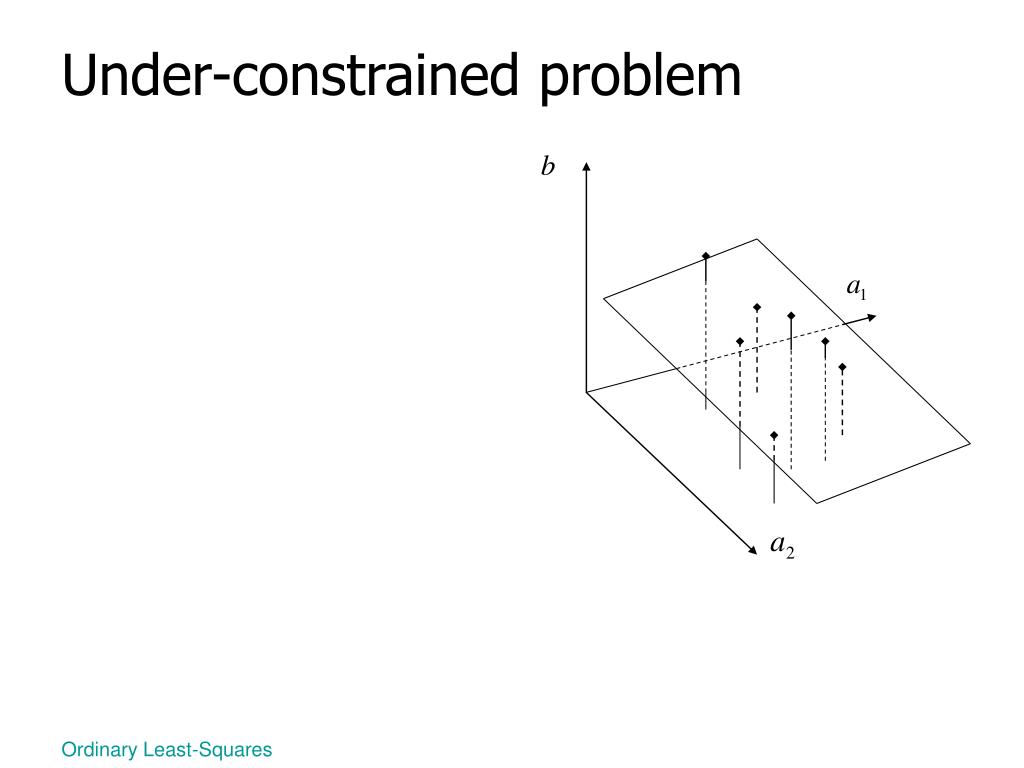

  42. Under-constrained problem Ordinary Least-Squares

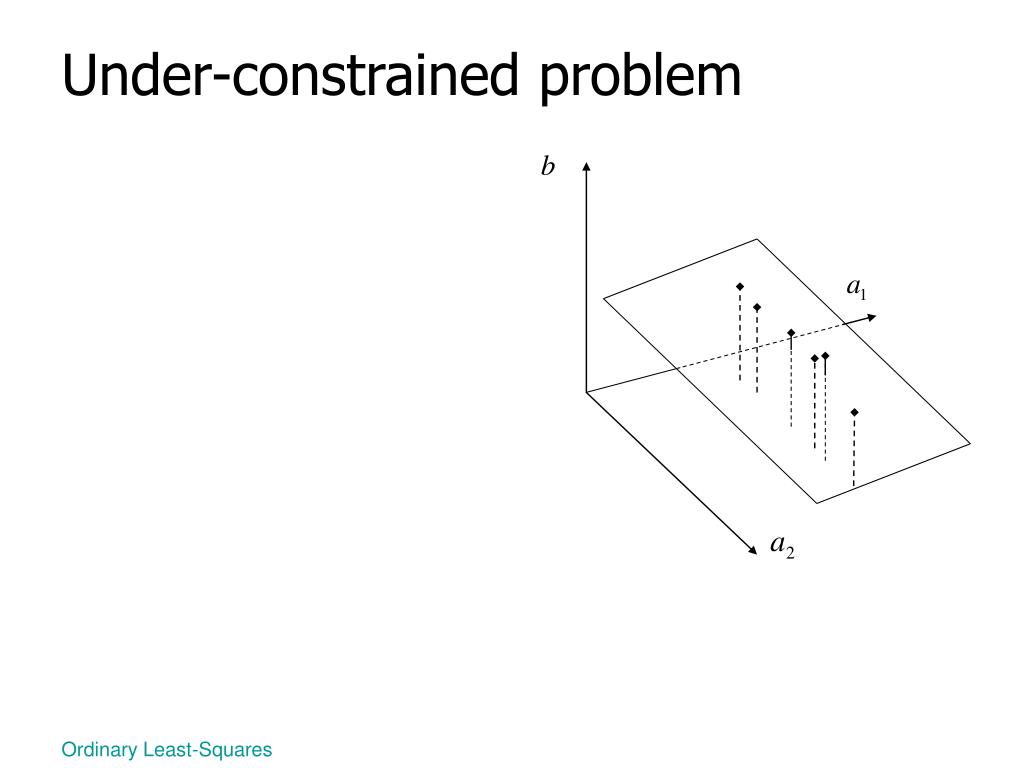

  43. Under-constrained problem Ordinary Least-Squares

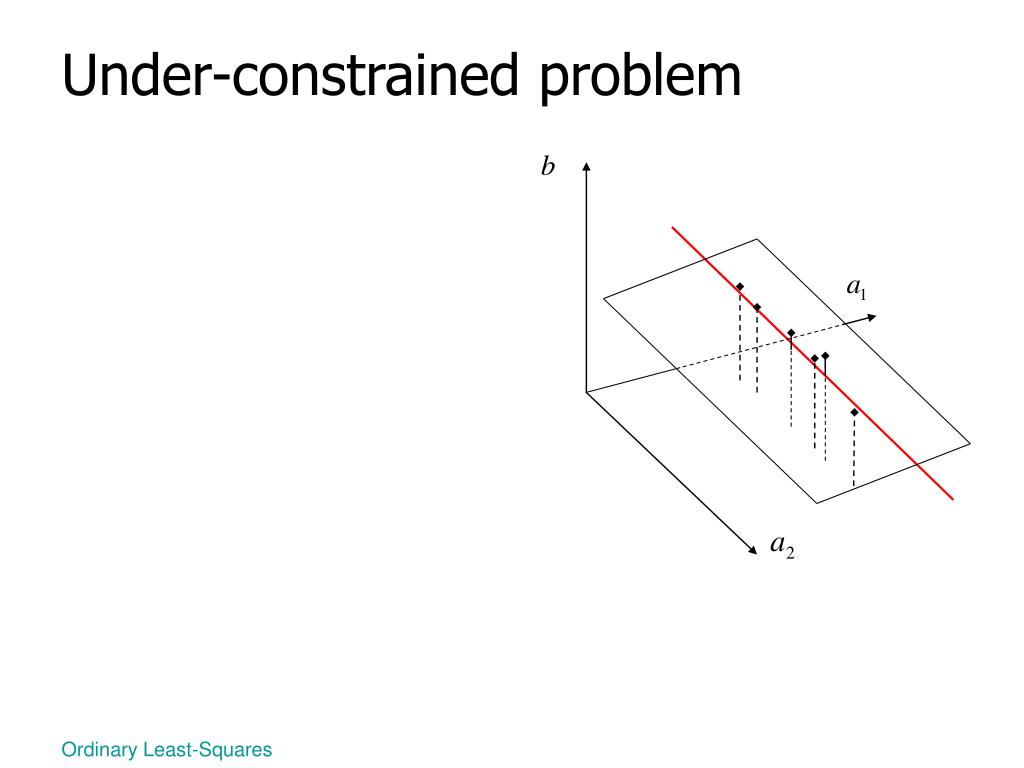

  44. Under-constrained problem Ordinary Least-Squares

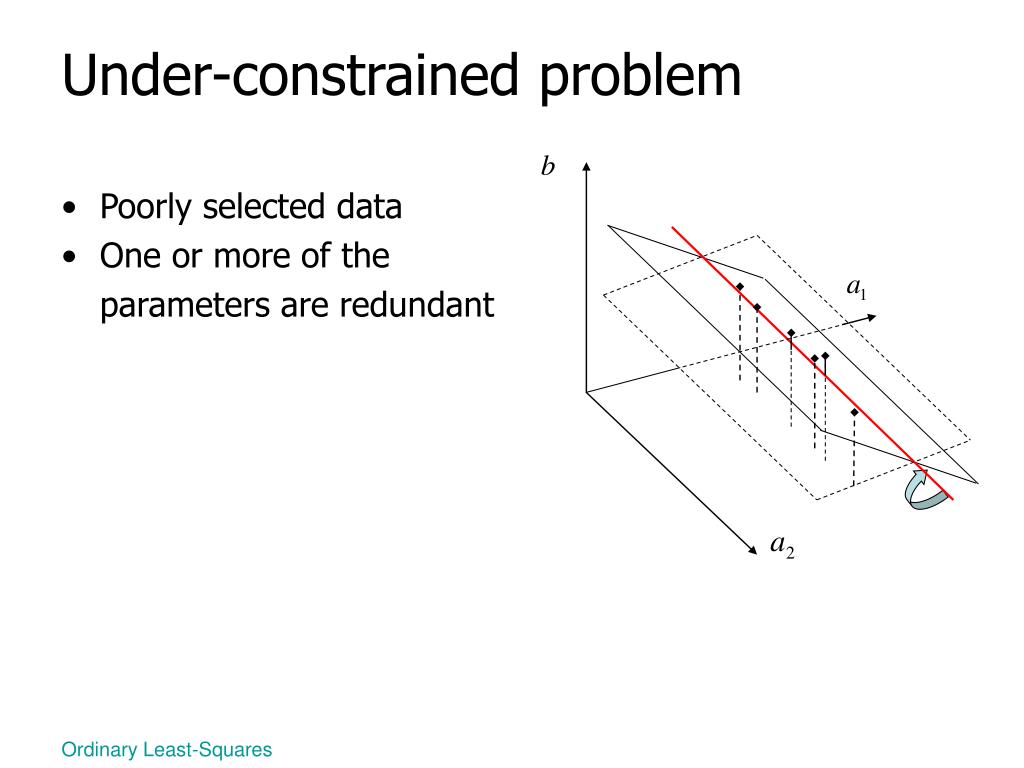

  45. Under-constrained problem • Poorly selected data • One or more of the parameters are redundant Ordinary Least-Squares

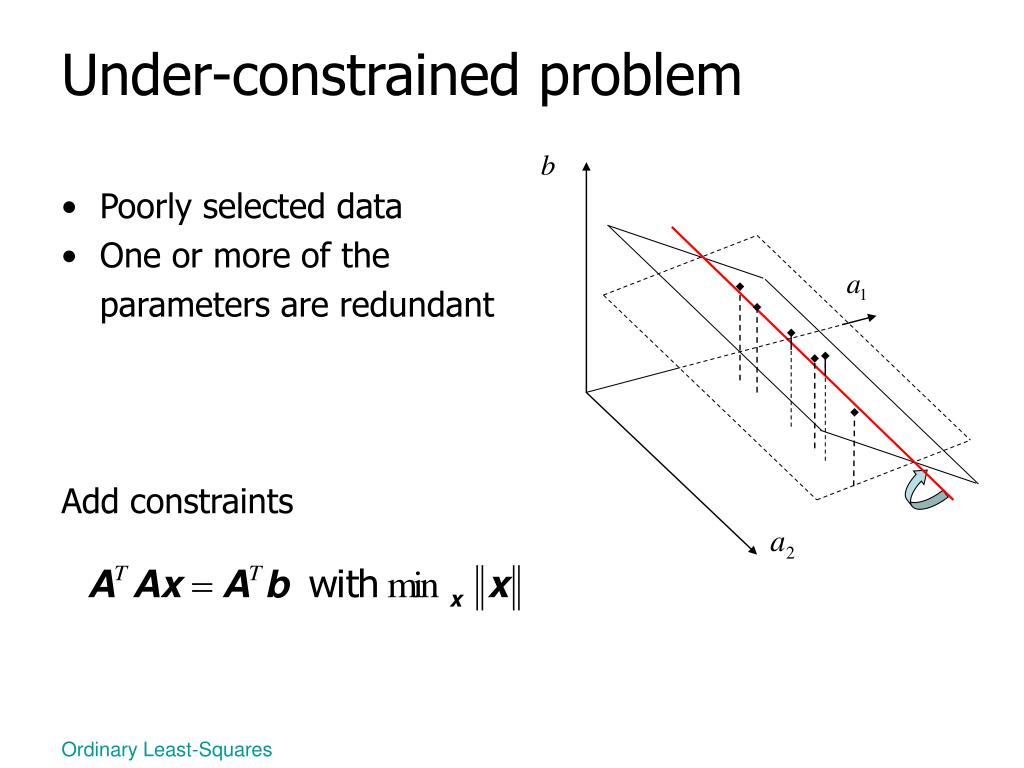

  46. Under-constrained problem • Poorly selected data • One or more of the parameters are redundant Add constraints Ordinary Least-Squares

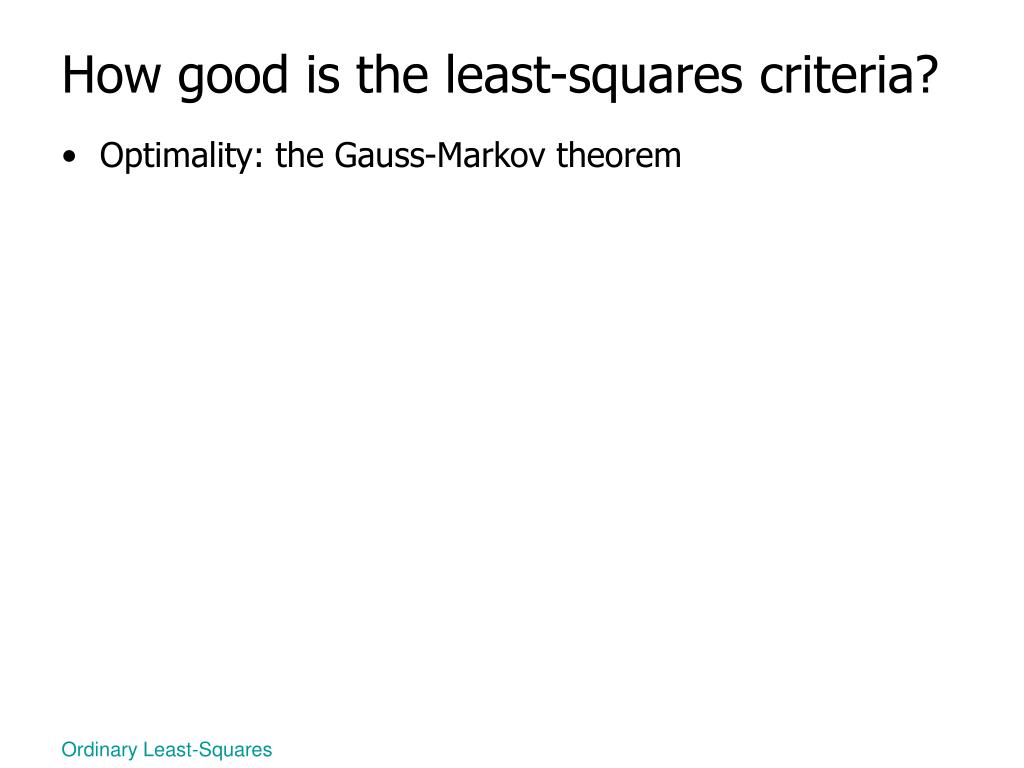

  47. How good is the least-squares criteria? • Optimality: the Gauss-Markov theorem Ordinary Least-Squares

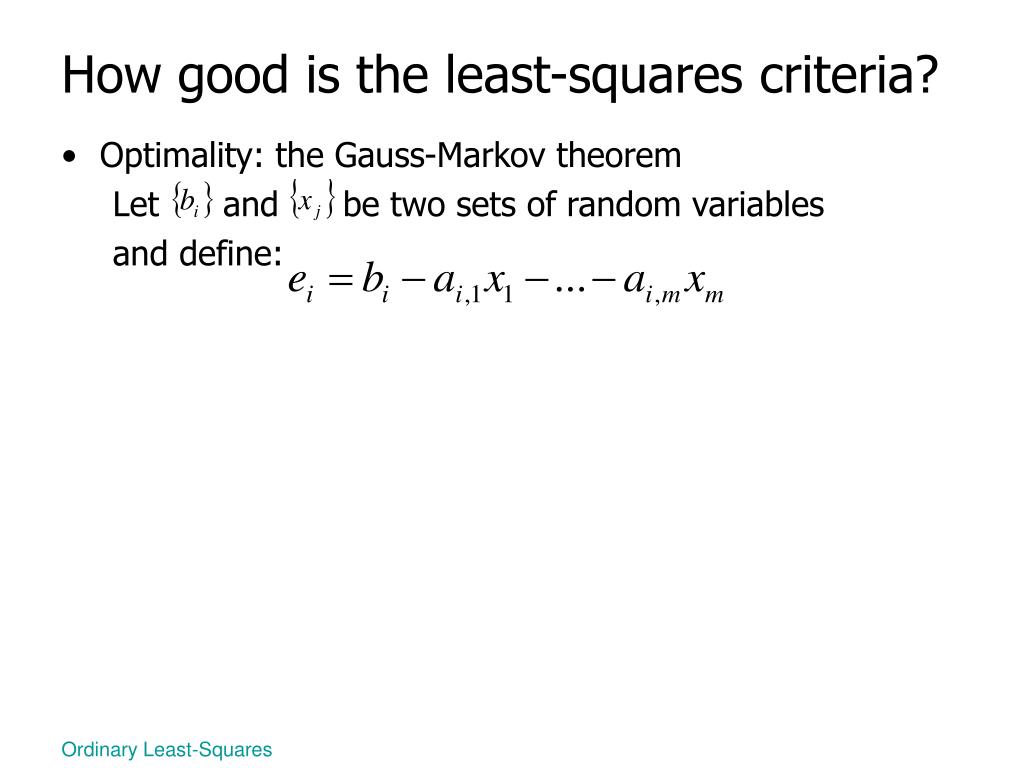

  48. How good is the least-squares criteria? • Optimality: the Gauss-Markov theorem Let and be two sets of random variables and define: Ordinary Least-Squares

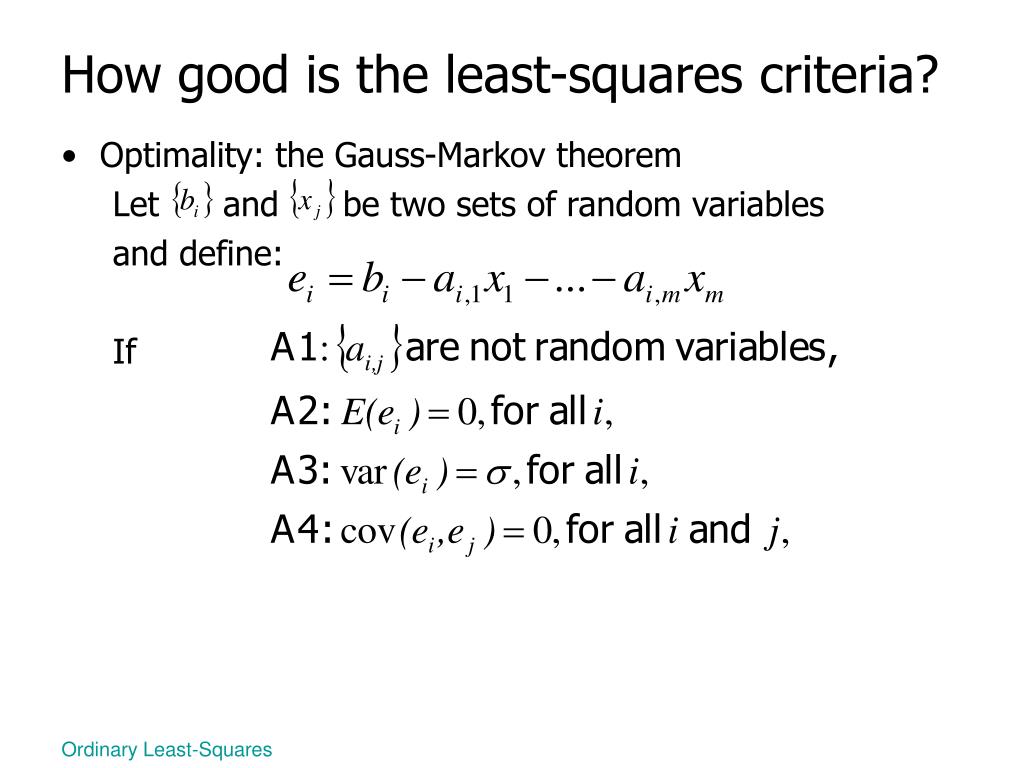

  49. How good is the least-squares criteria? • Optimality: the Gauss-Markov theorem Let and be two sets of random variables and define: If Ordinary Least-Squares

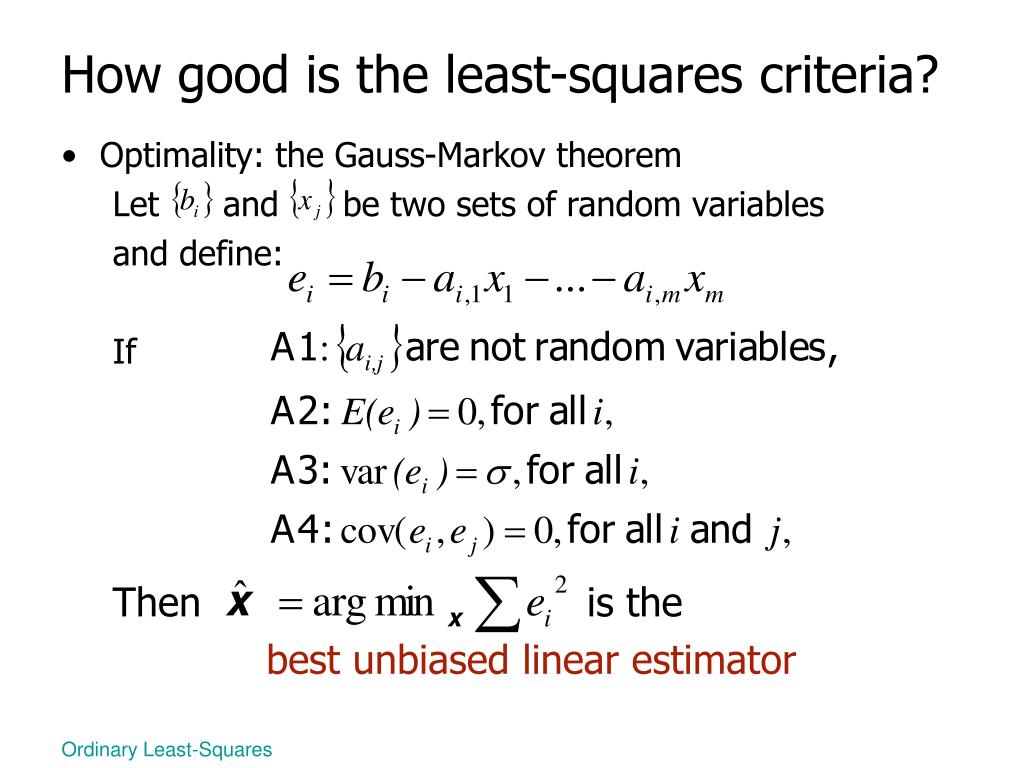

  50. How good is the least-squares criteria? • Optimality: the Gauss-Markov theorem Let and be two sets of random variables and define: If Then is the best unbiased linear estimator Ordinary Least-Squares
