Travel Demand ModelingSoftware Evaluation

By

Jimmy X. Chen, Ph.D, AICP

City of Irvine

Advanced Transportation Division

Department of Public Works

Presented at the SCAG Modeling Task Force Meeting

January 24, 2007

slide2

Presentation Outline

  • Project Objectives
  • The City’s ITAM Models
  • Software Evaluation Methodology
  • Overview of Modeling Software Packages and Their Use
  • Modeling Software Transition Options and Evaluation Criteria
  • Modeling Software Comparison
  • Recommendations for Software Transition Plan
  • Future Work and Conclusions
slide3

Project Objectives

  • Have an overview of modeling software packages and their use in transportation agencies
  • Evaluate the City’s modeling environment and develop a software transition plan for the new ITAM system
  • Provide recommendations of future tasks for the implementation of the transition plan
slide4

The City’s ITAM Models

  • Traffic modeling/forecasting is an important task to identify needs for the improvement of the City’s infrastructure. It produces information needed for the development of the City’s Capital Improvement Program (CIP) and Strategic Business Plan (SBP).
  • The ITAM system is used to forecast future traffic volumes for base year, 2010, 2025, and post 2025.
  • The rapid assessment of the ITAM model suggests that the City should conduct modeling software evaluation and select a new software platform for ITAM.
slide5

Software Evaluation Methodology

  • Conduct literature review on experience and lessons learned from modeling software transitions, particularly the transition from TRANPLAN to other advanced software platform.
  • Define a list of software transition options.
  • Develop a set of criteria for software evaluation, group them into three categories (“Must have”, “Desirable”, and “Nice to have”) based on their importance to the City.
  • Compare software transition options using the criteria and select a “best” option for the City.
slide6

Software Evaluation Methodology

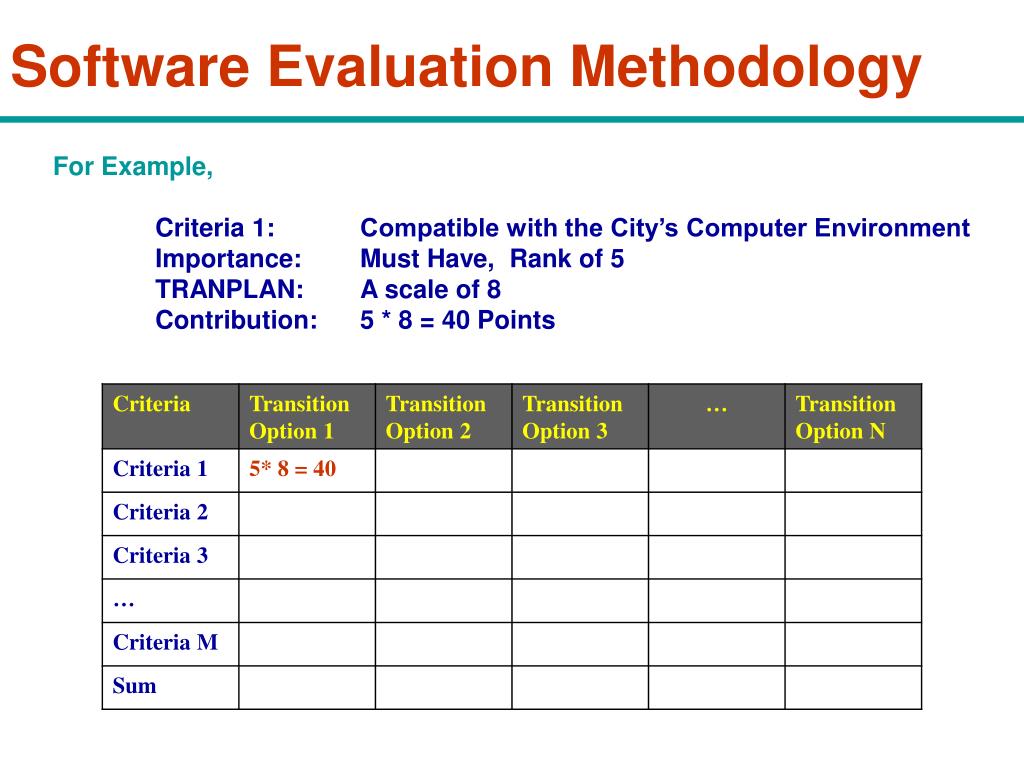

For Example,

Criteria 1: Compatible with the City’s Computer Environment

Importance: Must Have, Rank of 5

TRANPLAN: A scale of 8

Contribution: 5 * 8 = 40 Points

slide7

Transportation Modeling Overview

  • Transportation Modeling Techniques

Move away fromfour-step modeling approach and step into travel behavior-based modeling approach

Incorporate GIS technologies into transportation modeling software to forecast traffic conditions on the actual shape of transportation networks.

  • Transportation Modeling Software Packages

UTPS -> TRANPLAN, EMME2, TRIPS -> TransCAD, Cube

slide8

Use of Modeling Software Packages

(Source: The Urban Transportation Monitor, 2001)

Note: 10% of MPOs use both TRANPLAN and TP+/Viper

slide9

Modeling Software Transition Experience

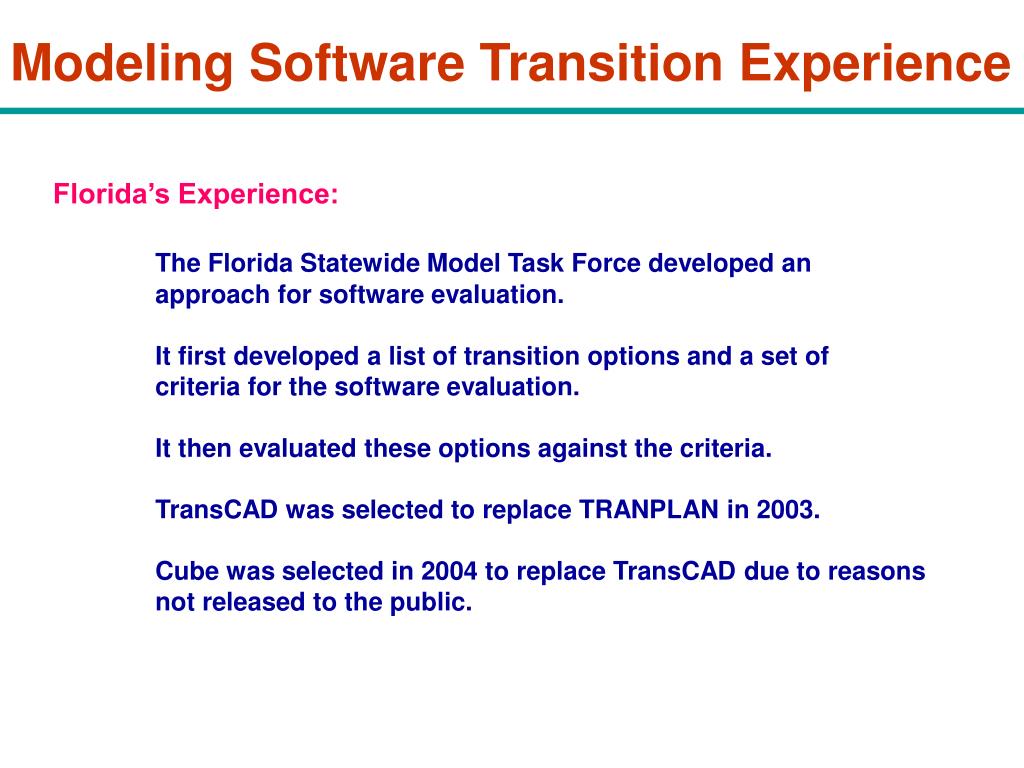

Florida’s Experience:

The Florida Statewide Model Task Force developed an

approach for software evaluation.

It first developed a list of transition options and a set of criteria for the software evaluation.

It then evaluated these options against the criteria.

TransCAD was selected to replace TRANPLAN in 2003.

Cube was selected in 2004 to replace TransCAD due to reasons not released to the public.

slide10

Modeling Software Transition Experience

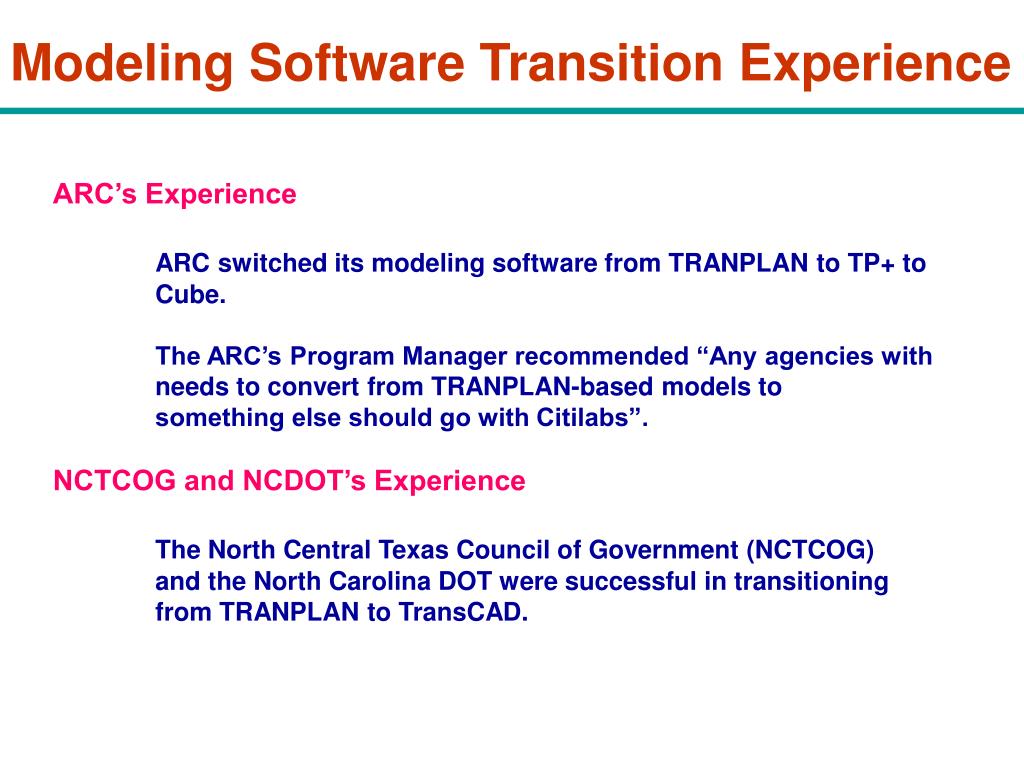

ARC’s Experience

ARC switched its modeling software from TRANPLAN to TP+ to Cube.

The ARC’s Program Manager recommended “Any agencies with needs to convert from TRANPLAN-based models to something else should go with Citilabs”.

NCTCOG and NCDOT’s Experience

The North Central Texas Council of Government (NCTCOG) and the North Carolina DOT were successful in transitioning from TRANPLAN to TransCAD.

slide11

Modeling Software Transition Experience

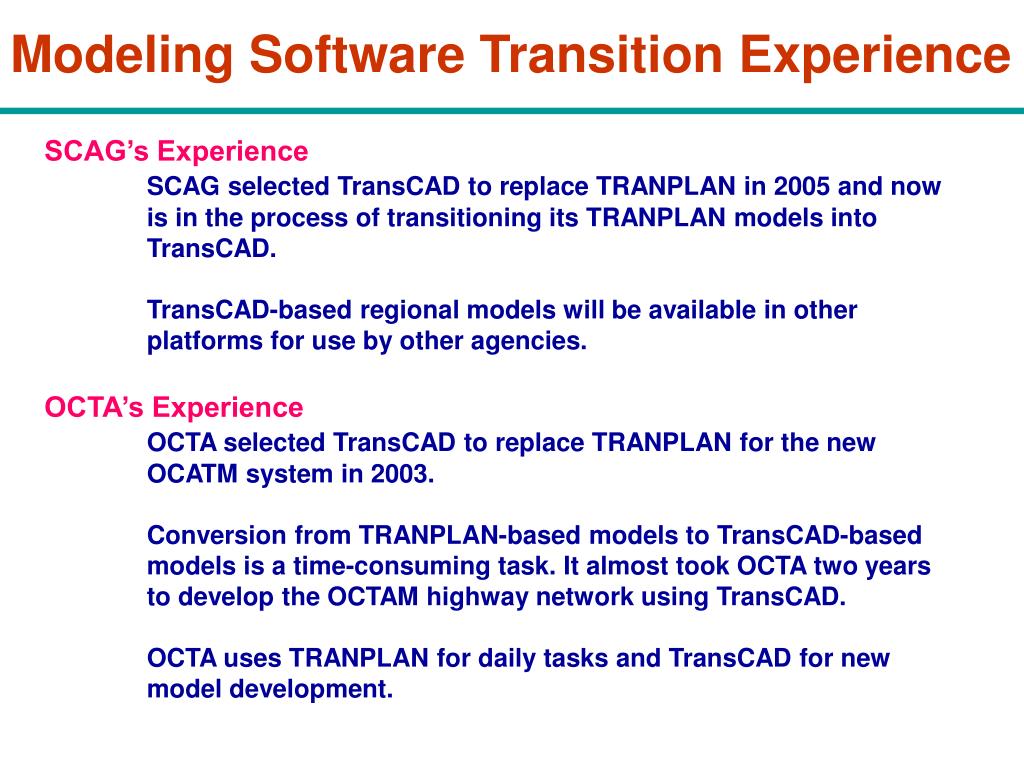

SCAG’s Experience

SCAG selected TransCAD to replace TRANPLAN in 2005 and now is in the process of transitioning its TRANPLAN models into TransCAD.

TransCAD-based regional models will be available in other platforms for use by other agencies.

OCTA’s Experience

OCTA selected TransCAD to replace TRANPLAN for the new OCATM system in 2003.

Conversion from TRANPLAN-based models to TransCAD-based models is a time-consuming task. It almost took OCTA two years to develop the OCTAM highway network using TransCAD.

OCTA uses TRANPLAN for daily tasks and TransCAD for new model development.

slide12

Modeling Software Options

Null Option Keeps the TRANPLAN-based ITAM models as they are.

Cube Option Use Cube to upgrade the existing ITAM models and develop the new ITAM system.

TransCAD Option Use TransCAD to upgrade the existing ITAM models and develop the new ITAM system.

slide14

Software Comparison

Two phases are recommended for the software transition for ITAM models:

Phase I “Wait and see” Phase

Look at the software transition within two years

The focus of this phase is to upgrade the existing TRANPLAN-based ITAM models and to meet the OCTA’s model consistency requirements.

Phase II Look at the software transition after the OCTA’s new regional model is fully completed.

The focus of this phase is to develop a new ITAM system that meets the OCTA’s consistency requirements.

slide15

Software Packages to be Evaluated

TRANPLAN 9.2 Currently used in the existing TRANPLAN-based ITAM models

Cube 4.0 Most up-to-date version

TransCAD 4.8 Available for this project

slide17

Software Evaluation for Phase I

Criteria 1: Compatible with the City’s Computer Environment

TRANPLAN: Runs under Windows XP.

One limitation:

TRANPLAN DOS 8.3

Windows XP Full Name

May cause difficult in exchanging modeling data

Scale: 8

CubeFully compatible with Windows XP

Scale: 10

TransCADFully compatible with Windows XP

Scale: 10

slide18

Software Evaluation for Phase I

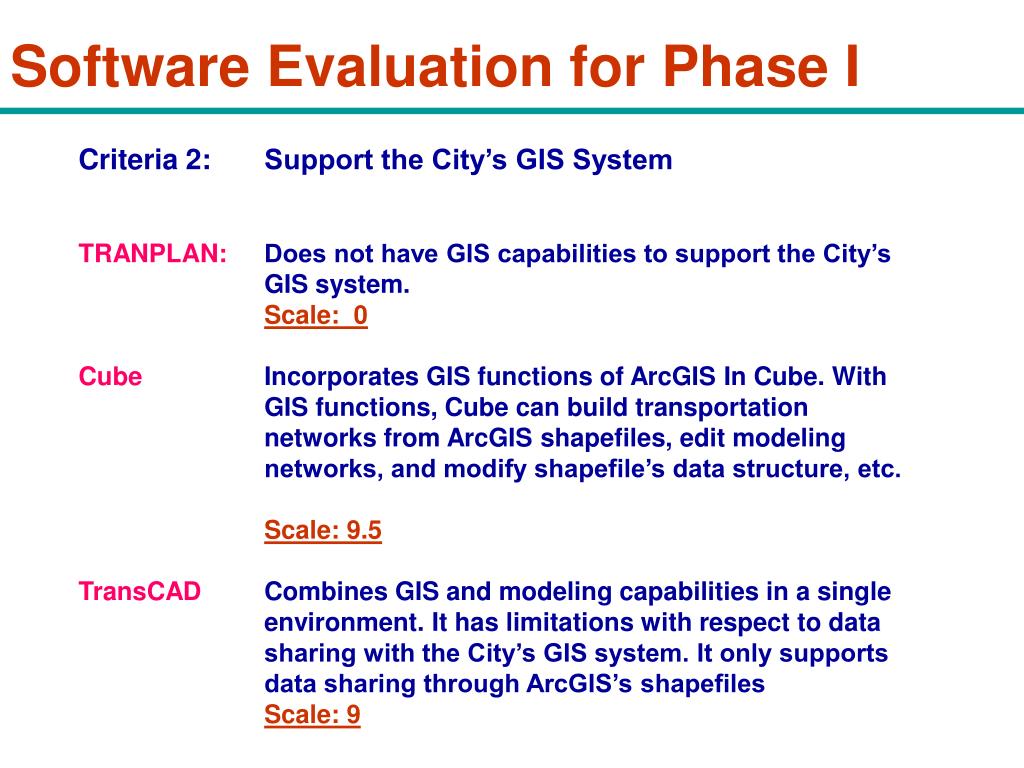

Criteria 2: Support the City’s GIS System

TRANPLAN: Does not have GIS capabilities to support the City’s GIS system.

Scale: 0

CubeIncorporates GIS functions of ArcGIS In Cube. With GIS functions, Cube can build transportation networks from ArcGIS shapefiles, edit modeling networks, and modify shapefile’s data structure, etc.

Scale: 9.5

TransCADCombines GIS and modeling capabilities in a single environment. It has limitations with respect to data sharing with the City’s GIS system. It only supports data sharing through ArcGIS’s shapefiles

Scale: 9

slide19

Software Evaluation for Phase I

Criteria 3: Support Other Business Areas in the City

TRANPLAN: Modeling results from TRANPLAN-based ITAM system cannot be geographically aligned with data used by other business areas.

Scale: 5

CubeSupports geographical overlays with data used by other business areas. However it requires conversions of TRANPLAN model data

Scale: 9

TransCADSupports geographical overlays with data used by other business areas. However it requires conversions of TRANPLAN model data

Scale: 9

slide20

Software Evaluation for Phase I

Criteria 4: Support OCTA’s Subarea Modeling Framework

TRANPLAN: The current TRANPLAN-based ITAM models are certified to meet the OCTA’s modeling consistency requirements

Scale: 10

CubeSensitivity test runs specified by OCTA may be required because Cube is different from the software packages used by OCTA.

Cube is fully compatible with TRANPLAN since both packages come from the same vendor.

Scale: 8

TransCADSame as the OCTA’s software. However conversions from the existing TRANPLAN-based ITAM models to those in TransCAD are required.

Scale: 9

slide21

Software Evaluation for Phase I

Criteria 5: Compatible with OCTA Modeling Software

TRANPLAN: Fully compatible with the OCTA modeling software

Scale: 10

CubeSensitivity test runs specified by OCTA may be required because Cube is different from the software packages used by OCTA.

Cube is fully compatible with TRANPLAN since both packages come from the same vendor.

Scale: 9

TransCADFully compatible with the OCTA’s modeling software

Scale: 9.5

slide22

Software Evaluation for Phase I

Criteria 6: Support Conversions of TRANPLAN Databases and Highway Networks into the New Platform

TRANPLAN: No conversions are needed.

Scale: 10

CubeConversions are required. They are easier since Cube and TRANPLAN come from the same vendor.

Scale: 9

TransCADModel conversions from TRANPLAN to TransCAD are required. Since TransCAD and TRANPLAN come from different vendors, the conversions might not as smooth as those from TRANPLAN to Cube.

Scale: 8

slide23

Software Evaluation for Phase I

Criteria 7: Network Editor

TRANPLAN: NIS is an old and obsolete network editor.

Cannot overlay with other geographical maps.

Cannot represent the actual shape of transportation networks.

Scale: 5

CubeRelies on ArcGIS’s GIS functions for network editing Can overlay with other geographical maps

Can represent the actual shapes of transportation networks using ArcGIS’s GIS functions.

Scale: 9

TransCADTransportation modeling tasks are performed in the GIS environment.

Can overlay with other geographical maps

Can represent the actual shapes of transportation networks

Scale: 10

slide24

Software Evaluation for Phase I

Criteria 8: Highway and Transit Path Builder

TRANPLAN: Has powerful highway and transit path builders

Scale: 10

CubeHas powerful highway and transit path builders

Scale: 10

TransCADHas powerful highway and transit path builders

Scale: 10

slide25

Software Evaluation for Phase I

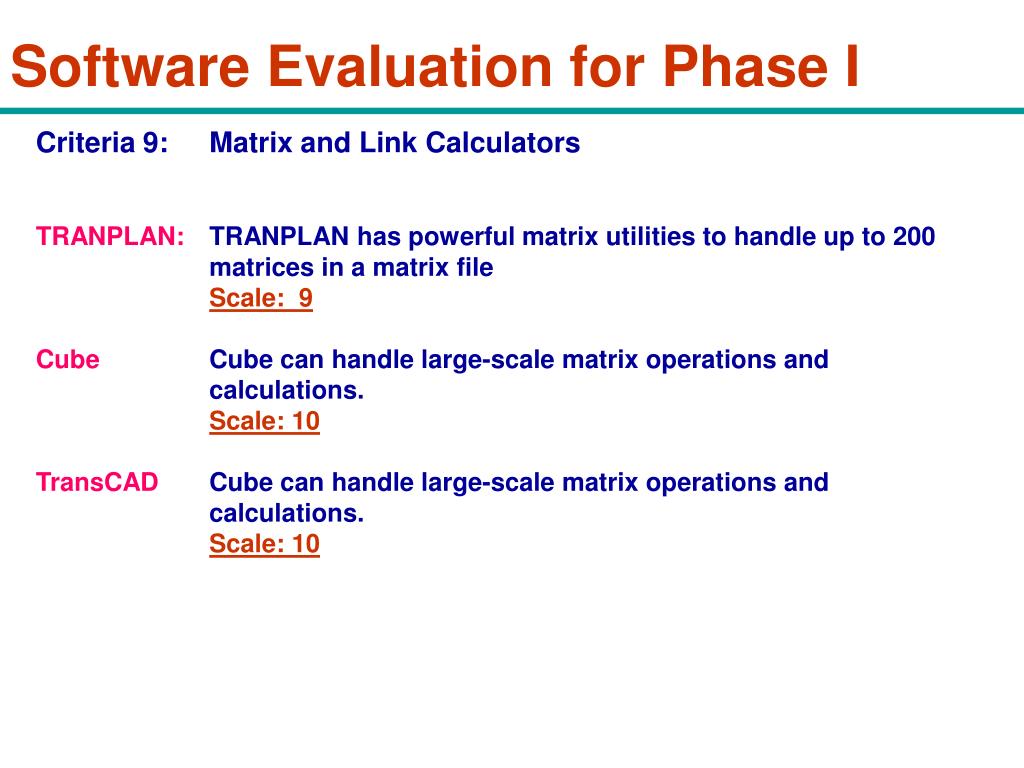

Criteria 9: Matrix and Link Calculators

TRANPLAN: TRANPLAN has powerful matrix utilities to handle up to 200 matrices in a matrix file

Scale: 9

CubeCube can handle large-scale matrix operations and calculations.

Scale: 10

TransCADCube can handle large-scale matrix operations and calculations.

Scale: 10

slide26

Software Evaluation for Phase I

Criteria 10: Easy to Use Customized Scripts

TRANPLAN: Developers need to know control file specifications for traffic models. These specifications are not easy to learn.

Scale: 8

CubeCube has a scripting language similar to that of TRANPLAN. But it has a flow-chart type wrapper to help developers develop traffic models.

With the wrapper, developers concentrate more on the logic of traffic models, not on the detail of scripting programs.

Scale: 9

TransCADTransCAD has the GIS Developer’s Kit (GISDK) to help developers create and customize transportation models. However the GISDK language is not easy to learn.

Scale: 8

slide27

Software Evaluation for Phase I

Criteria 11: Wrapper or Transportation Modeler

TRANPLAN: Does not have the transportation modeler

Scale: 0

CubeIt has a flow-chart type wrapper to help developers develop traffic models. The wrapper is powerful to create Cube applications based on predefined templates. If developers want to create an application that cannot be derived from predefined templates, extensive knowledge of scripting language in Cube is required.

Scale: 9

TransCADDoes not have the transportation modeler

Scale: 0

slide28

Software Evaluation for Phase I

Criteria 11: Wrapper or Transportation Modeler

slide29

Software Evaluation for Phase I

Criteria 12: Capital and Maintenance Costs

TRANPLAN: The City currently uses TRANPLAN for the ITAM models. No capital costs are required. Maintenance costs are small.

Scale: 10

CubeThe implementation costs required for the transition of the TRANPLAN-based ITAM models into Cube models are much higher than the purchase costs of Cube.

Capital Cost: $9000/license

Scale: 9

TransCADThe implementation costs required for the transition of the TRANPLAN-based ITAM models into TransCAD models are much higher than the purchase costs of TransCAD.

Capital Cost: $9995/copy

Scale: 8

slide30

Software Evaluation for Phase I

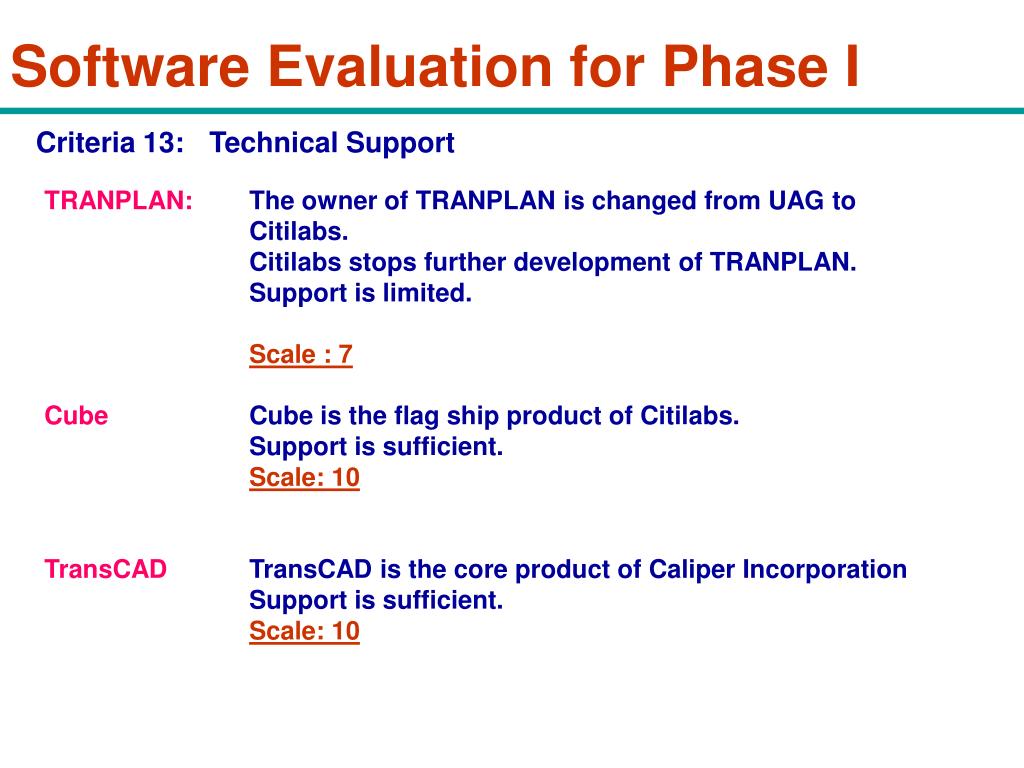

Criteria 13: Technical Support

TRANPLAN: The owner of TRANPLAN is changed from UAG to Citilabs.

Citilabs stops further development of TRANPLAN.

Support is limited.

Scale : 7

CubeCube is the flag ship product of Citilabs.

Support is sufficient.

Scale: 10

TransCADTransCAD is the core product of Caliper Incorporation

Support is sufficient.

Scale: 10

slide32

Software Evaluation for Phase II

Criteria 1: Compatible with the City’s Computer Environment

TRANPLAN: Runs under Windows XP.

One limitation:

TRANPLAN DOS 8.3

Windows XP Full Name

May cause difficult in exchanging modeling data

Scale: 8

CubeFully compatible with Windows XP

Scale: 10

TransCADFully compatible with Windows XP

Scale: 10

slide33

Software Evaluation for Phase II

Criteria 2: Support the City’s GIS System

TRANPLAN: It cannot convert TransCAD-based modeling results easily and put them into the new ITAM system.

Scale: 0

CubeAll the OCTA’s TransCAD-based modeling results need to be converted first and put them into Cube-based ITAM system.

Scale: 7

TransCADThe modeling software is same as that for the OCTA’s regional models. However modeling results need to be further processed so that they can be used in ArcGIS.

Scale: 9

slide34

Software Evaluation for Phase II

Criteria 3: Support Other Business Areas in the City

TRANPLAN: TRANPLAN does not have GIS capabilities.

Scale: 0

CubeThe OCTA’s TransCAD-based modeling results need to be translated into Cube-based ITAM system.

Scale: 8

TransCADThe OCTA’s TransCAD-based modeling results can be directly used in the new ITAM models.

Scale: 10

slide35

Software Evaluation for Phase II

Criteria 4: Support OCTA’s Subarea Modeling Framework

TRANPLAN: The support to the OCTA’s modeling framework is limited.

Scale: 5

CubeThe support to the OCTA’s modeling framework is limited.

Scale: 7

TransCADIt fully supports the OCTA’s modeling framework.

Scale: 10

slide36

Software Evaluation for Phase II

Criteria 5: Compatible with OCTA Modeling Software

TRANPLAN: The compatibility is very limited.

Scale: 2

CubeThe compatibility is limited.

Scale: 7

TransCADIt is fully compatible with the OCTA’s modeling framework.

Scale: 10

slide37

Software Evaluation for Phase II

Criteria 6: Support Conversion of TRANPLAN Databases and Highway Networks into the New Platform

The conversions of TRANPLAN databases and highway networks into the new platform is not necessary.

The scale for this criteria is 0.

slide38

Software Evaluation for Phase II

Criteria 7: Network Editor

Criteria 8: Highway and Transit Path Builders

Criteria 9: Matrix and Link Calculators

Criteria 10: Easy to Use Customized Scripts

Criteria 11: Wrapper or Transportation Modelers

Same as those for Phase I

slide39

Software Evaluation for Phase II

Criteria 12: Capital and Maintenance Costs

TRANPLAN: The City currently uses TRANPLAN for the ITAM models. Significant costs are required to convert the OCTA’s TransCAD-based model results into TRANPLAN.

Scale: 5

CubeThe costs for the development of the Cube-based ITAM models is higher than those for the TransCAD-based models.

Scale: 8

TransCADThe costs for the development of the TransCAD-based ITAM system is lower than those for the Cube-based models.

Scale: 10

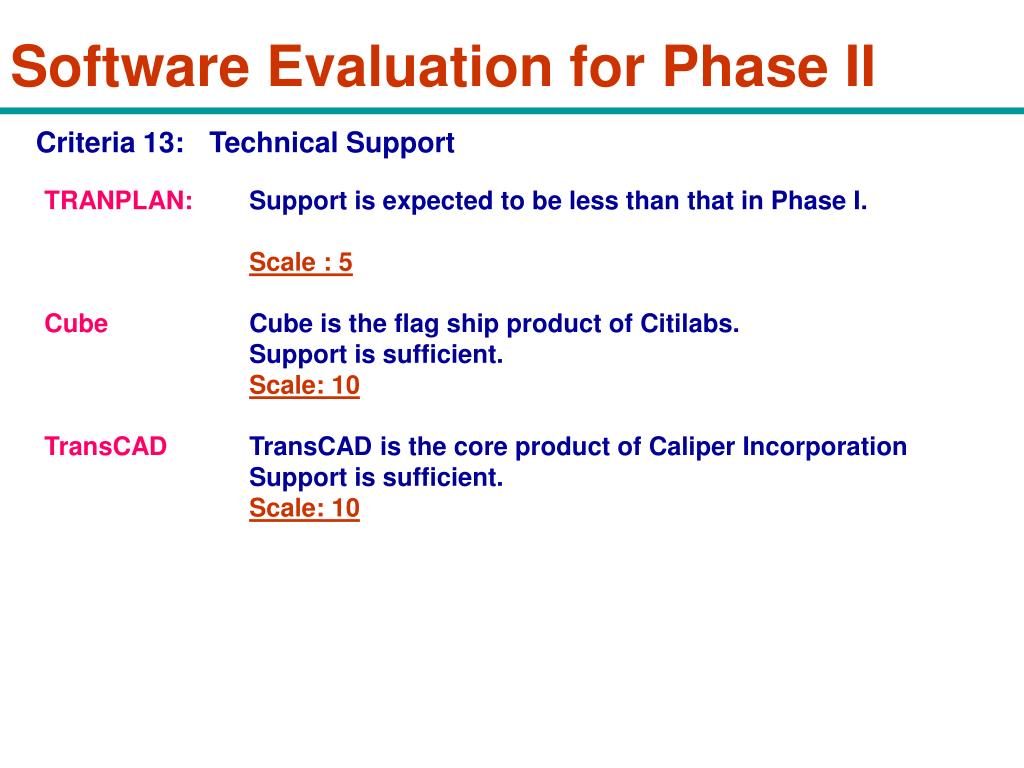

slide40

Software Evaluation for Phase II

Criteria 13: Technical Support

TRANPLAN: Support is expected to be less than that in Phase I.

Scale : 5

CubeCube is the flag ship product of Citilabs.

Support is sufficient.

Scale: 10

TransCADTransCAD is the core product of Caliper Incorporation

Support is sufficient.

Scale: 10

slide41

Recommended Transition Plan

Phase I:Cube option is preferred

The Cube option has the highest points of contributions in support of the Phase I model improvements.

The City can take advantages of the TRANPLAN-TransCAD

conversions done by the OCTA.

Phase II: TransCAD is preferred

The TransCAD option has the highest points of contributions in support of the Phase II model development.

The OCTA’s modeling results can be directly used by the

TransCAD-based new ITAM system

slide42

Future Work

For Phase I Model Improvement:

Convert existing TRANPLAN models into Cube

Improve the modeling highway network that can represent the actual shape of roadways

Improve model input databases (such as GIS-based land use databases)

Improve the post-process reporting and displaying capabilities

For Phase II Model Development:

Have quarterly or yearly meetings with OCTA to know the development status of the new OCTAM models

Evaluate TAZ boundaries, modeling networks and databases

developed for the new OCTAM models

Evaluate the OCTAM modeling results step-by-step

slide43

Conclusions

  • The ITAM system plays an important role in identifying needs for the improvements of the City’s infrastructure.
  • The rapid assessment of the existing ITAM system indicates the City should develop a new ITAM system powered by a new software package.
  • This project conducted a study on modeling software evaluation for the City.
  • This project recommends that the Cube option should be selected for Phase I model improvements and the TransCAD option for Phase II model development.
